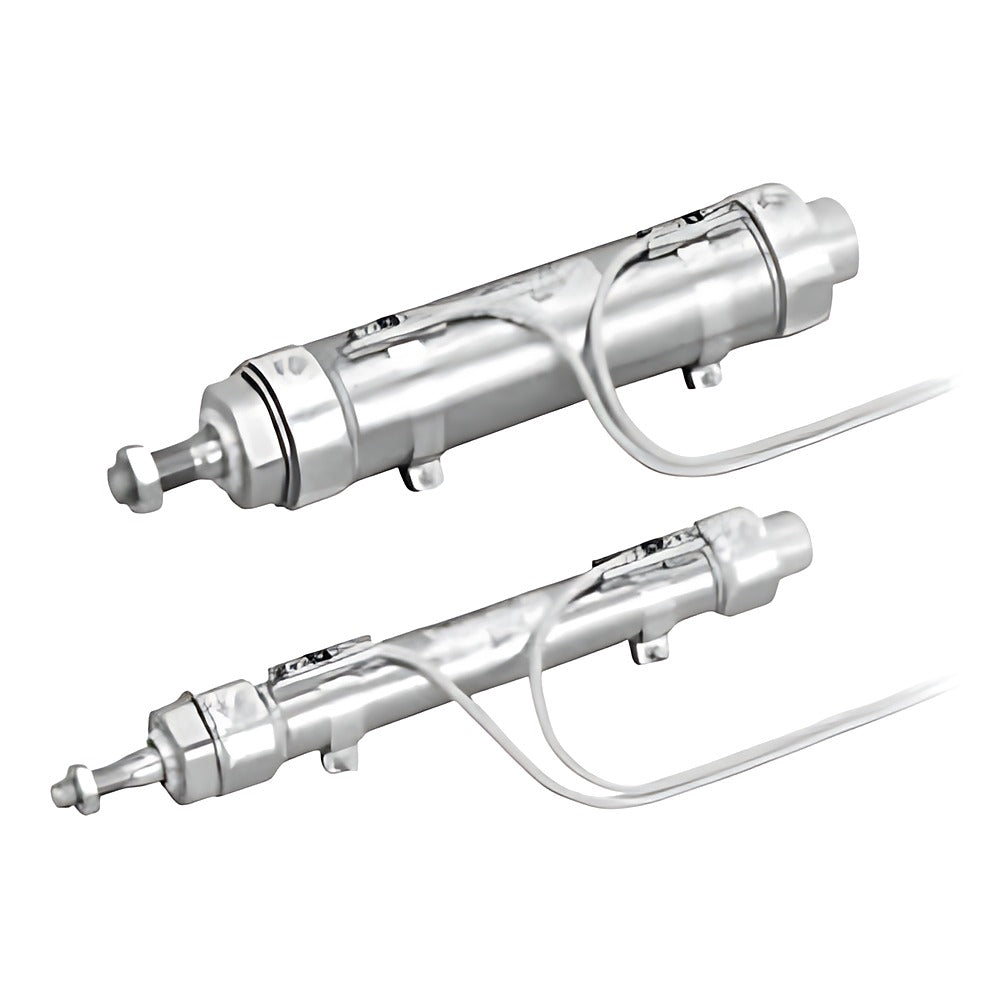

CKD CMK2-G-HP1 Environment-resistant Tight Cylinder (Bore 20-40)

CKD CMK2-G-HP1 Environment-resistant Tight Cylinder (Bore 20-40)

CKD CMK2-G-HP1 environment-resistant long-life tight cylinder with strong scraper and built-in switch magnet.

Key features

  • G-HP1 environment-resistant design: strong scraper and long-life seals for dusty / swarf environments
  • 11 mounting styles: basic, LB/LS foot, FA/FB flange, CA/CC/CC1/CB clevis, TA/TB trunnion
  • Standard strokes 25-300 mm (LS foot max. 50 mm); max. 750 mm in 1 mm steps
  • Options not expanded: NN/GN threads, F/FE one-touch fittings, M stainless rod, V boss cut, P6 anti-particle
  • T-type auto switches, up to 3 per cylinder (not expanded)

Specifications

Operation Double acting, single rod, strong scraper
Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C (no freezing)
Port size Rc1/8
Piston speed 50-500 mm/s
Cushion Rubber cushion
Code format CMK2-G-<mount>-<bore>-<stroke>-HP1
Source CKD Korea catalog CC-1421KR-7, p. 74-77
CMK2-G-00-20-25-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-G-00-20-50-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-G-00-20-75-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-G-00-20-100-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-G-00-20-150-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-G-00-20-200-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMK2-G-00-20-250-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMK2-G-00-20-300-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMK2-G-00-25-25-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-G-00-25-50-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-G-00-25-75-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-G-00-25-100-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-G-00-25-150-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-G-00-25-200-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
CMK2-G-00-25-250-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 250 mm
CMK2-G-00-25-300-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 300 mm
CMK2-G-00-32-25-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-G-00-32-50-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-G-00-32-75-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-G-00-32-100-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-G-00-32-150-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-G-00-32-200-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-G-00-32-250-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 250 mm
CMK2-G-00-32-300-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 300 mm
CMK2-G-00-40-25-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-G-00-40-50-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-G-00-40-75-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-G-00-40-100-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-G-00-40-150-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-G-00-40-200-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-G-00-40-250-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMK2-G-00-40-300-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMK2-G-LB-20-25-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-G-LB-20-50-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-G-LB-20-75-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-G-LB-20-100-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-G-LB-20-150-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-G-LB-20-200-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm
CMK2-G-LB-20-250-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm
CMK2-G-LB-20-300-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm
CMK2-G-LB-25-25-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-G-LB-25-50-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-G-LB-25-75-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-G-LB-25-100-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-G-LB-25-150-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-G-LB-25-200-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm
CMK2-G-LB-25-250-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm
CMK2-G-LB-25-300-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm
CMK2-G-LB-32-25-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-G-LB-32-50-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-G-LB-32-75-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-G-LB-32-100-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-G-LB-32-150-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-G-LB-32-200-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-G-LB-32-250-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm
CMK2-G-LB-32-300-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm
CMK2-G-LB-40-25-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-G-LB-40-50-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-G-LB-40-75-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-G-LB-40-100-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-G-LB-40-150-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-G-LB-40-200-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-G-LB-40-250-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm
CMK2-G-LB-40-300-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm
CMK2-G-LS-20-25-HP1 Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-G-LS-20-50-HP1 Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-G-LS-25-25-HP1 Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-G-LS-25-50-HP1 Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-G-LS-32-25-HP1 Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-G-LS-32-50-HP1 Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-G-LS-40-25-HP1 Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-G-LS-40-50-HP1 Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-G-FA-20-25-HP1 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-G-FA-20-50-HP1 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-G-FA-20-75-HP1 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-G-FA-20-100-HP1 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-G-FA-20-150-HP1 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-G-FA-20-200-HP1 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-G-FA-20-250-HP1 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-G-FA-20-300-HP1 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-G-FA-25-25-HP1 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-G-FA-25-50-HP1 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-G-FA-25-75-HP1 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-G-FA-25-100-HP1 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-G-FA-25-150-HP1 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-G-FA-25-200-HP1 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-G-FA-25-250-HP1 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-G-FA-25-300-HP1 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-G-FA-32-25-HP1 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-G-FA-32-50-HP1 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-G-FA-32-75-HP1 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-G-FA-32-100-HP1 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-G-FA-32-150-HP1 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-G-FA-32-200-HP1 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-G-FA-32-250-HP1 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-G-FA-32-300-HP1 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-G-FA-40-25-HP1 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-G-FA-40-50-HP1 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-G-FA-40-75-HP1 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-G-FA-40-100-HP1 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-G-FA-40-150-HP1 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-G-FA-40-200-HP1 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-G-FA-40-250-HP1 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-G-FA-40-300-HP1 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-G-FB-20-25-HP1 Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-G-FB-20-50-HP1 Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-G-FB-20-75-HP1 Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-G-FB-20-100-HP1 Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-G-FB-20-150-HP1 Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-G-FB-20-200-HP1 Mounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-G-FB-20-250-HP1 Mounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-G-FB-20-300-HP1 Mounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-G-FB-25-25-HP1 Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-G-FB-25-50-HP1 Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-G-FB-25-75-HP1 Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-G-FB-25-100-HP1 Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-G-FB-25-150-HP1 Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-G-FB-25-200-HP1 Mounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-G-FB-25-250-HP1 Mounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-G-FB-25-300-HP1 Mounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-G-FB-32-25-HP1 Mounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-G-FB-32-50-HP1 Mounting: Head-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-G-FB-32-75-HP1 Mounting: Head-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-G-FB-32-100-HP1 Mounting: Head-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-G-FB-32-150-HP1 Mounting: Head-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-G-FB-32-200-HP1 Mounting: Head-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-G-FB-32-250-HP1 Mounting: Head-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-G-FB-32-300-HP1 Mounting: Head-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-G-FB-40-25-HP1 Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-G-FB-40-50-HP1 Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-G-FB-40-75-HP1 Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-G-FB-40-100-HP1 Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-G-FB-40-150-HP1 Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-G-FB-40-200-HP1 Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-G-FB-40-250-HP1 Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-G-FB-40-300-HP1 Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CA-20-25-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CA-20-50-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CA-20-75-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CA-20-100-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CA-20-150-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CA-20-200-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CA-20-250-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CA-20-300-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CA-25-25-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CA-25-50-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CA-25-75-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CA-25-100-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CA-25-150-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CA-25-200-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CA-25-250-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CA-25-300-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CA-32-25-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CA-32-50-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CA-32-75-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CA-32-100-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CA-32-150-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CA-32-200-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CA-32-250-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CA-32-300-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CA-40-25-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CA-40-50-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CA-40-75-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CA-40-100-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CA-40-150-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CA-40-200-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CA-40-250-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CA-40-300-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CC-20-25-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CC-20-50-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CC-20-75-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CC-20-100-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CC-20-150-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CC-20-200-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CC-20-250-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CC-20-300-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CC-25-25-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CC-25-50-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CC-25-75-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CC-25-100-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CC-25-150-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CC-25-200-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CC-25-250-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CC-25-300-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CC-32-25-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CC-32-50-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CC-32-75-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CC-32-100-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CC-32-150-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CC-32-200-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CC-32-250-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CC-32-300-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CC-40-25-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CC-40-50-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CC-40-75-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CC-40-100-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CC-40-150-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CC-40-200-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CC-40-250-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CC-40-300-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CC1-20-25-HP1 Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CC1-20-50-HP1 Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CC1-20-75-HP1 Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CC1-20-100-HP1 Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CC1-20-150-HP1 Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CC1-20-200-HP1 Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CC1-20-250-HP1 Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CC1-20-300-HP1 Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CC1-25-25-HP1 Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CC1-25-50-HP1 Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CC1-25-75-HP1 Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CC1-25-100-HP1 Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CC1-25-150-HP1 Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CC1-25-200-HP1 Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CC1-25-250-HP1 Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CC1-25-300-HP1 Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CC1-32-25-HP1 Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CC1-32-50-HP1 Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CC1-32-75-HP1 Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CC1-32-100-HP1 Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CC1-32-150-HP1 Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CC1-32-200-HP1 Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CC1-32-250-HP1 Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CC1-32-300-HP1 Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CC1-40-25-HP1 Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CC1-40-50-HP1 Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CC1-40-75-HP1 Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CC1-40-100-HP1 Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CC1-40-150-HP1 Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CC1-40-200-HP1 Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CC1-40-250-HP1 Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CC1-40-300-HP1 Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CB-20-25-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CB-20-50-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CB-20-75-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CB-20-100-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CB-20-150-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CB-20-200-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CB-20-250-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CB-20-300-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CB-25-25-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CB-25-50-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CB-25-75-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CB-25-100-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CB-25-150-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CB-25-200-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CB-25-250-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CB-25-300-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CB-32-25-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CB-32-50-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CB-32-75-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CB-32-100-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CB-32-150-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CB-32-200-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CB-32-250-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CB-32-300-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CB-40-25-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CB-40-50-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CB-40-75-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CB-40-100-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CB-40-150-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CB-40-200-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CB-40-250-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CB-40-300-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 300 mm
CMK2-G-TA-20-25-HP1 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-G-TA-20-50-HP1 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-G-TA-20-75-HP1 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-G-TA-20-100-HP1 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-G-TA-20-150-HP1 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-G-TA-20-200-HP1 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 200 mm
CMK2-G-TA-20-250-HP1 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 250 mm
CMK2-G-TA-20-300-HP1 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 300 mm
CMK2-G-TA-25-25-HP1 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-G-TA-25-50-HP1 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-G-TA-25-75-HP1 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-G-TA-25-100-HP1 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-G-TA-25-150-HP1 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-G-TA-25-200-HP1 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 200 mm
CMK2-G-TA-25-250-HP1 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 250 mm
CMK2-G-TA-25-300-HP1 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 300 mm
CMK2-G-TA-32-25-HP1 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-G-TA-32-50-HP1 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-G-TA-32-75-HP1 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-G-TA-32-100-HP1 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-G-TA-32-150-HP1 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-G-TA-32-200-HP1 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-G-TA-32-250-HP1 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 250 mm
CMK2-G-TA-32-300-HP1 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 300 mm
CMK2-G-TA-40-25-HP1 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-G-TA-40-50-HP1 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-G-TA-40-75-HP1 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-G-TA-40-100-HP1 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-G-TA-40-150-HP1 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-G-TA-40-200-HP1 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 200 mm
CMK2-G-TA-40-250-HP1 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 250 mm
CMK2-G-TA-40-300-HP1 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 300 mm
CMK2-G-TB-20-25-HP1 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-G-TB-20-50-HP1 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-G-TB-20-75-HP1 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-G-TB-20-100-HP1 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-G-TB-20-150-HP1 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-G-TB-20-200-HP1 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 200 mm
CMK2-G-TB-20-250-HP1 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 250 mm
CMK2-G-TB-20-300-HP1 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 300 mm
CMK2-G-TB-25-25-HP1 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-G-TB-25-50-HP1 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-G-TB-25-75-HP1 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-G-TB-25-100-HP1 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-G-TB-25-150-HP1 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-G-TB-25-200-HP1 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 200 mm
CMK2-G-TB-25-250-HP1 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 250 mm
CMK2-G-TB-25-300-HP1 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 300 mm
CMK2-G-TB-32-25-HP1 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-G-TB-32-50-HP1 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-G-TB-32-75-HP1 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-G-TB-32-100-HP1 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-G-TB-32-150-HP1 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-G-TB-32-200-HP1 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-G-TB-32-250-HP1 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 250 mm
CMK2-G-TB-32-300-HP1 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 300 mm
CMK2-G-TB-40-25-HP1 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-G-TB-40-50-HP1 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-G-TB-40-75-HP1 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-G-TB-40-100-HP1 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-G-TB-40-150-HP1 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-G-TB-40-200-HP1 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 200 mm
CMK2-G-TB-40-250-HP1 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 250 mm
CMK2-G-TB-40-300-HP1 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 300 mm
Pneumatic CylindersCKD
328 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CMK2-G-HP1 Environment-resistant Tight Cylinder (Bore 20-40)

Brand CKD·Pneumatic Cylinders

Available part numbers (328)

CMK2-G-00-20-25-HP1, CMK2-G-00-20-50-HP1, CMK2-G-00-20-75-HP1, CMK2-G-00-20-100-HP1, CMK2-G-00-20-150-HP1, CMK2-G-00-20-200-HP1, CMK2-G-00-20-250-HP1, CMK2-G-00-20-300-HP1, CMK2-G-00-25-25-HP1, CMK2-G-00-25-50-HP1 + 318 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CMK2-G-00-20-25-HP1Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-G-00-20-50-HP1Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-G-00-20-75-HP1Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-G-00-20-100-HP1Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-G-00-20-150-HP1Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-G-00-20-200-HP1Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMK2-G-00-20-250-HP1Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMK2-G-00-20-300-HP1Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMK2-G-00-25-25-HP1Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-G-00-25-50-HP1Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-G-00-25-75-HP1Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-G-00-25-100-HP1Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-G-00-25-150-HP1Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-G-00-25-200-HP1Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
CMK2-G-00-25-250-HP1Mounting: Basic | Bore: 25 mm | Stroke: 250 mm
CMK2-G-00-25-300-HP1Mounting: Basic | Bore: 25 mm | Stroke: 300 mm
CMK2-G-00-32-25-HP1Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-G-00-32-50-HP1Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-G-00-32-75-HP1Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-G-00-32-100-HP1Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-G-00-32-150-HP1Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-G-00-32-200-HP1Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-G-00-32-250-HP1Mounting: Basic | Bore: 32 mm | Stroke: 250 mm
CMK2-G-00-32-300-HP1Mounting: Basic | Bore: 32 mm | Stroke: 300 mm
CMK2-G-00-40-25-HP1Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-G-00-40-50-HP1Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-G-00-40-75-HP1Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-G-00-40-100-HP1Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-G-00-40-150-HP1Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-G-00-40-200-HP1Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-G-00-40-250-HP1Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMK2-G-00-40-300-HP1Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMK2-G-LB-20-25-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-G-LB-20-50-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-G-LB-20-75-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-G-LB-20-100-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-G-LB-20-150-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-G-LB-20-200-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm
CMK2-G-LB-20-250-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm
CMK2-G-LB-20-300-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm
CMK2-G-LB-25-25-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-G-LB-25-50-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-G-LB-25-75-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-G-LB-25-100-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-G-LB-25-150-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-G-LB-25-200-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm
CMK2-G-LB-25-250-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm
CMK2-G-LB-25-300-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm
CMK2-G-LB-32-25-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-G-LB-32-50-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-G-LB-32-75-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-G-LB-32-100-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-G-LB-32-150-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-G-LB-32-200-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-G-LB-32-250-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm
CMK2-G-LB-32-300-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm
CMK2-G-LB-40-25-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-G-LB-40-50-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-G-LB-40-75-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-G-LB-40-100-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-G-LB-40-150-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-G-LB-40-200-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-G-LB-40-250-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm
CMK2-G-LB-40-300-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm
CMK2-G-LS-20-25-HP1Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-G-LS-20-50-HP1Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-G-LS-25-25-HP1Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-G-LS-25-50-HP1Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-G-LS-32-25-HP1Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-G-LS-32-50-HP1Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-G-LS-40-25-HP1Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-G-LS-40-50-HP1Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-G-FA-20-25-HP1Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-G-FA-20-50-HP1Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-G-FA-20-75-HP1Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-G-FA-20-100-HP1Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-G-FA-20-150-HP1Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-G-FA-20-200-HP1Mounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-G-FA-20-250-HP1Mounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-G-FA-20-300-HP1Mounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-G-FA-25-25-HP1Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-G-FA-25-50-HP1Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-G-FA-25-75-HP1Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-G-FA-25-100-HP1Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-G-FA-25-150-HP1Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-G-FA-25-200-HP1Mounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-G-FA-25-250-HP1Mounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-G-FA-25-300-HP1Mounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-G-FA-32-25-HP1Mounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-G-FA-32-50-HP1Mounting: Rod-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-G-FA-32-75-HP1Mounting: Rod-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-G-FA-32-100-HP1Mounting: Rod-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-G-FA-32-150-HP1Mounting: Rod-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-G-FA-32-200-HP1Mounting: Rod-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-G-FA-32-250-HP1Mounting: Rod-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-G-FA-32-300-HP1Mounting: Rod-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-G-FA-40-25-HP1Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-G-FA-40-50-HP1Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-G-FA-40-75-HP1Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-G-FA-40-100-HP1Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-G-FA-40-150-HP1Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-G-FA-40-200-HP1Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-G-FA-40-250-HP1Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-G-FA-40-300-HP1Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-G-FB-20-25-HP1Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-G-FB-20-50-HP1Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-G-FB-20-75-HP1Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-G-FB-20-100-HP1Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-G-FB-20-150-HP1Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-G-FB-20-200-HP1Mounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-G-FB-20-250-HP1Mounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-G-FB-20-300-HP1Mounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-G-FB-25-25-HP1Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-G-FB-25-50-HP1Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-G-FB-25-75-HP1Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-G-FB-25-100-HP1Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-G-FB-25-150-HP1Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-G-FB-25-200-HP1Mounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-G-FB-25-250-HP1Mounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-G-FB-25-300-HP1Mounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-G-FB-32-25-HP1Mounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-G-FB-32-50-HP1Mounting: Head-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-G-FB-32-75-HP1Mounting: Head-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-G-FB-32-100-HP1Mounting: Head-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-G-FB-32-150-HP1Mounting: Head-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-G-FB-32-200-HP1Mounting: Head-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-G-FB-32-250-HP1Mounting: Head-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-G-FB-32-300-HP1Mounting: Head-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-G-FB-40-25-HP1Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-G-FB-40-50-HP1Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-G-FB-40-75-HP1Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-G-FB-40-100-HP1Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-G-FB-40-150-HP1Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-G-FB-40-200-HP1Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-G-FB-40-250-HP1Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-G-FB-40-300-HP1Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CA-20-25-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CA-20-50-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CA-20-75-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CA-20-100-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CA-20-150-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CA-20-200-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CA-20-250-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CA-20-300-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CA-25-25-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CA-25-50-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CA-25-75-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CA-25-100-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CA-25-150-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CA-25-200-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CA-25-250-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CA-25-300-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CA-32-25-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CA-32-50-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CA-32-75-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CA-32-100-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CA-32-150-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CA-32-200-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CA-32-250-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CA-32-300-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CA-40-25-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CA-40-50-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CA-40-75-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CA-40-100-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CA-40-150-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CA-40-200-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CA-40-250-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CA-40-300-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CC-20-25-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CC-20-50-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CC-20-75-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CC-20-100-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CC-20-150-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CC-20-200-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CC-20-250-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CC-20-300-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CC-25-25-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CC-25-50-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CC-25-75-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CC-25-100-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CC-25-150-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CC-25-200-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CC-25-250-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CC-25-300-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CC-32-25-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CC-32-50-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CC-32-75-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CC-32-100-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CC-32-150-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CC-32-200-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CC-32-250-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CC-32-300-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CC-40-25-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CC-40-50-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CC-40-75-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CC-40-100-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CC-40-150-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CC-40-200-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CC-40-250-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CC-40-300-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CC1-20-25-HP1Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CC1-20-50-HP1Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CC1-20-75-HP1Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CC1-20-100-HP1Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CC1-20-150-HP1Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CC1-20-200-HP1Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CC1-20-250-HP1Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CC1-20-300-HP1Mounting: Single clevis, press-fit bush | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CC1-25-25-HP1Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CC1-25-50-HP1Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CC1-25-75-HP1Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CC1-25-100-HP1Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CC1-25-150-HP1Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CC1-25-200-HP1Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CC1-25-250-HP1Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CC1-25-300-HP1Mounting: Single clevis, press-fit bush | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CC1-32-25-HP1Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CC1-32-50-HP1Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CC1-32-75-HP1Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CC1-32-100-HP1Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CC1-32-150-HP1Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CC1-32-200-HP1Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CC1-32-250-HP1Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CC1-32-300-HP1Mounting: Single clevis, press-fit bush | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CC1-40-25-HP1Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CC1-40-50-HP1Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CC1-40-75-HP1Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CC1-40-100-HP1Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CC1-40-150-HP1Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CC1-40-200-HP1Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CC1-40-250-HP1Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CC1-40-300-HP1Mounting: Single clevis, press-fit bush | Bore: 40 mm | Stroke: 300 mm
CMK2-G-CB-20-25-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm
CMK2-G-CB-20-50-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm
CMK2-G-CB-20-75-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 75 mm
CMK2-G-CB-20-100-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 100 mm
CMK2-G-CB-20-150-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 150 mm
CMK2-G-CB-20-200-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 200 mm
CMK2-G-CB-20-250-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 250 mm
CMK2-G-CB-20-300-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 300 mm
CMK2-G-CB-25-25-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm
CMK2-G-CB-25-50-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm
CMK2-G-CB-25-75-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 75 mm
CMK2-G-CB-25-100-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 100 mm
CMK2-G-CB-25-150-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 150 mm
CMK2-G-CB-25-200-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 200 mm
CMK2-G-CB-25-250-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 250 mm
CMK2-G-CB-25-300-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 300 mm
CMK2-G-CB-32-25-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 25 mm
CMK2-G-CB-32-50-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 50 mm
CMK2-G-CB-32-75-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 75 mm
CMK2-G-CB-32-100-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 100 mm
CMK2-G-CB-32-150-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 150 mm
CMK2-G-CB-32-200-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 200 mm
CMK2-G-CB-32-250-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 250 mm
CMK2-G-CB-32-300-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 300 mm
CMK2-G-CB-40-25-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm
CMK2-G-CB-40-50-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm
CMK2-G-CB-40-75-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm
CMK2-G-CB-40-100-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm
CMK2-G-CB-40-150-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm
CMK2-G-CB-40-200-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 200 mm
CMK2-G-CB-40-250-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 250 mm
CMK2-G-CB-40-300-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 300 mm
CMK2-G-TA-20-25-HP1Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-G-TA-20-50-HP1Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-G-TA-20-75-HP1Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-G-TA-20-100-HP1Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-G-TA-20-150-HP1Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-G-TA-20-200-HP1Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 200 mm
CMK2-G-TA-20-250-HP1Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 250 mm
CMK2-G-TA-20-300-HP1Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 300 mm
CMK2-G-TA-25-25-HP1Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-G-TA-25-50-HP1Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-G-TA-25-75-HP1Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-G-TA-25-100-HP1Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-G-TA-25-150-HP1Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-G-TA-25-200-HP1Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 200 mm
CMK2-G-TA-25-250-HP1Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 250 mm
CMK2-G-TA-25-300-HP1Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 300 mm
CMK2-G-TA-32-25-HP1Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-G-TA-32-50-HP1Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-G-TA-32-75-HP1Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-G-TA-32-100-HP1Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-G-TA-32-150-HP1Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-G-TA-32-200-HP1Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-G-TA-32-250-HP1Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 250 mm
CMK2-G-TA-32-300-HP1Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 300 mm
CMK2-G-TA-40-25-HP1Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-G-TA-40-50-HP1Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-G-TA-40-75-HP1Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-G-TA-40-100-HP1Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-G-TA-40-150-HP1Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-G-TA-40-200-HP1Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 200 mm
CMK2-G-TA-40-250-HP1Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 250 mm
CMK2-G-TA-40-300-HP1Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 300 mm
CMK2-G-TB-20-25-HP1Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-G-TB-20-50-HP1Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-G-TB-20-75-HP1Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-G-TB-20-100-HP1Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-G-TB-20-150-HP1Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-G-TB-20-200-HP1Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 200 mm
CMK2-G-TB-20-250-HP1Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 250 mm
CMK2-G-TB-20-300-HP1Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 300 mm
CMK2-G-TB-25-25-HP1Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-G-TB-25-50-HP1Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-G-TB-25-75-HP1Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-G-TB-25-100-HP1Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-G-TB-25-150-HP1Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-G-TB-25-200-HP1Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 200 mm
CMK2-G-TB-25-250-HP1Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 250 mm
CMK2-G-TB-25-300-HP1Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 300 mm
CMK2-G-TB-32-25-HP1Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-G-TB-32-50-HP1Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-G-TB-32-75-HP1Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-G-TB-32-100-HP1Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-G-TB-32-150-HP1Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-G-TB-32-200-HP1Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-G-TB-32-250-HP1Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 250 mm
CMK2-G-TB-32-300-HP1Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 300 mm
CMK2-G-TB-40-25-HP1Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-G-TB-40-50-HP1Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-G-TB-40-75-HP1Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-G-TB-40-100-HP1Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-G-TB-40-150-HP1Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-G-TB-40-200-HP1Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 200 mm
CMK2-G-TB-40-250-HP1Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 250 mm
CMK2-G-TB-40-300-HP1Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
