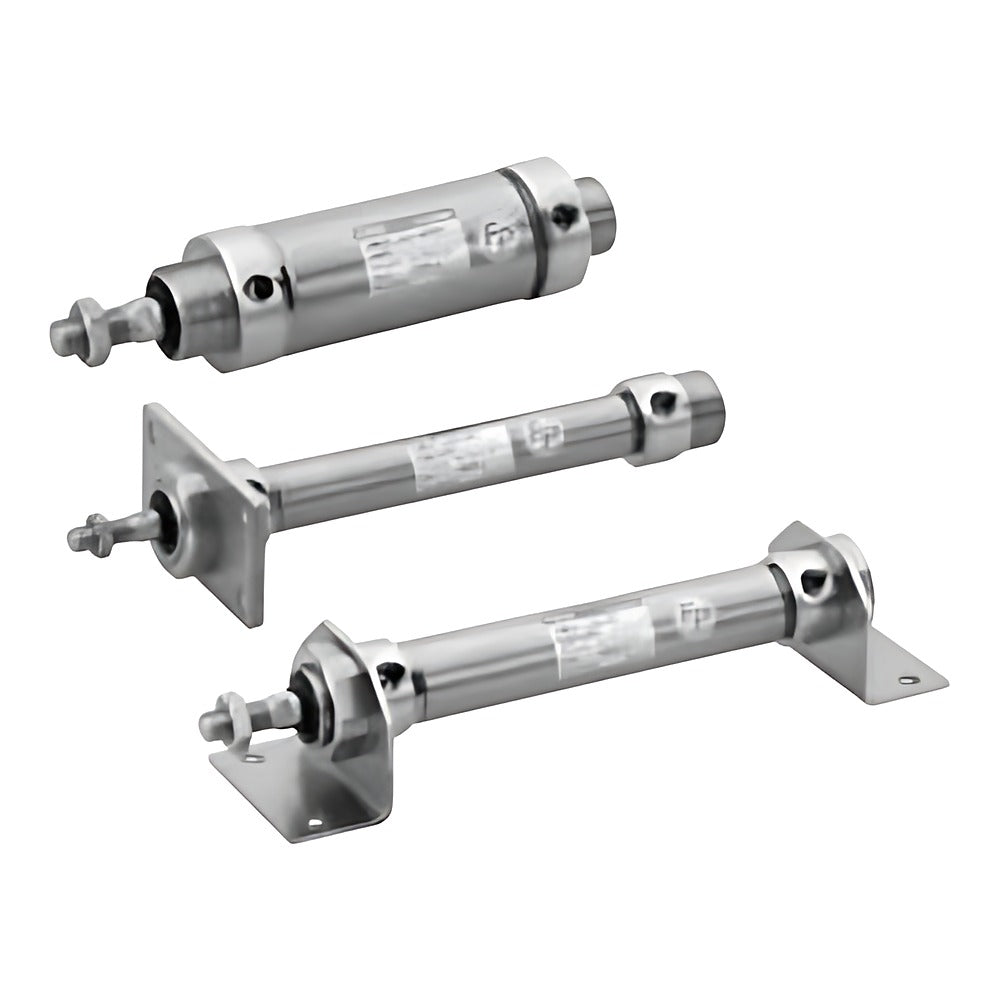

CKD CMK2-G2/G3 Tight Cylinder (Coolant Resistant)

CKD CMK2-G2/G3 double-acting coolant-resistant tight cylinder with cutting-oil scraper, NBR (G2) or FKM (G3) packings, bores 20 to 40 mm.

Key features

Coolant-resistant scraper; G2 NBR packing, G3 FKM packing
Standard strokes 25 to 300 mm; max. 750 mm; bellows not available
Mounting: 00, LB, LS, FA, FB, CA, CC, CC1, CB, TA, TB (LS max. stroke 50 mm)
Switch magnet built in; T2YLH/T2YLV, T3YLH/T3YLV coolant-resistant 2-color switches with R/H/D/T
Bore 40 uses dedicated LS/FA/TA brackets CMK2-G2-40-LS/-FA/-TA

Specifications

Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.15 MPa
Proof pressure	1.6 MPa
Port size	Rc1/8
Ambient temperature	-10 to 60°C
Piston speed	50 to 500 mm/s
Cushion	Rubber cushion
Source	CKD Korea catalog CB-029SK-9, p. 270-275

CMK2-G2-00-20-25		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G2-00-20-50		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G2-00-20-75		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G2-00-20-100		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G2-00-20-150		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G2-00-20-200		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G2-00-20-250		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G2-00-20-300		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G2-00-25-25		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G2-00-25-50		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G2-00-25-75		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G2-00-25-100		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G2-00-25-150		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G2-00-25-200		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G2-00-25-250		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G2-00-25-300		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G2-00-32-25		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G2-00-32-50		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G2-00-32-75		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G2-00-32-100		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G2-00-32-150		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G2-00-32-200		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G2-00-32-250		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G2-00-32-300		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G2-00-40-25		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G2-00-40-50		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G2-00-40-75		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G2-00-40-100		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G2-00-40-150		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G2-00-40-200		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G2-00-40-250		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G2-00-40-300		Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G2-LB-20-25		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G2-LB-20-50		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G2-LB-20-75		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G2-LB-20-100		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G2-LB-20-150		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G2-LB-20-200		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G2-LB-20-250		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G2-LB-20-300		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G2-LB-25-25		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G2-LB-25-50		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G2-LB-25-75		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G2-LB-25-100		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G2-LB-25-150		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G2-LB-25-200		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G2-LB-25-250		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G2-LB-25-300		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G2-LB-32-25		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G2-LB-32-50		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G2-LB-32-75		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G2-LB-32-100		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G2-LB-32-150		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G2-LB-32-200		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G2-LB-32-250		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G2-LB-32-300		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G2-LB-40-25		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G2-LB-40-50		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G2-LB-40-75		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G2-LB-40-100		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G2-LB-40-150		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G2-LB-40-200		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G2-LB-40-250		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G2-LB-40-300		Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G2-LS-20-25		Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G2-LS-20-50		Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G2-LS-25-25		Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G2-LS-25-50		Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G2-LS-32-25		Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G2-LS-32-50		Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G2-LS-40-25		Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G2-LS-40-50		Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G2-FA-20-25		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G2-FA-20-50		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G2-FA-20-75		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G2-FA-20-100		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G2-FA-20-150		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G2-FA-20-200		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G2-FA-20-250		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G2-FA-20-300		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G2-FA-25-25		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G2-FA-25-50		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G2-FA-25-75		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G2-FA-25-100		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G2-FA-25-150		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G2-FA-25-200		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G2-FA-25-250		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G2-FA-25-300		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G2-FA-32-25		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G2-FA-32-50		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G2-FA-32-75		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G2-FA-32-100		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G2-FA-32-150		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G2-FA-32-200		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G2-FA-32-250		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G2-FA-32-300		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G2-FA-40-25		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G2-FA-40-50		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G2-FA-40-75		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G2-FA-40-100		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G2-FA-40-150		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G2-FA-40-200		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G2-FA-40-250		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G2-FA-40-300		Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G2-FB-20-25		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G2-FB-20-50		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G2-FB-20-75		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G2-FB-20-100		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G2-FB-20-150		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G2-FB-20-200		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G2-FB-20-250		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G2-FB-20-300		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G2-FB-25-25		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G2-FB-25-50		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G2-FB-25-75		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G2-FB-25-100		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G2-FB-25-150		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G2-FB-25-200		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G2-FB-25-250		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G2-FB-25-300		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G2-FB-32-25		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G2-FB-32-50		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G2-FB-32-75		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G2-FB-32-100		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G2-FB-32-150		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G2-FB-32-200		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G2-FB-32-250		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G2-FB-32-300		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G2-FB-40-25		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G2-FB-40-50		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G2-FB-40-75		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G2-FB-40-100		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G2-FB-40-150		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G2-FB-40-200		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G2-FB-40-250		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G2-FB-40-300		Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G2-CA-20-25		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G2-CA-20-50		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G2-CA-20-75		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G2-CA-20-100		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G2-CA-20-150		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G2-CA-20-200		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G2-CA-20-250		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G2-CA-20-300		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G2-CA-25-25		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G2-CA-25-50		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G2-CA-25-75		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G2-CA-25-100		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G2-CA-25-150		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G2-CA-25-200		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G2-CA-25-250		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G2-CA-25-300		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G2-CA-32-25		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G2-CA-32-50		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G2-CA-32-75		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G2-CA-32-100		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G2-CA-32-150		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G2-CA-32-200		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G2-CA-32-250		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G2-CA-32-300		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G2-CA-40-25		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G2-CA-40-50		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G2-CA-40-75		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G2-CA-40-100		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G2-CA-40-150		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G2-CA-40-200		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G2-CA-40-250		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G2-CA-40-300		Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G2-CC-20-25		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G2-CC-20-50		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G2-CC-20-75		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G2-CC-20-100		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G2-CC-20-150		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G2-CC-20-200		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G2-CC-20-250		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G2-CC-20-300		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G2-CC-25-25		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G2-CC-25-50		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G2-CC-25-75		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G2-CC-25-100		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G2-CC-25-150		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G2-CC-25-200		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G2-CC-25-250		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G2-CC-25-300		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G2-CC-32-25		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G2-CC-32-50		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G2-CC-32-75		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G2-CC-32-100		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G2-CC-32-150		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G2-CC-32-200		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G2-CC-32-250		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G2-CC-32-300		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G2-CC-40-25		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G2-CC-40-50		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G2-CC-40-75		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G2-CC-40-100		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G2-CC-40-150		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G2-CC-40-200		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G2-CC-40-250		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G2-CC-40-300		Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G2-CC1-20-25		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G2-CC1-20-50		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G2-CC1-20-75		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G2-CC1-20-100		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G2-CC1-20-150		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G2-CC1-20-200		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G2-CC1-20-250		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G2-CC1-20-300		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G2-CC1-25-25		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G2-CC1-25-50		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G2-CC1-25-75		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G2-CC1-25-100		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G2-CC1-25-150		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G2-CC1-25-200		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G2-CC1-25-250		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G2-CC1-25-300		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G2-CC1-32-25		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G2-CC1-32-50		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G2-CC1-32-75		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G2-CC1-32-100		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G2-CC1-32-150		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G2-CC1-32-200		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G2-CC1-32-250		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G2-CC1-32-300		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G2-CC1-40-25		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G2-CC1-40-50		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G2-CC1-40-75		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G2-CC1-40-100		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G2-CC1-40-150		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G2-CC1-40-200		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G2-CC1-40-250		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G2-CC1-40-300		Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G2-CB-20-25		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G2-CB-20-50		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G2-CB-20-75		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G2-CB-20-100		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G2-CB-20-150		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G2-CB-20-200		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G2-CB-20-250		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G2-CB-20-300		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G2-CB-25-25		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G2-CB-25-50		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G2-CB-25-75		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G2-CB-25-100		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G2-CB-25-150		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G2-CB-25-200		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G2-CB-25-250		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G2-CB-25-300		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G2-CB-32-25		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G2-CB-32-50		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G2-CB-32-75		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G2-CB-32-100		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G2-CB-32-150		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G2-CB-32-200		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G2-CB-32-250		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G2-CB-32-300		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G2-CB-40-25		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G2-CB-40-50		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G2-CB-40-75		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G2-CB-40-100		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G2-CB-40-150		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G2-CB-40-200		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G2-CB-40-250		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G2-CB-40-300		Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G2-TA-20-25		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G2-TA-20-50		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G2-TA-20-75		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G2-TA-20-100		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G2-TA-20-150		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G2-TA-20-200		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G2-TA-20-250		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G2-TA-20-300		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G2-TA-25-25		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G2-TA-25-50		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G2-TA-25-75		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G2-TA-25-100		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G2-TA-25-150		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G2-TA-25-200		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G2-TA-25-250		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G2-TA-25-300		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G2-TA-32-25		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G2-TA-32-50		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G2-TA-32-75		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G2-TA-32-100		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G2-TA-32-150		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G2-TA-32-200		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G2-TA-32-250		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G2-TA-32-300		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G2-TA-40-25		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G2-TA-40-50		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G2-TA-40-75		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G2-TA-40-100		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G2-TA-40-150		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G2-TA-40-200		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G2-TA-40-250		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G2-TA-40-300		Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G2-TB-20-25		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G2-TB-20-50		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G2-TB-20-75		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G2-TB-20-100		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G2-TB-20-150		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G2-TB-20-200		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G2-TB-20-250		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G2-TB-20-300		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G2-TB-25-25		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G2-TB-25-50		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G2-TB-25-75		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G2-TB-25-100		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G2-TB-25-150		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G2-TB-25-200		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G2-TB-25-250		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G2-TB-25-300		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G2-TB-32-25		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G2-TB-32-50		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G2-TB-32-75		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G2-TB-32-100		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G2-TB-32-150		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G2-TB-32-200		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G2-TB-32-250		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G2-TB-32-300		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G2-TB-40-25		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G2-TB-40-50		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G2-TB-40-75		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G2-TB-40-100		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G2-TB-40-150		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G2-TB-40-200		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G2-TB-40-250		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G2-TB-40-300		Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G3-00-20-25		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G3-00-20-50		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G3-00-20-75		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G3-00-20-100		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G3-00-20-150		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G3-00-20-200		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G3-00-20-250		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G3-00-20-300		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G3-00-25-25		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G3-00-25-50		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G3-00-25-75		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G3-00-25-100		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G3-00-25-150		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G3-00-25-200		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G3-00-25-250		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G3-00-25-300		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G3-00-32-25		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G3-00-32-50		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G3-00-32-75		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G3-00-32-100		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G3-00-32-150		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G3-00-32-200		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G3-00-32-250		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G3-00-32-300		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G3-00-40-25		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G3-00-40-50		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G3-00-40-75		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G3-00-40-100		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G3-00-40-150		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G3-00-40-200		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G3-00-40-250		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G3-00-40-300		Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G3-LB-20-25		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G3-LB-20-50		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G3-LB-20-75		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G3-LB-20-100		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G3-LB-20-150		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G3-LB-20-200		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G3-LB-20-250		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G3-LB-20-300		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G3-LB-25-25		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G3-LB-25-50		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G3-LB-25-75		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G3-LB-25-100		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G3-LB-25-150		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G3-LB-25-200		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G3-LB-25-250		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G3-LB-25-300		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G3-LB-32-25		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G3-LB-32-50		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G3-LB-32-75		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G3-LB-32-100		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G3-LB-32-150		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G3-LB-32-200		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G3-LB-32-250		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G3-LB-32-300		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G3-LB-40-25		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G3-LB-40-50		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G3-LB-40-75		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G3-LB-40-100		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G3-LB-40-150		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G3-LB-40-200		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G3-LB-40-250		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G3-LB-40-300		Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G3-LS-20-25		Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G3-LS-20-50		Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G3-LS-25-25		Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G3-LS-25-50		Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G3-LS-32-25		Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G3-LS-32-50		Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G3-LS-40-25		Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G3-LS-40-50		Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G3-FA-20-25		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G3-FA-20-50		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G3-FA-20-75		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G3-FA-20-100		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G3-FA-20-150		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G3-FA-20-200		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G3-FA-20-250		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G3-FA-20-300		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G3-FA-25-25		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G3-FA-25-50		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G3-FA-25-75		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G3-FA-25-100		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G3-FA-25-150		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G3-FA-25-200		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G3-FA-25-250		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G3-FA-25-300		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G3-FA-32-25		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G3-FA-32-50		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G3-FA-32-75		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G3-FA-32-100		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G3-FA-32-150		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G3-FA-32-200		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G3-FA-32-250		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G3-FA-32-300		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G3-FA-40-25		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G3-FA-40-50		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G3-FA-40-75		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G3-FA-40-100		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G3-FA-40-150		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G3-FA-40-200		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G3-FA-40-250		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G3-FA-40-300		Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G3-FB-20-25		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G3-FB-20-50		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G3-FB-20-75		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G3-FB-20-100		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G3-FB-20-150		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G3-FB-20-200		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G3-FB-20-250		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G3-FB-20-300		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G3-FB-25-25		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G3-FB-25-50		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G3-FB-25-75		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G3-FB-25-100		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G3-FB-25-150		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G3-FB-25-200		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G3-FB-25-250		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G3-FB-25-300		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G3-FB-32-25		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G3-FB-32-50		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G3-FB-32-75		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G3-FB-32-100		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G3-FB-32-150		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G3-FB-32-200		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G3-FB-32-250		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G3-FB-32-300		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G3-FB-40-25		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G3-FB-40-50		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G3-FB-40-75		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G3-FB-40-100		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G3-FB-40-150		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G3-FB-40-200		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G3-FB-40-250		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G3-FB-40-300		Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G3-CA-20-25		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G3-CA-20-50		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G3-CA-20-75		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G3-CA-20-100		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G3-CA-20-150		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G3-CA-20-200		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G3-CA-20-250		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G3-CA-20-300		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G3-CA-25-25		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G3-CA-25-50		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G3-CA-25-75		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G3-CA-25-100		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G3-CA-25-150		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G3-CA-25-200		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G3-CA-25-250		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G3-CA-25-300		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G3-CA-32-25		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G3-CA-32-50		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G3-CA-32-75		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G3-CA-32-100		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G3-CA-32-150		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G3-CA-32-200		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G3-CA-32-250		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G3-CA-32-300		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G3-CA-40-25		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G3-CA-40-50		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G3-CA-40-75		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G3-CA-40-100		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G3-CA-40-150		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G3-CA-40-200		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G3-CA-40-250		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G3-CA-40-300		Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G3-CC-20-25		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G3-CC-20-50		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G3-CC-20-75		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G3-CC-20-100		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G3-CC-20-150		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G3-CC-20-200		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G3-CC-20-250		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G3-CC-20-300		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G3-CC-25-25		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G3-CC-25-50		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G3-CC-25-75		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G3-CC-25-100		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G3-CC-25-150		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G3-CC-25-200		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G3-CC-25-250		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G3-CC-25-300		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G3-CC-32-25		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G3-CC-32-50		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G3-CC-32-75		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G3-CC-32-100		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G3-CC-32-150		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G3-CC-32-200		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G3-CC-32-250		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G3-CC-32-300		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G3-CC-40-25		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G3-CC-40-50		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G3-CC-40-75		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G3-CC-40-100		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G3-CC-40-150		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G3-CC-40-200		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G3-CC-40-250		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G3-CC-40-300		Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G3-CC1-20-25		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G3-CC1-20-50		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G3-CC1-20-75		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G3-CC1-20-100		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G3-CC1-20-150		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G3-CC1-20-200		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G3-CC1-20-250		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G3-CC1-20-300		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G3-CC1-25-25		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G3-CC1-25-50		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G3-CC1-25-75		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G3-CC1-25-100		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G3-CC1-25-150		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G3-CC1-25-200		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G3-CC1-25-250		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G3-CC1-25-300		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G3-CC1-32-25		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G3-CC1-32-50		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G3-CC1-32-75		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G3-CC1-32-100		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G3-CC1-32-150		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G3-CC1-32-200		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G3-CC1-32-250		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G3-CC1-32-300		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G3-CC1-40-25		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G3-CC1-40-50		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G3-CC1-40-75		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G3-CC1-40-100		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G3-CC1-40-150		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G3-CC1-40-200		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G3-CC1-40-250		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G3-CC1-40-300		Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G3-CB-20-25		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G3-CB-20-50		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G3-CB-20-75		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G3-CB-20-100		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G3-CB-20-150		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G3-CB-20-200		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G3-CB-20-250		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G3-CB-20-300		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G3-CB-25-25		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G3-CB-25-50		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G3-CB-25-75		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G3-CB-25-100		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G3-CB-25-150		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G3-CB-25-200		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G3-CB-25-250		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G3-CB-25-300		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G3-CB-32-25		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G3-CB-32-50		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G3-CB-32-75		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G3-CB-32-100		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G3-CB-32-150		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G3-CB-32-200		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G3-CB-32-250		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G3-CB-32-300		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G3-CB-40-25		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G3-CB-40-50		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G3-CB-40-75		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G3-CB-40-100		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G3-CB-40-150		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G3-CB-40-200		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G3-CB-40-250		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G3-CB-40-300		Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G3-TA-20-25		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G3-TA-20-50		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G3-TA-20-75		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G3-TA-20-100		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G3-TA-20-150		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G3-TA-20-200		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G3-TA-20-250		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G3-TA-20-300		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G3-TA-25-25		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G3-TA-25-50		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G3-TA-25-75		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G3-TA-25-100		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G3-TA-25-150		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G3-TA-25-200		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G3-TA-25-250		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G3-TA-25-300		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G3-TA-32-25		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G3-TA-32-50		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G3-TA-32-75		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G3-TA-32-100		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G3-TA-32-150		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G3-TA-32-200		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G3-TA-32-250		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G3-TA-32-300		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G3-TA-40-25		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G3-TA-40-50		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G3-TA-40-75		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G3-TA-40-100		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G3-TA-40-150		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G3-TA-40-200		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G3-TA-40-250		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G3-TA-40-300		Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 300 mm
CMK2-G3-TB-20-25		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 25 mm
CMK2-G3-TB-20-50		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 50 mm
CMK2-G3-TB-20-75		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 75 mm
CMK2-G3-TB-20-100		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 100 mm
CMK2-G3-TB-20-150		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 150 mm
CMK2-G3-TB-20-200		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 200 mm
CMK2-G3-TB-20-250		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 250 mm
CMK2-G3-TB-20-300		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 300 mm
CMK2-G3-TB-25-25		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 25 mm
CMK2-G3-TB-25-50		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 50 mm
CMK2-G3-TB-25-75		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 75 mm
CMK2-G3-TB-25-100		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 100 mm
CMK2-G3-TB-25-150		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 150 mm
CMK2-G3-TB-25-200		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 200 mm
CMK2-G3-TB-25-250		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 250 mm
CMK2-G3-TB-25-300		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 300 mm
CMK2-G3-TB-32-25		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 25 mm
CMK2-G3-TB-32-50		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 50 mm
CMK2-G3-TB-32-75		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 75 mm
CMK2-G3-TB-32-100		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 100 mm
CMK2-G3-TB-32-150		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 150 mm
CMK2-G3-TB-32-200		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 200 mm
CMK2-G3-TB-32-250		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 250 mm
CMK2-G3-TB-32-300		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 300 mm
CMK2-G3-TB-40-25		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 25 mm
CMK2-G3-TB-40-50		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 50 mm
CMK2-G3-TB-40-75		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 75 mm
CMK2-G3-TB-40-100		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 100 mm
CMK2-G3-TB-40-150		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 150 mm
CMK2-G3-TB-40-200		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 200 mm
CMK2-G3-TB-40-250		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 250 mm
CMK2-G3-TB-40-300		Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 300 mm

Pneumatic CylindersCKD

656 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CMK2-G2/G3 Tight Cylinder (Coolant Resistant)

Brand CKD·Pneumatic Cylinders

Available part numbers (656)

CMK2-G2-00-20-25, CMK2-G2-00-20-50, CMK2-G2-00-20-75, CMK2-G2-00-20-100, CMK2-G2-00-20-150, CMK2-G2-00-20-200, CMK2-G2-00-20-250, CMK2-G2-00-20-300, CMK2-G2-00-25-25, CMK2-G2-00-25-50 + 646 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CMK2-G2-00-20-25	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G2-00-20-50	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G2-00-20-75	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G2-00-20-100	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G2-00-20-150	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G2-00-20-200	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G2-00-20-250	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G2-00-20-300	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G2-00-25-25	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G2-00-25-50	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G2-00-25-75	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G2-00-25-100	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G2-00-25-150	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G2-00-25-200	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G2-00-25-250	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G2-00-25-300	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G2-00-32-25	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G2-00-32-50	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G2-00-32-75	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G2-00-32-100	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G2-00-32-150	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G2-00-32-200	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G2-00-32-250	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G2-00-32-300	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G2-00-40-25	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G2-00-40-50	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G2-00-40-75	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G2-00-40-100	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G2-00-40-150	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G2-00-40-200	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G2-00-40-250	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G2-00-40-300	Model: G2: scraper + NBR packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G2-LB-20-25	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G2-LB-20-50	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G2-LB-20-75	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G2-LB-20-100	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G2-LB-20-150	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G2-LB-20-200	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G2-LB-20-250	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G2-LB-20-300	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G2-LB-25-25	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G2-LB-25-50	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G2-LB-25-75	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G2-LB-25-100	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G2-LB-25-150	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G2-LB-25-200	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G2-LB-25-250	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G2-LB-25-300	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G2-LB-32-25	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G2-LB-32-50	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G2-LB-32-75	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G2-LB-32-100	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G2-LB-32-150	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G2-LB-32-200	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G2-LB-32-250	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G2-LB-32-300	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G2-LB-40-25	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G2-LB-40-50	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G2-LB-40-75	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G2-LB-40-100	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G2-LB-40-150	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G2-LB-40-200	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G2-LB-40-250	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G2-LB-40-300	Model: G2: scraper + NBR packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G2-LS-20-25	Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G2-LS-20-50	Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G2-LS-25-25	Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G2-LS-25-50	Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G2-LS-32-25	Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G2-LS-32-50	Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G2-LS-40-25	Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G2-LS-40-50	Model: G2: scraper + NBR packing \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G2-FA-20-25	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G2-FA-20-50	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G2-FA-20-75	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G2-FA-20-100	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G2-FA-20-150	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G2-FA-20-200	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G2-FA-20-250	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G2-FA-20-300	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G2-FA-25-25	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G2-FA-25-50	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G2-FA-25-75	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G2-FA-25-100	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G2-FA-25-150	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G2-FA-25-200	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G2-FA-25-250	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G2-FA-25-300	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G2-FA-32-25	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G2-FA-32-50	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G2-FA-32-75	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G2-FA-32-100	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G2-FA-32-150	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G2-FA-32-200	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G2-FA-32-250	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G2-FA-32-300	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G2-FA-40-25	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G2-FA-40-50	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G2-FA-40-75	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G2-FA-40-100	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G2-FA-40-150	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G2-FA-40-200	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G2-FA-40-250	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G2-FA-40-300	Model: G2: scraper + NBR packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G2-FB-20-25	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G2-FB-20-50	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G2-FB-20-75	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G2-FB-20-100	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G2-FB-20-150	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G2-FB-20-200	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G2-FB-20-250	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G2-FB-20-300	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G2-FB-25-25	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G2-FB-25-50	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G2-FB-25-75	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G2-FB-25-100	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G2-FB-25-150	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G2-FB-25-200	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G2-FB-25-250	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G2-FB-25-300	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G2-FB-32-25	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G2-FB-32-50	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G2-FB-32-75	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G2-FB-32-100	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G2-FB-32-150	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G2-FB-32-200	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G2-FB-32-250	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G2-FB-32-300	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G2-FB-40-25	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G2-FB-40-50	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G2-FB-40-75	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G2-FB-40-100	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G2-FB-40-150	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G2-FB-40-200	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G2-FB-40-250	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G2-FB-40-300	Model: G2: scraper + NBR packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G2-CA-20-25	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G2-CA-20-50	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G2-CA-20-75	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G2-CA-20-100	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G2-CA-20-150	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G2-CA-20-200	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G2-CA-20-250	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G2-CA-20-300	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G2-CA-25-25	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G2-CA-25-50	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G2-CA-25-75	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G2-CA-25-100	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G2-CA-25-150	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G2-CA-25-200	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G2-CA-25-250	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G2-CA-25-300	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G2-CA-32-25	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G2-CA-32-50	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G2-CA-32-75	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G2-CA-32-100	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G2-CA-32-150	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G2-CA-32-200	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G2-CA-32-250	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G2-CA-32-300	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G2-CA-40-25	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G2-CA-40-50	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G2-CA-40-75	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G2-CA-40-100	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G2-CA-40-150	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G2-CA-40-200	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G2-CA-40-250	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G2-CA-40-300	Model: G2: scraper + NBR packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G2-CC-20-25	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G2-CC-20-50	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G2-CC-20-75	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G2-CC-20-100	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G2-CC-20-150	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G2-CC-20-200	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G2-CC-20-250	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G2-CC-20-300	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G2-CC-25-25	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G2-CC-25-50	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G2-CC-25-75	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G2-CC-25-100	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G2-CC-25-150	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G2-CC-25-200	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G2-CC-25-250	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G2-CC-25-300	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G2-CC-32-25	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G2-CC-32-50	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G2-CC-32-75	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G2-CC-32-100	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G2-CC-32-150	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G2-CC-32-200	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G2-CC-32-250	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G2-CC-32-300	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G2-CC-40-25	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G2-CC-40-50	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G2-CC-40-75	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G2-CC-40-100	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G2-CC-40-150	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G2-CC-40-200	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G2-CC-40-250	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G2-CC-40-300	Model: G2: scraper + NBR packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G2-CC1-20-25	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G2-CC1-20-50	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G2-CC1-20-75	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G2-CC1-20-100	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G2-CC1-20-150	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G2-CC1-20-200	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G2-CC1-20-250	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G2-CC1-20-300	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G2-CC1-25-25	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G2-CC1-25-50	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G2-CC1-25-75	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G2-CC1-25-100	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G2-CC1-25-150	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G2-CC1-25-200	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G2-CC1-25-250	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G2-CC1-25-300	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G2-CC1-32-25	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G2-CC1-32-50	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G2-CC1-32-75	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G2-CC1-32-100	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G2-CC1-32-150	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G2-CC1-32-200	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G2-CC1-32-250	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G2-CC1-32-300	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G2-CC1-40-25	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G2-CC1-40-50	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G2-CC1-40-75	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G2-CC1-40-100	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G2-CC1-40-150	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G2-CC1-40-200	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G2-CC1-40-250	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G2-CC1-40-300	Model: G2: scraper + NBR packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G2-CB-20-25	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G2-CB-20-50	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G2-CB-20-75	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G2-CB-20-100	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G2-CB-20-150	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G2-CB-20-200	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G2-CB-20-250	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G2-CB-20-300	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G2-CB-25-25	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G2-CB-25-50	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G2-CB-25-75	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G2-CB-25-100	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G2-CB-25-150	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G2-CB-25-200	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G2-CB-25-250	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G2-CB-25-300	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G2-CB-32-25	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G2-CB-32-50	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G2-CB-32-75	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G2-CB-32-100	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G2-CB-32-150	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G2-CB-32-200	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G2-CB-32-250	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G2-CB-32-300	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G2-CB-40-25	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G2-CB-40-50	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G2-CB-40-75	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G2-CB-40-100	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G2-CB-40-150	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G2-CB-40-200	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G2-CB-40-250	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G2-CB-40-300	Model: G2: scraper + NBR packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G2-TA-20-25	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G2-TA-20-50	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G2-TA-20-75	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G2-TA-20-100	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G2-TA-20-150	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G2-TA-20-200	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G2-TA-20-250	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G2-TA-20-300	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G2-TA-25-25	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G2-TA-25-50	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G2-TA-25-75	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G2-TA-25-100	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G2-TA-25-150	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G2-TA-25-200	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G2-TA-25-250	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G2-TA-25-300	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G2-TA-32-25	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G2-TA-32-50	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G2-TA-32-75	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G2-TA-32-100	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G2-TA-32-150	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G2-TA-32-200	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G2-TA-32-250	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G2-TA-32-300	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G2-TA-40-25	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G2-TA-40-50	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G2-TA-40-75	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G2-TA-40-100	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G2-TA-40-150	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G2-TA-40-200	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G2-TA-40-250	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G2-TA-40-300	Model: G2: scraper + NBR packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G2-TB-20-25	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G2-TB-20-50	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G2-TB-20-75	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G2-TB-20-100	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G2-TB-20-150	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G2-TB-20-200	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G2-TB-20-250	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G2-TB-20-300	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G2-TB-25-25	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G2-TB-25-50	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G2-TB-25-75	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G2-TB-25-100	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G2-TB-25-150	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G2-TB-25-200	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G2-TB-25-250	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G2-TB-25-300	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G2-TB-32-25	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G2-TB-32-50	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G2-TB-32-75	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G2-TB-32-100	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G2-TB-32-150	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G2-TB-32-200	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G2-TB-32-250	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G2-TB-32-300	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G2-TB-40-25	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G2-TB-40-50	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G2-TB-40-75	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G2-TB-40-100	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G2-TB-40-150	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G2-TB-40-200	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G2-TB-40-250	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G2-TB-40-300	Model: G2: scraper + NBR packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G3-00-20-25	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G3-00-20-50	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G3-00-20-75	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G3-00-20-100	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G3-00-20-150	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G3-00-20-200	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G3-00-20-250	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G3-00-20-300	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G3-00-25-25	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G3-00-25-50	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G3-00-25-75	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G3-00-25-100	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G3-00-25-150	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G3-00-25-200	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G3-00-25-250	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G3-00-25-300	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G3-00-32-25	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G3-00-32-50	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G3-00-32-75	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G3-00-32-100	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G3-00-32-150	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G3-00-32-200	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G3-00-32-250	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G3-00-32-300	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G3-00-40-25	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G3-00-40-50	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G3-00-40-75	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G3-00-40-100	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G3-00-40-150	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G3-00-40-200	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G3-00-40-250	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G3-00-40-300	Model: G3: scraper + FKM packing \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G3-LB-20-25	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G3-LB-20-50	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G3-LB-20-75	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G3-LB-20-100	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G3-LB-20-150	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G3-LB-20-200	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G3-LB-20-250	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G3-LB-20-300	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G3-LB-25-25	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G3-LB-25-50	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G3-LB-25-75	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G3-LB-25-100	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G3-LB-25-150	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G3-LB-25-200	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G3-LB-25-250	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G3-LB-25-300	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G3-LB-32-25	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G3-LB-32-50	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G3-LB-32-75	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G3-LB-32-100	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G3-LB-32-150	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G3-LB-32-200	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G3-LB-32-250	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G3-LB-32-300	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G3-LB-40-25	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G3-LB-40-50	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G3-LB-40-75	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G3-LB-40-100	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G3-LB-40-150	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G3-LB-40-200	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G3-LB-40-250	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G3-LB-40-300	Model: G3: scraper + FKM packing \| Mounting: Axial foot, both sides \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G3-LS-20-25	Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G3-LS-20-50	Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G3-LS-25-25	Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G3-LS-25-50	Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G3-LS-32-25	Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G3-LS-32-50	Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G3-LS-40-25	Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G3-LS-40-50	Model: G3: scraper + FKM packing \| Mounting: Axial foot, one side \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G3-FA-20-25	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G3-FA-20-50	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G3-FA-20-75	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G3-FA-20-100	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G3-FA-20-150	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G3-FA-20-200	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G3-FA-20-250	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G3-FA-20-300	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G3-FA-25-25	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G3-FA-25-50	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G3-FA-25-75	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G3-FA-25-100	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G3-FA-25-150	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G3-FA-25-200	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G3-FA-25-250	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G3-FA-25-300	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G3-FA-32-25	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G3-FA-32-50	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G3-FA-32-75	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G3-FA-32-100	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G3-FA-32-150	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G3-FA-32-200	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G3-FA-32-250	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G3-FA-32-300	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G3-FA-40-25	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G3-FA-40-50	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G3-FA-40-75	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G3-FA-40-100	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G3-FA-40-150	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G3-FA-40-200	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G3-FA-40-250	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G3-FA-40-300	Model: G3: scraper + FKM packing \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G3-FB-20-25	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G3-FB-20-50	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G3-FB-20-75	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G3-FB-20-100	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G3-FB-20-150	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G3-FB-20-200	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G3-FB-20-250	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G3-FB-20-300	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G3-FB-25-25	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G3-FB-25-50	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G3-FB-25-75	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G3-FB-25-100	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G3-FB-25-150	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G3-FB-25-200	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G3-FB-25-250	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G3-FB-25-300	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G3-FB-32-25	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G3-FB-32-50	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G3-FB-32-75	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G3-FB-32-100	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G3-FB-32-150	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G3-FB-32-200	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G3-FB-32-250	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G3-FB-32-300	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G3-FB-40-25	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G3-FB-40-50	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G3-FB-40-75	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G3-FB-40-100	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G3-FB-40-150	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G3-FB-40-200	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G3-FB-40-250	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G3-FB-40-300	Model: G3: scraper + FKM packing \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G3-CA-20-25	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G3-CA-20-50	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G3-CA-20-75	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G3-CA-20-100	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G3-CA-20-150	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G3-CA-20-200	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G3-CA-20-250	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G3-CA-20-300	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G3-CA-25-25	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G3-CA-25-50	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G3-CA-25-75	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G3-CA-25-100	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G3-CA-25-150	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G3-CA-25-200	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G3-CA-25-250	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G3-CA-25-300	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G3-CA-32-25	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G3-CA-32-50	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G3-CA-32-75	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G3-CA-32-100	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G3-CA-32-150	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G3-CA-32-200	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G3-CA-32-250	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G3-CA-32-300	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G3-CA-40-25	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G3-CA-40-50	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G3-CA-40-75	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G3-CA-40-100	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G3-CA-40-150	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G3-CA-40-200	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G3-CA-40-250	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G3-CA-40-300	Model: G3: scraper + FKM packing \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G3-CC-20-25	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G3-CC-20-50	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G3-CC-20-75	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G3-CC-20-100	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G3-CC-20-150	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G3-CC-20-200	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G3-CC-20-250	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G3-CC-20-300	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G3-CC-25-25	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G3-CC-25-50	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G3-CC-25-75	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G3-CC-25-100	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G3-CC-25-150	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G3-CC-25-200	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G3-CC-25-250	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G3-CC-25-300	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G3-CC-32-25	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G3-CC-32-50	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G3-CC-32-75	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G3-CC-32-100	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G3-CC-32-150	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G3-CC-32-200	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G3-CC-32-250	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G3-CC-32-300	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G3-CC-40-25	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G3-CC-40-50	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G3-CC-40-75	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G3-CC-40-100	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G3-CC-40-150	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G3-CC-40-200	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G3-CC-40-250	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G3-CC-40-300	Model: G3: scraper + FKM packing \| Mounting: Single clevis, integral \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G3-CC1-20-25	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G3-CC1-20-50	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G3-CC1-20-75	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G3-CC1-20-100	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G3-CC1-20-150	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G3-CC1-20-200	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G3-CC1-20-250	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G3-CC1-20-300	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G3-CC1-25-25	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G3-CC1-25-50	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G3-CC1-25-75	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G3-CC1-25-100	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G3-CC1-25-150	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G3-CC1-25-200	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G3-CC1-25-250	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G3-CC1-25-300	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G3-CC1-32-25	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G3-CC1-32-50	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G3-CC1-32-75	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G3-CC1-32-100	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G3-CC1-32-150	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G3-CC1-32-200	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G3-CC1-32-250	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G3-CC1-32-300	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G3-CC1-40-25	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G3-CC1-40-50	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G3-CC1-40-75	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G3-CC1-40-100	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G3-CC1-40-150	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G3-CC1-40-200	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G3-CC1-40-250	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G3-CC1-40-300	Model: G3: scraper + FKM packing \| Mounting: Single clevis, press-fit bushing \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G3-CB-20-25	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G3-CB-20-50	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G3-CB-20-75	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G3-CB-20-100	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G3-CB-20-150	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G3-CB-20-200	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G3-CB-20-250	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G3-CB-20-300	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G3-CB-25-25	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G3-CB-25-50	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G3-CB-25-75	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G3-CB-25-100	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G3-CB-25-150	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G3-CB-25-200	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G3-CB-25-250	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G3-CB-25-300	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G3-CB-32-25	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G3-CB-32-50	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G3-CB-32-75	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G3-CB-32-100	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G3-CB-32-150	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G3-CB-32-200	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G3-CB-32-250	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G3-CB-32-300	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G3-CB-40-25	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G3-CB-40-50	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G3-CB-40-75	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G3-CB-40-100	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G3-CB-40-150	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G3-CB-40-200	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G3-CB-40-250	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G3-CB-40-300	Model: G3: scraper + FKM packing \| Mounting: Double clevis (pin included) \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G3-TA-20-25	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G3-TA-20-50	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G3-TA-20-75	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G3-TA-20-100	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G3-TA-20-150	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G3-TA-20-200	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G3-TA-20-250	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G3-TA-20-300	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G3-TA-25-25	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G3-TA-25-50	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G3-TA-25-75	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G3-TA-25-100	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G3-TA-25-150	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G3-TA-25-200	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G3-TA-25-250	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G3-TA-25-300	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G3-TA-32-25	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G3-TA-32-50	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G3-TA-32-75	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G3-TA-32-100	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G3-TA-32-150	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G3-TA-32-200	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G3-TA-32-250	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G3-TA-32-300	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G3-TA-40-25	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G3-TA-40-50	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G3-TA-40-75	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G3-TA-40-100	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G3-TA-40-150	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G3-TA-40-200	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G3-TA-40-250	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G3-TA-40-300	Model: G3: scraper + FKM packing \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 300 mm
	CMK2-G3-TB-20-25	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 25 mm
	CMK2-G3-TB-20-50	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 50 mm
	CMK2-G3-TB-20-75	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 75 mm
	CMK2-G3-TB-20-100	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 100 mm
	CMK2-G3-TB-20-150	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 150 mm
	CMK2-G3-TB-20-200	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 200 mm
	CMK2-G3-TB-20-250	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 250 mm
	CMK2-G3-TB-20-300	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 20 mm \| Stroke: 300 mm
	CMK2-G3-TB-25-25	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 25 mm
	CMK2-G3-TB-25-50	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 50 mm
	CMK2-G3-TB-25-75	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 75 mm
	CMK2-G3-TB-25-100	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 100 mm
	CMK2-G3-TB-25-150	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 150 mm
	CMK2-G3-TB-25-200	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 200 mm
	CMK2-G3-TB-25-250	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 250 mm
	CMK2-G3-TB-25-300	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 25 mm \| Stroke: 300 mm
	CMK2-G3-TB-32-25	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 25 mm
	CMK2-G3-TB-32-50	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 50 mm
	CMK2-G3-TB-32-75	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 75 mm
	CMK2-G3-TB-32-100	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 100 mm
	CMK2-G3-TB-32-150	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 150 mm
	CMK2-G3-TB-32-200	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 200 mm
	CMK2-G3-TB-32-250	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 250 mm
	CMK2-G3-TB-32-300	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 32 mm \| Stroke: 300 mm
	CMK2-G3-TB-40-25	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 25 mm
	CMK2-G3-TB-40-50	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 50 mm
	CMK2-G3-TB-40-75	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 75 mm
	CMK2-G3-TB-40-100	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 100 mm
	CMK2-G3-TB-40-150	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 150 mm
	CMK2-G3-TB-40-200	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 200 mm
	CMK2-G3-TB-40-250	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 250 mm
	CMK2-G3-TB-40-300	Model: G3: scraper + FKM packing \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD CMK2-G2/G3 Tight Cylinder (Coolant Resistant)
