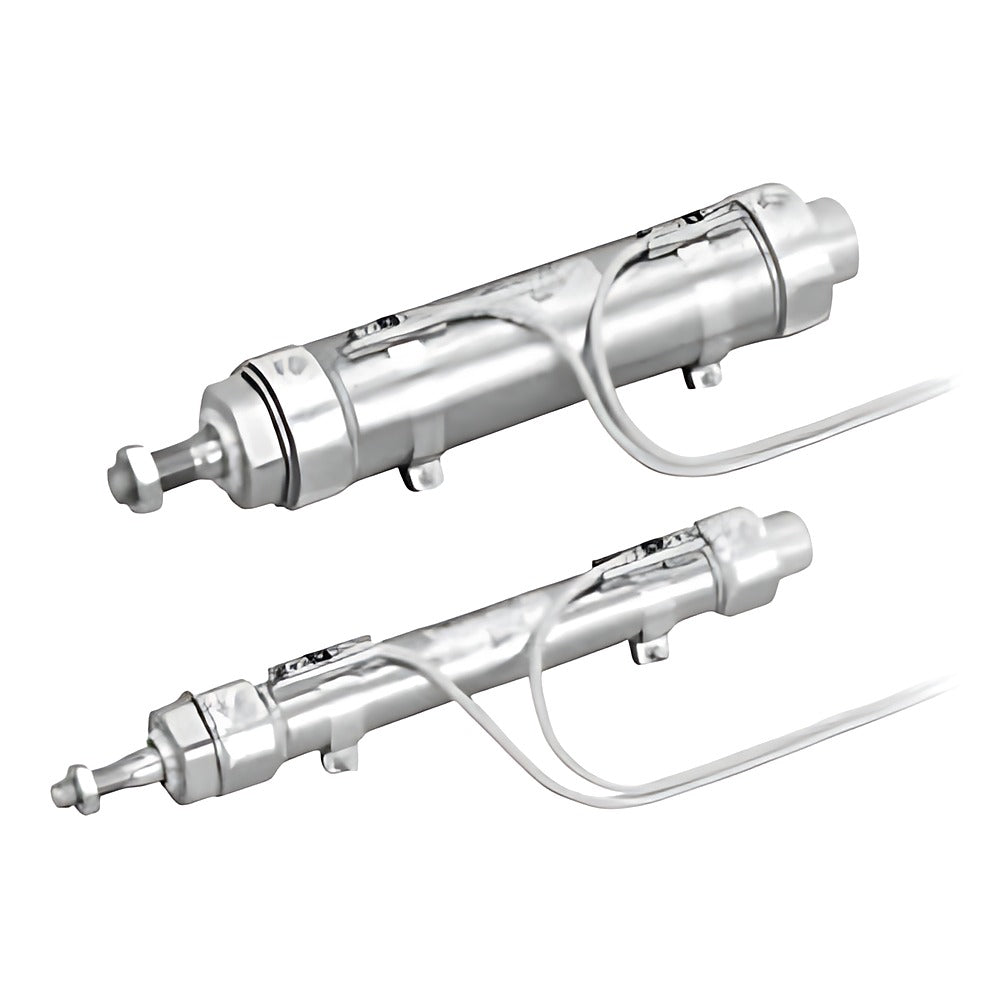

CKD CMK2-JG2/JG3-FP1 Tight Cylinder (All Stainless, Water Resistant)

CKD CMK2-JG2/JG3-FP1 Tight Cylinder (All Stainless, Water Resistant)

CKD CMK2-JG2/JG3-FP1 double-acting water-resistant tight cylinder with all-stainless exterior, water-resistant scraper and NSF H1 food-grade grease.

Key features

  • NSF H1 registered food-grade grease used on sliding parts (FP1 food processing specification)
  • All-stainless exterior with water-resistant scraper; packing NBR (JG2) or FKM (JG3)
  • Bore 20/25/32/40 mm; standard strokes 25-300 mm (5-750 mm in 1 mm steps; LS max. 50 mm)
  • Mounting basic, foot LB/LS, flange FA/FB, integral single clevis CC
  • T2YLH/T3YLH 2-colour solid state switches with count R/H/D/T, boss cut V and knuckles I/Y ordered as suffixes

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C
Port Rc1/8
Cushion Rubber cushion
Source CKD Korea catalog CC-1271K, p. 60-62
CMK2-JG2-00-20-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-00-20-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-00-20-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-00-20-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-00-20-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-00-20-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-00-20-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-00-20-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-00-25-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-00-25-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-00-25-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-00-25-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-00-25-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-00-25-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-00-25-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-00-25-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-00-32-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-00-32-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-00-32-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-00-32-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-00-32-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-00-32-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-00-32-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-00-32-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-00-40-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-00-40-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-00-40-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-00-40-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-00-40-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-00-40-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-00-40-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-00-40-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-LB-20-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-LB-20-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-LB-20-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-LB-20-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-LB-20-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-LB-20-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-LB-20-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-LB-20-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-LB-25-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-LB-25-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-LB-25-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-LB-25-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-LB-25-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-LB-25-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-LB-25-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-LB-25-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-LB-32-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-LB-32-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-LB-32-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-LB-32-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-LB-32-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-LB-32-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-LB-32-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-LB-32-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-LB-40-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-LB-40-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-LB-40-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-LB-40-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-LB-40-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-LB-40-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-LB-40-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-LB-40-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-LS-20-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-LS-20-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-LS-25-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-LS-25-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-LS-32-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-LS-32-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-LS-40-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-LS-40-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-FA-20-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-FA-20-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-FA-20-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-FA-20-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-FA-20-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-FA-20-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-FA-20-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-FA-20-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-FA-25-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-FA-25-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-FA-25-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-FA-25-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-FA-25-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-FA-25-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-FA-25-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-FA-25-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-FA-32-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-FA-32-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-FA-32-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-FA-32-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-FA-32-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-FA-32-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-FA-32-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-FA-32-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-FA-40-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-FA-40-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-FA-40-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-FA-40-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-FA-40-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-FA-40-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-FA-40-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-FA-40-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-FB-20-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-FB-20-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-FB-20-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-FB-20-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-FB-20-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-FB-20-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-FB-20-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-FB-20-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-FB-25-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-FB-25-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-FB-25-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-FB-25-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-FB-25-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-FB-25-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-FB-25-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-FB-25-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-FB-32-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-FB-32-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-FB-32-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-FB-32-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-FB-32-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-FB-32-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-FB-32-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-FB-32-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-FB-40-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-FB-40-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-FB-40-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-FB-40-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-FB-40-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-FB-40-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-FB-40-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-FB-40-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-CC-20-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-CC-20-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-CC-20-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-CC-20-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-CC-20-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-CC-20-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-CC-20-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-CC-20-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-CC-25-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-CC-25-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-CC-25-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-CC-25-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-CC-25-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-CC-25-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-CC-25-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-CC-25-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-CC-32-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-CC-32-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-CC-32-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-CC-32-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-CC-32-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-CC-32-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-CC-32-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-CC-32-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-CC-40-25-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-CC-40-50-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-CC-40-75-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-CC-40-100-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-CC-40-150-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-CC-40-200-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-CC-40-250-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-CC-40-300-FP1 Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-00-20-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-00-20-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-00-20-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-00-20-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-00-20-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-00-20-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-00-20-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-00-20-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-00-25-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-00-25-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-00-25-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-00-25-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-00-25-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-00-25-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-00-25-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-00-25-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-00-32-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-00-32-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-00-32-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-00-32-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-00-32-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-00-32-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-00-32-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-00-32-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-00-40-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-00-40-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-00-40-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-00-40-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-00-40-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-00-40-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-00-40-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-00-40-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-LB-20-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-LB-20-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-LB-20-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-LB-20-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-LB-20-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-LB-20-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-LB-20-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-LB-20-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-LB-25-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-LB-25-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-LB-25-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-LB-25-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-LB-25-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-LB-25-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-LB-25-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-LB-25-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-LB-32-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-LB-32-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-LB-32-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-LB-32-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-LB-32-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-LB-32-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-LB-32-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-LB-32-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-LB-40-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-LB-40-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-LB-40-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-LB-40-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-LB-40-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-LB-40-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-LB-40-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-LB-40-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-LS-20-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-LS-20-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-LS-25-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-LS-25-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-LS-32-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-LS-32-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-LS-40-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-LS-40-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-FA-20-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-FA-20-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-FA-20-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-FA-20-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-FA-20-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-FA-20-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-FA-20-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-FA-20-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-FA-25-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-FA-25-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-FA-25-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-FA-25-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-FA-25-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-FA-25-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-FA-25-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-FA-25-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-FA-32-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-FA-32-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-FA-32-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-FA-32-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-FA-32-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-FA-32-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-FA-32-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-FA-32-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-FA-40-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-FA-40-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-FA-40-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-FA-40-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-FA-40-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-FA-40-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-FA-40-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-FA-40-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-FB-20-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-FB-20-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-FB-20-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-FB-20-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-FB-20-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-FB-20-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-FB-20-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-FB-20-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-FB-25-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-FB-25-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-FB-25-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-FB-25-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-FB-25-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-FB-25-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-FB-25-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-FB-25-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-FB-32-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-FB-32-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-FB-32-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-FB-32-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-FB-32-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-FB-32-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-FB-32-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-FB-32-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-FB-40-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-FB-40-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-FB-40-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-FB-40-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-FB-40-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-FB-40-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-FB-40-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-FB-40-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-CC-20-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-CC-20-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-CC-20-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-CC-20-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-CC-20-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-CC-20-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-CC-20-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-CC-20-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-CC-25-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-CC-25-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-CC-25-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-CC-25-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-CC-25-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-CC-25-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-CC-25-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-CC-25-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-CC-32-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-CC-32-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-CC-32-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-CC-32-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-CC-32-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-CC-32-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-CC-32-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-CC-32-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-CC-40-25-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-CC-40-50-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-CC-40-75-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-CC-40-100-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-CC-40-150-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-CC-40-200-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-CC-40-250-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-CC-40-300-FP1 Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 300 mm
Pneumatic CylindersCKD
336 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CMK2-JG2/JG3-FP1 Tight Cylinder (All Stainless, Water Resistant)

Brand CKD·Pneumatic Cylinders

Available part numbers (336)

CMK2-JG2-00-20-25-FP1, CMK2-JG2-00-20-50-FP1, CMK2-JG2-00-20-75-FP1, CMK2-JG2-00-20-100-FP1, CMK2-JG2-00-20-150-FP1, CMK2-JG2-00-20-200-FP1, CMK2-JG2-00-20-250-FP1, CMK2-JG2-00-20-300-FP1, CMK2-JG2-00-25-25-FP1, CMK2-JG2-00-25-50-FP1 + 326 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CMK2-JG2-00-20-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-00-20-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-00-20-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-00-20-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-00-20-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-00-20-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-00-20-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-00-20-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-00-25-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-00-25-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-00-25-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-00-25-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-00-25-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-00-25-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-00-25-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-00-25-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-00-32-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-00-32-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-00-32-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-00-32-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-00-32-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-00-32-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-00-32-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-00-32-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-00-40-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-00-40-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-00-40-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-00-40-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-00-40-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-00-40-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-00-40-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-00-40-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-LB-20-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-LB-20-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-LB-20-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-LB-20-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-LB-20-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-LB-20-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-LB-20-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-LB-20-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-LB-25-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-LB-25-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-LB-25-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-LB-25-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-LB-25-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-LB-25-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-LB-25-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-LB-25-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-LB-32-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-LB-32-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-LB-32-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-LB-32-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-LB-32-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-LB-32-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-LB-32-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-LB-32-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-LB-40-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-LB-40-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-LB-40-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-LB-40-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-LB-40-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-LB-40-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-LB-40-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-LB-40-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-LS-20-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-LS-20-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-LS-25-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-LS-25-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-LS-32-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-LS-32-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-LS-40-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-LS-40-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-FA-20-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-FA-20-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-FA-20-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-FA-20-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-FA-20-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-FA-20-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-FA-20-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-FA-20-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-FA-25-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-FA-25-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-FA-25-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-FA-25-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-FA-25-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-FA-25-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-FA-25-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-FA-25-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-FA-32-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-FA-32-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-FA-32-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-FA-32-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-FA-32-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-FA-32-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-FA-32-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-FA-32-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-FA-40-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-FA-40-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-FA-40-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-FA-40-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-FA-40-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-FA-40-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-FA-40-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-FA-40-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-FB-20-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-FB-20-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-FB-20-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-FB-20-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-FB-20-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-FB-20-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-FB-20-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-FB-20-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-FB-25-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-FB-25-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-FB-25-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-FB-25-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-FB-25-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-FB-25-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-FB-25-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-FB-25-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-FB-32-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-FB-32-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-FB-32-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-FB-32-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-FB-32-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-FB-32-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-FB-32-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-FB-32-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-FB-40-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-FB-40-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-FB-40-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-FB-40-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-FB-40-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-FB-40-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-FB-40-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-FB-40-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-CC-20-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-CC-20-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-CC-20-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-CC-20-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-CC-20-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-CC-20-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-CC-20-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-CC-20-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-CC-25-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-CC-25-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-CC-25-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-CC-25-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-CC-25-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-CC-25-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-CC-25-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-CC-25-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-CC-32-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-CC-32-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-CC-32-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-CC-32-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-CC-32-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-CC-32-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-CC-32-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-CC-32-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-CC-40-25-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-CC-40-50-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-CC-40-75-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-CC-40-100-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-CC-40-150-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-CC-40-200-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-CC-40-250-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-CC-40-300-FP1Type: All stainless, NBR packing (JG2) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-00-20-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-00-20-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-00-20-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-00-20-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-00-20-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-00-20-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-00-20-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-00-20-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-00-25-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-00-25-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-00-25-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-00-25-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-00-25-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-00-25-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-00-25-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-00-25-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-00-32-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-00-32-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-00-32-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-00-32-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-00-32-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-00-32-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-00-32-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-00-32-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-00-40-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-00-40-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-00-40-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-00-40-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-00-40-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-00-40-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-00-40-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-00-40-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-LB-20-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-LB-20-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-LB-20-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-LB-20-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-LB-20-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-LB-20-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-LB-20-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-LB-20-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-LB-25-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-LB-25-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-LB-25-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-LB-25-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-LB-25-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-LB-25-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-LB-25-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-LB-25-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-LB-32-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-LB-32-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-LB-32-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-LB-32-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-LB-32-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-LB-32-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-LB-32-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-LB-32-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-LB-40-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-LB-40-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-LB-40-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-LB-40-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-LB-40-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-LB-40-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-LB-40-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-LB-40-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-LS-20-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-LS-20-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-LS-25-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-LS-25-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-LS-32-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-LS-32-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-LS-40-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-LS-40-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-FA-20-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-FA-20-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-FA-20-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-FA-20-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-FA-20-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-FA-20-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-FA-20-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-FA-20-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-FA-25-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-FA-25-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-FA-25-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-FA-25-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-FA-25-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-FA-25-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-FA-25-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-FA-25-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-FA-32-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-FA-32-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-FA-32-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-FA-32-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-FA-32-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-FA-32-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-FA-32-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-FA-32-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-FA-40-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-FA-40-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-FA-40-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-FA-40-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-FA-40-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-FA-40-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-FA-40-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-FA-40-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Rod-side flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-FB-20-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-FB-20-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-FB-20-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-FB-20-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-FB-20-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-FB-20-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-FB-20-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-FB-20-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-FB-25-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-FB-25-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-FB-25-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-FB-25-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-FB-25-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-FB-25-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-FB-25-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-FB-25-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-FB-32-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-FB-32-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-FB-32-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-FB-32-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-FB-32-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-FB-32-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-FB-32-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-FB-32-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-FB-40-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-FB-40-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-FB-40-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-FB-40-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-FB-40-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-FB-40-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-FB-40-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-FB-40-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Head-side flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-CC-20-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-CC-20-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-CC-20-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-CC-20-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-CC-20-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-CC-20-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-CC-20-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-CC-20-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-CC-25-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-CC-25-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-CC-25-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-CC-25-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-CC-25-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-CC-25-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-CC-25-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-CC-25-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-CC-32-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-CC-32-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-CC-32-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-CC-32-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-CC-32-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-CC-32-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-CC-32-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-CC-32-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-CC-40-25-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-CC-40-50-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-CC-40-75-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-CC-40-100-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-CC-40-150-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-CC-40-200-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-CC-40-250-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-CC-40-300-FP1Type: All stainless, FKM packing (JG3) | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
