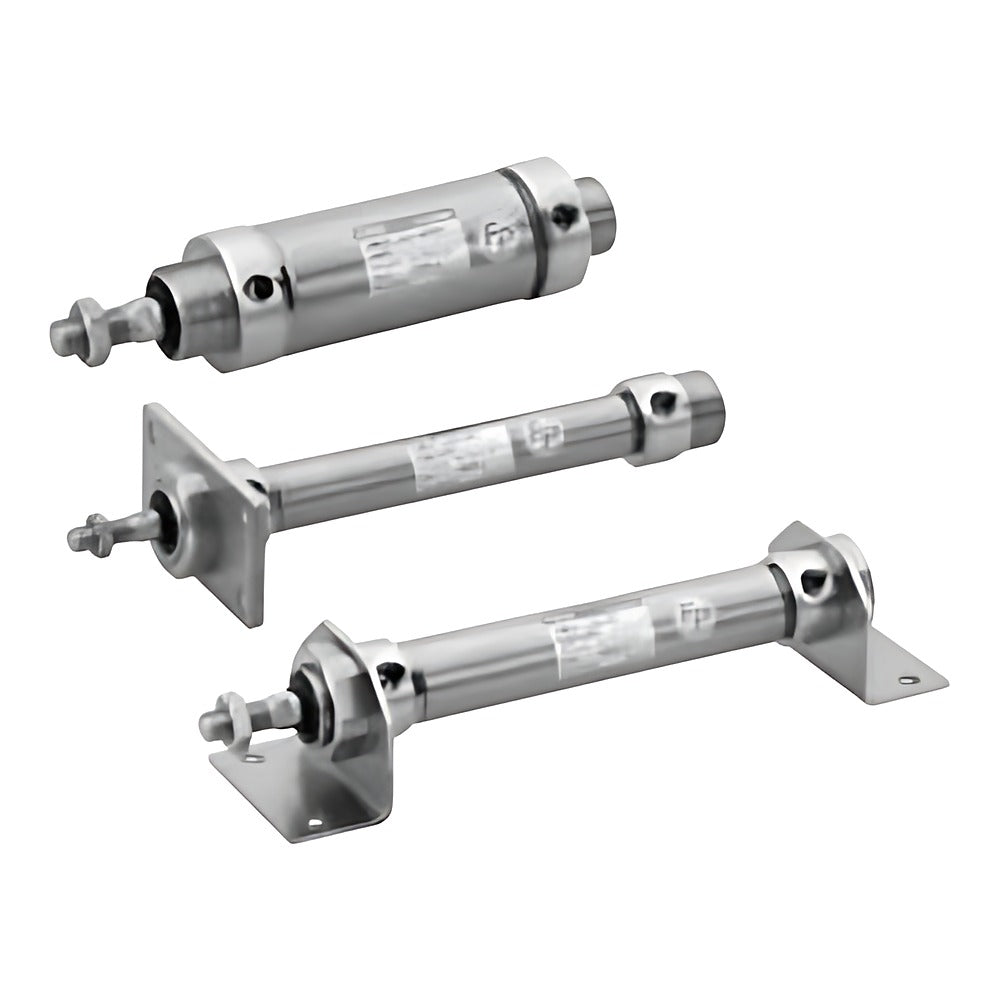

CKD CMK2-JG2/JG3 Tight Cylinder (All Stainless, Water Resistant)

CKD CMK2-JG2/JG3 Tight Cylinder (All Stainless, Water Resistant)

CKD CMK2-JG2/JG3 double-acting tight cylinder with all-stainless exterior and water-resistant scraper, NBR (JG2) or FKM (JG3) packings, bores 20 to 40 mm (made to order).

Key features

  • All-stainless exterior with water-resistant scraper; JG2 NBR, JG3 FKM packing
  • Standard strokes 25 to 300 mm; max. 750 mm; switch-mounted min. stroke 25 mm
  • Mounting: 00, LB, LS, FA, FB, CC (LS max. stroke 50 mm)
  • T2YLH/T2YLV, T3YLH/T3YLV switches with R/H/D/T; FP1 food-grade grease and V boss cut options
  • Stainless knuckles M1-I-*S, M1-Y-*S and pins M1-P-*S; made-to-order product

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa
Proof pressure 1.6 MPa
Port size Rc1/8
Ambient temperature -10 to 60°C
Piston speed 50 to 500 mm/s
Cushion Rubber cushion
Source CKD Korea catalog CB-029SK-9, p. 276-285
CMK2-JG2-00-20-25 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-00-20-50 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-00-20-75 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-00-20-100 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-00-20-150 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-00-20-200 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-00-20-250 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-00-20-300 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-00-25-25 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-00-25-50 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-00-25-75 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-00-25-100 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-00-25-150 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-00-25-200 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-00-25-250 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-00-25-300 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-00-32-25 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-00-32-50 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-00-32-75 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-00-32-100 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-00-32-150 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-00-32-200 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-00-32-250 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-00-32-300 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-00-40-25 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-00-40-50 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-00-40-75 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-00-40-100 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-00-40-150 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-00-40-200 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-00-40-250 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-00-40-300 Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-LB-20-25 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-LB-20-50 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-LB-20-75 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-LB-20-100 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-LB-20-150 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-LB-20-200 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-LB-20-250 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-LB-20-300 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-LB-25-25 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-LB-25-50 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-LB-25-75 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-LB-25-100 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-LB-25-150 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-LB-25-200 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-LB-25-250 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-LB-25-300 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-LB-32-25 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-LB-32-50 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-LB-32-75 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-LB-32-100 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-LB-32-150 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-LB-32-200 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-LB-32-250 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-LB-32-300 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-LB-40-25 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-LB-40-50 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-LB-40-75 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-LB-40-100 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-LB-40-150 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-LB-40-200 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-LB-40-250 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-LB-40-300 Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-LS-20-25 Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-LS-20-50 Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-LS-25-25 Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-LS-25-50 Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-LS-32-25 Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-LS-32-50 Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-LS-40-25 Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-LS-40-50 Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-FA-20-25 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-FA-20-50 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-FA-20-75 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-FA-20-100 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-FA-20-150 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-FA-20-200 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-FA-20-250 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-FA-20-300 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-FA-25-25 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-FA-25-50 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-FA-25-75 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-FA-25-100 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-FA-25-150 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-FA-25-200 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-FA-25-250 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-FA-25-300 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-FA-32-25 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-FA-32-50 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-FA-32-75 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-FA-32-100 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-FA-32-150 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-FA-32-200 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-FA-32-250 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-FA-32-300 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-FA-40-25 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-FA-40-50 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-FA-40-75 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-FA-40-100 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-FA-40-150 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-FA-40-200 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-FA-40-250 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-FA-40-300 Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-FB-20-25 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-FB-20-50 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-FB-20-75 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-FB-20-100 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-FB-20-150 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-FB-20-200 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-FB-20-250 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-FB-20-300 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-FB-25-25 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-FB-25-50 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-FB-25-75 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-FB-25-100 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-FB-25-150 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-FB-25-200 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-FB-25-250 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-FB-25-300 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-FB-32-25 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-FB-32-50 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-FB-32-75 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-FB-32-100 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-FB-32-150 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-FB-32-200 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-FB-32-250 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-FB-32-300 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-FB-40-25 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-FB-40-50 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-FB-40-75 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-FB-40-100 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-FB-40-150 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-FB-40-200 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-FB-40-250 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-FB-40-300 Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-CC-20-25 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-CC-20-50 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-CC-20-75 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-CC-20-100 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-CC-20-150 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-CC-20-200 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-CC-20-250 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-CC-20-300 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-CC-25-25 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-CC-25-50 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-CC-25-75 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-CC-25-100 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-CC-25-150 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-CC-25-200 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-CC-25-250 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-CC-25-300 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-CC-32-25 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-CC-32-50 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-CC-32-75 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-CC-32-100 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-CC-32-150 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-CC-32-200 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-CC-32-250 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-CC-32-300 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-CC-40-25 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-CC-40-50 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-CC-40-75 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-CC-40-100 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-CC-40-150 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-CC-40-200 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-CC-40-250 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-CC-40-300 Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-00-20-25 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-00-20-50 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-00-20-75 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-00-20-100 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-00-20-150 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-00-20-200 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-00-20-250 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-00-20-300 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-00-25-25 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-00-25-50 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-00-25-75 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-00-25-100 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-00-25-150 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-00-25-200 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-00-25-250 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-00-25-300 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-00-32-25 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-00-32-50 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-00-32-75 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-00-32-100 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-00-32-150 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-00-32-200 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-00-32-250 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-00-32-300 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-00-40-25 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-00-40-50 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-00-40-75 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-00-40-100 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-00-40-150 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-00-40-200 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-00-40-250 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-00-40-300 Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-LB-20-25 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-LB-20-50 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-LB-20-75 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-LB-20-100 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-LB-20-150 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-LB-20-200 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-LB-20-250 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-LB-20-300 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-LB-25-25 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-LB-25-50 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-LB-25-75 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-LB-25-100 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-LB-25-150 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-LB-25-200 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-LB-25-250 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-LB-25-300 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-LB-32-25 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-LB-32-50 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-LB-32-75 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-LB-32-100 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-LB-32-150 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-LB-32-200 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-LB-32-250 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-LB-32-300 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-LB-40-25 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-LB-40-50 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-LB-40-75 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-LB-40-100 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-LB-40-150 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-LB-40-200 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-LB-40-250 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-LB-40-300 Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-LS-20-25 Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-LS-20-50 Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-LS-25-25 Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-LS-25-50 Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-LS-32-25 Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-LS-32-50 Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-LS-40-25 Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-LS-40-50 Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-FA-20-25 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-FA-20-50 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-FA-20-75 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-FA-20-100 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-FA-20-150 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-FA-20-200 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-FA-20-250 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-FA-20-300 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-FA-25-25 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-FA-25-50 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-FA-25-75 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-FA-25-100 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-FA-25-150 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-FA-25-200 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-FA-25-250 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-FA-25-300 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-FA-32-25 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-FA-32-50 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-FA-32-75 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-FA-32-100 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-FA-32-150 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-FA-32-200 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-FA-32-250 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-FA-32-300 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-FA-40-25 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-FA-40-50 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-FA-40-75 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-FA-40-100 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-FA-40-150 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-FA-40-200 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-FA-40-250 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-FA-40-300 Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-FB-20-25 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-FB-20-50 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-FB-20-75 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-FB-20-100 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-FB-20-150 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-FB-20-200 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-FB-20-250 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-FB-20-300 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-FB-25-25 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-FB-25-50 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-FB-25-75 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-FB-25-100 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-FB-25-150 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-FB-25-200 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-FB-25-250 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-FB-25-300 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-FB-32-25 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-FB-32-50 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-FB-32-75 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-FB-32-100 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-FB-32-150 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-FB-32-200 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-FB-32-250 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-FB-32-300 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-FB-40-25 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-FB-40-50 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-FB-40-75 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-FB-40-100 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-FB-40-150 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-FB-40-200 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-FB-40-250 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-FB-40-300 Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-CC-20-25 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-CC-20-50 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-CC-20-75 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-CC-20-100 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-CC-20-150 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-CC-20-200 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-CC-20-250 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-CC-20-300 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-CC-25-25 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-CC-25-50 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-CC-25-75 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-CC-25-100 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-CC-25-150 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-CC-25-200 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-CC-25-250 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-CC-25-300 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-CC-32-25 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-CC-32-50 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-CC-32-75 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-CC-32-100 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-CC-32-150 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-CC-32-200 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-CC-32-250 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-CC-32-300 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-CC-40-25 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-CC-40-50 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-CC-40-75 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-CC-40-100 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-CC-40-150 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-CC-40-200 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-CC-40-250 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-CC-40-300 Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 300 mm
Pneumatic CylindersCKD
336 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CMK2-JG2/JG3 Tight Cylinder (All Stainless, Water Resistant)

Brand CKD·Pneumatic Cylinders

Available part numbers (336)

CMK2-JG2-00-20-25, CMK2-JG2-00-20-50, CMK2-JG2-00-20-75, CMK2-JG2-00-20-100, CMK2-JG2-00-20-150, CMK2-JG2-00-20-200, CMK2-JG2-00-20-250, CMK2-JG2-00-20-300, CMK2-JG2-00-25-25, CMK2-JG2-00-25-50 + 326 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CMK2-JG2-00-20-25Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-00-20-50Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-00-20-75Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-00-20-100Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-00-20-150Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-00-20-200Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-00-20-250Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-00-20-300Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-00-25-25Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-00-25-50Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-00-25-75Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-00-25-100Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-00-25-150Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-00-25-200Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-00-25-250Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-00-25-300Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-00-32-25Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-00-32-50Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-00-32-75Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-00-32-100Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-00-32-150Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-00-32-200Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-00-32-250Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-00-32-300Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-00-40-25Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-00-40-50Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-00-40-75Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-00-40-100Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-00-40-150Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-00-40-200Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-00-40-250Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-00-40-300Model: JG2: scraper + NBR packing | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-LB-20-25Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-LB-20-50Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-LB-20-75Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-LB-20-100Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-LB-20-150Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-LB-20-200Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-LB-20-250Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-LB-20-300Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-LB-25-25Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-LB-25-50Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-LB-25-75Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-LB-25-100Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-LB-25-150Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-LB-25-200Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-LB-25-250Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-LB-25-300Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-LB-32-25Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-LB-32-50Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-LB-32-75Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-LB-32-100Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-LB-32-150Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-LB-32-200Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-LB-32-250Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-LB-32-300Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-LB-40-25Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-LB-40-50Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-LB-40-75Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-LB-40-100Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-LB-40-150Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-LB-40-200Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-LB-40-250Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-LB-40-300Model: JG2: scraper + NBR packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-LS-20-25Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-LS-20-50Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-LS-25-25Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-LS-25-50Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-LS-32-25Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-LS-32-50Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-LS-40-25Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-LS-40-50Model: JG2: scraper + NBR packing | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-FA-20-25Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-FA-20-50Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-FA-20-75Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-FA-20-100Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-FA-20-150Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-FA-20-200Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-FA-20-250Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-FA-20-300Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-FA-25-25Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-FA-25-50Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-FA-25-75Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-FA-25-100Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-FA-25-150Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-FA-25-200Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-FA-25-250Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-FA-25-300Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-FA-32-25Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-FA-32-50Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-FA-32-75Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-FA-32-100Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-FA-32-150Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-FA-32-200Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-FA-32-250Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-FA-32-300Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-FA-40-25Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-FA-40-50Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-FA-40-75Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-FA-40-100Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-FA-40-150Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-FA-40-200Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-FA-40-250Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-FA-40-300Model: JG2: scraper + NBR packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-FB-20-25Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-FB-20-50Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-FB-20-75Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-FB-20-100Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-FB-20-150Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-FB-20-200Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-FB-20-250Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-FB-20-300Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-FB-25-25Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-FB-25-50Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-FB-25-75Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-FB-25-100Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-FB-25-150Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-FB-25-200Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-FB-25-250Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-FB-25-300Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-FB-32-25Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-FB-32-50Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-FB-32-75Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-FB-32-100Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-FB-32-150Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-FB-32-200Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-FB-32-250Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-FB-32-300Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-FB-40-25Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-FB-40-50Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-FB-40-75Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-FB-40-100Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-FB-40-150Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-FB-40-200Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-FB-40-250Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-FB-40-300Model: JG2: scraper + NBR packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG2-CC-20-25Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-JG2-CC-20-50Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-JG2-CC-20-75Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-JG2-CC-20-100Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-JG2-CC-20-150Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-JG2-CC-20-200Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 200 mm
CMK2-JG2-CC-20-250Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 250 mm
CMK2-JG2-CC-20-300Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 300 mm
CMK2-JG2-CC-25-25Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-JG2-CC-25-50Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-JG2-CC-25-75Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-JG2-CC-25-100Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-JG2-CC-25-150Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-JG2-CC-25-200Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 200 mm
CMK2-JG2-CC-25-250Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 250 mm
CMK2-JG2-CC-25-300Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 300 mm
CMK2-JG2-CC-32-25Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-JG2-CC-32-50Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-JG2-CC-32-75Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-JG2-CC-32-100Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-JG2-CC-32-150Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-JG2-CC-32-200Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-JG2-CC-32-250Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 250 mm
CMK2-JG2-CC-32-300Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 300 mm
CMK2-JG2-CC-40-25Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-JG2-CC-40-50Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-JG2-CC-40-75Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-JG2-CC-40-100Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-JG2-CC-40-150Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-JG2-CC-40-200Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-JG2-CC-40-250Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 250 mm
CMK2-JG2-CC-40-300Model: JG2: scraper + NBR packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-00-20-25Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-00-20-50Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-00-20-75Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-00-20-100Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-00-20-150Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-00-20-200Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-00-20-250Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-00-20-300Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-00-25-25Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-00-25-50Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-00-25-75Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-00-25-100Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-00-25-150Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-00-25-200Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-00-25-250Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-00-25-300Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-00-32-25Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-00-32-50Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-00-32-75Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-00-32-100Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-00-32-150Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-00-32-200Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-00-32-250Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-00-32-300Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-00-40-25Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-00-40-50Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-00-40-75Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-00-40-100Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-00-40-150Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-00-40-200Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-00-40-250Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-00-40-300Model: JG3: scraper + FKM packing | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-LB-20-25Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-LB-20-50Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-LB-20-75Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-LB-20-100Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-LB-20-150Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-LB-20-200Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-LB-20-250Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-LB-20-300Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-LB-25-25Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-LB-25-50Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-LB-25-75Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-LB-25-100Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-LB-25-150Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-LB-25-200Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-LB-25-250Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-LB-25-300Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-LB-32-25Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-LB-32-50Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-LB-32-75Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-LB-32-100Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-LB-32-150Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-LB-32-200Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-LB-32-250Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-LB-32-300Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-LB-40-25Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-LB-40-50Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-LB-40-75Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-LB-40-100Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-LB-40-150Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-LB-40-200Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-LB-40-250Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-LB-40-300Model: JG3: scraper + FKM packing | Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-LS-20-25Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-LS-20-50Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-LS-25-25Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-LS-25-50Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-LS-32-25Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-LS-32-50Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-LS-40-25Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-LS-40-50Model: JG3: scraper + FKM packing | Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-FA-20-25Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-FA-20-50Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-FA-20-75Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-FA-20-100Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-FA-20-150Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-FA-20-200Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-FA-20-250Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-FA-20-300Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-FA-25-25Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-FA-25-50Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-FA-25-75Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-FA-25-100Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-FA-25-150Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-FA-25-200Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-FA-25-250Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-FA-25-300Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-FA-32-25Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-FA-32-50Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-FA-32-75Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-FA-32-100Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-FA-32-150Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-FA-32-200Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-FA-32-250Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-FA-32-300Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-FA-40-25Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-FA-40-50Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-FA-40-75Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-FA-40-100Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-FA-40-150Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-FA-40-200Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-FA-40-250Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-FA-40-300Model: JG3: scraper + FKM packing | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-FB-20-25Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-FB-20-50Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-FB-20-75Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-FB-20-100Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-FB-20-150Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-FB-20-200Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-FB-20-250Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-FB-20-300Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-FB-25-25Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-FB-25-50Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-FB-25-75Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-FB-25-100Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-FB-25-150Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-FB-25-200Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-FB-25-250Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-FB-25-300Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-FB-32-25Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-FB-32-50Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-FB-32-75Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-FB-32-100Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-FB-32-150Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-FB-32-200Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-FB-32-250Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-FB-32-300Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-FB-40-25Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-FB-40-50Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-FB-40-75Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-FB-40-100Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-FB-40-150Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-FB-40-200Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-FB-40-250Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-FB-40-300Model: JG3: scraper + FKM packing | Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm
CMK2-JG3-CC-20-25Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-JG3-CC-20-50Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-JG3-CC-20-75Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-JG3-CC-20-100Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-JG3-CC-20-150Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-JG3-CC-20-200Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 200 mm
CMK2-JG3-CC-20-250Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 250 mm
CMK2-JG3-CC-20-300Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 300 mm
CMK2-JG3-CC-25-25Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-JG3-CC-25-50Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-JG3-CC-25-75Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-JG3-CC-25-100Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-JG3-CC-25-150Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-JG3-CC-25-200Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 200 mm
CMK2-JG3-CC-25-250Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 250 mm
CMK2-JG3-CC-25-300Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 300 mm
CMK2-JG3-CC-32-25Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-JG3-CC-32-50Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-JG3-CC-32-75Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-JG3-CC-32-100Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-JG3-CC-32-150Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-JG3-CC-32-200Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-JG3-CC-32-250Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 250 mm
CMK2-JG3-CC-32-300Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 300 mm
CMK2-JG3-CC-40-25Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-JG3-CC-40-50Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-JG3-CC-40-75Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-JG3-CC-40-100Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-JG3-CC-40-150Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-JG3-CC-40-200Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-JG3-CC-40-250Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 250 mm
CMK2-JG3-CC-40-300Model: JG3: scraper + FKM packing | Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
