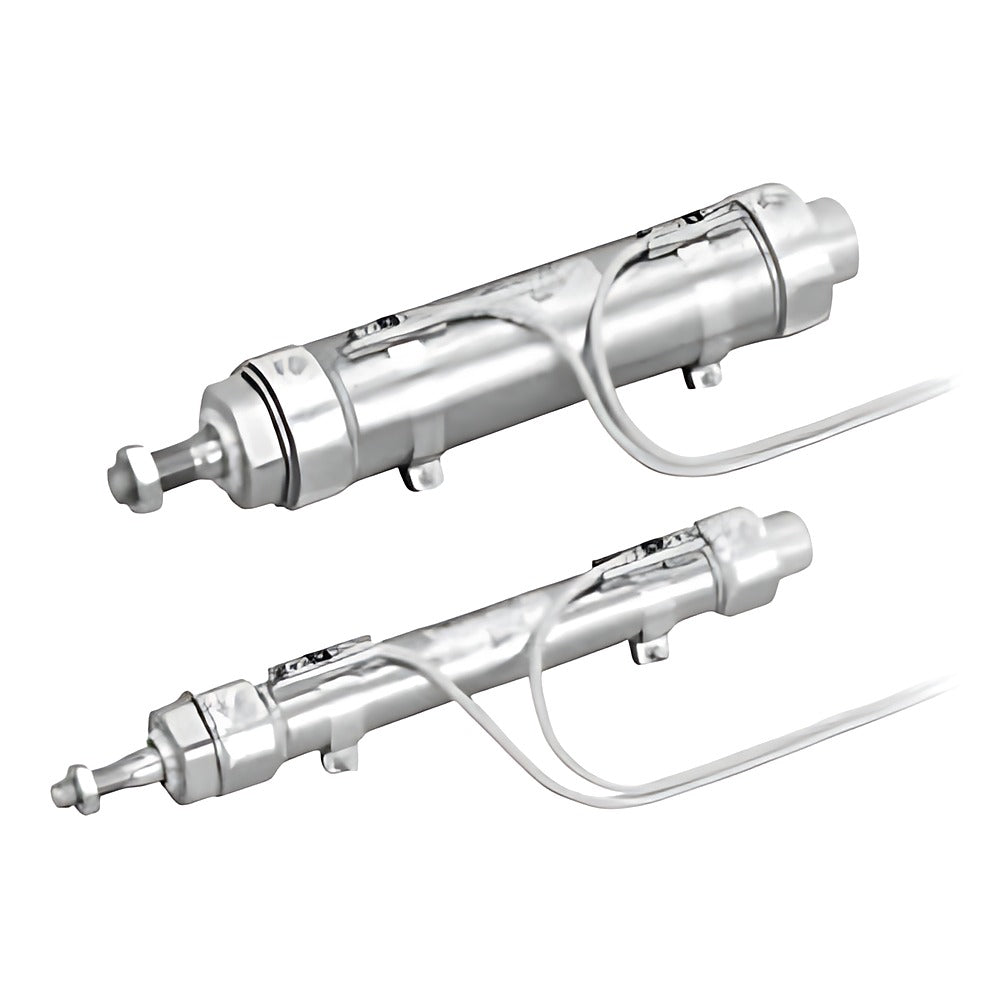

CKD CMK2-P4/P40-HP1 Tight Cylinder (Secondary Battery, Long-Life)

CKD CMK2-P4/P40-HP1 Tight Cylinder (Secondary Battery, Long-Life)

CKD CMK2-P4/P40-HP1 double-acting tight cylinder for secondary-battery production lines, bore ø20 to ø40, switch magnet built in.

Key features

  • Secondary-battery (P4 series) material restrictions: copper, zinc and nickel based materials and Zn/electroless Ni plating limited
  • Ultra-low dew point grease: long life even at -70°C dew point, durability 10 million cycles or more (CKD conditions)
  • Ten mounting styles; one-side foot (LS) max. 50 mm stroke
  • Switch magnet built in; switches per correspondence table, max. 3 on cylinder
  • Option M: stainless rod nut (ø20/25 rods are stainless as standard); knuckle I/Y, bracket B2 as suffix
  • P4 and P40 mounting brackets (M1-- / M1---P40) and switch brackets CMK2-T- available

Specifications

Specification Secondary-battery P4/P40, long-life HP1
Action Double acting, single rod
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa
Port size Rc1/8
Cushion Rubber cushion
Piston speed 50 to 500 mm/s
Source CKD Korea catalog CC-1421KR-7, p. 194-195
CMK2-00-20-25-P4-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-00-20-25-P40-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-00-20-50-P4-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-00-20-50-P40-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-00-20-75-P4-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-00-20-75-P40-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-00-20-100-P4-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-00-20-100-P40-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-00-20-150-P4-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-00-20-150-P40-HP1 Mounting: Basic | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-LB-20-25-P4-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-LB-20-25-P40-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-LB-20-50-P4-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-LB-20-50-P40-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-LB-20-75-P4-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-LB-20-75-P40-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-LB-20-100-P4-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-LB-20-100-P40-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-LB-20-150-P4-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-LB-20-150-P40-HP1 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-LS-20-25-P4-HP1 Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-LS-20-25-P40-HP1 Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-LS-20-50-P4-HP1 Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-LS-20-50-P40-HP1 Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-FA-20-25-P4-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-FA-20-25-P40-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-FA-20-50-P4-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-FA-20-50-P40-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-FA-20-75-P4-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-FA-20-75-P40-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-FA-20-100-P4-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-FA-20-100-P40-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-FA-20-150-P4-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-FA-20-150-P40-HP1 Mounting: Rod flange | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-FB-20-25-P4-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-FB-20-25-P40-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-FB-20-50-P4-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-FB-20-50-P40-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-FB-20-75-P4-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-FB-20-75-P40-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-FB-20-100-P4-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-FB-20-100-P40-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-FB-20-150-P4-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-FB-20-150-P40-HP1 Mounting: Head flange | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-CA-20-25-P4-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-CA-20-25-P40-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-CA-20-50-P4-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-CA-20-50-P40-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-CA-20-75-P4-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-CA-20-75-P40-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-CA-20-100-P4-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-CA-20-100-P40-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-CA-20-150-P4-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-CA-20-150-P40-HP1 Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-CC-20-25-P4-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-CC-20-25-P40-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-CC-20-50-P4-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-CC-20-50-P40-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-CC-20-75-P4-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-CC-20-75-P40-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-CC-20-100-P4-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-CC-20-100-P40-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-CC-20-150-P4-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-CC-20-150-P40-HP1 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-CB-20-25-P4-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-CB-20-25-P40-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-CB-20-50-P4-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-CB-20-50-P40-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-CB-20-75-P4-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-CB-20-75-P40-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-CB-20-100-P4-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-CB-20-100-P40-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-CB-20-150-P4-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-CB-20-150-P40-HP1 Mounting: Double clevis | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-TA-20-25-P4-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-TA-20-25-P40-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-TA-20-50-P4-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-TA-20-50-P40-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-TA-20-75-P4-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-TA-20-75-P40-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-TA-20-100-P4-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-TA-20-100-P40-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-TA-20-150-P4-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-TA-20-150-P40-HP1 Mounting: Rod trunnion | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-TB-20-25-P4-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-TB-20-25-P40-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-TB-20-50-P4-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-TB-20-50-P40-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-TB-20-75-P4-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-TB-20-75-P40-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-TB-20-100-P4-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-TB-20-100-P40-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-TB-20-150-P4-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-TB-20-150-P40-HP1 Mounting: Head trunnion | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-00-25-25-P4-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-00-25-25-P40-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-00-25-50-P4-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-00-25-50-P40-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-00-25-75-P4-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-00-25-75-P40-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-00-25-100-P4-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-00-25-100-P40-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-00-25-150-P4-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-00-25-150-P40-HP1 Mounting: Basic | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-LB-25-25-P4-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-LB-25-25-P40-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-LB-25-50-P4-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-LB-25-50-P40-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-LB-25-75-P4-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-LB-25-75-P40-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-LB-25-100-P4-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-LB-25-100-P40-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-LB-25-150-P4-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-LB-25-150-P40-HP1 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-LS-25-25-P4-HP1 Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-LS-25-25-P40-HP1 Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-LS-25-50-P4-HP1 Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-LS-25-50-P40-HP1 Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-FA-25-25-P4-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-FA-25-25-P40-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-FA-25-50-P4-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-FA-25-50-P40-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-FA-25-75-P4-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-FA-25-75-P40-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-FA-25-100-P4-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-FA-25-100-P40-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-FA-25-150-P4-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-FA-25-150-P40-HP1 Mounting: Rod flange | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-FB-25-25-P4-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-FB-25-25-P40-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-FB-25-50-P4-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-FB-25-50-P40-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-FB-25-75-P4-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-FB-25-75-P40-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-FB-25-100-P4-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-FB-25-100-P40-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-FB-25-150-P4-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-FB-25-150-P40-HP1 Mounting: Head flange | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-CA-25-25-P4-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-CA-25-25-P40-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-CA-25-50-P4-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-CA-25-50-P40-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-CA-25-75-P4-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-CA-25-75-P40-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-CA-25-100-P4-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-CA-25-100-P40-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-CA-25-150-P4-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-CA-25-150-P40-HP1 Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-CC-25-25-P4-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-CC-25-25-P40-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-CC-25-50-P4-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-CC-25-50-P40-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-CC-25-75-P4-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-CC-25-75-P40-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-CC-25-100-P4-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-CC-25-100-P40-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-CC-25-150-P4-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-CC-25-150-P40-HP1 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-CB-25-25-P4-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-CB-25-25-P40-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-CB-25-50-P4-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-CB-25-50-P40-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-CB-25-75-P4-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-CB-25-75-P40-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-CB-25-100-P4-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-CB-25-100-P40-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-CB-25-150-P4-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-CB-25-150-P40-HP1 Mounting: Double clevis | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-TA-25-25-P4-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-TA-25-25-P40-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-TA-25-50-P4-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-TA-25-50-P40-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-TA-25-75-P4-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-TA-25-75-P40-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-TA-25-100-P4-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-TA-25-100-P40-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-TA-25-150-P4-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-TA-25-150-P40-HP1 Mounting: Rod trunnion | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-TB-25-25-P4-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-TB-25-25-P40-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-TB-25-50-P4-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-TB-25-50-P40-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-TB-25-75-P4-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-TB-25-75-P40-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-TB-25-100-P4-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-TB-25-100-P40-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-TB-25-150-P4-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-TB-25-150-P40-HP1 Mounting: Head trunnion | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-00-32-25-P4-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-00-32-25-P40-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-00-32-50-P4-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-00-32-50-P40-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-00-32-75-P4-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-00-32-75-P40-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-00-32-100-P4-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-00-32-100-P40-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-00-32-150-P4-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-00-32-150-P40-HP1 Mounting: Basic | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-LB-32-25-P4-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-LB-32-25-P40-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-LB-32-50-P4-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-LB-32-50-P40-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-LB-32-75-P4-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-LB-32-75-P40-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-LB-32-100-P4-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-LB-32-100-P40-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-LB-32-150-P4-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-LB-32-150-P40-HP1 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-LS-32-25-P4-HP1 Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-LS-32-25-P40-HP1 Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-LS-32-50-P4-HP1 Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-LS-32-50-P40-HP1 Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-FA-32-25-P4-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-FA-32-25-P40-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-FA-32-50-P4-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-FA-32-50-P40-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-FA-32-75-P4-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-FA-32-75-P40-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-FA-32-100-P4-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-FA-32-100-P40-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-FA-32-150-P4-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-FA-32-150-P40-HP1 Mounting: Rod flange | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-FB-32-25-P4-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-FB-32-25-P40-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-FB-32-50-P4-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-FB-32-50-P40-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-FB-32-75-P4-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-FB-32-75-P40-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-FB-32-100-P4-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-FB-32-100-P40-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-FB-32-150-P4-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-FB-32-150-P40-HP1 Mounting: Head flange | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-CA-32-25-P4-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-CA-32-25-P40-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-CA-32-50-P4-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-CA-32-50-P40-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-CA-32-75-P4-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-CA-32-75-P40-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-CA-32-100-P4-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-CA-32-100-P40-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-CA-32-150-P4-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-CA-32-150-P40-HP1 Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-CC-32-25-P4-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-CC-32-25-P40-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-CC-32-50-P4-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-CC-32-50-P40-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-CC-32-75-P4-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-CC-32-75-P40-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-CC-32-100-P4-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-CC-32-100-P40-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-CC-32-150-P4-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-CC-32-150-P40-HP1 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-CB-32-25-P4-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-CB-32-25-P40-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-CB-32-50-P4-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-CB-32-50-P40-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-CB-32-75-P4-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-CB-32-75-P40-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-CB-32-100-P4-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-CB-32-100-P40-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-CB-32-150-P4-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-CB-32-150-P40-HP1 Mounting: Double clevis | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-TA-32-25-P4-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-TA-32-25-P40-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-TA-32-50-P4-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-TA-32-50-P40-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-TA-32-75-P4-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-TA-32-75-P40-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-TA-32-100-P4-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-TA-32-100-P40-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-TA-32-150-P4-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-TA-32-150-P40-HP1 Mounting: Rod trunnion | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-TB-32-25-P4-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-TB-32-25-P40-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-TB-32-50-P4-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-TB-32-50-P40-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-TB-32-75-P4-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-TB-32-75-P40-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-TB-32-100-P4-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-TB-32-100-P40-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-TB-32-150-P4-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-TB-32-150-P40-HP1 Mounting: Head trunnion | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-00-40-25-P4-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-00-40-25-P40-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-00-40-50-P4-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-00-40-50-P40-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-00-40-75-P4-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-00-40-75-P40-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-00-40-100-P4-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-00-40-100-P40-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-00-40-150-P4-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-00-40-150-P40-HP1 Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-LB-40-25-P4-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-LB-40-25-P40-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-LB-40-50-P4-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-LB-40-50-P40-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-LB-40-75-P4-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-LB-40-75-P40-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-LB-40-100-P4-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-LB-40-100-P40-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-LB-40-150-P4-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-LB-40-150-P40-HP1 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-LS-40-25-P4-HP1 Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-LS-40-25-P40-HP1 Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-LS-40-50-P4-HP1 Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-LS-40-50-P40-HP1 Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-FA-40-25-P4-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-FA-40-25-P40-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-FA-40-50-P4-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-FA-40-50-P40-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-FA-40-75-P4-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-FA-40-75-P40-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-FA-40-100-P4-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-FA-40-100-P40-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-FA-40-150-P4-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-FA-40-150-P40-HP1 Mounting: Rod flange | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-FB-40-25-P4-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-FB-40-25-P40-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-FB-40-50-P4-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-FB-40-50-P40-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-FB-40-75-P4-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-FB-40-75-P40-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-FB-40-100-P4-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-FB-40-100-P40-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-FB-40-150-P4-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-FB-40-150-P40-HP1 Mounting: Head flange | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-CA-40-25-P4-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-CA-40-25-P40-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-CA-40-50-P4-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-CA-40-50-P40-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-CA-40-75-P4-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-CA-40-75-P40-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-CA-40-100-P4-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-CA-40-100-P40-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-CA-40-150-P4-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-CA-40-150-P40-HP1 Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-CC-40-25-P4-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-CC-40-25-P40-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-CC-40-50-P4-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-CC-40-50-P40-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-CC-40-75-P4-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-CC-40-75-P40-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-CC-40-100-P4-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-CC-40-100-P40-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-CC-40-150-P4-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-CC-40-150-P40-HP1 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-CB-40-25-P4-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-CB-40-25-P40-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-CB-40-50-P4-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-CB-40-50-P40-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-CB-40-75-P4-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-CB-40-75-P40-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-CB-40-100-P4-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-CB-40-100-P40-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-CB-40-150-P4-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-CB-40-150-P40-HP1 Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-TA-40-25-P4-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-TA-40-25-P40-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-TA-40-50-P4-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-TA-40-50-P40-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-TA-40-75-P4-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-TA-40-75-P40-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-TA-40-100-P4-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-TA-40-100-P40-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-TA-40-150-P4-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-TA-40-150-P40-HP1 Mounting: Rod trunnion | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-TB-40-25-P4-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-TB-40-25-P40-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-TB-40-50-P4-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-TB-40-50-P40-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-TB-40-75-P4-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-TB-40-75-P40-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-TB-40-100-P4-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-TB-40-100-P40-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-TB-40-150-P4-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-TB-40-150-P40-HP1 Mounting: Head trunnion | Bore: 40 mm | Stroke: 150 mm | Version: P40
Pneumatic CylindersCKD
376 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CMK2-P4/P40-HP1 Tight Cylinder (Secondary Battery, Long-Life)

Brand CKD·Pneumatic Cylinders

Available part numbers (376)

CMK2-00-20-25-P4-HP1, CMK2-00-20-25-P40-HP1, CMK2-00-20-50-P4-HP1, CMK2-00-20-50-P40-HP1, CMK2-00-20-75-P4-HP1, CMK2-00-20-75-P40-HP1, CMK2-00-20-100-P4-HP1, CMK2-00-20-100-P40-HP1, CMK2-00-20-150-P4-HP1, CMK2-00-20-150-P40-HP1 + 366 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CMK2-00-20-25-P4-HP1Mounting: Basic | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-00-20-25-P40-HP1Mounting: Basic | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-00-20-50-P4-HP1Mounting: Basic | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-00-20-50-P40-HP1Mounting: Basic | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-00-20-75-P4-HP1Mounting: Basic | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-00-20-75-P40-HP1Mounting: Basic | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-00-20-100-P4-HP1Mounting: Basic | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-00-20-100-P40-HP1Mounting: Basic | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-00-20-150-P4-HP1Mounting: Basic | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-00-20-150-P40-HP1Mounting: Basic | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-LB-20-25-P4-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-LB-20-25-P40-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-LB-20-50-P4-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-LB-20-50-P40-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-LB-20-75-P4-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-LB-20-75-P40-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-LB-20-100-P4-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-LB-20-100-P40-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-LB-20-150-P4-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-LB-20-150-P40-HP1Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-LS-20-25-P4-HP1Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-LS-20-25-P40-HP1Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-LS-20-50-P4-HP1Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-LS-20-50-P40-HP1Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-FA-20-25-P4-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-FA-20-25-P40-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-FA-20-50-P4-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-FA-20-50-P40-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-FA-20-75-P4-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-FA-20-75-P40-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-FA-20-100-P4-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-FA-20-100-P40-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-FA-20-150-P4-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-FA-20-150-P40-HP1Mounting: Rod flange | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-FB-20-25-P4-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-FB-20-25-P40-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-FB-20-50-P4-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-FB-20-50-P40-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-FB-20-75-P4-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-FB-20-75-P40-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-FB-20-100-P4-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-FB-20-100-P40-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-FB-20-150-P4-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-FB-20-150-P40-HP1Mounting: Head flange | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-CA-20-25-P4-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-CA-20-25-P40-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-CA-20-50-P4-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-CA-20-50-P40-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-CA-20-75-P4-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-CA-20-75-P40-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-CA-20-100-P4-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-CA-20-100-P40-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-CA-20-150-P4-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-CA-20-150-P40-HP1Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-CC-20-25-P4-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-CC-20-25-P40-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-CC-20-50-P4-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-CC-20-50-P40-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-CC-20-75-P4-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-CC-20-75-P40-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-CC-20-100-P4-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-CC-20-100-P40-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-CC-20-150-P4-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-CC-20-150-P40-HP1Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-CB-20-25-P4-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-CB-20-25-P40-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-CB-20-50-P4-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-CB-20-50-P40-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-CB-20-75-P4-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-CB-20-75-P40-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-CB-20-100-P4-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-CB-20-100-P40-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-CB-20-150-P4-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-CB-20-150-P40-HP1Mounting: Double clevis | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-TA-20-25-P4-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-TA-20-25-P40-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-TA-20-50-P4-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-TA-20-50-P40-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-TA-20-75-P4-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-TA-20-75-P40-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-TA-20-100-P4-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-TA-20-100-P40-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-TA-20-150-P4-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-TA-20-150-P40-HP1Mounting: Rod trunnion | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-TB-20-25-P4-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 25 mm | Version: P4
CMK2-TB-20-25-P40-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 25 mm | Version: P40
CMK2-TB-20-50-P4-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 50 mm | Version: P4
CMK2-TB-20-50-P40-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 50 mm | Version: P40
CMK2-TB-20-75-P4-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 75 mm | Version: P4
CMK2-TB-20-75-P40-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 75 mm | Version: P40
CMK2-TB-20-100-P4-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 100 mm | Version: P4
CMK2-TB-20-100-P40-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 100 mm | Version: P40
CMK2-TB-20-150-P4-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 150 mm | Version: P4
CMK2-TB-20-150-P40-HP1Mounting: Head trunnion | Bore: 20 mm | Stroke: 150 mm | Version: P40
CMK2-00-25-25-P4-HP1Mounting: Basic | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-00-25-25-P40-HP1Mounting: Basic | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-00-25-50-P4-HP1Mounting: Basic | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-00-25-50-P40-HP1Mounting: Basic | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-00-25-75-P4-HP1Mounting: Basic | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-00-25-75-P40-HP1Mounting: Basic | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-00-25-100-P4-HP1Mounting: Basic | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-00-25-100-P40-HP1Mounting: Basic | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-00-25-150-P4-HP1Mounting: Basic | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-00-25-150-P40-HP1Mounting: Basic | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-LB-25-25-P4-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-LB-25-25-P40-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-LB-25-50-P4-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-LB-25-50-P40-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-LB-25-75-P4-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-LB-25-75-P40-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-LB-25-100-P4-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-LB-25-100-P40-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-LB-25-150-P4-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-LB-25-150-P40-HP1Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-LS-25-25-P4-HP1Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-LS-25-25-P40-HP1Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-LS-25-50-P4-HP1Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-LS-25-50-P40-HP1Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-FA-25-25-P4-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-FA-25-25-P40-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-FA-25-50-P4-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-FA-25-50-P40-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-FA-25-75-P4-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-FA-25-75-P40-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-FA-25-100-P4-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-FA-25-100-P40-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-FA-25-150-P4-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-FA-25-150-P40-HP1Mounting: Rod flange | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-FB-25-25-P4-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-FB-25-25-P40-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-FB-25-50-P4-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-FB-25-50-P40-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-FB-25-75-P4-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-FB-25-75-P40-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-FB-25-100-P4-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-FB-25-100-P40-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-FB-25-150-P4-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-FB-25-150-P40-HP1Mounting: Head flange | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-CA-25-25-P4-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-CA-25-25-P40-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-CA-25-50-P4-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-CA-25-50-P40-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-CA-25-75-P4-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-CA-25-75-P40-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-CA-25-100-P4-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-CA-25-100-P40-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-CA-25-150-P4-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-CA-25-150-P40-HP1Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-CC-25-25-P4-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-CC-25-25-P40-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-CC-25-50-P4-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-CC-25-50-P40-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-CC-25-75-P4-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-CC-25-75-P40-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-CC-25-100-P4-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-CC-25-100-P40-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-CC-25-150-P4-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-CC-25-150-P40-HP1Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-CB-25-25-P4-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-CB-25-25-P40-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-CB-25-50-P4-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-CB-25-50-P40-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-CB-25-75-P4-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-CB-25-75-P40-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-CB-25-100-P4-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-CB-25-100-P40-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-CB-25-150-P4-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-CB-25-150-P40-HP1Mounting: Double clevis | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-TA-25-25-P4-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-TA-25-25-P40-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-TA-25-50-P4-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-TA-25-50-P40-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-TA-25-75-P4-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-TA-25-75-P40-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-TA-25-100-P4-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-TA-25-100-P40-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-TA-25-150-P4-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-TA-25-150-P40-HP1Mounting: Rod trunnion | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-TB-25-25-P4-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 25 mm | Version: P4
CMK2-TB-25-25-P40-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 25 mm | Version: P40
CMK2-TB-25-50-P4-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 50 mm | Version: P4
CMK2-TB-25-50-P40-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 50 mm | Version: P40
CMK2-TB-25-75-P4-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 75 mm | Version: P4
CMK2-TB-25-75-P40-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 75 mm | Version: P40
CMK2-TB-25-100-P4-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 100 mm | Version: P4
CMK2-TB-25-100-P40-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 100 mm | Version: P40
CMK2-TB-25-150-P4-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 150 mm | Version: P4
CMK2-TB-25-150-P40-HP1Mounting: Head trunnion | Bore: 25 mm | Stroke: 150 mm | Version: P40
CMK2-00-32-25-P4-HP1Mounting: Basic | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-00-32-25-P40-HP1Mounting: Basic | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-00-32-50-P4-HP1Mounting: Basic | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-00-32-50-P40-HP1Mounting: Basic | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-00-32-75-P4-HP1Mounting: Basic | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-00-32-75-P40-HP1Mounting: Basic | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-00-32-100-P4-HP1Mounting: Basic | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-00-32-100-P40-HP1Mounting: Basic | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-00-32-150-P4-HP1Mounting: Basic | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-00-32-150-P40-HP1Mounting: Basic | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-LB-32-25-P4-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-LB-32-25-P40-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-LB-32-50-P4-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-LB-32-50-P40-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-LB-32-75-P4-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-LB-32-75-P40-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-LB-32-100-P4-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-LB-32-100-P40-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-LB-32-150-P4-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-LB-32-150-P40-HP1Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-LS-32-25-P4-HP1Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-LS-32-25-P40-HP1Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-LS-32-50-P4-HP1Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-LS-32-50-P40-HP1Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-FA-32-25-P4-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-FA-32-25-P40-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-FA-32-50-P4-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-FA-32-50-P40-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-FA-32-75-P4-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-FA-32-75-P40-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-FA-32-100-P4-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-FA-32-100-P40-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-FA-32-150-P4-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-FA-32-150-P40-HP1Mounting: Rod flange | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-FB-32-25-P4-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-FB-32-25-P40-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-FB-32-50-P4-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-FB-32-50-P40-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-FB-32-75-P4-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-FB-32-75-P40-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-FB-32-100-P4-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-FB-32-100-P40-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-FB-32-150-P4-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-FB-32-150-P40-HP1Mounting: Head flange | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-CA-32-25-P4-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-CA-32-25-P40-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-CA-32-50-P4-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-CA-32-50-P40-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-CA-32-75-P4-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-CA-32-75-P40-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-CA-32-100-P4-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-CA-32-100-P40-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-CA-32-150-P4-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-CA-32-150-P40-HP1Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-CC-32-25-P4-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-CC-32-25-P40-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-CC-32-50-P4-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-CC-32-50-P40-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-CC-32-75-P4-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-CC-32-75-P40-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-CC-32-100-P4-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-CC-32-100-P40-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-CC-32-150-P4-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-CC-32-150-P40-HP1Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-CB-32-25-P4-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-CB-32-25-P40-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-CB-32-50-P4-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-CB-32-50-P40-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-CB-32-75-P4-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-CB-32-75-P40-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-CB-32-100-P4-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-CB-32-100-P40-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-CB-32-150-P4-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-CB-32-150-P40-HP1Mounting: Double clevis | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-TA-32-25-P4-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-TA-32-25-P40-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-TA-32-50-P4-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-TA-32-50-P40-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-TA-32-75-P4-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-TA-32-75-P40-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-TA-32-100-P4-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-TA-32-100-P40-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-TA-32-150-P4-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-TA-32-150-P40-HP1Mounting: Rod trunnion | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-TB-32-25-P4-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 25 mm | Version: P4
CMK2-TB-32-25-P40-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 25 mm | Version: P40
CMK2-TB-32-50-P4-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 50 mm | Version: P4
CMK2-TB-32-50-P40-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 50 mm | Version: P40
CMK2-TB-32-75-P4-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 75 mm | Version: P4
CMK2-TB-32-75-P40-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 75 mm | Version: P40
CMK2-TB-32-100-P4-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 100 mm | Version: P4
CMK2-TB-32-100-P40-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 100 mm | Version: P40
CMK2-TB-32-150-P4-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 150 mm | Version: P4
CMK2-TB-32-150-P40-HP1Mounting: Head trunnion | Bore: 32 mm | Stroke: 150 mm | Version: P40
CMK2-00-40-25-P4-HP1Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-00-40-25-P40-HP1Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-00-40-50-P4-HP1Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-00-40-50-P40-HP1Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-00-40-75-P4-HP1Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-00-40-75-P40-HP1Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-00-40-100-P4-HP1Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-00-40-100-P40-HP1Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-00-40-150-P4-HP1Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-00-40-150-P40-HP1Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-LB-40-25-P4-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-LB-40-25-P40-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-LB-40-50-P4-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-LB-40-50-P40-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-LB-40-75-P4-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-LB-40-75-P40-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-LB-40-100-P4-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-LB-40-100-P40-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-LB-40-150-P4-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-LB-40-150-P40-HP1Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-LS-40-25-P4-HP1Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-LS-40-25-P40-HP1Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-LS-40-50-P4-HP1Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-LS-40-50-P40-HP1Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-FA-40-25-P4-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-FA-40-25-P40-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-FA-40-50-P4-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-FA-40-50-P40-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-FA-40-75-P4-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-FA-40-75-P40-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-FA-40-100-P4-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-FA-40-100-P40-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-FA-40-150-P4-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-FA-40-150-P40-HP1Mounting: Rod flange | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-FB-40-25-P4-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-FB-40-25-P40-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-FB-40-50-P4-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-FB-40-50-P40-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-FB-40-75-P4-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-FB-40-75-P40-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-FB-40-100-P4-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-FB-40-100-P40-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-FB-40-150-P4-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-FB-40-150-P40-HP1Mounting: Head flange | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-CA-40-25-P4-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-CA-40-25-P40-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-CA-40-50-P4-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-CA-40-50-P40-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-CA-40-75-P4-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-CA-40-75-P40-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-CA-40-100-P4-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-CA-40-100-P40-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-CA-40-150-P4-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-CA-40-150-P40-HP1Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-CC-40-25-P4-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-CC-40-25-P40-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-CC-40-50-P4-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-CC-40-50-P40-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-CC-40-75-P4-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-CC-40-75-P40-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-CC-40-100-P4-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-CC-40-100-P40-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-CC-40-150-P4-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-CC-40-150-P40-HP1Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-CB-40-25-P4-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-CB-40-25-P40-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-CB-40-50-P4-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-CB-40-50-P40-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-CB-40-75-P4-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-CB-40-75-P40-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-CB-40-100-P4-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-CB-40-100-P40-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-CB-40-150-P4-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-CB-40-150-P40-HP1Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-TA-40-25-P4-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-TA-40-25-P40-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-TA-40-50-P4-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-TA-40-50-P40-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-TA-40-75-P4-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-TA-40-75-P40-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-TA-40-100-P4-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-TA-40-100-P40-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-TA-40-150-P4-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-TA-40-150-P40-HP1Mounting: Rod trunnion | Bore: 40 mm | Stroke: 150 mm | Version: P40
CMK2-TB-40-25-P4-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 25 mm | Version: P4
CMK2-TB-40-25-P40-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 25 mm | Version: P40
CMK2-TB-40-50-P4-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 50 mm | Version: P4
CMK2-TB-40-50-P40-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 50 mm | Version: P40
CMK2-TB-40-75-P4-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 75 mm | Version: P4
CMK2-TB-40-75-P40-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 75 mm | Version: P40
CMK2-TB-40-100-P4-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 100 mm | Version: P4
CMK2-TB-40-100-P40-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 100 mm | Version: P40
CMK2-TB-40-150-P4-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 150 mm | Version: P4
CMK2-TB-40-150-P40-HP1Mounting: Head trunnion | Bore: 40 mm | Stroke: 150 mm | Version: P40

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
