CKD CMK2-Q Tight Cylinder (Double-Acting, End Lock)

CKD CMK2-Q Tight Cylinder (Double-Acting, End Lock)

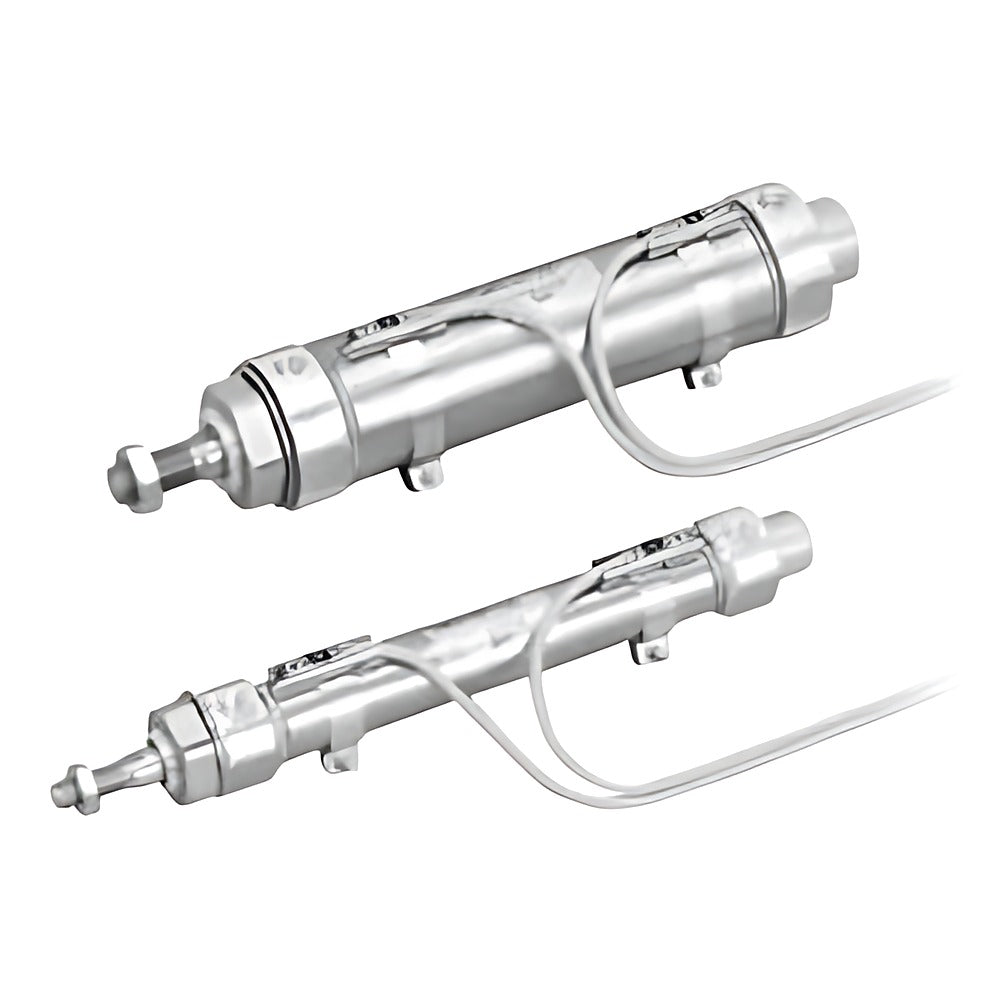

CKD CMK2-Q double-acting tight cylinder with drop-prevention end lock at the rod or head end, bores 20 to 40 mm.

Key features

  • Lock mechanism symbol R (rod end) or H (head end) follows the stroke; holding force max. thrust x 0.7
  • TA with rod-end lock and TB with head-end lock cannot be made
  • Standard strokes 25 to 300 mm; max. 750 mm; bellows not available
  • Mounting: 00, LB, FA, FB, CA, CB, TA, TB
  • Magnet for switches built in as standard; auto switches T0/T5/T8 (reed), T1/T2/T3/T3P/T2W/T2Y/T3W/T3Y/T2J (solid state) added after the stroke with quantity R/H/D/T (max. 3)
  • Options F/FE fittings, M stainless rod, P6, M0/M1 manual lock release

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa
Proof pressure 1.6 MPa
Port size Rc1/8
Ambient temperature -10 to 60°C
Piston speed 50 to 500 mm/s
Cushion Rubber cushion
Source CKD Korea catalog CB-029SK-9, p. 230-235
CMK2-Q-00-20-25-R Mounting: Basic | Bore: 20 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-00-20-25-H Mounting: Basic | Bore: 20 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-00-20-50-R Mounting: Basic | Bore: 20 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-00-20-50-H Mounting: Basic | Bore: 20 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-00-20-75-R Mounting: Basic | Bore: 20 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-00-20-75-H Mounting: Basic | Bore: 20 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-00-20-100-R Mounting: Basic | Bore: 20 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-00-20-100-H Mounting: Basic | Bore: 20 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-00-20-150-R Mounting: Basic | Bore: 20 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-00-20-150-H Mounting: Basic | Bore: 20 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-00-20-200-R Mounting: Basic | Bore: 20 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-00-20-200-H Mounting: Basic | Bore: 20 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-00-20-250-R Mounting: Basic | Bore: 20 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-00-20-250-H Mounting: Basic | Bore: 20 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-00-20-300-R Mounting: Basic | Bore: 20 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-00-20-300-H Mounting: Basic | Bore: 20 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-00-25-25-R Mounting: Basic | Bore: 25 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-00-25-25-H Mounting: Basic | Bore: 25 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-00-25-50-R Mounting: Basic | Bore: 25 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-00-25-50-H Mounting: Basic | Bore: 25 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-00-25-75-R Mounting: Basic | Bore: 25 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-00-25-75-H Mounting: Basic | Bore: 25 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-00-25-100-R Mounting: Basic | Bore: 25 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-00-25-100-H Mounting: Basic | Bore: 25 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-00-25-150-R Mounting: Basic | Bore: 25 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-00-25-150-H Mounting: Basic | Bore: 25 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-00-25-200-R Mounting: Basic | Bore: 25 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-00-25-200-H Mounting: Basic | Bore: 25 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-00-25-250-R Mounting: Basic | Bore: 25 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-00-25-250-H Mounting: Basic | Bore: 25 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-00-25-300-R Mounting: Basic | Bore: 25 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-00-25-300-H Mounting: Basic | Bore: 25 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-00-32-25-R Mounting: Basic | Bore: 32 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-00-32-25-H Mounting: Basic | Bore: 32 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-00-32-50-R Mounting: Basic | Bore: 32 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-00-32-50-H Mounting: Basic | Bore: 32 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-00-32-75-R Mounting: Basic | Bore: 32 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-00-32-75-H Mounting: Basic | Bore: 32 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-00-32-100-R Mounting: Basic | Bore: 32 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-00-32-100-H Mounting: Basic | Bore: 32 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-00-32-150-R Mounting: Basic | Bore: 32 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-00-32-150-H Mounting: Basic | Bore: 32 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-00-32-200-R Mounting: Basic | Bore: 32 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-00-32-200-H Mounting: Basic | Bore: 32 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-00-32-250-R Mounting: Basic | Bore: 32 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-00-32-250-H Mounting: Basic | Bore: 32 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-00-32-300-R Mounting: Basic | Bore: 32 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-00-32-300-H Mounting: Basic | Bore: 32 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-00-40-25-R Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-00-40-25-H Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-00-40-50-R Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-00-40-50-H Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-00-40-75-R Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-00-40-75-H Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-00-40-100-R Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-00-40-100-H Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-00-40-150-R Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-00-40-150-H Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-00-40-200-R Mounting: Basic | Bore: 40 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-00-40-200-H Mounting: Basic | Bore: 40 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-00-40-250-R Mounting: Basic | Bore: 40 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-00-40-250-H Mounting: Basic | Bore: 40 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-00-40-300-R Mounting: Basic | Bore: 40 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-00-40-300-H Mounting: Basic | Bore: 40 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-LB-20-25-R Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-LB-20-25-H Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-LB-20-50-R Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-LB-20-50-H Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-LB-20-75-R Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-LB-20-75-H Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-LB-20-100-R Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-LB-20-100-H Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-LB-20-150-R Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-LB-20-150-H Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-LB-20-200-R Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-LB-20-200-H Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-LB-20-250-R Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-LB-20-250-H Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-LB-20-300-R Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-LB-20-300-H Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-LB-25-25-R Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-LB-25-25-H Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-LB-25-50-R Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-LB-25-50-H Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-LB-25-75-R Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-LB-25-75-H Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-LB-25-100-R Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-LB-25-100-H Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-LB-25-150-R Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-LB-25-150-H Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-LB-25-200-R Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-LB-25-200-H Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-LB-25-250-R Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-LB-25-250-H Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-LB-25-300-R Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-LB-25-300-H Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-LB-32-25-R Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-LB-32-25-H Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-LB-32-50-R Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-LB-32-50-H Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-LB-32-75-R Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-LB-32-75-H Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-LB-32-100-R Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-LB-32-100-H Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-LB-32-150-R Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-LB-32-150-H Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-LB-32-200-R Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-LB-32-200-H Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-LB-32-250-R Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-LB-32-250-H Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-LB-32-300-R Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-LB-32-300-H Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-LB-40-25-R Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-LB-40-25-H Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-LB-40-50-R Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-LB-40-50-H Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-LB-40-75-R Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-LB-40-75-H Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-LB-40-100-R Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-LB-40-100-H Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-LB-40-150-R Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-LB-40-150-H Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-LB-40-200-R Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-LB-40-200-H Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-LB-40-250-R Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-LB-40-250-H Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-LB-40-300-R Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-LB-40-300-H Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FA-20-25-R Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FA-20-25-H Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FA-20-50-R Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FA-20-50-H Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FA-20-75-R Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FA-20-75-H Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FA-20-100-R Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FA-20-100-H Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FA-20-150-R Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FA-20-150-H Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FA-20-200-R Mounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FA-20-200-H Mounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FA-20-250-R Mounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FA-20-250-H Mounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FA-20-300-R Mounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FA-20-300-H Mounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FA-25-25-R Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FA-25-25-H Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FA-25-50-R Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FA-25-50-H Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FA-25-75-R Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FA-25-75-H Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FA-25-100-R Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FA-25-100-H Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FA-25-150-R Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FA-25-150-H Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FA-25-200-R Mounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FA-25-200-H Mounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FA-25-250-R Mounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FA-25-250-H Mounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FA-25-300-R Mounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FA-25-300-H Mounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FA-32-25-R Mounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FA-32-25-H Mounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FA-32-50-R Mounting: Rod-end flange | Bore: 32 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FA-32-50-H Mounting: Rod-end flange | Bore: 32 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FA-32-75-R Mounting: Rod-end flange | Bore: 32 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FA-32-75-H Mounting: Rod-end flange | Bore: 32 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FA-32-100-R Mounting: Rod-end flange | Bore: 32 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FA-32-100-H Mounting: Rod-end flange | Bore: 32 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FA-32-150-R Mounting: Rod-end flange | Bore: 32 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FA-32-150-H Mounting: Rod-end flange | Bore: 32 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FA-32-200-R Mounting: Rod-end flange | Bore: 32 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FA-32-200-H Mounting: Rod-end flange | Bore: 32 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FA-32-250-R Mounting: Rod-end flange | Bore: 32 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FA-32-250-H Mounting: Rod-end flange | Bore: 32 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FA-32-300-R Mounting: Rod-end flange | Bore: 32 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FA-32-300-H Mounting: Rod-end flange | Bore: 32 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FA-40-25-R Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FA-40-25-H Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FA-40-50-R Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FA-40-50-H Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FA-40-75-R Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FA-40-75-H Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FA-40-100-R Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FA-40-100-H Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FA-40-150-R Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FA-40-150-H Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FA-40-200-R Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FA-40-200-H Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FA-40-250-R Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FA-40-250-H Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FA-40-300-R Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FA-40-300-H Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FB-20-25-R Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FB-20-25-H Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FB-20-50-R Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FB-20-50-H Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FB-20-75-R Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FB-20-75-H Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FB-20-100-R Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FB-20-100-H Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FB-20-150-R Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FB-20-150-H Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FB-20-200-R Mounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FB-20-200-H Mounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FB-20-250-R Mounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FB-20-250-H Mounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FB-20-300-R Mounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FB-20-300-H Mounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FB-25-25-R Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FB-25-25-H Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FB-25-50-R Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FB-25-50-H Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FB-25-75-R Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FB-25-75-H Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FB-25-100-R Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FB-25-100-H Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FB-25-150-R Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FB-25-150-H Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FB-25-200-R Mounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FB-25-200-H Mounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FB-25-250-R Mounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FB-25-250-H Mounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FB-25-300-R Mounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FB-25-300-H Mounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FB-32-25-R Mounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FB-32-25-H Mounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FB-32-50-R Mounting: Head-end flange | Bore: 32 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FB-32-50-H Mounting: Head-end flange | Bore: 32 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FB-32-75-R Mounting: Head-end flange | Bore: 32 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FB-32-75-H Mounting: Head-end flange | Bore: 32 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FB-32-100-R Mounting: Head-end flange | Bore: 32 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FB-32-100-H Mounting: Head-end flange | Bore: 32 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FB-32-150-R Mounting: Head-end flange | Bore: 32 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FB-32-150-H Mounting: Head-end flange | Bore: 32 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FB-32-200-R Mounting: Head-end flange | Bore: 32 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FB-32-200-H Mounting: Head-end flange | Bore: 32 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FB-32-250-R Mounting: Head-end flange | Bore: 32 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FB-32-250-H Mounting: Head-end flange | Bore: 32 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FB-32-300-R Mounting: Head-end flange | Bore: 32 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FB-32-300-H Mounting: Head-end flange | Bore: 32 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FB-40-25-R Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FB-40-25-H Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FB-40-50-R Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FB-40-50-H Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FB-40-75-R Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FB-40-75-H Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FB-40-100-R Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FB-40-100-H Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FB-40-150-R Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FB-40-150-H Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FB-40-200-R Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FB-40-200-H Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FB-40-250-R Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FB-40-250-H Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FB-40-300-R Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FB-40-300-H Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CA-20-25-R Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CA-20-25-H Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CA-20-50-R Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CA-20-50-H Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CA-20-75-R Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CA-20-75-H Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CA-20-100-R Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CA-20-100-H Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CA-20-150-R Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CA-20-150-H Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CA-20-200-R Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CA-20-200-H Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CA-20-250-R Mounting: Single clevis | Bore: 20 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CA-20-250-H Mounting: Single clevis | Bore: 20 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CA-20-300-R Mounting: Single clevis | Bore: 20 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CA-20-300-H Mounting: Single clevis | Bore: 20 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CA-25-25-R Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CA-25-25-H Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CA-25-50-R Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CA-25-50-H Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CA-25-75-R Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CA-25-75-H Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CA-25-100-R Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CA-25-100-H Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CA-25-150-R Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CA-25-150-H Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CA-25-200-R Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CA-25-200-H Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CA-25-250-R Mounting: Single clevis | Bore: 25 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CA-25-250-H Mounting: Single clevis | Bore: 25 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CA-25-300-R Mounting: Single clevis | Bore: 25 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CA-25-300-H Mounting: Single clevis | Bore: 25 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CA-32-25-R Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CA-32-25-H Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CA-32-50-R Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CA-32-50-H Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CA-32-75-R Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CA-32-75-H Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CA-32-100-R Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CA-32-100-H Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CA-32-150-R Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CA-32-150-H Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CA-32-200-R Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CA-32-200-H Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CA-32-250-R Mounting: Single clevis | Bore: 32 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CA-32-250-H Mounting: Single clevis | Bore: 32 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CA-32-300-R Mounting: Single clevis | Bore: 32 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CA-32-300-H Mounting: Single clevis | Bore: 32 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CA-40-25-R Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CA-40-25-H Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CA-40-50-R Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CA-40-50-H Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CA-40-75-R Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CA-40-75-H Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CA-40-100-R Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CA-40-100-H Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CA-40-150-R Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CA-40-150-H Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CA-40-200-R Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CA-40-200-H Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CA-40-250-R Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CA-40-250-H Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CA-40-300-R Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CA-40-300-H Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CB-20-25-R Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CB-20-25-H Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CB-20-50-R Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CB-20-50-H Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CB-20-75-R Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CB-20-75-H Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CB-20-100-R Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CB-20-100-H Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CB-20-150-R Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CB-20-150-H Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CB-20-200-R Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CB-20-200-H Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CB-20-250-R Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CB-20-250-H Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CB-20-300-R Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CB-20-300-H Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CB-25-25-R Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CB-25-25-H Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CB-25-50-R Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CB-25-50-H Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CB-25-75-R Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CB-25-75-H Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CB-25-100-R Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CB-25-100-H Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CB-25-150-R Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CB-25-150-H Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CB-25-200-R Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CB-25-200-H Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CB-25-250-R Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CB-25-250-H Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CB-25-300-R Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CB-25-300-H Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CB-32-25-R Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CB-32-25-H Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CB-32-50-R Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CB-32-50-H Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CB-32-75-R Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CB-32-75-H Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CB-32-100-R Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CB-32-100-H Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CB-32-150-R Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CB-32-150-H Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CB-32-200-R Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CB-32-200-H Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CB-32-250-R Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CB-32-250-H Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CB-32-300-R Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CB-32-300-H Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CB-40-25-R Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CB-40-25-H Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CB-40-50-R Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CB-40-50-H Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CB-40-75-R Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CB-40-75-H Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CB-40-100-R Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CB-40-100-H Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CB-40-150-R Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CB-40-150-H Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CB-40-200-R Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CB-40-200-H Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CB-40-250-R Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CB-40-250-H Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CB-40-300-R Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CB-40-300-H Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-TA-20-25-H Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-TA-20-50-H Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-TA-20-75-H Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-TA-20-100-H Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-TA-20-150-H Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-TA-20-200-H Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-TA-20-250-H Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-TA-20-300-H Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-TA-25-25-H Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-TA-25-50-H Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-TA-25-75-H Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-TA-25-100-H Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-TA-25-150-H Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-TA-25-200-H Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-TA-25-250-H Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-TA-25-300-H Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-TA-32-25-H Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-TA-32-50-H Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-TA-32-75-H Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-TA-32-100-H Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-TA-32-150-H Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-TA-32-200-H Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-TA-32-250-H Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-TA-32-300-H Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-TA-40-25-H Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-TA-40-50-H Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-TA-40-75-H Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-TA-40-100-H Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-TA-40-150-H Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-TA-40-200-H Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-TA-40-250-H Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-TA-40-300-H Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-TB-20-25-R Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-TB-20-50-R Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-TB-20-75-R Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-TB-20-100-R Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-TB-20-150-R Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-TB-20-200-R Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-TB-20-250-R Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-TB-20-300-R Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-TB-25-25-R Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-TB-25-50-R Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-TB-25-75-R Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-TB-25-100-R Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-TB-25-150-R Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-TB-25-200-R Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-TB-25-250-R Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-TB-25-300-R Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-TB-32-25-R Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-TB-32-50-R Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-TB-32-75-R Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-TB-32-100-R Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-TB-32-150-R Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-TB-32-200-R Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-TB-32-250-R Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-TB-32-300-R Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-TB-40-25-R Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-TB-40-50-R Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-TB-40-75-R Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-TB-40-100-R Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-TB-40-150-R Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-TB-40-200-R Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-TB-40-250-R Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-TB-40-300-R Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 300 mm | Lock position: Rod end
Pneumatic CylindersCKD
448 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CMK2-Q Tight Cylinder (Double-Acting, End Lock)

Brand CKD·Pneumatic Cylinders

Available part numbers (448)

CMK2-Q-00-20-25-R, CMK2-Q-00-20-25-H, CMK2-Q-00-20-50-R, CMK2-Q-00-20-50-H, CMK2-Q-00-20-75-R, CMK2-Q-00-20-75-H, CMK2-Q-00-20-100-R, CMK2-Q-00-20-100-H, CMK2-Q-00-20-150-R, CMK2-Q-00-20-150-H + 438 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CMK2-Q-00-20-25-RMounting: Basic | Bore: 20 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-00-20-25-HMounting: Basic | Bore: 20 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-00-20-50-RMounting: Basic | Bore: 20 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-00-20-50-HMounting: Basic | Bore: 20 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-00-20-75-RMounting: Basic | Bore: 20 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-00-20-75-HMounting: Basic | Bore: 20 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-00-20-100-RMounting: Basic | Bore: 20 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-00-20-100-HMounting: Basic | Bore: 20 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-00-20-150-RMounting: Basic | Bore: 20 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-00-20-150-HMounting: Basic | Bore: 20 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-00-20-200-RMounting: Basic | Bore: 20 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-00-20-200-HMounting: Basic | Bore: 20 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-00-20-250-RMounting: Basic | Bore: 20 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-00-20-250-HMounting: Basic | Bore: 20 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-00-20-300-RMounting: Basic | Bore: 20 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-00-20-300-HMounting: Basic | Bore: 20 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-00-25-25-RMounting: Basic | Bore: 25 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-00-25-25-HMounting: Basic | Bore: 25 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-00-25-50-RMounting: Basic | Bore: 25 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-00-25-50-HMounting: Basic | Bore: 25 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-00-25-75-RMounting: Basic | Bore: 25 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-00-25-75-HMounting: Basic | Bore: 25 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-00-25-100-RMounting: Basic | Bore: 25 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-00-25-100-HMounting: Basic | Bore: 25 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-00-25-150-RMounting: Basic | Bore: 25 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-00-25-150-HMounting: Basic | Bore: 25 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-00-25-200-RMounting: Basic | Bore: 25 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-00-25-200-HMounting: Basic | Bore: 25 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-00-25-250-RMounting: Basic | Bore: 25 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-00-25-250-HMounting: Basic | Bore: 25 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-00-25-300-RMounting: Basic | Bore: 25 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-00-25-300-HMounting: Basic | Bore: 25 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-00-32-25-RMounting: Basic | Bore: 32 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-00-32-25-HMounting: Basic | Bore: 32 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-00-32-50-RMounting: Basic | Bore: 32 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-00-32-50-HMounting: Basic | Bore: 32 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-00-32-75-RMounting: Basic | Bore: 32 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-00-32-75-HMounting: Basic | Bore: 32 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-00-32-100-RMounting: Basic | Bore: 32 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-00-32-100-HMounting: Basic | Bore: 32 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-00-32-150-RMounting: Basic | Bore: 32 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-00-32-150-HMounting: Basic | Bore: 32 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-00-32-200-RMounting: Basic | Bore: 32 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-00-32-200-HMounting: Basic | Bore: 32 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-00-32-250-RMounting: Basic | Bore: 32 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-00-32-250-HMounting: Basic | Bore: 32 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-00-32-300-RMounting: Basic | Bore: 32 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-00-32-300-HMounting: Basic | Bore: 32 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-00-40-25-RMounting: Basic | Bore: 40 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-00-40-25-HMounting: Basic | Bore: 40 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-00-40-50-RMounting: Basic | Bore: 40 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-00-40-50-HMounting: Basic | Bore: 40 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-00-40-75-RMounting: Basic | Bore: 40 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-00-40-75-HMounting: Basic | Bore: 40 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-00-40-100-RMounting: Basic | Bore: 40 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-00-40-100-HMounting: Basic | Bore: 40 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-00-40-150-RMounting: Basic | Bore: 40 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-00-40-150-HMounting: Basic | Bore: 40 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-00-40-200-RMounting: Basic | Bore: 40 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-00-40-200-HMounting: Basic | Bore: 40 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-00-40-250-RMounting: Basic | Bore: 40 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-00-40-250-HMounting: Basic | Bore: 40 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-00-40-300-RMounting: Basic | Bore: 40 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-00-40-300-HMounting: Basic | Bore: 40 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-LB-20-25-RMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-LB-20-25-HMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-LB-20-50-RMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-LB-20-50-HMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-LB-20-75-RMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-LB-20-75-HMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-LB-20-100-RMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-LB-20-100-HMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-LB-20-150-RMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-LB-20-150-HMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-LB-20-200-RMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-LB-20-200-HMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-LB-20-250-RMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-LB-20-250-HMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-LB-20-300-RMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-LB-20-300-HMounting: Axial foot, both sides | Bore: 20 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-LB-25-25-RMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-LB-25-25-HMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-LB-25-50-RMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-LB-25-50-HMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-LB-25-75-RMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-LB-25-75-HMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-LB-25-100-RMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-LB-25-100-HMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-LB-25-150-RMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-LB-25-150-HMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-LB-25-200-RMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-LB-25-200-HMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-LB-25-250-RMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-LB-25-250-HMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-LB-25-300-RMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-LB-25-300-HMounting: Axial foot, both sides | Bore: 25 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-LB-32-25-RMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-LB-32-25-HMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-LB-32-50-RMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-LB-32-50-HMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-LB-32-75-RMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-LB-32-75-HMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-LB-32-100-RMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-LB-32-100-HMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-LB-32-150-RMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-LB-32-150-HMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-LB-32-200-RMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-LB-32-200-HMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-LB-32-250-RMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-LB-32-250-HMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-LB-32-300-RMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-LB-32-300-HMounting: Axial foot, both sides | Bore: 32 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-LB-40-25-RMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-LB-40-25-HMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-LB-40-50-RMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-LB-40-50-HMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-LB-40-75-RMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-LB-40-75-HMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-LB-40-100-RMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-LB-40-100-HMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-LB-40-150-RMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-LB-40-150-HMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-LB-40-200-RMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-LB-40-200-HMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-LB-40-250-RMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-LB-40-250-HMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-LB-40-300-RMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-LB-40-300-HMounting: Axial foot, both sides | Bore: 40 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FA-20-25-RMounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FA-20-25-HMounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FA-20-50-RMounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FA-20-50-HMounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FA-20-75-RMounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FA-20-75-HMounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FA-20-100-RMounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FA-20-100-HMounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FA-20-150-RMounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FA-20-150-HMounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FA-20-200-RMounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FA-20-200-HMounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FA-20-250-RMounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FA-20-250-HMounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FA-20-300-RMounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FA-20-300-HMounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FA-25-25-RMounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FA-25-25-HMounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FA-25-50-RMounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FA-25-50-HMounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FA-25-75-RMounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FA-25-75-HMounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FA-25-100-RMounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FA-25-100-HMounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FA-25-150-RMounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FA-25-150-HMounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FA-25-200-RMounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FA-25-200-HMounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FA-25-250-RMounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FA-25-250-HMounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FA-25-300-RMounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FA-25-300-HMounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FA-32-25-RMounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FA-32-25-HMounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FA-32-50-RMounting: Rod-end flange | Bore: 32 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FA-32-50-HMounting: Rod-end flange | Bore: 32 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FA-32-75-RMounting: Rod-end flange | Bore: 32 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FA-32-75-HMounting: Rod-end flange | Bore: 32 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FA-32-100-RMounting: Rod-end flange | Bore: 32 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FA-32-100-HMounting: Rod-end flange | Bore: 32 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FA-32-150-RMounting: Rod-end flange | Bore: 32 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FA-32-150-HMounting: Rod-end flange | Bore: 32 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FA-32-200-RMounting: Rod-end flange | Bore: 32 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FA-32-200-HMounting: Rod-end flange | Bore: 32 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FA-32-250-RMounting: Rod-end flange | Bore: 32 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FA-32-250-HMounting: Rod-end flange | Bore: 32 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FA-32-300-RMounting: Rod-end flange | Bore: 32 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FA-32-300-HMounting: Rod-end flange | Bore: 32 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FA-40-25-RMounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FA-40-25-HMounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FA-40-50-RMounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FA-40-50-HMounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FA-40-75-RMounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FA-40-75-HMounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FA-40-100-RMounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FA-40-100-HMounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FA-40-150-RMounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FA-40-150-HMounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FA-40-200-RMounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FA-40-200-HMounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FA-40-250-RMounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FA-40-250-HMounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FA-40-300-RMounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FA-40-300-HMounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FB-20-25-RMounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FB-20-25-HMounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FB-20-50-RMounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FB-20-50-HMounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FB-20-75-RMounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FB-20-75-HMounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FB-20-100-RMounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FB-20-100-HMounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FB-20-150-RMounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FB-20-150-HMounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FB-20-200-RMounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FB-20-200-HMounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FB-20-250-RMounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FB-20-250-HMounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FB-20-300-RMounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FB-20-300-HMounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FB-25-25-RMounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FB-25-25-HMounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FB-25-50-RMounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FB-25-50-HMounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FB-25-75-RMounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FB-25-75-HMounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FB-25-100-RMounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FB-25-100-HMounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FB-25-150-RMounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FB-25-150-HMounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FB-25-200-RMounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FB-25-200-HMounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FB-25-250-RMounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FB-25-250-HMounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FB-25-300-RMounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FB-25-300-HMounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FB-32-25-RMounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FB-32-25-HMounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FB-32-50-RMounting: Head-end flange | Bore: 32 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FB-32-50-HMounting: Head-end flange | Bore: 32 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FB-32-75-RMounting: Head-end flange | Bore: 32 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FB-32-75-HMounting: Head-end flange | Bore: 32 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FB-32-100-RMounting: Head-end flange | Bore: 32 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FB-32-100-HMounting: Head-end flange | Bore: 32 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FB-32-150-RMounting: Head-end flange | Bore: 32 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FB-32-150-HMounting: Head-end flange | Bore: 32 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FB-32-200-RMounting: Head-end flange | Bore: 32 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FB-32-200-HMounting: Head-end flange | Bore: 32 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FB-32-250-RMounting: Head-end flange | Bore: 32 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FB-32-250-HMounting: Head-end flange | Bore: 32 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FB-32-300-RMounting: Head-end flange | Bore: 32 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FB-32-300-HMounting: Head-end flange | Bore: 32 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-FB-40-25-RMounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-FB-40-25-HMounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-FB-40-50-RMounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-FB-40-50-HMounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-FB-40-75-RMounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-FB-40-75-HMounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-FB-40-100-RMounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-FB-40-100-HMounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-FB-40-150-RMounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-FB-40-150-HMounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-FB-40-200-RMounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-FB-40-200-HMounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-FB-40-250-RMounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-FB-40-250-HMounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-FB-40-300-RMounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-FB-40-300-HMounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CA-20-25-RMounting: Single clevis | Bore: 20 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CA-20-25-HMounting: Single clevis | Bore: 20 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CA-20-50-RMounting: Single clevis | Bore: 20 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CA-20-50-HMounting: Single clevis | Bore: 20 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CA-20-75-RMounting: Single clevis | Bore: 20 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CA-20-75-HMounting: Single clevis | Bore: 20 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CA-20-100-RMounting: Single clevis | Bore: 20 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CA-20-100-HMounting: Single clevis | Bore: 20 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CA-20-150-RMounting: Single clevis | Bore: 20 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CA-20-150-HMounting: Single clevis | Bore: 20 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CA-20-200-RMounting: Single clevis | Bore: 20 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CA-20-200-HMounting: Single clevis | Bore: 20 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CA-20-250-RMounting: Single clevis | Bore: 20 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CA-20-250-HMounting: Single clevis | Bore: 20 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CA-20-300-RMounting: Single clevis | Bore: 20 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CA-20-300-HMounting: Single clevis | Bore: 20 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CA-25-25-RMounting: Single clevis | Bore: 25 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CA-25-25-HMounting: Single clevis | Bore: 25 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CA-25-50-RMounting: Single clevis | Bore: 25 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CA-25-50-HMounting: Single clevis | Bore: 25 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CA-25-75-RMounting: Single clevis | Bore: 25 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CA-25-75-HMounting: Single clevis | Bore: 25 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CA-25-100-RMounting: Single clevis | Bore: 25 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CA-25-100-HMounting: Single clevis | Bore: 25 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CA-25-150-RMounting: Single clevis | Bore: 25 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CA-25-150-HMounting: Single clevis | Bore: 25 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CA-25-200-RMounting: Single clevis | Bore: 25 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CA-25-200-HMounting: Single clevis | Bore: 25 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CA-25-250-RMounting: Single clevis | Bore: 25 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CA-25-250-HMounting: Single clevis | Bore: 25 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CA-25-300-RMounting: Single clevis | Bore: 25 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CA-25-300-HMounting: Single clevis | Bore: 25 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CA-32-25-RMounting: Single clevis | Bore: 32 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CA-32-25-HMounting: Single clevis | Bore: 32 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CA-32-50-RMounting: Single clevis | Bore: 32 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CA-32-50-HMounting: Single clevis | Bore: 32 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CA-32-75-RMounting: Single clevis | Bore: 32 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CA-32-75-HMounting: Single clevis | Bore: 32 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CA-32-100-RMounting: Single clevis | Bore: 32 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CA-32-100-HMounting: Single clevis | Bore: 32 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CA-32-150-RMounting: Single clevis | Bore: 32 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CA-32-150-HMounting: Single clevis | Bore: 32 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CA-32-200-RMounting: Single clevis | Bore: 32 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CA-32-200-HMounting: Single clevis | Bore: 32 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CA-32-250-RMounting: Single clevis | Bore: 32 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CA-32-250-HMounting: Single clevis | Bore: 32 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CA-32-300-RMounting: Single clevis | Bore: 32 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CA-32-300-HMounting: Single clevis | Bore: 32 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CA-40-25-RMounting: Single clevis | Bore: 40 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CA-40-25-HMounting: Single clevis | Bore: 40 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CA-40-50-RMounting: Single clevis | Bore: 40 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CA-40-50-HMounting: Single clevis | Bore: 40 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CA-40-75-RMounting: Single clevis | Bore: 40 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CA-40-75-HMounting: Single clevis | Bore: 40 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CA-40-100-RMounting: Single clevis | Bore: 40 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CA-40-100-HMounting: Single clevis | Bore: 40 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CA-40-150-RMounting: Single clevis | Bore: 40 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CA-40-150-HMounting: Single clevis | Bore: 40 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CA-40-200-RMounting: Single clevis | Bore: 40 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CA-40-200-HMounting: Single clevis | Bore: 40 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CA-40-250-RMounting: Single clevis | Bore: 40 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CA-40-250-HMounting: Single clevis | Bore: 40 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CA-40-300-RMounting: Single clevis | Bore: 40 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CA-40-300-HMounting: Single clevis | Bore: 40 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CB-20-25-RMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CB-20-25-HMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CB-20-50-RMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CB-20-50-HMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CB-20-75-RMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CB-20-75-HMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CB-20-100-RMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CB-20-100-HMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CB-20-150-RMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CB-20-150-HMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CB-20-200-RMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CB-20-200-HMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CB-20-250-RMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CB-20-250-HMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CB-20-300-RMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CB-20-300-HMounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CB-25-25-RMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CB-25-25-HMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CB-25-50-RMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CB-25-50-HMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CB-25-75-RMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CB-25-75-HMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CB-25-100-RMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CB-25-100-HMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CB-25-150-RMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CB-25-150-HMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CB-25-200-RMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CB-25-200-HMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CB-25-250-RMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CB-25-250-HMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CB-25-300-RMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CB-25-300-HMounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CB-32-25-RMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CB-32-25-HMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CB-32-50-RMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CB-32-50-HMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CB-32-75-RMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CB-32-75-HMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CB-32-100-RMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CB-32-100-HMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CB-32-150-RMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CB-32-150-HMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CB-32-200-RMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CB-32-200-HMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CB-32-250-RMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CB-32-250-HMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CB-32-300-RMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CB-32-300-HMounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-CB-40-25-RMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-CB-40-25-HMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-CB-40-50-RMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-CB-40-50-HMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-CB-40-75-RMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-CB-40-75-HMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-CB-40-100-RMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-CB-40-100-HMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-CB-40-150-RMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-CB-40-150-HMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-CB-40-200-RMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-CB-40-200-HMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-CB-40-250-RMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-CB-40-250-HMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-CB-40-300-RMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-CB-40-300-HMounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-TA-20-25-HMounting: Rod-end trunnion | Bore: 20 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-TA-20-50-HMounting: Rod-end trunnion | Bore: 20 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-TA-20-75-HMounting: Rod-end trunnion | Bore: 20 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-TA-20-100-HMounting: Rod-end trunnion | Bore: 20 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-TA-20-150-HMounting: Rod-end trunnion | Bore: 20 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-TA-20-200-HMounting: Rod-end trunnion | Bore: 20 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-TA-20-250-HMounting: Rod-end trunnion | Bore: 20 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-TA-20-300-HMounting: Rod-end trunnion | Bore: 20 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-TA-25-25-HMounting: Rod-end trunnion | Bore: 25 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-TA-25-50-HMounting: Rod-end trunnion | Bore: 25 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-TA-25-75-HMounting: Rod-end trunnion | Bore: 25 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-TA-25-100-HMounting: Rod-end trunnion | Bore: 25 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-TA-25-150-HMounting: Rod-end trunnion | Bore: 25 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-TA-25-200-HMounting: Rod-end trunnion | Bore: 25 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-TA-25-250-HMounting: Rod-end trunnion | Bore: 25 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-TA-25-300-HMounting: Rod-end trunnion | Bore: 25 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-TA-32-25-HMounting: Rod-end trunnion | Bore: 32 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-TA-32-50-HMounting: Rod-end trunnion | Bore: 32 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-TA-32-75-HMounting: Rod-end trunnion | Bore: 32 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-TA-32-100-HMounting: Rod-end trunnion | Bore: 32 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-TA-32-150-HMounting: Rod-end trunnion | Bore: 32 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-TA-32-200-HMounting: Rod-end trunnion | Bore: 32 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-TA-32-250-HMounting: Rod-end trunnion | Bore: 32 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-TA-32-300-HMounting: Rod-end trunnion | Bore: 32 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-TA-40-25-HMounting: Rod-end trunnion | Bore: 40 mm | Stroke: 25 mm | Lock position: Head end
CMK2-Q-TA-40-50-HMounting: Rod-end trunnion | Bore: 40 mm | Stroke: 50 mm | Lock position: Head end
CMK2-Q-TA-40-75-HMounting: Rod-end trunnion | Bore: 40 mm | Stroke: 75 mm | Lock position: Head end
CMK2-Q-TA-40-100-HMounting: Rod-end trunnion | Bore: 40 mm | Stroke: 100 mm | Lock position: Head end
CMK2-Q-TA-40-150-HMounting: Rod-end trunnion | Bore: 40 mm | Stroke: 150 mm | Lock position: Head end
CMK2-Q-TA-40-200-HMounting: Rod-end trunnion | Bore: 40 mm | Stroke: 200 mm | Lock position: Head end
CMK2-Q-TA-40-250-HMounting: Rod-end trunnion | Bore: 40 mm | Stroke: 250 mm | Lock position: Head end
CMK2-Q-TA-40-300-HMounting: Rod-end trunnion | Bore: 40 mm | Stroke: 300 mm | Lock position: Head end
CMK2-Q-TB-20-25-RMounting: Head-end trunnion | Bore: 20 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-TB-20-50-RMounting: Head-end trunnion | Bore: 20 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-TB-20-75-RMounting: Head-end trunnion | Bore: 20 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-TB-20-100-RMounting: Head-end trunnion | Bore: 20 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-TB-20-150-RMounting: Head-end trunnion | Bore: 20 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-TB-20-200-RMounting: Head-end trunnion | Bore: 20 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-TB-20-250-RMounting: Head-end trunnion | Bore: 20 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-TB-20-300-RMounting: Head-end trunnion | Bore: 20 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-TB-25-25-RMounting: Head-end trunnion | Bore: 25 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-TB-25-50-RMounting: Head-end trunnion | Bore: 25 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-TB-25-75-RMounting: Head-end trunnion | Bore: 25 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-TB-25-100-RMounting: Head-end trunnion | Bore: 25 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-TB-25-150-RMounting: Head-end trunnion | Bore: 25 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-TB-25-200-RMounting: Head-end trunnion | Bore: 25 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-TB-25-250-RMounting: Head-end trunnion | Bore: 25 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-TB-25-300-RMounting: Head-end trunnion | Bore: 25 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-TB-32-25-RMounting: Head-end trunnion | Bore: 32 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-TB-32-50-RMounting: Head-end trunnion | Bore: 32 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-TB-32-75-RMounting: Head-end trunnion | Bore: 32 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-TB-32-100-RMounting: Head-end trunnion | Bore: 32 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-TB-32-150-RMounting: Head-end trunnion | Bore: 32 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-TB-32-200-RMounting: Head-end trunnion | Bore: 32 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-TB-32-250-RMounting: Head-end trunnion | Bore: 32 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-TB-32-300-RMounting: Head-end trunnion | Bore: 32 mm | Stroke: 300 mm | Lock position: Rod end
CMK2-Q-TB-40-25-RMounting: Head-end trunnion | Bore: 40 mm | Stroke: 25 mm | Lock position: Rod end
CMK2-Q-TB-40-50-RMounting: Head-end trunnion | Bore: 40 mm | Stroke: 50 mm | Lock position: Rod end
CMK2-Q-TB-40-75-RMounting: Head-end trunnion | Bore: 40 mm | Stroke: 75 mm | Lock position: Rod end
CMK2-Q-TB-40-100-RMounting: Head-end trunnion | Bore: 40 mm | Stroke: 100 mm | Lock position: Rod end
CMK2-Q-TB-40-150-RMounting: Head-end trunnion | Bore: 40 mm | Stroke: 150 mm | Lock position: Rod end
CMK2-Q-TB-40-200-RMounting: Head-end trunnion | Bore: 40 mm | Stroke: 200 mm | Lock position: Rod end
CMK2-Q-TB-40-250-RMounting: Head-end trunnion | Bore: 40 mm | Stroke: 250 mm | Lock position: Rod end
CMK2-Q-TB-40-300-RMounting: Head-end trunnion | Bore: 40 mm | Stroke: 300 mm | Lock position: Rod end

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
