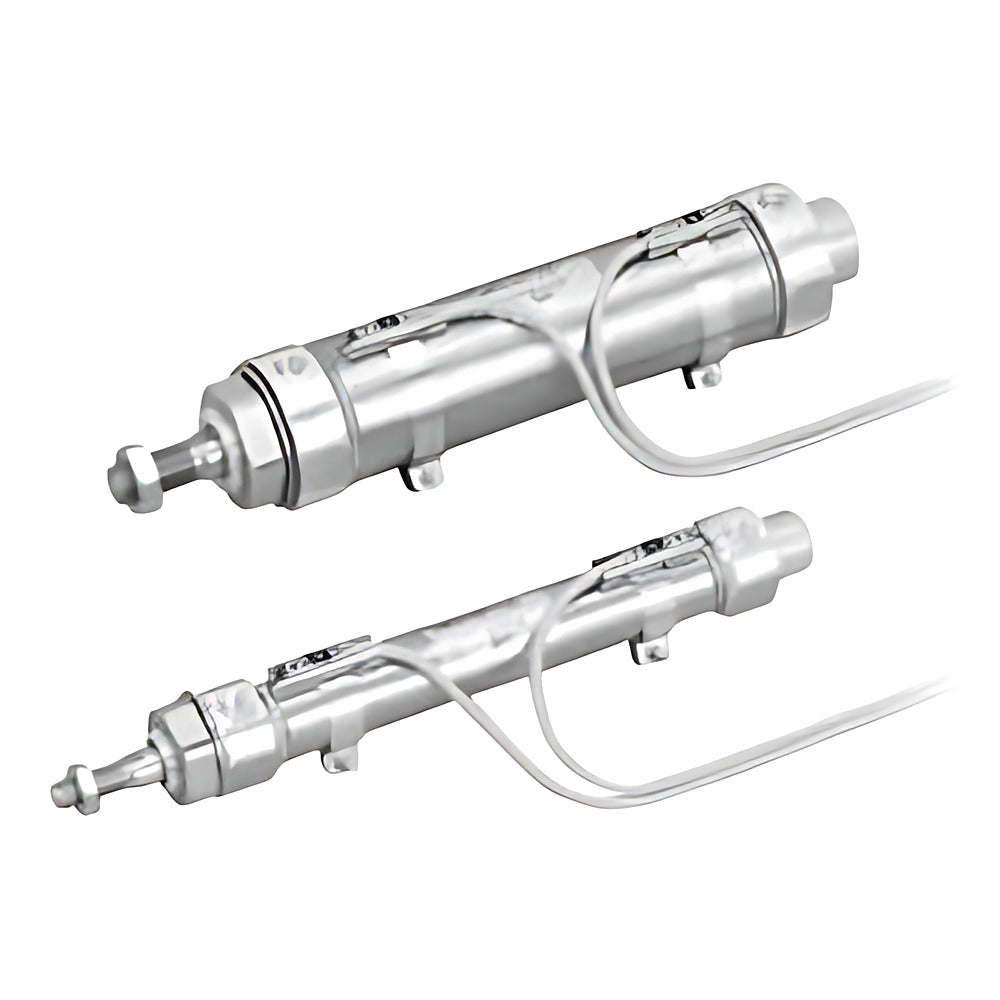

CKD CMK2-S Tight Cylinder (Single-Acting, Push)

CKD CMK2-S Tight Cylinder (Single-Acting, Push)

CKD CMK2-S single-acting spring-return push type tight cylinder, bores 20 to 40 mm, switch magnet built in.

Key features

  • Bores 20/25 mm: standard strokes 25-150 mm; bores 32/40 mm: 25-200 mm; max. 300 mm
  • Mounting: 00, LB, LS, FA, FB, CA, CC, CC1, CB, TA, TB (LS max. stroke 50 mm)
  • Magnet for switches built in as standard; auto switches T0/T5/T8 (reed), T1/T2/T3/T3P/T2W/T2Y/T3W/T3Y/T2J (solid state) added after the stroke with quantity R/H/D/T (max. 3)
  • Options J/L bellows, F/FE one-touch fittings, M stainless rod, V boss cut, P6 copper-free; rod-end I/Y knuckle or B2 bracket as suffix
  • Rc port thread standard; NPT (NN) and G (GN) threads are made to order

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.2 MPa
Proof pressure 1.6 MPa
Port size Rc1/8
Ambient temperature -10 to 60°C
Piston speed 50 to 500 mm/s
Cushion Rubber cushion
Source CKD Korea catalog CB-029SK-9, p. 188-193
CMK2-S-00-20-25 Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-S-00-20-50 Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-S-00-20-75 Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-S-00-20-100 Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-S-00-20-150 Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-S-00-25-25 Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-S-00-25-50 Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-S-00-25-75 Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-S-00-25-100 Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-S-00-25-150 Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-S-00-32-25 Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-S-00-32-50 Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-S-00-32-75 Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-S-00-32-100 Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-S-00-32-150 Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-S-00-32-200 Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-S-00-40-25 Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-S-00-40-50 Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-S-00-40-75 Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-S-00-40-100 Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-S-00-40-150 Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-S-00-40-200 Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-S-LB-20-25 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-S-LB-20-50 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-S-LB-20-75 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-S-LB-20-100 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-S-LB-20-150 Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-S-LB-25-25 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-S-LB-25-50 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-S-LB-25-75 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-S-LB-25-100 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-S-LB-25-150 Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-S-LB-32-25 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-S-LB-32-50 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-S-LB-32-75 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-S-LB-32-100 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-S-LB-32-150 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-S-LB-32-200 Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-S-LB-40-25 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-S-LB-40-50 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-S-LB-40-75 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-S-LB-40-100 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-S-LB-40-150 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-S-LB-40-200 Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-S-LS-20-25 Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-S-LS-20-50 Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-S-LS-25-25 Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-S-LS-25-50 Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-S-LS-32-25 Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-S-LS-32-50 Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-S-LS-40-25 Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-S-LS-40-50 Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-S-FA-20-25 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-S-FA-20-50 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-S-FA-20-75 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-S-FA-20-100 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-S-FA-20-150 Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-S-FA-25-25 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-S-FA-25-50 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-S-FA-25-75 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-S-FA-25-100 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-S-FA-25-150 Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-S-FA-32-25 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-S-FA-32-50 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-S-FA-32-75 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-S-FA-32-100 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-S-FA-32-150 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-S-FA-32-200 Mounting: Rod-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-S-FA-40-25 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-S-FA-40-50 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-S-FA-40-75 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-S-FA-40-100 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-S-FA-40-150 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-S-FA-40-200 Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-S-FB-20-25 Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-S-FB-20-50 Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-S-FB-20-75 Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-S-FB-20-100 Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-S-FB-20-150 Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-S-FB-25-25 Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-S-FB-25-50 Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-S-FB-25-75 Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-S-FB-25-100 Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-S-FB-25-150 Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-S-FB-32-25 Mounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-S-FB-32-50 Mounting: Head-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-S-FB-32-75 Mounting: Head-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-S-FB-32-100 Mounting: Head-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-S-FB-32-150 Mounting: Head-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-S-FB-32-200 Mounting: Head-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-S-FB-40-25 Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-S-FB-40-50 Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-S-FB-40-75 Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-S-FB-40-100 Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-S-FB-40-150 Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-S-FB-40-200 Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-S-CA-20-25 Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
CMK2-S-CA-20-50 Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
CMK2-S-CA-20-75 Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
CMK2-S-CA-20-100 Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
CMK2-S-CA-20-150 Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
CMK2-S-CA-25-25 Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm
CMK2-S-CA-25-50 Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm
CMK2-S-CA-25-75 Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm
CMK2-S-CA-25-100 Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm
CMK2-S-CA-25-150 Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm
CMK2-S-CA-32-25 Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm
CMK2-S-CA-32-50 Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm
CMK2-S-CA-32-75 Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm
CMK2-S-CA-32-100 Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm
CMK2-S-CA-32-150 Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm
CMK2-S-CA-32-200 Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm
CMK2-S-CA-40-25 Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
CMK2-S-CA-40-50 Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
CMK2-S-CA-40-75 Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
CMK2-S-CA-40-100 Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
CMK2-S-CA-40-150 Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
CMK2-S-CA-40-200 Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
CMK2-S-CC-20-25 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-S-CC-20-50 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-S-CC-20-75 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-S-CC-20-100 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-S-CC-20-150 Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-S-CC-25-25 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-S-CC-25-50 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-S-CC-25-75 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-S-CC-25-100 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-S-CC-25-150 Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-S-CC-32-25 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-S-CC-32-50 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-S-CC-32-75 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-S-CC-32-100 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-S-CC-32-150 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-S-CC-32-200 Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-S-CC-40-25 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-S-CC-40-50 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-S-CC-40-75 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-S-CC-40-100 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-S-CC-40-150 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-S-CC-40-200 Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-S-CC1-20-25 Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 25 mm
CMK2-S-CC1-20-50 Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 50 mm
CMK2-S-CC1-20-75 Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 75 mm
CMK2-S-CC1-20-100 Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 100 mm
CMK2-S-CC1-20-150 Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 150 mm
CMK2-S-CC1-25-25 Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 25 mm
CMK2-S-CC1-25-50 Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 50 mm
CMK2-S-CC1-25-75 Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 75 mm
CMK2-S-CC1-25-100 Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 100 mm
CMK2-S-CC1-25-150 Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 150 mm
CMK2-S-CC1-32-25 Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 25 mm
CMK2-S-CC1-32-50 Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 50 mm
CMK2-S-CC1-32-75 Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 75 mm
CMK2-S-CC1-32-100 Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 100 mm
CMK2-S-CC1-32-150 Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 150 mm
CMK2-S-CC1-32-200 Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 200 mm
CMK2-S-CC1-40-25 Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 25 mm
CMK2-S-CC1-40-50 Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 50 mm
CMK2-S-CC1-40-75 Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 75 mm
CMK2-S-CC1-40-100 Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 100 mm
CMK2-S-CC1-40-150 Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 150 mm
CMK2-S-CC1-40-200 Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 200 mm
CMK2-S-CB-20-25 Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 25 mm
CMK2-S-CB-20-50 Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 50 mm
CMK2-S-CB-20-75 Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 75 mm
CMK2-S-CB-20-100 Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 100 mm
CMK2-S-CB-20-150 Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 150 mm
CMK2-S-CB-25-25 Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 25 mm
CMK2-S-CB-25-50 Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 50 mm
CMK2-S-CB-25-75 Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 75 mm
CMK2-S-CB-25-100 Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 100 mm
CMK2-S-CB-25-150 Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 150 mm
CMK2-S-CB-32-25 Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 25 mm
CMK2-S-CB-32-50 Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 50 mm
CMK2-S-CB-32-75 Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 75 mm
CMK2-S-CB-32-100 Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 100 mm
CMK2-S-CB-32-150 Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 150 mm
CMK2-S-CB-32-200 Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 200 mm
CMK2-S-CB-40-25 Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 25 mm
CMK2-S-CB-40-50 Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 50 mm
CMK2-S-CB-40-75 Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 75 mm
CMK2-S-CB-40-100 Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 100 mm
CMK2-S-CB-40-150 Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 150 mm
CMK2-S-CB-40-200 Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 200 mm
CMK2-S-TA-20-25 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-S-TA-20-50 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-S-TA-20-75 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-S-TA-20-100 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-S-TA-20-150 Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-S-TA-25-25 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-S-TA-25-50 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-S-TA-25-75 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-S-TA-25-100 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-S-TA-25-150 Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-S-TA-32-25 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-S-TA-32-50 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-S-TA-32-75 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-S-TA-32-100 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-S-TA-32-150 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-S-TA-32-200 Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-S-TA-40-25 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-S-TA-40-50 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-S-TA-40-75 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-S-TA-40-100 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-S-TA-40-150 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-S-TA-40-200 Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 200 mm
CMK2-S-TB-20-25 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-S-TB-20-50 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-S-TB-20-75 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-S-TB-20-100 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-S-TB-20-150 Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-S-TB-25-25 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-S-TB-25-50 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-S-TB-25-75 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-S-TB-25-100 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-S-TB-25-150 Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-S-TB-32-25 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-S-TB-32-50 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-S-TB-32-75 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-S-TB-32-100 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-S-TB-32-150 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-S-TB-32-200 Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-S-TB-40-25 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-S-TB-40-50 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-S-TB-40-75 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-S-TB-40-100 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-S-TB-40-150 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-S-TB-40-200 Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 200 mm
Pneumatic CylindersCKD
228 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CMK2-S Tight Cylinder (Single-Acting, Push)

Brand CKD·Pneumatic Cylinders

Available part numbers (228)

CMK2-S-00-20-25, CMK2-S-00-20-50, CMK2-S-00-20-75, CMK2-S-00-20-100, CMK2-S-00-20-150, CMK2-S-00-25-25, CMK2-S-00-25-50, CMK2-S-00-25-75, CMK2-S-00-25-100, CMK2-S-00-25-150 + 218 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CMK2-S-00-20-25Mounting: Basic | Bore: 20 mm | Stroke: 25 mm
CMK2-S-00-20-50Mounting: Basic | Bore: 20 mm | Stroke: 50 mm
CMK2-S-00-20-75Mounting: Basic | Bore: 20 mm | Stroke: 75 mm
CMK2-S-00-20-100Mounting: Basic | Bore: 20 mm | Stroke: 100 mm
CMK2-S-00-20-150Mounting: Basic | Bore: 20 mm | Stroke: 150 mm
CMK2-S-00-25-25Mounting: Basic | Bore: 25 mm | Stroke: 25 mm
CMK2-S-00-25-50Mounting: Basic | Bore: 25 mm | Stroke: 50 mm
CMK2-S-00-25-75Mounting: Basic | Bore: 25 mm | Stroke: 75 mm
CMK2-S-00-25-100Mounting: Basic | Bore: 25 mm | Stroke: 100 mm
CMK2-S-00-25-150Mounting: Basic | Bore: 25 mm | Stroke: 150 mm
CMK2-S-00-32-25Mounting: Basic | Bore: 32 mm | Stroke: 25 mm
CMK2-S-00-32-50Mounting: Basic | Bore: 32 mm | Stroke: 50 mm
CMK2-S-00-32-75Mounting: Basic | Bore: 32 mm | Stroke: 75 mm
CMK2-S-00-32-100Mounting: Basic | Bore: 32 mm | Stroke: 100 mm
CMK2-S-00-32-150Mounting: Basic | Bore: 32 mm | Stroke: 150 mm
CMK2-S-00-32-200Mounting: Basic | Bore: 32 mm | Stroke: 200 mm
CMK2-S-00-40-25Mounting: Basic | Bore: 40 mm | Stroke: 25 mm
CMK2-S-00-40-50Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
CMK2-S-00-40-75Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
CMK2-S-00-40-100Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
CMK2-S-00-40-150Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
CMK2-S-00-40-200Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
CMK2-S-LB-20-25Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 25 mm
CMK2-S-LB-20-50Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 50 mm
CMK2-S-LB-20-75Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 75 mm
CMK2-S-LB-20-100Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 100 mm
CMK2-S-LB-20-150Mounting: Axial foot, both sides | Bore: 20 mm | Stroke: 150 mm
CMK2-S-LB-25-25Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 25 mm
CMK2-S-LB-25-50Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 50 mm
CMK2-S-LB-25-75Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 75 mm
CMK2-S-LB-25-100Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 100 mm
CMK2-S-LB-25-150Mounting: Axial foot, both sides | Bore: 25 mm | Stroke: 150 mm
CMK2-S-LB-32-25Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 25 mm
CMK2-S-LB-32-50Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 50 mm
CMK2-S-LB-32-75Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 75 mm
CMK2-S-LB-32-100Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 100 mm
CMK2-S-LB-32-150Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 150 mm
CMK2-S-LB-32-200Mounting: Axial foot, both sides | Bore: 32 mm | Stroke: 200 mm
CMK2-S-LB-40-25Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 25 mm
CMK2-S-LB-40-50Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 50 mm
CMK2-S-LB-40-75Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 75 mm
CMK2-S-LB-40-100Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 100 mm
CMK2-S-LB-40-150Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 150 mm
CMK2-S-LB-40-200Mounting: Axial foot, both sides | Bore: 40 mm | Stroke: 200 mm
CMK2-S-LS-20-25Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 25 mm
CMK2-S-LS-20-50Mounting: Axial foot, one side | Bore: 20 mm | Stroke: 50 mm
CMK2-S-LS-25-25Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 25 mm
CMK2-S-LS-25-50Mounting: Axial foot, one side | Bore: 25 mm | Stroke: 50 mm
CMK2-S-LS-32-25Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 25 mm
CMK2-S-LS-32-50Mounting: Axial foot, one side | Bore: 32 mm | Stroke: 50 mm
CMK2-S-LS-40-25Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 25 mm
CMK2-S-LS-40-50Mounting: Axial foot, one side | Bore: 40 mm | Stroke: 50 mm
CMK2-S-FA-20-25Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-S-FA-20-50Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-S-FA-20-75Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-S-FA-20-100Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-S-FA-20-150Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-S-FA-25-25Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-S-FA-25-50Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-S-FA-25-75Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-S-FA-25-100Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-S-FA-25-150Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-S-FA-32-25Mounting: Rod-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-S-FA-32-50Mounting: Rod-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-S-FA-32-75Mounting: Rod-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-S-FA-32-100Mounting: Rod-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-S-FA-32-150Mounting: Rod-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-S-FA-32-200Mounting: Rod-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-S-FA-40-25Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-S-FA-40-50Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-S-FA-40-75Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-S-FA-40-100Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-S-FA-40-150Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-S-FA-40-200Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-S-FB-20-25Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm
CMK2-S-FB-20-50Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm
CMK2-S-FB-20-75Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm
CMK2-S-FB-20-100Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm
CMK2-S-FB-20-150Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm
CMK2-S-FB-25-25Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm
CMK2-S-FB-25-50Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm
CMK2-S-FB-25-75Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm
CMK2-S-FB-25-100Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm
CMK2-S-FB-25-150Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm
CMK2-S-FB-32-25Mounting: Head-end flange | Bore: 32 mm | Stroke: 25 mm
CMK2-S-FB-32-50Mounting: Head-end flange | Bore: 32 mm | Stroke: 50 mm
CMK2-S-FB-32-75Mounting: Head-end flange | Bore: 32 mm | Stroke: 75 mm
CMK2-S-FB-32-100Mounting: Head-end flange | Bore: 32 mm | Stroke: 100 mm
CMK2-S-FB-32-150Mounting: Head-end flange | Bore: 32 mm | Stroke: 150 mm
CMK2-S-FB-32-200Mounting: Head-end flange | Bore: 32 mm | Stroke: 200 mm
CMK2-S-FB-40-25Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm
CMK2-S-FB-40-50Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm
CMK2-S-FB-40-75Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm
CMK2-S-FB-40-100Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm
CMK2-S-FB-40-150Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm
CMK2-S-FB-40-200Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm
CMK2-S-CA-20-25Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm
CMK2-S-CA-20-50Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm
CMK2-S-CA-20-75Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm
CMK2-S-CA-20-100Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm
CMK2-S-CA-20-150Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm
CMK2-S-CA-25-25Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm
CMK2-S-CA-25-50Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm
CMK2-S-CA-25-75Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm
CMK2-S-CA-25-100Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm
CMK2-S-CA-25-150Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm
CMK2-S-CA-32-25Mounting: Single clevis | Bore: 32 mm | Stroke: 25 mm
CMK2-S-CA-32-50Mounting: Single clevis | Bore: 32 mm | Stroke: 50 mm
CMK2-S-CA-32-75Mounting: Single clevis | Bore: 32 mm | Stroke: 75 mm
CMK2-S-CA-32-100Mounting: Single clevis | Bore: 32 mm | Stroke: 100 mm
CMK2-S-CA-32-150Mounting: Single clevis | Bore: 32 mm | Stroke: 150 mm
CMK2-S-CA-32-200Mounting: Single clevis | Bore: 32 mm | Stroke: 200 mm
CMK2-S-CA-40-25Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm
CMK2-S-CA-40-50Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
CMK2-S-CA-40-75Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
CMK2-S-CA-40-100Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
CMK2-S-CA-40-150Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
CMK2-S-CA-40-200Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
CMK2-S-CC-20-25Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 25 mm
CMK2-S-CC-20-50Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 50 mm
CMK2-S-CC-20-75Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 75 mm
CMK2-S-CC-20-100Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 100 mm
CMK2-S-CC-20-150Mounting: Single clevis, integral | Bore: 20 mm | Stroke: 150 mm
CMK2-S-CC-25-25Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 25 mm
CMK2-S-CC-25-50Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 50 mm
CMK2-S-CC-25-75Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 75 mm
CMK2-S-CC-25-100Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 100 mm
CMK2-S-CC-25-150Mounting: Single clevis, integral | Bore: 25 mm | Stroke: 150 mm
CMK2-S-CC-32-25Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 25 mm
CMK2-S-CC-32-50Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 50 mm
CMK2-S-CC-32-75Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 75 mm
CMK2-S-CC-32-100Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 100 mm
CMK2-S-CC-32-150Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 150 mm
CMK2-S-CC-32-200Mounting: Single clevis, integral | Bore: 32 mm | Stroke: 200 mm
CMK2-S-CC-40-25Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 25 mm
CMK2-S-CC-40-50Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 50 mm
CMK2-S-CC-40-75Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 75 mm
CMK2-S-CC-40-100Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 100 mm
CMK2-S-CC-40-150Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 150 mm
CMK2-S-CC-40-200Mounting: Single clevis, integral | Bore: 40 mm | Stroke: 200 mm
CMK2-S-CC1-20-25Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 25 mm
CMK2-S-CC1-20-50Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 50 mm
CMK2-S-CC1-20-75Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 75 mm
CMK2-S-CC1-20-100Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 100 mm
CMK2-S-CC1-20-150Mounting: Single clevis, press-fit bushing | Bore: 20 mm | Stroke: 150 mm
CMK2-S-CC1-25-25Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 25 mm
CMK2-S-CC1-25-50Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 50 mm
CMK2-S-CC1-25-75Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 75 mm
CMK2-S-CC1-25-100Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 100 mm
CMK2-S-CC1-25-150Mounting: Single clevis, press-fit bushing | Bore: 25 mm | Stroke: 150 mm
CMK2-S-CC1-32-25Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 25 mm
CMK2-S-CC1-32-50Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 50 mm
CMK2-S-CC1-32-75Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 75 mm
CMK2-S-CC1-32-100Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 100 mm
CMK2-S-CC1-32-150Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 150 mm
CMK2-S-CC1-32-200Mounting: Single clevis, press-fit bushing | Bore: 32 mm | Stroke: 200 mm
CMK2-S-CC1-40-25Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 25 mm
CMK2-S-CC1-40-50Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 50 mm
CMK2-S-CC1-40-75Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 75 mm
CMK2-S-CC1-40-100Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 100 mm
CMK2-S-CC1-40-150Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 150 mm
CMK2-S-CC1-40-200Mounting: Single clevis, press-fit bushing | Bore: 40 mm | Stroke: 200 mm
CMK2-S-CB-20-25Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 25 mm
CMK2-S-CB-20-50Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 50 mm
CMK2-S-CB-20-75Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 75 mm
CMK2-S-CB-20-100Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 100 mm
CMK2-S-CB-20-150Mounting: Double clevis (pin included) | Bore: 20 mm | Stroke: 150 mm
CMK2-S-CB-25-25Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 25 mm
CMK2-S-CB-25-50Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 50 mm
CMK2-S-CB-25-75Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 75 mm
CMK2-S-CB-25-100Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 100 mm
CMK2-S-CB-25-150Mounting: Double clevis (pin included) | Bore: 25 mm | Stroke: 150 mm
CMK2-S-CB-32-25Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 25 mm
CMK2-S-CB-32-50Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 50 mm
CMK2-S-CB-32-75Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 75 mm
CMK2-S-CB-32-100Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 100 mm
CMK2-S-CB-32-150Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 150 mm
CMK2-S-CB-32-200Mounting: Double clevis (pin included) | Bore: 32 mm | Stroke: 200 mm
CMK2-S-CB-40-25Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 25 mm
CMK2-S-CB-40-50Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 50 mm
CMK2-S-CB-40-75Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 75 mm
CMK2-S-CB-40-100Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 100 mm
CMK2-S-CB-40-150Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 150 mm
CMK2-S-CB-40-200Mounting: Double clevis (pin included) | Bore: 40 mm | Stroke: 200 mm
CMK2-S-TA-20-25Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-S-TA-20-50Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-S-TA-20-75Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-S-TA-20-100Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-S-TA-20-150Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-S-TA-25-25Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-S-TA-25-50Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-S-TA-25-75Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-S-TA-25-100Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-S-TA-25-150Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-S-TA-32-25Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-S-TA-32-50Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-S-TA-32-75Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-S-TA-32-100Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-S-TA-32-150Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-S-TA-32-200Mounting: Rod-end trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-S-TA-40-25Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-S-TA-40-50Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-S-TA-40-75Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-S-TA-40-100Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-S-TA-40-150Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-S-TA-40-200Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 200 mm
CMK2-S-TB-20-25Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 25 mm
CMK2-S-TB-20-50Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 50 mm
CMK2-S-TB-20-75Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 75 mm
CMK2-S-TB-20-100Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 100 mm
CMK2-S-TB-20-150Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 150 mm
CMK2-S-TB-25-25Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 25 mm
CMK2-S-TB-25-50Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 50 mm
CMK2-S-TB-25-75Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 75 mm
CMK2-S-TB-25-100Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 100 mm
CMK2-S-TB-25-150Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 150 mm
CMK2-S-TB-32-25Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 25 mm
CMK2-S-TB-32-50Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 50 mm
CMK2-S-TB-32-75Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 75 mm
CMK2-S-TB-32-100Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 100 mm
CMK2-S-TB-32-150Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 150 mm
CMK2-S-TB-32-200Mounting: Head-end trunnion | Bore: 32 mm | Stroke: 200 mm
CMK2-S-TB-40-25Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 25 mm
CMK2-S-TB-40-50Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 50 mm
CMK2-S-TB-40-75Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 75 mm
CMK2-S-TB-40-100Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 100 mm
CMK2-S-TB-40-150Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 150 mm
CMK2-S-TB-40-200Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 200 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
