CKD CMK2-Z Tight Cylinder (Built-in Speed Controller)

CKD CMK2-Z Tight Cylinder (Built-in Speed Controller)

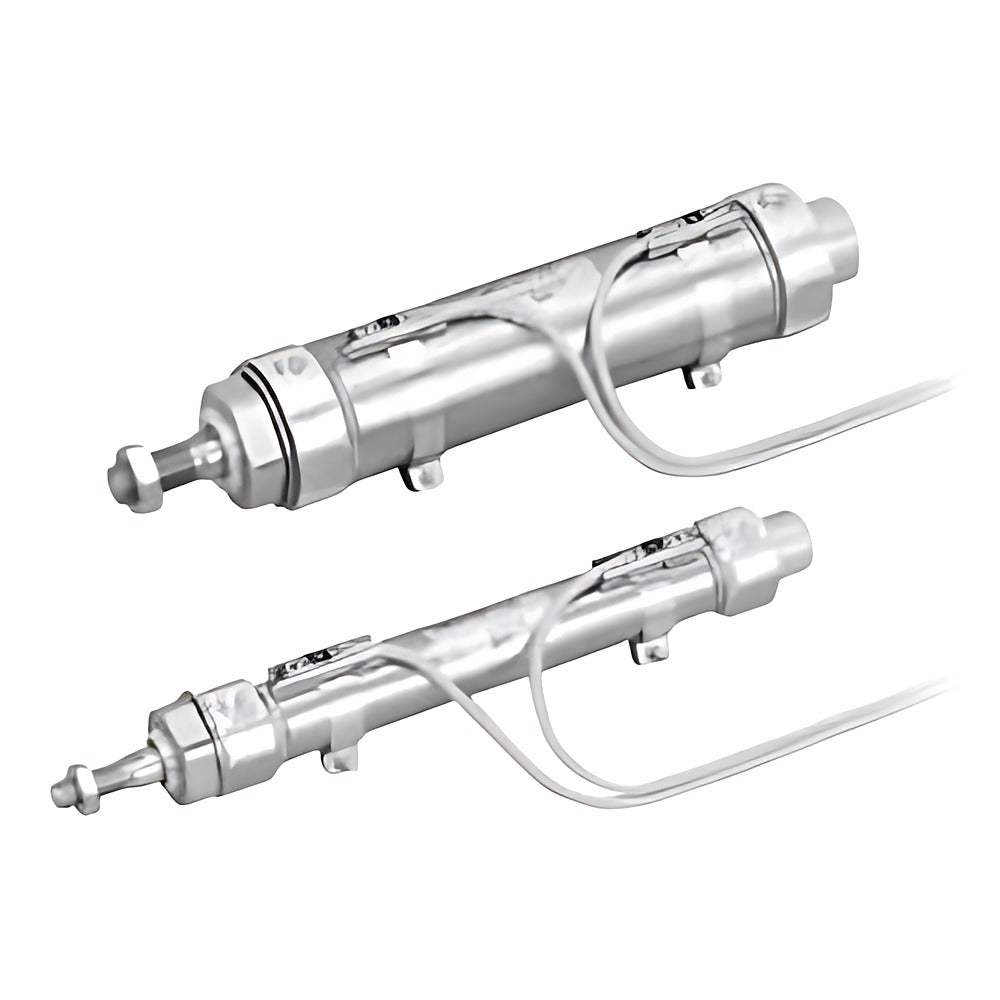

CKD CMK2-Z tight cylinder is a double-acting round-body cylinder with speed controllers built into the covers.

Key features

  • Built-in speed controllers save piping space and fittings
  • Eleven mounting styles including CC1 bushing clevis
  • One-side axial foot (LS) limited to 50 mm stroke
  • Auto-switch magnet built in; T0/T5/T8 reed and T1/T2/T3/T2W/T3W/T2Y/T3Y/T2J solid-state switches ordered with a switch code suffix (e.g. -T0H-R)
  • Options such as J/L bellows, F/FE push-in fittings, M stainless piston rod and P6 are added as suffixes; I/Y rod-end clevis and B2 bracket accessories ordered separately

Specifications

Bore sizes 20, 25, 32, 40 mm
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Port size Rc1/8
Min. operating pressure 0.1 MPa
Ambient temperature -10 to 60 C
Piston speed 50-300 mm/s
Cushion Rubber cushion
Source CKD Korea catalog CB-029SK-9, p. 260-265
CMK2-Z-CC1-20-25 Mounting: Integral clevis, bushing press-fit | Bore: 20 mm | Stroke: 25 mm
CMK2-Z-CC1-20-50 Mounting: Integral clevis, bushing press-fit | Bore: 20 mm | Stroke: 50 mm
CMK2-Z-CC1-20-75 Mounting: Integral clevis, bushing press-fit | Bore: 20 mm | Stroke: 75 mm
CMK2-Z-CC1-20-100 Mounting: Integral clevis, bushing press-fit | Bore: 20 mm | Stroke: 100 mm
CMK2-Z-CC1-20-150 Mounting: Integral clevis, bushing press-fit | Bore: 20 mm | Stroke: 150 mm
CMK2-Z-CC1-20-200 Mounting: Integral clevis, bushing press-fit | Bore: 20 mm | Stroke: 200 mm
CMK2-Z-CC1-20-250 Mounting: Integral clevis, bushing press-fit | Bore: 20 mm | Stroke: 250 mm
CMK2-Z-CC1-20-300 Mounting: Integral clevis, bushing press-fit | Bore: 20 mm | Stroke: 300 mm
CMK2-Z-CC1-25-25 Mounting: Integral clevis, bushing press-fit | Bore: 25 mm | Stroke: 25 mm
CMK2-Z-CC1-25-50 Mounting: Integral clevis, bushing press-fit | Bore: 25 mm | Stroke: 50 mm
CMK2-Z-CC1-25-75 Mounting: Integral clevis, bushing press-fit | Bore: 25 mm | Stroke: 75 mm
CMK2-Z-CC1-25-100 Mounting: Integral clevis, bushing press-fit | Bore: 25 mm | Stroke: 100 mm
CMK2-Z-CC1-25-150 Mounting: Integral clevis, bushing press-fit | Bore: 25 mm | Stroke: 150 mm
CMK2-Z-CC1-25-200 Mounting: Integral clevis, bushing press-fit | Bore: 25 mm | Stroke: 200 mm
CMK2-Z-CC1-25-250 Mounting: Integral clevis, bushing press-fit | Bore: 25 mm | Stroke: 250 mm
CMK2-Z-CC1-25-300 Mounting: Integral clevis, bushing press-fit | Bore: 25 mm | Stroke: 300 mm
CMK2-Z-CC1-32-25 Mounting: Integral clevis, bushing press-fit | Bore: 32 mm | Stroke: 25 mm
CMK2-Z-CC1-32-50 Mounting: Integral clevis, bushing press-fit | Bore: 32 mm | Stroke: 50 mm
CMK2-Z-CC1-32-75 Mounting: Integral clevis, bushing press-fit | Bore: 32 mm | Stroke: 75 mm
CMK2-Z-CC1-32-100 Mounting: Integral clevis, bushing press-fit | Bore: 32 mm | Stroke: 100 mm
CMK2-Z-CC1-32-150 Mounting: Integral clevis, bushing press-fit | Bore: 32 mm | Stroke: 150 mm
CMK2-Z-CC1-32-200 Mounting: Integral clevis, bushing press-fit | Bore: 32 mm | Stroke: 200 mm
CMK2-Z-CC1-32-250 Mounting: Integral clevis, bushing press-fit | Bore: 32 mm | Stroke: 250 mm
CMK2-Z-CC1-32-300 Mounting: Integral clevis, bushing press-fit | Bore: 32 mm | Stroke: 300 mm
CMK2-Z-CC1-40-25 Mounting: Integral clevis, bushing press-fit | Bore: 40 mm | Stroke: 25 mm
CMK2-Z-CC1-40-50 Mounting: Integral clevis, bushing press-fit | Bore: 40 mm | Stroke: 50 mm
CMK2-Z-CC1-40-75 Mounting: Integral clevis, bushing press-fit | Bore: 40 mm | Stroke: 75 mm
CMK2-Z-CC1-40-100 Mounting: Integral clevis, bushing press-fit | Bore: 40 mm | Stroke: 100 mm
CMK2-Z-CC1-40-150 Mounting: Integral clevis, bushing press-fit | Bore: 40 mm | Stroke: 150 mm
CMK2-Z-CC1-40-200 Mounting: Integral clevis, bushing press-fit | Bore: 40 mm | Stroke: 200 mm
CMK2-Z-CC1-40-250 Mounting: Integral clevis, bushing press-fit | Bore: 40 mm | Stroke: 250 mm
CMK2-Z-CC1-40-300 Mounting: Integral clevis, bushing press-fit | Bore: 40 mm | Stroke: 300 mm
