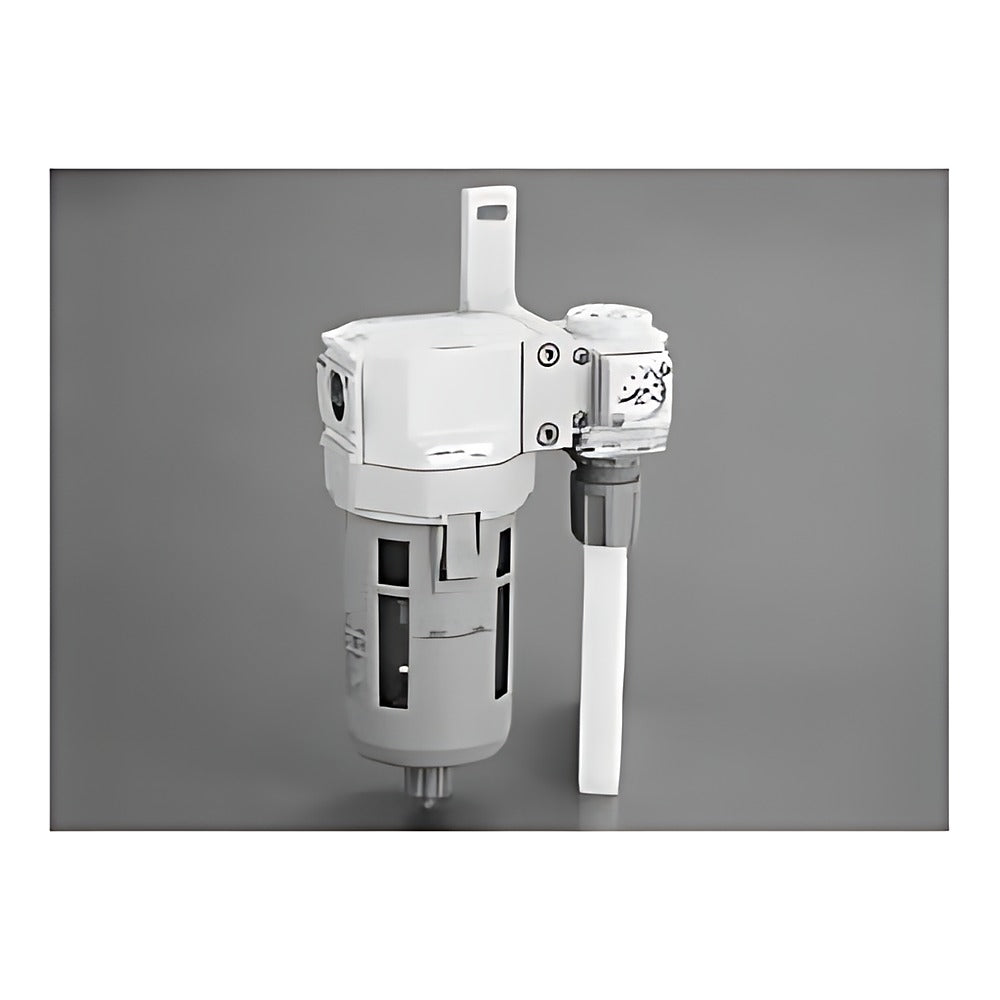

CKD CXU13-CA / CXU48-CA Module Conversion Adapter

CKD CXU13-CA / CXU48-CA Module Conversion Adapter

CKD CXU13-CA and CXU48-CA module conversion adapters that connect F.R.L modular equipment of different size series.

Key features

  • CXU13-CA joins 1000 series to 2000/3000/4000 series
  • CXU48-CA joins 2000/3000/4000 series to 6000/8000 series
  • Joiner sets (C1000-J100 + C4000-J400, or C4000-J400-W + C8000-J800-W) and gaskets included
  • Aluminium die-cast body

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Port None (modular joint)
Ambient / fluid temperature 5 to 60 C
Body Aluminium die-cast
Source CKD Korea catalog CB-024SK-9, p. 1116-1117
CXU13-CA-00 Model: CXU13-CA | Converts: 1000 to 2000/3000/4000 series | Mass: 0.04 kg
CXU48-CA-00 Model: CXU48-CA | Converts: 2000/3000/4000 to 6000/8000 | Mass: 0.13 kg
CXU13-CA Legacy code CXU13-CA (previous base code; order full code above)
CXU48-CA Legacy code CXU48-CA (previous base code; order full code above)
FRL AccessoriesCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CXU13-CA / CXU48-CA Module Conversion Adapter

Brand CKD·FRL Accessories

Available part numbers (4)

CXU13-CA-00, CXU48-CA-00, CXU13-CA, CXU48-CA

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CXU13-CA-00Model: CXU13-CA | Converts: 1000 to 2000/3000/4000 series | Mass: 0.04 kg
CXU48-CA-00Model: CXU48-CA | Converts: 2000/3000/4000 to 6000/8000 | Mass: 0.13 kg
CXU13-CALegacy code CXU13-CA (previous base code; order full code above)
CXU48-CALegacy code CXU48-CA (previous base code; order full code above)

Need a different model, or a part not listed here? Send us your parts list →
