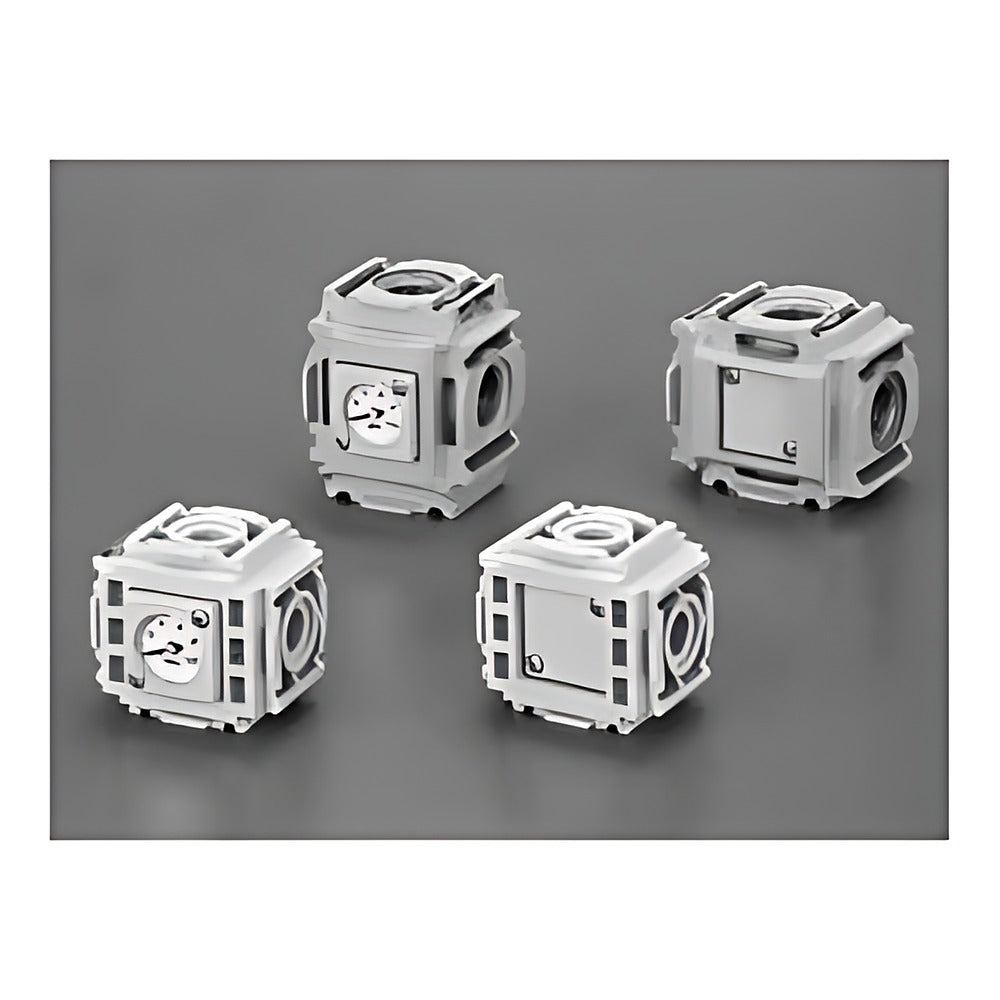

CKD CXU10-D4 / CXU30-D4 Module 4-Way Distributor

CKD CXU10-D4 / CXU30-D4 Module 4-Way Distributor

CKD CXU10-D4 and CXU30-D4 4-way distributors that branch the modular joint of F.R.L units in four directions, with a pressure gauge port.

Key features

  • Branches modular joints in 4 directions; joints removable from one direction
  • CXU10-D4 for 1000 series; CXU30-D4 for 2000/3000/4000 series with Rc3/8 and Rc1/2 ports
  • Gauge port options T6 (Rc1/8), T8 (Rc1/4), G401 gauge fitted, R1 PPD pressure switch fitted
  • One joiner set and gasket included; extra joiner sets ordered separately

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Branch joints 4
Ambient / fluid temperature 5 to 60 C
Mass 0.1 kg (CXU10) / 0.3 kg (CXU30)
Source CKD Korea catalog CB-024SK-9, p. 1112-1113
CXU10-D4-00 Model: CXU10-D4 | For: 1000 series | Option: Gauge port none (blank plug)
CXU10-D4-00-T6 Model: CXU10-D4 | For: 1000 series | Option: Gauge port Rc1/8
CXU10-D4-00-T8 Model: CXU10-D4 | For: 1000 series | Option: Gauge port Rc1/4
CXU10-D4-00-G401 Model: CXU10-D4 | For: 1000 series | Option: Pressure gauge G401
CXU10-D4-00-R1 Model: CXU10-D4 | For: 1000 series | Option: Pressure switch PPD
CXU30-D4-15 Model: CXU30-D4 | For: 2000/3000/4000 series | Option: Gauge port none (blank plug)
CXU30-D4-15-T6 Model: CXU30-D4 | For: 2000/3000/4000 series | Option: Gauge port Rc1/8
CXU30-D4-15-T8 Model: CXU30-D4 | For: 2000/3000/4000 series | Option: Gauge port Rc1/4
CXU30-D4-15-G401 Model: CXU30-D4 | For: 2000/3000/4000 series | Option: Pressure gauge G401
CXU30-D4-15-R1 Model: CXU30-D4 | For: 2000/3000/4000 series | Option: Pressure switch PPD
CXU10-D4 Legacy code CXU10-D4 (previous base code; order full code above)
CXU30-D4 Legacy code CXU30-D4 (previous base code; order full code above)
FRL AccessoriesCKD
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CXU10-D4 / CXU30-D4 Module 4-Way Distributor

Brand CKD·FRL Accessories

Available part numbers (12)

CXU10-D4-00, CXU10-D4-00-T6, CXU10-D4-00-T8, CXU10-D4-00-G401, CXU10-D4-00-R1, CXU30-D4-15, CXU30-D4-15-T6, CXU30-D4-15-T8, CXU30-D4-15-G401, CXU30-D4-15-R1 + 2 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CXU10-D4-00Model: CXU10-D4 | For: 1000 series | Option: Gauge port none (blank plug)
CXU10-D4-00-T6Model: CXU10-D4 | For: 1000 series | Option: Gauge port Rc1/8
CXU10-D4-00-T8Model: CXU10-D4 | For: 1000 series | Option: Gauge port Rc1/4
CXU10-D4-00-G401Model: CXU10-D4 | For: 1000 series | Option: Pressure gauge G401
CXU10-D4-00-R1Model: CXU10-D4 | For: 1000 series | Option: Pressure switch PPD
CXU30-D4-15Model: CXU30-D4 | For: 2000/3000/4000 series | Option: Gauge port none (blank plug)
CXU30-D4-15-T6Model: CXU30-D4 | For: 2000/3000/4000 series | Option: Gauge port Rc1/8
CXU30-D4-15-T8Model: CXU30-D4 | For: 2000/3000/4000 series | Option: Gauge port Rc1/4
CXU30-D4-15-G401Model: CXU30-D4 | For: 2000/3000/4000 series | Option: Pressure gauge G401
CXU30-D4-15-R1Model: CXU30-D4 | For: 2000/3000/4000 series | Option: Pressure switch PPD
CXU10-D4Legacy code CXU10-D4 (previous base code; order full code above)
CXU30-D4Legacy code CXU30-D4 (previous base code; order full code above)
