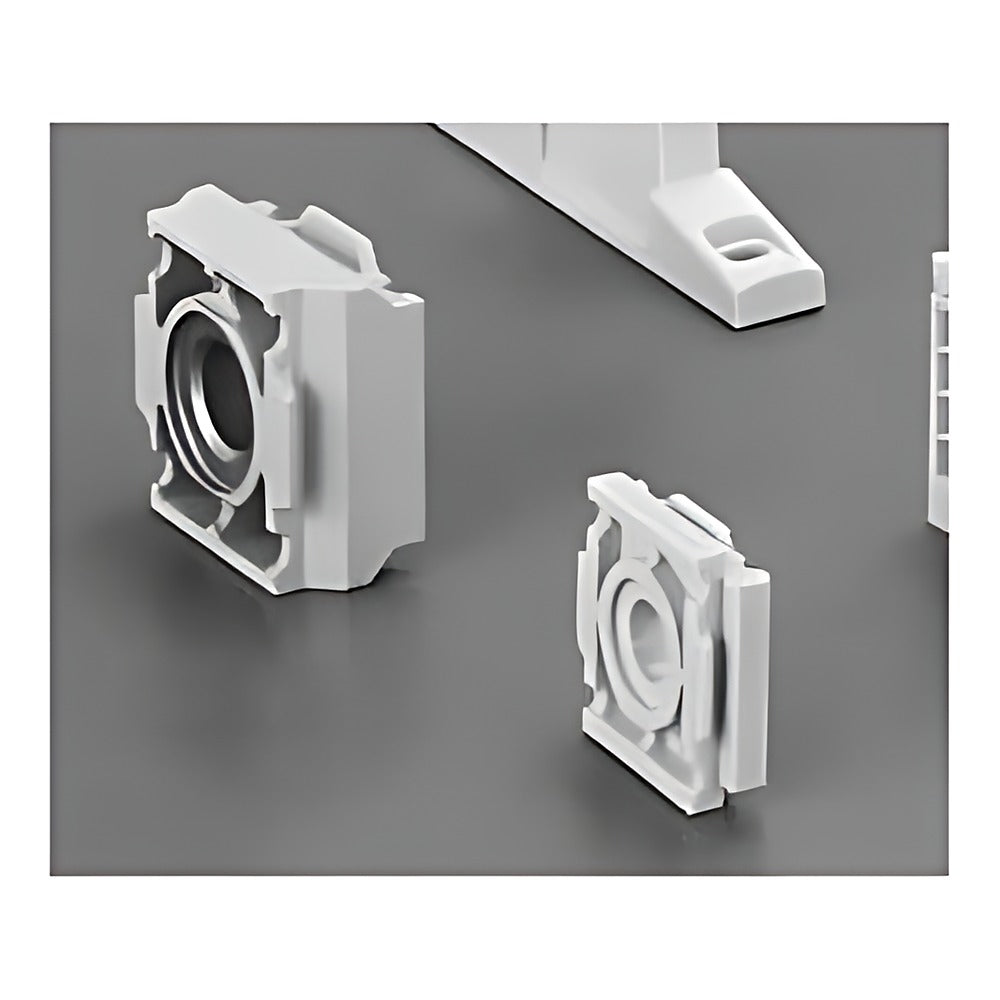

CKD CXU10-TA / CXU30-TA Module Turn Adapter (90 deg)

CKD CXU10-TA / CXU30-TA Module Turn Adapter (90 deg)

CKD CXU10-TA and CXU30-TA turn adapters that rotate the modular joint of F.R.L units by 90 degrees to change the direction of modular equipment.

Key features

  • Converts the modular joint by 90 degrees
  • CXU10-TA for 1000 series, CXU30-TA for 2000/3000/4000 series
  • Joiner set (joiner, bolts, O-ring) and gasket included

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Port None (modular joint)
Ambient / fluid temperature 5 to 60 C
Height 36 mm (CXU10) / 45 mm (CXU30)
Source CKD Korea catalog CB-024SK-9, p. 1114-1114
CXU10-TA-00 Model: CXU10-TA | For: 1000 series | Body: Polyamide resin | Mass: 0.03 kg
CXU30-TA-00 Model: CXU30-TA | For: 2000/3000/4000 series | Body: Aluminium die-cast | Mass: 0.12 kg
CXU10-TA Legacy code CXU10-TA (previous base code; order full code above)
CXU30-TA Legacy code CXU30-TA (previous base code; order full code above)
FRL AccessoriesCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CXU10-TA / CXU30-TA Module Turn Adapter (90 deg)

Brand CKD·FRL Accessories

Available part numbers (4)

CXU10-TA-00, CXU30-TA-00, CXU10-TA, CXU30-TA

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CXU10-TA-00Model: CXU10-TA | For: 1000 series | Body: Polyamide resin | Mass: 0.03 kg
CXU30-TA-00Model: CXU30-TA | For: 2000/3000/4000 series | Body: Aluminium die-cast | Mass: 0.12 kg
CXU10-TALegacy code CXU10-TA (previous base code; order full code above)
CXU30-TALegacy code CXU30-TA (previous base code; order full code above)
