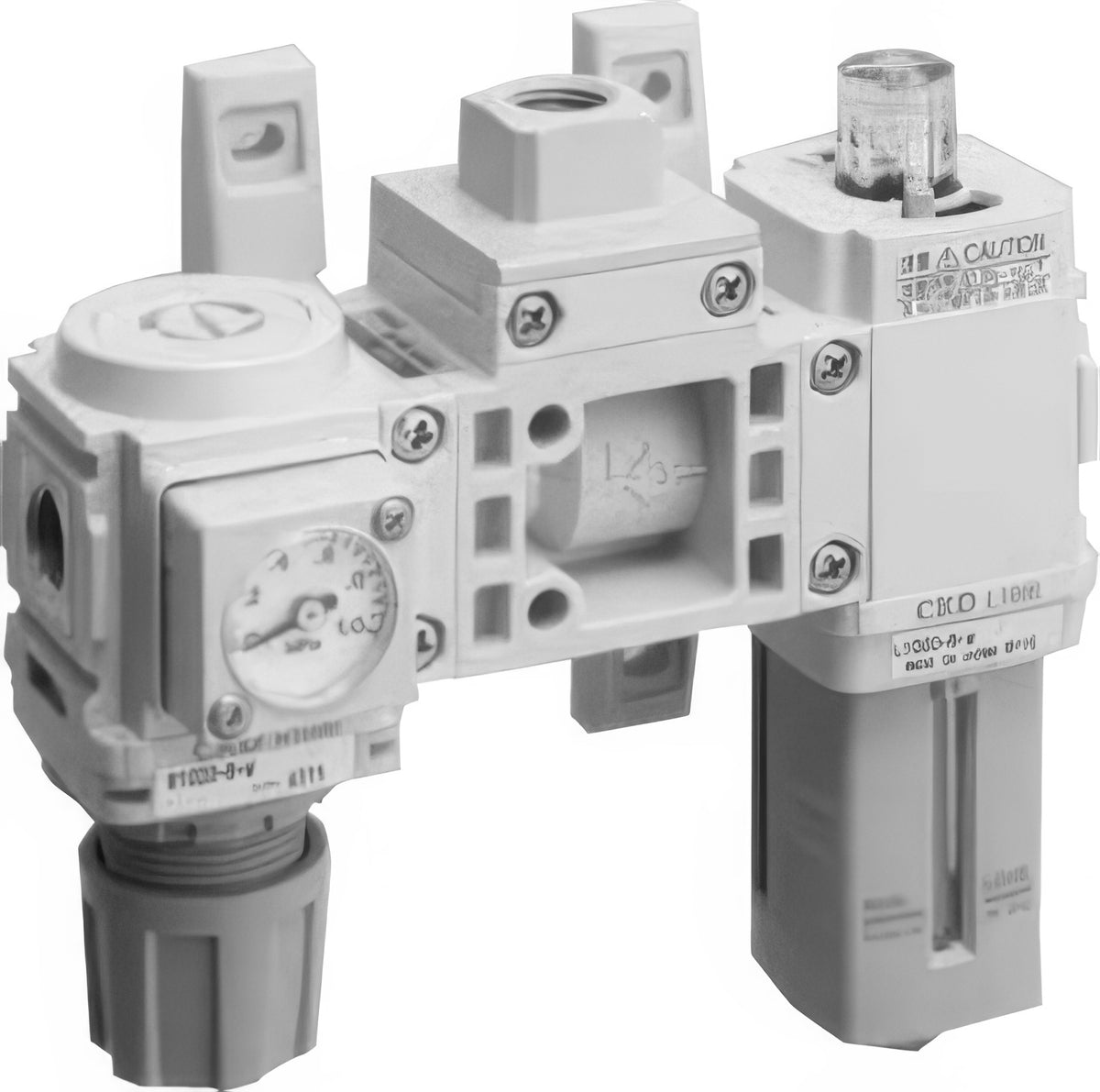

CKD CXU10-CHV Module Check Valve (1000 Series)

CKD CXU10-CHV Module Check Valve (1000 Series)

CKD CXU10-CHV module check valve that completely prevents reverse flow and connects modularly to 1000 series F.R.L units, with a branch port for intermediate air take-off.

Key features

  • Prevents backflow of compressed air in a modular F.R.L line
  • Branch port for intermediate air supply; piping adapter Rc1/8, Rc1/4 or Rc3/8 supplied as option
  • MA: masking adapter supplied to close the branch port
  • Option A: fluororubber seals; joiner set and gasket included

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.03 MPa
Proof pressure 1.5 MPa
Ambient / fluid temperature 5 to 60 C
Effective area 28 mm2
Mass 0.08 kg
Source CKD Korea catalog CB-024SK-9, p. 1110-1111
CXU10-CHV-00 Adapter: None | Port: - | Seal: Standard
CXU10-CHV-00-A Adapter: None | Port: - | Seal: Fluororubber
CXU10-CHV-00-6 Adapter: Piping adapter | Port: Rc1/8 | Seal: Standard
CXU10-CHV-00-6-A Adapter: Piping adapter | Port: Rc1/8 | Seal: Fluororubber
CXU10-CHV-00-8 Adapter: Piping adapter | Port: Rc1/4 | Seal: Standard
CXU10-CHV-00-8-A Adapter: Piping adapter | Port: Rc1/4 | Seal: Fluororubber
CXU10-CHV-00-10 Adapter: Piping adapter | Port: Rc3/8 | Seal: Standard
CXU10-CHV-00-10-A Adapter: Piping adapter | Port: Rc3/8 | Seal: Fluororubber
CXU10-CHV-00-MA Adapter: Masking adapter | Port: - | Seal: Standard
CXU10-CHV-00-MA-A Adapter: Masking adapter | Port: - | Seal: Fluororubber
CXU10-CHV Legacy code CXU10-CHV (previous base code; order full code above)
FRL AccessoriesCKD
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CXU10-CHV Module Check Valve (1000 Series)

Brand CKD·FRL Accessories

Available part numbers (11)

CXU10-CHV-00, CXU10-CHV-00-A, CXU10-CHV-00-6, CXU10-CHV-00-6-A, CXU10-CHV-00-8, CXU10-CHV-00-8-A, CXU10-CHV-00-10, CXU10-CHV-00-10-A, CXU10-CHV-00-MA, CXU10-CHV-00-MA-A + 1 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CXU10-CHV-00Adapter: None | Port: - | Seal: Standard
CXU10-CHV-00-AAdapter: None | Port: - | Seal: Fluororubber
CXU10-CHV-00-6Adapter: Piping adapter | Port: Rc1/8 | Seal: Standard
CXU10-CHV-00-6-AAdapter: Piping adapter | Port: Rc1/8 | Seal: Fluororubber
CXU10-CHV-00-8Adapter: Piping adapter | Port: Rc1/4 | Seal: Standard
CXU10-CHV-00-8-AAdapter: Piping adapter | Port: Rc1/4 | Seal: Fluororubber
CXU10-CHV-00-10Adapter: Piping adapter | Port: Rc3/8 | Seal: Standard
CXU10-CHV-00-10-AAdapter: Piping adapter | Port: Rc3/8 | Seal: Fluororubber
CXU10-CHV-00-MAAdapter: Masking adapter | Port: - | Seal: Standard
CXU10-CHV-00-MA-AAdapter: Masking adapter | Port: - | Seal: Fluororubber
CXU10-CHVLegacy code CXU10-CHV (previous base code; order full code above)
