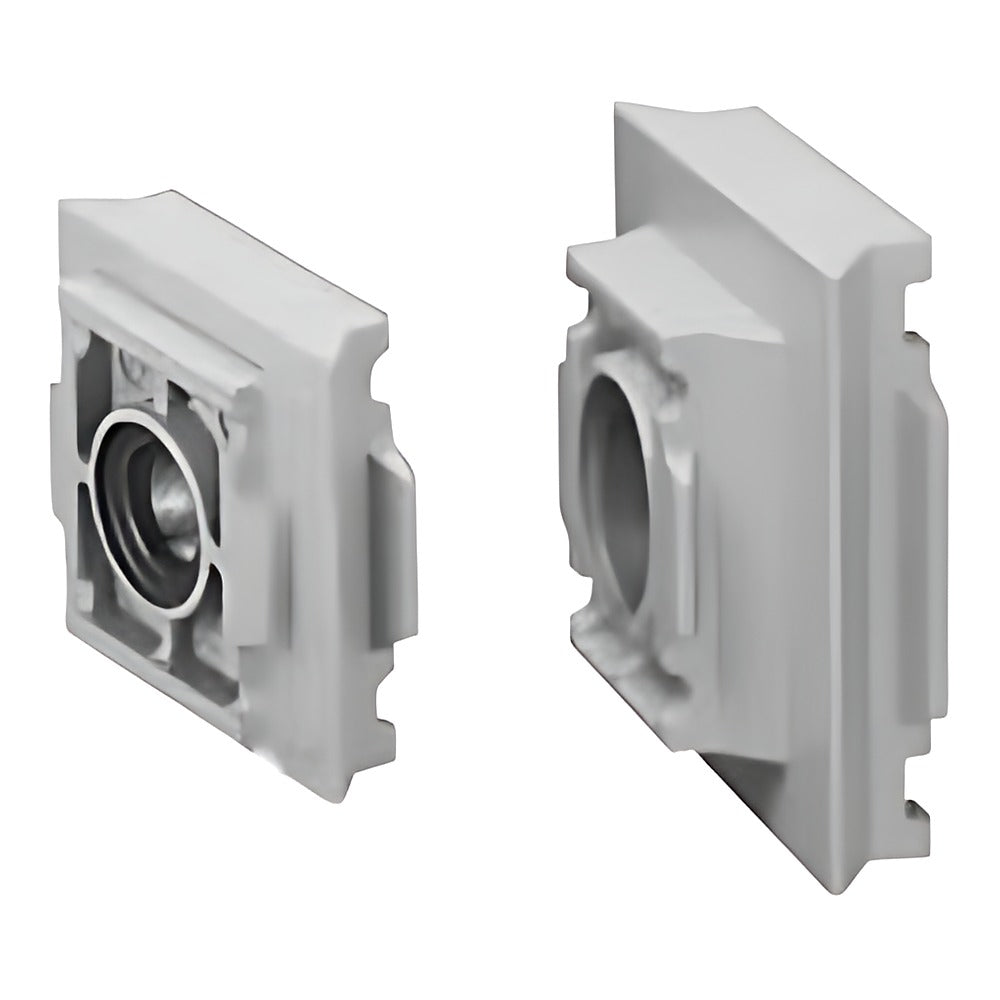

CKD CXU10-MA Module Masking Adapter (1000 Series)

CKD CXU10-MA Module Masking Adapter (1000 Series)

CKD CXU10-MA masking adapter used to blank off a modular joint of 1000 series F.R.L units.

Key features

  • Masks the joint of 1000 series modular equipment
  • Supplied with joiner, or with T bracket B110-W (B) or B110-H-W (BH)
  • O-ring included; T bracket version has captive hex nut for fixing

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Port None
Ambient / fluid temperature 5 to 60 C
Mass 0.02 kg
Source CKD Korea catalog CB-024SK-9, p. 1115-1115
CXU10-MA-00 Option: Joiner | Bracket: None | Dimensions: 40 mm assembled
CXU10-MA-00-B Option: T bracket | Bracket: B110-W | Dimensions: A 40 / B 60 mm
CXU10-MA-00-BH Option: T bracket | Bracket: B110-H-W | Dimensions: A 45 / B 65 mm
CXU10-MA Legacy code CXU10-MA (previous base code; order full code above)
FRL AccessoriesCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CXU10-MA Module Masking Adapter (1000 Series)

Brand CKD·FRL Accessories

Available part numbers (4)

CXU10-MA-00, CXU10-MA-00-B, CXU10-MA-00-BH, CXU10-MA

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CXU10-MA-00Option: Joiner | Bracket: None | Dimensions: 40 mm assembled
CXU10-MA-00-BOption: T bracket | Bracket: B110-W | Dimensions: A 40 / B 60 mm
CXU10-MA-00-BHOption: T bracket | Bracket: B110-H-W | Dimensions: A 45 / B 65 mm
CXU10-MALegacy code CXU10-MA (previous base code; order full code above)
