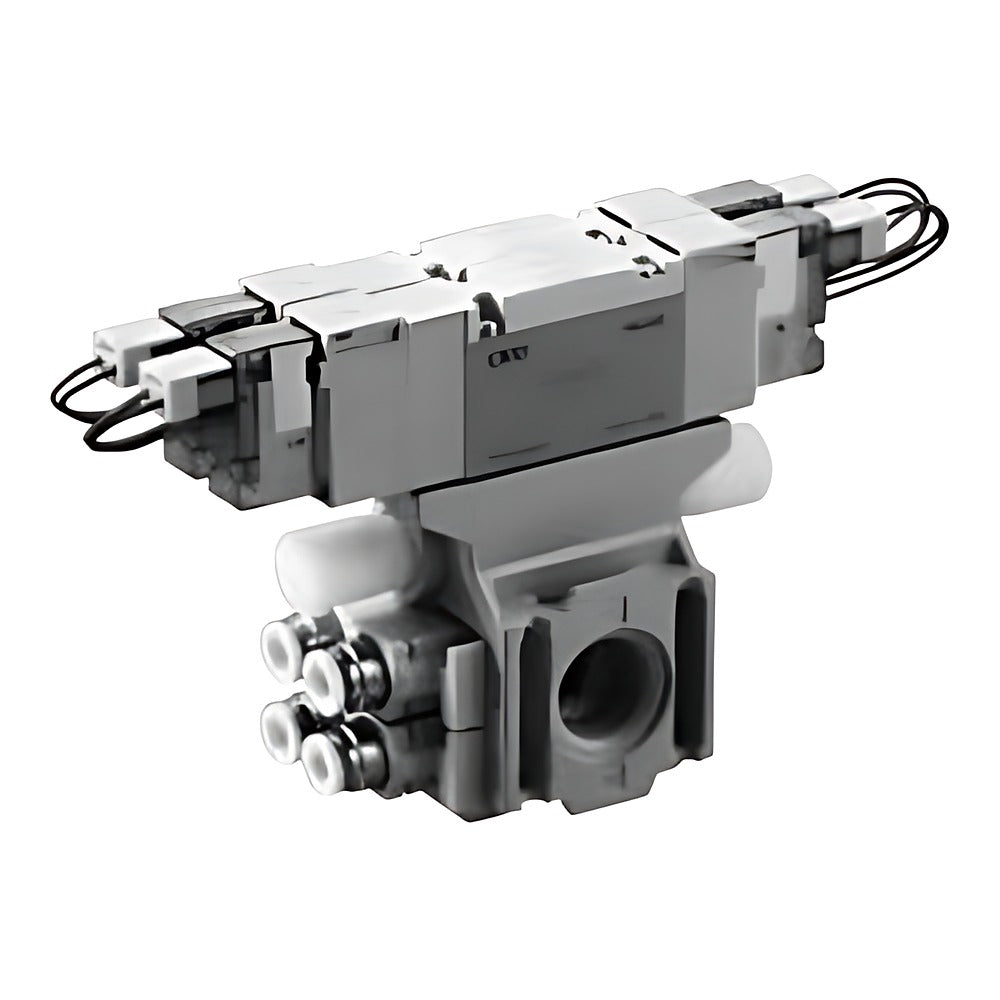

CKD CXU30-ADK Module Pilot-Kick 2-Port Solenoid Valve (NC)

CKD CXU30-ADK Module Pilot-Kick 2-Port Solenoid Valve (NC)

CKD CXU30-ADK pilot-kick diaphragm 2-port solenoid valve (NC) for modular connection to 2000, 3000 and 4000 series F.R.L units, usable as a master valve.

Key features

  • Pilot-kick poppet / diaphragm structure, orifice 12 mm, C = 10.4
  • Operates from 0 MPa differential (AC 0-1.0 MPa, DC 0-0.7 MPa)
  • Seal: nitrile rubber (standard) or fluororubber (F)
  • Coil 2C grommet lead wire (AC100V only) or 2HS DIN box Pg11 with lamp and surge killer
  • Joiner set (joiner, bolts, O-ring) supplied

Specifications

Fluid Compressed air
Max. operating pressure 2 MPa
Proof pressure 4 MPa
Fluid temperature NBR -10 to 60 C, FKM 5 to 60 C
Ambient temperature -10 to 60 C
Orifice 12 mm
Flow C 10.4 dm3/(s.bar)
Power consumption 10.0 W (50 Hz), 11.0 W (DC)
Mass 0.65 kg
Source CKD Korea catalog CB-024SK-9, p. 1102-1103
CXU30-ADK-00-2C-1 Seal: Nitrile rubber | Coil: Grommet lead wire | Voltage: AC100V 50/60Hz, AC110V 60Hz
CXU30-ADK-00-2HS-1 Seal: Nitrile rubber | Coil: DIN box Pg11, lamp + surge | Voltage: AC100V 50/60Hz, AC110V 60Hz
CXU30-ADK-00-2HS-3 Seal: Nitrile rubber | Coil: DIN box Pg11, lamp + surge | Voltage: DC24V
CXU30-ADK-00-F2C-1 Seal: Fluororubber | Coil: Grommet lead wire | Voltage: AC100V 50/60Hz, AC110V 60Hz
CXU30-ADK-00-F2HS-1 Seal: Fluororubber | Coil: DIN box Pg11, lamp + surge | Voltage: AC100V 50/60Hz, AC110V 60Hz
CXU30-ADK-00-F2HS-3 Seal: Fluororubber | Coil: DIN box Pg11, lamp + surge | Voltage: DC24V
CXU30-ADK Legacy code CXU30-ADK (previous base code; order full code above)
Solenoid ValvesCKD
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CXU30-ADK Module Pilot-Kick 2-Port Solenoid Valve (NC)

Brand CKD·Solenoid Valves

Available part numbers (7)

CXU30-ADK-00-2C-1, CXU30-ADK-00-2HS-1, CXU30-ADK-00-2HS-3, CXU30-ADK-00-F2C-1, CXU30-ADK-00-F2HS-1, CXU30-ADK-00-F2HS-3, CXU30-ADK
