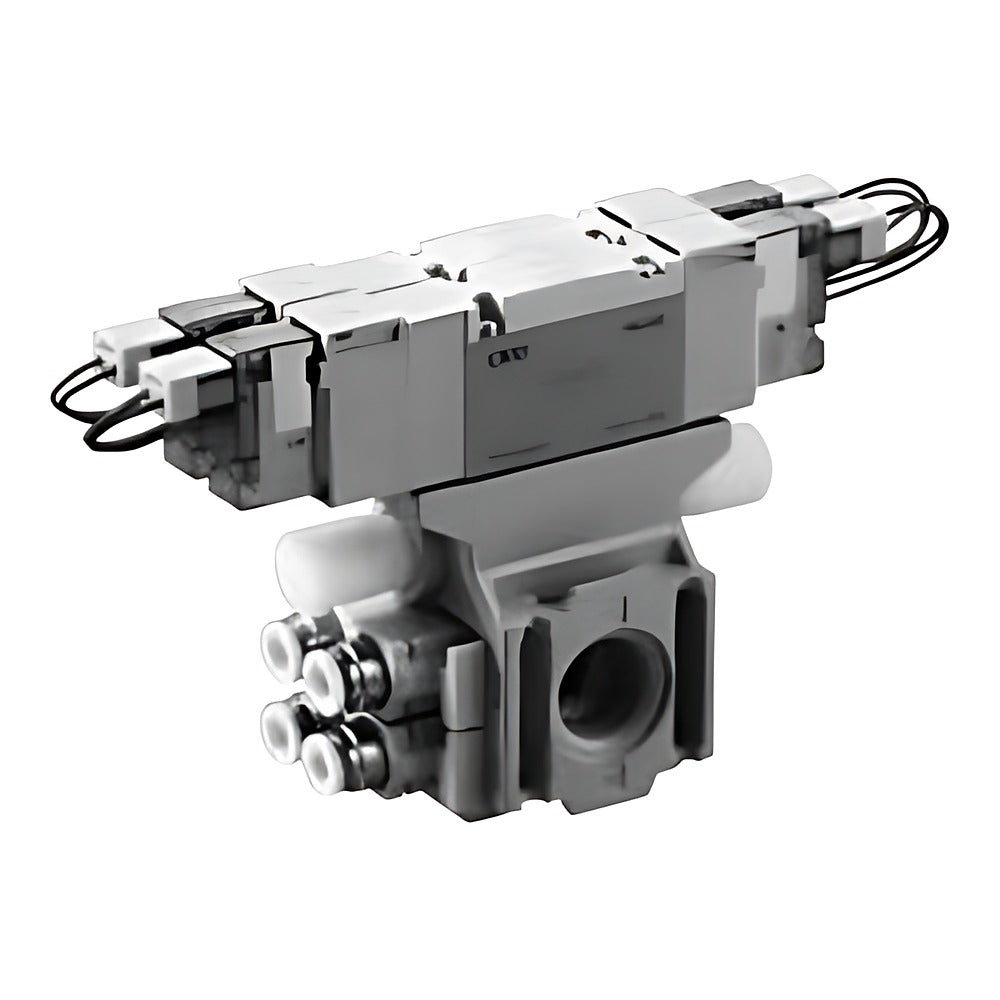

CKD CXU30-FAB4U Module Direct-Acting 2-Port Solenoid Valve (NC, Rc1/4)

CKD CXU30-FAB4U Module Direct-Acting 2-Port Solenoid Valve (NC, Rc1/4)

CKD CXU30-FAB4U direct-acting poppet 2-port solenoid valve (NC) with Rc1/4 outlet for modular connection to 2000, 3000 and 4000 series F.R.L units.

Key features

  • Direct-acting poppet, NC, orifice 4 mm, outlet Rc1/4
  • Actuator assembly and mounting interchangeable with GFAB series
  • Coil: grommet lead wire (2C) or DIN terminal box Pg11 with lamp and surge killer (2HS)
  • Joiner set (joiner, bolts, O-ring) and gasket supplied

Specifications

Fluid Compressed air
Operating pressure differential AC 0 to 1.0 MPa, DC 0 to 0.9 MPa
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Fluid temperature AC 5 to 60 C, DC 5 to 40 C
Outlet Rc1/4
Orifice 4 mm
Flow C 2.1 dm3/(s.bar)
Power consumption 7.5 W (50 Hz), 8.0 W (DC)
Mass 0.55 kg
Source CKD Korea catalog CB-024SK-9, p. 1100-1101
CXU30-FAB4U-8L-2C-1 Coil option: 2C | Connection: Grommet lead wire | Voltage: AC100V 50/60Hz, AC110V 60Hz
CXU30-FAB4U-8L-2C-3 Coil option: 2C | Connection: Grommet lead wire | Voltage: DC24V
CXU30-FAB4U-8L-2HS-1 Coil option: 2HS | Connection: DIN box Pg11, lamp + surge | Voltage: AC100V 50/60Hz, AC110V 60Hz
CXU30-FAB4U-8L-2HS-3 Coil option: 2HS | Connection: DIN box Pg11, lamp + surge | Voltage: DC24V
CXU30-FAB4U Legacy code CXU30-FAB4U (previous base code; order full code above)
Solenoid ValvesCKD
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD CXU30-FAB4U Module Direct-Acting 2-Port Solenoid Valve (NC, Rc1/4)

Brand CKD·Solenoid Valves

Available part numbers (5)

CXU30-FAB4U-8L-2C-1, CXU30-FAB4U-8L-2C-3, CXU30-FAB4U-8L-2HS-1, CXU30-FAB4U-8L-2HS-3, CXU30-FAB4U

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
