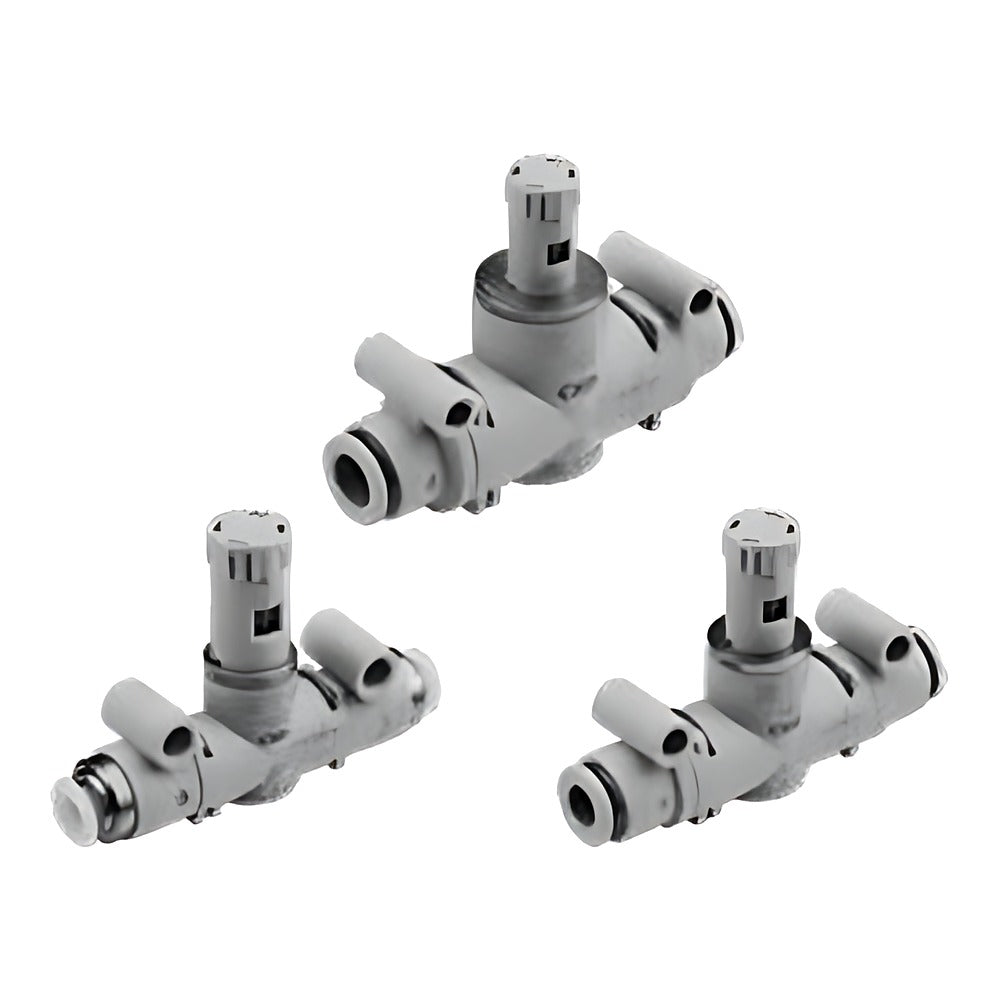

CKD DSC-S Speed Controller with Dial (In-line, Tube 4-12 mm)

CKD DSC-S Speed Controller with Dial (In-line, Tube 4-12 mm)

CKD DSC-S series in-line speed controller with dial indicator and push-in fittings on both ends for tubes 4 to 12 mm.

Key features

  • In-line body with push-in fittings both ends; mounting part rotates 360 deg (floor, side, panel)
  • Dial facing side (1) or IN-OUT direction (2)
  • Standard, low (L) or micro (F, body 06 only) flow types; 1-7 needle turns
  • Push-lock needle with visual dial for repeatable adjustment

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa
Proof pressure 1.5 MPa
Fluid temperature 5 to 60 C (no freezing)
Ambient temperature 0 to 60 C (no freezing)
Source CKD Korea catalog CB-024SK-9, p. 772-777
DSC-S1-06-H44 Dial direction: Side | Body size: 1/8 equiv. | Tube OD: 4 mm | Flow type: Standard
DSC-S1-06-H44-L Dial direction: Side | Body size: 1/8 equiv. | Tube OD: 4 mm | Flow type: Low flow
DSC-S1-06-H44-F Dial direction: Side | Body size: 1/8 equiv. | Tube OD: 4 mm | Flow type: Micro flow
DSC-S1-06-H66 Dial direction: Side | Body size: 1/8 equiv. | Tube OD: 6 mm | Flow type: Standard
DSC-S1-06-H66-L Dial direction: Side | Body size: 1/8 equiv. | Tube OD: 6 mm | Flow type: Low flow
DSC-S1-06-H66-F Dial direction: Side | Body size: 1/8 equiv. | Tube OD: 6 mm | Flow type: Micro flow
DSC-S1-08-H66 Dial direction: Side | Body size: 1/4 equiv. | Tube OD: 6 mm | Flow type: Standard
DSC-S1-08-H66-L Dial direction: Side | Body size: 1/4 equiv. | Tube OD: 6 mm | Flow type: Low flow
DSC-S1-08-H88 Dial direction: Side | Body size: 1/4 equiv. | Tube OD: 8 mm | Flow type: Standard
DSC-S1-08-H88-L Dial direction: Side | Body size: 1/4 equiv. | Tube OD: 8 mm | Flow type: Low flow
DSC-S1-10-H88 Dial direction: Side | Body size: 3/8 equiv. | Tube OD: 8 mm | Flow type: Standard
DSC-S1-10-H88-L Dial direction: Side | Body size: 3/8 equiv. | Tube OD: 8 mm | Flow type: Low flow
DSC-S1-10-H1010 Dial direction: Side | Body size: 3/8 equiv. | Tube OD: 10 mm | Flow type: Standard
DSC-S1-10-H1010-L Dial direction: Side | Body size: 3/8 equiv. | Tube OD: 10 mm | Flow type: Low flow
DSC-S1-10-H1212 Dial direction: Side | Body size: 3/8 equiv. | Tube OD: 12 mm | Flow type: Standard
DSC-S1-10-H1212-L Dial direction: Side | Body size: 3/8 equiv. | Tube OD: 12 mm | Flow type: Low flow
DSC-S2-06-H44 Dial direction: IN-OUT direction | Body size: 1/8 equiv. | Tube OD: 4 mm | Flow type: Standard
DSC-S2-06-H44-L Dial direction: IN-OUT direction | Body size: 1/8 equiv. | Tube OD: 4 mm | Flow type: Low flow
DSC-S2-06-H44-F Dial direction: IN-OUT direction | Body size: 1/8 equiv. | Tube OD: 4 mm | Flow type: Micro flow
DSC-S2-06-H66 Dial direction: IN-OUT direction | Body size: 1/8 equiv. | Tube OD: 6 mm | Flow type: Standard
DSC-S2-06-H66-L Dial direction: IN-OUT direction | Body size: 1/8 equiv. | Tube OD: 6 mm | Flow type: Low flow
DSC-S2-06-H66-F Dial direction: IN-OUT direction | Body size: 1/8 equiv. | Tube OD: 6 mm | Flow type: Micro flow
DSC-S2-08-H66 Dial direction: IN-OUT direction | Body size: 1/4 equiv. | Tube OD: 6 mm | Flow type: Standard
DSC-S2-08-H66-L Dial direction: IN-OUT direction | Body size: 1/4 equiv. | Tube OD: 6 mm | Flow type: Low flow
DSC-S2-08-H88 Dial direction: IN-OUT direction | Body size: 1/4 equiv. | Tube OD: 8 mm | Flow type: Standard
DSC-S2-08-H88-L Dial direction: IN-OUT direction | Body size: 1/4 equiv. | Tube OD: 8 mm | Flow type: Low flow
DSC-S2-10-H88 Dial direction: IN-OUT direction | Body size: 3/8 equiv. | Tube OD: 8 mm | Flow type: Standard
DSC-S2-10-H88-L Dial direction: IN-OUT direction | Body size: 3/8 equiv. | Tube OD: 8 mm | Flow type: Low flow
DSC-S2-10-H1010 Dial direction: IN-OUT direction | Body size: 3/8 equiv. | Tube OD: 10 mm | Flow type: Standard
DSC-S2-10-H1010-L Dial direction: IN-OUT direction | Body size: 3/8 equiv. | Tube OD: 10 mm | Flow type: Low flow
DSC-S2-10-H1212 Dial direction: IN-OUT direction | Body size: 3/8 equiv. | Tube OD: 12 mm | Flow type: Standard
DSC-S2-10-H1212-L Dial direction: IN-OUT direction | Body size: 3/8 equiv. | Tube OD: 12 mm | Flow type: Low flow
Speed ControllersCKD
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD DSC-S Speed Controller with Dial (In-line, Tube 4-12 mm)

Brand CKD·Speed Controllers

Available part numbers (32)

DSC-S1-06-H44, DSC-S1-06-H44-L, DSC-S1-06-H44-F, DSC-S1-06-H66, DSC-S1-06-H66-L, DSC-S1-06-H66-F, DSC-S1-08-H66, DSC-S1-08-H66-L, DSC-S1-08-H88, DSC-S1-08-H88-L + 22 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DSC-S1-06-H44Dial direction: Side | Body size: 1/8 equiv. | Tube OD: 4 mm | Flow type: Standard
DSC-S1-06-H44-LDial direction: Side | Body size: 1/8 equiv. | Tube OD: 4 mm | Flow type: Low flow
DSC-S1-06-H44-FDial direction: Side | Body size: 1/8 equiv. | Tube OD: 4 mm | Flow type: Micro flow
DSC-S1-06-H66Dial direction: Side | Body size: 1/8 equiv. | Tube OD: 6 mm | Flow type: Standard
DSC-S1-06-H66-LDial direction: Side | Body size: 1/8 equiv. | Tube OD: 6 mm | Flow type: Low flow
DSC-S1-06-H66-FDial direction: Side | Body size: 1/8 equiv. | Tube OD: 6 mm | Flow type: Micro flow
DSC-S1-08-H66Dial direction: Side | Body size: 1/4 equiv. | Tube OD: 6 mm | Flow type: Standard
DSC-S1-08-H66-LDial direction: Side | Body size: 1/4 equiv. | Tube OD: 6 mm | Flow type: Low flow
DSC-S1-08-H88Dial direction: Side | Body size: 1/4 equiv. | Tube OD: 8 mm | Flow type: Standard
DSC-S1-08-H88-LDial direction: Side | Body size: 1/4 equiv. | Tube OD: 8 mm | Flow type: Low flow
DSC-S1-10-H88Dial direction: Side | Body size: 3/8 equiv. | Tube OD: 8 mm | Flow type: Standard
DSC-S1-10-H88-LDial direction: Side | Body size: 3/8 equiv. | Tube OD: 8 mm | Flow type: Low flow
DSC-S1-10-H1010Dial direction: Side | Body size: 3/8 equiv. | Tube OD: 10 mm | Flow type: Standard
DSC-S1-10-H1010-LDial direction: Side | Body size: 3/8 equiv. | Tube OD: 10 mm | Flow type: Low flow
DSC-S1-10-H1212Dial direction: Side | Body size: 3/8 equiv. | Tube OD: 12 mm | Flow type: Standard
DSC-S1-10-H1212-LDial direction: Side | Body size: 3/8 equiv. | Tube OD: 12 mm | Flow type: Low flow
DSC-S2-06-H44Dial direction: IN-OUT direction | Body size: 1/8 equiv. | Tube OD: 4 mm | Flow type: Standard
DSC-S2-06-H44-LDial direction: IN-OUT direction | Body size: 1/8 equiv. | Tube OD: 4 mm | Flow type: Low flow
DSC-S2-06-H44-FDial direction: IN-OUT direction | Body size: 1/8 equiv. | Tube OD: 4 mm | Flow type: Micro flow
DSC-S2-06-H66Dial direction: IN-OUT direction | Body size: 1/8 equiv. | Tube OD: 6 mm | Flow type: Standard
DSC-S2-06-H66-LDial direction: IN-OUT direction | Body size: 1/8 equiv. | Tube OD: 6 mm | Flow type: Low flow
DSC-S2-06-H66-FDial direction: IN-OUT direction | Body size: 1/8 equiv. | Tube OD: 6 mm | Flow type: Micro flow
DSC-S2-08-H66Dial direction: IN-OUT direction | Body size: 1/4 equiv. | Tube OD: 6 mm | Flow type: Standard
DSC-S2-08-H66-LDial direction: IN-OUT direction | Body size: 1/4 equiv. | Tube OD: 6 mm | Flow type: Low flow
DSC-S2-08-H88Dial direction: IN-OUT direction | Body size: 1/4 equiv. | Tube OD: 8 mm | Flow type: Standard
DSC-S2-08-H88-LDial direction: IN-OUT direction | Body size: 1/4 equiv. | Tube OD: 8 mm | Flow type: Low flow
DSC-S2-10-H88Dial direction: IN-OUT direction | Body size: 3/8 equiv. | Tube OD: 8 mm | Flow type: Standard
DSC-S2-10-H88-LDial direction: IN-OUT direction | Body size: 3/8 equiv. | Tube OD: 8 mm | Flow type: Low flow
DSC-S2-10-H1010Dial direction: IN-OUT direction | Body size: 3/8 equiv. | Tube OD: 10 mm | Flow type: Standard
DSC-S2-10-H1010-LDial direction: IN-OUT direction | Body size: 3/8 equiv. | Tube OD: 10 mm | Flow type: Low flow
DSC-S2-10-H1212Dial direction: IN-OUT direction | Body size: 3/8 equiv. | Tube OD: 12 mm | Flow type: Standard
DSC-S2-10-H1212-LDial direction: IN-OUT direction | Body size: 3/8 equiv. | Tube OD: 12 mm | Flow type: Low flow
