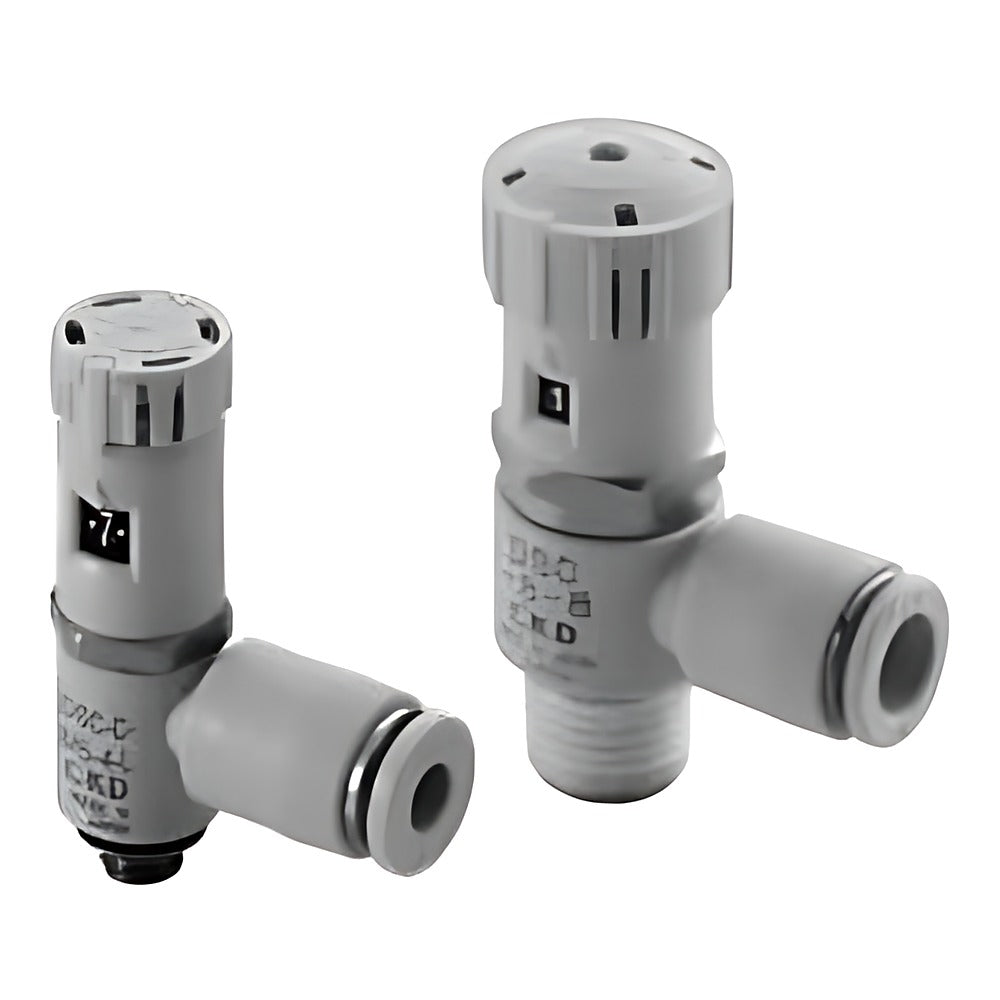

CKD DSC Speed Controller with Dial (Battery Mfg. Spec P4)

CKD DSC Speed Controller with Dial (Battery Mfg. Spec P4)

CKD DSC series dial speed controller in -P4 secondary-battery-manufacturing specification, elbow push-in type, M5 and R1/8 to R1/2.

Key features

  • Structure suitable for general assembly processes of lithium-ion secondary battery manufacturing
  • Dial indicator on the needle shows the opening for repeatable, visual speed setting
  • Push-lock needle: pull knob to unlock, push to lock
  • Compact type (M5, R1/8; 1-7 needle turns) and standard type (R1/8-R1/2; 1-10 turns)
  • Meter-out or meter-in (I, black release ring); standard, low (L) or micro (F, compact) flow

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Proof pressure 1.5 MPa
Fluid temperature 5 to 60 C (no freezing)
Ambient temperature 0 to 60 C (no freezing)
Source CKD Korea catalog CB-024SK-9, p. 766-777
DSC-C-M5-3-P4 Body: Compact | Port: M5x0.8 | Tube OD: 3.2 mm | Control: Meter-out | Flow type: Standard
DSC-C-M5-3-L-P4 Body: Compact | Port: M5x0.8 | Tube OD: 3.2 mm | Control: Meter-out | Flow type: Low flow
DSC-C-M5-3-I-P4 Body: Compact | Port: M5x0.8 | Tube OD: 3.2 mm | Control: Meter-in | Flow type: Standard
DSC-C-M5-3-IL-P4 Body: Compact | Port: M5x0.8 | Tube OD: 3.2 mm | Control: Meter-in | Flow type: Low flow
DSC-C-M5-4-P4 Body: Compact | Port: M5x0.8 | Tube OD: 4 mm | Control: Meter-out | Flow type: Standard
DSC-C-M5-4-L-P4 Body: Compact | Port: M5x0.8 | Tube OD: 4 mm | Control: Meter-out | Flow type: Low flow
DSC-C-M5-4-F-P4 Body: Compact | Port: M5x0.8 | Tube OD: 4 mm | Control: Meter-out | Flow type: Micro flow
DSC-C-M5-4-I-P4 Body: Compact | Port: M5x0.8 | Tube OD: 4 mm | Control: Meter-in | Flow type: Standard
DSC-C-M5-4-IL-P4 Body: Compact | Port: M5x0.8 | Tube OD: 4 mm | Control: Meter-in | Flow type: Low flow
DSC-C-M5-4-IF-P4 Body: Compact | Port: M5x0.8 | Tube OD: 4 mm | Control: Meter-in | Flow type: Micro flow
DSC-C-M5-6-P4 Body: Compact | Port: M5x0.8 | Tube OD: 6 mm | Control: Meter-out | Flow type: Standard
DSC-C-M5-6-L-P4 Body: Compact | Port: M5x0.8 | Tube OD: 6 mm | Control: Meter-out | Flow type: Low flow
DSC-C-M5-6-F-P4 Body: Compact | Port: M5x0.8 | Tube OD: 6 mm | Control: Meter-out | Flow type: Micro flow
DSC-C-M5-6-I-P4 Body: Compact | Port: M5x0.8 | Tube OD: 6 mm | Control: Meter-in | Flow type: Standard
DSC-C-M5-6-IL-P4 Body: Compact | Port: M5x0.8 | Tube OD: 6 mm | Control: Meter-in | Flow type: Low flow
DSC-C-M5-6-IF-P4 Body: Compact | Port: M5x0.8 | Tube OD: 6 mm | Control: Meter-in | Flow type: Micro flow
DSC-C-6-4-P4 Body: Compact | Port: R1/8 | Tube OD: 4 mm | Control: Meter-out | Flow type: Standard
DSC-C-6-4-L-P4 Body: Compact | Port: R1/8 | Tube OD: 4 mm | Control: Meter-out | Flow type: Low flow
DSC-C-6-4-F-P4 Body: Compact | Port: R1/8 | Tube OD: 4 mm | Control: Meter-out | Flow type: Micro flow
DSC-C-6-4-I-P4 Body: Compact | Port: R1/8 | Tube OD: 4 mm | Control: Meter-in | Flow type: Standard
DSC-C-6-4-IL-P4 Body: Compact | Port: R1/8 | Tube OD: 4 mm | Control: Meter-in | Flow type: Low flow
DSC-C-6-4-IF-P4 Body: Compact | Port: R1/8 | Tube OD: 4 mm | Control: Meter-in | Flow type: Micro flow
DSC-C-6-6-P4 Body: Compact | Port: R1/8 | Tube OD: 6 mm | Control: Meter-out | Flow type: Standard
DSC-C-6-6-L-P4 Body: Compact | Port: R1/8 | Tube OD: 6 mm | Control: Meter-out | Flow type: Low flow
DSC-C-6-6-F-P4 Body: Compact | Port: R1/8 | Tube OD: 6 mm | Control: Meter-out | Flow type: Micro flow
DSC-C-6-6-I-P4 Body: Compact | Port: R1/8 | Tube OD: 6 mm | Control: Meter-in | Flow type: Standard
DSC-C-6-6-IL-P4 Body: Compact | Port: R1/8 | Tube OD: 6 mm | Control: Meter-in | Flow type: Low flow
DSC-C-6-6-IF-P4 Body: Compact | Port: R1/8 | Tube OD: 6 mm | Control: Meter-in | Flow type: Micro flow
DSC-C-6-8-P4 Body: Compact | Port: R1/8 | Tube OD: 8 mm | Control: Meter-out | Flow type: Standard
DSC-C-6-8-L-P4 Body: Compact | Port: R1/8 | Tube OD: 8 mm | Control: Meter-out | Flow type: Low flow
DSC-C-6-8-I-P4 Body: Compact | Port: R1/8 | Tube OD: 8 mm | Control: Meter-in | Flow type: Standard
DSC-C-6-8-IL-P4 Body: Compact | Port: R1/8 | Tube OD: 8 mm | Control: Meter-in | Flow type: Low flow
DSC-6-4-P4 Body: Standard | Port: R1/8 | Tube OD: 4 mm | Control: Meter-out | Flow type: Standard
DSC-6-4-L-P4 Body: Standard | Port: R1/8 | Tube OD: 4 mm | Control: Meter-out | Flow type: Low flow
DSC-6-4-I-P4 Body: Standard | Port: R1/8 | Tube OD: 4 mm | Control: Meter-in | Flow type: Standard
DSC-6-4-IL-P4 Body: Standard | Port: R1/8 | Tube OD: 4 mm | Control: Meter-in | Flow type: Low flow
DSC-6-6-P4 Body: Standard | Port: R1/8 | Tube OD: 6 mm | Control: Meter-out | Flow type: Standard
DSC-6-6-L-P4 Body: Standard | Port: R1/8 | Tube OD: 6 mm | Control: Meter-out | Flow type: Low flow
DSC-6-6-I-P4 Body: Standard | Port: R1/8 | Tube OD: 6 mm | Control: Meter-in | Flow type: Standard
DSC-6-6-IL-P4 Body: Standard | Port: R1/8 | Tube OD: 6 mm | Control: Meter-in | Flow type: Low flow
DSC-6-8-P4 Body: Standard | Port: R1/8 | Tube OD: 8 mm | Control: Meter-out | Flow type: Standard
DSC-6-8-L-P4 Body: Standard | Port: R1/8 | Tube OD: 8 mm | Control: Meter-out | Flow type: Low flow
DSC-6-8-I-P4 Body: Standard | Port: R1/8 | Tube OD: 8 mm | Control: Meter-in | Flow type: Standard
DSC-6-8-IL-P4 Body: Standard | Port: R1/8 | Tube OD: 8 mm | Control: Meter-in | Flow type: Low flow
DSC-8-6-P4 Body: Standard | Port: R1/4 | Tube OD: 6 mm | Control: Meter-out | Flow type: Standard
DSC-8-6-L-P4 Body: Standard | Port: R1/4 | Tube OD: 6 mm | Control: Meter-out | Flow type: Low flow
DSC-8-6-I-P4 Body: Standard | Port: R1/4 | Tube OD: 6 mm | Control: Meter-in | Flow type: Standard
DSC-8-6-IL-P4 Body: Standard | Port: R1/4 | Tube OD: 6 mm | Control: Meter-in | Flow type: Low flow
DSC-8-8-P4 Body: Standard | Port: R1/4 | Tube OD: 8 mm | Control: Meter-out | Flow type: Standard
DSC-8-8-L-P4 Body: Standard | Port: R1/4 | Tube OD: 8 mm | Control: Meter-out | Flow type: Low flow
DSC-8-8-I-P4 Body: Standard | Port: R1/4 | Tube OD: 8 mm | Control: Meter-in | Flow type: Standard
DSC-8-8-IL-P4 Body: Standard | Port: R1/4 | Tube OD: 8 mm | Control: Meter-in | Flow type: Low flow
DSC-8-10-P4 Body: Standard | Port: R1/4 | Tube OD: 10 mm | Control: Meter-out | Flow type: Standard
DSC-8-10-L-P4 Body: Standard | Port: R1/4 | Tube OD: 10 mm | Control: Meter-out | Flow type: Low flow
DSC-8-10-I-P4 Body: Standard | Port: R1/4 | Tube OD: 10 mm | Control: Meter-in | Flow type: Standard
DSC-8-10-IL-P4 Body: Standard | Port: R1/4 | Tube OD: 10 mm | Control: Meter-in | Flow type: Low flow
DSC-10-6-P4 Body: Standard | Port: R3/8 | Tube OD: 6 mm | Control: Meter-out | Flow type: Standard
DSC-10-6-L-P4 Body: Standard | Port: R3/8 | Tube OD: 6 mm | Control: Meter-out | Flow type: Low flow
DSC-10-6-I-P4 Body: Standard | Port: R3/8 | Tube OD: 6 mm | Control: Meter-in | Flow type: Standard
DSC-10-6-IL-P4 Body: Standard | Port: R3/8 | Tube OD: 6 mm | Control: Meter-in | Flow type: Low flow
DSC-10-8-P4 Body: Standard | Port: R3/8 | Tube OD: 8 mm | Control: Meter-out | Flow type: Standard
DSC-10-8-L-P4 Body: Standard | Port: R3/8 | Tube OD: 8 mm | Control: Meter-out | Flow type: Low flow
DSC-10-8-I-P4 Body: Standard | Port: R3/8 | Tube OD: 8 mm | Control: Meter-in | Flow type: Standard
DSC-10-8-IL-P4 Body: Standard | Port: R3/8 | Tube OD: 8 mm | Control: Meter-in | Flow type: Low flow
DSC-10-10-P4 Body: Standard | Port: R3/8 | Tube OD: 10 mm | Control: Meter-out | Flow type: Standard
DSC-10-10-L-P4 Body: Standard | Port: R3/8 | Tube OD: 10 mm | Control: Meter-out | Flow type: Low flow
DSC-10-10-I-P4 Body: Standard | Port: R3/8 | Tube OD: 10 mm | Control: Meter-in | Flow type: Standard
DSC-10-10-IL-P4 Body: Standard | Port: R3/8 | Tube OD: 10 mm | Control: Meter-in | Flow type: Low flow
DSC-10-12-P4 Body: Standard | Port: R3/8 | Tube OD: 12 mm | Control: Meter-out | Flow type: Standard
DSC-10-12-L-P4 Body: Standard | Port: R3/8 | Tube OD: 12 mm | Control: Meter-out | Flow type: Low flow
DSC-10-12-I-P4 Body: Standard | Port: R3/8 | Tube OD: 12 mm | Control: Meter-in | Flow type: Standard
DSC-10-12-IL-P4 Body: Standard | Port: R3/8 | Tube OD: 12 mm | Control: Meter-in | Flow type: Low flow
DSC-15-10-P4 Body: Standard | Port: R1/2 | Tube OD: 10 mm | Control: Meter-out | Flow type: Standard
DSC-15-10-L-P4 Body: Standard | Port: R1/2 | Tube OD: 10 mm | Control: Meter-out | Flow type: Low flow
DSC-15-10-I-P4 Body: Standard | Port: R1/2 | Tube OD: 10 mm | Control: Meter-in | Flow type: Standard
DSC-15-10-IL-P4 Body: Standard | Port: R1/2 | Tube OD: 10 mm | Control: Meter-in | Flow type: Low flow
DSC-15-12-P4 Body: Standard | Port: R1/2 | Tube OD: 12 mm | Control: Meter-out | Flow type: Standard
DSC-15-12-L-P4 Body: Standard | Port: R1/2 | Tube OD: 12 mm | Control: Meter-out | Flow type: Low flow
DSC-15-12-I-P4 Body: Standard | Port: R1/2 | Tube OD: 12 mm | Control: Meter-in | Flow type: Standard
DSC-15-12-IL-P4 Body: Standard | Port: R1/2 | Tube OD: 12 mm | Control: Meter-in | Flow type: Low flow
Speed ControllersCKD
80 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
