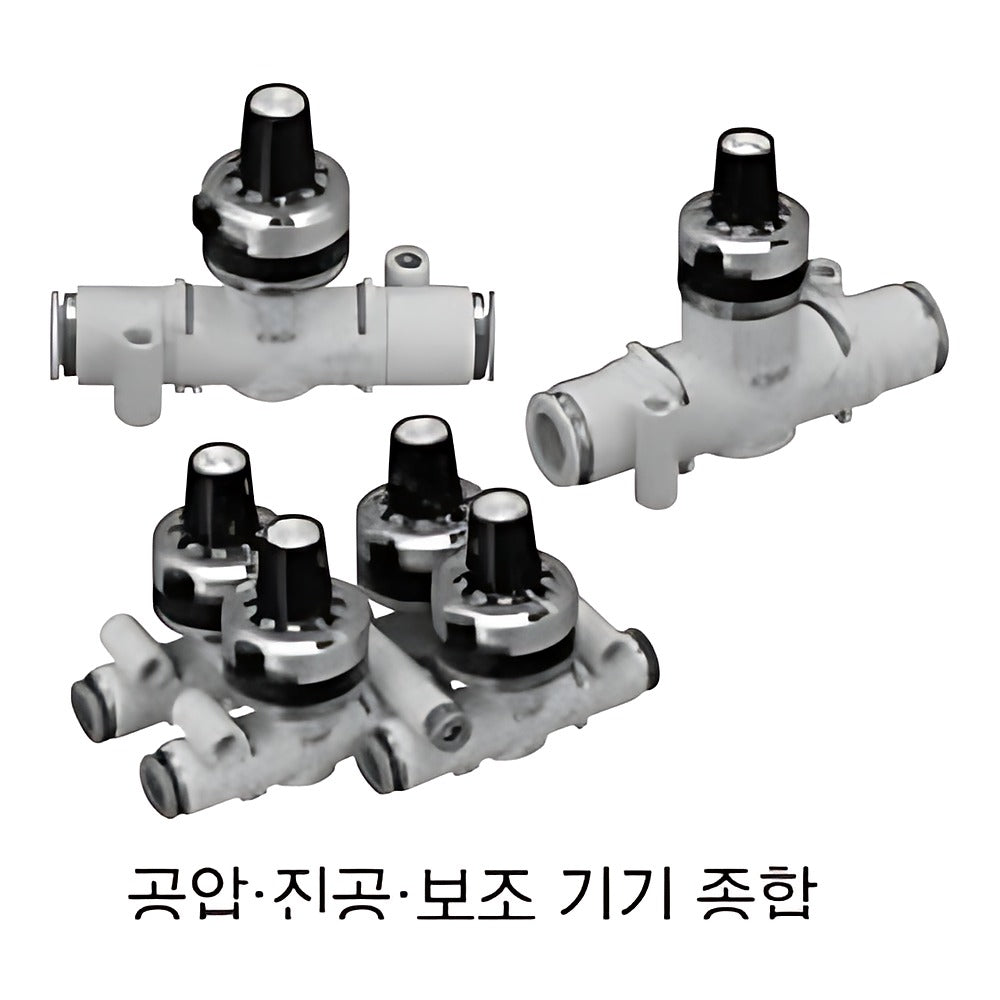

CKD DVL-S-FP1 Dial Needle Valve, Check Valve Type (Food Grade)

CKD DVL-S-FP1 Dial Needle Valve, Check Valve Type (Food Grade)

CKD DVL-S-FP1 dial needle valves with check valve and push-in fittings for repeatable flow setting in food-processing equipment.

Key features

  • FP1 food-processing series using NSF H1 registered grease
  • Check valve type S; dial with lock
  • Controlled flow 18 to 440 L/min (ANR) by flow type
  • Vacuum (-100 kPa) possible in free-flow direction only
  • Push-in tubes 4 to 12 mm

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa
Proof pressure 1.5 MPa
Fluid temperature 5 to 60 C
Source CKD Korea catalog CC-1271K-5, p. 304-305
DVL-S-06-H44-020-FP1 Body size: 06 (1/8 equiv.) | Tube OD: 4 mm | Flow type: 18 L/min (ANR)
DVL-S-06-H66-020-FP1 Body size: 06 (1/8 equiv.) | Tube OD: 6 mm | Flow type: 18 L/min (ANR)
DVL-S-06-H44-080-FP1 Body size: 06 (1/8 equiv.) | Tube OD: 4 mm | Flow type: 80 L/min (ANR)
DVL-S-06-H66-080-FP1 Body size: 06 (1/8 equiv.) | Tube OD: 6 mm | Flow type: 80 L/min (ANR)
DVL-S-06-H66-160-FP1 Body size: 06 (1/8 equiv.) | Tube OD: 6 mm | Flow type: 160 L/min (ANR)
DVL-S-08-H66-240-FP1 Body size: 08 (1/4 equiv.) | Tube OD: 6 mm | Flow type: 240 L/min (ANR)
DVL-S-08-H88-240-FP1 Body size: 08 (1/4 equiv.) | Tube OD: 8 mm | Flow type: 240 L/min (ANR)
DVL-S-10-H88-400-FP1 Body size: 10 (3/8 equiv.) | Tube OD: 8 mm | Flow type: 440 L/min (ANR)
DVL-S-10-H1010-400-FP1 Body size: 10 (3/8 equiv.) | Tube OD: 10 mm | Flow type: 440 L/min (ANR)
DVL-S-10-H1212-400-FP1 Body size: 10 (3/8 equiv.) | Tube OD: 12 mm | Flow type: 440 L/min (ANR)
Speed ControllersCKD
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD DVL-S-FP1 Dial Needle Valve, Check Valve Type (Food Grade)

Brand CKD·Speed Controllers

Available part numbers (10)

DVL-S-06-H44-020-FP1, DVL-S-06-H66-020-FP1, DVL-S-06-H44-080-FP1, DVL-S-06-H66-080-FP1, DVL-S-06-H66-160-FP1, DVL-S-08-H66-240-FP1, DVL-S-08-H88-240-FP1, DVL-S-10-H88-400-FP1, DVL-S-10-H1010-400-FP1, DVL-S-10-H1212-400-FP1

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DVL-S-06-H44-020-FP1Body size: 06 (1/8 equiv.) | Tube OD: 4 mm | Flow type: 18 L/min (ANR)
DVL-S-06-H66-020-FP1Body size: 06 (1/8 equiv.) | Tube OD: 6 mm | Flow type: 18 L/min (ANR)
DVL-S-06-H44-080-FP1Body size: 06 (1/8 equiv.) | Tube OD: 4 mm | Flow type: 80 L/min (ANR)
DVL-S-06-H66-080-FP1Body size: 06 (1/8 equiv.) | Tube OD: 6 mm | Flow type: 80 L/min (ANR)
DVL-S-06-H66-160-FP1Body size: 06 (1/8 equiv.) | Tube OD: 6 mm | Flow type: 160 L/min (ANR)
DVL-S-08-H66-240-FP1Body size: 08 (1/4 equiv.) | Tube OD: 6 mm | Flow type: 240 L/min (ANR)
DVL-S-08-H88-240-FP1Body size: 08 (1/4 equiv.) | Tube OD: 8 mm | Flow type: 240 L/min (ANR)
DVL-S-10-H88-400-FP1Body size: 10 (3/8 equiv.) | Tube OD: 8 mm | Flow type: 440 L/min (ANR)
DVL-S-10-H1010-400-FP1Body size: 10 (3/8 equiv.) | Tube OD: 10 mm | Flow type: 440 L/min (ANR)
DVL-S-10-H1212-400-FP1Body size: 10 (3/8 equiv.) | Tube OD: 12 mm | Flow type: 440 L/min (ANR)
