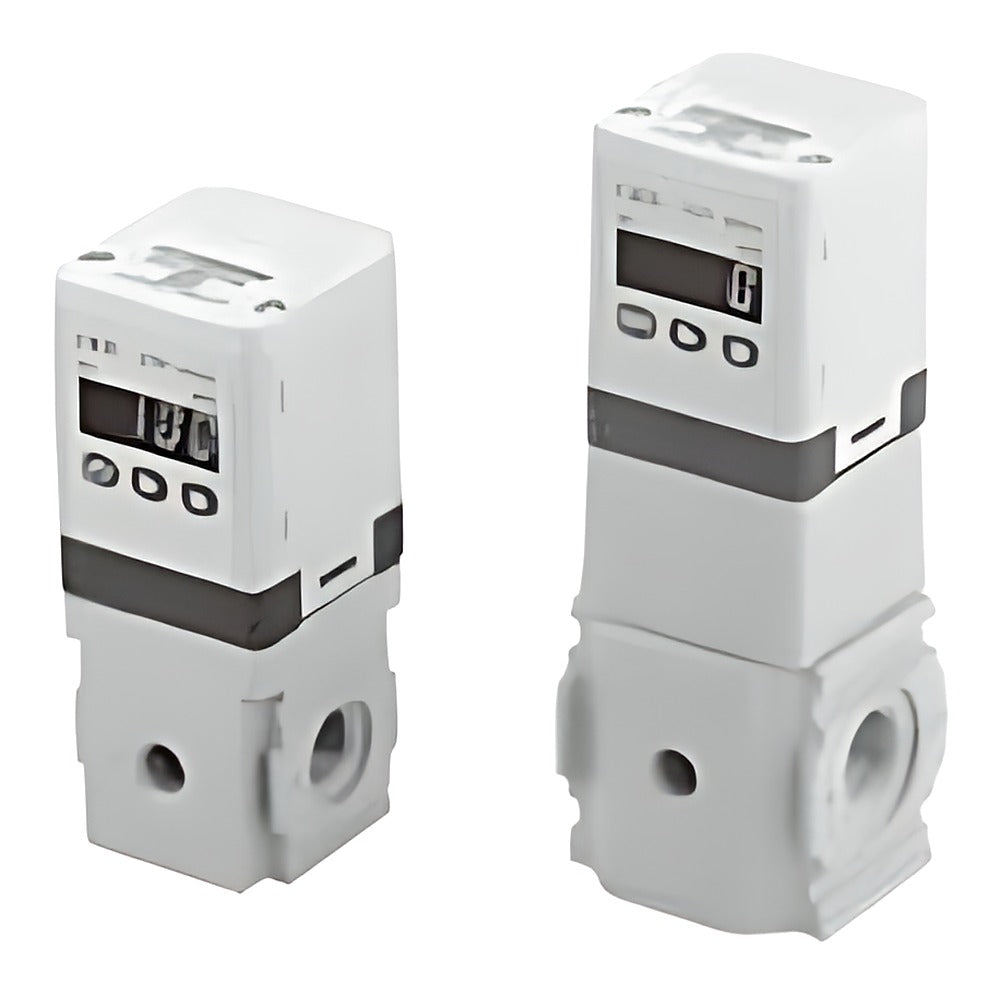

CKD EVD-1000 Digital Electro-Pneumatic Regulator (1/4 Port)

CKD EVD-1000 Digital Electro-Pneumatic Regulator (1/4 Port)

CKD EVD-1000 digital electro-pneumatic regulator that controls air pressure proportionally to an analog or 10-bit parallel input.

Key features

  • Control ranges 0-100, 0-500 and 0-900 kPa; max flow 60 L/min (EVD-1100) or 400 L/min
  • Analog input 0-10 VDC, 0-5 VDC, 4-20 mA or 10-bit parallel input (8 preset points with analog types)
  • Output: 1-5 V analog or switch output with error output, NPN or PNP
  • Rc1/4, G1/4 or NPT1/4 ports; 3-digit LED pressure display, key lock
  • Cable (C1/C3, P1/P3) and bracket (B1/L1) options not expanded; also sold separately as EVD-<option>
  • Secondary-battery spec (-P4*) available

Specifications

Fluid Clean compressed air (ISO 8573-1 [1:3:2])
Power supply 24 VDC +/-10%
Current consumption 0.15 A max.
Display 3-digit 7-segment LED
Linearity / hysteresis +/-0.3% F.S. / 0.5% F.S.
Repeatability 0.3% F.S.
Ambient / fluid temp. 5 to 50 C
Weight 250 g
Code format EVD-1<range>-<input><port><output>-<option>-3
Source CKD Korea catalog CB-024SK-9, p. 654-659
EVD-1100-008AN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-008AP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-008SN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1100-008SP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1100-008GAN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-008GAP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-008GSN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1100-008GSP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1100-008NAN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-008NAP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-008NSN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1100-008NSP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1100-108AN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-108AP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-108SN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1100-108SP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1100-108GAN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-108GAP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-108GSN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1100-108GSP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1100-108NAN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-108NAP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-108NSN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1100-108NSP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1100-208AN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-208AP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-208SN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1100-208SP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1100-208GAN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-208GAP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-208GSN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1100-208GSP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1100-208NAN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-208NAP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-208NSN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1100-208NSP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1100-P08AN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-P08AP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-P08SN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1100-P08SP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1100-P08GAN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-P08GAP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-P08GSN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1100-P08GSP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1100-P08NAN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-P08NAP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-P08NSN-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1100-P08NSP-3 Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1500-008AN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-008AP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-008SN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1500-008SP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1500-008GAN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-008GAP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-008GSN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1500-008GSP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1500-008NAN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-008NAP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-008NSN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1500-008NSP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1500-108AN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-108AP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-108SN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1500-108SP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1500-108GAN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-108GAP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-108GSN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1500-108GSP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1500-108NAN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-108NAP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-108NSN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1500-108NSP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1500-208AN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-208AP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-208SN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1500-208SP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1500-208GAN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-208GAP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-208GSN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1500-208GSP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1500-208NAN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-208NAP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-208NSN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1500-208NSP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1500-P08AN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-P08AP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-P08SN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1500-P08SP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1500-P08GAN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-P08GAP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-P08GSN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1500-P08GSP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1500-P08NAN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-P08NAP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-P08NSN-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1500-P08NSP-3 Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1900-008AN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-008AP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-008SN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1900-008SP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1900-008GAN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-008GAP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-008GSN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1900-008GSP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1900-008NAN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-008NAP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-008NSN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1900-008NSP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1900-108AN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-108AP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-108SN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1900-108SP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1900-108GAN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-108GAP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-108GSN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1900-108GSP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1900-108NAN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-108NAP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-108NSN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1900-108NSP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1900-208AN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-208AP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-208SN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1900-208SP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1900-208GAN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-208GAP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-208GSN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1900-208GSP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1900-208NAN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-208NAP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-208NSN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1900-208NSP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1900-P08AN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-P08AP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-P08SN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1900-P08SP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1900-P08GAN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-P08GAP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-P08GSN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1900-P08GSP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1900-P08NAN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-P08NAP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-P08NSN-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1900-P08NSP-3 Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-C1 Type: Analog 9-core cable 1 m | Pressure range: - | Input signal: - | Port: - | Output signal: -
EVD-C3 Type: Analog 9-core cable 3 m | Pressure range: - | Input signal: - | Port: - | Output signal: -
EVD-P1 Type: Parallel 15-core cable 1 m | Pressure range: - | Input signal: - | Port: - | Output signal: -
EVD-P3 Type: Parallel 15-core cable 3 m | Pressure range: - | Input signal: - | Port: - | Output signal: -
EVD-B1 Type: B bracket, floor mount | Pressure range: - | Input signal: - | Port: - | Output signal: -
EVD-L1 Type: L bracket, wall mount | Pressure range: - | Input signal: - | Port: - | Output signal: -
Electro-Pneumatic RegulatorsCKD
150 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD EVD-1000 Digital Electro-Pneumatic Regulator (1/4 Port)

Brand CKD·Electro-Pneumatic Regulators

Available part numbers (150)

EVD-1100-008AN-3, EVD-1100-008AP-3, EVD-1100-008SN-3, EVD-1100-008SP-3, EVD-1100-008GAN-3, EVD-1100-008GAP-3, EVD-1100-008GSN-3, EVD-1100-008GSP-3, EVD-1100-008NAN-3, EVD-1100-008NAP-3 + 140 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EVD-1100-008AN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-008AP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-008SN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1100-008SP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1100-008GAN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-008GAP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-008GSN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1100-008GSP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1100-008NAN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-008NAP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-008NSN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1100-008NSP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1100-108AN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-108AP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-108SN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1100-108SP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1100-108GAN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-108GAP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-108GSN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1100-108GSP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1100-108NAN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-108NAP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-108NSN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1100-108NSP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1100-208AN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-208AP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-208SN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1100-208SP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1100-208GAN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-208GAP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-208GSN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1100-208GSP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1100-208NAN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-208NAP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-208NSN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1100-208NSP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1100-P08AN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-P08AP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-P08SN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1100-P08SP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1100-P08GAN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-P08GAP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-P08GSN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1100-P08GSP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1100-P08NAN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1100-P08NAP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1100-P08NSN-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1100-P08NSP-3Type: EVD-1100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1500-008AN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-008AP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-008SN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1500-008SP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1500-008GAN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-008GAP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-008GSN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1500-008GSP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1500-008NAN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-008NAP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-008NSN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1500-008NSP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1500-108AN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-108AP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-108SN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1500-108SP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1500-108GAN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-108GAP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-108GSN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1500-108GSP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1500-108NAN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-108NAP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-108NSN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1500-108NSP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1500-208AN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-208AP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-208SN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1500-208SP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1500-208GAN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-208GAP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-208GSN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1500-208GSP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1500-208NAN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-208NAP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-208NSN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1500-208NSP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1500-P08AN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-P08AP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-P08SN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1500-P08SP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1500-P08GAN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-P08GAP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-P08GSN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1500-P08GSP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1500-P08NAN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1500-P08NAP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1500-P08NSN-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1500-P08NSP-3Type: EVD-1500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1900-008AN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-008AP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-008SN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1900-008SP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1900-008GAN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-008GAP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-008GSN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1900-008GSP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1900-008NAN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-008NAP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-008NSN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1900-008NSP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1900-108AN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-108AP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-108SN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1900-108SP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1900-108GAN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-108GAP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-108GSN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1900-108GSP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1900-108NAN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-108NAP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-108NSN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1900-108NSP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1900-208AN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-208AP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-208SN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1900-208SP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1900-208GAN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-208GAP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-208GSN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1900-208GSP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1900-208NAN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-208NAP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-208NSN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1900-208NSP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-1900-P08AN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-P08AP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-P08SN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-1900-P08SP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-1900-P08GAN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-P08GAP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-P08GSN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-1900-P08GSP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-1900-P08NAN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-1900-P08NAP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-1900-P08NSN-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-1900-P08NSP-3Type: EVD-1900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-C1Type: Analog 9-core cable 1 m | Pressure range: - | Input signal: - | Port: - | Output signal: -
EVD-C3Type: Analog 9-core cable 3 m | Pressure range: - | Input signal: - | Port: - | Output signal: -
EVD-P1Type: Parallel 15-core cable 1 m | Pressure range: - | Input signal: - | Port: - | Output signal: -
EVD-P3Type: Parallel 15-core cable 3 m | Pressure range: - | Input signal: - | Port: - | Output signal: -
EVD-B1Type: B bracket, floor mount | Pressure range: - | Input signal: - | Port: - | Output signal: -
EVD-L1Type: L bracket, wall mount | Pressure range: - | Input signal: - | Port: - | Output signal: -

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
