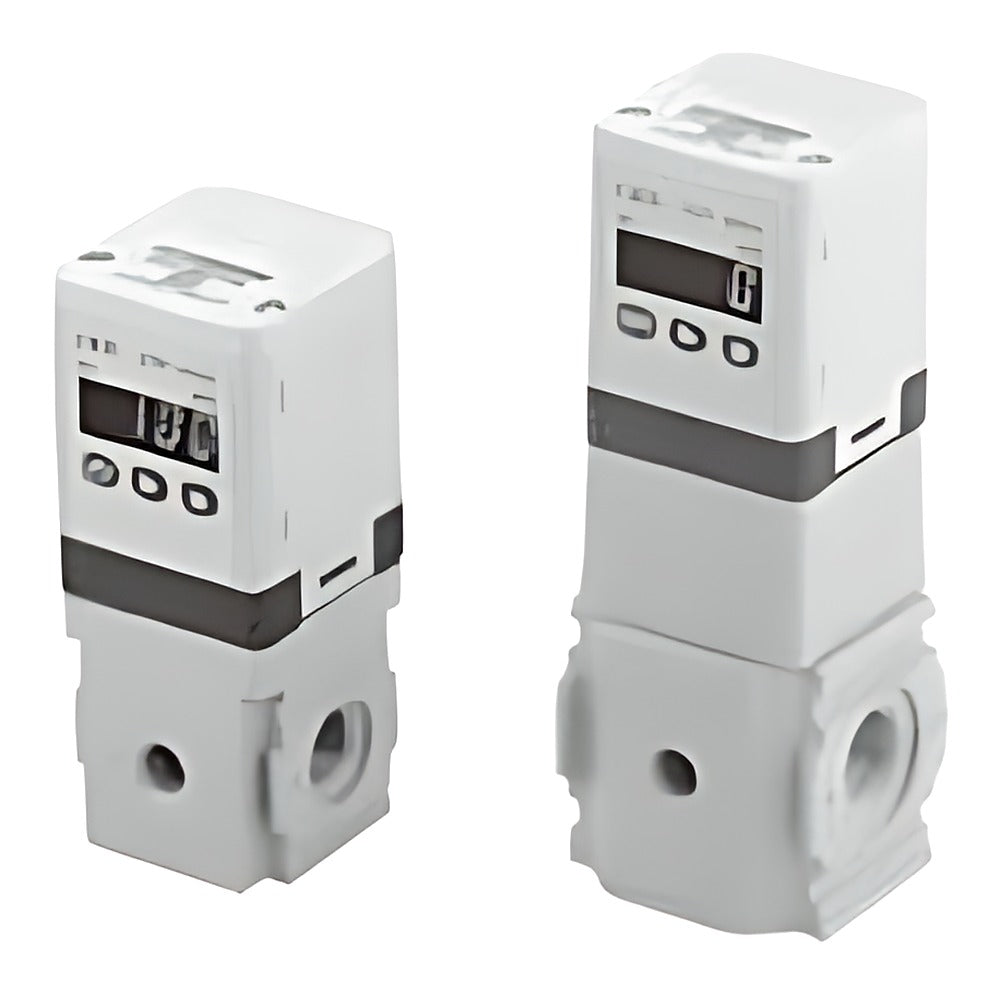

CKD EVD-3000 Digital Electro-Pneumatic Regulator (1/4, 3/8 Port)

CKD EVD-3000 Digital Electro-Pneumatic Regulator (1/4, 3/8 Port)

CKD EVD-3000 high-flow digital electro-pneumatic regulator with 1/4 or 3/8 ports for proportional pressure control.

Key features

  • Control ranges 0-100, 0-500 and 0-900 kPa; max flow 700 L/min (EVD-3100) or 1500 L/min
  • Analog input 0-10 VDC, 0-5 VDC, 4-20 mA or 10-bit parallel input
  • Output: 1-5 V analog or switch output with error output, NPN or PNP
  • IN/OUT ports Rc, G or NPT 1/4 and 3/8; EXH port 3/8
  • Cable options as EVD-1000 (EVD-C1/C3/P1/P3); brackets B3/L3; options not expanded

Specifications

Fluid Clean compressed air (ISO 8573-1 [1:3:2])
Power supply 24 VDC +/-10%
Current consumption 0.15 A max.
Display 3-digit 7-segment LED
Linearity / hysteresis +/-0.3% F.S. / 0.5% F.S.
Repeatability 0.3% F.S.
Ambient / fluid temp. 5 to 50 C
Weight 450 g
Code format EVD-3<range>-<input><port><output>-<option>-3
Source CKD Korea catalog CB-024SK-9, p. 660-680
EVD-3100-008AN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-008AP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-008SN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3100-008SP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3100-008GAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-008GAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-008GSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3100-008GSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3100-008NAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-008NAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-008NSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3100-008NSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3100-010AN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-010AP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-010SN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3100-010SP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3100-010GAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-010GAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-010GSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3100-010GSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3100-010NAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-010NAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-010NSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3100-010NSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3100-108AN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-108AP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-108SN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3100-108SP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3100-108GAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-108GAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-108GSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3100-108GSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3100-108NAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-108NAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-108NSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3100-108NSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3100-110AN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-110AP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-110SN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3100-110SP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3100-110GAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-110GAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-110GSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3100-110GSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3100-110NAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-110NAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-110NSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3100-110NSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3100-208AN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-208AP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-208SN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3100-208SP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3100-208GAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-208GAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-208GSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3100-208GSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3100-208NAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-208NAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-208NSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3100-208NSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3100-210AN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-210AP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-210SN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3100-210SP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3100-210GAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-210GAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-210GSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3100-210GSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3100-210NAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-210NAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-210NSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3100-210NSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3100-P08AN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-P08AP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-P08SN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3100-P08SP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3100-P08GAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-P08GAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-P08GSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3100-P08GSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3100-P08NAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-P08NAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-P08NSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3100-P08NSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3100-P10AN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-P10AP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-P10SN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3100-P10SP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3100-P10GAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-P10GAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-P10GSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3100-P10GSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3100-P10NAN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-P10NAP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-P10NSN-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3100-P10NSP-3 Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3500-008AN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-008AP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-008SN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3500-008SP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3500-008GAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-008GAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-008GSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3500-008GSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3500-008NAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-008NAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-008NSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3500-008NSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3500-010AN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-010AP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-010SN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3500-010SP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3500-010GAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-010GAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-010GSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3500-010GSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3500-010NAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-010NAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-010NSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3500-010NSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3500-108AN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-108AP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-108SN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3500-108SP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3500-108GAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-108GAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-108GSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3500-108GSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3500-108NAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-108NAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-108NSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3500-108NSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3500-110AN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-110AP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-110SN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3500-110SP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3500-110GAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-110GAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-110GSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3500-110GSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3500-110NAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-110NAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-110NSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3500-110NSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3500-208AN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-208AP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-208SN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3500-208SP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3500-208GAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-208GAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-208GSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3500-208GSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3500-208NAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-208NAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-208NSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3500-208NSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3500-210AN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-210AP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-210SN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3500-210SP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3500-210GAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-210GAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-210GSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3500-210GSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3500-210NAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-210NAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-210NSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3500-210NSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3500-P08AN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-P08AP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-P08SN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3500-P08SP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3500-P08GAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-P08GAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-P08GSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3500-P08GSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3500-P08NAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-P08NAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-P08NSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3500-P08NSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3500-P10AN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-P10AP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-P10SN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3500-P10SP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3500-P10GAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-P10GAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-P10GSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3500-P10GSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3500-P10NAN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-P10NAP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-P10NSN-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3500-P10NSP-3 Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3900-008AN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-008AP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-008SN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3900-008SP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3900-008GAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-008GAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-008GSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3900-008GSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3900-008NAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-008NAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-008NSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3900-008NSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3900-010AN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-010AP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-010SN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3900-010SP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3900-010GAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-010GAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-010GSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3900-010GSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3900-010NAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-010NAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-010NSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3900-010NSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3900-108AN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-108AP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-108SN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3900-108SP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3900-108GAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-108GAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-108GSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3900-108GSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3900-108NAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-108NAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-108NSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3900-108NSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3900-110AN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-110AP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-110SN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3900-110SP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3900-110GAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-110GAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-110GSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3900-110GSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3900-110NAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-110NAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-110NSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3900-110NSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3900-208AN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-208AP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-208SN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3900-208SP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3900-208GAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-208GAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-208GSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3900-208GSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3900-208NAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-208NAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-208NSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3900-208NSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3900-210AN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-210AP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-210SN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3900-210SP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3900-210GAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-210GAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-210GSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3900-210GSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3900-210NAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-210NAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-210NSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3900-210NSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3900-P08AN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-P08AP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-P08SN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3900-P08SP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3900-P08GAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-P08GAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-P08GSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3900-P08GSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3900-P08NAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-P08NAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-P08NSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3900-P08NSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3900-P10AN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-P10AP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-P10SN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3900-P10SP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3900-P10GAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-P10GAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-P10GSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3900-P10GSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3900-P10NAN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-P10NAP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-P10NSN-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3900-P10NSP-3 Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-B3 Type: B bracket, floor mount | Pressure range: - | Input signal: - | Port: - | Output signal: -
EVD-L3 Type: L bracket, wall mount | Pressure range: - | Input signal: - | Port: - | Output signal: -
Electro-Pneumatic RegulatorsCKD
290 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD EVD-3000 Digital Electro-Pneumatic Regulator (1/4, 3/8 Port)

Brand CKD·Electro-Pneumatic Regulators

Available part numbers (290)

EVD-3100-008AN-3, EVD-3100-008AP-3, EVD-3100-008SN-3, EVD-3100-008SP-3, EVD-3100-008GAN-3, EVD-3100-008GAP-3, EVD-3100-008GSN-3, EVD-3100-008GSP-3, EVD-3100-008NAN-3, EVD-3100-008NAP-3 + 280 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EVD-3100-008AN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-008AP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-008SN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3100-008SP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3100-008GAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-008GAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-008GSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3100-008GSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3100-008NAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-008NAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-008NSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3100-008NSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3100-010AN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-010AP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-010SN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3100-010SP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3100-010GAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-010GAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-010GSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3100-010GSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3100-010NAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-010NAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-010NSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3100-010NSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3100-108AN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-108AP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-108SN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3100-108SP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3100-108GAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-108GAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-108GSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3100-108GSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3100-108NAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-108NAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-108NSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3100-108NSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3100-110AN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-110AP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-110SN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3100-110SP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3100-110GAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-110GAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-110GSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3100-110GSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3100-110NAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-110NAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-110NSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3100-110NSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3100-208AN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-208AP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-208SN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3100-208SP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3100-208GAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-208GAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-208GSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3100-208GSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3100-208NAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-208NAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-208NSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3100-208NSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3100-210AN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-210AP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-210SN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3100-210SP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3100-210GAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-210GAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-210GSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3100-210GSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3100-210NAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-210NAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-210NSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3100-210NSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3100-P08AN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-P08AP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-P08SN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3100-P08SP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3100-P08GAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-P08GAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-P08GSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3100-P08GSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3100-P08NAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3100-P08NAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3100-P08NSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3100-P08NSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3100-P10AN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-P10AP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-P10SN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3100-P10SP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3100-P10GAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-P10GAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-P10GSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3100-P10GSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3100-P10NAN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3100-P10NAP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3100-P10NSN-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3100-P10NSP-3Type: EVD-3100 | Pressure range: 0-100 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3500-008AN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-008AP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-008SN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3500-008SP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3500-008GAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-008GAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-008GSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3500-008GSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3500-008NAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-008NAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-008NSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3500-008NSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3500-010AN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-010AP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-010SN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3500-010SP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3500-010GAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-010GAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-010GSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3500-010GSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3500-010NAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-010NAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-010NSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3500-010NSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3500-108AN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-108AP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-108SN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3500-108SP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3500-108GAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-108GAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-108GSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3500-108GSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3500-108NAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-108NAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-108NSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3500-108NSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3500-110AN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-110AP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-110SN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3500-110SP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3500-110GAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-110GAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-110GSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3500-110GSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3500-110NAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-110NAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-110NSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3500-110NSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3500-208AN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-208AP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-208SN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3500-208SP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3500-208GAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-208GAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-208GSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3500-208GSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3500-208NAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-208NAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-208NSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3500-208NSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3500-210AN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-210AP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-210SN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3500-210SP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3500-210GAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-210GAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-210GSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3500-210GSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3500-210NAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-210NAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-210NSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3500-210NSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3500-P08AN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-P08AP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-P08SN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3500-P08SP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3500-P08GAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-P08GAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-P08GSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3500-P08GSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3500-P08NAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3500-P08NAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3500-P08NSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3500-P08NSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3500-P10AN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-P10AP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-P10SN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3500-P10SP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3500-P10GAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-P10GAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-P10GSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3500-P10GSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3500-P10NAN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3500-P10NAP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3500-P10NSN-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3500-P10NSP-3Type: EVD-3500 | Pressure range: 0-500 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3900-008AN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-008AP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-008SN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3900-008SP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3900-008GAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-008GAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-008GSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3900-008GSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3900-008NAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-008NAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-008NSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3900-008NSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3900-010AN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-010AP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-010SN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3900-010SP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3900-010GAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-010GAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-010GSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3900-010GSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3900-010NAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-010NAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-010NSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3900-010NSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-10 VDC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3900-108AN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-108AP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-108SN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3900-108SP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3900-108GAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-108GAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-108GSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3900-108GSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3900-108NAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-108NAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-108NSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3900-108NSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3900-110AN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-110AP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-110SN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3900-110SP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3900-110GAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-110GAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-110GSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3900-110GSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3900-110NAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-110NAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-110NSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3900-110NSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 0-5 VDC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3900-208AN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-208AP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-208SN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3900-208SP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3900-208GAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-208GAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-208GSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3900-208GSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3900-208NAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-208NAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-208NSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3900-208NSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3900-210AN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-210AP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-210SN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3900-210SP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3900-210GAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-210GAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-210GSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3900-210GSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3900-210NAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-210NAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-210NSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3900-210NSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: 4-20 mA DC | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-3900-P08AN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-P08AP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-P08SN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch NPN, error NPN
EVD-3900-P08SP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc1/4 | Output signal: Switch PNP, error PNP
EVD-3900-P08GAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-P08GAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-P08GSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch NPN, error NPN
EVD-3900-P08GSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G1/4 | Output signal: Switch PNP, error PNP
EVD-3900-P08NAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error NPN
EVD-3900-P08NAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: 1-5 V analog, error PNP
EVD-3900-P08NSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch NPN, error NPN
EVD-3900-P08NSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT1/4 | Output signal: Switch PNP, error PNP
EVD-3900-P10AN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-P10AP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-P10SN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: Switch NPN, error NPN
EVD-3900-P10SP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: Rc3/8 | Output signal: Switch PNP, error PNP
EVD-3900-P10GAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-P10GAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-P10GSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: Switch NPN, error NPN
EVD-3900-P10GSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: G3/8 | Output signal: Switch PNP, error PNP
EVD-3900-P10NAN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: 1-5 V analog, error NPN
EVD-3900-P10NAP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: 1-5 V analog, error PNP
EVD-3900-P10NSN-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: Switch NPN, error NPN
EVD-3900-P10NSP-3Type: EVD-3900 | Pressure range: 0-900 kPa | Input signal: Parallel 10 bit | Port: NPT3/8 | Output signal: Switch PNP, error PNP
EVD-B3Type: B bracket, floor mount | Pressure range: - | Input signal: - | Port: - | Output signal: -
EVD-L3Type: L bracket, wall mount | Pressure range: - | Input signal: - | Port: - | Output signal: -

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
