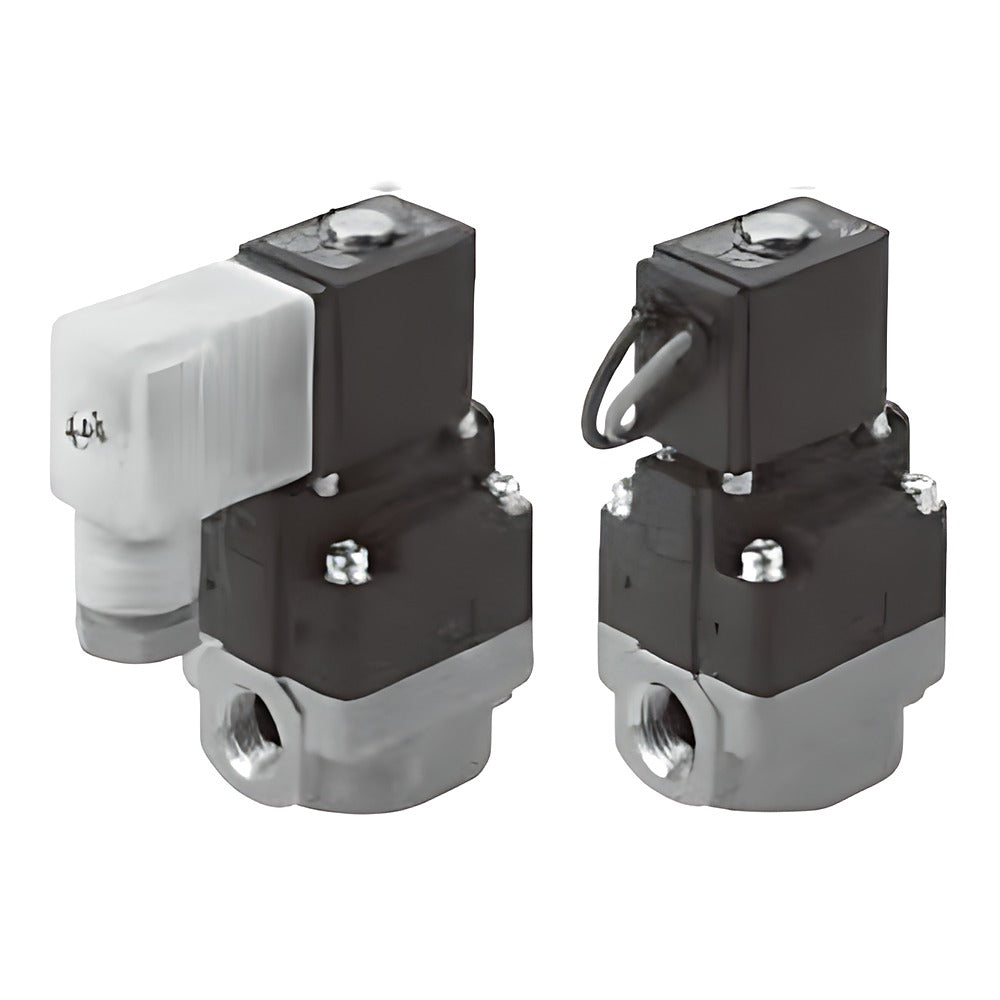

CKD EXA-FP2 Pilot 2-Port Solenoid Valve for Air Blow (Push-in, NC)

CKD EXA-FP2 Pilot 2-Port Solenoid Valve for Air Blow (Push-in, NC)

CKD EXA-FP2 compact pilot-operated diaphragm 2-port solenoid valve for compressed-air blow, with push-in fittings and food-grade wetted materials.

Key features

  • Normally closed, pilot diaphragm drive
  • Push-in fittings for 6, 8, 10 and 12 mm tube
  • H-NBR seals, oil-free, internal pilot exhaust
  • Lead wire or DIN terminal box (Pg7) with lamp/surge killer options
  • Mounting plate option (B)
  • FP2 food-processing spec: wetted materials comply with the Japanese Food Sanitation Act

Specifications

Fluid Compressed air
Operating pressure differential 0.01 to 0.7 MPa
Proof pressure 1.05 MPa
Fluid temperature 0 to 55 C
Seal H-NBR
Power AC 1.2 VA, DC 0.6 W
Coil insulation Class B (130)
Source CKD Korea catalog CC-1271K-5, p. 378-379
EXA-C6-H2C-1-FP2 Tube OD: 6 mm | Coil option: Lead wire | Voltage: AC100V
EXA-C6-H2C-3-FP2 Tube OD: 6 mm | Coil option: Lead wire | Voltage: DC24V
EXA-C6-H2C-4-FP2 Tube OD: 6 mm | Coil option: Lead wire | Voltage: DC12V
EXA-C6-H2G-1-FP2 Tube OD: 6 mm | Coil option: DIN box, no lamp | Voltage: AC100V
EXA-C6-H2GS-3-FP2 Tube OD: 6 mm | Coil option: DIN box, surge killer | Voltage: DC24V
EXA-C6-H2GS-4-FP2 Tube OD: 6 mm | Coil option: DIN box, surge killer | Voltage: DC12V
EXA-C6-H2H-1-FP2 Tube OD: 6 mm | Coil option: DIN box with lamp | Voltage: AC100V
EXA-C6-H2HS-3-FP2 Tube OD: 6 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
EXA-C6-H2HS-4-FP2 Tube OD: 6 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC12V
EXA-C8-H2C-1-FP2 Tube OD: 8 mm | Coil option: Lead wire | Voltage: AC100V
EXA-C8-H2C-3-FP2 Tube OD: 8 mm | Coil option: Lead wire | Voltage: DC24V
EXA-C8-H2C-4-FP2 Tube OD: 8 mm | Coil option: Lead wire | Voltage: DC12V
EXA-C8-H2G-1-FP2 Tube OD: 8 mm | Coil option: DIN box, no lamp | Voltage: AC100V
EXA-C8-H2GS-3-FP2 Tube OD: 8 mm | Coil option: DIN box, surge killer | Voltage: DC24V
EXA-C8-H2GS-4-FP2 Tube OD: 8 mm | Coil option: DIN box, surge killer | Voltage: DC12V
EXA-C8-H2H-1-FP2 Tube OD: 8 mm | Coil option: DIN box with lamp | Voltage: AC100V
EXA-C8-H2HS-3-FP2 Tube OD: 8 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
EXA-C8-H2HS-4-FP2 Tube OD: 8 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC12V
EXA-C10-H2C-1-FP2 Tube OD: 10 mm | Coil option: Lead wire | Voltage: AC100V
EXA-C10-H2C-3-FP2 Tube OD: 10 mm | Coil option: Lead wire | Voltage: DC24V
EXA-C10-H2C-4-FP2 Tube OD: 10 mm | Coil option: Lead wire | Voltage: DC12V
EXA-C10-H2G-1-FP2 Tube OD: 10 mm | Coil option: DIN box, no lamp | Voltage: AC100V
EXA-C10-H2GS-3-FP2 Tube OD: 10 mm | Coil option: DIN box, surge killer | Voltage: DC24V
EXA-C10-H2GS-4-FP2 Tube OD: 10 mm | Coil option: DIN box, surge killer | Voltage: DC12V
EXA-C10-H2H-1-FP2 Tube OD: 10 mm | Coil option: DIN box with lamp | Voltage: AC100V
EXA-C10-H2HS-3-FP2 Tube OD: 10 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
EXA-C10-H2HS-4-FP2 Tube OD: 10 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC12V
EXA-C12-H2C-1-FP2 Tube OD: 12 mm | Coil option: Lead wire | Voltage: AC100V
EXA-C12-H2C-3-FP2 Tube OD: 12 mm | Coil option: Lead wire | Voltage: DC24V
EXA-C12-H2C-4-FP2 Tube OD: 12 mm | Coil option: Lead wire | Voltage: DC12V
EXA-C12-H2G-1-FP2 Tube OD: 12 mm | Coil option: DIN box, no lamp | Voltage: AC100V
EXA-C12-H2GS-3-FP2 Tube OD: 12 mm | Coil option: DIN box, surge killer | Voltage: DC24V
EXA-C12-H2GS-4-FP2 Tube OD: 12 mm | Coil option: DIN box, surge killer | Voltage: DC12V
EXA-C12-H2H-1-FP2 Tube OD: 12 mm | Coil option: DIN box with lamp | Voltage: AC100V
EXA-C12-H2HS-3-FP2 Tube OD: 12 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
EXA-C12-H2HS-4-FP2 Tube OD: 12 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC12V
2-Port Solenoid ValvesCKD
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD EXA-FP2 Pilot 2-Port Solenoid Valve for Air Blow (Push-in, NC)

Brand CKD·2-Port Solenoid Valves

Available part numbers (36)

EXA-C6-H2C-1-FP2, EXA-C6-H2C-3-FP2, EXA-C6-H2C-4-FP2, EXA-C6-H2G-1-FP2, EXA-C6-H2GS-3-FP2, EXA-C6-H2GS-4-FP2, EXA-C6-H2H-1-FP2, EXA-C6-H2HS-3-FP2, EXA-C6-H2HS-4-FP2, EXA-C8-H2C-1-FP2 + 26 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EXA-C6-H2C-1-FP2Tube OD: 6 mm | Coil option: Lead wire | Voltage: AC100V
EXA-C6-H2C-3-FP2Tube OD: 6 mm | Coil option: Lead wire | Voltage: DC24V
EXA-C6-H2C-4-FP2Tube OD: 6 mm | Coil option: Lead wire | Voltage: DC12V
EXA-C6-H2G-1-FP2Tube OD: 6 mm | Coil option: DIN box, no lamp | Voltage: AC100V
EXA-C6-H2GS-3-FP2Tube OD: 6 mm | Coil option: DIN box, surge killer | Voltage: DC24V
EXA-C6-H2GS-4-FP2Tube OD: 6 mm | Coil option: DIN box, surge killer | Voltage: DC12V
EXA-C6-H2H-1-FP2Tube OD: 6 mm | Coil option: DIN box with lamp | Voltage: AC100V
EXA-C6-H2HS-3-FP2Tube OD: 6 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
EXA-C6-H2HS-4-FP2Tube OD: 6 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC12V
EXA-C8-H2C-1-FP2Tube OD: 8 mm | Coil option: Lead wire | Voltage: AC100V
EXA-C8-H2C-3-FP2Tube OD: 8 mm | Coil option: Lead wire | Voltage: DC24V
EXA-C8-H2C-4-FP2Tube OD: 8 mm | Coil option: Lead wire | Voltage: DC12V
EXA-C8-H2G-1-FP2Tube OD: 8 mm | Coil option: DIN box, no lamp | Voltage: AC100V
EXA-C8-H2GS-3-FP2Tube OD: 8 mm | Coil option: DIN box, surge killer | Voltage: DC24V
EXA-C8-H2GS-4-FP2Tube OD: 8 mm | Coil option: DIN box, surge killer | Voltage: DC12V
EXA-C8-H2H-1-FP2Tube OD: 8 mm | Coil option: DIN box with lamp | Voltage: AC100V
EXA-C8-H2HS-3-FP2Tube OD: 8 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
EXA-C8-H2HS-4-FP2Tube OD: 8 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC12V
EXA-C10-H2C-1-FP2Tube OD: 10 mm | Coil option: Lead wire | Voltage: AC100V
EXA-C10-H2C-3-FP2Tube OD: 10 mm | Coil option: Lead wire | Voltage: DC24V
EXA-C10-H2C-4-FP2Tube OD: 10 mm | Coil option: Lead wire | Voltage: DC12V
EXA-C10-H2G-1-FP2Tube OD: 10 mm | Coil option: DIN box, no lamp | Voltage: AC100V
EXA-C10-H2GS-3-FP2Tube OD: 10 mm | Coil option: DIN box, surge killer | Voltage: DC24V
EXA-C10-H2GS-4-FP2Tube OD: 10 mm | Coil option: DIN box, surge killer | Voltage: DC12V
EXA-C10-H2H-1-FP2Tube OD: 10 mm | Coil option: DIN box with lamp | Voltage: AC100V
EXA-C10-H2HS-3-FP2Tube OD: 10 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
EXA-C10-H2HS-4-FP2Tube OD: 10 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC12V
EXA-C12-H2C-1-FP2Tube OD: 12 mm | Coil option: Lead wire | Voltage: AC100V
EXA-C12-H2C-3-FP2Tube OD: 12 mm | Coil option: Lead wire | Voltage: DC24V
EXA-C12-H2C-4-FP2Tube OD: 12 mm | Coil option: Lead wire | Voltage: DC12V
EXA-C12-H2G-1-FP2Tube OD: 12 mm | Coil option: DIN box, no lamp | Voltage: AC100V
EXA-C12-H2GS-3-FP2Tube OD: 12 mm | Coil option: DIN box, surge killer | Voltage: DC24V
EXA-C12-H2GS-4-FP2Tube OD: 12 mm | Coil option: DIN box, surge killer | Voltage: DC12V
EXA-C12-H2H-1-FP2Tube OD: 12 mm | Coil option: DIN box with lamp | Voltage: AC100V
EXA-C12-H2HS-3-FP2Tube OD: 12 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
EXA-C12-H2HS-4-FP2Tube OD: 12 mm | Coil option: DIN box, lamp, surge killer | Voltage: DC12V
