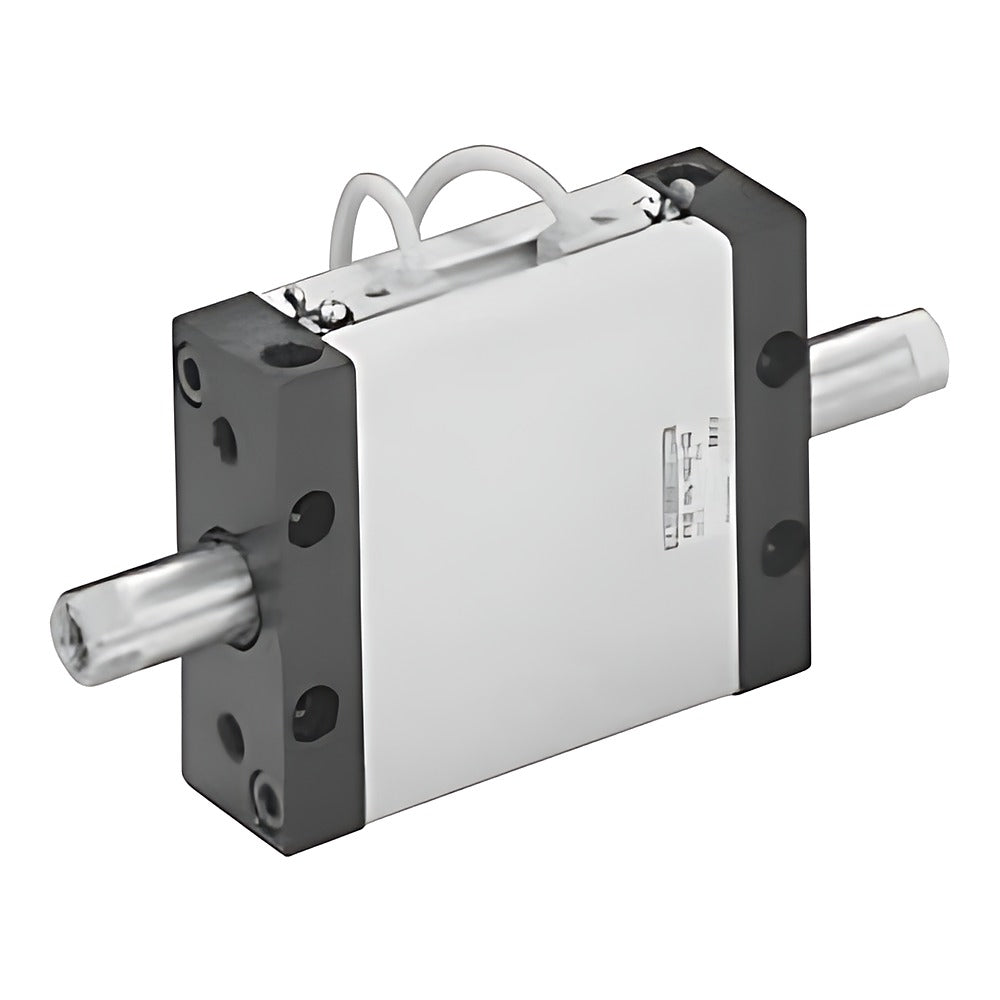

CKD FCD-D Flat Cylinder (Double Acting, Double Rod)

CKD FCD-D Flat Cylinder (Double Acting, Double Rod)

CKD FCD-D double acting, double rod flat cylinder with oval piston for non-rotation, bore 25 to 63 mm equivalent.

Key features

  • Double rod flat cylinder: rod on both ends of the oval-piston flat body
  • Non-rotating accuracy ±1° (25), ±0.8° (32), ±0.5° (40-63); allowable torque 1 to 5.9 N·m
  • Standard strokes 5, 10, 15, 20, 25, 30, 40, 50 mm; 1 mm intermediate strokes up to 50 mm
  • Auto switches (not multiplied): solid state M2V, M2WV, M3V, M3WV, M3PV; reed M0V, M5V; lead 1/3/5 m; switch qty R/H/D (T = 3 pcs on double acting types)
  • Options (not multiplied): M stainless piston rod, N male rod end, R spigot (fit) mounting, P6 copper/PTFE free
  • NPT (NN) and G (GN) port threads for bore 40 and over are made to order

Specifications

Fluid Compressed air
Action Double acting, double rod
Min. working pressure 0.10 MPa
Max. working pressure 0.7 MPa
Proof pressure 1.05 MPa
Ambient temperature -10 to 60°C (no freezing)
Piston speed 50 to 500 mm/s
Bore (equivalent) 25, 32, 40, 50, 63 mm
Cushion None
Source CKD Korea catalog CB-029SK-9, p. 1582-1587
FCD-D-25-5 Model: FCD-D (no switch magnet) | Bore: 25 mm eq. | Stroke: 5 mm | Port: M5
FCD-D-25-10 Model: FCD-D (no switch magnet) | Bore: 25 mm eq. | Stroke: 10 mm | Port: M5
FCD-D-25-15 Model: FCD-D (no switch magnet) | Bore: 25 mm eq. | Stroke: 15 mm | Port: M5
FCD-D-25-20 Model: FCD-D (no switch magnet) | Bore: 25 mm eq. | Stroke: 20 mm | Port: M5
FCD-D-25-25 Model: FCD-D (no switch magnet) | Bore: 25 mm eq. | Stroke: 25 mm | Port: M5
FCD-D-25-30 Model: FCD-D (no switch magnet) | Bore: 25 mm eq. | Stroke: 30 mm | Port: M5
FCD-D-25-40 Model: FCD-D (no switch magnet) | Bore: 25 mm eq. | Stroke: 40 mm | Port: M5
FCD-D-25-50 Model: FCD-D (no switch magnet) | Bore: 25 mm eq. | Stroke: 50 mm | Port: M5
FCD-D-32-5 Model: FCD-D (no switch magnet) | Bore: 32 mm eq. | Stroke: 5 mm | Port: M5
FCD-D-32-10 Model: FCD-D (no switch magnet) | Bore: 32 mm eq. | Stroke: 10 mm | Port: M5
FCD-D-32-15 Model: FCD-D (no switch magnet) | Bore: 32 mm eq. | Stroke: 15 mm | Port: M5
FCD-D-32-20 Model: FCD-D (no switch magnet) | Bore: 32 mm eq. | Stroke: 20 mm | Port: M5
FCD-D-32-25 Model: FCD-D (no switch magnet) | Bore: 32 mm eq. | Stroke: 25 mm | Port: M5
FCD-D-32-30 Model: FCD-D (no switch magnet) | Bore: 32 mm eq. | Stroke: 30 mm | Port: M5
FCD-D-32-40 Model: FCD-D (no switch magnet) | Bore: 32 mm eq. | Stroke: 40 mm | Port: M5
FCD-D-32-50 Model: FCD-D (no switch magnet) | Bore: 32 mm eq. | Stroke: 50 mm | Port: M5
FCD-D-40-5 Model: FCD-D (no switch magnet) | Bore: 40 mm eq. | Stroke: 5 mm | Port: Rc1/8
FCD-D-40-10 Model: FCD-D (no switch magnet) | Bore: 40 mm eq. | Stroke: 10 mm | Port: Rc1/8
FCD-D-40-15 Model: FCD-D (no switch magnet) | Bore: 40 mm eq. | Stroke: 15 mm | Port: Rc1/8
FCD-D-40-20 Model: FCD-D (no switch magnet) | Bore: 40 mm eq. | Stroke: 20 mm | Port: Rc1/8
FCD-D-40-25 Model: FCD-D (no switch magnet) | Bore: 40 mm eq. | Stroke: 25 mm | Port: Rc1/8
FCD-D-40-30 Model: FCD-D (no switch magnet) | Bore: 40 mm eq. | Stroke: 30 mm | Port: Rc1/8
FCD-D-40-40 Model: FCD-D (no switch magnet) | Bore: 40 mm eq. | Stroke: 40 mm | Port: Rc1/8
FCD-D-40-50 Model: FCD-D (no switch magnet) | Bore: 40 mm eq. | Stroke: 50 mm | Port: Rc1/8
FCD-D-50-5 Model: FCD-D (no switch magnet) | Bore: 50 mm eq. | Stroke: 5 mm | Port: Rc1/8
FCD-D-50-10 Model: FCD-D (no switch magnet) | Bore: 50 mm eq. | Stroke: 10 mm | Port: Rc1/8
FCD-D-50-15 Model: FCD-D (no switch magnet) | Bore: 50 mm eq. | Stroke: 15 mm | Port: Rc1/8
FCD-D-50-20 Model: FCD-D (no switch magnet) | Bore: 50 mm eq. | Stroke: 20 mm | Port: Rc1/8
FCD-D-50-25 Model: FCD-D (no switch magnet) | Bore: 50 mm eq. | Stroke: 25 mm | Port: Rc1/8
FCD-D-50-30 Model: FCD-D (no switch magnet) | Bore: 50 mm eq. | Stroke: 30 mm | Port: Rc1/8
FCD-D-50-40 Model: FCD-D (no switch magnet) | Bore: 50 mm eq. | Stroke: 40 mm | Port: Rc1/8
FCD-D-50-50 Model: FCD-D (no switch magnet) | Bore: 50 mm eq. | Stroke: 50 mm | Port: Rc1/8
FCD-D-63-5 Model: FCD-D (no switch magnet) | Bore: 63 mm eq. | Stroke: 5 mm | Port: Rc1/4
FCD-D-63-10 Model: FCD-D (no switch magnet) | Bore: 63 mm eq. | Stroke: 10 mm | Port: Rc1/4
FCD-D-63-15 Model: FCD-D (no switch magnet) | Bore: 63 mm eq. | Stroke: 15 mm | Port: Rc1/4
FCD-D-63-20 Model: FCD-D (no switch magnet) | Bore: 63 mm eq. | Stroke: 20 mm | Port: Rc1/4
FCD-D-63-25 Model: FCD-D (no switch magnet) | Bore: 63 mm eq. | Stroke: 25 mm | Port: Rc1/4
FCD-D-63-30 Model: FCD-D (no switch magnet) | Bore: 63 mm eq. | Stroke: 30 mm | Port: Rc1/4
FCD-D-63-40 Model: FCD-D (no switch magnet) | Bore: 63 mm eq. | Stroke: 40 mm | Port: Rc1/4
FCD-D-63-50 Model: FCD-D (no switch magnet) | Bore: 63 mm eq. | Stroke: 50 mm | Port: Rc1/4
FCD-DL-25-5 Model: FCD-DL (switch magnet) | Bore: 25 mm eq. | Stroke: 5 mm | Port: M5
FCD-DL-25-10 Model: FCD-DL (switch magnet) | Bore: 25 mm eq. | Stroke: 10 mm | Port: M5
FCD-DL-25-15 Model: FCD-DL (switch magnet) | Bore: 25 mm eq. | Stroke: 15 mm | Port: M5
FCD-DL-25-20 Model: FCD-DL (switch magnet) | Bore: 25 mm eq. | Stroke: 20 mm | Port: M5
FCD-DL-25-25 Model: FCD-DL (switch magnet) | Bore: 25 mm eq. | Stroke: 25 mm | Port: M5
FCD-DL-25-30 Model: FCD-DL (switch magnet) | Bore: 25 mm eq. | Stroke: 30 mm | Port: M5
FCD-DL-25-40 Model: FCD-DL (switch magnet) | Bore: 25 mm eq. | Stroke: 40 mm | Port: M5
FCD-DL-25-50 Model: FCD-DL (switch magnet) | Bore: 25 mm eq. | Stroke: 50 mm | Port: M5
FCD-DL-32-5 Model: FCD-DL (switch magnet) | Bore: 32 mm eq. | Stroke: 5 mm | Port: M5
FCD-DL-32-10 Model: FCD-DL (switch magnet) | Bore: 32 mm eq. | Stroke: 10 mm | Port: M5
FCD-DL-32-15 Model: FCD-DL (switch magnet) | Bore: 32 mm eq. | Stroke: 15 mm | Port: M5
FCD-DL-32-20 Model: FCD-DL (switch magnet) | Bore: 32 mm eq. | Stroke: 20 mm | Port: M5
FCD-DL-32-25 Model: FCD-DL (switch magnet) | Bore: 32 mm eq. | Stroke: 25 mm | Port: M5
FCD-DL-32-30 Model: FCD-DL (switch magnet) | Bore: 32 mm eq. | Stroke: 30 mm | Port: M5
FCD-DL-32-40 Model: FCD-DL (switch magnet) | Bore: 32 mm eq. | Stroke: 40 mm | Port: M5
FCD-DL-32-50 Model: FCD-DL (switch magnet) | Bore: 32 mm eq. | Stroke: 50 mm | Port: M5
FCD-DL-40-5 Model: FCD-DL (switch magnet) | Bore: 40 mm eq. | Stroke: 5 mm | Port: Rc1/8
FCD-DL-40-10 Model: FCD-DL (switch magnet) | Bore: 40 mm eq. | Stroke: 10 mm | Port: Rc1/8
FCD-DL-40-15 Model: FCD-DL (switch magnet) | Bore: 40 mm eq. | Stroke: 15 mm | Port: Rc1/8
FCD-DL-40-20 Model: FCD-DL (switch magnet) | Bore: 40 mm eq. | Stroke: 20 mm | Port: Rc1/8
FCD-DL-40-25 Model: FCD-DL (switch magnet) | Bore: 40 mm eq. | Stroke: 25 mm | Port: Rc1/8
FCD-DL-40-30 Model: FCD-DL (switch magnet) | Bore: 40 mm eq. | Stroke: 30 mm | Port: Rc1/8
FCD-DL-40-40 Model: FCD-DL (switch magnet) | Bore: 40 mm eq. | Stroke: 40 mm | Port: Rc1/8
FCD-DL-40-50 Model: FCD-DL (switch magnet) | Bore: 40 mm eq. | Stroke: 50 mm | Port: Rc1/8
FCD-DL-50-5 Model: FCD-DL (switch magnet) | Bore: 50 mm eq. | Stroke: 5 mm | Port: Rc1/8
FCD-DL-50-10 Model: FCD-DL (switch magnet) | Bore: 50 mm eq. | Stroke: 10 mm | Port: Rc1/8
FCD-DL-50-15 Model: FCD-DL (switch magnet) | Bore: 50 mm eq. | Stroke: 15 mm | Port: Rc1/8
FCD-DL-50-20 Model: FCD-DL (switch magnet) | Bore: 50 mm eq. | Stroke: 20 mm | Port: Rc1/8
FCD-DL-50-25 Model: FCD-DL (switch magnet) | Bore: 50 mm eq. | Stroke: 25 mm | Port: Rc1/8
FCD-DL-50-30 Model: FCD-DL (switch magnet) | Bore: 50 mm eq. | Stroke: 30 mm | Port: Rc1/8
FCD-DL-50-40 Model: FCD-DL (switch magnet) | Bore: 50 mm eq. | Stroke: 40 mm | Port: Rc1/8
FCD-DL-50-50 Model: FCD-DL (switch magnet) | Bore: 50 mm eq. | Stroke: 50 mm | Port: Rc1/8
FCD-DL-63-5 Model: FCD-DL (switch magnet) | Bore: 63 mm eq. | Stroke: 5 mm | Port: Rc1/4
FCD-DL-63-10 Model: FCD-DL (switch magnet) | Bore: 63 mm eq. | Stroke: 10 mm | Port: Rc1/4
FCD-DL-63-15 Model: FCD-DL (switch magnet) | Bore: 63 mm eq. | Stroke: 15 mm | Port: Rc1/4
FCD-DL-63-20 Model: FCD-DL (switch magnet) | Bore: 63 mm eq. | Stroke: 20 mm | Port: Rc1/4
FCD-DL-63-25 Model: FCD-DL (switch magnet) | Bore: 63 mm eq. | Stroke: 25 mm | Port: Rc1/4
FCD-DL-63-30 Model: FCD-DL (switch magnet) | Bore: 63 mm eq. | Stroke: 30 mm | Port: Rc1/4
FCD-DL-63-40 Model: FCD-DL (switch magnet) | Bore: 63 mm eq. | Stroke: 40 mm | Port: Rc1/4
FCD-DL-63-50 Model: FCD-DL (switch magnet) | Bore: 63 mm eq. | Stroke: 50 mm | Port: Rc1/4
Compact CylindersCKD
80 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD FCD-D Flat Cylinder (Double Acting, Double Rod)

Brand CKD·Compact Cylinders

Available part numbers (80)

FCD-D-25-5, FCD-D-25-10, FCD-D-25-15, FCD-D-25-20, FCD-D-25-25, FCD-D-25-30, FCD-D-25-40, FCD-D-25-50, FCD-D-32-5, FCD-D-32-10 + 70 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
