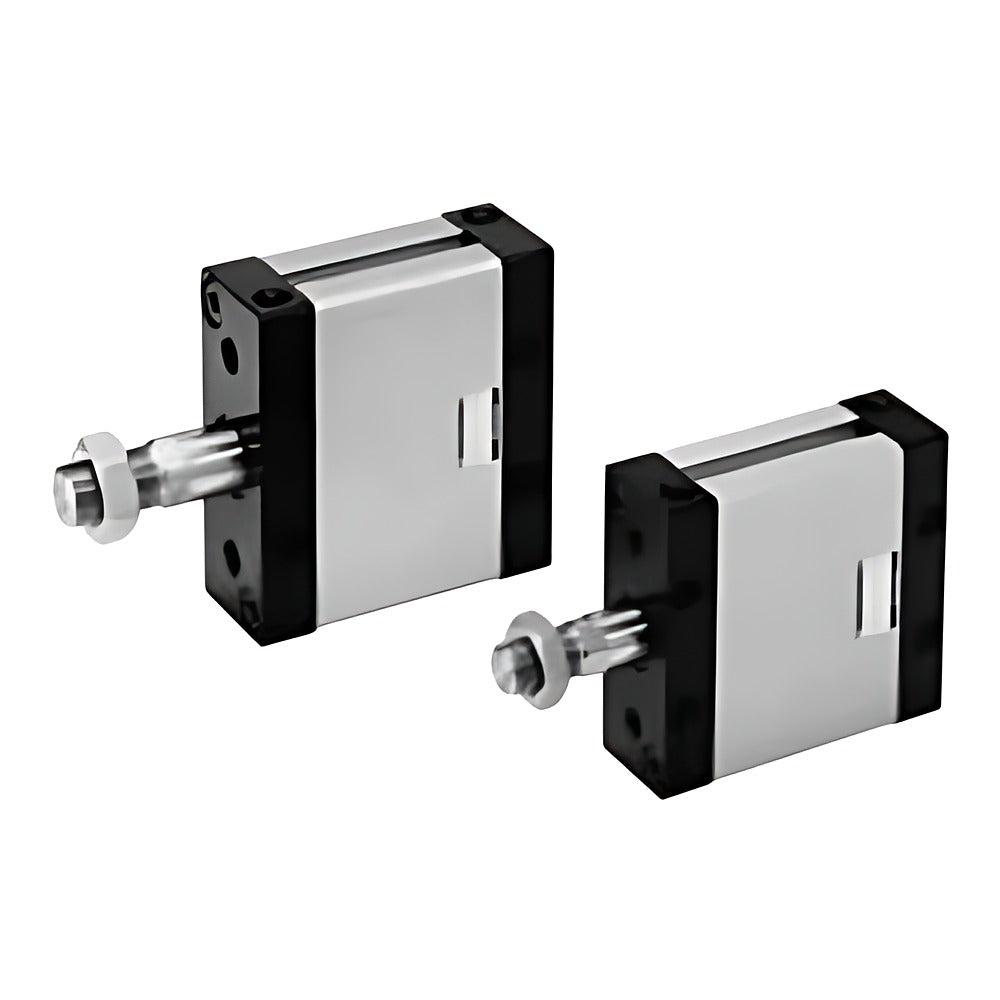

CKD FCD Flat Cylinder (Double Acting, Bore 25-63 eq.)

CKD FCD Flat Cylinder (Double Acting, Bore 25-63 eq.)

CKD FCD double acting, single rod flat cylinder with oval piston for non-rotation, bore 25 to 63 mm equivalent.

Key features

  • Rectangular flat body halves the cylinder width; oval bore gives anti-rotation without a guide
  • Non-rotating accuracy ±1° (25), ±0.8° (32), ±0.5° (40-63); allowable torque 1 to 5.9 N·m
  • Standard strokes 5, 10, 15, 20, 25, 30, 40, 50 mm; 1 mm intermediate strokes up to 50 mm
  • Auto switches (not multiplied): solid state M2V, M2WV, M3V, M3WV, M3PV; reed M0V, M5V; lead 1/3/5 m; switch qty R/H/D (T = 3 pcs on double acting types)
  • Options (not multiplied): M stainless piston rod, N male rod end, R spigot (fit) mounting, P6 copper/PTFE free
  • NPT (NN) and G (GN) port threads for bore 40 and over are made to order

Specifications

Fluid Compressed air
Action Double acting, single rod
Min. working pressure 0.07 MPa
Max. working pressure 0.7 MPa
Proof pressure 1.05 MPa
Ambient temperature -10 to 60°C (no freezing)
Piston speed 50 to 500 mm/s
Bore (equivalent) 25, 32, 40, 50, 63 mm
Cushion None
