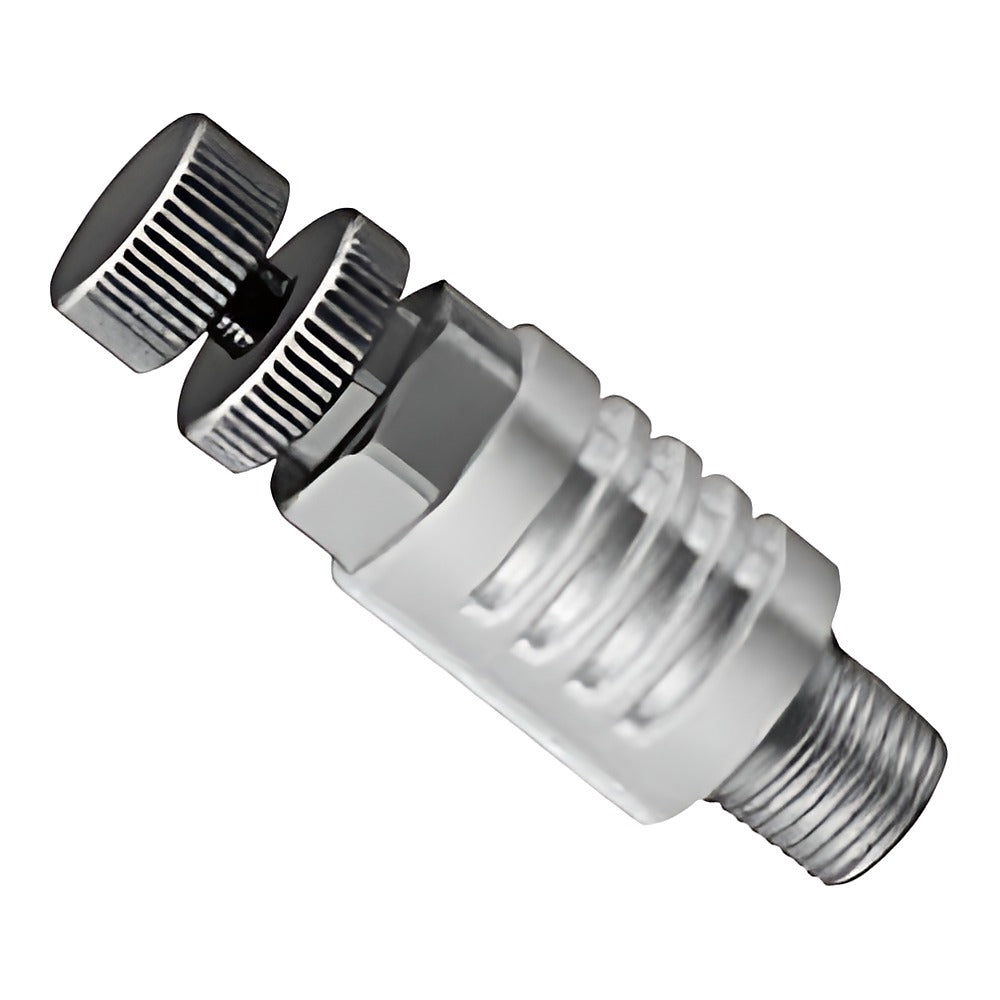

CKD FMS/SMW Metering Valve with Silencer (M5, R3/8, R1/2)

CKD FMS/SMW Metering Valve with Silencer (M5, R3/8, R1/2)

CKD FMS (M5) and SMW (R3/8, R1/2) exhaust metering valves with built-in silencer for cylinder speed control.

Key features

  • Needle metering of exhaust flow combined with silencing, noise reduction 20 dB or more
  • FMS-M5 for cylinders 6-15 mm bore, SMW for 50-100 mm bore
  • Needle turns: FMS 10, SMW 19
  • Sales unit: 2 pcs/set

Specifications

Fluid Compressed air
Min. operating pressure 0 MPa
Ambient temperature -10 to 60 C (no freezing)
Max. operating pressure 0.7 MPa
Proof pressure 1.05 MPa
Fluid temperature 5 to 60 C (no freezing)
Source CKD Korea catalog CB-023SK-9, p. 1956-1957
FMS-M5 Port: M5x0.8 | Flow: 250 L/min (ANR) | Eff. area: 4 mm2 | Cylinder bore: 6-15 mm | Mass: 6 g
SMW-10A Port: R3/8 | Flow: 1700 L/min (ANR) | Eff. area: 25 mm2 | Cylinder bore: 50-100 mm | Mass: 125 g
SMW-15A Port: R1/2 | Flow: 2600 L/min (ANR) | Eff. area: 39 mm2 | Cylinder bore: 50-100 mm | Mass: 170 g
SilencersCKD
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD FMS/SMW Metering Valve with Silencer (M5, R3/8, R1/2)

Brand CKD·Silencers

Available part numbers (3)

FMS-M5, SMW-10A, SMW-15A

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FMS-M5Port: M5x0.8 | Flow: 250 L/min (ANR) | Eff. area: 4 mm2 | Cylinder bore: 6-15 mm | Mass: 6 g
SMW-10APort: R3/8 | Flow: 1700 L/min (ANR) | Eff. area: 25 mm2 | Cylinder bore: 50-100 mm | Mass: 125 g
SMW-15APort: R1/2 | Flow: 2600 L/min (ANR) | Eff. area: 39 mm2 | Cylinder bore: 50-100 mm | Mass: 170 g
