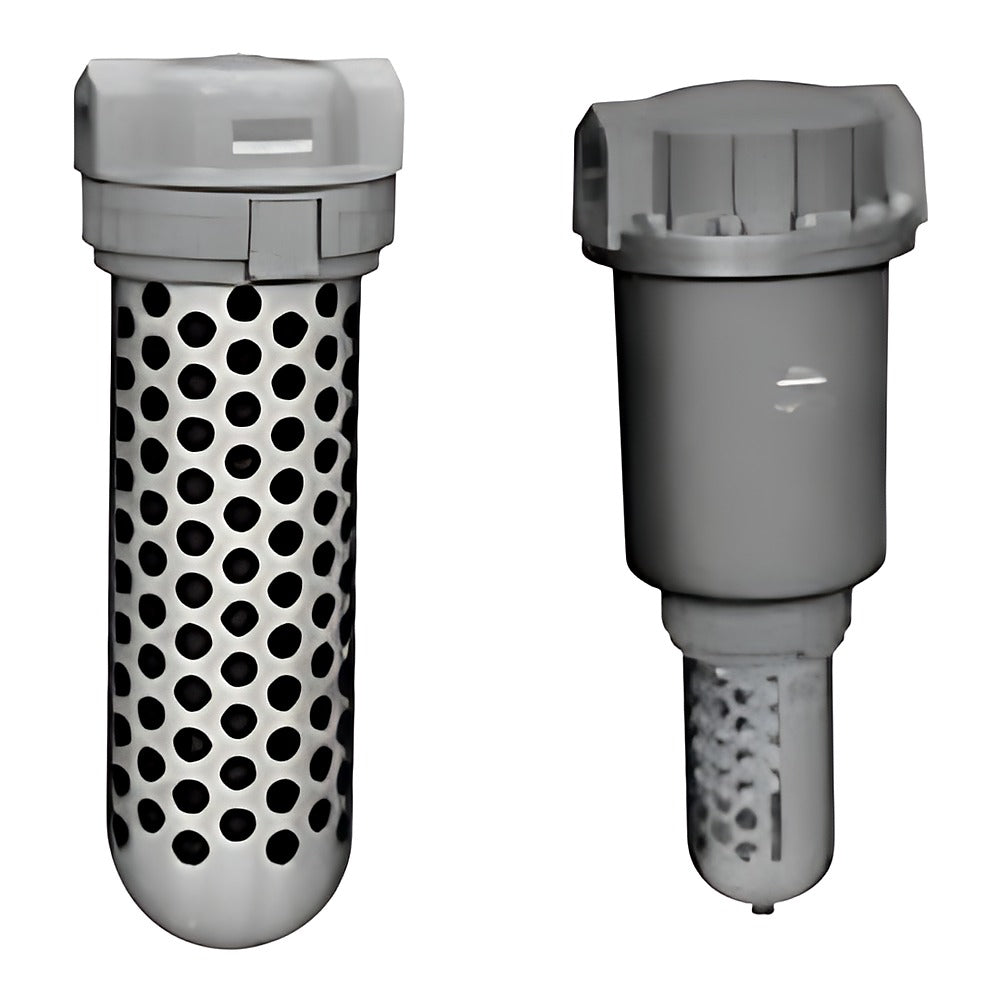

CKD FRL Bowl Assemblies (A1019/A3019/1138/1238/3003E)

CKD FRL Bowl Assemblies (A1019/A3019/1138/1238/3003E)

CKD replacement bowl assemblies (bowl with sealing O-ring) for miniature and large filters and lubricators.

Key features

  • Supplied as bowl assembly with sealing O-ring set
  • Code format <model>-BOWL-<drain><bowl> as printed (e.g. 1138-BOWL-FM, A1019-BOWL-DM)
  • Polycarbonate, nylon, metal and metal with sight-gauge bowls
  • Manual cock, flexible, NO/NC auto, piston and float drain versions
  • Quart metal bowls 2/8/20 L for 3003E-3005E made to order

Specifications

Contents Bowl assembly + seal O-ring
Polycarbonate note Avoid synthetic oils, solvents
Bowl guard Large types standard
Brand CKD
Sales unit 1 set
Source CKD Korea catalog CB-024SK-9, p. 496-549
A1019-BOWL For model: A1019 | Drain: Tire valve | Bowl: Polycarbonate
A1019-BOWL-D For model: A1019 | Drain: Piston drain | Bowl: Polycarbonate
A1019-BOWL-Z For model: A1019 | Drain: Tire valve | Bowl: Nylon
A1019-BOWL-DZ For model: A1019 | Drain: Piston drain | Bowl: Nylon
A1019-BOWL-M For model: A1019 | Drain: Tire valve | Bowl: Metal
A1019-BOWL-DM For model: A1019 | Drain: Piston drain | Bowl: Metal
A3019-BOWL-Z For model: A3019 | Drain: Blank | Bowl: Nylon
1138-BOWL For model: 1138/1126/1226/1226J | Drain: Manual cock | Bowl: Polycarbonate
1138-BOWL-E For model: 1138/1126/1226/1226J | Drain: Flexible drain | Bowl: Polycarbonate
1138-BOWL-F For model: 1138/1126/1226/1226J | Drain: NO auto drain | Bowl: Polycarbonate
1138-BOWL-F1 For model: 1138/1126/1226/1226J | Drain: NC auto drain | Bowl: Polycarbonate
1138-BOWL-Z For model: 1138/1126/1226/1226J | Drain: Manual cock | Bowl: Nylon
1138-BOWL-EZ For model: 1138/1126/1226/1226J | Drain: Flexible drain | Bowl: Nylon
1138-BOWL-FZ For model: 1138/1126/1226/1226J | Drain: NO auto drain | Bowl: Nylon
1138-BOWL-F1Z For model: 1138/1126/1226/1226J | Drain: NC auto drain | Bowl: Nylon
1138-BOWL-M For model: 1138/1126/1226/1226J | Drain: Manual cock | Bowl: Metal
1138-BOWL-EM For model: 1138/1126/1226/1226J | Drain: Flexible drain | Bowl: Metal
1138-BOWL-FM For model: 1138/1126/1226/1226J | Drain: NO auto drain | Bowl: Metal
1138-BOWL-F1M For model: 1138/1126/1226/1226J | Drain: NC auto drain | Bowl: Metal
1138-BOWL-MG For model: 1138/1126/1226/1226J | Drain: Manual cock | Bowl: Metal with sight gauge
1138-BOWL-EMG For model: 1138/1126/1226/1226J | Drain: Flexible drain | Bowl: Metal with sight gauge
1138-BOWL-FMG For model: 1138/1126/1226/1226J | Drain: NO auto drain | Bowl: Metal with sight gauge
1138-BOWL-F1MG For model: 1138/1126/1226/1226J | Drain: NC auto drain | Bowl: Metal with sight gauge
1238-BOWL For model: 1238 | Drain: Manual cock | Bowl: Polycarbonate
1238-BOWL-E For model: 1238 | Drain: Flexible drain | Bowl: Polycarbonate
1238-BOWL-F1 For model: 1238 | Drain: NC auto drain | Bowl: Polycarbonate
1238-BOWL-M For model: 1238 | Drain: Manual cock | Bowl: Metal
1238-BOWL-EM For model: 1238 | Drain: Flexible drain | Bowl: Metal
1238-BOWL-F1M For model: 1238 | Drain: NC auto drain | Bowl: Metal
1238-BOWL-MG For model: 1238 | Drain: Manual cock | Bowl: Metal with sight gauge
1238-BOWL-EMG For model: 1238 | Drain: Flexible drain | Bowl: Metal with sight gauge
1238-BOWL-F1MG For model: 1238 | Drain: NC auto drain | Bowl: Metal with sight gauge
5100-BOWL For model: 1326/5100 | Drain: Float drain | Bowl: Polycarbonate
5100-BOWL-Z For model: 1326/5100 | Drain: Float drain | Bowl: Nylon
5100-BOWL-M For model: 1326/5100 | Drain: Float drain | Bowl: Metal
5100-BOWL-MG For model: 1326/5100 | Drain: Float drain | Bowl: Metal with sight gauge
A1338-BOWL For model: A1338 | Drain: Float drain | Bowl: Polycarbonate
A1338-BOWL-M For model: A1338 | Drain: Float drain | Bowl: Metal
A1338-BOWL-MG For model: A1338 | Drain: Float drain | Bowl: Metal with sight gauge
3003E-BOWL For model: 3003E/3004E/3005E | Drain: Blank | Bowl: Polycarbonate
3003E-BOWL-V For model: 3003E/3004E/3005E | Drain: Auto-fill | Bowl: Polycarbonate
3003E-BOWL-Z For model: 3003E/3004E/3005E | Drain: Blank | Bowl: Nylon
3003E-BOWL-VZ For model: 3003E/3004E/3005E | Drain: Auto-fill | Bowl: Nylon
3003E-BOWL-M For model: 3003E/3004E/3005E | Drain: Blank | Bowl: Metal
3003E-BOWL-VM For model: 3003E/3004E/3005E | Drain: Auto-fill | Bowl: Metal
3003E-BOWL-MG For model: 3003E/3004E/3005E | Drain: Blank | Bowl: Metal with sight gauge
3003E-BOWL-VMG For model: 3003E/3004E/3005E | Drain: Auto-fill | Bowl: Metal with sight gauge
3003E-BOWL-MG2 For model: 3003E | Drain: Quart bowl | Bowl: 2 L metal (made to order)
3003E-BOWL-MG8 For model: 3003E | Drain: Quart bowl | Bowl: 8 L metal (made to order)
3003E-BOWL-MG20 For model: 3003E | Drain: Quart bowl | Bowl: 20 L metal (made to order)
3004E-BOWL-MG2 For model: 3004E | Drain: Quart bowl | Bowl: 2 L metal (made to order)
3004E-BOWL-MG8 For model: 3004E | Drain: Quart bowl | Bowl: 8 L metal (made to order)
3004E-BOWL-MG20 For model: 3004E | Drain: Quart bowl | Bowl: 20 L metal (made to order)
3005E-BOWL-MG2 For model: 3005E | Drain: Quart bowl | Bowl: 2 L metal (made to order)
3005E-BOWL-MG8 For model: 3005E | Drain: Quart bowl | Bowl: 8 L metal (made to order)
3005E-BOWL-MG20 For model: 3005E | Drain: Quart bowl | Bowl: 20 L metal (made to order)
FRL Repair PartsCKD
56 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD FRL Bowl Assemblies (A1019/A3019/1138/1238/3003E)

Brand CKD·FRL Repair Parts

Available part numbers (56)

A1019-BOWL, A1019-BOWL-D, A1019-BOWL-Z, A1019-BOWL-DZ, A1019-BOWL-M, A1019-BOWL-DM, A3019-BOWL-Z, 1138-BOWL, 1138-BOWL-E, 1138-BOWL-F + 46 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A1019-BOWLFor model: A1019 | Drain: Tire valve | Bowl: Polycarbonate
A1019-BOWL-DFor model: A1019 | Drain: Piston drain | Bowl: Polycarbonate
A1019-BOWL-ZFor model: A1019 | Drain: Tire valve | Bowl: Nylon
A1019-BOWL-DZFor model: A1019 | Drain: Piston drain | Bowl: Nylon
A1019-BOWL-MFor model: A1019 | Drain: Tire valve | Bowl: Metal
A1019-BOWL-DMFor model: A1019 | Drain: Piston drain | Bowl: Metal
A3019-BOWL-ZFor model: A3019 | Drain: Blank | Bowl: Nylon
1138-BOWLFor model: 1138/1126/1226/1226J | Drain: Manual cock | Bowl: Polycarbonate
1138-BOWL-EFor model: 1138/1126/1226/1226J | Drain: Flexible drain | Bowl: Polycarbonate
1138-BOWL-FFor model: 1138/1126/1226/1226J | Drain: NO auto drain | Bowl: Polycarbonate
1138-BOWL-F1For model: 1138/1126/1226/1226J | Drain: NC auto drain | Bowl: Polycarbonate
1138-BOWL-ZFor model: 1138/1126/1226/1226J | Drain: Manual cock | Bowl: Nylon
1138-BOWL-EZFor model: 1138/1126/1226/1226J | Drain: Flexible drain | Bowl: Nylon
1138-BOWL-FZFor model: 1138/1126/1226/1226J | Drain: NO auto drain | Bowl: Nylon
1138-BOWL-F1ZFor model: 1138/1126/1226/1226J | Drain: NC auto drain | Bowl: Nylon
1138-BOWL-MFor model: 1138/1126/1226/1226J | Drain: Manual cock | Bowl: Metal
1138-BOWL-EMFor model: 1138/1126/1226/1226J | Drain: Flexible drain | Bowl: Metal
1138-BOWL-FMFor model: 1138/1126/1226/1226J | Drain: NO auto drain | Bowl: Metal
1138-BOWL-F1MFor model: 1138/1126/1226/1226J | Drain: NC auto drain | Bowl: Metal
1138-BOWL-MGFor model: 1138/1126/1226/1226J | Drain: Manual cock | Bowl: Metal with sight gauge
1138-BOWL-EMGFor model: 1138/1126/1226/1226J | Drain: Flexible drain | Bowl: Metal with sight gauge
1138-BOWL-FMGFor model: 1138/1126/1226/1226J | Drain: NO auto drain | Bowl: Metal with sight gauge
1138-BOWL-F1MGFor model: 1138/1126/1226/1226J | Drain: NC auto drain | Bowl: Metal with sight gauge
1238-BOWLFor model: 1238 | Drain: Manual cock | Bowl: Polycarbonate
1238-BOWL-EFor model: 1238 | Drain: Flexible drain | Bowl: Polycarbonate
1238-BOWL-F1For model: 1238 | Drain: NC auto drain | Bowl: Polycarbonate
1238-BOWL-MFor model: 1238 | Drain: Manual cock | Bowl: Metal
1238-BOWL-EMFor model: 1238 | Drain: Flexible drain | Bowl: Metal
1238-BOWL-F1MFor model: 1238 | Drain: NC auto drain | Bowl: Metal
1238-BOWL-MGFor model: 1238 | Drain: Manual cock | Bowl: Metal with sight gauge
1238-BOWL-EMGFor model: 1238 | Drain: Flexible drain | Bowl: Metal with sight gauge
1238-BOWL-F1MGFor model: 1238 | Drain: NC auto drain | Bowl: Metal with sight gauge
5100-BOWLFor model: 1326/5100 | Drain: Float drain | Bowl: Polycarbonate
5100-BOWL-ZFor model: 1326/5100 | Drain: Float drain | Bowl: Nylon
5100-BOWL-MFor model: 1326/5100 | Drain: Float drain | Bowl: Metal
5100-BOWL-MGFor model: 1326/5100 | Drain: Float drain | Bowl: Metal with sight gauge
A1338-BOWLFor model: A1338 | Drain: Float drain | Bowl: Polycarbonate
A1338-BOWL-MFor model: A1338 | Drain: Float drain | Bowl: Metal
A1338-BOWL-MGFor model: A1338 | Drain: Float drain | Bowl: Metal with sight gauge
3003E-BOWLFor model: 3003E/3004E/3005E | Drain: Blank | Bowl: Polycarbonate
3003E-BOWL-VFor model: 3003E/3004E/3005E | Drain: Auto-fill | Bowl: Polycarbonate
3003E-BOWL-ZFor model: 3003E/3004E/3005E | Drain: Blank | Bowl: Nylon
3003E-BOWL-VZFor model: 3003E/3004E/3005E | Drain: Auto-fill | Bowl: Nylon
3003E-BOWL-MFor model: 3003E/3004E/3005E | Drain: Blank | Bowl: Metal
3003E-BOWL-VMFor model: 3003E/3004E/3005E | Drain: Auto-fill | Bowl: Metal
3003E-BOWL-MGFor model: 3003E/3004E/3005E | Drain: Blank | Bowl: Metal with sight gauge
3003E-BOWL-VMGFor model: 3003E/3004E/3005E | Drain: Auto-fill | Bowl: Metal with sight gauge
3003E-BOWL-MG2For model: 3003E | Drain: Quart bowl | Bowl: 2 L metal (made to order)
3003E-BOWL-MG8For model: 3003E | Drain: Quart bowl | Bowl: 8 L metal (made to order)
3003E-BOWL-MG20For model: 3003E | Drain: Quart bowl | Bowl: 20 L metal (made to order)
3004E-BOWL-MG2For model: 3004E | Drain: Quart bowl | Bowl: 2 L metal (made to order)
3004E-BOWL-MG8For model: 3004E | Drain: Quart bowl | Bowl: 8 L metal (made to order)
3004E-BOWL-MG20For model: 3004E | Drain: Quart bowl | Bowl: 20 L metal (made to order)
3005E-BOWL-MG2For model: 3005E | Drain: Quart bowl | Bowl: 2 L metal (made to order)
3005E-BOWL-MG8For model: 3005E | Drain: Quart bowl | Bowl: 8 L metal (made to order)
3005E-BOWL-MG20For model: 3005E | Drain: Quart bowl | Bowl: 20 L metal (made to order)
