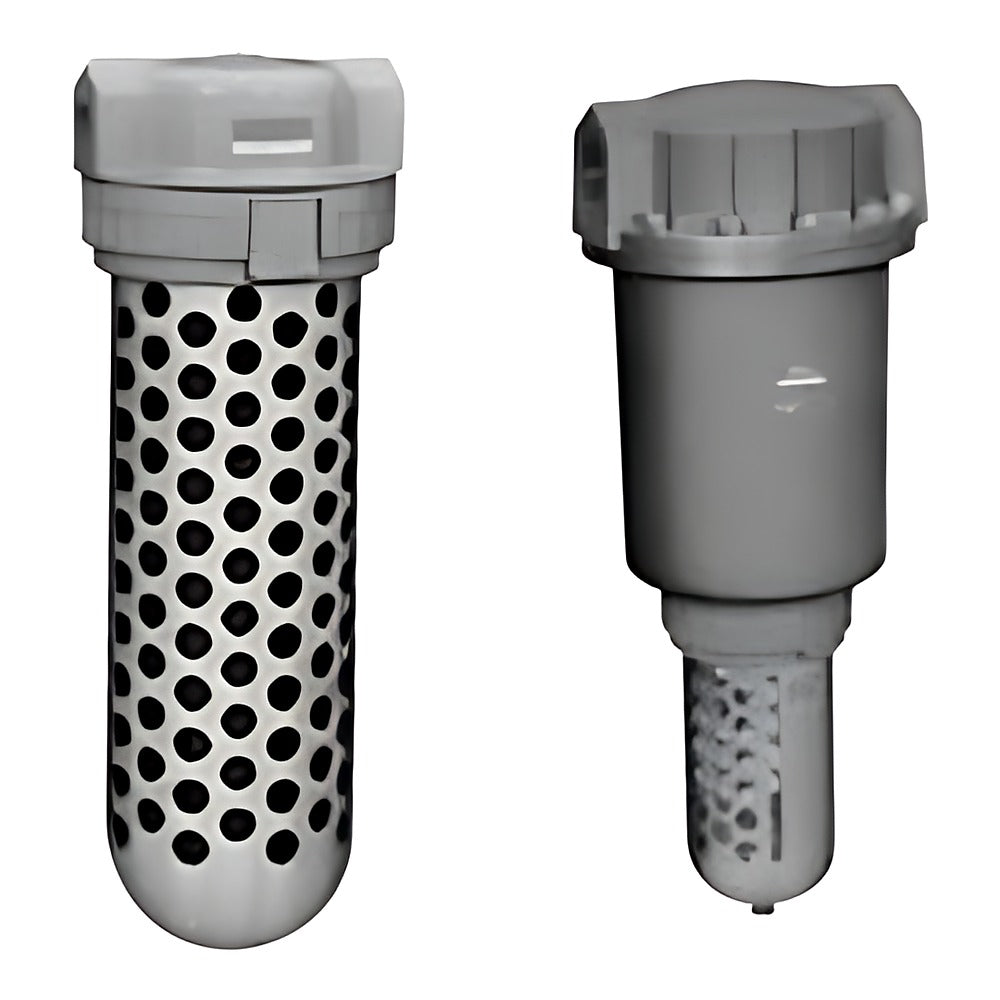

CKD FRL Replacement Elements & Repair Kits (Mini/Large FRL, VFA)

CKD FRL Replacement Elements & Repair Kits (Mini/Large FRL, VFA)

CKD consumable and repair parts for miniature and large FRL units and VFA vacuum filters, as printed in the parts lists.

Key features

  • Filter elements 5 um, 3 um (X) and 0.3 um (Y) for 1138/1126 families
  • Coalescing mantle assemblies for 1219/1238/1226/1226J, odor (X) versions
  • Regulator diaphragm, piston and valve assemblies
  • Consumable kits for 2302/2303/2304 dial regulators incl. remote (R) type
  • VFA vacuum filter elements 40 um and 5 um (Y5)

Specifications

Applicable families A1019, B7019, B2019, B6061, 1138, 1238, 2215, 2302, VFA
Brand CKD
Sales unit 1 piece / kit
Condition New, genuine
Ordering Order by printed part number
Source CKD Korea catalog CB-024SK-9, p. 483-601
A1019-ELEMENT For model: A1019 | Part: Filter element | Detail: 5 um polypropylene
B7019-DIAPHRAGM-ASSY For model: B7019 | Part: Diaphragm assembly | Detail: Relief type
B7019-DIAPHRAGM-ASSY-N For model: B7019 | Part: Diaphragm assembly | Detail: Non-relief type
B7019-VALVE-ASSY For model: B7019 | Part: Valve assembly | Detail: Standard
1219-MANTLE-ASSY For model: 1219 | Part: Mantle assembly | Detail: Oil removal
B2019-DIAPHRAGM-ASSY For model: B2019 | Part: Diaphragm assembly | Detail: Relief type
B2019-DIAPHRAGM-ASSY-N For model: B2019 | Part: Diaphragm assembly | Detail: Non-relief type
B2019-VALVE-ASSY For model: B2019 | Part: Valve assembly | Detail: Standard
B6061-DIAPHRAGM-KIT For model: B6061 | Part: Diaphragm kit | Detail: Standard
1138-ELEMENT For model: 1138/A1138 | Part: Filter element | Detail: 5 um
1138-ELEMENT-X For model: 1138/A1138 | Part: Filter element | Detail: 3 um
1138-ELEMENT-Y For model: 1138/A1138 | Part: Filter element | Detail: 0.3 um
1126-ELEMENT For model: 1126/1326 | Part: Filter element | Detail: 5 um
1126-ELEMENT-X For model: 1126/1326 | Part: Filter element | Detail: 3 um
1126-ELEMENT-Y For model: 1126/1326 | Part: Filter element | Detail: 0.3 um
1238-MANTLE-ASSY For model: 1238 | Part: Mantle assembly | Detail: Oil removal
1238-MANTLE-ASSY-X For model: 1238 | Part: Mantle assembly | Detail: Odor removal (X)
1226-MANTLE-ASSY For model: 1226 | Part: Mantle assembly | Detail: Oil removal
1226-MANTLE-ASSY-X For model: 1226 | Part: Mantle assembly | Detail: Odor removal (X)
1226J-MANTLE-ASSY For model: 1226J | Part: Mantle assembly | Detail: Oil removal
1226J-MANTLE-ASSY-X For model: 1226J | Part: Mantle assembly | Detail: Odor removal (X)
2215-PISTON-ASSY For model: 2215/2216 | Part: Piston assembly | Detail: Relief type
2215-PISTON-ASSY-N For model: 2215/2216 | Part: Piston assembly | Detail: Non-relief type
2215-VALVE-ASSY For model: 2215 | Part: Valve assembly | Detail: Standard
2216-VALVE-ASSY For model: 2216 | Part: Valve assembly | Detail: Standard
2302-KIT For model: 2302 | Part: Consumable parts kit | Detail: Valve, piston, O-rings
2302-VALVE-ASSY For model: 2302 | Part: Valve assembly | Detail: Valve, O-rings
2302-R-KIT For model: 2302-R | Part: Consumable parts kit | Detail: Valve, piston, O-rings
2302-R-VALVE-ASSY For model: 2302-R | Part: Valve assembly | Detail: Valve, O-rings
2303-KIT For model: 2303 | Part: Consumable parts kit | Detail: Valve, piston, O-rings
2303-VALVE-ASSY For model: 2303 | Part: Valve assembly | Detail: Valve, O-rings
2303-R-KIT For model: 2303-R | Part: Consumable parts kit | Detail: Valve, piston, O-rings
2303-R-VALVE-ASSY For model: 2303-R | Part: Valve assembly | Detail: Valve, O-rings
2304-KIT For model: 2304 | Part: Consumable parts kit | Detail: Valve, piston, O-rings
2304-VALVE-ASSY For model: 2304 | Part: Valve assembly | Detail: Valve, O-rings
2304-R-KIT For model: 2304-R | Part: Consumable parts kit | Detail: Valve, piston, O-rings
2304-R-VALVE-ASSY For model: 2304-R | Part: Valve assembly | Detail: Valve, O-rings
VFA1000-ELEMENT-ASSY For model: VFA1000 | Part: Filter element | Detail: 40 um polyamide
VFA1000-ELEMENT-ASSY-Y5 For model: VFA1000 | Part: Filter element | Detail: 5 um polypropylene
VFA3000-ELEMENT For model: VFA3000 | Part: Filter element | Detail: 40 um polyamide
VFA3000-ELEMENT-Y5 For model: VFA3000 | Part: Filter element | Detail: 5 um polypropylene
VFA4000-ELEMENT For model: VFA4000 | Part: Filter element | Detail: 40 um polyamide
VFA4000-ELEMENT-Y5 For model: VFA4000 | Part: Filter element | Detail: 5 um polypropylene
FRL Repair PartsCKD
43 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD FRL Replacement Elements & Repair Kits (Mini/Large FRL, VFA)

Brand CKD·FRL Repair Parts

Available part numbers (43)

A1019-ELEMENT, B7019-DIAPHRAGM-ASSY, B7019-DIAPHRAGM-ASSY-N, B7019-VALVE-ASSY, 1219-MANTLE-ASSY, B2019-DIAPHRAGM-ASSY, B2019-DIAPHRAGM-ASSY-N, B2019-VALVE-ASSY, B6061-DIAPHRAGM-KIT, 1138-ELEMENT + 33 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A1019-ELEMENTFor model: A1019 | Part: Filter element | Detail: 5 um polypropylene
B7019-DIAPHRAGM-ASSYFor model: B7019 | Part: Diaphragm assembly | Detail: Relief type
B7019-DIAPHRAGM-ASSY-NFor model: B7019 | Part: Diaphragm assembly | Detail: Non-relief type
B7019-VALVE-ASSYFor model: B7019 | Part: Valve assembly | Detail: Standard
1219-MANTLE-ASSYFor model: 1219 | Part: Mantle assembly | Detail: Oil removal
B2019-DIAPHRAGM-ASSYFor model: B2019 | Part: Diaphragm assembly | Detail: Relief type
B2019-DIAPHRAGM-ASSY-NFor model: B2019 | Part: Diaphragm assembly | Detail: Non-relief type
B2019-VALVE-ASSYFor model: B2019 | Part: Valve assembly | Detail: Standard
B6061-DIAPHRAGM-KITFor model: B6061 | Part: Diaphragm kit | Detail: Standard
1138-ELEMENTFor model: 1138/A1138 | Part: Filter element | Detail: 5 um
1138-ELEMENT-XFor model: 1138/A1138 | Part: Filter element | Detail: 3 um
1138-ELEMENT-YFor model: 1138/A1138 | Part: Filter element | Detail: 0.3 um
1126-ELEMENTFor model: 1126/1326 | Part: Filter element | Detail: 5 um
1126-ELEMENT-XFor model: 1126/1326 | Part: Filter element | Detail: 3 um
1126-ELEMENT-YFor model: 1126/1326 | Part: Filter element | Detail: 0.3 um
1238-MANTLE-ASSYFor model: 1238 | Part: Mantle assembly | Detail: Oil removal
1238-MANTLE-ASSY-XFor model: 1238 | Part: Mantle assembly | Detail: Odor removal (X)
1226-MANTLE-ASSYFor model: 1226 | Part: Mantle assembly | Detail: Oil removal
1226-MANTLE-ASSY-XFor model: 1226 | Part: Mantle assembly | Detail: Odor removal (X)
1226J-MANTLE-ASSYFor model: 1226J | Part: Mantle assembly | Detail: Oil removal
1226J-MANTLE-ASSY-XFor model: 1226J | Part: Mantle assembly | Detail: Odor removal (X)
2215-PISTON-ASSYFor model: 2215/2216 | Part: Piston assembly | Detail: Relief type
2215-PISTON-ASSY-NFor model: 2215/2216 | Part: Piston assembly | Detail: Non-relief type
2215-VALVE-ASSYFor model: 2215 | Part: Valve assembly | Detail: Standard
2216-VALVE-ASSYFor model: 2216 | Part: Valve assembly | Detail: Standard
2302-KITFor model: 2302 | Part: Consumable parts kit | Detail: Valve, piston, O-rings
2302-VALVE-ASSYFor model: 2302 | Part: Valve assembly | Detail: Valve, O-rings
2302-R-KITFor model: 2302-R | Part: Consumable parts kit | Detail: Valve, piston, O-rings
2302-R-VALVE-ASSYFor model: 2302-R | Part: Valve assembly | Detail: Valve, O-rings
2303-KITFor model: 2303 | Part: Consumable parts kit | Detail: Valve, piston, O-rings
2303-VALVE-ASSYFor model: 2303 | Part: Valve assembly | Detail: Valve, O-rings
2303-R-KITFor model: 2303-R | Part: Consumable parts kit | Detail: Valve, piston, O-rings
2303-R-VALVE-ASSYFor model: 2303-R | Part: Valve assembly | Detail: Valve, O-rings
2304-KITFor model: 2304 | Part: Consumable parts kit | Detail: Valve, piston, O-rings
2304-VALVE-ASSYFor model: 2304 | Part: Valve assembly | Detail: Valve, O-rings
2304-R-KITFor model: 2304-R | Part: Consumable parts kit | Detail: Valve, piston, O-rings
2304-R-VALVE-ASSYFor model: 2304-R | Part: Valve assembly | Detail: Valve, O-rings
VFA1000-ELEMENT-ASSYFor model: VFA1000 | Part: Filter element | Detail: 40 um polyamide
VFA1000-ELEMENT-ASSY-Y5For model: VFA1000 | Part: Filter element | Detail: 5 um polypropylene
VFA3000-ELEMENTFor model: VFA3000 | Part: Filter element | Detail: 40 um polyamide
VFA3000-ELEMENT-Y5For model: VFA3000 | Part: Filter element | Detail: 5 um polypropylene
VFA4000-ELEMENTFor model: VFA4000 | Part: Filter element | Detail: 40 um polyamide
VFA4000-ELEMENT-Y5For model: VFA4000 | Part: Filter element | Detail: 5 um polypropylene
