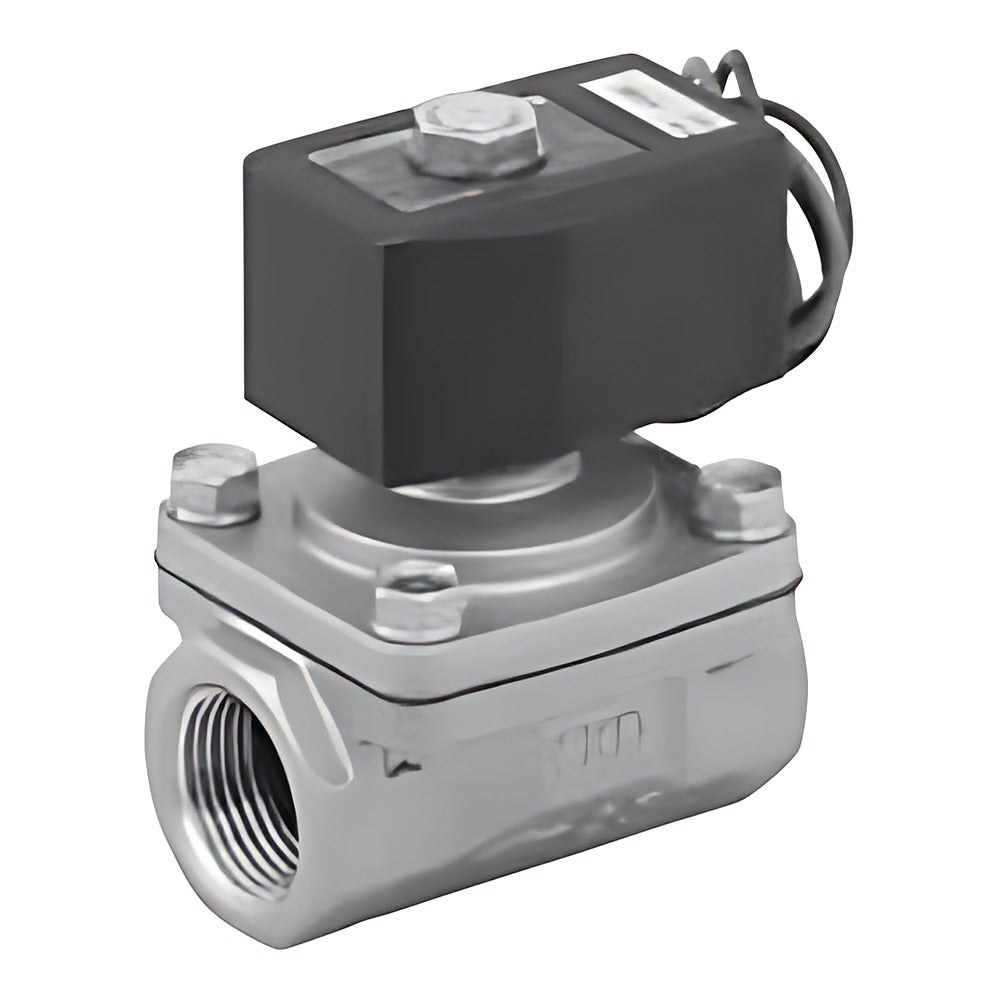

CKD FVB-P90 Clean Blow 2-Port Solenoid Valve (JUST FIT, NC)

CKD FVB-P90 direct-acting 2-port solenoid valve (JUST FIT valve) for clean blow, normally closed, in P90 low-particle, oil-free, copper-free specification.

Key features

P90 clean specification: low dust generation, oil-prohibited treatment, no copper alloys and stainless wetted parts (gas side), no halogen
Direct-acting poppet, normally closed (opens when energized), mounts in any orientation
Four body sizes (22/28/34/40 mm) with Rc1/8, Rc1/4 and Rc3/8 ports and orifices from 1 to 7 mm
Stainless steel body, nitrile rubber seal; AC coils (2CR) use a diode full-wave rectifier
Optional mounting plate (B); manifold versions and other voltages on request
Made-to-order product; install a final filter (e.g. FCS500) on the outlet side

Specifications

Fluid	Air, inert gas, vacuum (1.3x10^-2 Pa abs)
Proof pressure (water)	5.0 MPa (orifice 7 mm: 3.0 MPa)
Fluid temperature	-10 to 40 C (no freezing)
Ambient temperature	-20 to 40 C
Valve structure	Direct-acting poppet, NC
Seat leakage	1.33x10^-6 Pa.m3/s (He) or less
Insulation class	Class B (130)
Body / seal	Stainless steel / NBR, oil-prohibited
Power (AC/DC)	4.3/4 W (FVB21) to 11.8/11.5 W (FVB51)
Code format	FVB<size>1-<port>-<orifice>-L<coil>[B]-P90-<voltage>
Source	CKD Korea catalog CB-033S-4, p. 1107-1114

FVB21-6-Z-L2CR-P90-1		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB21-6-Z-L2CRB-P90-1		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB21-6-Z-L2CR-P90-2		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB21-6-Z-L2CRB-P90-2		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB21-6-Z-L2C-P90-3		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB21-6-Z-L2CB-P90-3		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB21-6-Z-L2C-P90-4		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB21-6-Z-L2CB-P90-4		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
FVB21-6-2-L2CR-P90-1		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB21-6-2-L2CRB-P90-1		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB21-6-2-L2CR-P90-2		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB21-6-2-L2CRB-P90-2		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB21-6-2-L2C-P90-3		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB21-6-2-L2CB-P90-3		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB21-6-2-L2C-P90-4		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB21-6-2-L2CB-P90-4		Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
FVB31-6-3-L2CR-P90-1		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB31-6-3-L2CRB-P90-1		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB31-6-3-L2CR-P90-2		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB31-6-3-L2CRB-P90-2		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB31-6-3-L2C-P90-3		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB31-6-3-L2CB-P90-3		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB31-6-3-L2C-P90-4		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB31-6-3-L2CB-P90-4		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
FVB31-6-5-L2CR-P90-1		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB31-6-5-L2CRB-P90-1		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB31-6-5-L2CR-P90-2		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB31-6-5-L2CRB-P90-2		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB31-6-5-L2C-P90-3		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB31-6-5-L2CB-P90-3		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB31-6-5-L2C-P90-4		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB31-6-5-L2CB-P90-4		Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
FVB31-8-3-L2CR-P90-1		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB31-8-3-L2CRB-P90-1		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB31-8-3-L2CR-P90-2		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB31-8-3-L2CRB-P90-2		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB31-8-3-L2C-P90-3		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB31-8-3-L2CB-P90-3		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB31-8-3-L2C-P90-4		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB31-8-3-L2CB-P90-4		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
FVB31-8-5-L2CR-P90-1		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB31-8-5-L2CRB-P90-1		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB31-8-5-L2CR-P90-2		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB31-8-5-L2CRB-P90-2		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB31-8-5-L2C-P90-3		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB31-8-5-L2CB-P90-3		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB31-8-5-L2C-P90-4		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB31-8-5-L2CB-P90-4		Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
FVB41-8-5-L2CR-P90-1		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB41-8-5-L2CRB-P90-1		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB41-8-5-L2CR-P90-2		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB41-8-5-L2CRB-P90-2		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB41-8-5-L2C-P90-3		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB41-8-5-L2CB-P90-3		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB41-8-5-L2C-P90-4		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB41-8-5-L2CB-P90-4		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
FVB41-8-6-L2CR-P90-1		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB41-8-6-L2CRB-P90-1		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB41-8-6-L2CR-P90-2		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB41-8-6-L2CRB-P90-2		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB41-8-6-L2C-P90-3		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB41-8-6-L2CB-P90-3		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB41-8-6-L2C-P90-4		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB41-8-6-L2CB-P90-4		Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
FVB41-10-5-L2CR-P90-1		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB41-10-5-L2CRB-P90-1		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB41-10-5-L2CR-P90-2		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB41-10-5-L2CRB-P90-2		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB41-10-5-L2C-P90-3		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB41-10-5-L2CB-P90-3		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB41-10-5-L2C-P90-4		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB41-10-5-L2CB-P90-4		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
FVB41-10-6-L2CR-P90-1		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB41-10-6-L2CRB-P90-1		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB41-10-6-L2CR-P90-2		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB41-10-6-L2CRB-P90-2		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB41-10-6-L2C-P90-3		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB41-10-6-L2CB-P90-3		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB41-10-6-L2C-P90-4		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB41-10-6-L2CB-P90-4		Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
FVB51-8-5-L2CR-P90-1		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB51-8-5-L2CRB-P90-1		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB51-8-5-L2CR-P90-2		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB51-8-5-L2CRB-P90-2		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB51-8-5-L2C-P90-3		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB51-8-5-L2CB-P90-3		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB51-8-5-L2C-P90-4		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB51-8-5-L2CB-P90-4		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
FVB51-8-6-L2CR-P90-1		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB51-8-6-L2CRB-P90-1		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB51-8-6-L2CR-P90-2		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB51-8-6-L2CRB-P90-2		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB51-8-6-L2C-P90-3		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB51-8-6-L2CB-P90-3		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB51-8-6-L2C-P90-4		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB51-8-6-L2CB-P90-4		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
FVB51-8-7-L2CR-P90-1		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB51-8-7-L2CRB-P90-1		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB51-8-7-L2CR-P90-2		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB51-8-7-L2CRB-P90-2		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB51-8-7-L2C-P90-3		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB51-8-7-L2CB-P90-3		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB51-8-7-L2C-P90-4		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB51-8-7-L2CB-P90-4		Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
FVB51-10-5-L2CR-P90-1		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB51-10-5-L2CRB-P90-1		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB51-10-5-L2CR-P90-2		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB51-10-5-L2CRB-P90-2		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB51-10-5-L2C-P90-3		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB51-10-5-L2CB-P90-3		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB51-10-5-L2C-P90-4		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB51-10-5-L2CB-P90-4		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
FVB51-10-6-L2CR-P90-1		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB51-10-6-L2CRB-P90-1		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB51-10-6-L2CR-P90-2		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB51-10-6-L2CRB-P90-2		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB51-10-6-L2C-P90-3		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB51-10-6-L2CB-P90-3		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB51-10-6-L2C-P90-4		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB51-10-6-L2CB-P90-4		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
FVB51-10-7-L2CR-P90-1		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
FVB51-10-7-L2CRB-P90-1		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
FVB51-10-7-L2CR-P90-2		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
FVB51-10-7-L2CRB-P90-2		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
FVB51-10-7-L2C-P90-3		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
FVB51-10-7-L2CB-P90-3		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
FVB51-10-7-L2C-P90-4		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
FVB51-10-7-L2CB-P90-4		Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes

2-Port Solenoid ValvesCKD

128 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD FVB-P90 Clean Blow 2-Port Solenoid Valve (JUST FIT, NC)

Brand CKD·2-Port Solenoid Valves

Available part numbers (128)

FVB21-6-Z-L2CR-P90-1, FVB21-6-Z-L2CRB-P90-1, FVB21-6-Z-L2CR-P90-2, FVB21-6-Z-L2CRB-P90-2, FVB21-6-Z-L2C-P90-3, FVB21-6-Z-L2CB-P90-3, FVB21-6-Z-L2C-P90-4, FVB21-6-Z-L2CB-P90-4, FVB21-6-2-L2CR-P90-1, FVB21-6-2-L2CRB-P90-1 + 118 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	FVB21-6-Z-L2CR-P90-1	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB21-6-Z-L2CRB-P90-1	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB21-6-Z-L2CR-P90-2	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB21-6-Z-L2CRB-P90-2	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB21-6-Z-L2C-P90-3	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB21-6-Z-L2CB-P90-3	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB21-6-Z-L2C-P90-4	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB21-6-Z-L2CB-P90-4	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 1 mm, max 1.0 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
	FVB21-6-2-L2CR-P90-1	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB21-6-2-L2CRB-P90-1	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB21-6-2-L2CR-P90-2	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB21-6-2-L2CRB-P90-2	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB21-6-2-L2C-P90-3	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB21-6-2-L2CB-P90-3	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB21-6-2-L2C-P90-4	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB21-6-2-L2CB-P90-4	Body size: 22 mm \| Port: Rc1/8 \| Orifice: dia 2 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
	FVB31-6-3-L2CR-P90-1	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB31-6-3-L2CRB-P90-1	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB31-6-3-L2CR-P90-2	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB31-6-3-L2CRB-P90-2	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB31-6-3-L2C-P90-3	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB31-6-3-L2CB-P90-3	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB31-6-3-L2C-P90-4	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB31-6-3-L2CB-P90-4	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
	FVB31-6-5-L2CR-P90-1	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB31-6-5-L2CRB-P90-1	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB31-6-5-L2CR-P90-2	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB31-6-5-L2CRB-P90-2	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB31-6-5-L2C-P90-3	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB31-6-5-L2CB-P90-3	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB31-6-5-L2C-P90-4	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB31-6-5-L2CB-P90-4	Body size: 28 mm \| Port: Rc1/8 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
	FVB31-8-3-L2CR-P90-1	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB31-8-3-L2CRB-P90-1	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB31-8-3-L2CR-P90-2	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB31-8-3-L2CRB-P90-2	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB31-8-3-L2C-P90-3	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB31-8-3-L2CB-P90-3	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB31-8-3-L2C-P90-4	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB31-8-3-L2CB-P90-4	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 3 mm, max 0.4 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
	FVB31-8-5-L2CR-P90-1	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB31-8-5-L2CRB-P90-1	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB31-8-5-L2CR-P90-2	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB31-8-5-L2CRB-P90-2	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB31-8-5-L2C-P90-3	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB31-8-5-L2CB-P90-3	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB31-8-5-L2C-P90-4	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB31-8-5-L2CB-P90-4	Body size: 28 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
	FVB41-8-5-L2CR-P90-1	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB41-8-5-L2CRB-P90-1	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB41-8-5-L2CR-P90-2	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB41-8-5-L2CRB-P90-2	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB41-8-5-L2C-P90-3	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB41-8-5-L2CB-P90-3	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB41-8-5-L2C-P90-4	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB41-8-5-L2CB-P90-4	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
	FVB41-8-6-L2CR-P90-1	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB41-8-6-L2CRB-P90-1	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB41-8-6-L2CR-P90-2	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB41-8-6-L2CRB-P90-2	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB41-8-6-L2C-P90-3	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB41-8-6-L2CB-P90-3	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB41-8-6-L2C-P90-4	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB41-8-6-L2CB-P90-4	Body size: 34 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
	FVB41-10-5-L2CR-P90-1	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB41-10-5-L2CRB-P90-1	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB41-10-5-L2CR-P90-2	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB41-10-5-L2CRB-P90-2	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB41-10-5-L2C-P90-3	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB41-10-5-L2CB-P90-3	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB41-10-5-L2C-P90-4	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB41-10-5-L2CB-P90-4	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
	FVB41-10-6-L2CR-P90-1	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB41-10-6-L2CRB-P90-1	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB41-10-6-L2CR-P90-2	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB41-10-6-L2CRB-P90-2	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB41-10-6-L2C-P90-3	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB41-10-6-L2CB-P90-3	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB41-10-6-L2C-P90-4	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB41-10-6-L2CB-P90-4	Body size: 34 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.1 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
	FVB51-8-5-L2CR-P90-1	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB51-8-5-L2CRB-P90-1	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB51-8-5-L2CR-P90-2	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB51-8-5-L2CRB-P90-2	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB51-8-5-L2C-P90-3	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB51-8-5-L2CB-P90-3	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB51-8-5-L2C-P90-4	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB51-8-5-L2CB-P90-4	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
	FVB51-8-6-L2CR-P90-1	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB51-8-6-L2CRB-P90-1	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB51-8-6-L2CR-P90-2	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB51-8-6-L2CRB-P90-2	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB51-8-6-L2C-P90-3	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB51-8-6-L2CB-P90-3	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB51-8-6-L2C-P90-4	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB51-8-6-L2CB-P90-4	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
	FVB51-8-7-L2CR-P90-1	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB51-8-7-L2CRB-P90-1	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB51-8-7-L2CR-P90-2	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB51-8-7-L2CRB-P90-2	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB51-8-7-L2C-P90-3	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB51-8-7-L2CB-P90-3	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB51-8-7-L2C-P90-4	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB51-8-7-L2CB-P90-4	Body size: 40 mm \| Port: Rc1/4 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
	FVB51-10-5-L2CR-P90-1	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB51-10-5-L2CRB-P90-1	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB51-10-5-L2CR-P90-2	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB51-10-5-L2CRB-P90-2	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB51-10-5-L2C-P90-3	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB51-10-5-L2CB-P90-3	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB51-10-5-L2C-P90-4	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB51-10-5-L2CB-P90-4	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 4 mm, max 0.5 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
	FVB51-10-6-L2CR-P90-1	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB51-10-6-L2CRB-P90-1	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB51-10-6-L2CR-P90-2	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB51-10-6-L2CRB-P90-2	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB51-10-6-L2C-P90-3	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB51-10-6-L2CB-P90-3	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB51-10-6-L2C-P90-4	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB51-10-6-L2CB-P90-4	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 5 mm, max 0.3 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes
	FVB51-10-7-L2CR-P90-1	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: No
	FVB51-10-7-L2CRB-P90-1	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC100V 50/60Hz \| Mounting plate: Yes
	FVB51-10-7-L2CR-P90-2	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: No
	FVB51-10-7-L2CRB-P90-2	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet, full-wave rectified \| Voltage: AC200V 50/60Hz \| Mounting plate: Yes
	FVB51-10-7-L2C-P90-3	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: No
	FVB51-10-7-L2CB-P90-3	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC24V \| Mounting plate: Yes
	FVB51-10-7-L2C-P90-4	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: No
	FVB51-10-7-L2CB-P90-4	Body size: 40 mm \| Port: Rc3/8 \| Orifice: dia 7 mm, max 0.15 MPa \| Coil: Grommet lead \| Voltage: DC12V \| Mounting plate: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD FVB-P90 Clean Blow 2-Port Solenoid Valve (JUST FIT, NC)
