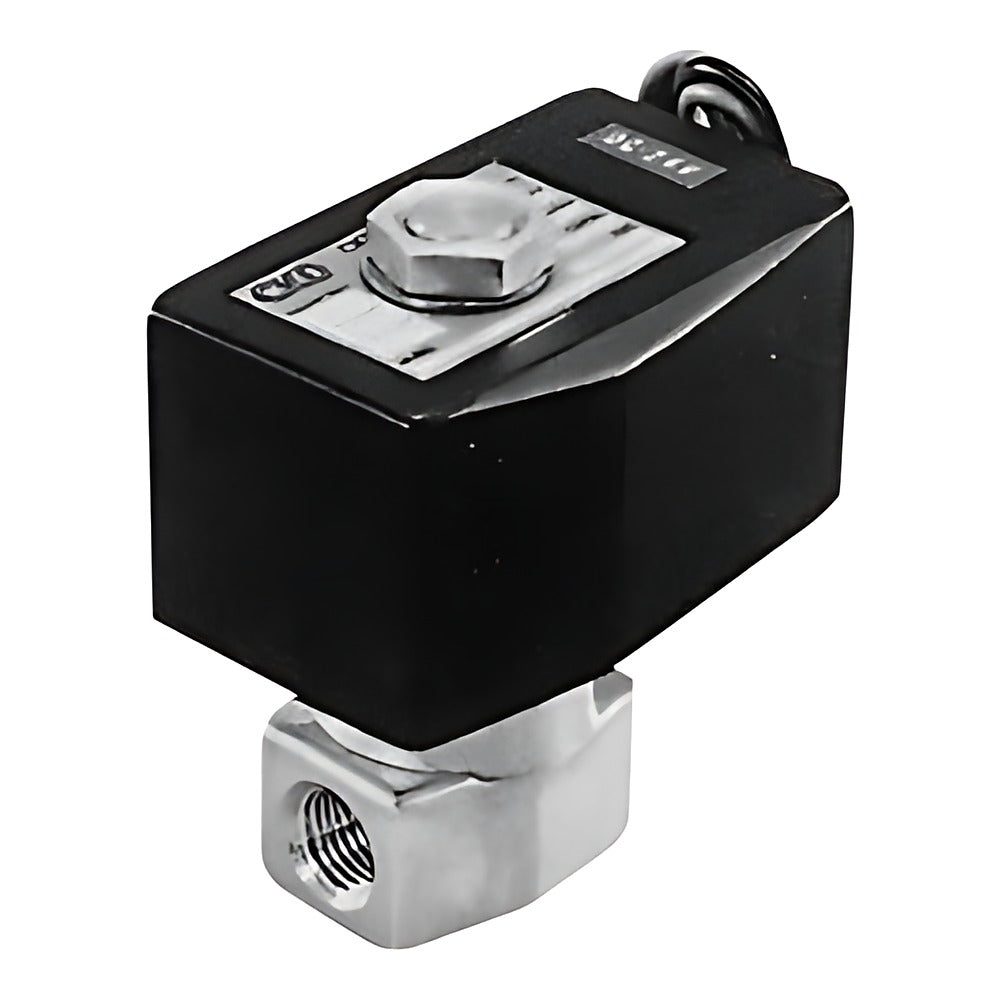

• CKD FWB31/FWB41 Quiet JUST FIT 2-Port Solenoid Valve for Water (MTO)
1 1

CKD FWB31/FWB41 Quiet JUST FIT 2-Port Solenoid Valve for Water (MTO)

CKD FWB31/FWB41 Quiet JUST FIT 2-Port Solenoid Valve for Water (MTO)

CKD FWB31-X2079/FWB41-X2080 made-to-order quiet direct-acting NC 2-port solenoid valves for water, Rc1/4.

Key features

  • Special valve structure greatly reduces metallic operating noise
  • Brass body; for medical, food and public facility equipment
  • Direct acting NC type, grommet lead wire 300 mm
  • Rated voltage DC24V or DC12V
  • Made-to-order product

Specifications

Fluid Water (not sewage/agricultural/chemicals)
Proof pressure 5.0 MPa
Fluid temperature 1 to 40 C
Port Rc1/4
Seat leakage 0 (water)
Body material Brass C3771
Source CKD Korea catalog CB-03-1SK-9, p. 1229
FWB31-X2079 Orifice: 3 mm | Operating pressure: 0-0.3 MPa | Cv: 0.3 | Power: 6 W
FWB41-X2080 Orifice: 4 mm | Operating pressure: 0-0.35 MPa | Cv: 0.54 | Power: 8 W
2-Port Solenoid ValvesCKD
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD FWB31/FWB41 Quiet JUST FIT 2-Port Solenoid Valve for Water (MTO)

Brand CKD·2-Port Solenoid Valves

Available part numbers (2)

FWB31-X2079, FWB41-X2080

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FWB31-X2079Orifice: 3 mm | Operating pressure: 0-0.3 MPa | Cv: 0.3 | Power: 6 W
FWB41-X2080Orifice: 4 mm | Operating pressure: 0-0.35 MPa | Cv: 0.54 | Power: 8 W
