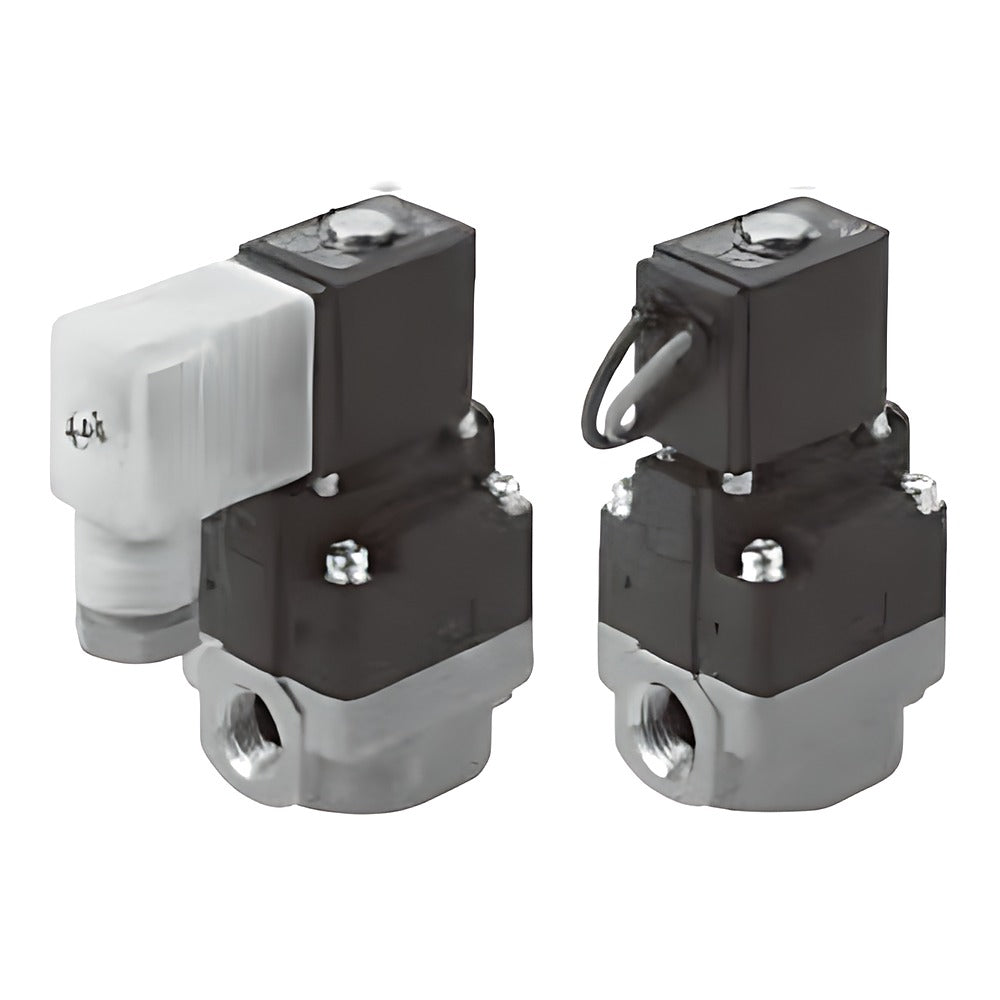

CKD FWD-FP2 Compact Pilot Operated Solenoid Valve for Water (NC)

CKD FWD-FP2 Compact Pilot Operated Solenoid Valve for Water (NC)

CKD FWD11-FP2 compact pilot-operated diaphragm solenoid valve for water with stainless/PPS body and food-grade wetted materials.

Key features

  • Normally closed, pilot poppet with diaphragm drive
  • Rc, G or NPT 1/4 to 1 ports
  • Stainless steel / PPS body, NBR seal (code D)
  • Grommet lead wire or DIN terminal box with lamp and surge killer options
  • IPX5 protection
  • FP2 food-processing spec: wetted materials comply with the Japanese Food Sanitation Act

Specifications

Fluid Water
Operating pressure differential 0.02 to 0.7 MPa
Proof pressure 1.05 MPa (hydraulic)
Fluid temperature 5 to 60 C
Seat leakage 0 cm3/min (water)
Body / seal Stainless, PPS / NBR
Coil insulation Class B (130)
Source CKD Korea catalog CC-1271K-5, p. 380-381
FWD11-8A-D2CFP2-AC100V Port: 1/4 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-8A-D2CFP2-AC200V Port: 1/4 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-8A-D2CFP2-DC24V Port: 1/4 | Thread: Rc | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-8A-D2CSFP2-AC100V Port: 1/4 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-8A-D2CSFP2-AC200V Port: 1/4 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-8A-D2CSFP2-DC24V Port: 1/4 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-8A-D2GFP2-AC100V Port: 1/4 | Thread: Rc | Coil option: DIN box | Voltage: AC100V
FWD11-8A-D2GFP2-AC200V Port: 1/4 | Thread: Rc | Coil option: DIN box | Voltage: AC200V
FWD11-8A-D2GFP2-DC24V Port: 1/4 | Thread: Rc | Coil option: DIN box | Voltage: DC24V
FWD11-8A-D2GSFP2-AC100V Port: 1/4 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-8A-D2GSFP2-AC200V Port: 1/4 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-8A-D2GSFP2-DC24V Port: 1/4 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-8A-D2HFP2-AC100V Port: 1/4 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-8A-D2HFP2-AC200V Port: 1/4 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-8A-D2HFP2-DC24V Port: 1/4 | Thread: Rc | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-8A-D2HSFP2-AC100V Port: 1/4 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-8A-D2HSFP2-AC200V Port: 1/4 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-8A-D2HSFP2-DC24V Port: 1/4 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-8G-D2CFP2-AC100V Port: 1/4 | Thread: G | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-8G-D2CFP2-AC200V Port: 1/4 | Thread: G | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-8G-D2CFP2-DC24V Port: 1/4 | Thread: G | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-8G-D2CSFP2-AC100V Port: 1/4 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-8G-D2CSFP2-AC200V Port: 1/4 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-8G-D2CSFP2-DC24V Port: 1/4 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-8G-D2GFP2-AC100V Port: 1/4 | Thread: G | Coil option: DIN box | Voltage: AC100V
FWD11-8G-D2GFP2-AC200V Port: 1/4 | Thread: G | Coil option: DIN box | Voltage: AC200V
FWD11-8G-D2GFP2-DC24V Port: 1/4 | Thread: G | Coil option: DIN box | Voltage: DC24V
FWD11-8G-D2GSFP2-AC100V Port: 1/4 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-8G-D2GSFP2-AC200V Port: 1/4 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-8G-D2GSFP2-DC24V Port: 1/4 | Thread: G | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-8G-D2HFP2-AC100V Port: 1/4 | Thread: G | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-8G-D2HFP2-AC200V Port: 1/4 | Thread: G | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-8G-D2HFP2-DC24V Port: 1/4 | Thread: G | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-8G-D2HSFP2-AC100V Port: 1/4 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-8G-D2HSFP2-AC200V Port: 1/4 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-8G-D2HSFP2-DC24V Port: 1/4 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-8N-D2CFP2-AC100V Port: 1/4 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-8N-D2CFP2-AC200V Port: 1/4 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-8N-D2CFP2-DC24V Port: 1/4 | Thread: NPT | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-8N-D2CSFP2-AC100V Port: 1/4 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-8N-D2CSFP2-AC200V Port: 1/4 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-8N-D2CSFP2-DC24V Port: 1/4 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-8N-D2GFP2-AC100V Port: 1/4 | Thread: NPT | Coil option: DIN box | Voltage: AC100V
FWD11-8N-D2GFP2-AC200V Port: 1/4 | Thread: NPT | Coil option: DIN box | Voltage: AC200V
FWD11-8N-D2GFP2-DC24V Port: 1/4 | Thread: NPT | Coil option: DIN box | Voltage: DC24V
FWD11-8N-D2GSFP2-AC100V Port: 1/4 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-8N-D2GSFP2-AC200V Port: 1/4 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-8N-D2GSFP2-DC24V Port: 1/4 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-8N-D2HFP2-AC100V Port: 1/4 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-8N-D2HFP2-AC200V Port: 1/4 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-8N-D2HFP2-DC24V Port: 1/4 | Thread: NPT | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-8N-D2HSFP2-AC100V Port: 1/4 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-8N-D2HSFP2-AC200V Port: 1/4 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-8N-D2HSFP2-DC24V Port: 1/4 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-10A-D2CFP2-AC100V Port: 3/8 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-10A-D2CFP2-AC200V Port: 3/8 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-10A-D2CFP2-DC24V Port: 3/8 | Thread: Rc | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-10A-D2CSFP2-AC100V Port: 3/8 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-10A-D2CSFP2-AC200V Port: 3/8 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-10A-D2CSFP2-DC24V Port: 3/8 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-10A-D2GFP2-AC100V Port: 3/8 | Thread: Rc | Coil option: DIN box | Voltage: AC100V
FWD11-10A-D2GFP2-AC200V Port: 3/8 | Thread: Rc | Coil option: DIN box | Voltage: AC200V
FWD11-10A-D2GFP2-DC24V Port: 3/8 | Thread: Rc | Coil option: DIN box | Voltage: DC24V
FWD11-10A-D2GSFP2-AC100V Port: 3/8 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-10A-D2GSFP2-AC200V Port: 3/8 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-10A-D2GSFP2-DC24V Port: 3/8 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-10A-D2HFP2-AC100V Port: 3/8 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-10A-D2HFP2-AC200V Port: 3/8 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-10A-D2HFP2-DC24V Port: 3/8 | Thread: Rc | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-10A-D2HSFP2-AC100V Port: 3/8 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-10A-D2HSFP2-AC200V Port: 3/8 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-10A-D2HSFP2-DC24V Port: 3/8 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-10G-D2CFP2-AC100V Port: 3/8 | Thread: G | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-10G-D2CFP2-AC200V Port: 3/8 | Thread: G | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-10G-D2CFP2-DC24V Port: 3/8 | Thread: G | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-10G-D2CSFP2-AC100V Port: 3/8 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-10G-D2CSFP2-AC200V Port: 3/8 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-10G-D2CSFP2-DC24V Port: 3/8 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-10G-D2GFP2-AC100V Port: 3/8 | Thread: G | Coil option: DIN box | Voltage: AC100V
FWD11-10G-D2GFP2-AC200V Port: 3/8 | Thread: G | Coil option: DIN box | Voltage: AC200V
FWD11-10G-D2GFP2-DC24V Port: 3/8 | Thread: G | Coil option: DIN box | Voltage: DC24V
FWD11-10G-D2GSFP2-AC100V Port: 3/8 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-10G-D2GSFP2-AC200V Port: 3/8 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-10G-D2GSFP2-DC24V Port: 3/8 | Thread: G | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-10G-D2HFP2-AC100V Port: 3/8 | Thread: G | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-10G-D2HFP2-AC200V Port: 3/8 | Thread: G | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-10G-D2HFP2-DC24V Port: 3/8 | Thread: G | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-10G-D2HSFP2-AC100V Port: 3/8 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-10G-D2HSFP2-AC200V Port: 3/8 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-10G-D2HSFP2-DC24V Port: 3/8 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-10N-D2CFP2-AC100V Port: 3/8 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-10N-D2CFP2-AC200V Port: 3/8 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-10N-D2CFP2-DC24V Port: 3/8 | Thread: NPT | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-10N-D2CSFP2-AC100V Port: 3/8 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-10N-D2CSFP2-AC200V Port: 3/8 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-10N-D2CSFP2-DC24V Port: 3/8 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-10N-D2GFP2-AC100V Port: 3/8 | Thread: NPT | Coil option: DIN box | Voltage: AC100V
FWD11-10N-D2GFP2-AC200V Port: 3/8 | Thread: NPT | Coil option: DIN box | Voltage: AC200V
FWD11-10N-D2GFP2-DC24V Port: 3/8 | Thread: NPT | Coil option: DIN box | Voltage: DC24V
FWD11-10N-D2GSFP2-AC100V Port: 3/8 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-10N-D2GSFP2-AC200V Port: 3/8 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-10N-D2GSFP2-DC24V Port: 3/8 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-10N-D2HFP2-AC100V Port: 3/8 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-10N-D2HFP2-AC200V Port: 3/8 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-10N-D2HFP2-DC24V Port: 3/8 | Thread: NPT | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-10N-D2HSFP2-AC100V Port: 3/8 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-10N-D2HSFP2-AC200V Port: 3/8 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-10N-D2HSFP2-DC24V Port: 3/8 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-15A-D2CFP2-AC100V Port: 1/2 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-15A-D2CFP2-AC200V Port: 1/2 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-15A-D2CFP2-DC24V Port: 1/2 | Thread: Rc | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-15A-D2CSFP2-AC100V Port: 1/2 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-15A-D2CSFP2-AC200V Port: 1/2 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-15A-D2CSFP2-DC24V Port: 1/2 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-15A-D2GFP2-AC100V Port: 1/2 | Thread: Rc | Coil option: DIN box | Voltage: AC100V
FWD11-15A-D2GFP2-AC200V Port: 1/2 | Thread: Rc | Coil option: DIN box | Voltage: AC200V
FWD11-15A-D2GFP2-DC24V Port: 1/2 | Thread: Rc | Coil option: DIN box | Voltage: DC24V
FWD11-15A-D2GSFP2-AC100V Port: 1/2 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-15A-D2GSFP2-AC200V Port: 1/2 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-15A-D2GSFP2-DC24V Port: 1/2 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-15A-D2HFP2-AC100V Port: 1/2 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-15A-D2HFP2-AC200V Port: 1/2 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-15A-D2HFP2-DC24V Port: 1/2 | Thread: Rc | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-15A-D2HSFP2-AC100V Port: 1/2 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-15A-D2HSFP2-AC200V Port: 1/2 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-15A-D2HSFP2-DC24V Port: 1/2 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-15G-D2CFP2-AC100V Port: 1/2 | Thread: G | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-15G-D2CFP2-AC200V Port: 1/2 | Thread: G | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-15G-D2CFP2-DC24V Port: 1/2 | Thread: G | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-15G-D2CSFP2-AC100V Port: 1/2 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-15G-D2CSFP2-AC200V Port: 1/2 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-15G-D2CSFP2-DC24V Port: 1/2 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-15G-D2GFP2-AC100V Port: 1/2 | Thread: G | Coil option: DIN box | Voltage: AC100V
FWD11-15G-D2GFP2-AC200V Port: 1/2 | Thread: G | Coil option: DIN box | Voltage: AC200V
FWD11-15G-D2GFP2-DC24V Port: 1/2 | Thread: G | Coil option: DIN box | Voltage: DC24V
FWD11-15G-D2GSFP2-AC100V Port: 1/2 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-15G-D2GSFP2-AC200V Port: 1/2 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-15G-D2GSFP2-DC24V Port: 1/2 | Thread: G | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-15G-D2HFP2-AC100V Port: 1/2 | Thread: G | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-15G-D2HFP2-AC200V Port: 1/2 | Thread: G | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-15G-D2HFP2-DC24V Port: 1/2 | Thread: G | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-15G-D2HSFP2-AC100V Port: 1/2 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-15G-D2HSFP2-AC200V Port: 1/2 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-15G-D2HSFP2-DC24V Port: 1/2 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-15N-D2CFP2-AC100V Port: 1/2 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-15N-D2CFP2-AC200V Port: 1/2 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-15N-D2CFP2-DC24V Port: 1/2 | Thread: NPT | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-15N-D2CSFP2-AC100V Port: 1/2 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-15N-D2CSFP2-AC200V Port: 1/2 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-15N-D2CSFP2-DC24V Port: 1/2 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-15N-D2GFP2-AC100V Port: 1/2 | Thread: NPT | Coil option: DIN box | Voltage: AC100V
FWD11-15N-D2GFP2-AC200V Port: 1/2 | Thread: NPT | Coil option: DIN box | Voltage: AC200V
FWD11-15N-D2GFP2-DC24V Port: 1/2 | Thread: NPT | Coil option: DIN box | Voltage: DC24V
FWD11-15N-D2GSFP2-AC100V Port: 1/2 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-15N-D2GSFP2-AC200V Port: 1/2 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-15N-D2GSFP2-DC24V Port: 1/2 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-15N-D2HFP2-AC100V Port: 1/2 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-15N-D2HFP2-AC200V Port: 1/2 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-15N-D2HFP2-DC24V Port: 1/2 | Thread: NPT | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-15N-D2HSFP2-AC100V Port: 1/2 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-15N-D2HSFP2-AC200V Port: 1/2 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-15N-D2HSFP2-DC24V Port: 1/2 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-20A-D2CFP2-AC100V Port: 3/4 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-20A-D2CFP2-AC200V Port: 3/4 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-20A-D2CFP2-DC24V Port: 3/4 | Thread: Rc | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-20A-D2CSFP2-AC100V Port: 3/4 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-20A-D2CSFP2-AC200V Port: 3/4 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-20A-D2CSFP2-DC24V Port: 3/4 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-20A-D2GFP2-AC100V Port: 3/4 | Thread: Rc | Coil option: DIN box | Voltage: AC100V
FWD11-20A-D2GFP2-AC200V Port: 3/4 | Thread: Rc | Coil option: DIN box | Voltage: AC200V
FWD11-20A-D2GFP2-DC24V Port: 3/4 | Thread: Rc | Coil option: DIN box | Voltage: DC24V
FWD11-20A-D2GSFP2-AC100V Port: 3/4 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-20A-D2GSFP2-AC200V Port: 3/4 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-20A-D2GSFP2-DC24V Port: 3/4 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-20A-D2HFP2-AC100V Port: 3/4 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-20A-D2HFP2-AC200V Port: 3/4 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-20A-D2HFP2-DC24V Port: 3/4 | Thread: Rc | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-20A-D2HSFP2-AC100V Port: 3/4 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-20A-D2HSFP2-AC200V Port: 3/4 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-20A-D2HSFP2-DC24V Port: 3/4 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-20G-D2CFP2-AC100V Port: 3/4 | Thread: G | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-20G-D2CFP2-AC200V Port: 3/4 | Thread: G | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-20G-D2CFP2-DC24V Port: 3/4 | Thread: G | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-20G-D2CSFP2-AC100V Port: 3/4 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-20G-D2CSFP2-AC200V Port: 3/4 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-20G-D2CSFP2-DC24V Port: 3/4 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-20G-D2GFP2-AC100V Port: 3/4 | Thread: G | Coil option: DIN box | Voltage: AC100V
FWD11-20G-D2GFP2-AC200V Port: 3/4 | Thread: G | Coil option: DIN box | Voltage: AC200V
FWD11-20G-D2GFP2-DC24V Port: 3/4 | Thread: G | Coil option: DIN box | Voltage: DC24V
FWD11-20G-D2GSFP2-AC100V Port: 3/4 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-20G-D2GSFP2-AC200V Port: 3/4 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-20G-D2GSFP2-DC24V Port: 3/4 | Thread: G | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-20G-D2HFP2-AC100V Port: 3/4 | Thread: G | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-20G-D2HFP2-AC200V Port: 3/4 | Thread: G | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-20G-D2HFP2-DC24V Port: 3/4 | Thread: G | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-20G-D2HSFP2-AC100V Port: 3/4 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-20G-D2HSFP2-AC200V Port: 3/4 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-20G-D2HSFP2-DC24V Port: 3/4 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-20N-D2CFP2-AC100V Port: 3/4 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-20N-D2CFP2-AC200V Port: 3/4 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-20N-D2CFP2-DC24V Port: 3/4 | Thread: NPT | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-20N-D2CSFP2-AC100V Port: 3/4 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-20N-D2CSFP2-AC200V Port: 3/4 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-20N-D2CSFP2-DC24V Port: 3/4 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-20N-D2GFP2-AC100V Port: 3/4 | Thread: NPT | Coil option: DIN box | Voltage: AC100V
FWD11-20N-D2GFP2-AC200V Port: 3/4 | Thread: NPT | Coil option: DIN box | Voltage: AC200V
FWD11-20N-D2GFP2-DC24V Port: 3/4 | Thread: NPT | Coil option: DIN box | Voltage: DC24V
FWD11-20N-D2GSFP2-AC100V Port: 3/4 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-20N-D2GSFP2-AC200V Port: 3/4 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-20N-D2GSFP2-DC24V Port: 3/4 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-20N-D2HFP2-AC100V Port: 3/4 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-20N-D2HFP2-AC200V Port: 3/4 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-20N-D2HFP2-DC24V Port: 3/4 | Thread: NPT | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-20N-D2HSFP2-AC100V Port: 3/4 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-20N-D2HSFP2-AC200V Port: 3/4 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-20N-D2HSFP2-DC24V Port: 3/4 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-25A-D2CFP2-AC100V Port: 1 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-25A-D2CFP2-AC200V Port: 1 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-25A-D2CFP2-DC24V Port: 1 | Thread: Rc | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-25A-D2CSFP2-AC100V Port: 1 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-25A-D2CSFP2-AC200V Port: 1 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-25A-D2CSFP2-DC24V Port: 1 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-25A-D2GFP2-AC100V Port: 1 | Thread: Rc | Coil option: DIN box | Voltage: AC100V
FWD11-25A-D2GFP2-AC200V Port: 1 | Thread: Rc | Coil option: DIN box | Voltage: AC200V
FWD11-25A-D2GFP2-DC24V Port: 1 | Thread: Rc | Coil option: DIN box | Voltage: DC24V
FWD11-25A-D2GSFP2-AC100V Port: 1 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-25A-D2GSFP2-AC200V Port: 1 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-25A-D2GSFP2-DC24V Port: 1 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-25A-D2HFP2-AC100V Port: 1 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-25A-D2HFP2-AC200V Port: 1 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-25A-D2HFP2-DC24V Port: 1 | Thread: Rc | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-25A-D2HSFP2-AC100V Port: 1 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-25A-D2HSFP2-AC200V Port: 1 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-25A-D2HSFP2-DC24V Port: 1 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-25G-D2CFP2-AC100V Port: 1 | Thread: G | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-25G-D2CFP2-AC200V Port: 1 | Thread: G | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-25G-D2CFP2-DC24V Port: 1 | Thread: G | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-25G-D2CSFP2-AC100V Port: 1 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-25G-D2CSFP2-AC200V Port: 1 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-25G-D2CSFP2-DC24V Port: 1 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-25G-D2GFP2-AC100V Port: 1 | Thread: G | Coil option: DIN box | Voltage: AC100V
FWD11-25G-D2GFP2-AC200V Port: 1 | Thread: G | Coil option: DIN box | Voltage: AC200V
FWD11-25G-D2GFP2-DC24V Port: 1 | Thread: G | Coil option: DIN box | Voltage: DC24V
FWD11-25G-D2GSFP2-AC100V Port: 1 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-25G-D2GSFP2-AC200V Port: 1 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-25G-D2GSFP2-DC24V Port: 1 | Thread: G | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-25G-D2HFP2-AC100V Port: 1 | Thread: G | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-25G-D2HFP2-AC200V Port: 1 | Thread: G | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-25G-D2HFP2-DC24V Port: 1 | Thread: G | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-25G-D2HSFP2-AC100V Port: 1 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-25G-D2HSFP2-AC200V Port: 1 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-25G-D2HSFP2-DC24V Port: 1 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-25N-D2CFP2-AC100V Port: 1 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-25N-D2CFP2-AC200V Port: 1 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-25N-D2CFP2-DC24V Port: 1 | Thread: NPT | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-25N-D2CSFP2-AC100V Port: 1 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-25N-D2CSFP2-AC200V Port: 1 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-25N-D2CSFP2-DC24V Port: 1 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-25N-D2GFP2-AC100V Port: 1 | Thread: NPT | Coil option: DIN box | Voltage: AC100V
FWD11-25N-D2GFP2-AC200V Port: 1 | Thread: NPT | Coil option: DIN box | Voltage: AC200V
FWD11-25N-D2GFP2-DC24V Port: 1 | Thread: NPT | Coil option: DIN box | Voltage: DC24V
FWD11-25N-D2GSFP2-AC100V Port: 1 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-25N-D2GSFP2-AC200V Port: 1 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-25N-D2GSFP2-DC24V Port: 1 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-25N-D2HFP2-AC100V Port: 1 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-25N-D2HFP2-AC200V Port: 1 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-25N-D2HFP2-DC24V Port: 1 | Thread: NPT | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-25N-D2HSFP2-AC100V Port: 1 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-25N-D2HSFP2-AC200V Port: 1 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-25N-D2HSFP2-DC24V Port: 1 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
2-Port Solenoid ValvesCKD
270 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD FWD-FP2 Compact Pilot Operated Solenoid Valve for Water (NC)

Brand CKD·2-Port Solenoid Valves

Available part numbers (270)

FWD11-8A-D2CFP2-AC100V, FWD11-8A-D2CFP2-AC200V, FWD11-8A-D2CFP2-DC24V, FWD11-8A-D2CSFP2-AC100V, FWD11-8A-D2CSFP2-AC200V, FWD11-8A-D2CSFP2-DC24V, FWD11-8A-D2GFP2-AC100V, FWD11-8A-D2GFP2-AC200V, FWD11-8A-D2GFP2-DC24V, FWD11-8A-D2GSFP2-AC100V + 260 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FWD11-8A-D2CFP2-AC100VPort: 1/4 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-8A-D2CFP2-AC200VPort: 1/4 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-8A-D2CFP2-DC24VPort: 1/4 | Thread: Rc | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-8A-D2CSFP2-AC100VPort: 1/4 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-8A-D2CSFP2-AC200VPort: 1/4 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-8A-D2CSFP2-DC24VPort: 1/4 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-8A-D2GFP2-AC100VPort: 1/4 | Thread: Rc | Coil option: DIN box | Voltage: AC100V
FWD11-8A-D2GFP2-AC200VPort: 1/4 | Thread: Rc | Coil option: DIN box | Voltage: AC200V
FWD11-8A-D2GFP2-DC24VPort: 1/4 | Thread: Rc | Coil option: DIN box | Voltage: DC24V
FWD11-8A-D2GSFP2-AC100VPort: 1/4 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-8A-D2GSFP2-AC200VPort: 1/4 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-8A-D2GSFP2-DC24VPort: 1/4 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-8A-D2HFP2-AC100VPort: 1/4 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-8A-D2HFP2-AC200VPort: 1/4 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-8A-D2HFP2-DC24VPort: 1/4 | Thread: Rc | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-8A-D2HSFP2-AC100VPort: 1/4 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-8A-D2HSFP2-AC200VPort: 1/4 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-8A-D2HSFP2-DC24VPort: 1/4 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-8G-D2CFP2-AC100VPort: 1/4 | Thread: G | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-8G-D2CFP2-AC200VPort: 1/4 | Thread: G | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-8G-D2CFP2-DC24VPort: 1/4 | Thread: G | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-8G-D2CSFP2-AC100VPort: 1/4 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-8G-D2CSFP2-AC200VPort: 1/4 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-8G-D2CSFP2-DC24VPort: 1/4 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-8G-D2GFP2-AC100VPort: 1/4 | Thread: G | Coil option: DIN box | Voltage: AC100V
FWD11-8G-D2GFP2-AC200VPort: 1/4 | Thread: G | Coil option: DIN box | Voltage: AC200V
FWD11-8G-D2GFP2-DC24VPort: 1/4 | Thread: G | Coil option: DIN box | Voltage: DC24V
FWD11-8G-D2GSFP2-AC100VPort: 1/4 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-8G-D2GSFP2-AC200VPort: 1/4 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-8G-D2GSFP2-DC24VPort: 1/4 | Thread: G | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-8G-D2HFP2-AC100VPort: 1/4 | Thread: G | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-8G-D2HFP2-AC200VPort: 1/4 | Thread: G | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-8G-D2HFP2-DC24VPort: 1/4 | Thread: G | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-8G-D2HSFP2-AC100VPort: 1/4 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-8G-D2HSFP2-AC200VPort: 1/4 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-8G-D2HSFP2-DC24VPort: 1/4 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-8N-D2CFP2-AC100VPort: 1/4 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-8N-D2CFP2-AC200VPort: 1/4 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-8N-D2CFP2-DC24VPort: 1/4 | Thread: NPT | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-8N-D2CSFP2-AC100VPort: 1/4 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-8N-D2CSFP2-AC200VPort: 1/4 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-8N-D2CSFP2-DC24VPort: 1/4 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-8N-D2GFP2-AC100VPort: 1/4 | Thread: NPT | Coil option: DIN box | Voltage: AC100V
FWD11-8N-D2GFP2-AC200VPort: 1/4 | Thread: NPT | Coil option: DIN box | Voltage: AC200V
FWD11-8N-D2GFP2-DC24VPort: 1/4 | Thread: NPT | Coil option: DIN box | Voltage: DC24V
FWD11-8N-D2GSFP2-AC100VPort: 1/4 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-8N-D2GSFP2-AC200VPort: 1/4 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-8N-D2GSFP2-DC24VPort: 1/4 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-8N-D2HFP2-AC100VPort: 1/4 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-8N-D2HFP2-AC200VPort: 1/4 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-8N-D2HFP2-DC24VPort: 1/4 | Thread: NPT | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-8N-D2HSFP2-AC100VPort: 1/4 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-8N-D2HSFP2-AC200VPort: 1/4 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-8N-D2HSFP2-DC24VPort: 1/4 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-10A-D2CFP2-AC100VPort: 3/8 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-10A-D2CFP2-AC200VPort: 3/8 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-10A-D2CFP2-DC24VPort: 3/8 | Thread: Rc | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-10A-D2CSFP2-AC100VPort: 3/8 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-10A-D2CSFP2-AC200VPort: 3/8 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-10A-D2CSFP2-DC24VPort: 3/8 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-10A-D2GFP2-AC100VPort: 3/8 | Thread: Rc | Coil option: DIN box | Voltage: AC100V
FWD11-10A-D2GFP2-AC200VPort: 3/8 | Thread: Rc | Coil option: DIN box | Voltage: AC200V
FWD11-10A-D2GFP2-DC24VPort: 3/8 | Thread: Rc | Coil option: DIN box | Voltage: DC24V
FWD11-10A-D2GSFP2-AC100VPort: 3/8 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-10A-D2GSFP2-AC200VPort: 3/8 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-10A-D2GSFP2-DC24VPort: 3/8 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-10A-D2HFP2-AC100VPort: 3/8 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-10A-D2HFP2-AC200VPort: 3/8 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-10A-D2HFP2-DC24VPort: 3/8 | Thread: Rc | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-10A-D2HSFP2-AC100VPort: 3/8 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-10A-D2HSFP2-AC200VPort: 3/8 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-10A-D2HSFP2-DC24VPort: 3/8 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-10G-D2CFP2-AC100VPort: 3/8 | Thread: G | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-10G-D2CFP2-AC200VPort: 3/8 | Thread: G | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-10G-D2CFP2-DC24VPort: 3/8 | Thread: G | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-10G-D2CSFP2-AC100VPort: 3/8 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-10G-D2CSFP2-AC200VPort: 3/8 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-10G-D2CSFP2-DC24VPort: 3/8 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-10G-D2GFP2-AC100VPort: 3/8 | Thread: G | Coil option: DIN box | Voltage: AC100V
FWD11-10G-D2GFP2-AC200VPort: 3/8 | Thread: G | Coil option: DIN box | Voltage: AC200V
FWD11-10G-D2GFP2-DC24VPort: 3/8 | Thread: G | Coil option: DIN box | Voltage: DC24V
FWD11-10G-D2GSFP2-AC100VPort: 3/8 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-10G-D2GSFP2-AC200VPort: 3/8 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-10G-D2GSFP2-DC24VPort: 3/8 | Thread: G | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-10G-D2HFP2-AC100VPort: 3/8 | Thread: G | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-10G-D2HFP2-AC200VPort: 3/8 | Thread: G | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-10G-D2HFP2-DC24VPort: 3/8 | Thread: G | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-10G-D2HSFP2-AC100VPort: 3/8 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-10G-D2HSFP2-AC200VPort: 3/8 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-10G-D2HSFP2-DC24VPort: 3/8 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-10N-D2CFP2-AC100VPort: 3/8 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-10N-D2CFP2-AC200VPort: 3/8 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-10N-D2CFP2-DC24VPort: 3/8 | Thread: NPT | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-10N-D2CSFP2-AC100VPort: 3/8 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-10N-D2CSFP2-AC200VPort: 3/8 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-10N-D2CSFP2-DC24VPort: 3/8 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-10N-D2GFP2-AC100VPort: 3/8 | Thread: NPT | Coil option: DIN box | Voltage: AC100V
FWD11-10N-D2GFP2-AC200VPort: 3/8 | Thread: NPT | Coil option: DIN box | Voltage: AC200V
FWD11-10N-D2GFP2-DC24VPort: 3/8 | Thread: NPT | Coil option: DIN box | Voltage: DC24V
FWD11-10N-D2GSFP2-AC100VPort: 3/8 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-10N-D2GSFP2-AC200VPort: 3/8 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-10N-D2GSFP2-DC24VPort: 3/8 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-10N-D2HFP2-AC100VPort: 3/8 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-10N-D2HFP2-AC200VPort: 3/8 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-10N-D2HFP2-DC24VPort: 3/8 | Thread: NPT | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-10N-D2HSFP2-AC100VPort: 3/8 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-10N-D2HSFP2-AC200VPort: 3/8 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-10N-D2HSFP2-DC24VPort: 3/8 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-15A-D2CFP2-AC100VPort: 1/2 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-15A-D2CFP2-AC200VPort: 1/2 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-15A-D2CFP2-DC24VPort: 1/2 | Thread: Rc | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-15A-D2CSFP2-AC100VPort: 1/2 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-15A-D2CSFP2-AC200VPort: 1/2 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-15A-D2CSFP2-DC24VPort: 1/2 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-15A-D2GFP2-AC100VPort: 1/2 | Thread: Rc | Coil option: DIN box | Voltage: AC100V
FWD11-15A-D2GFP2-AC200VPort: 1/2 | Thread: Rc | Coil option: DIN box | Voltage: AC200V
FWD11-15A-D2GFP2-DC24VPort: 1/2 | Thread: Rc | Coil option: DIN box | Voltage: DC24V
FWD11-15A-D2GSFP2-AC100VPort: 1/2 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-15A-D2GSFP2-AC200VPort: 1/2 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-15A-D2GSFP2-DC24VPort: 1/2 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-15A-D2HFP2-AC100VPort: 1/2 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-15A-D2HFP2-AC200VPort: 1/2 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-15A-D2HFP2-DC24VPort: 1/2 | Thread: Rc | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-15A-D2HSFP2-AC100VPort: 1/2 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-15A-D2HSFP2-AC200VPort: 1/2 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-15A-D2HSFP2-DC24VPort: 1/2 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-15G-D2CFP2-AC100VPort: 1/2 | Thread: G | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-15G-D2CFP2-AC200VPort: 1/2 | Thread: G | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-15G-D2CFP2-DC24VPort: 1/2 | Thread: G | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-15G-D2CSFP2-AC100VPort: 1/2 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-15G-D2CSFP2-AC200VPort: 1/2 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-15G-D2CSFP2-DC24VPort: 1/2 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-15G-D2GFP2-AC100VPort: 1/2 | Thread: G | Coil option: DIN box | Voltage: AC100V
FWD11-15G-D2GFP2-AC200VPort: 1/2 | Thread: G | Coil option: DIN box | Voltage: AC200V
FWD11-15G-D2GFP2-DC24VPort: 1/2 | Thread: G | Coil option: DIN box | Voltage: DC24V
FWD11-15G-D2GSFP2-AC100VPort: 1/2 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-15G-D2GSFP2-AC200VPort: 1/2 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-15G-D2GSFP2-DC24VPort: 1/2 | Thread: G | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-15G-D2HFP2-AC100VPort: 1/2 | Thread: G | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-15G-D2HFP2-AC200VPort: 1/2 | Thread: G | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-15G-D2HFP2-DC24VPort: 1/2 | Thread: G | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-15G-D2HSFP2-AC100VPort: 1/2 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-15G-D2HSFP2-AC200VPort: 1/2 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-15G-D2HSFP2-DC24VPort: 1/2 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-15N-D2CFP2-AC100VPort: 1/2 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-15N-D2CFP2-AC200VPort: 1/2 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-15N-D2CFP2-DC24VPort: 1/2 | Thread: NPT | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-15N-D2CSFP2-AC100VPort: 1/2 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-15N-D2CSFP2-AC200VPort: 1/2 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-15N-D2CSFP2-DC24VPort: 1/2 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-15N-D2GFP2-AC100VPort: 1/2 | Thread: NPT | Coil option: DIN box | Voltage: AC100V
FWD11-15N-D2GFP2-AC200VPort: 1/2 | Thread: NPT | Coil option: DIN box | Voltage: AC200V
FWD11-15N-D2GFP2-DC24VPort: 1/2 | Thread: NPT | Coil option: DIN box | Voltage: DC24V
FWD11-15N-D2GSFP2-AC100VPort: 1/2 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-15N-D2GSFP2-AC200VPort: 1/2 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-15N-D2GSFP2-DC24VPort: 1/2 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-15N-D2HFP2-AC100VPort: 1/2 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-15N-D2HFP2-AC200VPort: 1/2 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-15N-D2HFP2-DC24VPort: 1/2 | Thread: NPT | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-15N-D2HSFP2-AC100VPort: 1/2 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-15N-D2HSFP2-AC200VPort: 1/2 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-15N-D2HSFP2-DC24VPort: 1/2 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-20A-D2CFP2-AC100VPort: 3/4 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-20A-D2CFP2-AC200VPort: 3/4 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-20A-D2CFP2-DC24VPort: 3/4 | Thread: Rc | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-20A-D2CSFP2-AC100VPort: 3/4 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-20A-D2CSFP2-AC200VPort: 3/4 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-20A-D2CSFP2-DC24VPort: 3/4 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-20A-D2GFP2-AC100VPort: 3/4 | Thread: Rc | Coil option: DIN box | Voltage: AC100V
FWD11-20A-D2GFP2-AC200VPort: 3/4 | Thread: Rc | Coil option: DIN box | Voltage: AC200V
FWD11-20A-D2GFP2-DC24VPort: 3/4 | Thread: Rc | Coil option: DIN box | Voltage: DC24V
FWD11-20A-D2GSFP2-AC100VPort: 3/4 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-20A-D2GSFP2-AC200VPort: 3/4 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-20A-D2GSFP2-DC24VPort: 3/4 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-20A-D2HFP2-AC100VPort: 3/4 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-20A-D2HFP2-AC200VPort: 3/4 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-20A-D2HFP2-DC24VPort: 3/4 | Thread: Rc | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-20A-D2HSFP2-AC100VPort: 3/4 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-20A-D2HSFP2-AC200VPort: 3/4 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-20A-D2HSFP2-DC24VPort: 3/4 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-20G-D2CFP2-AC100VPort: 3/4 | Thread: G | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-20G-D2CFP2-AC200VPort: 3/4 | Thread: G | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-20G-D2CFP2-DC24VPort: 3/4 | Thread: G | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-20G-D2CSFP2-AC100VPort: 3/4 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-20G-D2CSFP2-AC200VPort: 3/4 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-20G-D2CSFP2-DC24VPort: 3/4 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-20G-D2GFP2-AC100VPort: 3/4 | Thread: G | Coil option: DIN box | Voltage: AC100V
FWD11-20G-D2GFP2-AC200VPort: 3/4 | Thread: G | Coil option: DIN box | Voltage: AC200V
FWD11-20G-D2GFP2-DC24VPort: 3/4 | Thread: G | Coil option: DIN box | Voltage: DC24V
FWD11-20G-D2GSFP2-AC100VPort: 3/4 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-20G-D2GSFP2-AC200VPort: 3/4 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-20G-D2GSFP2-DC24VPort: 3/4 | Thread: G | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-20G-D2HFP2-AC100VPort: 3/4 | Thread: G | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-20G-D2HFP2-AC200VPort: 3/4 | Thread: G | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-20G-D2HFP2-DC24VPort: 3/4 | Thread: G | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-20G-D2HSFP2-AC100VPort: 3/4 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-20G-D2HSFP2-AC200VPort: 3/4 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-20G-D2HSFP2-DC24VPort: 3/4 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-20N-D2CFP2-AC100VPort: 3/4 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-20N-D2CFP2-AC200VPort: 3/4 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-20N-D2CFP2-DC24VPort: 3/4 | Thread: NPT | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-20N-D2CSFP2-AC100VPort: 3/4 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-20N-D2CSFP2-AC200VPort: 3/4 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-20N-D2CSFP2-DC24VPort: 3/4 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-20N-D2GFP2-AC100VPort: 3/4 | Thread: NPT | Coil option: DIN box | Voltage: AC100V
FWD11-20N-D2GFP2-AC200VPort: 3/4 | Thread: NPT | Coil option: DIN box | Voltage: AC200V
FWD11-20N-D2GFP2-DC24VPort: 3/4 | Thread: NPT | Coil option: DIN box | Voltage: DC24V
FWD11-20N-D2GSFP2-AC100VPort: 3/4 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-20N-D2GSFP2-AC200VPort: 3/4 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-20N-D2GSFP2-DC24VPort: 3/4 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-20N-D2HFP2-AC100VPort: 3/4 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-20N-D2HFP2-AC200VPort: 3/4 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-20N-D2HFP2-DC24VPort: 3/4 | Thread: NPT | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-20N-D2HSFP2-AC100VPort: 3/4 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-20N-D2HSFP2-AC200VPort: 3/4 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-20N-D2HSFP2-DC24VPort: 3/4 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-25A-D2CFP2-AC100VPort: 1 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-25A-D2CFP2-AC200VPort: 1 | Thread: Rc | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-25A-D2CFP2-DC24VPort: 1 | Thread: Rc | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-25A-D2CSFP2-AC100VPort: 1 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-25A-D2CSFP2-AC200VPort: 1 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-25A-D2CSFP2-DC24VPort: 1 | Thread: Rc | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-25A-D2GFP2-AC100VPort: 1 | Thread: Rc | Coil option: DIN box | Voltage: AC100V
FWD11-25A-D2GFP2-AC200VPort: 1 | Thread: Rc | Coil option: DIN box | Voltage: AC200V
FWD11-25A-D2GFP2-DC24VPort: 1 | Thread: Rc | Coil option: DIN box | Voltage: DC24V
FWD11-25A-D2GSFP2-AC100VPort: 1 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-25A-D2GSFP2-AC200VPort: 1 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-25A-D2GSFP2-DC24VPort: 1 | Thread: Rc | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-25A-D2HFP2-AC100VPort: 1 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-25A-D2HFP2-AC200VPort: 1 | Thread: Rc | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-25A-D2HFP2-DC24VPort: 1 | Thread: Rc | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-25A-D2HSFP2-AC100VPort: 1 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-25A-D2HSFP2-AC200VPort: 1 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-25A-D2HSFP2-DC24VPort: 1 | Thread: Rc | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-25G-D2CFP2-AC100VPort: 1 | Thread: G | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-25G-D2CFP2-AC200VPort: 1 | Thread: G | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-25G-D2CFP2-DC24VPort: 1 | Thread: G | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-25G-D2CSFP2-AC100VPort: 1 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-25G-D2CSFP2-AC200VPort: 1 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-25G-D2CSFP2-DC24VPort: 1 | Thread: G | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-25G-D2GFP2-AC100VPort: 1 | Thread: G | Coil option: DIN box | Voltage: AC100V
FWD11-25G-D2GFP2-AC200VPort: 1 | Thread: G | Coil option: DIN box | Voltage: AC200V
FWD11-25G-D2GFP2-DC24VPort: 1 | Thread: G | Coil option: DIN box | Voltage: DC24V
FWD11-25G-D2GSFP2-AC100VPort: 1 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-25G-D2GSFP2-AC200VPort: 1 | Thread: G | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-25G-D2GSFP2-DC24VPort: 1 | Thread: G | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-25G-D2HFP2-AC100VPort: 1 | Thread: G | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-25G-D2HFP2-AC200VPort: 1 | Thread: G | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-25G-D2HFP2-DC24VPort: 1 | Thread: G | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-25G-D2HSFP2-AC100VPort: 1 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-25G-D2HSFP2-AC200VPort: 1 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-25G-D2HSFP2-DC24VPort: 1 | Thread: G | Coil option: DIN box, lamp, surge killer | Voltage: DC24V
FWD11-25N-D2CFP2-AC100VPort: 1 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC100V
FWD11-25N-D2CFP2-AC200VPort: 1 | Thread: NPT | Coil option: Grommet lead wire | Voltage: AC200V
FWD11-25N-D2CFP2-DC24VPort: 1 | Thread: NPT | Coil option: Grommet lead wire | Voltage: DC24V
FWD11-25N-D2CSFP2-AC100VPort: 1 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC100V
FWD11-25N-D2CSFP2-AC200VPort: 1 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: AC200V
FWD11-25N-D2CSFP2-DC24VPort: 1 | Thread: NPT | Coil option: Grommet lead, surge killer | Voltage: DC24V
FWD11-25N-D2GFP2-AC100VPort: 1 | Thread: NPT | Coil option: DIN box | Voltage: AC100V
FWD11-25N-D2GFP2-AC200VPort: 1 | Thread: NPT | Coil option: DIN box | Voltage: AC200V
FWD11-25N-D2GFP2-DC24VPort: 1 | Thread: NPT | Coil option: DIN box | Voltage: DC24V
FWD11-25N-D2GSFP2-AC100VPort: 1 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC100V
FWD11-25N-D2GSFP2-AC200VPort: 1 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: AC200V
FWD11-25N-D2GSFP2-DC24VPort: 1 | Thread: NPT | Coil option: DIN box, surge killer | Voltage: DC24V
FWD11-25N-D2HFP2-AC100VPort: 1 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC100V
FWD11-25N-D2HFP2-AC200VPort: 1 | Thread: NPT | Coil option: DIN box with lamp | Voltage: AC200V
FWD11-25N-D2HFP2-DC24VPort: 1 | Thread: NPT | Coil option: DIN box with lamp | Voltage: DC24V
FWD11-25N-D2HSFP2-AC100VPort: 1 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC100V
FWD11-25N-D2HSFP2-AC200VPort: 1 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: AC200V
FWD11-25N-D2HSFP2-DC24VPort: 1 | Thread: NPT | Coil option: DIN box, lamp, surge killer | Voltage: DC24V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
