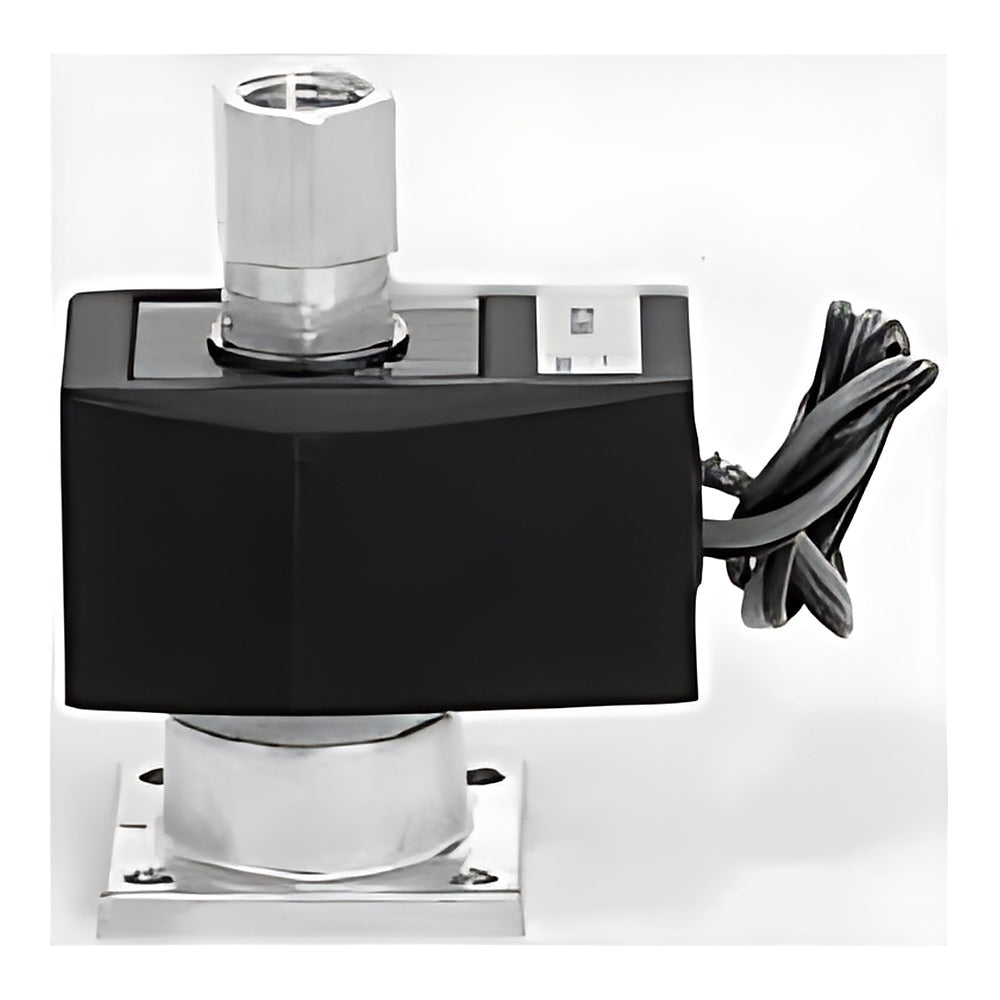

CKD GAG34*/GAG44*-Z MULTILEX Dry Air 3-Port Valve Actuator (NO)

CKD GAG34*/GAG44*-Z MULTILEX Dry Air 3-Port Valve Actuator (NO)

CKD MULTILEX GAG34*/GAG44*-Z NO-pressurized direct-acting 3-port solenoid valve actuators (single base) for dry air, inert gas and low vacuum.

Key features

  • NO-pressurized 3-port direct-acting valve on single base; actuator only (fixed symbol 0)
  • NO port Rc1/8-Rc3/8; G and NPT versions orderable
  • Brass or stainless body with NBR, FKM or EPDM seal, oil-free treated (NO valve seal FKM)
  • Coils: 3A open frame DC, 5A diode AC; HP terminal box versions also available
  • Options not multiplied: manual override (A), cable gland/conduit, surge killer (S)

Specifications

Fluid Dry air (dew point -60°C+), inert gas, low vacuum
Fluid temperature -10 to 45°C
Ambient temperature -10 to 45°C
Coil insulation Class B (130)
Valve seat leakage 0.2 cm3/min (ANR) max.
Mounting Any orientation
Operating pressure diff. 0-1 MPa (by orifice)
Max. working pressure 1.5 MPa
Proof pressure 10 MPa (water)
Source CKD Korea catalog CB-03-1SK-9, p. 426-429
GAG341-1-0-H3AZ-DC12V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-1-0-H3AZ-DC24V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-1-0-H3AZ-DC48V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-1-0-H3AZ-DC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-1-0-H5AZ-AC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-1-0-H5AZ-AC200V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-1-0-J3AZ-DC12V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-1-0-J3AZ-DC24V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-1-0-J3AZ-DC48V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-1-0-J3AZ-DC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-1-0-J5AZ-AC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-1-0-J5AZ-AC200V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-1-0-P3AZ-DC12V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-1-0-P3AZ-DC24V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-1-0-P3AZ-DC48V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-1-0-P3AZ-DC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-1-0-P5AZ-AC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-1-0-P5AZ-AC200V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-1-0-L3AZ-DC12V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-1-0-L3AZ-DC24V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-1-0-L3AZ-DC48V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-1-0-L3AZ-DC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-1-0-L5AZ-AC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-1-0-L5AZ-AC200V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-1-0-M3AZ-DC12V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-1-0-M3AZ-DC24V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-1-0-M3AZ-DC48V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-1-0-M3AZ-DC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-1-0-M5AZ-AC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-1-0-M5AZ-AC200V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-1-0-R3AZ-DC12V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-1-0-R3AZ-DC24V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-1-0-R3AZ-DC48V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-1-0-R3AZ-DC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-1-0-R5AZ-AC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-1-0-R5AZ-AC200V Model: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-2-0-H3AZ-DC12V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-2-0-H3AZ-DC24V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-2-0-H3AZ-DC48V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-2-0-H3AZ-DC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-2-0-H5AZ-AC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-2-0-H5AZ-AC200V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-2-0-J3AZ-DC12V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-2-0-J3AZ-DC24V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-2-0-J3AZ-DC48V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-2-0-J3AZ-DC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-2-0-J5AZ-AC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-2-0-J5AZ-AC200V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-2-0-P3AZ-DC12V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-2-0-P3AZ-DC24V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-2-0-P3AZ-DC48V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-2-0-P3AZ-DC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-2-0-P5AZ-AC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-2-0-P5AZ-AC200V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-2-0-L3AZ-DC12V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-2-0-L3AZ-DC24V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-2-0-L3AZ-DC48V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-2-0-L3AZ-DC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-2-0-L5AZ-AC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-2-0-L5AZ-AC200V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-2-0-M3AZ-DC12V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-2-0-M3AZ-DC24V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-2-0-M3AZ-DC48V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-2-0-M3AZ-DC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-2-0-M5AZ-AC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-2-0-M5AZ-AC200V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-2-0-R3AZ-DC12V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-2-0-R3AZ-DC24V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-2-0-R3AZ-DC48V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-2-0-R3AZ-DC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-2-0-R5AZ-AC100V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-2-0-R5AZ-AC200V Model: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-1-0-H3AZ-DC12V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-1-0-H3AZ-DC24V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-1-0-H3AZ-DC48V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-1-0-H3AZ-DC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-1-0-H5AZ-AC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-1-0-H5AZ-AC200V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-1-0-J3AZ-DC12V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-1-0-J3AZ-DC24V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-1-0-J3AZ-DC48V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-1-0-J3AZ-DC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-1-0-J5AZ-AC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-1-0-J5AZ-AC200V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-1-0-P3AZ-DC12V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-1-0-P3AZ-DC24V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-1-0-P3AZ-DC48V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-1-0-P3AZ-DC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-1-0-P5AZ-AC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-1-0-P5AZ-AC200V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-1-0-L3AZ-DC12V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-1-0-L3AZ-DC24V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-1-0-L3AZ-DC48V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-1-0-L3AZ-DC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-1-0-L5AZ-AC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-1-0-L5AZ-AC200V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-1-0-M3AZ-DC12V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-1-0-M3AZ-DC24V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-1-0-M3AZ-DC48V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-1-0-M3AZ-DC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-1-0-M5AZ-AC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-1-0-M5AZ-AC200V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-1-0-R3AZ-DC12V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-1-0-R3AZ-DC24V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-1-0-R3AZ-DC48V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-1-0-R3AZ-DC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-1-0-R5AZ-AC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-1-0-R5AZ-AC200V Model: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-2-0-H3AZ-DC12V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-2-0-H3AZ-DC24V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-2-0-H3AZ-DC48V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-2-0-H3AZ-DC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-2-0-H5AZ-AC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-2-0-H5AZ-AC200V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-2-0-J3AZ-DC12V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-2-0-J3AZ-DC24V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-2-0-J3AZ-DC48V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-2-0-J3AZ-DC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-2-0-J5AZ-AC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-2-0-J5AZ-AC200V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-2-0-P3AZ-DC12V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-2-0-P3AZ-DC24V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-2-0-P3AZ-DC48V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-2-0-P3AZ-DC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-2-0-P5AZ-AC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-2-0-P5AZ-AC200V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-2-0-L3AZ-DC12V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-2-0-L3AZ-DC24V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-2-0-L3AZ-DC48V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-2-0-L3AZ-DC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-2-0-L5AZ-AC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-2-0-L5AZ-AC200V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-2-0-M3AZ-DC12V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-2-0-M3AZ-DC24V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-2-0-M3AZ-DC48V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-2-0-M3AZ-DC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-2-0-M5AZ-AC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-2-0-M5AZ-AC200V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-2-0-R3AZ-DC12V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-2-0-R3AZ-DC24V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-2-0-R3AZ-DC48V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-2-0-R3AZ-DC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-2-0-R5AZ-AC100V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-2-0-R5AZ-AC200V Model: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-1-0-H3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-1-0-H3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-1-0-H3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-1-0-H3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-1-0-H5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-1-0-H5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-1-0-J3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-1-0-J3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-1-0-J3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-1-0-J3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-1-0-J5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-1-0-J5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-1-0-P3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-1-0-P3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-1-0-P3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-1-0-P3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-1-0-P5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-1-0-P5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-1-0-L3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-1-0-L3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-1-0-L3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-1-0-L3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-1-0-L5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-1-0-L5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-1-0-M3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-1-0-M3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-1-0-M3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-1-0-M3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-1-0-M5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-1-0-M5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-1-0-R3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-1-0-R3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-1-0-R3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-1-0-R3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-1-0-R5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-1-0-R5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-3-0-H3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-3-0-H3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-3-0-H3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-3-0-H3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-3-0-H5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-3-0-H5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-3-0-J3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-3-0-J3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-3-0-J3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-3-0-J3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-3-0-J5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-3-0-J5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-3-0-P3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-3-0-P3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-3-0-P3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-3-0-P3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-3-0-P5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-3-0-P5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-3-0-L3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-3-0-L3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-3-0-L3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-3-0-L3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-3-0-L5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-3-0-L5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-3-0-M3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-3-0-M3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-3-0-M3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-3-0-M3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-3-0-M5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-3-0-M5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-3-0-R3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-3-0-R3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-3-0-R3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-3-0-R3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-3-0-R5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-3-0-R5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-4-0-H3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-4-0-H3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-4-0-H3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-4-0-H3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-4-0-H5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-4-0-H5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-4-0-J3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-4-0-J3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-4-0-J3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-4-0-J3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-4-0-J5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-4-0-J5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-4-0-P3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-4-0-P3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-4-0-P3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-4-0-P3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-4-0-P5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-4-0-P5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-4-0-L3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-4-0-L3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-4-0-L3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-4-0-L3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-4-0-L5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-4-0-L5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-4-0-M3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-4-0-M3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-4-0-M3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-4-0-M3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-4-0-M5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-4-0-M5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-4-0-R3AZ-DC12V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-4-0-R3AZ-DC24V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-4-0-R3AZ-DC48V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-4-0-R3AZ-DC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-4-0-R5AZ-AC100V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-4-0-R5AZ-AC200V Model: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-1-0-H3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-1-0-H3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-1-0-H3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-1-0-H3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-1-0-H5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-1-0-H5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-1-0-J3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-1-0-J3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-1-0-J3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-1-0-J3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-1-0-J5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-1-0-J5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-1-0-P3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-1-0-P3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-1-0-P3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-1-0-P3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-1-0-P5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-1-0-P5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-1-0-L3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-1-0-L3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-1-0-L3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-1-0-L3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-1-0-L5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-1-0-L5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-1-0-M3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-1-0-M3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-1-0-M3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-1-0-M3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-1-0-M5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-1-0-M5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-1-0-R3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-1-0-R3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-1-0-R3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-1-0-R3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-1-0-R5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-1-0-R5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-3-0-H3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-3-0-H3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-3-0-H3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-3-0-H3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-3-0-H5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-3-0-H5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-3-0-J3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-3-0-J3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-3-0-J3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-3-0-J3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-3-0-J5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-3-0-J5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-3-0-P3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-3-0-P3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-3-0-P3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-3-0-P3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-3-0-P5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-3-0-P5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-3-0-L3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-3-0-L3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-3-0-L3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-3-0-L3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-3-0-L5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-3-0-L5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-3-0-M3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-3-0-M3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-3-0-M3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-3-0-M3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-3-0-M5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-3-0-M5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-3-0-R3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-3-0-R3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-3-0-R3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-3-0-R3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-3-0-R5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-3-0-R5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-4-0-H3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-4-0-H3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-4-0-H3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-4-0-H3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-4-0-H5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-4-0-H5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-4-0-J3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-4-0-J3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-4-0-J3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-4-0-J3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-4-0-J5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-4-0-J5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-4-0-P3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-4-0-P3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-4-0-P3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-4-0-P3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-4-0-P5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-4-0-P5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-4-0-L3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-4-0-L3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-4-0-L3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-4-0-L3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-4-0-L5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-4-0-L5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-4-0-M3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-4-0-M3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-4-0-M3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-4-0-M3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-4-0-M5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-4-0-M5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-4-0-R3AZ-DC12V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-4-0-R3AZ-DC24V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-4-0-R3AZ-DC48V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-4-0-R3AZ-DC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-4-0-R5AZ-AC100V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-4-0-R5AZ-AC200V Model: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
Solenoid ValvesCKD
360 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GAG34*/GAG44*-Z MULTILEX Dry Air 3-Port Valve Actuator (NO)

Brand CKD·Solenoid Valves

Available part numbers (360)

GAG341-1-0-H3AZ-DC12V, GAG341-1-0-H3AZ-DC24V, GAG341-1-0-H3AZ-DC48V, GAG341-1-0-H3AZ-DC100V, GAG341-1-0-H5AZ-AC100V, GAG341-1-0-H5AZ-AC200V, GAG341-1-0-J3AZ-DC12V, GAG341-1-0-J3AZ-DC24V, GAG341-1-0-J3AZ-DC48V, GAG341-1-0-J3AZ-DC100V + 350 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GAG341-1-0-H3AZ-DC12VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-1-0-H3AZ-DC24VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-1-0-H3AZ-DC48VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-1-0-H3AZ-DC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-1-0-H5AZ-AC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-1-0-H5AZ-AC200VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-1-0-J3AZ-DC12VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-1-0-J3AZ-DC24VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-1-0-J3AZ-DC48VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-1-0-J3AZ-DC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-1-0-J5AZ-AC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-1-0-J5AZ-AC200VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-1-0-P3AZ-DC12VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-1-0-P3AZ-DC24VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-1-0-P3AZ-DC48VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-1-0-P3AZ-DC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-1-0-P5AZ-AC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-1-0-P5AZ-AC200VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-1-0-L3AZ-DC12VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-1-0-L3AZ-DC24VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-1-0-L3AZ-DC48VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-1-0-L3AZ-DC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-1-0-L5AZ-AC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-1-0-L5AZ-AC200VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-1-0-M3AZ-DC12VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-1-0-M3AZ-DC24VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-1-0-M3AZ-DC48VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-1-0-M3AZ-DC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-1-0-M5AZ-AC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-1-0-M5AZ-AC200VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-1-0-R3AZ-DC12VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-1-0-R3AZ-DC24VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-1-0-R3AZ-DC48VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-1-0-R3AZ-DC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-1-0-R5AZ-AC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-1-0-R5AZ-AC200VModel: GAG34, NO port Rc1/8 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-2-0-H3AZ-DC12VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-2-0-H3AZ-DC24VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-2-0-H3AZ-DC48VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-2-0-H3AZ-DC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-2-0-H5AZ-AC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-2-0-H5AZ-AC200VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-2-0-J3AZ-DC12VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-2-0-J3AZ-DC24VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-2-0-J3AZ-DC48VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-2-0-J3AZ-DC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-2-0-J5AZ-AC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-2-0-J5AZ-AC200VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-2-0-P3AZ-DC12VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-2-0-P3AZ-DC24VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-2-0-P3AZ-DC48VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-2-0-P3AZ-DC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-2-0-P5AZ-AC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-2-0-P5AZ-AC200VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-2-0-L3AZ-DC12VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-2-0-L3AZ-DC24VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-2-0-L3AZ-DC48VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-2-0-L3AZ-DC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-2-0-L5AZ-AC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-2-0-L5AZ-AC200VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-2-0-M3AZ-DC12VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-2-0-M3AZ-DC24VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-2-0-M3AZ-DC48VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-2-0-M3AZ-DC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-2-0-M5AZ-AC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-2-0-M5AZ-AC200VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG341-2-0-R3AZ-DC12VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG341-2-0-R3AZ-DC24VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG341-2-0-R3AZ-DC48VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG341-2-0-R3AZ-DC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG341-2-0-R5AZ-AC100VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG341-2-0-R5AZ-AC200VModel: GAG34, NO port Rc1/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-1-0-H3AZ-DC12VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-1-0-H3AZ-DC24VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-1-0-H3AZ-DC48VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-1-0-H3AZ-DC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-1-0-H5AZ-AC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-1-0-H5AZ-AC200VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-1-0-J3AZ-DC12VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-1-0-J3AZ-DC24VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-1-0-J3AZ-DC48VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-1-0-J3AZ-DC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-1-0-J5AZ-AC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-1-0-J5AZ-AC200VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-1-0-P3AZ-DC12VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-1-0-P3AZ-DC24VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-1-0-P3AZ-DC48VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-1-0-P3AZ-DC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-1-0-P5AZ-AC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-1-0-P5AZ-AC200VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-1-0-L3AZ-DC12VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-1-0-L3AZ-DC24VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-1-0-L3AZ-DC48VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-1-0-L3AZ-DC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-1-0-L5AZ-AC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-1-0-L5AZ-AC200VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-1-0-M3AZ-DC12VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-1-0-M3AZ-DC24VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-1-0-M3AZ-DC48VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-1-0-M3AZ-DC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-1-0-M5AZ-AC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-1-0-M5AZ-AC200VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-1-0-R3AZ-DC12VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-1-0-R3AZ-DC24VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-1-0-R3AZ-DC48VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-1-0-R3AZ-DC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-1-0-R5AZ-AC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-1-0-R5AZ-AC200VModel: GAG34, NO port Rc1/4 | Orifice: TOP 1.5 / BODY 1.5 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-2-0-H3AZ-DC12VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-2-0-H3AZ-DC24VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-2-0-H3AZ-DC48VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-2-0-H3AZ-DC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-2-0-H5AZ-AC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-2-0-H5AZ-AC200VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-2-0-J3AZ-DC12VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-2-0-J3AZ-DC24VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-2-0-J3AZ-DC48VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-2-0-J3AZ-DC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-2-0-J5AZ-AC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-2-0-J5AZ-AC200VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-2-0-P3AZ-DC12VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-2-0-P3AZ-DC24VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-2-0-P3AZ-DC48VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-2-0-P3AZ-DC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-2-0-P5AZ-AC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-2-0-P5AZ-AC200VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-2-0-L3AZ-DC12VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-2-0-L3AZ-DC24VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-2-0-L3AZ-DC48VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-2-0-L3AZ-DC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-2-0-L5AZ-AC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-2-0-L5AZ-AC200VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-2-0-M3AZ-DC12VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-2-0-M3AZ-DC24VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-2-0-M3AZ-DC48VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-2-0-M3AZ-DC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-2-0-M5AZ-AC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-2-0-M5AZ-AC200VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG342-2-0-R3AZ-DC12VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG342-2-0-R3AZ-DC24VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG342-2-0-R3AZ-DC48VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG342-2-0-R3AZ-DC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG342-2-0-R5AZ-AC100VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG342-2-0-R5AZ-AC200VModel: GAG34, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-1-0-H3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-1-0-H3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-1-0-H3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-1-0-H3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-1-0-H5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-1-0-H5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-1-0-J3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-1-0-J3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-1-0-J3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-1-0-J3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-1-0-J5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-1-0-J5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-1-0-P3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-1-0-P3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-1-0-P3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-1-0-P3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-1-0-P5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-1-0-P5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-1-0-L3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-1-0-L3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-1-0-L3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-1-0-L3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-1-0-L5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-1-0-L5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-1-0-M3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-1-0-M3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-1-0-M3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-1-0-M3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-1-0-M5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-1-0-M5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-1-0-R3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-1-0-R3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-1-0-R3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-1-0-R3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-1-0-R5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-1-0-R5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-3-0-H3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-3-0-H3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-3-0-H3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-3-0-H3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-3-0-H5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-3-0-H5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-3-0-J3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-3-0-J3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-3-0-J3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-3-0-J3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-3-0-J5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-3-0-J5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-3-0-P3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-3-0-P3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-3-0-P3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-3-0-P3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-3-0-P5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-3-0-P5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-3-0-L3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-3-0-L3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-3-0-L3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-3-0-L3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-3-0-L5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-3-0-L5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-3-0-M3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-3-0-M3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-3-0-M3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-3-0-M3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-3-0-M5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-3-0-M5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-3-0-R3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-3-0-R3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-3-0-R3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-3-0-R3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-3-0-R5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-3-0-R5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-4-0-H3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-4-0-H3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-4-0-H3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-4-0-H3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-4-0-H5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-4-0-H5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-4-0-J3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-4-0-J3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-4-0-J3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-4-0-J3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-4-0-J5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-4-0-J5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-4-0-P3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-4-0-P3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-4-0-P3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-4-0-P3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-4-0-P5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-4-0-P5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-4-0-L3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-4-0-L3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-4-0-L3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-4-0-L3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-4-0-L5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-4-0-L5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-4-0-M3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-4-0-M3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-4-0-M3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-4-0-M3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-4-0-M5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-4-0-M5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG442-4-0-R3AZ-DC12VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG442-4-0-R3AZ-DC24VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG442-4-0-R3AZ-DC48VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG442-4-0-R3AZ-DC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG442-4-0-R5AZ-AC100VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG442-4-0-R5AZ-AC200VModel: GAG44, NO port Rc1/4 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-1-0-H3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-1-0-H3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-1-0-H3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-1-0-H3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-1-0-H5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-1-0-H5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-1-0-J3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-1-0-J3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-1-0-J3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-1-0-J3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-1-0-J5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-1-0-J5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-1-0-P3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-1-0-P3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-1-0-P3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-1-0-P3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-1-0-P5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-1-0-P5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-1-0-L3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-1-0-L3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-1-0-L3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-1-0-L3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-1-0-L5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-1-0-L5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-1-0-M3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-1-0-M3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-1-0-M3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-1-0-M3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-1-0-M5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-1-0-M5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-1-0-R3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-1-0-R3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-1-0-R3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-1-0-R3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-1-0-R5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-1-0-R5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 2.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-3-0-H3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-3-0-H3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-3-0-H3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-3-0-H3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-3-0-H5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-3-0-H5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-3-0-J3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-3-0-J3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-3-0-J3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-3-0-J3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-3-0-J5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-3-0-J5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-3-0-P3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-3-0-P3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-3-0-P3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-3-0-P3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-3-0-P5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-3-0-P5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-3-0-L3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-3-0-L3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-3-0-L3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-3-0-L3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-3-0-L5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-3-0-L5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-3-0-M3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-3-0-M3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-3-0-M3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-3-0-M3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-3-0-M5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-3-0-M5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-3-0-R3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-3-0-R3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-3-0-R3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-3-0-R3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-3-0-R5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-3-0-R5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 2.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-4-0-H3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-4-0-H3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-4-0-H3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-4-0-H3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-4-0-H5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-4-0-H5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-4-0-J3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-4-0-J3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-4-0-J3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-4-0-J3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-4-0-J5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-4-0-J5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-4-0-P3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-4-0-P3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-4-0-P3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-4-0-P3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-4-0-P5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-4-0-P5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Brass, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-4-0-L3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-4-0-L3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-4-0-L3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-4-0-L3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-4-0-L5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-4-0-L5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, NBR, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-4-0-M3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-4-0-M3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-4-0-M3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-4-0-M3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-4-0-M5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-4-0-M5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, FKM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V
GAG443-4-0-R3AZ-DC12VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC12V
GAG443-4-0-R3AZ-DC24VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC24V
GAG443-4-0-R3AZ-DC48VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC48V
GAG443-4-0-R3AZ-DC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead wire (DC) | Voltage: DC100V
GAG443-4-0-R5AZ-AC100VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC100V
GAG443-4-0-R5AZ-AC200VModel: GAG44, NO port Rc3/8 | Orifice: TOP 3.0 / BODY 3.0 mm | Body/seal: Stainless, EPDM, oil-free | Coil: Open frame lead, diode (AC) | Voltage: AC200V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
