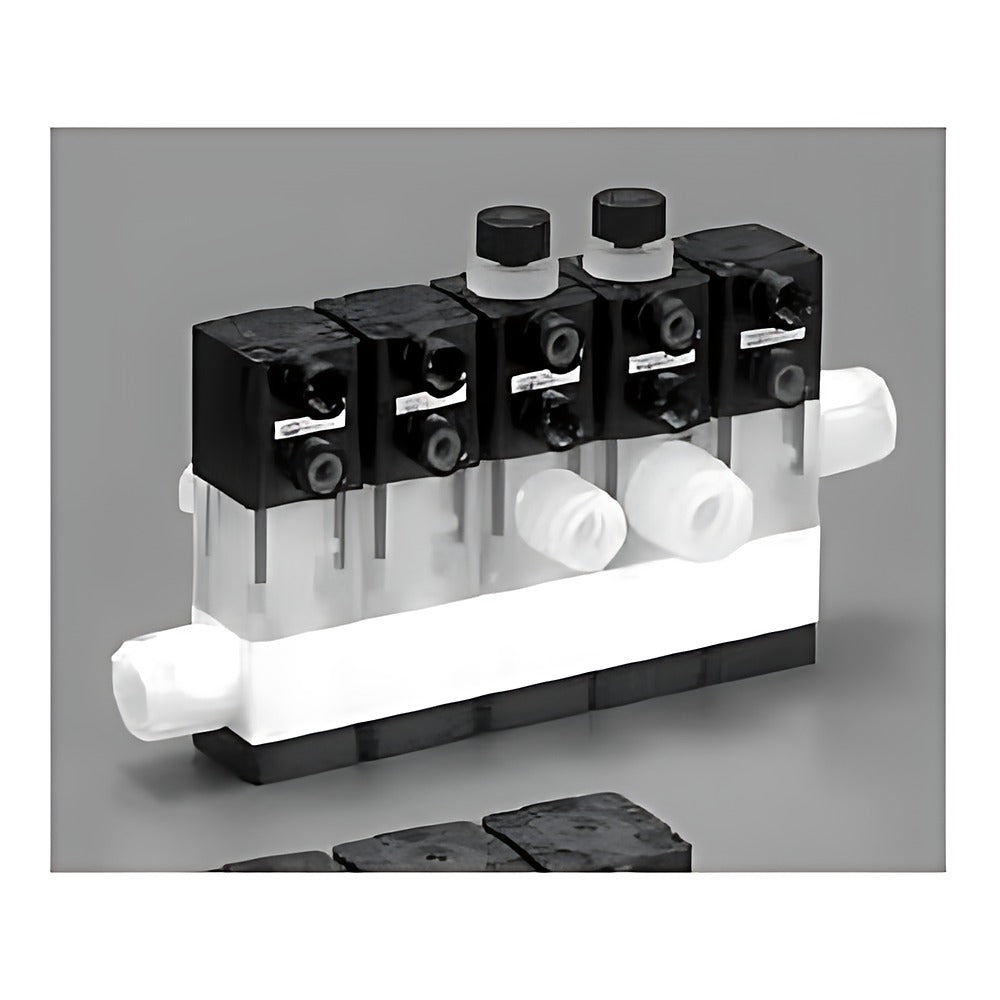

CKD GAMD0*2A Manifold Single Valves AMD0*2A and Base Bodies

CKD GAMD0*2A Manifold Single Valves AMD0*2A and Base Bodies

CKD AMD0*2A single valve blocks and GAMD012A-BB base bodies for building or servicing GAMD0*2A chemical split manifold valves.

Key features

  • AMD0*2A single valve block with B-port fitting; ordered only as a single valve
  • B-port fitting direction F/B/L/R (both-side valves use F or B)
  • GAMD012A-BB base body with A-port fitting, 2-5 stations, fitting side L/R/W; ordered only as a base body
  • NC, NO, double acting; ON-OFF or flow adjustment; standard or ammonia (M) fluid

Specifications

Fluid Chemicals, pure water, air, N2 gas
Fluid temperature 5-110 C (HF 5-40 C)
Proof pressure 1.0 MPa
Orifice 6 mm (Cv 0.40-0.6)
Operating air pressure NC/NO 0.4-0.5 MPa, double acting 0.3-0.4 MPa
Pilot port Rc1/8
Fittings Super 300 type Pillar P series
Source CKD Korea catalog CB-031K-15, p. 110-117
AMD012A-6UP-0-F Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Front (F)
AMD012A-6UP-0-B Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Back (B)
AMD012A-6UP-0-L Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Left (L)
AMD012A-6UP-0-R Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Right (R)
AMD012A-6UP-0M-F Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD012A-6UP-0M-B Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD012A-6UP-0M-L Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD012A-6UP-0M-R Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD012A-6UP-1-F Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Front (F)
AMD012A-6UP-1-B Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Back (B)
AMD012A-6UP-1-L Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Left (L)
AMD012A-6UP-1-R Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Right (R)
AMD012A-6UP-1M-F Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD012A-6UP-1M-B Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD012A-6UP-1M-L Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD012A-6UP-1M-R Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD012A-8UP-0-F Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Front (F)
AMD012A-8UP-0-B Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Back (B)
AMD012A-8UP-0-L Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Left (L)
AMD012A-8UP-0-R Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Right (R)
AMD012A-8UP-0M-F Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD012A-8UP-0M-B Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD012A-8UP-0M-L Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD012A-8UP-0M-R Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD012A-8UP-1-F Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Front (F)
AMD012A-8UP-1-B Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Back (B)
AMD012A-8UP-1-L Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Left (L)
AMD012A-8UP-1-R Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Right (R)
AMD012A-8UP-1M-F Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD012A-8UP-1M-B Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD012A-8UP-1M-L Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD012A-8UP-1M-R Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD012A-10UP-0-F Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Front (F)
AMD012A-10UP-0-B Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Back (B)
AMD012A-10UP-0-L Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Left (L)
AMD012A-10UP-0-R Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Right (R)
AMD012A-10UP-0M-F Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD012A-10UP-0M-B Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD012A-10UP-0M-L Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD012A-10UP-0M-R Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD012A-10UP-1-F Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Front (F)
AMD012A-10UP-1-B Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Back (B)
AMD012A-10UP-1-L Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Left (L)
AMD012A-10UP-1-R Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Right (R)
AMD012A-10UP-1M-F Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD012A-10UP-1M-B Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD012A-10UP-1M-L Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD012A-10UP-1M-R Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD012A-8BUP-0-F Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF | Direction: B fitting Front (F)
AMD012A-8BUP-0-B Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF | Direction: B fitting Back (B)
AMD012A-8BUP-0-L Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF | Direction: B fitting Left (L)
AMD012A-8BUP-0-R Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF | Direction: B fitting Right (R)
AMD012A-8BUP-0M-F Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD012A-8BUP-0M-B Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD012A-8BUP-0M-L Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD012A-8BUP-0M-R Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD012A-8BUP-1-F Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment | Direction: B fitting Front (F)
AMD012A-8BUP-1-B Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment | Direction: B fitting Back (B)
AMD012A-8BUP-1-L Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment | Direction: B fitting Left (L)
AMD012A-8BUP-1-R Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment | Direction: B fitting Right (R)
AMD012A-8BUP-1M-F Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD012A-8BUP-1M-B Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD012A-8BUP-1M-L Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD012A-8BUP-1M-R Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD012A-10BUP-0-F Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF | Direction: B fitting Front (F)
AMD012A-10BUP-0-B Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF | Direction: B fitting Back (B)
AMD012A-10BUP-0-L Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF | Direction: B fitting Left (L)
AMD012A-10BUP-0-R Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF | Direction: B fitting Right (R)
AMD012A-10BUP-0M-F Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD012A-10BUP-0M-B Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD012A-10BUP-0M-L Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD012A-10BUP-0M-R Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD012A-10BUP-1-F Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment | Direction: B fitting Front (F)
AMD012A-10BUP-1-B Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment | Direction: B fitting Back (B)
AMD012A-10BUP-1-L Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment | Direction: B fitting Left (L)
AMD012A-10BUP-1-R Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment | Direction: B fitting Right (R)
AMD012A-10BUP-1M-F Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD012A-10BUP-1M-B Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD012A-10BUP-1M-L Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD012A-10BUP-1M-R Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD022A-6UP-0-F Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Front (F)
AMD022A-6UP-0-B Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Back (B)
AMD022A-6UP-0-L Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Left (L)
AMD022A-6UP-0-R Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Right (R)
AMD022A-6UP-0M-F Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD022A-6UP-0M-B Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD022A-6UP-0M-L Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD022A-6UP-0M-R Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD022A-6UP-1-F Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Front (F)
AMD022A-6UP-1-B Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Back (B)
AMD022A-6UP-1-L Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Left (L)
AMD022A-6UP-1-R Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Right (R)
AMD022A-6UP-1M-F Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD022A-6UP-1M-B Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD022A-6UP-1M-L Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD022A-6UP-1M-R Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD022A-8UP-0-F Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Front (F)
AMD022A-8UP-0-B Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Back (B)
AMD022A-8UP-0-L Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Left (L)
AMD022A-8UP-0-R Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Right (R)
AMD022A-8UP-0M-F Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD022A-8UP-0M-B Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD022A-8UP-0M-L Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD022A-8UP-0M-R Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD022A-8UP-1-F Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Front (F)
AMD022A-8UP-1-B Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Back (B)
AMD022A-8UP-1-L Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Left (L)
AMD022A-8UP-1-R Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Right (R)
AMD022A-8UP-1M-F Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD022A-8UP-1M-B Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD022A-8UP-1M-L Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD022A-8UP-1M-R Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD022A-10UP-0-F Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Front (F)
AMD022A-10UP-0-B Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Back (B)
AMD022A-10UP-0-L Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Left (L)
AMD022A-10UP-0-R Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Right (R)
AMD022A-10UP-0M-F Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD022A-10UP-0M-B Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD022A-10UP-0M-L Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD022A-10UP-0M-R Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD022A-10UP-1-F Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Front (F)
AMD022A-10UP-1-B Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Back (B)
AMD022A-10UP-1-L Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Left (L)
AMD022A-10UP-1-R Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Right (R)
AMD022A-10UP-1M-F Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD022A-10UP-1M-B Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD022A-10UP-1M-L Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD022A-10UP-1M-R Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD022A-8BUP-0-F Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF | Direction: B fitting Front (F)
AMD022A-8BUP-0-B Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF | Direction: B fitting Back (B)
AMD022A-8BUP-0-L Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF | Direction: B fitting Left (L)
AMD022A-8BUP-0-R Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF | Direction: B fitting Right (R)
AMD022A-8BUP-0M-F Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD022A-8BUP-0M-B Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD022A-8BUP-0M-L Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD022A-8BUP-0M-R Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD022A-8BUP-1-F Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment | Direction: B fitting Front (F)
AMD022A-8BUP-1-B Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment | Direction: B fitting Back (B)
AMD022A-8BUP-1-L Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment | Direction: B fitting Left (L)
AMD022A-8BUP-1-R Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment | Direction: B fitting Right (R)
AMD022A-8BUP-1M-F Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD022A-8BUP-1M-B Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD022A-8BUP-1M-L Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD022A-8BUP-1M-R Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD022A-10BUP-0-F Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF | Direction: B fitting Front (F)
AMD022A-10BUP-0-B Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF | Direction: B fitting Back (B)
AMD022A-10BUP-0-L Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF | Direction: B fitting Left (L)
AMD022A-10BUP-0-R Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF | Direction: B fitting Right (R)
AMD022A-10BUP-0M-F Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD022A-10BUP-0M-B Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD022A-10BUP-0M-L Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD022A-10BUP-0M-R Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD022A-10BUP-1-F Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment | Direction: B fitting Front (F)
AMD022A-10BUP-1-B Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment | Direction: B fitting Back (B)
AMD022A-10BUP-1-L Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment | Direction: B fitting Left (L)
AMD022A-10BUP-1-R Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment | Direction: B fitting Right (R)
AMD022A-10BUP-1M-F Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD022A-10BUP-1M-B Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD022A-10BUP-1M-L Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD022A-10BUP-1M-R Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD032A-6UP-0-F Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Front (F)
AMD032A-6UP-0-B Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Back (B)
AMD032A-6UP-0-L Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Left (L)
AMD032A-6UP-0-R Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Right (R)
AMD032A-6UP-0M-F Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD032A-6UP-0M-B Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD032A-6UP-0M-L Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD032A-6UP-0M-R Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD032A-6UP-1-F Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Front (F)
AMD032A-6UP-1-B Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Back (B)
AMD032A-6UP-1-L Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Left (L)
AMD032A-6UP-1-R Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Right (R)
AMD032A-6UP-1M-F Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD032A-6UP-1M-B Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD032A-6UP-1M-L Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD032A-6UP-1M-R Item: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD032A-8UP-0-F Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Front (F)
AMD032A-8UP-0-B Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Back (B)
AMD032A-8UP-0-L Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Left (L)
AMD032A-8UP-0-R Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Right (R)
AMD032A-8UP-0M-F Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD032A-8UP-0M-B Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD032A-8UP-0M-L Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD032A-8UP-0M-R Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD032A-8UP-1-F Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Front (F)
AMD032A-8UP-1-B Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Back (B)
AMD032A-8UP-1-L Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Left (L)
AMD032A-8UP-1-R Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Right (R)
AMD032A-8UP-1M-F Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD032A-8UP-1M-B Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD032A-8UP-1M-L Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD032A-8UP-1M-R Item: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD032A-10UP-0-F Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Front (F)
AMD032A-10UP-0-B Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Back (B)
AMD032A-10UP-0-L Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Left (L)
AMD032A-10UP-0-R Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Right (R)
AMD032A-10UP-0M-F Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD032A-10UP-0M-B Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD032A-10UP-0M-L Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD032A-10UP-0M-R Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD032A-10UP-1-F Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Front (F)
AMD032A-10UP-1-B Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Back (B)
AMD032A-10UP-1-L Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Left (L)
AMD032A-10UP-1-R Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Right (R)
AMD032A-10UP-1M-F Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD032A-10UP-1M-B Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD032A-10UP-1M-L Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD032A-10UP-1M-R Item: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD032A-8BUP-0-F Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Front (F)
AMD032A-8BUP-0-B Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Back (B)
AMD032A-8BUP-0-L Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Left (L)
AMD032A-8BUP-0-R Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Right (R)
AMD032A-8BUP-0M-F Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD032A-8BUP-0M-B Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD032A-8BUP-0M-L Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD032A-8BUP-0M-R Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD032A-8BUP-1-F Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Front (F)
AMD032A-8BUP-1-B Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Back (B)
AMD032A-8BUP-1-L Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Left (L)
AMD032A-8BUP-1-R Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Right (R)
AMD032A-8BUP-1M-F Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD032A-8BUP-1M-B Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD032A-8BUP-1M-L Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD032A-8BUP-1M-R Item: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD032A-10BUP-0-F Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Front (F)
AMD032A-10BUP-0-B Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Back (B)
AMD032A-10BUP-0-L Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Left (L)
AMD032A-10BUP-0-R Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Right (R)
AMD032A-10BUP-0M-F Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD032A-10BUP-0M-B Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD032A-10BUP-0M-L Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD032A-10BUP-0M-R Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD032A-10BUP-1-F Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Front (F)
AMD032A-10BUP-1-B Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Back (B)
AMD032A-10BUP-1-L Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Left (L)
AMD032A-10BUP-1-R Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Right (R)
AMD032A-10BUP-1M-F Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD032A-10BUP-1M-B Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD032A-10BUP-1M-L Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD032A-10BUP-1M-R Item: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Right (R)
GAMD012A-BB-6UP-2L Item: GAMD012A base body | Port: OD 6 mm tube | Configuration: 2 stations | Direction: A fitting left
GAMD012A-BB-6UP-2R Item: GAMD012A base body | Port: OD 6 mm tube | Configuration: 2 stations | Direction: A fitting right
GAMD012A-BB-6UP-2W Item: GAMD012A base body | Port: OD 6 mm tube | Configuration: 2 stations | Direction: A fitting both sides
GAMD012A-BB-6UP-3L Item: GAMD012A base body | Port: OD 6 mm tube | Configuration: 3 stations | Direction: A fitting left
GAMD012A-BB-6UP-3R Item: GAMD012A base body | Port: OD 6 mm tube | Configuration: 3 stations | Direction: A fitting right
GAMD012A-BB-6UP-3W Item: GAMD012A base body | Port: OD 6 mm tube | Configuration: 3 stations | Direction: A fitting both sides
GAMD012A-BB-6UP-4L Item: GAMD012A base body | Port: OD 6 mm tube | Configuration: 4 stations | Direction: A fitting left
GAMD012A-BB-6UP-4R Item: GAMD012A base body | Port: OD 6 mm tube | Configuration: 4 stations | Direction: A fitting right
GAMD012A-BB-6UP-4W Item: GAMD012A base body | Port: OD 6 mm tube | Configuration: 4 stations | Direction: A fitting both sides
GAMD012A-BB-6UP-5L Item: GAMD012A base body | Port: OD 6 mm tube | Configuration: 5 stations | Direction: A fitting left
GAMD012A-BB-6UP-5R Item: GAMD012A base body | Port: OD 6 mm tube | Configuration: 5 stations | Direction: A fitting right
GAMD012A-BB-6UP-5W Item: GAMD012A base body | Port: OD 6 mm tube | Configuration: 5 stations | Direction: A fitting both sides
GAMD012A-BB-8UP-2L Item: GAMD012A base body | Port: OD 8 mm tube | Configuration: 2 stations | Direction: A fitting left
GAMD012A-BB-8UP-2R Item: GAMD012A base body | Port: OD 8 mm tube | Configuration: 2 stations | Direction: A fitting right
GAMD012A-BB-8UP-2W Item: GAMD012A base body | Port: OD 8 mm tube | Configuration: 2 stations | Direction: A fitting both sides
GAMD012A-BB-8UP-3L Item: GAMD012A base body | Port: OD 8 mm tube | Configuration: 3 stations | Direction: A fitting left
GAMD012A-BB-8UP-3R Item: GAMD012A base body | Port: OD 8 mm tube | Configuration: 3 stations | Direction: A fitting right
GAMD012A-BB-8UP-3W Item: GAMD012A base body | Port: OD 8 mm tube | Configuration: 3 stations | Direction: A fitting both sides
GAMD012A-BB-8UP-4L Item: GAMD012A base body | Port: OD 8 mm tube | Configuration: 4 stations | Direction: A fitting left
GAMD012A-BB-8UP-4R Item: GAMD012A base body | Port: OD 8 mm tube | Configuration: 4 stations | Direction: A fitting right
GAMD012A-BB-8UP-4W Item: GAMD012A base body | Port: OD 8 mm tube | Configuration: 4 stations | Direction: A fitting both sides
GAMD012A-BB-8UP-5L Item: GAMD012A base body | Port: OD 8 mm tube | Configuration: 5 stations | Direction: A fitting left
GAMD012A-BB-8UP-5R Item: GAMD012A base body | Port: OD 8 mm tube | Configuration: 5 stations | Direction: A fitting right
GAMD012A-BB-8UP-5W Item: GAMD012A base body | Port: OD 8 mm tube | Configuration: 5 stations | Direction: A fitting both sides
GAMD012A-BB-10UP-2L Item: GAMD012A base body | Port: OD 10 mm tube | Configuration: 2 stations | Direction: A fitting left
GAMD012A-BB-10UP-2R Item: GAMD012A base body | Port: OD 10 mm tube | Configuration: 2 stations | Direction: A fitting right
GAMD012A-BB-10UP-2W Item: GAMD012A base body | Port: OD 10 mm tube | Configuration: 2 stations | Direction: A fitting both sides
GAMD012A-BB-10UP-3L Item: GAMD012A base body | Port: OD 10 mm tube | Configuration: 3 stations | Direction: A fitting left
GAMD012A-BB-10UP-3R Item: GAMD012A base body | Port: OD 10 mm tube | Configuration: 3 stations | Direction: A fitting right
GAMD012A-BB-10UP-3W Item: GAMD012A base body | Port: OD 10 mm tube | Configuration: 3 stations | Direction: A fitting both sides
GAMD012A-BB-10UP-4L Item: GAMD012A base body | Port: OD 10 mm tube | Configuration: 4 stations | Direction: A fitting left
GAMD012A-BB-10UP-4R Item: GAMD012A base body | Port: OD 10 mm tube | Configuration: 4 stations | Direction: A fitting right
GAMD012A-BB-10UP-4W Item: GAMD012A base body | Port: OD 10 mm tube | Configuration: 4 stations | Direction: A fitting both sides
GAMD012A-BB-10UP-5L Item: GAMD012A base body | Port: OD 10 mm tube | Configuration: 5 stations | Direction: A fitting left
GAMD012A-BB-10UP-5R Item: GAMD012A base body | Port: OD 10 mm tube | Configuration: 5 stations | Direction: A fitting right
GAMD012A-BB-10UP-5W Item: GAMD012A base body | Port: OD 10 mm tube | Configuration: 5 stations | Direction: A fitting both sides
GAMD012A-BB-12UP-2L Item: GAMD012A base body | Port: OD 12 mm tube | Configuration: 2 stations | Direction: A fitting left
GAMD012A-BB-12UP-2R Item: GAMD012A base body | Port: OD 12 mm tube | Configuration: 2 stations | Direction: A fitting right
GAMD012A-BB-12UP-2W Item: GAMD012A base body | Port: OD 12 mm tube | Configuration: 2 stations | Direction: A fitting both sides
GAMD012A-BB-12UP-3L Item: GAMD012A base body | Port: OD 12 mm tube | Configuration: 3 stations | Direction: A fitting left
GAMD012A-BB-12UP-3R Item: GAMD012A base body | Port: OD 12 mm tube | Configuration: 3 stations | Direction: A fitting right
GAMD012A-BB-12UP-3W Item: GAMD012A base body | Port: OD 12 mm tube | Configuration: 3 stations | Direction: A fitting both sides
GAMD012A-BB-12UP-4L Item: GAMD012A base body | Port: OD 12 mm tube | Configuration: 4 stations | Direction: A fitting left
GAMD012A-BB-12UP-4R Item: GAMD012A base body | Port: OD 12 mm tube | Configuration: 4 stations | Direction: A fitting right
GAMD012A-BB-12UP-4W Item: GAMD012A base body | Port: OD 12 mm tube | Configuration: 4 stations | Direction: A fitting both sides
GAMD012A-BB-12UP-5L Item: GAMD012A base body | Port: OD 12 mm tube | Configuration: 5 stations | Direction: A fitting left
GAMD012A-BB-12UP-5R Item: GAMD012A base body | Port: OD 12 mm tube | Configuration: 5 stations | Direction: A fitting right
GAMD012A-BB-12UP-5W Item: GAMD012A base body | Port: OD 12 mm tube | Configuration: 5 stations | Direction: A fitting both sides
GAMD012A-BB-8BUP-2L Item: GAMD012A base body | Port: OD 1/4" tube | Configuration: 2 stations | Direction: A fitting left
GAMD012A-BB-8BUP-2R Item: GAMD012A base body | Port: OD 1/4" tube | Configuration: 2 stations | Direction: A fitting right
GAMD012A-BB-8BUP-2W Item: GAMD012A base body | Port: OD 1/4" tube | Configuration: 2 stations | Direction: A fitting both sides
GAMD012A-BB-8BUP-3L Item: GAMD012A base body | Port: OD 1/4" tube | Configuration: 3 stations | Direction: A fitting left
GAMD012A-BB-8BUP-3R Item: GAMD012A base body | Port: OD 1/4" tube | Configuration: 3 stations | Direction: A fitting right
GAMD012A-BB-8BUP-3W Item: GAMD012A base body | Port: OD 1/4" tube | Configuration: 3 stations | Direction: A fitting both sides
GAMD012A-BB-8BUP-4L Item: GAMD012A base body | Port: OD 1/4" tube | Configuration: 4 stations | Direction: A fitting left
GAMD012A-BB-8BUP-4R Item: GAMD012A base body | Port: OD 1/4" tube | Configuration: 4 stations | Direction: A fitting right
GAMD012A-BB-8BUP-4W Item: GAMD012A base body | Port: OD 1/4" tube | Configuration: 4 stations | Direction: A fitting both sides
GAMD012A-BB-8BUP-5L Item: GAMD012A base body | Port: OD 1/4" tube | Configuration: 5 stations | Direction: A fitting left
GAMD012A-BB-8BUP-5R Item: GAMD012A base body | Port: OD 1/4" tube | Configuration: 5 stations | Direction: A fitting right
GAMD012A-BB-8BUP-5W Item: GAMD012A base body | Port: OD 1/4" tube | Configuration: 5 stations | Direction: A fitting both sides
GAMD012A-BB-10BUP-2L Item: GAMD012A base body | Port: OD 3/8" tube | Configuration: 2 stations | Direction: A fitting left
GAMD012A-BB-10BUP-2R Item: GAMD012A base body | Port: OD 3/8" tube | Configuration: 2 stations | Direction: A fitting right
GAMD012A-BB-10BUP-2W Item: GAMD012A base body | Port: OD 3/8" tube | Configuration: 2 stations | Direction: A fitting both sides
GAMD012A-BB-10BUP-3L Item: GAMD012A base body | Port: OD 3/8" tube | Configuration: 3 stations | Direction: A fitting left
GAMD012A-BB-10BUP-3R Item: GAMD012A base body | Port: OD 3/8" tube | Configuration: 3 stations | Direction: A fitting right
GAMD012A-BB-10BUP-3W Item: GAMD012A base body | Port: OD 3/8" tube | Configuration: 3 stations | Direction: A fitting both sides
GAMD012A-BB-10BUP-4L Item: GAMD012A base body | Port: OD 3/8" tube | Configuration: 4 stations | Direction: A fitting left
GAMD012A-BB-10BUP-4R Item: GAMD012A base body | Port: OD 3/8" tube | Configuration: 4 stations | Direction: A fitting right
GAMD012A-BB-10BUP-4W Item: GAMD012A base body | Port: OD 3/8" tube | Configuration: 4 stations | Direction: A fitting both sides
GAMD012A-BB-10BUP-5L Item: GAMD012A base body | Port: OD 3/8" tube | Configuration: 5 stations | Direction: A fitting left
GAMD012A-BB-10BUP-5R Item: GAMD012A base body | Port: OD 3/8" tube | Configuration: 5 stations | Direction: A fitting right
GAMD012A-BB-10BUP-5W Item: GAMD012A base body | Port: OD 3/8" tube | Configuration: 5 stations | Direction: A fitting both sides
GAMD012A-BB-15BUP-2L Item: GAMD012A base body | Port: OD 1/2" tube | Configuration: 2 stations | Direction: A fitting left
GAMD012A-BB-15BUP-2R Item: GAMD012A base body | Port: OD 1/2" tube | Configuration: 2 stations | Direction: A fitting right
GAMD012A-BB-15BUP-2W Item: GAMD012A base body | Port: OD 1/2" tube | Configuration: 2 stations | Direction: A fitting both sides
GAMD012A-BB-15BUP-3L Item: GAMD012A base body | Port: OD 1/2" tube | Configuration: 3 stations | Direction: A fitting left
GAMD012A-BB-15BUP-3R Item: GAMD012A base body | Port: OD 1/2" tube | Configuration: 3 stations | Direction: A fitting right
GAMD012A-BB-15BUP-3W Item: GAMD012A base body | Port: OD 1/2" tube | Configuration: 3 stations | Direction: A fitting both sides
GAMD012A-BB-15BUP-4L Item: GAMD012A base body | Port: OD 1/2" tube | Configuration: 4 stations | Direction: A fitting left
GAMD012A-BB-15BUP-4R Item: GAMD012A base body | Port: OD 1/2" tube | Configuration: 4 stations | Direction: A fitting right
GAMD012A-BB-15BUP-4W Item: GAMD012A base body | Port: OD 1/2" tube | Configuration: 4 stations | Direction: A fitting both sides
GAMD012A-BB-15BUP-5L Item: GAMD012A base body | Port: OD 1/2" tube | Configuration: 5 stations | Direction: A fitting left
GAMD012A-BB-15BUP-5R Item: GAMD012A base body | Port: OD 1/2" tube | Configuration: 5 stations | Direction: A fitting right
GAMD012A-BB-15BUP-5W Item: GAMD012A base body | Port: OD 1/2" tube | Configuration: 5 stations | Direction: A fitting both sides
Air Operated ValvesCKD
324 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GAMD0*2A Manifold Single Valves AMD0*2A and Base Bodies

Brand CKD·Air Operated Valves

Available part numbers (324)

AMD012A-6UP-0-F, AMD012A-6UP-0-B, AMD012A-6UP-0-L, AMD012A-6UP-0-R, AMD012A-6UP-0M-F, AMD012A-6UP-0M-B, AMD012A-6UP-0M-L, AMD012A-6UP-0M-R, AMD012A-6UP-1-F, AMD012A-6UP-1-B + 314 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AMD012A-6UP-0-FItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Front (F)
AMD012A-6UP-0-BItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Back (B)
AMD012A-6UP-0-LItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Left (L)
AMD012A-6UP-0-RItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Right (R)
AMD012A-6UP-0M-FItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD012A-6UP-0M-BItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD012A-6UP-0M-LItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD012A-6UP-0M-RItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD012A-6UP-1-FItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Front (F)
AMD012A-6UP-1-BItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Back (B)
AMD012A-6UP-1-LItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Left (L)
AMD012A-6UP-1-RItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Right (R)
AMD012A-6UP-1M-FItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD012A-6UP-1M-BItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD012A-6UP-1M-LItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD012A-6UP-1M-RItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD012A-8UP-0-FItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Front (F)
AMD012A-8UP-0-BItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Back (B)
AMD012A-8UP-0-LItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Left (L)
AMD012A-8UP-0-RItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Right (R)
AMD012A-8UP-0M-FItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD012A-8UP-0M-BItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD012A-8UP-0M-LItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD012A-8UP-0M-RItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD012A-8UP-1-FItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Front (F)
AMD012A-8UP-1-BItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Back (B)
AMD012A-8UP-1-LItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Left (L)
AMD012A-8UP-1-RItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Right (R)
AMD012A-8UP-1M-FItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD012A-8UP-1M-BItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD012A-8UP-1M-LItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD012A-8UP-1M-RItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD012A-10UP-0-FItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Front (F)
AMD012A-10UP-0-BItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Back (B)
AMD012A-10UP-0-LItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Left (L)
AMD012A-10UP-0-RItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF | Direction: B fitting Right (R)
AMD012A-10UP-0M-FItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD012A-10UP-0M-BItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD012A-10UP-0M-LItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD012A-10UP-0M-RItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD012A-10UP-1-FItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Front (F)
AMD012A-10UP-1-BItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Back (B)
AMD012A-10UP-1-LItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Left (L)
AMD012A-10UP-1-RItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment | Direction: B fitting Right (R)
AMD012A-10UP-1M-FItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD012A-10UP-1M-BItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD012A-10UP-1M-LItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD012A-10UP-1M-RItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD012A-8BUP-0-FItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF | Direction: B fitting Front (F)
AMD012A-8BUP-0-BItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF | Direction: B fitting Back (B)
AMD012A-8BUP-0-LItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF | Direction: B fitting Left (L)
AMD012A-8BUP-0-RItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF | Direction: B fitting Right (R)
AMD012A-8BUP-0M-FItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD012A-8BUP-0M-BItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD012A-8BUP-0M-LItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD012A-8BUP-0M-RItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD012A-8BUP-1-FItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment | Direction: B fitting Front (F)
AMD012A-8BUP-1-BItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment | Direction: B fitting Back (B)
AMD012A-8BUP-1-LItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment | Direction: B fitting Left (L)
AMD012A-8BUP-1-RItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment | Direction: B fitting Right (R)
AMD012A-8BUP-1M-FItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD012A-8BUP-1M-BItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD012A-8BUP-1M-LItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD012A-8BUP-1M-RItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD012A-10BUP-0-FItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF | Direction: B fitting Front (F)
AMD012A-10BUP-0-BItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF | Direction: B fitting Back (B)
AMD012A-10BUP-0-LItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF | Direction: B fitting Left (L)
AMD012A-10BUP-0-RItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF | Direction: B fitting Right (R)
AMD012A-10BUP-0M-FItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD012A-10BUP-0M-BItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD012A-10BUP-0M-LItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD012A-10BUP-0M-RItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD012A-10BUP-1-FItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment | Direction: B fitting Front (F)
AMD012A-10BUP-1-BItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment | Direction: B fitting Back (B)
AMD012A-10BUP-1-LItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment | Direction: B fitting Left (L)
AMD012A-10BUP-1-RItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment | Direction: B fitting Right (R)
AMD012A-10BUP-1M-FItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD012A-10BUP-1M-BItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD012A-10BUP-1M-LItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD012A-10BUP-1M-RItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NC, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD022A-6UP-0-FItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Front (F)
AMD022A-6UP-0-BItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Back (B)
AMD022A-6UP-0-LItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Left (L)
AMD022A-6UP-0-RItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Right (R)
AMD022A-6UP-0M-FItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD022A-6UP-0M-BItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD022A-6UP-0M-LItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD022A-6UP-0M-RItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD022A-6UP-1-FItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Front (F)
AMD022A-6UP-1-BItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Back (B)
AMD022A-6UP-1-LItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Left (L)
AMD022A-6UP-1-RItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Right (R)
AMD022A-6UP-1M-FItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD022A-6UP-1M-BItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD022A-6UP-1M-LItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD022A-6UP-1M-RItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD022A-8UP-0-FItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Front (F)
AMD022A-8UP-0-BItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Back (B)
AMD022A-8UP-0-LItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Left (L)
AMD022A-8UP-0-RItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Right (R)
AMD022A-8UP-0M-FItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD022A-8UP-0M-BItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD022A-8UP-0M-LItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD022A-8UP-0M-RItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD022A-8UP-1-FItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Front (F)
AMD022A-8UP-1-BItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Back (B)
AMD022A-8UP-1-LItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Left (L)
AMD022A-8UP-1-RItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Right (R)
AMD022A-8UP-1M-FItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD022A-8UP-1M-BItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD022A-8UP-1M-LItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD022A-8UP-1M-RItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD022A-10UP-0-FItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Front (F)
AMD022A-10UP-0-BItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Back (B)
AMD022A-10UP-0-LItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Left (L)
AMD022A-10UP-0-RItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF | Direction: B fitting Right (R)
AMD022A-10UP-0M-FItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD022A-10UP-0M-BItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD022A-10UP-0M-LItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD022A-10UP-0M-RItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD022A-10UP-1-FItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Front (F)
AMD022A-10UP-1-BItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Back (B)
AMD022A-10UP-1-LItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Left (L)
AMD022A-10UP-1-RItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment | Direction: B fitting Right (R)
AMD022A-10UP-1M-FItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD022A-10UP-1M-BItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD022A-10UP-1M-LItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD022A-10UP-1M-RItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD022A-8BUP-0-FItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF | Direction: B fitting Front (F)
AMD022A-8BUP-0-BItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF | Direction: B fitting Back (B)
AMD022A-8BUP-0-LItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF | Direction: B fitting Left (L)
AMD022A-8BUP-0-RItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF | Direction: B fitting Right (R)
AMD022A-8BUP-0M-FItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD022A-8BUP-0M-BItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD022A-8BUP-0M-LItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD022A-8BUP-0M-RItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD022A-8BUP-1-FItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment | Direction: B fitting Front (F)
AMD022A-8BUP-1-BItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment | Direction: B fitting Back (B)
AMD022A-8BUP-1-LItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment | Direction: B fitting Left (L)
AMD022A-8BUP-1-RItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment | Direction: B fitting Right (R)
AMD022A-8BUP-1M-FItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD022A-8BUP-1M-BItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD022A-8BUP-1M-LItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD022A-8BUP-1M-RItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD022A-10BUP-0-FItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF | Direction: B fitting Front (F)
AMD022A-10BUP-0-BItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF | Direction: B fitting Back (B)
AMD022A-10BUP-0-LItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF | Direction: B fitting Left (L)
AMD022A-10BUP-0-RItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF | Direction: B fitting Right (R)
AMD022A-10BUP-0M-FItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD022A-10BUP-0M-BItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD022A-10BUP-0M-LItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD022A-10BUP-0M-RItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD022A-10BUP-1-FItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment | Direction: B fitting Front (F)
AMD022A-10BUP-1-BItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment | Direction: B fitting Back (B)
AMD022A-10BUP-1-LItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment | Direction: B fitting Left (L)
AMD022A-10BUP-1-RItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment | Direction: B fitting Right (R)
AMD022A-10BUP-1M-FItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD022A-10BUP-1M-BItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD022A-10BUP-1M-LItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD022A-10BUP-1M-RItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: NO, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD032A-6UP-0-FItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Front (F)
AMD032A-6UP-0-BItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Back (B)
AMD032A-6UP-0-LItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Left (L)
AMD032A-6UP-0-RItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Right (R)
AMD032A-6UP-0M-FItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD032A-6UP-0M-BItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD032A-6UP-0M-LItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD032A-6UP-0M-RItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD032A-6UP-1-FItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Front (F)
AMD032A-6UP-1-BItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Back (B)
AMD032A-6UP-1-LItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Left (L)
AMD032A-6UP-1-RItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Right (R)
AMD032A-6UP-1M-FItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD032A-6UP-1M-BItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD032A-6UP-1M-LItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD032A-6UP-1M-RItem: AMD0*2A single valve | Port: OD 6 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD032A-8UP-0-FItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Front (F)
AMD032A-8UP-0-BItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Back (B)
AMD032A-8UP-0-LItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Left (L)
AMD032A-8UP-0-RItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Right (R)
AMD032A-8UP-0M-FItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD032A-8UP-0M-BItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD032A-8UP-0M-LItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD032A-8UP-0M-RItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD032A-8UP-1-FItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Front (F)
AMD032A-8UP-1-BItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Back (B)
AMD032A-8UP-1-LItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Left (L)
AMD032A-8UP-1-RItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Right (R)
AMD032A-8UP-1M-FItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD032A-8UP-1M-BItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD032A-8UP-1M-LItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD032A-8UP-1M-RItem: AMD0*2A single valve | Port: OD 8 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD032A-10UP-0-FItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Front (F)
AMD032A-10UP-0-BItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Back (B)
AMD032A-10UP-0-LItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Left (L)
AMD032A-10UP-0-RItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF | Direction: B fitting Right (R)
AMD032A-10UP-0M-FItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD032A-10UP-0M-BItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD032A-10UP-0M-LItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD032A-10UP-0M-RItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD032A-10UP-1-FItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Front (F)
AMD032A-10UP-1-BItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Back (B)
AMD032A-10UP-1-LItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Left (L)
AMD032A-10UP-1-RItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment | Direction: B fitting Right (R)
AMD032A-10UP-1M-FItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD032A-10UP-1M-BItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD032A-10UP-1M-LItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD032A-10UP-1M-RItem: AMD0*2A single valve | Port: OD 10 mm tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD032A-8BUP-0-FItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Front (F)
AMD032A-8BUP-0-BItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Back (B)
AMD032A-8BUP-0-LItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Left (L)
AMD032A-8BUP-0-RItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Right (R)
AMD032A-8BUP-0M-FItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD032A-8BUP-0M-BItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD032A-8BUP-0M-LItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD032A-8BUP-0M-RItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD032A-8BUP-1-FItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Front (F)
AMD032A-8BUP-1-BItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Back (B)
AMD032A-8BUP-1-LItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Left (L)
AMD032A-8BUP-1-RItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Right (R)
AMD032A-8BUP-1M-FItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD032A-8BUP-1M-BItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD032A-8BUP-1M-LItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD032A-8BUP-1M-RItem: AMD0*2A single valve | Port: OD 1/4" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Right (R)
AMD032A-10BUP-0-FItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Front (F)
AMD032A-10BUP-0-BItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Back (B)
AMD032A-10BUP-0-LItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Left (L)
AMD032A-10BUP-0-RItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF | Direction: B fitting Right (R)
AMD032A-10BUP-0M-FItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Front (F)
AMD032A-10BUP-0M-BItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Back (B)
AMD032A-10BUP-0M-LItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Left (L)
AMD032A-10BUP-0M-RItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, ON-OFF, ammonia | Direction: B fitting Right (R)
AMD032A-10BUP-1-FItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Front (F)
AMD032A-10BUP-1-BItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Back (B)
AMD032A-10BUP-1-LItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Left (L)
AMD032A-10BUP-1-RItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment | Direction: B fitting Right (R)
AMD032A-10BUP-1M-FItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Front (F)
AMD032A-10BUP-1M-BItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Back (B)
AMD032A-10BUP-1M-LItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Left (L)
AMD032A-10BUP-1M-RItem: AMD0*2A single valve | Port: OD 3/8" tube | Configuration: Double acting, flow adjustment, ammonia | Direction: B fitting Right (R)
GAMD012A-BB-6UP-2LItem: GAMD012A base body | Port: OD 6 mm tube | Configuration: 2 stations | Direction: A fitting left
GAMD012A-BB-6UP-2RItem: GAMD012A base body | Port: OD 6 mm tube | Configuration: 2 stations | Direction: A fitting right
GAMD012A-BB-6UP-2WItem: GAMD012A base body | Port: OD 6 mm tube | Configuration: 2 stations | Direction: A fitting both sides
GAMD012A-BB-6UP-3LItem: GAMD012A base body | Port: OD 6 mm tube | Configuration: 3 stations | Direction: A fitting left
GAMD012A-BB-6UP-3RItem: GAMD012A base body | Port: OD 6 mm tube | Configuration: 3 stations | Direction: A fitting right
GAMD012A-BB-6UP-3WItem: GAMD012A base body | Port: OD 6 mm tube | Configuration: 3 stations | Direction: A fitting both sides
GAMD012A-BB-6UP-4LItem: GAMD012A base body | Port: OD 6 mm tube | Configuration: 4 stations | Direction: A fitting left
GAMD012A-BB-6UP-4RItem: GAMD012A base body | Port: OD 6 mm tube | Configuration: 4 stations | Direction: A fitting right
GAMD012A-BB-6UP-4WItem: GAMD012A base body | Port: OD 6 mm tube | Configuration: 4 stations | Direction: A fitting both sides
GAMD012A-BB-6UP-5LItem: GAMD012A base body | Port: OD 6 mm tube | Configuration: 5 stations | Direction: A fitting left
GAMD012A-BB-6UP-5RItem: GAMD012A base body | Port: OD 6 mm tube | Configuration: 5 stations | Direction: A fitting right
GAMD012A-BB-6UP-5WItem: GAMD012A base body | Port: OD 6 mm tube | Configuration: 5 stations | Direction: A fitting both sides
GAMD012A-BB-8UP-2LItem: GAMD012A base body | Port: OD 8 mm tube | Configuration: 2 stations | Direction: A fitting left
GAMD012A-BB-8UP-2RItem: GAMD012A base body | Port: OD 8 mm tube | Configuration: 2 stations | Direction: A fitting right
GAMD012A-BB-8UP-2WItem: GAMD012A base body | Port: OD 8 mm tube | Configuration: 2 stations | Direction: A fitting both sides
GAMD012A-BB-8UP-3LItem: GAMD012A base body | Port: OD 8 mm tube | Configuration: 3 stations | Direction: A fitting left
GAMD012A-BB-8UP-3RItem: GAMD012A base body | Port: OD 8 mm tube | Configuration: 3 stations | Direction: A fitting right
GAMD012A-BB-8UP-3WItem: GAMD012A base body | Port: OD 8 mm tube | Configuration: 3 stations | Direction: A fitting both sides
GAMD012A-BB-8UP-4LItem: GAMD012A base body | Port: OD 8 mm tube | Configuration: 4 stations | Direction: A fitting left
GAMD012A-BB-8UP-4RItem: GAMD012A base body | Port: OD 8 mm tube | Configuration: 4 stations | Direction: A fitting right
GAMD012A-BB-8UP-4WItem: GAMD012A base body | Port: OD 8 mm tube | Configuration: 4 stations | Direction: A fitting both sides
GAMD012A-BB-8UP-5LItem: GAMD012A base body | Port: OD 8 mm tube | Configuration: 5 stations | Direction: A fitting left
GAMD012A-BB-8UP-5RItem: GAMD012A base body | Port: OD 8 mm tube | Configuration: 5 stations | Direction: A fitting right
GAMD012A-BB-8UP-5WItem: GAMD012A base body | Port: OD 8 mm tube | Configuration: 5 stations | Direction: A fitting both sides
GAMD012A-BB-10UP-2LItem: GAMD012A base body | Port: OD 10 mm tube | Configuration: 2 stations | Direction: A fitting left
GAMD012A-BB-10UP-2RItem: GAMD012A base body | Port: OD 10 mm tube | Configuration: 2 stations | Direction: A fitting right
GAMD012A-BB-10UP-2WItem: GAMD012A base body | Port: OD 10 mm tube | Configuration: 2 stations | Direction: A fitting both sides
GAMD012A-BB-10UP-3LItem: GAMD012A base body | Port: OD 10 mm tube | Configuration: 3 stations | Direction: A fitting left
GAMD012A-BB-10UP-3RItem: GAMD012A base body | Port: OD 10 mm tube | Configuration: 3 stations | Direction: A fitting right
GAMD012A-BB-10UP-3WItem: GAMD012A base body | Port: OD 10 mm tube | Configuration: 3 stations | Direction: A fitting both sides
GAMD012A-BB-10UP-4LItem: GAMD012A base body | Port: OD 10 mm tube | Configuration: 4 stations | Direction: A fitting left
GAMD012A-BB-10UP-4RItem: GAMD012A base body | Port: OD 10 mm tube | Configuration: 4 stations | Direction: A fitting right
GAMD012A-BB-10UP-4WItem: GAMD012A base body | Port: OD 10 mm tube | Configuration: 4 stations | Direction: A fitting both sides
GAMD012A-BB-10UP-5LItem: GAMD012A base body | Port: OD 10 mm tube | Configuration: 5 stations | Direction: A fitting left
GAMD012A-BB-10UP-5RItem: GAMD012A base body | Port: OD 10 mm tube | Configuration: 5 stations | Direction: A fitting right
GAMD012A-BB-10UP-5WItem: GAMD012A base body | Port: OD 10 mm tube | Configuration: 5 stations | Direction: A fitting both sides
GAMD012A-BB-12UP-2LItem: GAMD012A base body | Port: OD 12 mm tube | Configuration: 2 stations | Direction: A fitting left
GAMD012A-BB-12UP-2RItem: GAMD012A base body | Port: OD 12 mm tube | Configuration: 2 stations | Direction: A fitting right
GAMD012A-BB-12UP-2WItem: GAMD012A base body | Port: OD 12 mm tube | Configuration: 2 stations | Direction: A fitting both sides
GAMD012A-BB-12UP-3LItem: GAMD012A base body | Port: OD 12 mm tube | Configuration: 3 stations | Direction: A fitting left
GAMD012A-BB-12UP-3RItem: GAMD012A base body | Port: OD 12 mm tube | Configuration: 3 stations | Direction: A fitting right
GAMD012A-BB-12UP-3WItem: GAMD012A base body | Port: OD 12 mm tube | Configuration: 3 stations | Direction: A fitting both sides
GAMD012A-BB-12UP-4LItem: GAMD012A base body | Port: OD 12 mm tube | Configuration: 4 stations | Direction: A fitting left
GAMD012A-BB-12UP-4RItem: GAMD012A base body | Port: OD 12 mm tube | Configuration: 4 stations | Direction: A fitting right
GAMD012A-BB-12UP-4WItem: GAMD012A base body | Port: OD 12 mm tube | Configuration: 4 stations | Direction: A fitting both sides
GAMD012A-BB-12UP-5LItem: GAMD012A base body | Port: OD 12 mm tube | Configuration: 5 stations | Direction: A fitting left
GAMD012A-BB-12UP-5RItem: GAMD012A base body | Port: OD 12 mm tube | Configuration: 5 stations | Direction: A fitting right
GAMD012A-BB-12UP-5WItem: GAMD012A base body | Port: OD 12 mm tube | Configuration: 5 stations | Direction: A fitting both sides
GAMD012A-BB-8BUP-2LItem: GAMD012A base body | Port: OD 1/4" tube | Configuration: 2 stations | Direction: A fitting left
GAMD012A-BB-8BUP-2RItem: GAMD012A base body | Port: OD 1/4" tube | Configuration: 2 stations | Direction: A fitting right
GAMD012A-BB-8BUP-2WItem: GAMD012A base body | Port: OD 1/4" tube | Configuration: 2 stations | Direction: A fitting both sides
GAMD012A-BB-8BUP-3LItem: GAMD012A base body | Port: OD 1/4" tube | Configuration: 3 stations | Direction: A fitting left
GAMD012A-BB-8BUP-3RItem: GAMD012A base body | Port: OD 1/4" tube | Configuration: 3 stations | Direction: A fitting right
GAMD012A-BB-8BUP-3WItem: GAMD012A base body | Port: OD 1/4" tube | Configuration: 3 stations | Direction: A fitting both sides
GAMD012A-BB-8BUP-4LItem: GAMD012A base body | Port: OD 1/4" tube | Configuration: 4 stations | Direction: A fitting left
GAMD012A-BB-8BUP-4RItem: GAMD012A base body | Port: OD 1/4" tube | Configuration: 4 stations | Direction: A fitting right
GAMD012A-BB-8BUP-4WItem: GAMD012A base body | Port: OD 1/4" tube | Configuration: 4 stations | Direction: A fitting both sides
GAMD012A-BB-8BUP-5LItem: GAMD012A base body | Port: OD 1/4" tube | Configuration: 5 stations | Direction: A fitting left
GAMD012A-BB-8BUP-5RItem: GAMD012A base body | Port: OD 1/4" tube | Configuration: 5 stations | Direction: A fitting right
GAMD012A-BB-8BUP-5WItem: GAMD012A base body | Port: OD 1/4" tube | Configuration: 5 stations | Direction: A fitting both sides
GAMD012A-BB-10BUP-2LItem: GAMD012A base body | Port: OD 3/8" tube | Configuration: 2 stations | Direction: A fitting left
GAMD012A-BB-10BUP-2RItem: GAMD012A base body | Port: OD 3/8" tube | Configuration: 2 stations | Direction: A fitting right
GAMD012A-BB-10BUP-2WItem: GAMD012A base body | Port: OD 3/8" tube | Configuration: 2 stations | Direction: A fitting both sides
GAMD012A-BB-10BUP-3LItem: GAMD012A base body | Port: OD 3/8" tube | Configuration: 3 stations | Direction: A fitting left
GAMD012A-BB-10BUP-3RItem: GAMD012A base body | Port: OD 3/8" tube | Configuration: 3 stations | Direction: A fitting right
GAMD012A-BB-10BUP-3WItem: GAMD012A base body | Port: OD 3/8" tube | Configuration: 3 stations | Direction: A fitting both sides
GAMD012A-BB-10BUP-4LItem: GAMD012A base body | Port: OD 3/8" tube | Configuration: 4 stations | Direction: A fitting left
GAMD012A-BB-10BUP-4RItem: GAMD012A base body | Port: OD 3/8" tube | Configuration: 4 stations | Direction: A fitting right
GAMD012A-BB-10BUP-4WItem: GAMD012A base body | Port: OD 3/8" tube | Configuration: 4 stations | Direction: A fitting both sides
GAMD012A-BB-10BUP-5LItem: GAMD012A base body | Port: OD 3/8" tube | Configuration: 5 stations | Direction: A fitting left
GAMD012A-BB-10BUP-5RItem: GAMD012A base body | Port: OD 3/8" tube | Configuration: 5 stations | Direction: A fitting right
GAMD012A-BB-10BUP-5WItem: GAMD012A base body | Port: OD 3/8" tube | Configuration: 5 stations | Direction: A fitting both sides
GAMD012A-BB-15BUP-2LItem: GAMD012A base body | Port: OD 1/2" tube | Configuration: 2 stations | Direction: A fitting left
GAMD012A-BB-15BUP-2RItem: GAMD012A base body | Port: OD 1/2" tube | Configuration: 2 stations | Direction: A fitting right
GAMD012A-BB-15BUP-2WItem: GAMD012A base body | Port: OD 1/2" tube | Configuration: 2 stations | Direction: A fitting both sides
GAMD012A-BB-15BUP-3LItem: GAMD012A base body | Port: OD 1/2" tube | Configuration: 3 stations | Direction: A fitting left
GAMD012A-BB-15BUP-3RItem: GAMD012A base body | Port: OD 1/2" tube | Configuration: 3 stations | Direction: A fitting right
GAMD012A-BB-15BUP-3WItem: GAMD012A base body | Port: OD 1/2" tube | Configuration: 3 stations | Direction: A fitting both sides
GAMD012A-BB-15BUP-4LItem: GAMD012A base body | Port: OD 1/2" tube | Configuration: 4 stations | Direction: A fitting left
GAMD012A-BB-15BUP-4RItem: GAMD012A base body | Port: OD 1/2" tube | Configuration: 4 stations | Direction: A fitting right
GAMD012A-BB-15BUP-4WItem: GAMD012A base body | Port: OD 1/2" tube | Configuration: 4 stations | Direction: A fitting both sides
GAMD012A-BB-15BUP-5LItem: GAMD012A base body | Port: OD 1/2" tube | Configuration: 5 stations | Direction: A fitting left
GAMD012A-BB-15BUP-5RItem: GAMD012A base body | Port: OD 1/2" tube | Configuration: 5 stations | Direction: A fitting right
GAMD012A-BB-15BUP-5WItem: GAMD012A base body | Port: OD 1/2" tube | Configuration: 5 stations | Direction: A fitting both sides

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
