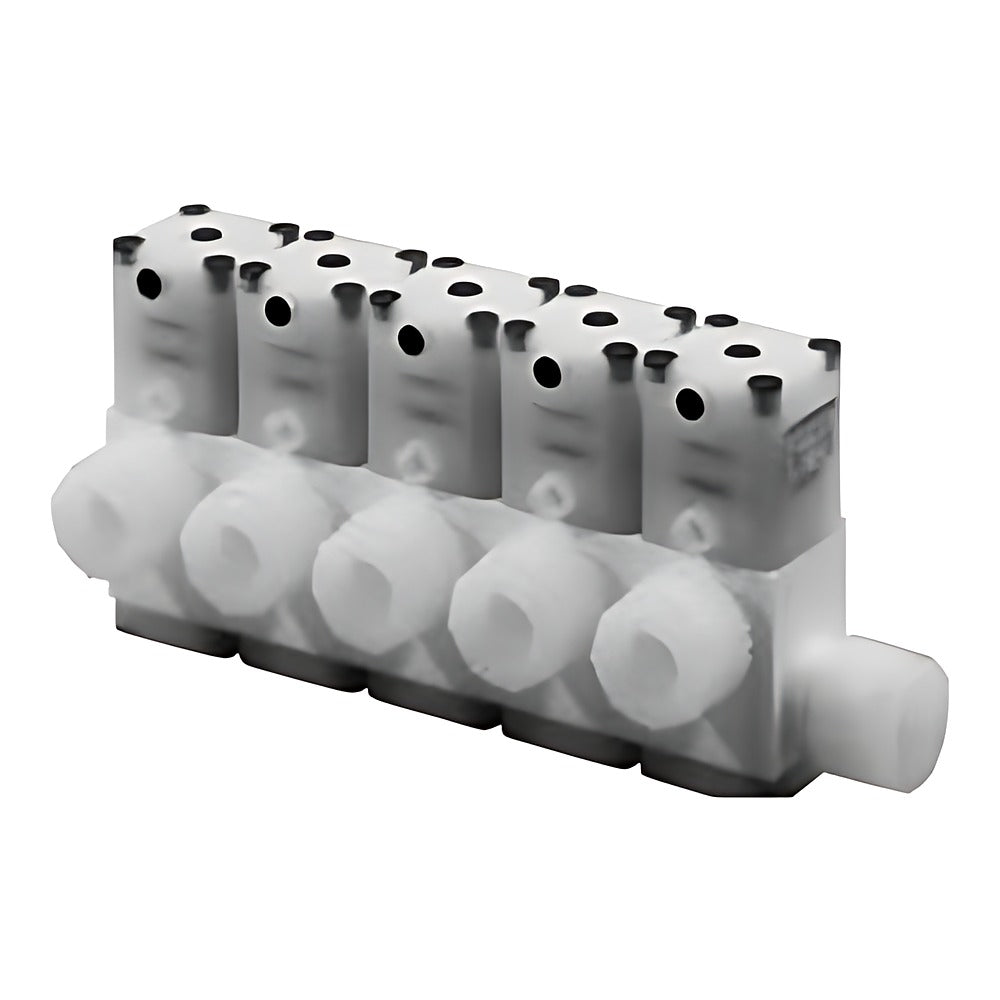

CKD GAMD0*3R Manifold Air Operated Valve for Chemicals (1-5 Stations)

CKD GAMD0*3R made-to-order manifold/branch air-operated diaphragm valve for chemicals and pure water, 1 to 5 stations, OD6-10 / 1/4-3/8 in tube.

Key features

Fluororesin construction: PVDF actuator, PTFE diaphragm, integrated tube fittings
Connections: Super 300 type Pillar fitting (P series, UP) or F-LOCK 60 series fitting (UR), metric and inch tubes
Manifold (branch) block of 1-5 valves; A port left, right or both sides
Actuator 00 ON-OFF with indicator or 10 with flow adjustment; PTFE body
Made to order; example: GAMD013R-10UP-005W

Specifications

Fluid	Chemicals, pure water, air, N2 gas
Fluid temperature	5 to 120 C (HF 5-80 C; F-LOCK 5-100 C)
Proof pressure	1.0 MPa
Operating pressure A-B / B-A	0-0.5 MPa
Seat leakage	0 (water)
Back pressure	0-0.5 MPa
Pilot port	Rc1/8 (NC: Y, NO: X, double: X and Y)
Operating (pilot) pressure	NC/NO 0.35-0.5 MPa, double 0.3-0.4 MPa
Orifice	3.5 to 8 mm
Mass	0.12 kg (1 st.) to 0.56 kg (5 st.)
Source	CKD Korea catalog CB-03-1SK-9, p. 1200-1203

GAMD013R-6UP-001L		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD013R-6UP-001R		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD013R-6UP-001W		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD013R-6UP-002L		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD013R-6UP-002R		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD013R-6UP-002W		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD013R-6UP-003L		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD013R-6UP-003R		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD013R-6UP-003W		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD013R-6UP-004L		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD013R-6UP-004R		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD013R-6UP-004W		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD013R-6UP-005L		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD013R-6UP-005R		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD013R-6UP-005W		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD013R-6UP-101L		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD013R-6UP-101R		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD013R-6UP-101W		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD013R-6UP-102L		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD013R-6UP-102R		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD013R-6UP-102W		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD013R-6UP-103L		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD013R-6UP-103R		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD013R-6UP-103W		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD013R-6UP-104L		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD013R-6UP-104R		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD013R-6UP-104W		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD013R-6UP-105L		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD013R-6UP-105R		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD013R-6UP-105W		Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD013R-8BUP-001L		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD013R-8BUP-001R		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD013R-8BUP-001W		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD013R-8BUP-002L		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD013R-8BUP-002R		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD013R-8BUP-002W		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD013R-8BUP-003L		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD013R-8BUP-003R		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD013R-8BUP-003W		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD013R-8BUP-004L		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD013R-8BUP-004R		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD013R-8BUP-004W		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD013R-8BUP-005L		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD013R-8BUP-005R		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD013R-8BUP-005W		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD013R-8BUP-101L		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD013R-8BUP-101R		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD013R-8BUP-101W		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD013R-8BUP-102L		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD013R-8BUP-102R		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD013R-8BUP-102W		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD013R-8BUP-103L		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD013R-8BUP-103R		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD013R-8BUP-103W		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD013R-8BUP-104L		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD013R-8BUP-104R		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD013R-8BUP-104W		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD013R-8BUP-105L		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD013R-8BUP-105R		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD013R-8BUP-105W		Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD013R-8UP-001L		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD013R-8UP-001R		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD013R-8UP-001W		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD013R-8UP-002L		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD013R-8UP-002R		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD013R-8UP-002W		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD013R-8UP-003L		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD013R-8UP-003R		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD013R-8UP-003W		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD013R-8UP-004L		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD013R-8UP-004R		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD013R-8UP-004W		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD013R-8UP-005L		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD013R-8UP-005R		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD013R-8UP-005W		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD013R-8UP-101L		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD013R-8UP-101R		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD013R-8UP-101W		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD013R-8UP-102L		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD013R-8UP-102R		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD013R-8UP-102W		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD013R-8UP-103L		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD013R-8UP-103R		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD013R-8UP-103W		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD013R-8UP-104L		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD013R-8UP-104R		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD013R-8UP-104W		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD013R-8UP-105L		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD013R-8UP-105R		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD013R-8UP-105W		Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD013R-10UP-001L		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD013R-10UP-001R		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD013R-10UP-001W		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD013R-10UP-002L		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD013R-10UP-002R		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD013R-10UP-002W		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD013R-10UP-003L		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD013R-10UP-003R		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD013R-10UP-003W		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD013R-10UP-004L		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD013R-10UP-004R		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD013R-10UP-004W		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD013R-10UP-005L		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD013R-10UP-005R		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD013R-10UP-005W		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD013R-10UP-101L		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD013R-10UP-101R		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD013R-10UP-101W		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD013R-10UP-102L		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD013R-10UP-102R		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD013R-10UP-102W		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD013R-10UP-103L		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD013R-10UP-103R		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD013R-10UP-103W		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD013R-10UP-104L		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD013R-10UP-104R		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD013R-10UP-104W		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD013R-10UP-105L		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD013R-10UP-105R		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD013R-10UP-105W		Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD013R-10BUP-001L		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD013R-10BUP-001R		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD013R-10BUP-001W		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD013R-10BUP-002L		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD013R-10BUP-002R		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD013R-10BUP-002W		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD013R-10BUP-003L		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD013R-10BUP-003R		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD013R-10BUP-003W		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD013R-10BUP-004L		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD013R-10BUP-004R		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD013R-10BUP-004W		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD013R-10BUP-005L		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD013R-10BUP-005R		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD013R-10BUP-005W		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD013R-10BUP-101L		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD013R-10BUP-101R		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD013R-10BUP-101W		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD013R-10BUP-102L		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD013R-10BUP-102R		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD013R-10BUP-102W		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD013R-10BUP-103L		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD013R-10BUP-103R		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD013R-10BUP-103W		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD013R-10BUP-104L		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD013R-10BUP-104R		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD013R-10BUP-104W		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD013R-10BUP-105L		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD013R-10BUP-105R		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD013R-10BUP-105W		Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD013R-6UR-001L		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD013R-6UR-001R		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD013R-6UR-001W		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD013R-6UR-002L		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD013R-6UR-002R		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD013R-6UR-002W		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD013R-6UR-003L		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD013R-6UR-003R		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD013R-6UR-003W		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD013R-6UR-004L		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD013R-6UR-004R		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD013R-6UR-004W		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD013R-6UR-005L		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD013R-6UR-005R		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD013R-6UR-005W		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD013R-6UR-101L		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD013R-6UR-101R		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD013R-6UR-101W		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD013R-6UR-102L		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD013R-6UR-102R		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD013R-6UR-102W		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD013R-6UR-103L		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD013R-6UR-103R		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD013R-6UR-103W		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD013R-6UR-104L		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD013R-6UR-104R		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD013R-6UR-104W		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD013R-6UR-105L		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD013R-6UR-105R		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD013R-6UR-105W		Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD013R-8BUR-001L		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD013R-8BUR-001R		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD013R-8BUR-001W		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD013R-8BUR-002L		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD013R-8BUR-002R		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD013R-8BUR-002W		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD013R-8BUR-003L		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD013R-8BUR-003R		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD013R-8BUR-003W		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD013R-8BUR-004L		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD013R-8BUR-004R		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD013R-8BUR-004W		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD013R-8BUR-005L		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD013R-8BUR-005R		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD013R-8BUR-005W		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD013R-8BUR-101L		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD013R-8BUR-101R		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD013R-8BUR-101W		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD013R-8BUR-102L		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD013R-8BUR-102R		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD013R-8BUR-102W		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD013R-8BUR-103L		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD013R-8BUR-103R		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD013R-8BUR-103W		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD013R-8BUR-104L		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD013R-8BUR-104R		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD013R-8BUR-104W		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD013R-8BUR-105L		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD013R-8BUR-105R		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD013R-8BUR-105W		Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD013R-8UR-001L		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD013R-8UR-001R		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD013R-8UR-001W		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD013R-8UR-002L		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD013R-8UR-002R		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD013R-8UR-002W		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD013R-8UR-003L		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD013R-8UR-003R		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD013R-8UR-003W		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD013R-8UR-004L		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD013R-8UR-004R		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD013R-8UR-004W		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD013R-8UR-005L		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD013R-8UR-005R		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD013R-8UR-005W		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD013R-8UR-101L		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD013R-8UR-101R		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD013R-8UR-101W		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD013R-8UR-102L		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD013R-8UR-102R		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD013R-8UR-102W		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD013R-8UR-103L		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD013R-8UR-103R		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD013R-8UR-103W		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD013R-8UR-104L		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD013R-8UR-104R		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD013R-8UR-104W		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD013R-8UR-105L		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD013R-8UR-105R		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD013R-8UR-105W		Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD013R-10UR-001L		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD013R-10UR-001R		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD013R-10UR-001W		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD013R-10UR-002L		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD013R-10UR-002R		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD013R-10UR-002W		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD013R-10UR-003L		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD013R-10UR-003R		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD013R-10UR-003W		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD013R-10UR-004L		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD013R-10UR-004R		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD013R-10UR-004W		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD013R-10UR-005L		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD013R-10UR-005R		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD013R-10UR-005W		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD013R-10UR-101L		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD013R-10UR-101R		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD013R-10UR-101W		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD013R-10UR-102L		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD013R-10UR-102R		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD013R-10UR-102W		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD013R-10UR-103L		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD013R-10UR-103R		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD013R-10UR-103W		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD013R-10UR-104L		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD013R-10UR-104R		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD013R-10UR-104W		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD013R-10UR-105L		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD013R-10UR-105R		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD013R-10UR-105W		Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD013R-10BUR-001L		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD013R-10BUR-001R		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD013R-10BUR-001W		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD013R-10BUR-002L		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD013R-10BUR-002R		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD013R-10BUR-002W		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD013R-10BUR-003L		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD013R-10BUR-003R		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD013R-10BUR-003W		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD013R-10BUR-004L		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD013R-10BUR-004R		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD013R-10BUR-004W		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD013R-10BUR-005L		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD013R-10BUR-005R		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD013R-10BUR-005W		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD013R-10BUR-101L		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD013R-10BUR-101R		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD013R-10BUR-101W		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD013R-10BUR-102L		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD013R-10BUR-102R		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD013R-10BUR-102W		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD013R-10BUR-103L		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD013R-10BUR-103R		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD013R-10BUR-103W		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD013R-10BUR-104L		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD013R-10BUR-104R		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD013R-10BUR-104W		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD013R-10BUR-105L		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD013R-10BUR-105R		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD013R-10BUR-105W		Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD023R-6UP-001L		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD023R-6UP-001R		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD023R-6UP-001W		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD023R-6UP-002L		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD023R-6UP-002R		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD023R-6UP-002W		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD023R-6UP-003L		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD023R-6UP-003R		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD023R-6UP-003W		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD023R-6UP-004L		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD023R-6UP-004R		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD023R-6UP-004W		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD023R-6UP-005L		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD023R-6UP-005R		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD023R-6UP-005W		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD023R-6UP-101L		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD023R-6UP-101R		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD023R-6UP-101W		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD023R-6UP-102L		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD023R-6UP-102R		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD023R-6UP-102W		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD023R-6UP-103L		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD023R-6UP-103R		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD023R-6UP-103W		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD023R-6UP-104L		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD023R-6UP-104R		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD023R-6UP-104W		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD023R-6UP-105L		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD023R-6UP-105R		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD023R-6UP-105W		Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD023R-8BUP-001L		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD023R-8BUP-001R		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD023R-8BUP-001W		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD023R-8BUP-002L		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD023R-8BUP-002R		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD023R-8BUP-002W		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD023R-8BUP-003L		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD023R-8BUP-003R		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD023R-8BUP-003W		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD023R-8BUP-004L		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD023R-8BUP-004R		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD023R-8BUP-004W		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD023R-8BUP-005L		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD023R-8BUP-005R		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD023R-8BUP-005W		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD023R-8BUP-101L		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD023R-8BUP-101R		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD023R-8BUP-101W		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD023R-8BUP-102L		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD023R-8BUP-102R		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD023R-8BUP-102W		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD023R-8BUP-103L		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD023R-8BUP-103R		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD023R-8BUP-103W		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD023R-8BUP-104L		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD023R-8BUP-104R		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD023R-8BUP-104W		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD023R-8BUP-105L		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD023R-8BUP-105R		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD023R-8BUP-105W		Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD023R-8UP-001L		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD023R-8UP-001R		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD023R-8UP-001W		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD023R-8UP-002L		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD023R-8UP-002R		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD023R-8UP-002W		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD023R-8UP-003L		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD023R-8UP-003R		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD023R-8UP-003W		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD023R-8UP-004L		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD023R-8UP-004R		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD023R-8UP-004W		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD023R-8UP-005L		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD023R-8UP-005R		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD023R-8UP-005W		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD023R-8UP-101L		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD023R-8UP-101R		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD023R-8UP-101W		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD023R-8UP-102L		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD023R-8UP-102R		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD023R-8UP-102W		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD023R-8UP-103L		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD023R-8UP-103R		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD023R-8UP-103W		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD023R-8UP-104L		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD023R-8UP-104R		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD023R-8UP-104W		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD023R-8UP-105L		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD023R-8UP-105R		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD023R-8UP-105W		Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD023R-10UP-001L		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD023R-10UP-001R		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD023R-10UP-001W		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD023R-10UP-002L		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD023R-10UP-002R		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD023R-10UP-002W		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD023R-10UP-003L		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD023R-10UP-003R		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD023R-10UP-003W		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD023R-10UP-004L		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD023R-10UP-004R		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD023R-10UP-004W		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD023R-10UP-005L		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD023R-10UP-005R		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD023R-10UP-005W		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD023R-10UP-101L		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD023R-10UP-101R		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD023R-10UP-101W		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD023R-10UP-102L		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD023R-10UP-102R		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD023R-10UP-102W		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD023R-10UP-103L		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD023R-10UP-103R		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD023R-10UP-103W		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD023R-10UP-104L		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD023R-10UP-104R		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD023R-10UP-104W		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD023R-10UP-105L		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD023R-10UP-105R		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD023R-10UP-105W		Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD023R-10BUP-001L		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD023R-10BUP-001R		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD023R-10BUP-001W		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD023R-10BUP-002L		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD023R-10BUP-002R		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD023R-10BUP-002W		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD023R-10BUP-003L		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD023R-10BUP-003R		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD023R-10BUP-003W		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD023R-10BUP-004L		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD023R-10BUP-004R		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD023R-10BUP-004W		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD023R-10BUP-005L		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD023R-10BUP-005R		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD023R-10BUP-005W		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD023R-10BUP-101L		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD023R-10BUP-101R		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD023R-10BUP-101W		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD023R-10BUP-102L		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD023R-10BUP-102R		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD023R-10BUP-102W		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD023R-10BUP-103L		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD023R-10BUP-103R		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD023R-10BUP-103W		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD023R-10BUP-104L		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD023R-10BUP-104R		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD023R-10BUP-104W		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD023R-10BUP-105L		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD023R-10BUP-105R		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD023R-10BUP-105W		Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD023R-6UR-001L		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD023R-6UR-001R		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD023R-6UR-001W		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD023R-6UR-002L		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD023R-6UR-002R		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD023R-6UR-002W		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD023R-6UR-003L		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD023R-6UR-003R		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD023R-6UR-003W		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD023R-6UR-004L		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD023R-6UR-004R		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD023R-6UR-004W		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD023R-6UR-005L		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD023R-6UR-005R		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD023R-6UR-005W		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD023R-6UR-101L		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD023R-6UR-101R		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD023R-6UR-101W		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD023R-6UR-102L		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD023R-6UR-102R		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD023R-6UR-102W		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD023R-6UR-103L		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD023R-6UR-103R		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD023R-6UR-103W		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD023R-6UR-104L		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD023R-6UR-104R		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD023R-6UR-104W		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD023R-6UR-105L		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD023R-6UR-105R		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD023R-6UR-105W		Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD023R-8BUR-001L		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD023R-8BUR-001R		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD023R-8BUR-001W		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD023R-8BUR-002L		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD023R-8BUR-002R		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD023R-8BUR-002W		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD023R-8BUR-003L		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD023R-8BUR-003R		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD023R-8BUR-003W		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD023R-8BUR-004L		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD023R-8BUR-004R		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD023R-8BUR-004W		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD023R-8BUR-005L		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD023R-8BUR-005R		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD023R-8BUR-005W		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD023R-8BUR-101L		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD023R-8BUR-101R		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD023R-8BUR-101W		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD023R-8BUR-102L		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD023R-8BUR-102R		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD023R-8BUR-102W		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD023R-8BUR-103L		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD023R-8BUR-103R		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD023R-8BUR-103W		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD023R-8BUR-104L		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD023R-8BUR-104R		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD023R-8BUR-104W		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD023R-8BUR-105L		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD023R-8BUR-105R		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD023R-8BUR-105W		Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD023R-8UR-001L		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD023R-8UR-001R		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD023R-8UR-001W		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD023R-8UR-002L		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD023R-8UR-002R		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD023R-8UR-002W		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD023R-8UR-003L		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD023R-8UR-003R		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD023R-8UR-003W		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD023R-8UR-004L		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD023R-8UR-004R		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD023R-8UR-004W		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD023R-8UR-005L		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD023R-8UR-005R		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD023R-8UR-005W		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD023R-8UR-101L		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD023R-8UR-101R		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD023R-8UR-101W		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD023R-8UR-102L		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD023R-8UR-102R		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD023R-8UR-102W		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD023R-8UR-103L		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD023R-8UR-103R		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD023R-8UR-103W		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD023R-8UR-104L		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD023R-8UR-104R		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD023R-8UR-104W		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD023R-8UR-105L		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD023R-8UR-105R		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD023R-8UR-105W		Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD023R-10UR-001L		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD023R-10UR-001R		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD023R-10UR-001W		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD023R-10UR-002L		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD023R-10UR-002R		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD023R-10UR-002W		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD023R-10UR-003L		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD023R-10UR-003R		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD023R-10UR-003W		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD023R-10UR-004L		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD023R-10UR-004R		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD023R-10UR-004W		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD023R-10UR-005L		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD023R-10UR-005R		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD023R-10UR-005W		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD023R-10UR-101L		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD023R-10UR-101R		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD023R-10UR-101W		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD023R-10UR-102L		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD023R-10UR-102R		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD023R-10UR-102W		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD023R-10UR-103L		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD023R-10UR-103R		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD023R-10UR-103W		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD023R-10UR-104L		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD023R-10UR-104R		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD023R-10UR-104W		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD023R-10UR-105L		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD023R-10UR-105R		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD023R-10UR-105W		Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD023R-10BUR-001L		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD023R-10BUR-001R		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD023R-10BUR-001W		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD023R-10BUR-002L		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD023R-10BUR-002R		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD023R-10BUR-002W		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD023R-10BUR-003L		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD023R-10BUR-003R		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD023R-10BUR-003W		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD023R-10BUR-004L		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD023R-10BUR-004R		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD023R-10BUR-004W		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD023R-10BUR-005L		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD023R-10BUR-005R		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD023R-10BUR-005W		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD023R-10BUR-101L		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD023R-10BUR-101R		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD023R-10BUR-101W		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD023R-10BUR-102L		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD023R-10BUR-102R		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD023R-10BUR-102W		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD023R-10BUR-103L		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD023R-10BUR-103R		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD023R-10BUR-103W		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD023R-10BUR-104L		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD023R-10BUR-104R		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD023R-10BUR-104W		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD023R-10BUR-105L		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD023R-10BUR-105R		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD023R-10BUR-105W		Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD033R-6UP-001L		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD033R-6UP-001R		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD033R-6UP-001W		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD033R-6UP-002L		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD033R-6UP-002R		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD033R-6UP-002W		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD033R-6UP-003L		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD033R-6UP-003R		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD033R-6UP-003W		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD033R-6UP-004L		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD033R-6UP-004R		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD033R-6UP-004W		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD033R-6UP-005L		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD033R-6UP-005R		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD033R-6UP-005W		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD033R-6UP-101L		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD033R-6UP-101R		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD033R-6UP-101W		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD033R-6UP-102L		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD033R-6UP-102R		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD033R-6UP-102W		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD033R-6UP-103L		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD033R-6UP-103R		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD033R-6UP-103W		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD033R-6UP-104L		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD033R-6UP-104R		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD033R-6UP-104W		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD033R-6UP-105L		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD033R-6UP-105R		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD033R-6UP-105W		Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD033R-8BUP-001L		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD033R-8BUP-001R		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD033R-8BUP-001W		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD033R-8BUP-002L		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD033R-8BUP-002R		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD033R-8BUP-002W		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD033R-8BUP-003L		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD033R-8BUP-003R		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD033R-8BUP-003W		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD033R-8BUP-004L		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD033R-8BUP-004R		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD033R-8BUP-004W		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD033R-8BUP-005L		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD033R-8BUP-005R		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD033R-8BUP-005W		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD033R-8BUP-101L		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD033R-8BUP-101R		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD033R-8BUP-101W		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD033R-8BUP-102L		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD033R-8BUP-102R		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD033R-8BUP-102W		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD033R-8BUP-103L		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD033R-8BUP-103R		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD033R-8BUP-103W		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD033R-8BUP-104L		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD033R-8BUP-104R		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD033R-8BUP-104W		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD033R-8BUP-105L		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD033R-8BUP-105R		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD033R-8BUP-105W		Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD033R-8UP-001L		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD033R-8UP-001R		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD033R-8UP-001W		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD033R-8UP-002L		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD033R-8UP-002R		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD033R-8UP-002W		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD033R-8UP-003L		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD033R-8UP-003R		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD033R-8UP-003W		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD033R-8UP-004L		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD033R-8UP-004R		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD033R-8UP-004W		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD033R-8UP-005L		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD033R-8UP-005R		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD033R-8UP-005W		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD033R-8UP-101L		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD033R-8UP-101R		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD033R-8UP-101W		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD033R-8UP-102L		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD033R-8UP-102R		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD033R-8UP-102W		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD033R-8UP-103L		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD033R-8UP-103R		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD033R-8UP-103W		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD033R-8UP-104L		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD033R-8UP-104R		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD033R-8UP-104W		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD033R-8UP-105L		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD033R-8UP-105R		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD033R-8UP-105W		Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD033R-10UP-001L		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD033R-10UP-001R		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD033R-10UP-001W		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD033R-10UP-002L		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD033R-10UP-002R		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD033R-10UP-002W		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD033R-10UP-003L		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD033R-10UP-003R		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD033R-10UP-003W		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD033R-10UP-004L		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD033R-10UP-004R		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD033R-10UP-004W		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD033R-10UP-005L		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD033R-10UP-005R		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD033R-10UP-005W		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD033R-10UP-101L		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD033R-10UP-101R		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD033R-10UP-101W		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD033R-10UP-102L		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD033R-10UP-102R		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD033R-10UP-102W		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD033R-10UP-103L		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD033R-10UP-103R		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD033R-10UP-103W		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD033R-10UP-104L		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD033R-10UP-104R		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD033R-10UP-104W		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD033R-10UP-105L		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD033R-10UP-105R		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD033R-10UP-105W		Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD033R-10BUP-001L		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD033R-10BUP-001R		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD033R-10BUP-001W		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD033R-10BUP-002L		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD033R-10BUP-002R		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD033R-10BUP-002W		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD033R-10BUP-003L		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD033R-10BUP-003R		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD033R-10BUP-003W		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD033R-10BUP-004L		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD033R-10BUP-004R		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD033R-10BUP-004W		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD033R-10BUP-005L		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD033R-10BUP-005R		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD033R-10BUP-005W		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD033R-10BUP-101L		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD033R-10BUP-101R		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD033R-10BUP-101W		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD033R-10BUP-102L		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD033R-10BUP-102R		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD033R-10BUP-102W		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD033R-10BUP-103L		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD033R-10BUP-103R		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD033R-10BUP-103W		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD033R-10BUP-104L		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD033R-10BUP-104R		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD033R-10BUP-104W		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD033R-10BUP-105L		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD033R-10BUP-105R		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD033R-10BUP-105W		Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD033R-6UR-001L		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD033R-6UR-001R		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD033R-6UR-001W		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD033R-6UR-002L		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD033R-6UR-002R		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD033R-6UR-002W		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD033R-6UR-003L		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD033R-6UR-003R		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD033R-6UR-003W		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD033R-6UR-004L		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD033R-6UR-004R		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD033R-6UR-004W		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD033R-6UR-005L		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD033R-6UR-005R		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD033R-6UR-005W		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD033R-6UR-101L		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD033R-6UR-101R		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD033R-6UR-101W		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD033R-6UR-102L		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD033R-6UR-102R		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD033R-6UR-102W		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD033R-6UR-103L		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD033R-6UR-103R		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD033R-6UR-103W		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD033R-6UR-104L		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD033R-6UR-104R		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD033R-6UR-104W		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD033R-6UR-105L		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD033R-6UR-105R		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD033R-6UR-105W		Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD033R-8BUR-001L		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD033R-8BUR-001R		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD033R-8BUR-001W		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD033R-8BUR-002L		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD033R-8BUR-002R		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD033R-8BUR-002W		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD033R-8BUR-003L		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD033R-8BUR-003R		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD033R-8BUR-003W		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD033R-8BUR-004L		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD033R-8BUR-004R		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD033R-8BUR-004W		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD033R-8BUR-005L		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD033R-8BUR-005R		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD033R-8BUR-005W		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD033R-8BUR-101L		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD033R-8BUR-101R		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD033R-8BUR-101W		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD033R-8BUR-102L		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD033R-8BUR-102R		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD033R-8BUR-102W		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD033R-8BUR-103L		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD033R-8BUR-103R		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD033R-8BUR-103W		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD033R-8BUR-104L		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD033R-8BUR-104R		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD033R-8BUR-104W		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD033R-8BUR-105L		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD033R-8BUR-105R		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD033R-8BUR-105W		Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD033R-8UR-001L		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD033R-8UR-001R		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD033R-8UR-001W		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD033R-8UR-002L		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD033R-8UR-002R		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD033R-8UR-002W		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD033R-8UR-003L		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD033R-8UR-003R		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD033R-8UR-003W		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD033R-8UR-004L		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD033R-8UR-004R		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD033R-8UR-004W		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD033R-8UR-005L		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD033R-8UR-005R		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD033R-8UR-005W		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD033R-8UR-101L		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD033R-8UR-101R		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD033R-8UR-101W		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD033R-8UR-102L		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD033R-8UR-102R		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD033R-8UR-102W		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD033R-8UR-103L		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD033R-8UR-103R		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD033R-8UR-103W		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD033R-8UR-104L		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD033R-8UR-104R		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD033R-8UR-104W		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD033R-8UR-105L		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD033R-8UR-105R		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD033R-8UR-105W		Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD033R-10UR-001L		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD033R-10UR-001R		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD033R-10UR-001W		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD033R-10UR-002L		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD033R-10UR-002R		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD033R-10UR-002W		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD033R-10UR-003L		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD033R-10UR-003R		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD033R-10UR-003W		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD033R-10UR-004L		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD033R-10UR-004R		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD033R-10UR-004W		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD033R-10UR-005L		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD033R-10UR-005R		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD033R-10UR-005W		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD033R-10UR-101L		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD033R-10UR-101R		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD033R-10UR-101W		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD033R-10UR-102L		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD033R-10UR-102R		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD033R-10UR-102W		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD033R-10UR-103L		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD033R-10UR-103R		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD033R-10UR-103W		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD033R-10UR-104L		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD033R-10UR-104R		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD033R-10UR-104W		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD033R-10UR-105L		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD033R-10UR-105R		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD033R-10UR-105W		Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
GAMD033R-10BUR-001L		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
GAMD033R-10BUR-001R		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
GAMD033R-10BUR-001W		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
GAMD033R-10BUR-002L		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
GAMD033R-10BUR-002R		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
GAMD033R-10BUR-002W		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
GAMD033R-10BUR-003L		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
GAMD033R-10BUR-003R		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
GAMD033R-10BUR-003W		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
GAMD033R-10BUR-004L		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
GAMD033R-10BUR-004R		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
GAMD033R-10BUR-004W		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
GAMD033R-10BUR-005L		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
GAMD033R-10BUR-005R		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
GAMD033R-10BUR-005W		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
GAMD033R-10BUR-101L		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
GAMD033R-10BUR-101R		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
GAMD033R-10BUR-101W		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
GAMD033R-10BUR-102L		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
GAMD033R-10BUR-102R		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
GAMD033R-10BUR-102W		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
GAMD033R-10BUR-103L		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
GAMD033R-10BUR-103R		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
GAMD033R-10BUR-103W		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
GAMD033R-10BUR-104L		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
GAMD033R-10BUR-104R		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
GAMD033R-10BUR-104W		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
GAMD033R-10BUR-105L		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
GAMD033R-10BUR-105R		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
GAMD033R-10BUR-105W		Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides

Air Operated ValvesCKD

900 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GAMD0*3R Manifold Air Operated Valve for Chemicals (1-5 Stations)

Brand CKD·Air Operated Valves

Available part numbers (900)

GAMD013R-6UP-001L, GAMD013R-6UP-001R, GAMD013R-6UP-001W, GAMD013R-6UP-002L, GAMD013R-6UP-002R, GAMD013R-6UP-002W, GAMD013R-6UP-003L, GAMD013R-6UP-003R, GAMD013R-6UP-003W, GAMD013R-6UP-004L + 890 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	GAMD013R-6UP-001L	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD013R-6UP-001R	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD013R-6UP-001W	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD013R-6UP-002L	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD013R-6UP-002R	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD013R-6UP-002W	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD013R-6UP-003L	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD013R-6UP-003R	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD013R-6UP-003W	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD013R-6UP-004L	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD013R-6UP-004R	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD013R-6UP-004W	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD013R-6UP-005L	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD013R-6UP-005R	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD013R-6UP-005W	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD013R-6UP-101L	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD013R-6UP-101R	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD013R-6UP-101W	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD013R-6UP-102L	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD013R-6UP-102R	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD013R-6UP-102W	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD013R-6UP-103L	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD013R-6UP-103R	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD013R-6UP-103W	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD013R-6UP-104L	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD013R-6UP-104R	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD013R-6UP-104W	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD013R-6UP-105L	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD013R-6UP-105R	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD013R-6UP-105W	Action: NC \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD013R-8BUP-001L	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD013R-8BUP-001R	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD013R-8BUP-001W	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD013R-8BUP-002L	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD013R-8BUP-002R	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD013R-8BUP-002W	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD013R-8BUP-003L	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD013R-8BUP-003R	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD013R-8BUP-003W	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD013R-8BUP-004L	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD013R-8BUP-004R	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD013R-8BUP-004W	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD013R-8BUP-005L	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD013R-8BUP-005R	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD013R-8BUP-005W	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD013R-8BUP-101L	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD013R-8BUP-101R	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD013R-8BUP-101W	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD013R-8BUP-102L	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD013R-8BUP-102R	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD013R-8BUP-102W	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD013R-8BUP-103L	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD013R-8BUP-103R	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD013R-8BUP-103W	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD013R-8BUP-104L	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD013R-8BUP-104R	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD013R-8BUP-104W	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD013R-8BUP-105L	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD013R-8BUP-105R	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD013R-8BUP-105W	Action: NC \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD013R-8UP-001L	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD013R-8UP-001R	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD013R-8UP-001W	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD013R-8UP-002L	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD013R-8UP-002R	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD013R-8UP-002W	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD013R-8UP-003L	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD013R-8UP-003R	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD013R-8UP-003W	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD013R-8UP-004L	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD013R-8UP-004R	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD013R-8UP-004W	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD013R-8UP-005L	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD013R-8UP-005R	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD013R-8UP-005W	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD013R-8UP-101L	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD013R-8UP-101R	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD013R-8UP-101W	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD013R-8UP-102L	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD013R-8UP-102R	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD013R-8UP-102W	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD013R-8UP-103L	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD013R-8UP-103R	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD013R-8UP-103W	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD013R-8UP-104L	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD013R-8UP-104R	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD013R-8UP-104W	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD013R-8UP-105L	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD013R-8UP-105R	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD013R-8UP-105W	Action: NC \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD013R-10UP-001L	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD013R-10UP-001R	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD013R-10UP-001W	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD013R-10UP-002L	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD013R-10UP-002R	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD013R-10UP-002W	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD013R-10UP-003L	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD013R-10UP-003R	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD013R-10UP-003W	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD013R-10UP-004L	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD013R-10UP-004R	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD013R-10UP-004W	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD013R-10UP-005L	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD013R-10UP-005R	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD013R-10UP-005W	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD013R-10UP-101L	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD013R-10UP-101R	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD013R-10UP-101W	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD013R-10UP-102L	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD013R-10UP-102R	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD013R-10UP-102W	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD013R-10UP-103L	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD013R-10UP-103R	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD013R-10UP-103W	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD013R-10UP-104L	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD013R-10UP-104R	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD013R-10UP-104W	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD013R-10UP-105L	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD013R-10UP-105R	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD013R-10UP-105W	Action: NC \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD013R-10BUP-001L	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD013R-10BUP-001R	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD013R-10BUP-001W	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD013R-10BUP-002L	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD013R-10BUP-002R	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD013R-10BUP-002W	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD013R-10BUP-003L	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD013R-10BUP-003R	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD013R-10BUP-003W	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD013R-10BUP-004L	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD013R-10BUP-004R	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD013R-10BUP-004W	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD013R-10BUP-005L	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD013R-10BUP-005R	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD013R-10BUP-005W	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD013R-10BUP-101L	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD013R-10BUP-101R	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD013R-10BUP-101W	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD013R-10BUP-102L	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD013R-10BUP-102R	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD013R-10BUP-102W	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD013R-10BUP-103L	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD013R-10BUP-103R	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD013R-10BUP-103W	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD013R-10BUP-104L	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD013R-10BUP-104R	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD013R-10BUP-104W	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD013R-10BUP-105L	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD013R-10BUP-105R	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD013R-10BUP-105W	Action: NC \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD013R-6UR-001L	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD013R-6UR-001R	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD013R-6UR-001W	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD013R-6UR-002L	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD013R-6UR-002R	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD013R-6UR-002W	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD013R-6UR-003L	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD013R-6UR-003R	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD013R-6UR-003W	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD013R-6UR-004L	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD013R-6UR-004R	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD013R-6UR-004W	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD013R-6UR-005L	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD013R-6UR-005R	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD013R-6UR-005W	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD013R-6UR-101L	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD013R-6UR-101R	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD013R-6UR-101W	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD013R-6UR-102L	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD013R-6UR-102R	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD013R-6UR-102W	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD013R-6UR-103L	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD013R-6UR-103R	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD013R-6UR-103W	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD013R-6UR-104L	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD013R-6UR-104R	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD013R-6UR-104W	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD013R-6UR-105L	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD013R-6UR-105R	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD013R-6UR-105W	Action: NC \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD013R-8BUR-001L	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD013R-8BUR-001R	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD013R-8BUR-001W	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD013R-8BUR-002L	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD013R-8BUR-002R	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD013R-8BUR-002W	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD013R-8BUR-003L	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD013R-8BUR-003R	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD013R-8BUR-003W	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD013R-8BUR-004L	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD013R-8BUR-004R	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD013R-8BUR-004W	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD013R-8BUR-005L	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD013R-8BUR-005R	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD013R-8BUR-005W	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD013R-8BUR-101L	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD013R-8BUR-101R	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD013R-8BUR-101W	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD013R-8BUR-102L	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD013R-8BUR-102R	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD013R-8BUR-102W	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD013R-8BUR-103L	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD013R-8BUR-103R	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD013R-8BUR-103W	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD013R-8BUR-104L	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD013R-8BUR-104R	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD013R-8BUR-104W	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD013R-8BUR-105L	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD013R-8BUR-105R	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD013R-8BUR-105W	Action: NC \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD013R-8UR-001L	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD013R-8UR-001R	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD013R-8UR-001W	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD013R-8UR-002L	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD013R-8UR-002R	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD013R-8UR-002W	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD013R-8UR-003L	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD013R-8UR-003R	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD013R-8UR-003W	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD013R-8UR-004L	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD013R-8UR-004R	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD013R-8UR-004W	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD013R-8UR-005L	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD013R-8UR-005R	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD013R-8UR-005W	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD013R-8UR-101L	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD013R-8UR-101R	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD013R-8UR-101W	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD013R-8UR-102L	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD013R-8UR-102R	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD013R-8UR-102W	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD013R-8UR-103L	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD013R-8UR-103R	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD013R-8UR-103W	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD013R-8UR-104L	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD013R-8UR-104R	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD013R-8UR-104W	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD013R-8UR-105L	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD013R-8UR-105R	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD013R-8UR-105W	Action: NC \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD013R-10UR-001L	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD013R-10UR-001R	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD013R-10UR-001W	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD013R-10UR-002L	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD013R-10UR-002R	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD013R-10UR-002W	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD013R-10UR-003L	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD013R-10UR-003R	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD013R-10UR-003W	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD013R-10UR-004L	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD013R-10UR-004R	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD013R-10UR-004W	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD013R-10UR-005L	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD013R-10UR-005R	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD013R-10UR-005W	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD013R-10UR-101L	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD013R-10UR-101R	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD013R-10UR-101W	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD013R-10UR-102L	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD013R-10UR-102R	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD013R-10UR-102W	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD013R-10UR-103L	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD013R-10UR-103R	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD013R-10UR-103W	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD013R-10UR-104L	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD013R-10UR-104R	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD013R-10UR-104W	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD013R-10UR-105L	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD013R-10UR-105R	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD013R-10UR-105W	Action: NC \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD013R-10BUR-001L	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD013R-10BUR-001R	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD013R-10BUR-001W	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD013R-10BUR-002L	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD013R-10BUR-002R	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD013R-10BUR-002W	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD013R-10BUR-003L	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD013R-10BUR-003R	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD013R-10BUR-003W	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD013R-10BUR-004L	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD013R-10BUR-004R	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD013R-10BUR-004W	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD013R-10BUR-005L	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD013R-10BUR-005R	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD013R-10BUR-005W	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD013R-10BUR-101L	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD013R-10BUR-101R	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD013R-10BUR-101W	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD013R-10BUR-102L	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD013R-10BUR-102R	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD013R-10BUR-102W	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD013R-10BUR-103L	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD013R-10BUR-103R	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD013R-10BUR-103W	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD013R-10BUR-104L	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD013R-10BUR-104R	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD013R-10BUR-104W	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD013R-10BUR-105L	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD013R-10BUR-105R	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD013R-10BUR-105W	Action: NC \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD023R-6UP-001L	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD023R-6UP-001R	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD023R-6UP-001W	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD023R-6UP-002L	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD023R-6UP-002R	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD023R-6UP-002W	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD023R-6UP-003L	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD023R-6UP-003R	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD023R-6UP-003W	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD023R-6UP-004L	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD023R-6UP-004R	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD023R-6UP-004W	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD023R-6UP-005L	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD023R-6UP-005R	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD023R-6UP-005W	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD023R-6UP-101L	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD023R-6UP-101R	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD023R-6UP-101W	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD023R-6UP-102L	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD023R-6UP-102R	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD023R-6UP-102W	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD023R-6UP-103L	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD023R-6UP-103R	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD023R-6UP-103W	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD023R-6UP-104L	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD023R-6UP-104R	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD023R-6UP-104W	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD023R-6UP-105L	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD023R-6UP-105R	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD023R-6UP-105W	Action: NO \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD023R-8BUP-001L	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD023R-8BUP-001R	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD023R-8BUP-001W	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD023R-8BUP-002L	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD023R-8BUP-002R	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD023R-8BUP-002W	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD023R-8BUP-003L	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD023R-8BUP-003R	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD023R-8BUP-003W	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD023R-8BUP-004L	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD023R-8BUP-004R	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD023R-8BUP-004W	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD023R-8BUP-005L	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD023R-8BUP-005R	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD023R-8BUP-005W	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD023R-8BUP-101L	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD023R-8BUP-101R	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD023R-8BUP-101W	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD023R-8BUP-102L	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD023R-8BUP-102R	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD023R-8BUP-102W	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD023R-8BUP-103L	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD023R-8BUP-103R	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD023R-8BUP-103W	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD023R-8BUP-104L	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD023R-8BUP-104R	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD023R-8BUP-104W	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD023R-8BUP-105L	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD023R-8BUP-105R	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD023R-8BUP-105W	Action: NO \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD023R-8UP-001L	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD023R-8UP-001R	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD023R-8UP-001W	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD023R-8UP-002L	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD023R-8UP-002R	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD023R-8UP-002W	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD023R-8UP-003L	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD023R-8UP-003R	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD023R-8UP-003W	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD023R-8UP-004L	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD023R-8UP-004R	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD023R-8UP-004W	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD023R-8UP-005L	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD023R-8UP-005R	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD023R-8UP-005W	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD023R-8UP-101L	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD023R-8UP-101R	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD023R-8UP-101W	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD023R-8UP-102L	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD023R-8UP-102R	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD023R-8UP-102W	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD023R-8UP-103L	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD023R-8UP-103R	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD023R-8UP-103W	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD023R-8UP-104L	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD023R-8UP-104R	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD023R-8UP-104W	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD023R-8UP-105L	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD023R-8UP-105R	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD023R-8UP-105W	Action: NO \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD023R-10UP-001L	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD023R-10UP-001R	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD023R-10UP-001W	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD023R-10UP-002L	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD023R-10UP-002R	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD023R-10UP-002W	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD023R-10UP-003L	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD023R-10UP-003R	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD023R-10UP-003W	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD023R-10UP-004L	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD023R-10UP-004R	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD023R-10UP-004W	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD023R-10UP-005L	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD023R-10UP-005R	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD023R-10UP-005W	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD023R-10UP-101L	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD023R-10UP-101R	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD023R-10UP-101W	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD023R-10UP-102L	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD023R-10UP-102R	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD023R-10UP-102W	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD023R-10UP-103L	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD023R-10UP-103R	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD023R-10UP-103W	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD023R-10UP-104L	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD023R-10UP-104R	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD023R-10UP-104W	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD023R-10UP-105L	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD023R-10UP-105R	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD023R-10UP-105W	Action: NO \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD023R-10BUP-001L	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD023R-10BUP-001R	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD023R-10BUP-001W	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD023R-10BUP-002L	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD023R-10BUP-002R	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD023R-10BUP-002W	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD023R-10BUP-003L	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD023R-10BUP-003R	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD023R-10BUP-003W	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD023R-10BUP-004L	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD023R-10BUP-004R	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD023R-10BUP-004W	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD023R-10BUP-005L	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD023R-10BUP-005R	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD023R-10BUP-005W	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD023R-10BUP-101L	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD023R-10BUP-101R	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD023R-10BUP-101W	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD023R-10BUP-102L	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD023R-10BUP-102R	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD023R-10BUP-102W	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD023R-10BUP-103L	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD023R-10BUP-103R	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD023R-10BUP-103W	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD023R-10BUP-104L	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD023R-10BUP-104R	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD023R-10BUP-104W	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD023R-10BUP-105L	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD023R-10BUP-105R	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD023R-10BUP-105W	Action: NO \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD023R-6UR-001L	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD023R-6UR-001R	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD023R-6UR-001W	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD023R-6UR-002L	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD023R-6UR-002R	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD023R-6UR-002W	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD023R-6UR-003L	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD023R-6UR-003R	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD023R-6UR-003W	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD023R-6UR-004L	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD023R-6UR-004R	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD023R-6UR-004W	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD023R-6UR-005L	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD023R-6UR-005R	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD023R-6UR-005W	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD023R-6UR-101L	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD023R-6UR-101R	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD023R-6UR-101W	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD023R-6UR-102L	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD023R-6UR-102R	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD023R-6UR-102W	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD023R-6UR-103L	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD023R-6UR-103R	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD023R-6UR-103W	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD023R-6UR-104L	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD023R-6UR-104R	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD023R-6UR-104W	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD023R-6UR-105L	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD023R-6UR-105R	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD023R-6UR-105W	Action: NO \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD023R-8BUR-001L	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD023R-8BUR-001R	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD023R-8BUR-001W	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD023R-8BUR-002L	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD023R-8BUR-002R	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD023R-8BUR-002W	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD023R-8BUR-003L	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD023R-8BUR-003R	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD023R-8BUR-003W	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD023R-8BUR-004L	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD023R-8BUR-004R	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD023R-8BUR-004W	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD023R-8BUR-005L	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD023R-8BUR-005R	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD023R-8BUR-005W	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD023R-8BUR-101L	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD023R-8BUR-101R	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD023R-8BUR-101W	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD023R-8BUR-102L	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD023R-8BUR-102R	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD023R-8BUR-102W	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD023R-8BUR-103L	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD023R-8BUR-103R	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD023R-8BUR-103W	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD023R-8BUR-104L	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD023R-8BUR-104R	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD023R-8BUR-104W	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD023R-8BUR-105L	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD023R-8BUR-105R	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD023R-8BUR-105W	Action: NO \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD023R-8UR-001L	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD023R-8UR-001R	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD023R-8UR-001W	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD023R-8UR-002L	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD023R-8UR-002R	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD023R-8UR-002W	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD023R-8UR-003L	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD023R-8UR-003R	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD023R-8UR-003W	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD023R-8UR-004L	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD023R-8UR-004R	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD023R-8UR-004W	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD023R-8UR-005L	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD023R-8UR-005R	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD023R-8UR-005W	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD023R-8UR-101L	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD023R-8UR-101R	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD023R-8UR-101W	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD023R-8UR-102L	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD023R-8UR-102R	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD023R-8UR-102W	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD023R-8UR-103L	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD023R-8UR-103R	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD023R-8UR-103W	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD023R-8UR-104L	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD023R-8UR-104R	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD023R-8UR-104W	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD023R-8UR-105L	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD023R-8UR-105R	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD023R-8UR-105W	Action: NO \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD023R-10UR-001L	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD023R-10UR-001R	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD023R-10UR-001W	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD023R-10UR-002L	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD023R-10UR-002R	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD023R-10UR-002W	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD023R-10UR-003L	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD023R-10UR-003R	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD023R-10UR-003W	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD023R-10UR-004L	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD023R-10UR-004R	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD023R-10UR-004W	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD023R-10UR-005L	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD023R-10UR-005R	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD023R-10UR-005W	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD023R-10UR-101L	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD023R-10UR-101R	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD023R-10UR-101W	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD023R-10UR-102L	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD023R-10UR-102R	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD023R-10UR-102W	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD023R-10UR-103L	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD023R-10UR-103R	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD023R-10UR-103W	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD023R-10UR-104L	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD023R-10UR-104R	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD023R-10UR-104W	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD023R-10UR-105L	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD023R-10UR-105R	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD023R-10UR-105W	Action: NO \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD023R-10BUR-001L	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD023R-10BUR-001R	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD023R-10BUR-001W	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD023R-10BUR-002L	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD023R-10BUR-002R	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD023R-10BUR-002W	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD023R-10BUR-003L	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD023R-10BUR-003R	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD023R-10BUR-003W	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD023R-10BUR-004L	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD023R-10BUR-004R	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD023R-10BUR-004W	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD023R-10BUR-005L	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD023R-10BUR-005R	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD023R-10BUR-005W	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD023R-10BUR-101L	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD023R-10BUR-101R	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD023R-10BUR-101W	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD023R-10BUR-102L	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD023R-10BUR-102R	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD023R-10BUR-102W	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD023R-10BUR-103L	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD023R-10BUR-103R	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD023R-10BUR-103W	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD023R-10BUR-104L	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD023R-10BUR-104R	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD023R-10BUR-104W	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD023R-10BUR-105L	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD023R-10BUR-105R	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD023R-10BUR-105W	Action: NO \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD033R-6UP-001L	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD033R-6UP-001R	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD033R-6UP-001W	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD033R-6UP-002L	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD033R-6UP-002R	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD033R-6UP-002W	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD033R-6UP-003L	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD033R-6UP-003R	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD033R-6UP-003W	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD033R-6UP-004L	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD033R-6UP-004R	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD033R-6UP-004W	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD033R-6UP-005L	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD033R-6UP-005R	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD033R-6UP-005W	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD033R-6UP-101L	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD033R-6UP-101R	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD033R-6UP-101W	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD033R-6UP-102L	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD033R-6UP-102R	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD033R-6UP-102W	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD033R-6UP-103L	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD033R-6UP-103R	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD033R-6UP-103W	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD033R-6UP-104L	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD033R-6UP-104R	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD033R-6UP-104W	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD033R-6UP-105L	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD033R-6UP-105R	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD033R-6UP-105W	Action: Double acting \| Connection: Pillar S300 OD6x4 (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD033R-8BUP-001L	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD033R-8BUP-001R	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD033R-8BUP-001W	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD033R-8BUP-002L	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD033R-8BUP-002R	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD033R-8BUP-002W	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD033R-8BUP-003L	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD033R-8BUP-003R	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD033R-8BUP-003W	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD033R-8BUP-004L	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD033R-8BUP-004R	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD033R-8BUP-004W	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD033R-8BUP-005L	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD033R-8BUP-005R	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD033R-8BUP-005W	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD033R-8BUP-101L	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD033R-8BUP-101R	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD033R-8BUP-101W	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD033R-8BUP-102L	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD033R-8BUP-102R	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD033R-8BUP-102W	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD033R-8BUP-103L	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD033R-8BUP-103R	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD033R-8BUP-103W	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD033R-8BUP-104L	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD033R-8BUP-104R	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD033R-8BUP-104W	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD033R-8BUP-105L	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD033R-8BUP-105R	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD033R-8BUP-105W	Action: Double acting \| Connection: Pillar S300 1/4x5/32 in (orif. 4) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD033R-8UP-001L	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD033R-8UP-001R	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD033R-8UP-001W	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD033R-8UP-002L	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD033R-8UP-002R	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD033R-8UP-002W	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD033R-8UP-003L	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD033R-8UP-003R	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD033R-8UP-003W	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD033R-8UP-004L	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD033R-8UP-004R	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD033R-8UP-004W	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD033R-8UP-005L	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD033R-8UP-005R	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD033R-8UP-005W	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD033R-8UP-101L	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD033R-8UP-101R	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD033R-8UP-101W	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD033R-8UP-102L	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD033R-8UP-102R	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD033R-8UP-102W	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD033R-8UP-103L	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD033R-8UP-103R	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD033R-8UP-103W	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD033R-8UP-104L	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD033R-8UP-104R	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD033R-8UP-104W	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD033R-8UP-105L	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD033R-8UP-105R	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD033R-8UP-105W	Action: Double acting \| Connection: Pillar S300 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD033R-10UP-001L	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD033R-10UP-001R	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD033R-10UP-001W	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD033R-10UP-002L	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD033R-10UP-002R	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD033R-10UP-002W	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD033R-10UP-003L	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD033R-10UP-003R	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD033R-10UP-003W	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD033R-10UP-004L	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD033R-10UP-004R	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD033R-10UP-004W	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD033R-10UP-005L	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD033R-10UP-005R	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD033R-10UP-005W	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD033R-10UP-101L	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD033R-10UP-101R	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD033R-10UP-101W	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD033R-10UP-102L	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD033R-10UP-102R	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD033R-10UP-102W	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD033R-10UP-103L	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD033R-10UP-103R	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD033R-10UP-103W	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD033R-10UP-104L	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD033R-10UP-104R	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD033R-10UP-104W	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD033R-10UP-105L	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD033R-10UP-105R	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD033R-10UP-105W	Action: Double acting \| Connection: Pillar S300 OD10x8 (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD033R-10BUP-001L	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD033R-10BUP-001R	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD033R-10BUP-001W	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD033R-10BUP-002L	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD033R-10BUP-002R	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD033R-10BUP-002W	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD033R-10BUP-003L	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD033R-10BUP-003R	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD033R-10BUP-003W	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD033R-10BUP-004L	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD033R-10BUP-004R	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD033R-10BUP-004W	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD033R-10BUP-005L	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD033R-10BUP-005R	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD033R-10BUP-005W	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD033R-10BUP-101L	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD033R-10BUP-101R	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD033R-10BUP-101W	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD033R-10BUP-102L	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD033R-10BUP-102R	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD033R-10BUP-102W	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD033R-10BUP-103L	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD033R-10BUP-103R	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD033R-10BUP-103W	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD033R-10BUP-104L	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD033R-10BUP-104R	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD033R-10BUP-104W	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD033R-10BUP-105L	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD033R-10BUP-105R	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD033R-10BUP-105W	Action: Double acting \| Connection: Pillar S300 3/8x1/4 in (orif. 8) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD033R-6UR-001L	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD033R-6UR-001R	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD033R-6UR-001W	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD033R-6UR-002L	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD033R-6UR-002R	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD033R-6UR-002W	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD033R-6UR-003L	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD033R-6UR-003R	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD033R-6UR-003W	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD033R-6UR-004L	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD033R-6UR-004R	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD033R-6UR-004W	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD033R-6UR-005L	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD033R-6UR-005R	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD033R-6UR-005W	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD033R-6UR-101L	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD033R-6UR-101R	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD033R-6UR-101W	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD033R-6UR-102L	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD033R-6UR-102R	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD033R-6UR-102W	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD033R-6UR-103L	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD033R-6UR-103R	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD033R-6UR-103W	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD033R-6UR-104L	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD033R-6UR-104R	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD033R-6UR-104W	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD033R-6UR-105L	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD033R-6UR-105R	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD033R-6UR-105W	Action: Double acting \| Connection: F-LOCK 60 OD6x4 (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD033R-8BUR-001L	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD033R-8BUR-001R	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD033R-8BUR-001W	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD033R-8BUR-002L	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD033R-8BUR-002R	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD033R-8BUR-002W	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD033R-8BUR-003L	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD033R-8BUR-003R	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD033R-8BUR-003W	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD033R-8BUR-004L	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD033R-8BUR-004R	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD033R-8BUR-004W	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD033R-8BUR-005L	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD033R-8BUR-005R	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD033R-8BUR-005W	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD033R-8BUR-101L	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD033R-8BUR-101R	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD033R-8BUR-101W	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD033R-8BUR-102L	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD033R-8BUR-102R	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD033R-8BUR-102W	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD033R-8BUR-103L	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD033R-8BUR-103R	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD033R-8BUR-103W	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD033R-8BUR-104L	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD033R-8BUR-104R	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD033R-8BUR-104W	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD033R-8BUR-105L	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD033R-8BUR-105R	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD033R-8BUR-105W	Action: Double acting \| Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD033R-8UR-001L	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD033R-8UR-001R	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD033R-8UR-001W	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD033R-8UR-002L	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD033R-8UR-002R	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD033R-8UR-002W	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD033R-8UR-003L	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD033R-8UR-003R	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD033R-8UR-003W	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD033R-8UR-004L	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD033R-8UR-004R	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD033R-8UR-004W	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD033R-8UR-005L	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD033R-8UR-005R	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD033R-8UR-005W	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD033R-8UR-101L	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD033R-8UR-101R	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD033R-8UR-101W	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD033R-8UR-102L	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD033R-8UR-102R	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD033R-8UR-102W	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD033R-8UR-103L	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD033R-8UR-103R	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD033R-8UR-103W	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD033R-8UR-104L	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD033R-8UR-104R	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD033R-8UR-104W	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD033R-8UR-105L	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD033R-8UR-105R	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD033R-8UR-105W	Action: Double acting \| Connection: F-LOCK 60 OD8x6 (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD033R-10UR-001L	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD033R-10UR-001R	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD033R-10UR-001W	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD033R-10UR-002L	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD033R-10UR-002R	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD033R-10UR-002W	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD033R-10UR-003L	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD033R-10UR-003R	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD033R-10UR-003W	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD033R-10UR-004L	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD033R-10UR-004R	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD033R-10UR-004W	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD033R-10UR-005L	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD033R-10UR-005R	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD033R-10UR-005W	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD033R-10UR-101L	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD033R-10UR-101R	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD033R-10UR-101W	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD033R-10UR-102L	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD033R-10UR-102R	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD033R-10UR-102W	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD033R-10UR-103L	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD033R-10UR-103R	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD033R-10UR-103W	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD033R-10UR-104L	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD033R-10UR-104R	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD033R-10UR-104W	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD033R-10UR-105L	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD033R-10UR-105R	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD033R-10UR-105W	Action: Double acting \| Connection: F-LOCK 60 OD10x8 (orif. 7) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides
	GAMD033R-10BUR-001L	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Left
	GAMD033R-10BUR-001R	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Right
	GAMD033R-10BUR-001W	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 1 \| A port position: Both sides
	GAMD033R-10BUR-002L	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Left
	GAMD033R-10BUR-002R	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Right
	GAMD033R-10BUR-002W	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 2 \| A port position: Both sides
	GAMD033R-10BUR-003L	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Left
	GAMD033R-10BUR-003R	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Right
	GAMD033R-10BUR-003W	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 3 \| A port position: Both sides
	GAMD033R-10BUR-004L	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Left
	GAMD033R-10BUR-004R	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Right
	GAMD033R-10BUR-004W	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 4 \| A port position: Both sides
	GAMD033R-10BUR-005L	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Left
	GAMD033R-10BUR-005R	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Right
	GAMD033R-10BUR-005W	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: ON-OFF, indicator \| Stations: 5 \| A port position: Both sides
	GAMD033R-10BUR-101L	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Left
	GAMD033R-10BUR-101R	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Right
	GAMD033R-10BUR-101W	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 1 \| A port position: Both sides
	GAMD033R-10BUR-102L	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Left
	GAMD033R-10BUR-102R	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Right
	GAMD033R-10BUR-102W	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 2 \| A port position: Both sides
	GAMD033R-10BUR-103L	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Left
	GAMD033R-10BUR-103R	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Right
	GAMD033R-10BUR-103W	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 3 \| A port position: Both sides
	GAMD033R-10BUR-104L	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Left
	GAMD033R-10BUR-104R	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Right
	GAMD033R-10BUR-104W	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 4 \| A port position: Both sides
	GAMD033R-10BUR-105L	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Left
	GAMD033R-10BUR-105R	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Right
	GAMD033R-10BUR-105W	Action: Double acting \| Connection: F-LOCK 60 3/8x1/4 in (orif. 6) \| Actuator: With flow adjustment \| Stations: 5 \| A port position: Both sides

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD GAMD0*3R Manifold Air Operated Valve for Chemicals (1-5 Stations)
