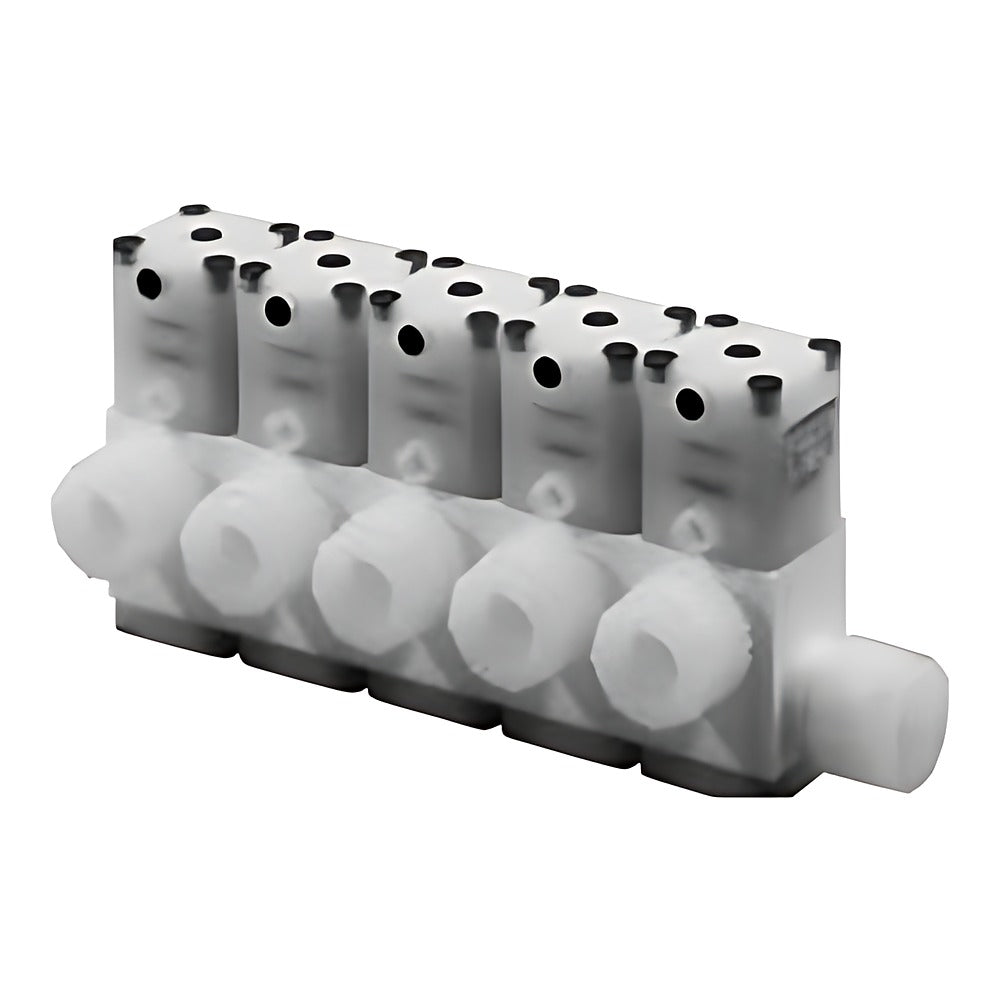

CKD GAMD3/4/5*3R Manifold Air Operated Valve for Chemicals

CKD GAMD3/4/5*3R Manifold Air Operated Valve for Chemicals

CKD GAMD3/4/5*3R made-to-order manifold/branch air-operated diaphragm valves for chemicals and pure water, orifice 6 to 20 mm, 1 to 5 stations.

Key features

  • Fluororesin construction: PVDF actuator, PTFE diaphragm, integrated tube fittings
  • Connections: Super 300 type Pillar fitting (P series, UP) or F-LOCK 60 series fitting (UR), metric and inch tubes
  • Orifice: GAMD3 6-10 mm, GAMD4 15-16 mm, GAMD5 20 mm; stations 1-5 (GAMD5 1-4)
  • Actuator 00 ON-OFF with indicator or 10 with flow adjustment; A port L, R or W (both)
  • Sensor-equipped actuators (A1/A3/B1/B3 NPN, C1/D1 PNP; cable 1 m or 3 m) replace 00/10 in the code and are not expanded
  • Made to order; example: GAMD313R-10UP-005W

Specifications

Fluid Chemicals, pure water, air, N2 gas
Fluid temperature 5 to 120 C (HF 5-80 C; F-LOCK 5-100 C)
Proof pressure 1.0 MPa
Operating pressure A-B / B-A 0-0.5 MPa
Seat leakage 0 (water)
Back pressure 0-0.5 MPa
Pilot port Rc1/8 (NC: Y, NO: X, double: X and Y)
Operating (pilot) pressure NC/NO 0.35-0.5 MPa, double 0.3-0.4 MPa
Body material PTFE
Mass (1 st.) 0.26 / 0.54 / 1.2 kg (GAMD3/4/5)
Source CKD Korea catalog CB-03-1SK-9, p. 1204-1209
GAMD313R-10UP-001L Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-10UP-001R Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-10UP-001W Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-10UP-002L Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-10UP-002R Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-10UP-002W Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-10UP-003L Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-10UP-003R Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-10UP-003W Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-10UP-004L Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-10UP-004R Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-10UP-004W Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-10UP-005L Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-10UP-005R Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-10UP-005W Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-10UP-101L Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-10UP-101R Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-10UP-101W Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-10UP-102L Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-10UP-102R Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-10UP-102W Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-10UP-103L Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-10UP-103R Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-10UP-103W Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-10UP-104L Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-10UP-104R Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-10UP-104W Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-10UP-105L Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-10UP-105R Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-10UP-105W Action: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD313R-10BUP-001L Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-10BUP-001R Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-10BUP-001W Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-10BUP-002L Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-10BUP-002R Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-10BUP-002W Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-10BUP-003L Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-10BUP-003R Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-10BUP-003W Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-10BUP-004L Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-10BUP-004R Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-10BUP-004W Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-10BUP-005L Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-10BUP-005R Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-10BUP-005W Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-10BUP-101L Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-10BUP-101R Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-10BUP-101W Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-10BUP-102L Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-10BUP-102R Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-10BUP-102W Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-10BUP-103L Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-10BUP-103R Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-10BUP-103W Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-10BUP-104L Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-10BUP-104R Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-10BUP-104W Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-10BUP-105L Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-10BUP-105R Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-10BUP-105W Action: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD313R-12UP-001L Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-12UP-001R Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-12UP-001W Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-12UP-002L Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-12UP-002R Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-12UP-002W Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-12UP-003L Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-12UP-003R Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-12UP-003W Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-12UP-004L Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-12UP-004R Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-12UP-004W Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-12UP-005L Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-12UP-005R Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-12UP-005W Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-12UP-101L Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-12UP-101R Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-12UP-101W Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-12UP-102L Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-12UP-102R Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-12UP-102W Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-12UP-103L Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-12UP-103R Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-12UP-103W Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-12UP-104L Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-12UP-104R Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-12UP-104W Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-12UP-105L Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-12UP-105R Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-12UP-105W Action: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD313R-15BUP-001L Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-15BUP-001R Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-15BUP-001W Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-15BUP-002L Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-15BUP-002R Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-15BUP-002W Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-15BUP-003L Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-15BUP-003R Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-15BUP-003W Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-15BUP-004L Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-15BUP-004R Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-15BUP-004W Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-15BUP-005L Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-15BUP-005R Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-15BUP-005W Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-15BUP-101L Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-15BUP-101R Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-15BUP-101W Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-15BUP-102L Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-15BUP-102R Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-15BUP-102W Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-15BUP-103L Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-15BUP-103R Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-15BUP-103W Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-15BUP-104L Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-15BUP-104R Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-15BUP-104W Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-15BUP-105L Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-15BUP-105R Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-15BUP-105W Action: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD313R-10UR-001L Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-10UR-001R Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-10UR-001W Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-10UR-002L Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-10UR-002R Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-10UR-002W Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-10UR-003L Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-10UR-003R Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-10UR-003W Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-10UR-004L Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-10UR-004R Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-10UR-004W Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-10UR-005L Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-10UR-005R Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-10UR-005W Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-10UR-101L Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-10UR-101R Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-10UR-101W Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-10UR-102L Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-10UR-102R Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-10UR-102W Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-10UR-103L Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-10UR-103R Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-10UR-103W Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-10UR-104L Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-10UR-104R Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-10UR-104W Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-10UR-105L Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-10UR-105R Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-10UR-105W Action: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD313R-10BUR-001L Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-10BUR-001R Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-10BUR-001W Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-10BUR-002L Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-10BUR-002R Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-10BUR-002W Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-10BUR-003L Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-10BUR-003R Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-10BUR-003W Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-10BUR-004L Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-10BUR-004R Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-10BUR-004W Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-10BUR-005L Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-10BUR-005R Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-10BUR-005W Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-10BUR-101L Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-10BUR-101R Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-10BUR-101W Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-10BUR-102L Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-10BUR-102R Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-10BUR-102W Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-10BUR-103L Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-10BUR-103R Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-10BUR-103W Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-10BUR-104L Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-10BUR-104R Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-10BUR-104W Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-10BUR-105L Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-10BUR-105R Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-10BUR-105W Action: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD313R-12UR-001L Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-12UR-001R Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-12UR-001W Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-12UR-002L Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-12UR-002R Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-12UR-002W Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-12UR-003L Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-12UR-003R Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-12UR-003W Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-12UR-004L Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-12UR-004R Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-12UR-004W Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-12UR-005L Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-12UR-005R Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-12UR-005W Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-12UR-101L Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-12UR-101R Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-12UR-101W Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-12UR-102L Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-12UR-102R Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-12UR-102W Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-12UR-103L Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-12UR-103R Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-12UR-103W Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-12UR-104L Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-12UR-104R Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-12UR-104W Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-12UR-105L Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-12UR-105R Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-12UR-105W Action: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD313R-15BUR-001L Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-15BUR-001R Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-15BUR-001W Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-15BUR-002L Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-15BUR-002R Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-15BUR-002W Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-15BUR-003L Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-15BUR-003R Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-15BUR-003W Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-15BUR-004L Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-15BUR-004R Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-15BUR-004W Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-15BUR-005L Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-15BUR-005R Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-15BUR-005W Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-15BUR-101L Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-15BUR-101R Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-15BUR-101W Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-15BUR-102L Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-15BUR-102R Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-15BUR-102W Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-15BUR-103L Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-15BUR-103R Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-15BUR-103W Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-15BUR-104L Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-15BUR-104R Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-15BUR-104W Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-15BUR-105L Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-15BUR-105R Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-15BUR-105W Action: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-10UP-001L Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-10UP-001R Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-10UP-001W Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-10UP-002L Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-10UP-002R Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-10UP-002W Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-10UP-003L Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-10UP-003R Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-10UP-003W Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-10UP-004L Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-10UP-004R Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-10UP-004W Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-10UP-005L Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-10UP-005R Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-10UP-005W Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-10UP-101L Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-10UP-101R Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-10UP-101W Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-10UP-102L Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-10UP-102R Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-10UP-102W Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-10UP-103L Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-10UP-103R Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-10UP-103W Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-10UP-104L Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-10UP-104R Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-10UP-104W Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-10UP-105L Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-10UP-105R Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-10UP-105W Action: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-10BUP-001L Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-10BUP-001R Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-10BUP-001W Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-10BUP-002L Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-10BUP-002R Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-10BUP-002W Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-10BUP-003L Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-10BUP-003R Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-10BUP-003W Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-10BUP-004L Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-10BUP-004R Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-10BUP-004W Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-10BUP-005L Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-10BUP-005R Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-10BUP-005W Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-10BUP-101L Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-10BUP-101R Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-10BUP-101W Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-10BUP-102L Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-10BUP-102R Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-10BUP-102W Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-10BUP-103L Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-10BUP-103R Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-10BUP-103W Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-10BUP-104L Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-10BUP-104R Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-10BUP-104W Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-10BUP-105L Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-10BUP-105R Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-10BUP-105W Action: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-12UP-001L Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-12UP-001R Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-12UP-001W Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-12UP-002L Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-12UP-002R Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-12UP-002W Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-12UP-003L Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-12UP-003R Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-12UP-003W Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-12UP-004L Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-12UP-004R Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-12UP-004W Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-12UP-005L Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-12UP-005R Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-12UP-005W Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-12UP-101L Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-12UP-101R Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-12UP-101W Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-12UP-102L Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-12UP-102R Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-12UP-102W Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-12UP-103L Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-12UP-103R Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-12UP-103W Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-12UP-104L Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-12UP-104R Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-12UP-104W Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-12UP-105L Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-12UP-105R Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-12UP-105W Action: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-15BUP-001L Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-15BUP-001R Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-15BUP-001W Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-15BUP-002L Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-15BUP-002R Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-15BUP-002W Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-15BUP-003L Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-15BUP-003R Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-15BUP-003W Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-15BUP-004L Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-15BUP-004R Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-15BUP-004W Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-15BUP-005L Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-15BUP-005R Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-15BUP-005W Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-15BUP-101L Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-15BUP-101R Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-15BUP-101W Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-15BUP-102L Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-15BUP-102R Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-15BUP-102W Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-15BUP-103L Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-15BUP-103R Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-15BUP-103W Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-15BUP-104L Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-15BUP-104R Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-15BUP-104W Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-15BUP-105L Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-15BUP-105R Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-15BUP-105W Action: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-10UR-001L Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-10UR-001R Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-10UR-001W Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-10UR-002L Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-10UR-002R Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-10UR-002W Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-10UR-003L Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-10UR-003R Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-10UR-003W Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-10UR-004L Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-10UR-004R Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-10UR-004W Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-10UR-005L Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-10UR-005R Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-10UR-005W Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-10UR-101L Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-10UR-101R Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-10UR-101W Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-10UR-102L Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-10UR-102R Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-10UR-102W Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-10UR-103L Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-10UR-103R Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-10UR-103W Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-10UR-104L Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-10UR-104R Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-10UR-104W Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-10UR-105L Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-10UR-105R Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-10UR-105W Action: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-10BUR-001L Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-10BUR-001R Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-10BUR-001W Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-10BUR-002L Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-10BUR-002R Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-10BUR-002W Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-10BUR-003L Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-10BUR-003R Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-10BUR-003W Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-10BUR-004L Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-10BUR-004R Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-10BUR-004W Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-10BUR-005L Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-10BUR-005R Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-10BUR-005W Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-10BUR-101L Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-10BUR-101R Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-10BUR-101W Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-10BUR-102L Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-10BUR-102R Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-10BUR-102W Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-10BUR-103L Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-10BUR-103R Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-10BUR-103W Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-10BUR-104L Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-10BUR-104R Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-10BUR-104W Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-10BUR-105L Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-10BUR-105R Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-10BUR-105W Action: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-12UR-001L Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-12UR-001R Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-12UR-001W Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-12UR-002L Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-12UR-002R Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-12UR-002W Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-12UR-003L Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-12UR-003R Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-12UR-003W Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-12UR-004L Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-12UR-004R Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-12UR-004W Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-12UR-005L Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-12UR-005R Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-12UR-005W Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-12UR-101L Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-12UR-101R Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-12UR-101W Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-12UR-102L Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-12UR-102R Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-12UR-102W Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-12UR-103L Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-12UR-103R Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-12UR-103W Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-12UR-104L Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-12UR-104R Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-12UR-104W Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-12UR-105L Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-12UR-105R Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-12UR-105W Action: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-15BUR-001L Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-15BUR-001R Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-15BUR-001W Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-15BUR-002L Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-15BUR-002R Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-15BUR-002W Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-15BUR-003L Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-15BUR-003R Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-15BUR-003W Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-15BUR-004L Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-15BUR-004R Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-15BUR-004W Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-15BUR-005L Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-15BUR-005R Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-15BUR-005W Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-15BUR-101L Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-15BUR-101R Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-15BUR-101W Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-15BUR-102L Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-15BUR-102R Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-15BUR-102W Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-15BUR-103L Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-15BUR-103R Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-15BUR-103W Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-15BUR-104L Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-15BUR-104R Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-15BUR-104W Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-15BUR-105L Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-15BUR-105R Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-15BUR-105W Action: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-10UP-001L Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-10UP-001R Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-10UP-001W Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-10UP-002L Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-10UP-002R Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-10UP-002W Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-10UP-003L Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-10UP-003R Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-10UP-003W Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-10UP-004L Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-10UP-004R Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-10UP-004W Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-10UP-005L Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-10UP-005R Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-10UP-005W Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-10UP-101L Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-10UP-101R Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-10UP-101W Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-10UP-102L Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-10UP-102R Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-10UP-102W Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-10UP-103L Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-10UP-103R Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-10UP-103W Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-10UP-104L Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-10UP-104R Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-10UP-104W Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-10UP-105L Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-10UP-105R Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-10UP-105W Action: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-10BUP-001L Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-10BUP-001R Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-10BUP-001W Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-10BUP-002L Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-10BUP-002R Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-10BUP-002W Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-10BUP-003L Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-10BUP-003R Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-10BUP-003W Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-10BUP-004L Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-10BUP-004R Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-10BUP-004W Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-10BUP-005L Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-10BUP-005R Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-10BUP-005W Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-10BUP-101L Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-10BUP-101R Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-10BUP-101W Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-10BUP-102L Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-10BUP-102R Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-10BUP-102W Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-10BUP-103L Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-10BUP-103R Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-10BUP-103W Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-10BUP-104L Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-10BUP-104R Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-10BUP-104W Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-10BUP-105L Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-10BUP-105R Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-10BUP-105W Action: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-12UP-001L Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-12UP-001R Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-12UP-001W Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-12UP-002L Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-12UP-002R Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-12UP-002W Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-12UP-003L Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-12UP-003R Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-12UP-003W Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-12UP-004L Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-12UP-004R Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-12UP-004W Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-12UP-005L Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-12UP-005R Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-12UP-005W Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-12UP-101L Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-12UP-101R Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-12UP-101W Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-12UP-102L Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-12UP-102R Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-12UP-102W Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-12UP-103L Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-12UP-103R Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-12UP-103W Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-12UP-104L Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-12UP-104R Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-12UP-104W Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-12UP-105L Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-12UP-105R Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-12UP-105W Action: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-15BUP-001L Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-15BUP-001R Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-15BUP-001W Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-15BUP-002L Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-15BUP-002R Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-15BUP-002W Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-15BUP-003L Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-15BUP-003R Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-15BUP-003W Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-15BUP-004L Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-15BUP-004R Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-15BUP-004W Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-15BUP-005L Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-15BUP-005R Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-15BUP-005W Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-15BUP-101L Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-15BUP-101R Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-15BUP-101W Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-15BUP-102L Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-15BUP-102R Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-15BUP-102W Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-15BUP-103L Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-15BUP-103R Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-15BUP-103W Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-15BUP-104L Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-15BUP-104R Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-15BUP-104W Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-15BUP-105L Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-15BUP-105R Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-15BUP-105W Action: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-10UR-001L Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-10UR-001R Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-10UR-001W Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-10UR-002L Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-10UR-002R Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-10UR-002W Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-10UR-003L Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-10UR-003R Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-10UR-003W Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-10UR-004L Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-10UR-004R Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-10UR-004W Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-10UR-005L Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-10UR-005R Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-10UR-005W Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-10UR-101L Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-10UR-101R Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-10UR-101W Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-10UR-102L Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-10UR-102R Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-10UR-102W Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-10UR-103L Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-10UR-103R Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-10UR-103W Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-10UR-104L Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-10UR-104R Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-10UR-104W Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-10UR-105L Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-10UR-105R Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-10UR-105W Action: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-10BUR-001L Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-10BUR-001R Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-10BUR-001W Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-10BUR-002L Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-10BUR-002R Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-10BUR-002W Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-10BUR-003L Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-10BUR-003R Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-10BUR-003W Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-10BUR-004L Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-10BUR-004R Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-10BUR-004W Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-10BUR-005L Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-10BUR-005R Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-10BUR-005W Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-10BUR-101L Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-10BUR-101R Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-10BUR-101W Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-10BUR-102L Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-10BUR-102R Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-10BUR-102W Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-10BUR-103L Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-10BUR-103R Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-10BUR-103W Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-10BUR-104L Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-10BUR-104R Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-10BUR-104W Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-10BUR-105L Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-10BUR-105R Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-10BUR-105W Action: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-12UR-001L Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-12UR-001R Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-12UR-001W Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-12UR-002L Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-12UR-002R Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-12UR-002W Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-12UR-003L Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-12UR-003R Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-12UR-003W Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-12UR-004L Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-12UR-004R Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-12UR-004W Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-12UR-005L Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-12UR-005R Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-12UR-005W Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-12UR-101L Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-12UR-101R Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-12UR-101W Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-12UR-102L Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-12UR-102R Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-12UR-102W Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-12UR-103L Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-12UR-103R Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-12UR-103W Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-12UR-104L Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-12UR-104R Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-12UR-104W Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-12UR-105L Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-12UR-105R Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-12UR-105W Action: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-15BUR-001L Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-15BUR-001R Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-15BUR-001W Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-15BUR-002L Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-15BUR-002R Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-15BUR-002W Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-15BUR-003L Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-15BUR-003R Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-15BUR-003W Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-15BUR-004L Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-15BUR-004R Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-15BUR-004W Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-15BUR-005L Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-15BUR-005R Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-15BUR-005W Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-15BUR-101L Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-15BUR-101R Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-15BUR-101W Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-15BUR-102L Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-15BUR-102R Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-15BUR-102W Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-15BUR-103L Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-15BUR-103R Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-15BUR-103W Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-15BUR-104L Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-15BUR-104R Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-15BUR-104W Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-15BUR-105L Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-15BUR-105R Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-15BUR-105W Action: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD413R-20BUP-001L Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD413R-20BUP-001R Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD413R-20BUP-001W Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD413R-20BUP-002L Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD413R-20BUP-002R Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD413R-20BUP-002W Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD413R-20BUP-003L Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD413R-20BUP-003R Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD413R-20BUP-003W Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD413R-20BUP-004L Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD413R-20BUP-004R Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD413R-20BUP-004W Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD413R-20BUP-005L Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD413R-20BUP-005R Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD413R-20BUP-005W Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD413R-20BUP-101L Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD413R-20BUP-101R Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD413R-20BUP-101W Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD413R-20BUP-102L Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD413R-20BUP-102R Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD413R-20BUP-102W Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD413R-20BUP-103L Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD413R-20BUP-103R Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD413R-20BUP-103W Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD413R-20BUP-104L Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD413R-20BUP-104R Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD413R-20BUP-104W Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD413R-20BUP-105L Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD413R-20BUP-105R Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD413R-20BUP-105W Action: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD413R-20BUR-001L Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD413R-20BUR-001R Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD413R-20BUR-001W Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD413R-20BUR-002L Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD413R-20BUR-002R Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD413R-20BUR-002W Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD413R-20BUR-003L Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD413R-20BUR-003R Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD413R-20BUR-003W Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD413R-20BUR-004L Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD413R-20BUR-004R Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD413R-20BUR-004W Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD413R-20BUR-005L Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD413R-20BUR-005R Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD413R-20BUR-005W Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD413R-20BUR-101L Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD413R-20BUR-101R Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD413R-20BUR-101W Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD413R-20BUR-102L Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD413R-20BUR-102R Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD413R-20BUR-102W Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD413R-20BUR-103L Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD413R-20BUR-103R Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD413R-20BUR-103W Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD413R-20BUR-104L Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD413R-20BUR-104R Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD413R-20BUR-104W Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD413R-20BUR-105L Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD413R-20BUR-105R Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD413R-20BUR-105W Action: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD423R-20BUP-001L Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD423R-20BUP-001R Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD423R-20BUP-001W Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD423R-20BUP-002L Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD423R-20BUP-002R Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD423R-20BUP-002W Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD423R-20BUP-003L Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD423R-20BUP-003R Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD423R-20BUP-003W Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD423R-20BUP-004L Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD423R-20BUP-004R Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD423R-20BUP-004W Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD423R-20BUP-005L Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD423R-20BUP-005R Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD423R-20BUP-005W Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD423R-20BUP-101L Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD423R-20BUP-101R Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD423R-20BUP-101W Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD423R-20BUP-102L Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD423R-20BUP-102R Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD423R-20BUP-102W Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD423R-20BUP-103L Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD423R-20BUP-103R Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD423R-20BUP-103W Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD423R-20BUP-104L Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD423R-20BUP-104R Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD423R-20BUP-104W Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD423R-20BUP-105L Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD423R-20BUP-105R Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD423R-20BUP-105W Action: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD423R-20BUR-001L Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD423R-20BUR-001R Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD423R-20BUR-001W Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD423R-20BUR-002L Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD423R-20BUR-002R Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD423R-20BUR-002W Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD423R-20BUR-003L Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD423R-20BUR-003R Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD423R-20BUR-003W Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD423R-20BUR-004L Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD423R-20BUR-004R Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD423R-20BUR-004W Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD423R-20BUR-005L Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD423R-20BUR-005R Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD423R-20BUR-005W Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD423R-20BUR-101L Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD423R-20BUR-101R Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD423R-20BUR-101W Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD423R-20BUR-102L Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD423R-20BUR-102R Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD423R-20BUR-102W Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD423R-20BUR-103L Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD423R-20BUR-103R Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD423R-20BUR-103W Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD423R-20BUR-104L Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD423R-20BUR-104R Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD423R-20BUR-104W Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD423R-20BUR-105L Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD423R-20BUR-105R Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD423R-20BUR-105W Action: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD433R-20BUP-001L Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD433R-20BUP-001R Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD433R-20BUP-001W Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD433R-20BUP-002L Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD433R-20BUP-002R Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD433R-20BUP-002W Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD433R-20BUP-003L Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD433R-20BUP-003R Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD433R-20BUP-003W Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD433R-20BUP-004L Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD433R-20BUP-004R Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD433R-20BUP-004W Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD433R-20BUP-005L Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD433R-20BUP-005R Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD433R-20BUP-005W Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD433R-20BUP-101L Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD433R-20BUP-101R Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD433R-20BUP-101W Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD433R-20BUP-102L Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD433R-20BUP-102R Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD433R-20BUP-102W Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD433R-20BUP-103L Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD433R-20BUP-103R Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD433R-20BUP-103W Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD433R-20BUP-104L Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD433R-20BUP-104R Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD433R-20BUP-104W Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD433R-20BUP-105L Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD433R-20BUP-105R Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD433R-20BUP-105W Action: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD433R-20BUR-001L Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD433R-20BUR-001R Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD433R-20BUR-001W Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD433R-20BUR-002L Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD433R-20BUR-002R Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD433R-20BUR-002W Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD433R-20BUR-003L Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD433R-20BUR-003R Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD433R-20BUR-003W Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD433R-20BUR-004L Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD433R-20BUR-004R Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD433R-20BUR-004W Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD433R-20BUR-005L Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD433R-20BUR-005R Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD433R-20BUR-005W Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD433R-20BUR-101L Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD433R-20BUR-101R Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD433R-20BUR-101W Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD433R-20BUR-102L Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD433R-20BUR-102R Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD433R-20BUR-102W Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD433R-20BUR-103L Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD433R-20BUR-103R Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD433R-20BUR-103W Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD433R-20BUR-104L Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD433R-20BUR-104R Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD433R-20BUR-104W Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD433R-20BUR-105L Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD433R-20BUR-105R Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD433R-20BUR-105W Action: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD513R-25UP-001L Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD513R-25UP-001R Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD513R-25UP-001W Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD513R-25UP-002L Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD513R-25UP-002R Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD513R-25UP-002W Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD513R-25UP-003L Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD513R-25UP-003R Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD513R-25UP-003W Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD513R-25UP-004L Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD513R-25UP-004R Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD513R-25UP-004W Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD513R-25UP-101L Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD513R-25UP-101R Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD513R-25UP-101W Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD513R-25UP-102L Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD513R-25UP-102R Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD513R-25UP-102W Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD513R-25UP-103L Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD513R-25UP-103R Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD513R-25UP-103W Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD513R-25UP-104L Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD513R-25UP-104R Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD513R-25UP-104W Action: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD513R-25BUP-001L Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD513R-25BUP-001R Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD513R-25BUP-001W Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD513R-25BUP-002L Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD513R-25BUP-002R Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD513R-25BUP-002W Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD513R-25BUP-003L Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD513R-25BUP-003R Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD513R-25BUP-003W Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD513R-25BUP-004L Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD513R-25BUP-004R Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD513R-25BUP-004W Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD513R-25BUP-101L Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD513R-25BUP-101R Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD513R-25BUP-101W Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD513R-25BUP-102L Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD513R-25BUP-102R Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD513R-25BUP-102W Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD513R-25BUP-103L Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD513R-25BUP-103R Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD513R-25BUP-103W Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD513R-25BUP-104L Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD513R-25BUP-104R Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD513R-25BUP-104W Action: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD513R-25UR-001L Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD513R-25UR-001R Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD513R-25UR-001W Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD513R-25UR-002L Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD513R-25UR-002R Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD513R-25UR-002W Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD513R-25UR-003L Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD513R-25UR-003R Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD513R-25UR-003W Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD513R-25UR-004L Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD513R-25UR-004R Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD513R-25UR-004W Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD513R-25UR-101L Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD513R-25UR-101R Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD513R-25UR-101W Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD513R-25UR-102L Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD513R-25UR-102R Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD513R-25UR-102W Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD513R-25UR-103L Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD513R-25UR-103R Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD513R-25UR-103W Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD513R-25UR-104L Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD513R-25UR-104R Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD513R-25UR-104W Action: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD513R-25BUR-001L Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD513R-25BUR-001R Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD513R-25BUR-001W Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD513R-25BUR-002L Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD513R-25BUR-002R Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD513R-25BUR-002W Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD513R-25BUR-003L Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD513R-25BUR-003R Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD513R-25BUR-003W Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD513R-25BUR-004L Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD513R-25BUR-004R Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD513R-25BUR-004W Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD513R-25BUR-101L Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD513R-25BUR-101R Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD513R-25BUR-101W Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD513R-25BUR-102L Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD513R-25BUR-102R Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD513R-25BUR-102W Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD513R-25BUR-103L Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD513R-25BUR-103R Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD513R-25BUR-103W Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD513R-25BUR-104L Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD513R-25BUR-104R Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD513R-25BUR-104W Action: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD523R-25UP-001L Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD523R-25UP-001R Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD523R-25UP-001W Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD523R-25UP-002L Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD523R-25UP-002R Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD523R-25UP-002W Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD523R-25UP-003L Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD523R-25UP-003R Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD523R-25UP-003W Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD523R-25UP-004L Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD523R-25UP-004R Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD523R-25UP-004W Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD523R-25UP-101L Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD523R-25UP-101R Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD523R-25UP-101W Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD523R-25UP-102L Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD523R-25UP-102R Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD523R-25UP-102W Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD523R-25UP-103L Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD523R-25UP-103R Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD523R-25UP-103W Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD523R-25UP-104L Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD523R-25UP-104R Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD523R-25UP-104W Action: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD523R-25BUP-001L Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD523R-25BUP-001R Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD523R-25BUP-001W Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD523R-25BUP-002L Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD523R-25BUP-002R Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD523R-25BUP-002W Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD523R-25BUP-003L Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD523R-25BUP-003R Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD523R-25BUP-003W Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD523R-25BUP-004L Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD523R-25BUP-004R Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD523R-25BUP-004W Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD523R-25BUP-101L Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD523R-25BUP-101R Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD523R-25BUP-101W Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD523R-25BUP-102L Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD523R-25BUP-102R Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD523R-25BUP-102W Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD523R-25BUP-103L Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD523R-25BUP-103R Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD523R-25BUP-103W Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD523R-25BUP-104L Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD523R-25BUP-104R Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD523R-25BUP-104W Action: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD523R-25UR-001L Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD523R-25UR-001R Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD523R-25UR-001W Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD523R-25UR-002L Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD523R-25UR-002R Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD523R-25UR-002W Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD523R-25UR-003L Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD523R-25UR-003R Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD523R-25UR-003W Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD523R-25UR-004L Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD523R-25UR-004R Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD523R-25UR-004W Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD523R-25UR-101L Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD523R-25UR-101R Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD523R-25UR-101W Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD523R-25UR-102L Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD523R-25UR-102R Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD523R-25UR-102W Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD523R-25UR-103L Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD523R-25UR-103R Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD523R-25UR-103W Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD523R-25UR-104L Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD523R-25UR-104R Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD523R-25UR-104W Action: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD523R-25BUR-001L Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD523R-25BUR-001R Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD523R-25BUR-001W Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD523R-25BUR-002L Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD523R-25BUR-002R Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD523R-25BUR-002W Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD523R-25BUR-003L Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD523R-25BUR-003R Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD523R-25BUR-003W Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD523R-25BUR-004L Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD523R-25BUR-004R Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD523R-25BUR-004W Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD523R-25BUR-101L Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD523R-25BUR-101R Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD523R-25BUR-101W Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD523R-25BUR-102L Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD523R-25BUR-102R Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD523R-25BUR-102W Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD523R-25BUR-103L Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD523R-25BUR-103R Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD523R-25BUR-103W Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD523R-25BUR-104L Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD523R-25BUR-104R Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD523R-25BUR-104W Action: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD533R-25UP-001L Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD533R-25UP-001R Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD533R-25UP-001W Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD533R-25UP-002L Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD533R-25UP-002R Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD533R-25UP-002W Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD533R-25UP-003L Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD533R-25UP-003R Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD533R-25UP-003W Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD533R-25UP-004L Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD533R-25UP-004R Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD533R-25UP-004W Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD533R-25UP-101L Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD533R-25UP-101R Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD533R-25UP-101W Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD533R-25UP-102L Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD533R-25UP-102R Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD533R-25UP-102W Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD533R-25UP-103L Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD533R-25UP-103R Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD533R-25UP-103W Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD533R-25UP-104L Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD533R-25UP-104R Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD533R-25UP-104W Action: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD533R-25BUP-001L Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD533R-25BUP-001R Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD533R-25BUP-001W Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD533R-25BUP-002L Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD533R-25BUP-002R Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD533R-25BUP-002W Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD533R-25BUP-003L Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD533R-25BUP-003R Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD533R-25BUP-003W Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD533R-25BUP-004L Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD533R-25BUP-004R Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD533R-25BUP-004W Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD533R-25BUP-101L Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD533R-25BUP-101R Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD533R-25BUP-101W Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD533R-25BUP-102L Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD533R-25BUP-102R Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD533R-25BUP-102W Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD533R-25BUP-103L Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD533R-25BUP-103R Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD533R-25BUP-103W Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD533R-25BUP-104L Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD533R-25BUP-104R Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD533R-25BUP-104W Action: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD533R-25UR-001L Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD533R-25UR-001R Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD533R-25UR-001W Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD533R-25UR-002L Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD533R-25UR-002R Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD533R-25UR-002W Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD533R-25UR-003L Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD533R-25UR-003R Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD533R-25UR-003W Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD533R-25UR-004L Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD533R-25UR-004R Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD533R-25UR-004W Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD533R-25UR-101L Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD533R-25UR-101R Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD533R-25UR-101W Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD533R-25UR-102L Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD533R-25UR-102R Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD533R-25UR-102W Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD533R-25UR-103L Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD533R-25UR-103R Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD533R-25UR-103W Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD533R-25UR-104L Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD533R-25UR-104R Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD533R-25UR-104W Action: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD533R-25BUR-001L Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD533R-25BUR-001R Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD533R-25BUR-001W Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD533R-25BUR-002L Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD533R-25BUR-002R Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD533R-25BUR-002W Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD533R-25BUR-003L Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD533R-25BUR-003R Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD533R-25BUR-003W Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD533R-25BUR-004L Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD533R-25BUR-004R Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD533R-25BUR-004W Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD533R-25BUR-101L Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD533R-25BUR-101R Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD533R-25BUR-101W Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD533R-25BUR-102L Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD533R-25BUR-102R Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD533R-25BUR-102W Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD533R-25BUR-103L Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD533R-25BUR-103R Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD533R-25BUR-103W Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD533R-25BUR-104L Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD533R-25BUR-104R Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD533R-25BUR-104W Action: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
Air Operated ValvesCKD
1188 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GAMD3/4/5*3R Manifold Air Operated Valve for Chemicals

Brand CKD·Air Operated Valves

Available part numbers (1188)

GAMD313R-10UP-001L, GAMD313R-10UP-001R, GAMD313R-10UP-001W, GAMD313R-10UP-002L, GAMD313R-10UP-002R, GAMD313R-10UP-002W, GAMD313R-10UP-003L, GAMD313R-10UP-003R, GAMD313R-10UP-003W, GAMD313R-10UP-004L + 1178 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GAMD313R-10UP-001LAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-10UP-001RAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-10UP-001WAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-10UP-002LAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-10UP-002RAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-10UP-002WAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-10UP-003LAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-10UP-003RAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-10UP-003WAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-10UP-004LAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-10UP-004RAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-10UP-004WAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-10UP-005LAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-10UP-005RAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-10UP-005WAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-10UP-101LAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-10UP-101RAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-10UP-101WAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-10UP-102LAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-10UP-102RAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-10UP-102WAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-10UP-103LAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-10UP-103RAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-10UP-103WAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-10UP-104LAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-10UP-104RAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-10UP-104WAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-10UP-105LAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-10UP-105RAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-10UP-105WAction: NC | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD313R-10BUP-001LAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-10BUP-001RAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-10BUP-001WAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-10BUP-002LAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-10BUP-002RAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-10BUP-002WAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-10BUP-003LAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-10BUP-003RAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-10BUP-003WAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-10BUP-004LAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-10BUP-004RAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-10BUP-004WAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-10BUP-005LAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-10BUP-005RAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-10BUP-005WAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-10BUP-101LAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-10BUP-101RAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-10BUP-101WAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-10BUP-102LAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-10BUP-102RAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-10BUP-102WAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-10BUP-103LAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-10BUP-103RAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-10BUP-103WAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-10BUP-104LAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-10BUP-104RAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-10BUP-104WAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-10BUP-105LAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-10BUP-105RAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-10BUP-105WAction: NC | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD313R-12UP-001LAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-12UP-001RAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-12UP-001WAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-12UP-002LAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-12UP-002RAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-12UP-002WAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-12UP-003LAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-12UP-003RAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-12UP-003WAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-12UP-004LAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-12UP-004RAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-12UP-004WAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-12UP-005LAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-12UP-005RAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-12UP-005WAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-12UP-101LAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-12UP-101RAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-12UP-101WAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-12UP-102LAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-12UP-102RAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-12UP-102WAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-12UP-103LAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-12UP-103RAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-12UP-103WAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-12UP-104LAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-12UP-104RAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-12UP-104WAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-12UP-105LAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-12UP-105RAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-12UP-105WAction: NC | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD313R-15BUP-001LAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-15BUP-001RAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-15BUP-001WAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-15BUP-002LAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-15BUP-002RAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-15BUP-002WAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-15BUP-003LAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-15BUP-003RAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-15BUP-003WAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-15BUP-004LAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-15BUP-004RAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-15BUP-004WAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-15BUP-005LAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-15BUP-005RAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-15BUP-005WAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-15BUP-101LAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-15BUP-101RAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-15BUP-101WAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-15BUP-102LAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-15BUP-102RAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-15BUP-102WAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-15BUP-103LAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-15BUP-103RAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-15BUP-103WAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-15BUP-104LAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-15BUP-104RAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-15BUP-104WAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-15BUP-105LAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-15BUP-105RAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-15BUP-105WAction: NC | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD313R-10UR-001LAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-10UR-001RAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-10UR-001WAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-10UR-002LAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-10UR-002RAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-10UR-002WAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-10UR-003LAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-10UR-003RAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-10UR-003WAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-10UR-004LAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-10UR-004RAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-10UR-004WAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-10UR-005LAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-10UR-005RAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-10UR-005WAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-10UR-101LAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-10UR-101RAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-10UR-101WAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-10UR-102LAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-10UR-102RAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-10UR-102WAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-10UR-103LAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-10UR-103RAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-10UR-103WAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-10UR-104LAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-10UR-104RAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-10UR-104WAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-10UR-105LAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-10UR-105RAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-10UR-105WAction: NC | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD313R-10BUR-001LAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-10BUR-001RAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-10BUR-001WAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-10BUR-002LAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-10BUR-002RAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-10BUR-002WAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-10BUR-003LAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-10BUR-003RAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-10BUR-003WAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-10BUR-004LAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-10BUR-004RAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-10BUR-004WAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-10BUR-005LAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-10BUR-005RAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-10BUR-005WAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-10BUR-101LAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-10BUR-101RAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-10BUR-101WAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-10BUR-102LAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-10BUR-102RAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-10BUR-102WAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-10BUR-103LAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-10BUR-103RAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-10BUR-103WAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-10BUR-104LAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-10BUR-104RAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-10BUR-104WAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-10BUR-105LAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-10BUR-105RAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-10BUR-105WAction: NC | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD313R-12UR-001LAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-12UR-001RAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-12UR-001WAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-12UR-002LAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-12UR-002RAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-12UR-002WAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-12UR-003LAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-12UR-003RAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-12UR-003WAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-12UR-004LAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-12UR-004RAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-12UR-004WAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-12UR-005LAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-12UR-005RAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-12UR-005WAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-12UR-101LAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-12UR-101RAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-12UR-101WAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-12UR-102LAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-12UR-102RAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-12UR-102WAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-12UR-103LAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-12UR-103RAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-12UR-103WAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-12UR-104LAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-12UR-104RAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-12UR-104WAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-12UR-105LAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-12UR-105RAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-12UR-105WAction: NC | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD313R-15BUR-001LAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD313R-15BUR-001RAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD313R-15BUR-001WAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD313R-15BUR-002LAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD313R-15BUR-002RAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD313R-15BUR-002WAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD313R-15BUR-003LAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD313R-15BUR-003RAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD313R-15BUR-003WAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD313R-15BUR-004LAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD313R-15BUR-004RAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD313R-15BUR-004WAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD313R-15BUR-005LAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD313R-15BUR-005RAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD313R-15BUR-005WAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD313R-15BUR-101LAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD313R-15BUR-101RAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD313R-15BUR-101WAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD313R-15BUR-102LAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD313R-15BUR-102RAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD313R-15BUR-102WAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD313R-15BUR-103LAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD313R-15BUR-103RAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD313R-15BUR-103WAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD313R-15BUR-104LAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD313R-15BUR-104RAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD313R-15BUR-104WAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD313R-15BUR-105LAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD313R-15BUR-105RAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD313R-15BUR-105WAction: NC | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-10UP-001LAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-10UP-001RAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-10UP-001WAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-10UP-002LAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-10UP-002RAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-10UP-002WAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-10UP-003LAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-10UP-003RAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-10UP-003WAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-10UP-004LAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-10UP-004RAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-10UP-004WAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-10UP-005LAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-10UP-005RAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-10UP-005WAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-10UP-101LAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-10UP-101RAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-10UP-101WAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-10UP-102LAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-10UP-102RAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-10UP-102WAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-10UP-103LAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-10UP-103RAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-10UP-103WAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-10UP-104LAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-10UP-104RAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-10UP-104WAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-10UP-105LAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-10UP-105RAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-10UP-105WAction: NO | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-10BUP-001LAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-10BUP-001RAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-10BUP-001WAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-10BUP-002LAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-10BUP-002RAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-10BUP-002WAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-10BUP-003LAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-10BUP-003RAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-10BUP-003WAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-10BUP-004LAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-10BUP-004RAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-10BUP-004WAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-10BUP-005LAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-10BUP-005RAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-10BUP-005WAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-10BUP-101LAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-10BUP-101RAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-10BUP-101WAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-10BUP-102LAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-10BUP-102RAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-10BUP-102WAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-10BUP-103LAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-10BUP-103RAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-10BUP-103WAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-10BUP-104LAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-10BUP-104RAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-10BUP-104WAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-10BUP-105LAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-10BUP-105RAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-10BUP-105WAction: NO | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-12UP-001LAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-12UP-001RAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-12UP-001WAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-12UP-002LAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-12UP-002RAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-12UP-002WAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-12UP-003LAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-12UP-003RAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-12UP-003WAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-12UP-004LAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-12UP-004RAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-12UP-004WAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-12UP-005LAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-12UP-005RAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-12UP-005WAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-12UP-101LAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-12UP-101RAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-12UP-101WAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-12UP-102LAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-12UP-102RAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-12UP-102WAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-12UP-103LAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-12UP-103RAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-12UP-103WAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-12UP-104LAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-12UP-104RAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-12UP-104WAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-12UP-105LAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-12UP-105RAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-12UP-105WAction: NO | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-15BUP-001LAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-15BUP-001RAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-15BUP-001WAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-15BUP-002LAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-15BUP-002RAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-15BUP-002WAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-15BUP-003LAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-15BUP-003RAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-15BUP-003WAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-15BUP-004LAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-15BUP-004RAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-15BUP-004WAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-15BUP-005LAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-15BUP-005RAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-15BUP-005WAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-15BUP-101LAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-15BUP-101RAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-15BUP-101WAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-15BUP-102LAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-15BUP-102RAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-15BUP-102WAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-15BUP-103LAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-15BUP-103RAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-15BUP-103WAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-15BUP-104LAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-15BUP-104RAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-15BUP-104WAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-15BUP-105LAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-15BUP-105RAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-15BUP-105WAction: NO | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-10UR-001LAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-10UR-001RAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-10UR-001WAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-10UR-002LAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-10UR-002RAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-10UR-002WAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-10UR-003LAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-10UR-003RAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-10UR-003WAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-10UR-004LAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-10UR-004RAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-10UR-004WAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-10UR-005LAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-10UR-005RAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-10UR-005WAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-10UR-101LAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-10UR-101RAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-10UR-101WAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-10UR-102LAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-10UR-102RAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-10UR-102WAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-10UR-103LAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-10UR-103RAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-10UR-103WAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-10UR-104LAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-10UR-104RAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-10UR-104WAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-10UR-105LAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-10UR-105RAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-10UR-105WAction: NO | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-10BUR-001LAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-10BUR-001RAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-10BUR-001WAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-10BUR-002LAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-10BUR-002RAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-10BUR-002WAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-10BUR-003LAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-10BUR-003RAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-10BUR-003WAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-10BUR-004LAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-10BUR-004RAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-10BUR-004WAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-10BUR-005LAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-10BUR-005RAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-10BUR-005WAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-10BUR-101LAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-10BUR-101RAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-10BUR-101WAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-10BUR-102LAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-10BUR-102RAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-10BUR-102WAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-10BUR-103LAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-10BUR-103RAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-10BUR-103WAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-10BUR-104LAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-10BUR-104RAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-10BUR-104WAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-10BUR-105LAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-10BUR-105RAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-10BUR-105WAction: NO | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-12UR-001LAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-12UR-001RAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-12UR-001WAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-12UR-002LAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-12UR-002RAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-12UR-002WAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-12UR-003LAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-12UR-003RAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-12UR-003WAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-12UR-004LAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-12UR-004RAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-12UR-004WAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-12UR-005LAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-12UR-005RAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-12UR-005WAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-12UR-101LAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-12UR-101RAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-12UR-101WAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-12UR-102LAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-12UR-102RAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-12UR-102WAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-12UR-103LAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-12UR-103RAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-12UR-103WAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-12UR-104LAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-12UR-104RAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-12UR-104WAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-12UR-105LAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-12UR-105RAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-12UR-105WAction: NO | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD323R-15BUR-001LAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD323R-15BUR-001RAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD323R-15BUR-001WAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD323R-15BUR-002LAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD323R-15BUR-002RAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD323R-15BUR-002WAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD323R-15BUR-003LAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD323R-15BUR-003RAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD323R-15BUR-003WAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD323R-15BUR-004LAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD323R-15BUR-004RAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD323R-15BUR-004WAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD323R-15BUR-005LAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD323R-15BUR-005RAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD323R-15BUR-005WAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD323R-15BUR-101LAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD323R-15BUR-101RAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD323R-15BUR-101WAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD323R-15BUR-102LAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD323R-15BUR-102RAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD323R-15BUR-102WAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD323R-15BUR-103LAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD323R-15BUR-103RAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD323R-15BUR-103WAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD323R-15BUR-104LAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD323R-15BUR-104RAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD323R-15BUR-104WAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD323R-15BUR-105LAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD323R-15BUR-105RAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD323R-15BUR-105WAction: NO | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-10UP-001LAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-10UP-001RAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-10UP-001WAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-10UP-002LAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-10UP-002RAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-10UP-002WAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-10UP-003LAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-10UP-003RAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-10UP-003WAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-10UP-004LAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-10UP-004RAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-10UP-004WAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-10UP-005LAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-10UP-005RAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-10UP-005WAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-10UP-101LAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-10UP-101RAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-10UP-101WAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-10UP-102LAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-10UP-102RAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-10UP-102WAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-10UP-103LAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-10UP-103RAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-10UP-103WAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-10UP-104LAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-10UP-104RAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-10UP-104WAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-10UP-105LAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-10UP-105RAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-10UP-105WAction: Double acting | Connection: Pillar S300 OD10x8 (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-10BUP-001LAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-10BUP-001RAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-10BUP-001WAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-10BUP-002LAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-10BUP-002RAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-10BUP-002WAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-10BUP-003LAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-10BUP-003RAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-10BUP-003WAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-10BUP-004LAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-10BUP-004RAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-10BUP-004WAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-10BUP-005LAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-10BUP-005RAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-10BUP-005WAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-10BUP-101LAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-10BUP-101RAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-10BUP-101WAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-10BUP-102LAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-10BUP-102RAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-10BUP-102WAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-10BUP-103LAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-10BUP-103RAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-10BUP-103WAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-10BUP-104LAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-10BUP-104RAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-10BUP-104WAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-10BUP-105LAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-10BUP-105RAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-10BUP-105WAction: Double acting | Connection: Pillar S300 3/8x1/4 in (orif. 8) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-12UP-001LAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-12UP-001RAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-12UP-001WAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-12UP-002LAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-12UP-002RAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-12UP-002WAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-12UP-003LAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-12UP-003RAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-12UP-003WAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-12UP-004LAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-12UP-004RAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-12UP-004WAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-12UP-005LAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-12UP-005RAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-12UP-005WAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-12UP-101LAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-12UP-101RAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-12UP-101WAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-12UP-102LAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-12UP-102RAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-12UP-102WAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-12UP-103LAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-12UP-103RAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-12UP-103WAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-12UP-104LAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-12UP-104RAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-12UP-104WAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-12UP-105LAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-12UP-105RAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-12UP-105WAction: Double acting | Connection: Pillar S300 OD12x10 (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-15BUP-001LAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-15BUP-001RAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-15BUP-001WAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-15BUP-002LAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-15BUP-002RAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-15BUP-002WAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-15BUP-003LAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-15BUP-003RAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-15BUP-003WAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-15BUP-004LAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-15BUP-004RAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-15BUP-004WAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-15BUP-005LAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-15BUP-005RAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-15BUP-005WAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-15BUP-101LAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-15BUP-101RAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-15BUP-101WAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-15BUP-102LAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-15BUP-102RAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-15BUP-102WAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-15BUP-103LAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-15BUP-103RAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-15BUP-103WAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-15BUP-104LAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-15BUP-104RAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-15BUP-104WAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-15BUP-105LAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-15BUP-105RAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-15BUP-105WAction: Double acting | Connection: Pillar S300 1/2x3/8 in (orif. 10) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-10UR-001LAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-10UR-001RAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-10UR-001WAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-10UR-002LAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-10UR-002RAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-10UR-002WAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-10UR-003LAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-10UR-003RAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-10UR-003WAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-10UR-004LAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-10UR-004RAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-10UR-004WAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-10UR-005LAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-10UR-005RAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-10UR-005WAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-10UR-101LAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-10UR-101RAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-10UR-101WAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-10UR-102LAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-10UR-102RAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-10UR-102WAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-10UR-103LAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-10UR-103RAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-10UR-103WAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-10UR-104LAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-10UR-104RAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-10UR-104WAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-10UR-105LAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-10UR-105RAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-10UR-105WAction: Double acting | Connection: F-LOCK 60 OD10x8 (orif. 7) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-10BUR-001LAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-10BUR-001RAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-10BUR-001WAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-10BUR-002LAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-10BUR-002RAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-10BUR-002WAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-10BUR-003LAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-10BUR-003RAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-10BUR-003WAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-10BUR-004LAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-10BUR-004RAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-10BUR-004WAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-10BUR-005LAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-10BUR-005RAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-10BUR-005WAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-10BUR-101LAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-10BUR-101RAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-10BUR-101WAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-10BUR-102LAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-10BUR-102RAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-10BUR-102WAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-10BUR-103LAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-10BUR-103RAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-10BUR-103WAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-10BUR-104LAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-10BUR-104RAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-10BUR-104WAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-10BUR-105LAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-10BUR-105RAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-10BUR-105WAction: Double acting | Connection: F-LOCK 60 3/8x1/4 in (orif. 6) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-12UR-001LAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-12UR-001RAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-12UR-001WAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-12UR-002LAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-12UR-002RAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-12UR-002WAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-12UR-003LAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-12UR-003RAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-12UR-003WAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-12UR-004LAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-12UR-004RAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-12UR-004WAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-12UR-005LAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-12UR-005RAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-12UR-005WAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-12UR-101LAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-12UR-101RAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-12UR-101WAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-12UR-102LAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-12UR-102RAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-12UR-102WAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-12UR-103LAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-12UR-103RAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-12UR-103WAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-12UR-104LAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-12UR-104RAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-12UR-104WAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-12UR-105LAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-12UR-105RAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-12UR-105WAction: Double acting | Connection: F-LOCK 60 OD12x10 (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD333R-15BUR-001LAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD333R-15BUR-001RAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD333R-15BUR-001WAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD333R-15BUR-002LAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD333R-15BUR-002RAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD333R-15BUR-002WAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD333R-15BUR-003LAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD333R-15BUR-003RAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD333R-15BUR-003WAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD333R-15BUR-004LAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD333R-15BUR-004RAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD333R-15BUR-004WAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD333R-15BUR-005LAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD333R-15BUR-005RAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD333R-15BUR-005WAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD333R-15BUR-101LAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD333R-15BUR-101RAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD333R-15BUR-101WAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD333R-15BUR-102LAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD333R-15BUR-102RAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD333R-15BUR-102WAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD333R-15BUR-103LAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD333R-15BUR-103RAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD333R-15BUR-103WAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD333R-15BUR-104LAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD333R-15BUR-104RAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD333R-15BUR-104WAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD333R-15BUR-105LAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD333R-15BUR-105RAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD333R-15BUR-105WAction: Double acting | Connection: F-LOCK 60 1/2x3/8 in (orif. 9) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD413R-20BUP-001LAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD413R-20BUP-001RAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD413R-20BUP-001WAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD413R-20BUP-002LAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD413R-20BUP-002RAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD413R-20BUP-002WAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD413R-20BUP-003LAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD413R-20BUP-003RAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD413R-20BUP-003WAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD413R-20BUP-004LAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD413R-20BUP-004RAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD413R-20BUP-004WAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD413R-20BUP-005LAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD413R-20BUP-005RAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD413R-20BUP-005WAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD413R-20BUP-101LAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD413R-20BUP-101RAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD413R-20BUP-101WAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD413R-20BUP-102LAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD413R-20BUP-102RAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD413R-20BUP-102WAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD413R-20BUP-103LAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD413R-20BUP-103RAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD413R-20BUP-103WAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD413R-20BUP-104LAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD413R-20BUP-104RAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD413R-20BUP-104WAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD413R-20BUP-105LAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD413R-20BUP-105RAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD413R-20BUP-105WAction: NC | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD413R-20BUR-001LAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD413R-20BUR-001RAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD413R-20BUR-001WAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD413R-20BUR-002LAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD413R-20BUR-002RAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD413R-20BUR-002WAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD413R-20BUR-003LAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD413R-20BUR-003RAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD413R-20BUR-003WAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD413R-20BUR-004LAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD413R-20BUR-004RAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD413R-20BUR-004WAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD413R-20BUR-005LAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD413R-20BUR-005RAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD413R-20BUR-005WAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD413R-20BUR-101LAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD413R-20BUR-101RAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD413R-20BUR-101WAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD413R-20BUR-102LAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD413R-20BUR-102RAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD413R-20BUR-102WAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD413R-20BUR-103LAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD413R-20BUR-103RAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD413R-20BUR-103WAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD413R-20BUR-104LAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD413R-20BUR-104RAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD413R-20BUR-104WAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD413R-20BUR-105LAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD413R-20BUR-105RAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD413R-20BUR-105WAction: NC | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD423R-20BUP-001LAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD423R-20BUP-001RAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD423R-20BUP-001WAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD423R-20BUP-002LAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD423R-20BUP-002RAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD423R-20BUP-002WAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD423R-20BUP-003LAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD423R-20BUP-003RAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD423R-20BUP-003WAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD423R-20BUP-004LAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD423R-20BUP-004RAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD423R-20BUP-004WAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD423R-20BUP-005LAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD423R-20BUP-005RAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD423R-20BUP-005WAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD423R-20BUP-101LAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD423R-20BUP-101RAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD423R-20BUP-101WAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD423R-20BUP-102LAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD423R-20BUP-102RAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD423R-20BUP-102WAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD423R-20BUP-103LAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD423R-20BUP-103RAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD423R-20BUP-103WAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD423R-20BUP-104LAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD423R-20BUP-104RAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD423R-20BUP-104WAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD423R-20BUP-105LAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD423R-20BUP-105RAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD423R-20BUP-105WAction: NO | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD423R-20BUR-001LAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD423R-20BUR-001RAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD423R-20BUR-001WAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD423R-20BUR-002LAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD423R-20BUR-002RAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD423R-20BUR-002WAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD423R-20BUR-003LAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD423R-20BUR-003RAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD423R-20BUR-003WAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD423R-20BUR-004LAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD423R-20BUR-004RAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD423R-20BUR-004WAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD423R-20BUR-005LAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD423R-20BUR-005RAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD423R-20BUR-005WAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD423R-20BUR-101LAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD423R-20BUR-101RAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD423R-20BUR-101WAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD423R-20BUR-102LAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD423R-20BUR-102RAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD423R-20BUR-102WAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD423R-20BUR-103LAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD423R-20BUR-103RAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD423R-20BUR-103WAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD423R-20BUR-104LAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD423R-20BUR-104RAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD423R-20BUR-104WAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD423R-20BUR-105LAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD423R-20BUR-105RAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD423R-20BUR-105WAction: NO | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD433R-20BUP-001LAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD433R-20BUP-001RAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD433R-20BUP-001WAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD433R-20BUP-002LAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD433R-20BUP-002RAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD433R-20BUP-002WAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD433R-20BUP-003LAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD433R-20BUP-003RAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD433R-20BUP-003WAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD433R-20BUP-004LAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD433R-20BUP-004RAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD433R-20BUP-004WAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD433R-20BUP-005LAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD433R-20BUP-005RAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD433R-20BUP-005WAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD433R-20BUP-101LAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD433R-20BUP-101RAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD433R-20BUP-101WAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD433R-20BUP-102LAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD433R-20BUP-102RAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD433R-20BUP-102WAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD433R-20BUP-103LAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD433R-20BUP-103RAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD433R-20BUP-103WAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD433R-20BUP-104LAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD433R-20BUP-104RAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD433R-20BUP-104WAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD433R-20BUP-105LAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD433R-20BUP-105RAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD433R-20BUP-105WAction: Double acting | Connection: Pillar S300 3/4x5/8 in (orif. 16) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD433R-20BUR-001LAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD433R-20BUR-001RAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD433R-20BUR-001WAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD433R-20BUR-002LAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD433R-20BUR-002RAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD433R-20BUR-002WAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD433R-20BUR-003LAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD433R-20BUR-003RAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD433R-20BUR-003WAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD433R-20BUR-004LAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD433R-20BUR-004RAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD433R-20BUR-004WAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD433R-20BUR-005LAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Left
GAMD433R-20BUR-005RAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Right
GAMD433R-20BUR-005WAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: ON-OFF, indicator | Stations: 5 | A port position: Both sides
GAMD433R-20BUR-101LAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD433R-20BUR-101RAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD433R-20BUR-101WAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD433R-20BUR-102LAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD433R-20BUR-102RAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD433R-20BUR-102WAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD433R-20BUR-103LAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD433R-20BUR-103RAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD433R-20BUR-103WAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD433R-20BUR-104LAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD433R-20BUR-104RAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD433R-20BUR-104WAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD433R-20BUR-105LAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Left
GAMD433R-20BUR-105RAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Right
GAMD433R-20BUR-105WAction: Double acting | Connection: F-LOCK 60 3/4x5/8 in (orif. 15) | Actuator: With flow adjustment | Stations: 5 | A port position: Both sides
GAMD513R-25UP-001LAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD513R-25UP-001RAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD513R-25UP-001WAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD513R-25UP-002LAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD513R-25UP-002RAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD513R-25UP-002WAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD513R-25UP-003LAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD513R-25UP-003RAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD513R-25UP-003WAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD513R-25UP-004LAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD513R-25UP-004RAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD513R-25UP-004WAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD513R-25UP-101LAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD513R-25UP-101RAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD513R-25UP-101WAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD513R-25UP-102LAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD513R-25UP-102RAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD513R-25UP-102WAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD513R-25UP-103LAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD513R-25UP-103RAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD513R-25UP-103WAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD513R-25UP-104LAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD513R-25UP-104RAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD513R-25UP-104WAction: NC | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD513R-25BUP-001LAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD513R-25BUP-001RAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD513R-25BUP-001WAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD513R-25BUP-002LAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD513R-25BUP-002RAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD513R-25BUP-002WAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD513R-25BUP-003LAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD513R-25BUP-003RAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD513R-25BUP-003WAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD513R-25BUP-004LAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD513R-25BUP-004RAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD513R-25BUP-004WAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD513R-25BUP-101LAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD513R-25BUP-101RAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD513R-25BUP-101WAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD513R-25BUP-102LAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD513R-25BUP-102RAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD513R-25BUP-102WAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD513R-25BUP-103LAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD513R-25BUP-103RAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD513R-25BUP-103WAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD513R-25BUP-104LAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD513R-25BUP-104RAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD513R-25BUP-104WAction: NC | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD513R-25UR-001LAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD513R-25UR-001RAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD513R-25UR-001WAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD513R-25UR-002LAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD513R-25UR-002RAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD513R-25UR-002WAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD513R-25UR-003LAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD513R-25UR-003RAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD513R-25UR-003WAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD513R-25UR-004LAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD513R-25UR-004RAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD513R-25UR-004WAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD513R-25UR-101LAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD513R-25UR-101RAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD513R-25UR-101WAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD513R-25UR-102LAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD513R-25UR-102RAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD513R-25UR-102WAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD513R-25UR-103LAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD513R-25UR-103RAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD513R-25UR-103WAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD513R-25UR-104LAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD513R-25UR-104RAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD513R-25UR-104WAction: NC | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD513R-25BUR-001LAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD513R-25BUR-001RAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD513R-25BUR-001WAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD513R-25BUR-002LAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD513R-25BUR-002RAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD513R-25BUR-002WAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD513R-25BUR-003LAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD513R-25BUR-003RAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD513R-25BUR-003WAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD513R-25BUR-004LAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD513R-25BUR-004RAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD513R-25BUR-004WAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD513R-25BUR-101LAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD513R-25BUR-101RAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD513R-25BUR-101WAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD513R-25BUR-102LAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD513R-25BUR-102RAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD513R-25BUR-102WAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD513R-25BUR-103LAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD513R-25BUR-103RAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD513R-25BUR-103WAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD513R-25BUR-104LAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD513R-25BUR-104RAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD513R-25BUR-104WAction: NC | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD523R-25UP-001LAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD523R-25UP-001RAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD523R-25UP-001WAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD523R-25UP-002LAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD523R-25UP-002RAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD523R-25UP-002WAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD523R-25UP-003LAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD523R-25UP-003RAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD523R-25UP-003WAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD523R-25UP-004LAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD523R-25UP-004RAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD523R-25UP-004WAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD523R-25UP-101LAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD523R-25UP-101RAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD523R-25UP-101WAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD523R-25UP-102LAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD523R-25UP-102RAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD523R-25UP-102WAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD523R-25UP-103LAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD523R-25UP-103RAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD523R-25UP-103WAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD523R-25UP-104LAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD523R-25UP-104RAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD523R-25UP-104WAction: NO | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD523R-25BUP-001LAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD523R-25BUP-001RAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD523R-25BUP-001WAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD523R-25BUP-002LAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD523R-25BUP-002RAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD523R-25BUP-002WAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD523R-25BUP-003LAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD523R-25BUP-003RAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD523R-25BUP-003WAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD523R-25BUP-004LAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD523R-25BUP-004RAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD523R-25BUP-004WAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD523R-25BUP-101LAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD523R-25BUP-101RAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD523R-25BUP-101WAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD523R-25BUP-102LAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD523R-25BUP-102RAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD523R-25BUP-102WAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD523R-25BUP-103LAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD523R-25BUP-103RAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD523R-25BUP-103WAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD523R-25BUP-104LAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD523R-25BUP-104RAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD523R-25BUP-104WAction: NO | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD523R-25UR-001LAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD523R-25UR-001RAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD523R-25UR-001WAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD523R-25UR-002LAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD523R-25UR-002RAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD523R-25UR-002WAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD523R-25UR-003LAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD523R-25UR-003RAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD523R-25UR-003WAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD523R-25UR-004LAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD523R-25UR-004RAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD523R-25UR-004WAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD523R-25UR-101LAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD523R-25UR-101RAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD523R-25UR-101WAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD523R-25UR-102LAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD523R-25UR-102RAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD523R-25UR-102WAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD523R-25UR-103LAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD523R-25UR-103RAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD523R-25UR-103WAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD523R-25UR-104LAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD523R-25UR-104RAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD523R-25UR-104WAction: NO | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD523R-25BUR-001LAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD523R-25BUR-001RAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD523R-25BUR-001WAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD523R-25BUR-002LAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD523R-25BUR-002RAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD523R-25BUR-002WAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD523R-25BUR-003LAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD523R-25BUR-003RAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD523R-25BUR-003WAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD523R-25BUR-004LAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD523R-25BUR-004RAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD523R-25BUR-004WAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD523R-25BUR-101LAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD523R-25BUR-101RAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD523R-25BUR-101WAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD523R-25BUR-102LAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD523R-25BUR-102RAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD523R-25BUR-102WAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD523R-25BUR-103LAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD523R-25BUR-103RAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD523R-25BUR-103WAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD523R-25BUR-104LAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD523R-25BUR-104RAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD523R-25BUR-104WAction: NO | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD533R-25UP-001LAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD533R-25UP-001RAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD533R-25UP-001WAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD533R-25UP-002LAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD533R-25UP-002RAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD533R-25UP-002WAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD533R-25UP-003LAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD533R-25UP-003RAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD533R-25UP-003WAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD533R-25UP-004LAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD533R-25UP-004RAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD533R-25UP-004WAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD533R-25UP-101LAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD533R-25UP-101RAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD533R-25UP-101WAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD533R-25UP-102LAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD533R-25UP-102RAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD533R-25UP-102WAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD533R-25UP-103LAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD533R-25UP-103RAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD533R-25UP-103WAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD533R-25UP-104LAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD533R-25UP-104RAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD533R-25UP-104WAction: Double acting | Connection: Pillar S300 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD533R-25BUP-001LAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD533R-25BUP-001RAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD533R-25BUP-001WAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD533R-25BUP-002LAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD533R-25BUP-002RAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD533R-25BUP-002WAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD533R-25BUP-003LAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD533R-25BUP-003RAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD533R-25BUP-003WAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD533R-25BUP-004LAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD533R-25BUP-004RAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD533R-25BUP-004WAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD533R-25BUP-101LAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD533R-25BUP-101RAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD533R-25BUP-101WAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD533R-25BUP-102LAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD533R-25BUP-102RAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD533R-25BUP-102WAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD533R-25BUP-103LAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD533R-25BUP-103RAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD533R-25BUP-103WAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD533R-25BUP-104LAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD533R-25BUP-104RAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD533R-25BUP-104WAction: Double acting | Connection: Pillar S300 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD533R-25UR-001LAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD533R-25UR-001RAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD533R-25UR-001WAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD533R-25UR-002LAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD533R-25UR-002RAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD533R-25UR-002WAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD533R-25UR-003LAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD533R-25UR-003RAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD533R-25UR-003WAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD533R-25UR-004LAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD533R-25UR-004RAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD533R-25UR-004WAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD533R-25UR-101LAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD533R-25UR-101RAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD533R-25UR-101WAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD533R-25UR-102LAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD533R-25UR-102RAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD533R-25UR-102WAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD533R-25UR-103LAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD533R-25UR-103RAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD533R-25UR-103WAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD533R-25UR-104LAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD533R-25UR-104RAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD533R-25UR-104WAction: Double acting | Connection: F-LOCK 60 OD25x22 (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides
GAMD533R-25BUR-001LAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Left
GAMD533R-25BUR-001RAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Right
GAMD533R-25BUR-001WAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 1 | A port position: Both sides
GAMD533R-25BUR-002LAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Left
GAMD533R-25BUR-002RAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Right
GAMD533R-25BUR-002WAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 2 | A port position: Both sides
GAMD533R-25BUR-003LAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Left
GAMD533R-25BUR-003RAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Right
GAMD533R-25BUR-003WAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 3 | A port position: Both sides
GAMD533R-25BUR-004LAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Left
GAMD533R-25BUR-004RAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Right
GAMD533R-25BUR-004WAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: ON-OFF, indicator | Stations: 4 | A port position: Both sides
GAMD533R-25BUR-101LAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Left
GAMD533R-25BUR-101RAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Right
GAMD533R-25BUR-101WAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 1 | A port position: Both sides
GAMD533R-25BUR-102LAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Left
GAMD533R-25BUR-102RAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Right
GAMD533R-25BUR-102WAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 2 | A port position: Both sides
GAMD533R-25BUR-103LAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Left
GAMD533R-25BUR-103RAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Right
GAMD533R-25BUR-103WAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 3 | A port position: Both sides
GAMD533R-25BUR-104LAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Left
GAMD533R-25BUR-104RAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Right
GAMD533R-25BUR-104WAction: Double acting | Connection: F-LOCK 60 1x7/8 in (orif. 20) | Actuator: With flow adjustment | Stations: 4 | A port position: Both sides

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
