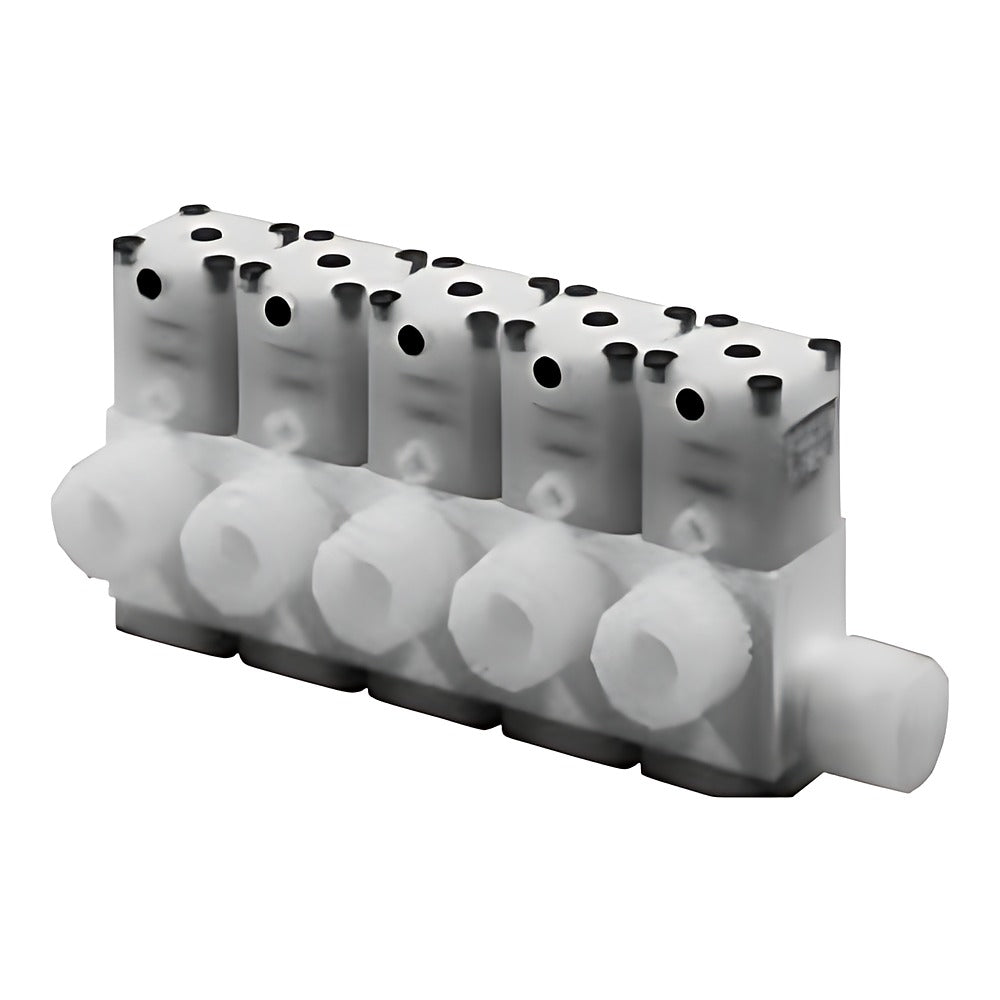

CKD GAMDZ*3R Manifold Air Operated Valve for Chemicals (1-5 Stations)

CKD GAMDZ*3R Manifold Air Operated Valve for Chemicals (1-5 Stations)

CKD GAMDZ*3R made-to-order manifold/branch air-operated diaphragm valve for chemicals and pure water, 1 to 5 stations, OD6 / 1/4 in tube.

Key features

  • Fluororesin construction: PVDF actuator, PTFE diaphragm, integrated tube fittings
  • Connections: Super 300 type Pillar fitting (P series, UP) or F-LOCK 60 series fitting (UR), metric and inch tubes
  • Manifold (branch) block of 1-5 valves on a common A port; A port left, right or both sides
  • NC, NO or double acting; PTFE body; actuator Z0 ON-OFF only
  • Made to order; example: GAMDZ13R-6UP-Z03W

Specifications

Fluid Chemicals, pure water, air, N2 gas
Fluid temperature 5 to 120 C (HF 5-80 C; F-LOCK 5-100 C)
Proof pressure 1.0 MPa
Operating pressure A-B / B-A 0-0.5 MPa
Seat leakage 0 (water)
Back pressure 0-0.5 MPa
Pilot port Rc1/8 (NC: Y, NO: X, double: X and Y)
Operating (pilot) pressure NC/NO 0.4-0.5 MPa, double 0.3-0.4 MPa
Orifice 3.5 mm (UR), 4 mm (UP)
Mass 0.08 kg (1 st.) to 0.33 kg (5 st.)
Source CKD Korea catalog CB-03-1SK-9, p. 1198-1199
GAMDZ13R-6UP-Z01L Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Left
GAMDZ13R-6UP-Z01R Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Right
GAMDZ13R-6UP-Z01W Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Both sides
GAMDZ13R-6UP-Z02L Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Left
GAMDZ13R-6UP-Z02R Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Right
GAMDZ13R-6UP-Z02W Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Both sides
GAMDZ13R-6UP-Z03L Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Left
GAMDZ13R-6UP-Z03R Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Right
GAMDZ13R-6UP-Z03W Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Both sides
GAMDZ13R-6UP-Z04L Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Left
GAMDZ13R-6UP-Z04R Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Right
GAMDZ13R-6UP-Z04W Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Both sides
GAMDZ13R-6UP-Z05L Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Left
GAMDZ13R-6UP-Z05R Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Right
GAMDZ13R-6UP-Z05W Action: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Both sides
GAMDZ13R-8BUP-Z01L Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Left
GAMDZ13R-8BUP-Z01R Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Right
GAMDZ13R-8BUP-Z01W Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Both sides
GAMDZ13R-8BUP-Z02L Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Left
GAMDZ13R-8BUP-Z02R Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Right
GAMDZ13R-8BUP-Z02W Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Both sides
GAMDZ13R-8BUP-Z03L Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Left
GAMDZ13R-8BUP-Z03R Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Right
GAMDZ13R-8BUP-Z03W Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Both sides
GAMDZ13R-8BUP-Z04L Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Left
GAMDZ13R-8BUP-Z04R Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Right
GAMDZ13R-8BUP-Z04W Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Both sides
GAMDZ13R-8BUP-Z05L Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Left
GAMDZ13R-8BUP-Z05R Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Right
GAMDZ13R-8BUP-Z05W Action: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Both sides
GAMDZ13R-6UR-Z01L Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Left
GAMDZ13R-6UR-Z01R Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Right
GAMDZ13R-6UR-Z01W Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Both sides
GAMDZ13R-6UR-Z02L Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Left
GAMDZ13R-6UR-Z02R Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Right
GAMDZ13R-6UR-Z02W Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Both sides
GAMDZ13R-6UR-Z03L Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Left
GAMDZ13R-6UR-Z03R Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Right
GAMDZ13R-6UR-Z03W Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Both sides
GAMDZ13R-6UR-Z04L Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Left
GAMDZ13R-6UR-Z04R Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Right
GAMDZ13R-6UR-Z04W Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Both sides
GAMDZ13R-6UR-Z05L Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Left
GAMDZ13R-6UR-Z05R Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Right
GAMDZ13R-6UR-Z05W Action: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Both sides
GAMDZ13R-8BUR-Z01L Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Left
GAMDZ13R-8BUR-Z01R Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Right
GAMDZ13R-8BUR-Z01W Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Both sides
GAMDZ13R-8BUR-Z02L Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Left
GAMDZ13R-8BUR-Z02R Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Right
GAMDZ13R-8BUR-Z02W Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Both sides
GAMDZ13R-8BUR-Z03L Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Left
GAMDZ13R-8BUR-Z03R Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Right
GAMDZ13R-8BUR-Z03W Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Both sides
GAMDZ13R-8BUR-Z04L Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Left
GAMDZ13R-8BUR-Z04R Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Right
GAMDZ13R-8BUR-Z04W Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Both sides
GAMDZ13R-8BUR-Z05L Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Left
GAMDZ13R-8BUR-Z05R Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Right
GAMDZ13R-8BUR-Z05W Action: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Both sides
GAMDZ23R-6UP-Z01L Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Left
GAMDZ23R-6UP-Z01R Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Right
GAMDZ23R-6UP-Z01W Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Both sides
GAMDZ23R-6UP-Z02L Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Left
GAMDZ23R-6UP-Z02R Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Right
GAMDZ23R-6UP-Z02W Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Both sides
GAMDZ23R-6UP-Z03L Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Left
GAMDZ23R-6UP-Z03R Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Right
GAMDZ23R-6UP-Z03W Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Both sides
GAMDZ23R-6UP-Z04L Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Left
GAMDZ23R-6UP-Z04R Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Right
GAMDZ23R-6UP-Z04W Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Both sides
GAMDZ23R-6UP-Z05L Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Left
GAMDZ23R-6UP-Z05R Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Right
GAMDZ23R-6UP-Z05W Action: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Both sides
GAMDZ23R-8BUP-Z01L Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Left
GAMDZ23R-8BUP-Z01R Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Right
GAMDZ23R-8BUP-Z01W Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Both sides
GAMDZ23R-8BUP-Z02L Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Left
GAMDZ23R-8BUP-Z02R Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Right
GAMDZ23R-8BUP-Z02W Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Both sides
GAMDZ23R-8BUP-Z03L Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Left
GAMDZ23R-8BUP-Z03R Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Right
GAMDZ23R-8BUP-Z03W Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Both sides
GAMDZ23R-8BUP-Z04L Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Left
GAMDZ23R-8BUP-Z04R Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Right
GAMDZ23R-8BUP-Z04W Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Both sides
GAMDZ23R-8BUP-Z05L Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Left
GAMDZ23R-8BUP-Z05R Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Right
GAMDZ23R-8BUP-Z05W Action: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Both sides
GAMDZ23R-6UR-Z01L Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Left
GAMDZ23R-6UR-Z01R Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Right
GAMDZ23R-6UR-Z01W Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Both sides
GAMDZ23R-6UR-Z02L Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Left
GAMDZ23R-6UR-Z02R Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Right
GAMDZ23R-6UR-Z02W Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Both sides
GAMDZ23R-6UR-Z03L Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Left
GAMDZ23R-6UR-Z03R Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Right
GAMDZ23R-6UR-Z03W Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Both sides
GAMDZ23R-6UR-Z04L Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Left
GAMDZ23R-6UR-Z04R Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Right
GAMDZ23R-6UR-Z04W Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Both sides
GAMDZ23R-6UR-Z05L Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Left
GAMDZ23R-6UR-Z05R Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Right
GAMDZ23R-6UR-Z05W Action: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Both sides
GAMDZ23R-8BUR-Z01L Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Left
GAMDZ23R-8BUR-Z01R Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Right
GAMDZ23R-8BUR-Z01W Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Both sides
GAMDZ23R-8BUR-Z02L Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Left
GAMDZ23R-8BUR-Z02R Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Right
GAMDZ23R-8BUR-Z02W Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Both sides
GAMDZ23R-8BUR-Z03L Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Left
GAMDZ23R-8BUR-Z03R Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Right
GAMDZ23R-8BUR-Z03W Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Both sides
GAMDZ23R-8BUR-Z04L Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Left
GAMDZ23R-8BUR-Z04R Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Right
GAMDZ23R-8BUR-Z04W Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Both sides
GAMDZ23R-8BUR-Z05L Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Left
GAMDZ23R-8BUR-Z05R Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Right
GAMDZ23R-8BUR-Z05W Action: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Both sides
GAMDZ33R-6UP-Z01L Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Left
GAMDZ33R-6UP-Z01R Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Right
GAMDZ33R-6UP-Z01W Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Both sides
GAMDZ33R-6UP-Z02L Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Left
GAMDZ33R-6UP-Z02R Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Right
GAMDZ33R-6UP-Z02W Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Both sides
GAMDZ33R-6UP-Z03L Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Left
GAMDZ33R-6UP-Z03R Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Right
GAMDZ33R-6UP-Z03W Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Both sides
GAMDZ33R-6UP-Z04L Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Left
GAMDZ33R-6UP-Z04R Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Right
GAMDZ33R-6UP-Z04W Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Both sides
GAMDZ33R-6UP-Z05L Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Left
GAMDZ33R-6UP-Z05R Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Right
GAMDZ33R-6UP-Z05W Action: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Both sides
GAMDZ33R-8BUP-Z01L Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Left
GAMDZ33R-8BUP-Z01R Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Right
GAMDZ33R-8BUP-Z01W Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Both sides
GAMDZ33R-8BUP-Z02L Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Left
GAMDZ33R-8BUP-Z02R Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Right
GAMDZ33R-8BUP-Z02W Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Both sides
GAMDZ33R-8BUP-Z03L Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Left
GAMDZ33R-8BUP-Z03R Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Right
GAMDZ33R-8BUP-Z03W Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Both sides
GAMDZ33R-8BUP-Z04L Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Left
GAMDZ33R-8BUP-Z04R Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Right
GAMDZ33R-8BUP-Z04W Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Both sides
GAMDZ33R-8BUP-Z05L Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Left
GAMDZ33R-8BUP-Z05R Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Right
GAMDZ33R-8BUP-Z05W Action: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Both sides
GAMDZ33R-6UR-Z01L Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Left
GAMDZ33R-6UR-Z01R Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Right
GAMDZ33R-6UR-Z01W Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Both sides
GAMDZ33R-6UR-Z02L Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Left
GAMDZ33R-6UR-Z02R Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Right
GAMDZ33R-6UR-Z02W Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Both sides
GAMDZ33R-6UR-Z03L Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Left
GAMDZ33R-6UR-Z03R Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Right
GAMDZ33R-6UR-Z03W Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Both sides
GAMDZ33R-6UR-Z04L Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Left
GAMDZ33R-6UR-Z04R Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Right
GAMDZ33R-6UR-Z04W Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Both sides
GAMDZ33R-6UR-Z05L Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Left
GAMDZ33R-6UR-Z05R Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Right
GAMDZ33R-6UR-Z05W Action: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Both sides
GAMDZ33R-8BUR-Z01L Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Left
GAMDZ33R-8BUR-Z01R Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Right
GAMDZ33R-8BUR-Z01W Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Both sides
GAMDZ33R-8BUR-Z02L Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Left
GAMDZ33R-8BUR-Z02R Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Right
GAMDZ33R-8BUR-Z02W Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Both sides
GAMDZ33R-8BUR-Z03L Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Left
GAMDZ33R-8BUR-Z03R Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Right
GAMDZ33R-8BUR-Z03W Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Both sides
GAMDZ33R-8BUR-Z04L Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Left
GAMDZ33R-8BUR-Z04R Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Right
GAMDZ33R-8BUR-Z04W Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Both sides
GAMDZ33R-8BUR-Z05L Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Left
GAMDZ33R-8BUR-Z05R Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Right
GAMDZ33R-8BUR-Z05W Action: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Both sides
Air Operated ValvesCKD
180 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GAMDZ*3R Manifold Air Operated Valve for Chemicals (1-5 Stations)

Brand CKD·Air Operated Valves

Available part numbers (180)

GAMDZ13R-6UP-Z01L, GAMDZ13R-6UP-Z01R, GAMDZ13R-6UP-Z01W, GAMDZ13R-6UP-Z02L, GAMDZ13R-6UP-Z02R, GAMDZ13R-6UP-Z02W, GAMDZ13R-6UP-Z03L, GAMDZ13R-6UP-Z03R, GAMDZ13R-6UP-Z03W, GAMDZ13R-6UP-Z04L + 170 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GAMDZ13R-6UP-Z01LAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Left
GAMDZ13R-6UP-Z01RAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Right
GAMDZ13R-6UP-Z01WAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Both sides
GAMDZ13R-6UP-Z02LAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Left
GAMDZ13R-6UP-Z02RAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Right
GAMDZ13R-6UP-Z02WAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Both sides
GAMDZ13R-6UP-Z03LAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Left
GAMDZ13R-6UP-Z03RAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Right
GAMDZ13R-6UP-Z03WAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Both sides
GAMDZ13R-6UP-Z04LAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Left
GAMDZ13R-6UP-Z04RAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Right
GAMDZ13R-6UP-Z04WAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Both sides
GAMDZ13R-6UP-Z05LAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Left
GAMDZ13R-6UP-Z05RAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Right
GAMDZ13R-6UP-Z05WAction: NC | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Both sides
GAMDZ13R-8BUP-Z01LAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Left
GAMDZ13R-8BUP-Z01RAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Right
GAMDZ13R-8BUP-Z01WAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Both sides
GAMDZ13R-8BUP-Z02LAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Left
GAMDZ13R-8BUP-Z02RAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Right
GAMDZ13R-8BUP-Z02WAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Both sides
GAMDZ13R-8BUP-Z03LAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Left
GAMDZ13R-8BUP-Z03RAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Right
GAMDZ13R-8BUP-Z03WAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Both sides
GAMDZ13R-8BUP-Z04LAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Left
GAMDZ13R-8BUP-Z04RAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Right
GAMDZ13R-8BUP-Z04WAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Both sides
GAMDZ13R-8BUP-Z05LAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Left
GAMDZ13R-8BUP-Z05RAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Right
GAMDZ13R-8BUP-Z05WAction: NC | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Both sides
GAMDZ13R-6UR-Z01LAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Left
GAMDZ13R-6UR-Z01RAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Right
GAMDZ13R-6UR-Z01WAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Both sides
GAMDZ13R-6UR-Z02LAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Left
GAMDZ13R-6UR-Z02RAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Right
GAMDZ13R-6UR-Z02WAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Both sides
GAMDZ13R-6UR-Z03LAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Left
GAMDZ13R-6UR-Z03RAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Right
GAMDZ13R-6UR-Z03WAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Both sides
GAMDZ13R-6UR-Z04LAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Left
GAMDZ13R-6UR-Z04RAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Right
GAMDZ13R-6UR-Z04WAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Both sides
GAMDZ13R-6UR-Z05LAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Left
GAMDZ13R-6UR-Z05RAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Right
GAMDZ13R-6UR-Z05WAction: NC | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Both sides
GAMDZ13R-8BUR-Z01LAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Left
GAMDZ13R-8BUR-Z01RAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Right
GAMDZ13R-8BUR-Z01WAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Both sides
GAMDZ13R-8BUR-Z02LAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Left
GAMDZ13R-8BUR-Z02RAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Right
GAMDZ13R-8BUR-Z02WAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Both sides
GAMDZ13R-8BUR-Z03LAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Left
GAMDZ13R-8BUR-Z03RAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Right
GAMDZ13R-8BUR-Z03WAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Both sides
GAMDZ13R-8BUR-Z04LAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Left
GAMDZ13R-8BUR-Z04RAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Right
GAMDZ13R-8BUR-Z04WAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Both sides
GAMDZ13R-8BUR-Z05LAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Left
GAMDZ13R-8BUR-Z05RAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Right
GAMDZ13R-8BUR-Z05WAction: NC | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Both sides
GAMDZ23R-6UP-Z01LAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Left
GAMDZ23R-6UP-Z01RAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Right
GAMDZ23R-6UP-Z01WAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Both sides
GAMDZ23R-6UP-Z02LAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Left
GAMDZ23R-6UP-Z02RAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Right
GAMDZ23R-6UP-Z02WAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Both sides
GAMDZ23R-6UP-Z03LAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Left
GAMDZ23R-6UP-Z03RAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Right
GAMDZ23R-6UP-Z03WAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Both sides
GAMDZ23R-6UP-Z04LAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Left
GAMDZ23R-6UP-Z04RAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Right
GAMDZ23R-6UP-Z04WAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Both sides
GAMDZ23R-6UP-Z05LAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Left
GAMDZ23R-6UP-Z05RAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Right
GAMDZ23R-6UP-Z05WAction: NO | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Both sides
GAMDZ23R-8BUP-Z01LAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Left
GAMDZ23R-8BUP-Z01RAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Right
GAMDZ23R-8BUP-Z01WAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Both sides
GAMDZ23R-8BUP-Z02LAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Left
GAMDZ23R-8BUP-Z02RAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Right
GAMDZ23R-8BUP-Z02WAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Both sides
GAMDZ23R-8BUP-Z03LAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Left
GAMDZ23R-8BUP-Z03RAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Right
GAMDZ23R-8BUP-Z03WAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Both sides
GAMDZ23R-8BUP-Z04LAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Left
GAMDZ23R-8BUP-Z04RAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Right
GAMDZ23R-8BUP-Z04WAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Both sides
GAMDZ23R-8BUP-Z05LAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Left
GAMDZ23R-8BUP-Z05RAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Right
GAMDZ23R-8BUP-Z05WAction: NO | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Both sides
GAMDZ23R-6UR-Z01LAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Left
GAMDZ23R-6UR-Z01RAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Right
GAMDZ23R-6UR-Z01WAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Both sides
GAMDZ23R-6UR-Z02LAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Left
GAMDZ23R-6UR-Z02RAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Right
GAMDZ23R-6UR-Z02WAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Both sides
GAMDZ23R-6UR-Z03LAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Left
GAMDZ23R-6UR-Z03RAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Right
GAMDZ23R-6UR-Z03WAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Both sides
GAMDZ23R-6UR-Z04LAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Left
GAMDZ23R-6UR-Z04RAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Right
GAMDZ23R-6UR-Z04WAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Both sides
GAMDZ23R-6UR-Z05LAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Left
GAMDZ23R-6UR-Z05RAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Right
GAMDZ23R-6UR-Z05WAction: NO | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Both sides
GAMDZ23R-8BUR-Z01LAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Left
GAMDZ23R-8BUR-Z01RAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Right
GAMDZ23R-8BUR-Z01WAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Both sides
GAMDZ23R-8BUR-Z02LAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Left
GAMDZ23R-8BUR-Z02RAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Right
GAMDZ23R-8BUR-Z02WAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Both sides
GAMDZ23R-8BUR-Z03LAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Left
GAMDZ23R-8BUR-Z03RAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Right
GAMDZ23R-8BUR-Z03WAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Both sides
GAMDZ23R-8BUR-Z04LAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Left
GAMDZ23R-8BUR-Z04RAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Right
GAMDZ23R-8BUR-Z04WAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Both sides
GAMDZ23R-8BUR-Z05LAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Left
GAMDZ23R-8BUR-Z05RAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Right
GAMDZ23R-8BUR-Z05WAction: NO | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Both sides
GAMDZ33R-6UP-Z01LAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Left
GAMDZ33R-6UP-Z01RAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Right
GAMDZ33R-6UP-Z01WAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 1 | A port position: Both sides
GAMDZ33R-6UP-Z02LAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Left
GAMDZ33R-6UP-Z02RAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Right
GAMDZ33R-6UP-Z02WAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 2 | A port position: Both sides
GAMDZ33R-6UP-Z03LAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Left
GAMDZ33R-6UP-Z03RAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Right
GAMDZ33R-6UP-Z03WAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 3 | A port position: Both sides
GAMDZ33R-6UP-Z04LAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Left
GAMDZ33R-6UP-Z04RAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Right
GAMDZ33R-6UP-Z04WAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 4 | A port position: Both sides
GAMDZ33R-6UP-Z05LAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Left
GAMDZ33R-6UP-Z05RAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Right
GAMDZ33R-6UP-Z05WAction: Double acting | Connection: Pillar S300 OD6x4 (orif. 4) | Stations: 5 | A port position: Both sides
GAMDZ33R-8BUP-Z01LAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Left
GAMDZ33R-8BUP-Z01RAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Right
GAMDZ33R-8BUP-Z01WAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 1 | A port position: Both sides
GAMDZ33R-8BUP-Z02LAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Left
GAMDZ33R-8BUP-Z02RAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Right
GAMDZ33R-8BUP-Z02WAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 2 | A port position: Both sides
GAMDZ33R-8BUP-Z03LAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Left
GAMDZ33R-8BUP-Z03RAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Right
GAMDZ33R-8BUP-Z03WAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 3 | A port position: Both sides
GAMDZ33R-8BUP-Z04LAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Left
GAMDZ33R-8BUP-Z04RAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Right
GAMDZ33R-8BUP-Z04WAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 4 | A port position: Both sides
GAMDZ33R-8BUP-Z05LAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Left
GAMDZ33R-8BUP-Z05RAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Right
GAMDZ33R-8BUP-Z05WAction: Double acting | Connection: Pillar S300 1/4x5/32 in (orif. 4) | Stations: 5 | A port position: Both sides
GAMDZ33R-6UR-Z01LAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Left
GAMDZ33R-6UR-Z01RAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Right
GAMDZ33R-6UR-Z01WAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 1 | A port position: Both sides
GAMDZ33R-6UR-Z02LAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Left
GAMDZ33R-6UR-Z02RAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Right
GAMDZ33R-6UR-Z02WAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 2 | A port position: Both sides
GAMDZ33R-6UR-Z03LAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Left
GAMDZ33R-6UR-Z03RAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Right
GAMDZ33R-6UR-Z03WAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 3 | A port position: Both sides
GAMDZ33R-6UR-Z04LAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Left
GAMDZ33R-6UR-Z04RAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Right
GAMDZ33R-6UR-Z04WAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 4 | A port position: Both sides
GAMDZ33R-6UR-Z05LAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Left
GAMDZ33R-6UR-Z05RAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Right
GAMDZ33R-6UR-Z05WAction: Double acting | Connection: F-LOCK 60 OD6x4 (orif. 3.5) | Stations: 5 | A port position: Both sides
GAMDZ33R-8BUR-Z01LAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Left
GAMDZ33R-8BUR-Z01RAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Right
GAMDZ33R-8BUR-Z01WAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 1 | A port position: Both sides
GAMDZ33R-8BUR-Z02LAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Left
GAMDZ33R-8BUR-Z02RAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Right
GAMDZ33R-8BUR-Z02WAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 2 | A port position: Both sides
GAMDZ33R-8BUR-Z03LAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Left
GAMDZ33R-8BUR-Z03RAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Right
GAMDZ33R-8BUR-Z03WAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 3 | A port position: Both sides
GAMDZ33R-8BUR-Z04LAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Left
GAMDZ33R-8BUR-Z04RAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Right
GAMDZ33R-8BUR-Z04WAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 4 | A port position: Both sides
GAMDZ33R-8BUR-Z05LAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Left
GAMDZ33R-8BUR-Z05RAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Right
GAMDZ33R-8BUR-Z05WAction: Double acting | Connection: F-LOCK 60 1/4x5/32 in (orif. 3.5) | Stations: 5 | A port position: Both sides

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
