CKD Gamma System Pneumatic Switches (PXB/ZB4, PXC-M, PXC-K/ZCK)

CKD Gamma System Pneumatic Switches (PXB/ZB4, PXC-M, PXC-K/ZCK)

CKD Gamma System pneumatic operating and detection switches: 22 mm push button / selector switches (PXB-B body + ZB4-B head), miniature and small limit switches (PXC-M) and pilot limit switches (PXC-K with ZCK heads and levers).

Key features

  • PXB-B push button switch bodies NC/NO, 60 L/min (ANR) at 0.6 MPa, panel thickness 1-6 mm
  • ZB4-B heads: flush, extended, booted, mushroom (latching), selector and key selector types
  • Assembly code = body + head, e.g. PXB-B3111BC4 (NC body + red mushroom)
  • PXC-M miniature (direct, 3-port NC) and PXC-M601 small limit switches with attachments
  • PXC-K pilot 3-port limit switches NC/NO with ZCK-D heads; rotary head ZCK-D05 with ZCK-Y levers, e.g. PXC-K2110531
  • Snap action, 4 mm push-in ports; coil spring head ZCK-D08 made to order

Specifications

Fluid Compressed air (non-lube)
Max. operating pressure 0.8 MPa
Min. operating pressure 0.3 MPa
Fluid temperature 5 to 60 C
Ambient temperature 0 to 60 C (no freezing)
Connection Push-in 4 mm
Source CKD Korea catalog CB-023SK-9, p. 2030-2039
PXB-B3111B Item: Push button switch body | Body: NC, with mounting base | Head: - | Variant: -
PXB-B3121B Item: Push button switch body | Body: NO, with mounting base | Head: - | Variant: -
PXB-B3911 Item: Push button switch body | Body: NC, body only | Head: - | Variant: -
PXB-B3921 Item: Push button switch body | Body: NO, body only | Head: - | Variant: -
ZB4-BD2 Item: Push button switch head | Body: - | Head: Selector, std handle | Variant: 2-pos maintained
ZB4-BD3 Item: Push button switch head | Body: - | Head: Selector, std handle | Variant: 3-pos maintained
ZB4-BJ2 Item: Push button switch head | Body: - | Head: Selector, long handle | Variant: 2-pos maintained
ZB4-BJ3 Item: Push button switch head | Body: - | Head: Selector, long handle | Variant: 3-pos maintained
ZB4-BJ5 Item: Push button switch head | Body: - | Head: Selector, long handle | Variant: 3-pos spring return
ZB4-BJ7 Item: Push button switch head | Body: - | Head: Selector, long handle | Variant: 3-pos L return/R maint.
ZB4-BG2 Item: Push button switch head | Body: - | Head: Key selector | Variant: 2-pos maintained (G2)
ZB4-BG4 Item: Push button switch head | Body: - | Head: Key selector | Variant: 2-pos maintained (G4)
ZB4-BA2 Item: Push button switch head | Body: - | Head: Flush button | Variant: Black
ZB4-BA3 Item: Push button switch head | Body: - | Head: Flush button | Variant: Green
ZB4-BA4 Item: Push button switch head | Body: - | Head: Flush button | Variant: Red
ZB4-BA5 Item: Push button switch head | Body: - | Head: Flush button | Variant: Yellow
ZB4-BL2 Item: Push button switch head | Body: - | Head: Extended button | Variant: Black
ZB4-BL3 Item: Push button switch head | Body: - | Head: Extended button | Variant: Green
ZB4-BL4 Item: Push button switch head | Body: - | Head: Extended button | Variant: Red
ZB4-BL5 Item: Push button switch head | Body: - | Head: Extended button | Variant: Yellow
ZB4-BP2 Item: Push button switch head | Body: - | Head: Booted button | Variant: Black
ZB4-BC2 Item: Push button switch head | Body: - | Head: Mushroom 40 mm | Variant: Black
ZB4-BC3 Item: Push button switch head | Body: - | Head: Mushroom 40 mm | Variant: Green
ZB4-BC4 Item: Push button switch head | Body: - | Head: Mushroom 40 mm | Variant: Red
ZB4-BC5 Item: Push button switch head | Body: - | Head: Mushroom 40 mm | Variant: Yellow
ZB4-BT84 Item: Push button switch head | Body: - | Head: Mushroom latching | Variant: Red, push-pull
ZB4-BS844 Item: Push button switch head | Body: - | Head: Mushroom latching | Variant: Red, turn release
ZB4-BR2 Item: Push button switch head | Body: - | Head: Mushroom 60 mm | Variant: Black
PXB-B3111BD2 Item: Push button switch assembly | Body: NC, with mounting base | Head: Selector, std handle | Variant: 2-pos maintained
PXB-B3111BD3 Item: Push button switch assembly | Body: NC, with mounting base | Head: Selector, std handle | Variant: 3-pos maintained
PXB-B3111BJ2 Item: Push button switch assembly | Body: NC, with mounting base | Head: Selector, long handle | Variant: 2-pos maintained
PXB-B3111BJ3 Item: Push button switch assembly | Body: NC, with mounting base | Head: Selector, long handle | Variant: 3-pos maintained
PXB-B3111BJ5 Item: Push button switch assembly | Body: NC, with mounting base | Head: Selector, long handle | Variant: 3-pos spring return
PXB-B3111BJ7 Item: Push button switch assembly | Body: NC, with mounting base | Head: Selector, long handle | Variant: 3-pos L return/R maint.
PXB-B3111BG2 Item: Push button switch assembly | Body: NC, with mounting base | Head: Key selector | Variant: 2-pos maintained (G2)
PXB-B3111BG4 Item: Push button switch assembly | Body: NC, with mounting base | Head: Key selector | Variant: 2-pos maintained (G4)
PXB-B3111BA2 Item: Push button switch assembly | Body: NC, with mounting base | Head: Flush button | Variant: Black
PXB-B3111BA3 Item: Push button switch assembly | Body: NC, with mounting base | Head: Flush button | Variant: Green
PXB-B3111BA4 Item: Push button switch assembly | Body: NC, with mounting base | Head: Flush button | Variant: Red
PXB-B3111BA5 Item: Push button switch assembly | Body: NC, with mounting base | Head: Flush button | Variant: Yellow
PXB-B3111BL2 Item: Push button switch assembly | Body: NC, with mounting base | Head: Extended button | Variant: Black
PXB-B3111BL3 Item: Push button switch assembly | Body: NC, with mounting base | Head: Extended button | Variant: Green
PXB-B3111BL4 Item: Push button switch assembly | Body: NC, with mounting base | Head: Extended button | Variant: Red
PXB-B3111BL5 Item: Push button switch assembly | Body: NC, with mounting base | Head: Extended button | Variant: Yellow
PXB-B3111BP2 Item: Push button switch assembly | Body: NC, with mounting base | Head: Booted button | Variant: Black
PXB-B3111BC2 Item: Push button switch assembly | Body: NC, with mounting base | Head: Mushroom 40 mm | Variant: Black
PXB-B3111BC3 Item: Push button switch assembly | Body: NC, with mounting base | Head: Mushroom 40 mm | Variant: Green
PXB-B3111BC4 Item: Push button switch assembly | Body: NC, with mounting base | Head: Mushroom 40 mm | Variant: Red
PXB-B3111BC5 Item: Push button switch assembly | Body: NC, with mounting base | Head: Mushroom 40 mm | Variant: Yellow
PXB-B3111BT84 Item: Push button switch assembly | Body: NC, with mounting base | Head: Mushroom latching | Variant: Red, push-pull
PXB-B3111BS844 Item: Push button switch assembly | Body: NC, with mounting base | Head: Mushroom latching | Variant: Red, turn release
PXB-B3111BR2 Item: Push button switch assembly | Body: NC, with mounting base | Head: Mushroom 60 mm | Variant: Black
PXB-B3121BD2 Item: Push button switch assembly | Body: NO, with mounting base | Head: Selector, std handle | Variant: 2-pos maintained
PXB-B3121BD3 Item: Push button switch assembly | Body: NO, with mounting base | Head: Selector, std handle | Variant: 3-pos maintained
PXB-B3121BJ2 Item: Push button switch assembly | Body: NO, with mounting base | Head: Selector, long handle | Variant: 2-pos maintained
PXB-B3121BJ3 Item: Push button switch assembly | Body: NO, with mounting base | Head: Selector, long handle | Variant: 3-pos maintained
PXB-B3121BJ5 Item: Push button switch assembly | Body: NO, with mounting base | Head: Selector, long handle | Variant: 3-pos spring return
PXB-B3121BJ7 Item: Push button switch assembly | Body: NO, with mounting base | Head: Selector, long handle | Variant: 3-pos L return/R maint.
PXB-B3121BG2 Item: Push button switch assembly | Body: NO, with mounting base | Head: Key selector | Variant: 2-pos maintained (G2)
PXB-B3121BG4 Item: Push button switch assembly | Body: NO, with mounting base | Head: Key selector | Variant: 2-pos maintained (G4)
PXB-B3121BA2 Item: Push button switch assembly | Body: NO, with mounting base | Head: Flush button | Variant: Black
PXB-B3121BA3 Item: Push button switch assembly | Body: NO, with mounting base | Head: Flush button | Variant: Green
PXB-B3121BA4 Item: Push button switch assembly | Body: NO, with mounting base | Head: Flush button | Variant: Red
PXB-B3121BA5 Item: Push button switch assembly | Body: NO, with mounting base | Head: Flush button | Variant: Yellow
PXB-B3121BL2 Item: Push button switch assembly | Body: NO, with mounting base | Head: Extended button | Variant: Black
PXB-B3121BL3 Item: Push button switch assembly | Body: NO, with mounting base | Head: Extended button | Variant: Green
PXB-B3121BL4 Item: Push button switch assembly | Body: NO, with mounting base | Head: Extended button | Variant: Red
PXB-B3121BL5 Item: Push button switch assembly | Body: NO, with mounting base | Head: Extended button | Variant: Yellow
PXB-B3121BP2 Item: Push button switch assembly | Body: NO, with mounting base | Head: Booted button | Variant: Black
PXB-B3121BC2 Item: Push button switch assembly | Body: NO, with mounting base | Head: Mushroom 40 mm | Variant: Black
PXB-B3121BC3 Item: Push button switch assembly | Body: NO, with mounting base | Head: Mushroom 40 mm | Variant: Green
PXB-B3121BC4 Item: Push button switch assembly | Body: NO, with mounting base | Head: Mushroom 40 mm | Variant: Red
PXB-B3121BC5 Item: Push button switch assembly | Body: NO, with mounting base | Head: Mushroom 40 mm | Variant: Yellow
PXB-B3121BT84 Item: Push button switch assembly | Body: NO, with mounting base | Head: Mushroom latching | Variant: Red, push-pull
PXB-B3121BS844 Item: Push button switch assembly | Body: NO, with mounting base | Head: Mushroom latching | Variant: Red, turn release
PXB-B3121BR2 Item: Push button switch assembly | Body: NO, with mounting base | Head: Mushroom 60 mm | Variant: Black
PXB-B3911D2 Item: Push button switch assembly | Body: NC, body only | Head: Selector, std handle | Variant: 2-pos maintained
PXB-B3911D3 Item: Push button switch assembly | Body: NC, body only | Head: Selector, std handle | Variant: 3-pos maintained
PXB-B3911J2 Item: Push button switch assembly | Body: NC, body only | Head: Selector, long handle | Variant: 2-pos maintained
PXB-B3911J3 Item: Push button switch assembly | Body: NC, body only | Head: Selector, long handle | Variant: 3-pos maintained
PXB-B3911J5 Item: Push button switch assembly | Body: NC, body only | Head: Selector, long handle | Variant: 3-pos spring return
PXB-B3911J7 Item: Push button switch assembly | Body: NC, body only | Head: Selector, long handle | Variant: 3-pos L return/R maint.
PXB-B3911G2 Item: Push button switch assembly | Body: NC, body only | Head: Key selector | Variant: 2-pos maintained (G2)
PXB-B3911G4 Item: Push button switch assembly | Body: NC, body only | Head: Key selector | Variant: 2-pos maintained (G4)
PXB-B3911A2 Item: Push button switch assembly | Body: NC, body only | Head: Flush button | Variant: Black
PXB-B3911A3 Item: Push button switch assembly | Body: NC, body only | Head: Flush button | Variant: Green
PXB-B3911A4 Item: Push button switch assembly | Body: NC, body only | Head: Flush button | Variant: Red
PXB-B3911A5 Item: Push button switch assembly | Body: NC, body only | Head: Flush button | Variant: Yellow
PXB-B3911L2 Item: Push button switch assembly | Body: NC, body only | Head: Extended button | Variant: Black
PXB-B3911L3 Item: Push button switch assembly | Body: NC, body only | Head: Extended button | Variant: Green
PXB-B3911L4 Item: Push button switch assembly | Body: NC, body only | Head: Extended button | Variant: Red
PXB-B3911L5 Item: Push button switch assembly | Body: NC, body only | Head: Extended button | Variant: Yellow
PXB-B3911P2 Item: Push button switch assembly | Body: NC, body only | Head: Booted button | Variant: Black
PXB-B3911C2 Item: Push button switch assembly | Body: NC, body only | Head: Mushroom 40 mm | Variant: Black
PXB-B3911C3 Item: Push button switch assembly | Body: NC, body only | Head: Mushroom 40 mm | Variant: Green
PXB-B3911C4 Item: Push button switch assembly | Body: NC, body only | Head: Mushroom 40 mm | Variant: Red
PXB-B3911C5 Item: Push button switch assembly | Body: NC, body only | Head: Mushroom 40 mm | Variant: Yellow
PXB-B3911T84 Item: Push button switch assembly | Body: NC, body only | Head: Mushroom latching | Variant: Red, push-pull
PXB-B3911S844 Item: Push button switch assembly | Body: NC, body only | Head: Mushroom latching | Variant: Red, turn release
PXB-B3911R2 Item: Push button switch assembly | Body: NC, body only | Head: Mushroom 60 mm | Variant: Black
PXB-B3921D2 Item: Push button switch assembly | Body: NO, body only | Head: Selector, std handle | Variant: 2-pos maintained
PXB-B3921D3 Item: Push button switch assembly | Body: NO, body only | Head: Selector, std handle | Variant: 3-pos maintained
PXB-B3921J2 Item: Push button switch assembly | Body: NO, body only | Head: Selector, long handle | Variant: 2-pos maintained
PXB-B3921J3 Item: Push button switch assembly | Body: NO, body only | Head: Selector, long handle | Variant: 3-pos maintained
PXB-B3921J5 Item: Push button switch assembly | Body: NO, body only | Head: Selector, long handle | Variant: 3-pos spring return
PXB-B3921J7 Item: Push button switch assembly | Body: NO, body only | Head: Selector, long handle | Variant: 3-pos L return/R maint.
PXB-B3921G2 Item: Push button switch assembly | Body: NO, body only | Head: Key selector | Variant: 2-pos maintained (G2)
PXB-B3921G4 Item: Push button switch assembly | Body: NO, body only | Head: Key selector | Variant: 2-pos maintained (G4)
PXB-B3921A2 Item: Push button switch assembly | Body: NO, body only | Head: Flush button | Variant: Black
PXB-B3921A3 Item: Push button switch assembly | Body: NO, body only | Head: Flush button | Variant: Green
PXB-B3921A4 Item: Push button switch assembly | Body: NO, body only | Head: Flush button | Variant: Red
PXB-B3921A5 Item: Push button switch assembly | Body: NO, body only | Head: Flush button | Variant: Yellow
PXB-B3921L2 Item: Push button switch assembly | Body: NO, body only | Head: Extended button | Variant: Black
PXB-B3921L3 Item: Push button switch assembly | Body: NO, body only | Head: Extended button | Variant: Green
PXB-B3921L4 Item: Push button switch assembly | Body: NO, body only | Head: Extended button | Variant: Red
PXB-B3921L5 Item: Push button switch assembly | Body: NO, body only | Head: Extended button | Variant: Yellow
PXB-B3921P2 Item: Push button switch assembly | Body: NO, body only | Head: Booted button | Variant: Black
PXB-B3921C2 Item: Push button switch assembly | Body: NO, body only | Head: Mushroom 40 mm | Variant: Black
PXB-B3921C3 Item: Push button switch assembly | Body: NO, body only | Head: Mushroom 40 mm | Variant: Green
PXB-B3921C4 Item: Push button switch assembly | Body: NO, body only | Head: Mushroom 40 mm | Variant: Red
PXB-B3921C5 Item: Push button switch assembly | Body: NO, body only | Head: Mushroom 40 mm | Variant: Yellow
PXB-B3921T84 Item: Push button switch assembly | Body: NO, body only | Head: Mushroom latching | Variant: Red, push-pull
PXB-B3921S844 Item: Push button switch assembly | Body: NO, body only | Head: Mushroom latching | Variant: Red, turn release
PXB-B3921R2 Item: Push button switch assembly | Body: NO, body only | Head: Mushroom 60 mm | Variant: Black
PXC-M111 Item: Miniature limit switch | Body: Direct 3-port NC | Head: Plunger | Variant: Push-in fitting
PXC-M121 Item: Miniature limit switch | Body: Direct 3-port NC | Head: Roller lever | Variant: Push-in fitting
PXC-M521 Item: Miniature limit switch | Body: Direct 3-port NC | Head: Roller lever | Variant: Standard
PXC-Z12 Item: Attachment for PXC-M111 | Body: - | Head: One-way roller lever | Variant: -
PXC-Z11 Item: Attachment for PXC-M111 | Body: - | Head: Roller lever | Variant: -
PXC-M601A110 Item: Small limit switch | Body: Direct 3-port NC | Head: Plunger | Variant: Standard
PXC-M601A102 Item: Small limit switch | Body: Direct 3-port NC | Head: Roller plunger | Variant: Standard
PXC-M601A103 Item: Small limit switch | Body: Direct 3-port NC | Head: Roller plunger | Variant: Cross roller
XCM-Z24 Item: Attachment for PXC-M601A110 | Body: - | Head: One-way roller lever | Variant: -

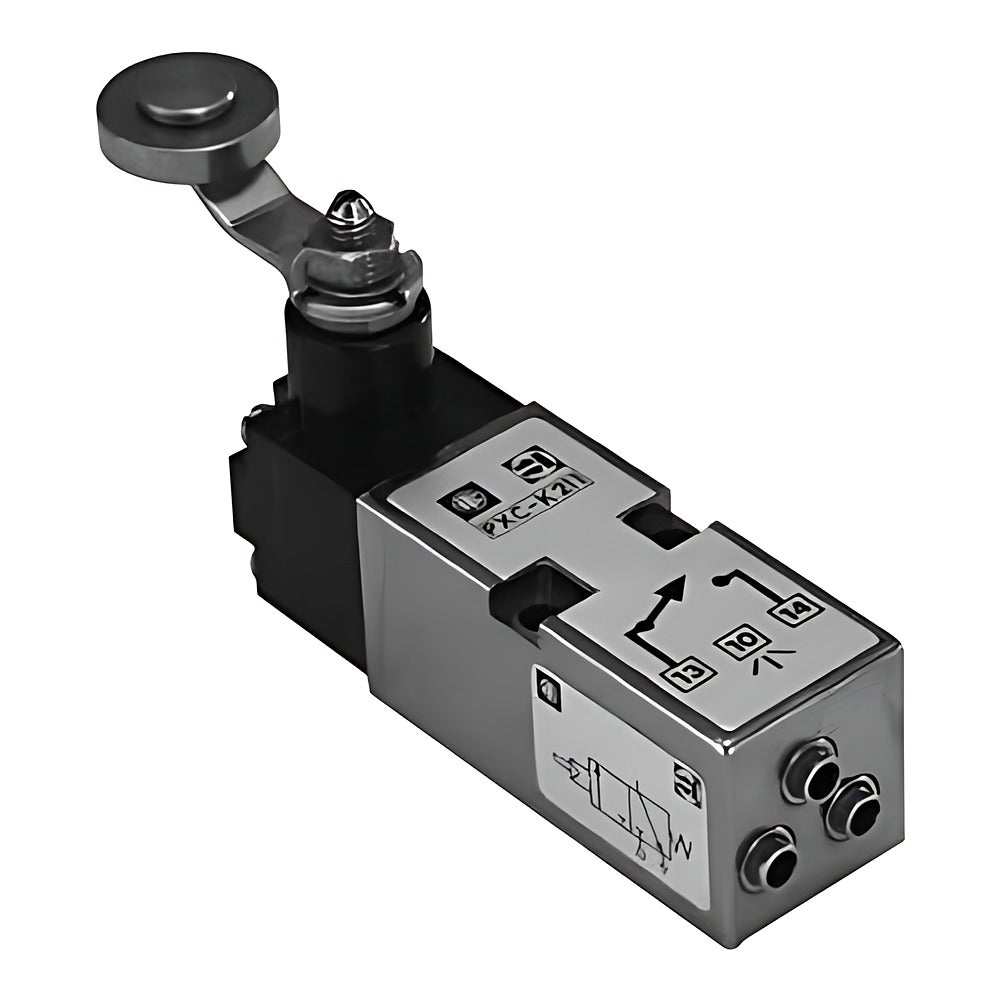

PXC-K211 Item: Limit switch body | Body: Pilot 3-port NC | Head: - | Variant: -
PXC-K221 Item: Limit switch body | Body: Pilot 3-port NO | Head: - | Variant: -
ZCK-D01 Item: Limit switch head | Body: - | Head: Plunger | Variant: -
ZCK-D02 Item: Limit switch head | Body: - | Head: Roller | Variant: -
ZCK-D21 Item: Limit switch head | Body: - | Head: Roller lever | Variant: Resin
ZCK-D23 Item: Limit switch head | Body: - | Head: Roller lever | Variant: Steel
ZCK-D06 Item: Limit switch head | Body: - | Head: Wire | Variant: -
ZCK-D08 Item: Limit switch head | Body: - | Head: Coil spring | Variant: Made to order
ZCK-D05 Item: Limit switch head | Body: - | Head: Rotary | Variant: Without lever
ZCK-Y31 Item: Rotary head lever | Body: - | Head: Roller lever | Variant: Resin roller
ZCK-Y33 Item: Rotary head lever | Body: - | Head: Roller lever | Variant: Steel roller
ZCK-Y34 Item: Rotary head lever | Body: - | Head: Roller lever | Variant: Bearing roller
ZCK-Y41 Item: Rotary head lever | Body: - | Head: Adjustable roller lever | Variant: Resin roller
ZCK-Y55 Item: Rotary head lever | Body: - | Head: Rod lever | Variant: Round rod
ZCK-Y54 Item: Rotary head lever | Body: - | Head: Rod lever | Variant: Square rod
ZCK-Y81 Item: Rotary head lever | Body: - | Head: Spring | Variant: -
ZCK-Y91 Item: Rotary head lever | Body: - | Head: Spring rod | Variant: -
PXC-K21101 Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Plunger | Variant: -
PXC-K21102 Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Roller | Variant: -
PXC-K21121 Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Roller lever | Variant: Resin
PXC-K21123 Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Roller lever | Variant: Steel
PXC-K21106 Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Wire | Variant: -
PXC-K21108 Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Coil spring | Variant: Made to order
PXC-K21105 Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary | Variant: Without lever
PXC-K2110531 Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Roller lever | Variant: Resin roller
PXC-K2110533 Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Roller lever | Variant: Steel roller
PXC-K2110534 Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Roller lever | Variant: Bearing roller
PXC-K2110541 Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Adjustable roller lever | Variant: Resin roller
PXC-K2110555 Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Rod lever | Variant: Round rod
PXC-K2110554 Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Rod lever | Variant: Square rod
PXC-K2110581 Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Spring | Variant: -
PXC-K2110591 Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Spring rod | Variant: -
PXC-K22101 Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Plunger | Variant: -
PXC-K22102 Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Roller | Variant: -
PXC-K22121 Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Roller lever | Variant: Resin
PXC-K22123 Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Roller lever | Variant: Steel
PXC-K22106 Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Wire | Variant: -
PXC-K22108 Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Coil spring | Variant: Made to order
PXC-K22105 Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary | Variant: Without lever
PXC-K2210531 Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Roller lever | Variant: Resin roller
PXC-K2210533 Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Roller lever | Variant: Steel roller
PXC-K2210534 Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Roller lever | Variant: Bearing roller
PXC-K2210541 Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Adjustable roller lever | Variant: Resin roller
PXC-K2210555 Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Rod lever | Variant: Round rod
PXC-K2210554 Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Rod lever | Variant: Square rod
PXC-K2210581 Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Spring | Variant: -
PXC-K2210591 Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Spring rod | Variant: -
PXB-B3 Legacy code | switch body base model, specify body / head code
Pneumatic ControlCKD
181 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD Gamma System Pneumatic Switches (PXB/ZB4, PXC-M, PXC-K/ZCK)

Brand CKD·Pneumatic Control

Available part numbers (181)

PXB-B3111B, PXB-B3121B, PXB-B3911, PXB-B3921, ZB4-BD2, ZB4-BD3, ZB4-BJ2, ZB4-BJ3, ZB4-BJ5, ZB4-BJ7 + 171 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PXB-B3111BItem: Push button switch body | Body: NC, with mounting base | Head: - | Variant: -
PXB-B3121BItem: Push button switch body | Body: NO, with mounting base | Head: - | Variant: -
PXB-B3911Item: Push button switch body | Body: NC, body only | Head: - | Variant: -
PXB-B3921Item: Push button switch body | Body: NO, body only | Head: - | Variant: -
ZB4-BD2Item: Push button switch head | Body: - | Head: Selector, std handle | Variant: 2-pos maintained
ZB4-BD3Item: Push button switch head | Body: - | Head: Selector, std handle | Variant: 3-pos maintained
ZB4-BJ2Item: Push button switch head | Body: - | Head: Selector, long handle | Variant: 2-pos maintained
ZB4-BJ3Item: Push button switch head | Body: - | Head: Selector, long handle | Variant: 3-pos maintained
ZB4-BJ5Item: Push button switch head | Body: - | Head: Selector, long handle | Variant: 3-pos spring return
ZB4-BJ7Item: Push button switch head | Body: - | Head: Selector, long handle | Variant: 3-pos L return/R maint.
ZB4-BG2Item: Push button switch head | Body: - | Head: Key selector | Variant: 2-pos maintained (G2)
ZB4-BG4Item: Push button switch head | Body: - | Head: Key selector | Variant: 2-pos maintained (G4)
ZB4-BA2Item: Push button switch head | Body: - | Head: Flush button | Variant: Black
ZB4-BA3Item: Push button switch head | Body: - | Head: Flush button | Variant: Green
ZB4-BA4Item: Push button switch head | Body: - | Head: Flush button | Variant: Red
ZB4-BA5Item: Push button switch head | Body: - | Head: Flush button | Variant: Yellow
ZB4-BL2Item: Push button switch head | Body: - | Head: Extended button | Variant: Black
ZB4-BL3Item: Push button switch head | Body: - | Head: Extended button | Variant: Green
ZB4-BL4Item: Push button switch head | Body: - | Head: Extended button | Variant: Red
ZB4-BL5Item: Push button switch head | Body: - | Head: Extended button | Variant: Yellow
ZB4-BP2Item: Push button switch head | Body: - | Head: Booted button | Variant: Black
ZB4-BC2Item: Push button switch head | Body: - | Head: Mushroom 40 mm | Variant: Black
ZB4-BC3Item: Push button switch head | Body: - | Head: Mushroom 40 mm | Variant: Green
ZB4-BC4Item: Push button switch head | Body: - | Head: Mushroom 40 mm | Variant: Red
ZB4-BC5Item: Push button switch head | Body: - | Head: Mushroom 40 mm | Variant: Yellow
ZB4-BT84Item: Push button switch head | Body: - | Head: Mushroom latching | Variant: Red, push-pull
ZB4-BS844Item: Push button switch head | Body: - | Head: Mushroom latching | Variant: Red, turn release
ZB4-BR2Item: Push button switch head | Body: - | Head: Mushroom 60 mm | Variant: Black
PXB-B3111BD2Item: Push button switch assembly | Body: NC, with mounting base | Head: Selector, std handle | Variant: 2-pos maintained
PXB-B3111BD3Item: Push button switch assembly | Body: NC, with mounting base | Head: Selector, std handle | Variant: 3-pos maintained
PXB-B3111BJ2Item: Push button switch assembly | Body: NC, with mounting base | Head: Selector, long handle | Variant: 2-pos maintained
PXB-B3111BJ3Item: Push button switch assembly | Body: NC, with mounting base | Head: Selector, long handle | Variant: 3-pos maintained
PXB-B3111BJ5Item: Push button switch assembly | Body: NC, with mounting base | Head: Selector, long handle | Variant: 3-pos spring return
PXB-B3111BJ7Item: Push button switch assembly | Body: NC, with mounting base | Head: Selector, long handle | Variant: 3-pos L return/R maint.
PXB-B3111BG2Item: Push button switch assembly | Body: NC, with mounting base | Head: Key selector | Variant: 2-pos maintained (G2)
PXB-B3111BG4Item: Push button switch assembly | Body: NC, with mounting base | Head: Key selector | Variant: 2-pos maintained (G4)
PXB-B3111BA2Item: Push button switch assembly | Body: NC, with mounting base | Head: Flush button | Variant: Black
PXB-B3111BA3Item: Push button switch assembly | Body: NC, with mounting base | Head: Flush button | Variant: Green
PXB-B3111BA4Item: Push button switch assembly | Body: NC, with mounting base | Head: Flush button | Variant: Red
PXB-B3111BA5Item: Push button switch assembly | Body: NC, with mounting base | Head: Flush button | Variant: Yellow
PXB-B3111BL2Item: Push button switch assembly | Body: NC, with mounting base | Head: Extended button | Variant: Black
PXB-B3111BL3Item: Push button switch assembly | Body: NC, with mounting base | Head: Extended button | Variant: Green
PXB-B3111BL4Item: Push button switch assembly | Body: NC, with mounting base | Head: Extended button | Variant: Red
PXB-B3111BL5Item: Push button switch assembly | Body: NC, with mounting base | Head: Extended button | Variant: Yellow
PXB-B3111BP2Item: Push button switch assembly | Body: NC, with mounting base | Head: Booted button | Variant: Black
PXB-B3111BC2Item: Push button switch assembly | Body: NC, with mounting base | Head: Mushroom 40 mm | Variant: Black
PXB-B3111BC3Item: Push button switch assembly | Body: NC, with mounting base | Head: Mushroom 40 mm | Variant: Green
PXB-B3111BC4Item: Push button switch assembly | Body: NC, with mounting base | Head: Mushroom 40 mm | Variant: Red
PXB-B3111BC5Item: Push button switch assembly | Body: NC, with mounting base | Head: Mushroom 40 mm | Variant: Yellow
PXB-B3111BT84Item: Push button switch assembly | Body: NC, with mounting base | Head: Mushroom latching | Variant: Red, push-pull
PXB-B3111BS844Item: Push button switch assembly | Body: NC, with mounting base | Head: Mushroom latching | Variant: Red, turn release
PXB-B3111BR2Item: Push button switch assembly | Body: NC, with mounting base | Head: Mushroom 60 mm | Variant: Black
PXB-B3121BD2Item: Push button switch assembly | Body: NO, with mounting base | Head: Selector, std handle | Variant: 2-pos maintained
PXB-B3121BD3Item: Push button switch assembly | Body: NO, with mounting base | Head: Selector, std handle | Variant: 3-pos maintained
PXB-B3121BJ2Item: Push button switch assembly | Body: NO, with mounting base | Head: Selector, long handle | Variant: 2-pos maintained
PXB-B3121BJ3Item: Push button switch assembly | Body: NO, with mounting base | Head: Selector, long handle | Variant: 3-pos maintained
PXB-B3121BJ5Item: Push button switch assembly | Body: NO, with mounting base | Head: Selector, long handle | Variant: 3-pos spring return
PXB-B3121BJ7Item: Push button switch assembly | Body: NO, with mounting base | Head: Selector, long handle | Variant: 3-pos L return/R maint.
PXB-B3121BG2Item: Push button switch assembly | Body: NO, with mounting base | Head: Key selector | Variant: 2-pos maintained (G2)
PXB-B3121BG4Item: Push button switch assembly | Body: NO, with mounting base | Head: Key selector | Variant: 2-pos maintained (G4)
PXB-B3121BA2Item: Push button switch assembly | Body: NO, with mounting base | Head: Flush button | Variant: Black
PXB-B3121BA3Item: Push button switch assembly | Body: NO, with mounting base | Head: Flush button | Variant: Green
PXB-B3121BA4Item: Push button switch assembly | Body: NO, with mounting base | Head: Flush button | Variant: Red
PXB-B3121BA5Item: Push button switch assembly | Body: NO, with mounting base | Head: Flush button | Variant: Yellow
PXB-B3121BL2Item: Push button switch assembly | Body: NO, with mounting base | Head: Extended button | Variant: Black
PXB-B3121BL3Item: Push button switch assembly | Body: NO, with mounting base | Head: Extended button | Variant: Green
PXB-B3121BL4Item: Push button switch assembly | Body: NO, with mounting base | Head: Extended button | Variant: Red
PXB-B3121BL5Item: Push button switch assembly | Body: NO, with mounting base | Head: Extended button | Variant: Yellow
PXB-B3121BP2Item: Push button switch assembly | Body: NO, with mounting base | Head: Booted button | Variant: Black
PXB-B3121BC2Item: Push button switch assembly | Body: NO, with mounting base | Head: Mushroom 40 mm | Variant: Black
PXB-B3121BC3Item: Push button switch assembly | Body: NO, with mounting base | Head: Mushroom 40 mm | Variant: Green
PXB-B3121BC4Item: Push button switch assembly | Body: NO, with mounting base | Head: Mushroom 40 mm | Variant: Red
PXB-B3121BC5Item: Push button switch assembly | Body: NO, with mounting base | Head: Mushroom 40 mm | Variant: Yellow
PXB-B3121BT84Item: Push button switch assembly | Body: NO, with mounting base | Head: Mushroom latching | Variant: Red, push-pull
PXB-B3121BS844Item: Push button switch assembly | Body: NO, with mounting base | Head: Mushroom latching | Variant: Red, turn release
PXB-B3121BR2Item: Push button switch assembly | Body: NO, with mounting base | Head: Mushroom 60 mm | Variant: Black
PXB-B3911D2Item: Push button switch assembly | Body: NC, body only | Head: Selector, std handle | Variant: 2-pos maintained
PXB-B3911D3Item: Push button switch assembly | Body: NC, body only | Head: Selector, std handle | Variant: 3-pos maintained
PXB-B3911J2Item: Push button switch assembly | Body: NC, body only | Head: Selector, long handle | Variant: 2-pos maintained
PXB-B3911J3Item: Push button switch assembly | Body: NC, body only | Head: Selector, long handle | Variant: 3-pos maintained
PXB-B3911J5Item: Push button switch assembly | Body: NC, body only | Head: Selector, long handle | Variant: 3-pos spring return
PXB-B3911J7Item: Push button switch assembly | Body: NC, body only | Head: Selector, long handle | Variant: 3-pos L return/R maint.
PXB-B3911G2Item: Push button switch assembly | Body: NC, body only | Head: Key selector | Variant: 2-pos maintained (G2)
PXB-B3911G4Item: Push button switch assembly | Body: NC, body only | Head: Key selector | Variant: 2-pos maintained (G4)
PXB-B3911A2Item: Push button switch assembly | Body: NC, body only | Head: Flush button | Variant: Black
PXB-B3911A3Item: Push button switch assembly | Body: NC, body only | Head: Flush button | Variant: Green
PXB-B3911A4Item: Push button switch assembly | Body: NC, body only | Head: Flush button | Variant: Red
PXB-B3911A5Item: Push button switch assembly | Body: NC, body only | Head: Flush button | Variant: Yellow
PXB-B3911L2Item: Push button switch assembly | Body: NC, body only | Head: Extended button | Variant: Black
PXB-B3911L3Item: Push button switch assembly | Body: NC, body only | Head: Extended button | Variant: Green
PXB-B3911L4Item: Push button switch assembly | Body: NC, body only | Head: Extended button | Variant: Red
PXB-B3911L5Item: Push button switch assembly | Body: NC, body only | Head: Extended button | Variant: Yellow
PXB-B3911P2Item: Push button switch assembly | Body: NC, body only | Head: Booted button | Variant: Black
PXB-B3911C2Item: Push button switch assembly | Body: NC, body only | Head: Mushroom 40 mm | Variant: Black
PXB-B3911C3Item: Push button switch assembly | Body: NC, body only | Head: Mushroom 40 mm | Variant: Green
PXB-B3911C4Item: Push button switch assembly | Body: NC, body only | Head: Mushroom 40 mm | Variant: Red
PXB-B3911C5Item: Push button switch assembly | Body: NC, body only | Head: Mushroom 40 mm | Variant: Yellow
PXB-B3911T84Item: Push button switch assembly | Body: NC, body only | Head: Mushroom latching | Variant: Red, push-pull
PXB-B3911S844Item: Push button switch assembly | Body: NC, body only | Head: Mushroom latching | Variant: Red, turn release
PXB-B3911R2Item: Push button switch assembly | Body: NC, body only | Head: Mushroom 60 mm | Variant: Black
PXB-B3921D2Item: Push button switch assembly | Body: NO, body only | Head: Selector, std handle | Variant: 2-pos maintained
PXB-B3921D3Item: Push button switch assembly | Body: NO, body only | Head: Selector, std handle | Variant: 3-pos maintained
PXB-B3921J2Item: Push button switch assembly | Body: NO, body only | Head: Selector, long handle | Variant: 2-pos maintained
PXB-B3921J3Item: Push button switch assembly | Body: NO, body only | Head: Selector, long handle | Variant: 3-pos maintained
PXB-B3921J5Item: Push button switch assembly | Body: NO, body only | Head: Selector, long handle | Variant: 3-pos spring return
PXB-B3921J7Item: Push button switch assembly | Body: NO, body only | Head: Selector, long handle | Variant: 3-pos L return/R maint.
PXB-B3921G2Item: Push button switch assembly | Body: NO, body only | Head: Key selector | Variant: 2-pos maintained (G2)
PXB-B3921G4Item: Push button switch assembly | Body: NO, body only | Head: Key selector | Variant: 2-pos maintained (G4)
PXB-B3921A2Item: Push button switch assembly | Body: NO, body only | Head: Flush button | Variant: Black
PXB-B3921A3Item: Push button switch assembly | Body: NO, body only | Head: Flush button | Variant: Green
PXB-B3921A4Item: Push button switch assembly | Body: NO, body only | Head: Flush button | Variant: Red
PXB-B3921A5Item: Push button switch assembly | Body: NO, body only | Head: Flush button | Variant: Yellow
PXB-B3921L2Item: Push button switch assembly | Body: NO, body only | Head: Extended button | Variant: Black
PXB-B3921L3Item: Push button switch assembly | Body: NO, body only | Head: Extended button | Variant: Green
PXB-B3921L4Item: Push button switch assembly | Body: NO, body only | Head: Extended button | Variant: Red
PXB-B3921L5Item: Push button switch assembly | Body: NO, body only | Head: Extended button | Variant: Yellow
PXB-B3921P2Item: Push button switch assembly | Body: NO, body only | Head: Booted button | Variant: Black
PXB-B3921C2Item: Push button switch assembly | Body: NO, body only | Head: Mushroom 40 mm | Variant: Black
PXB-B3921C3Item: Push button switch assembly | Body: NO, body only | Head: Mushroom 40 mm | Variant: Green
PXB-B3921C4Item: Push button switch assembly | Body: NO, body only | Head: Mushroom 40 mm | Variant: Red
PXB-B3921C5Item: Push button switch assembly | Body: NO, body only | Head: Mushroom 40 mm | Variant: Yellow
PXB-B3921T84Item: Push button switch assembly | Body: NO, body only | Head: Mushroom latching | Variant: Red, push-pull
PXB-B3921S844Item: Push button switch assembly | Body: NO, body only | Head: Mushroom latching | Variant: Red, turn release
PXB-B3921R2Item: Push button switch assembly | Body: NO, body only | Head: Mushroom 60 mm | Variant: Black
PXC-M111Item: Miniature limit switch | Body: Direct 3-port NC | Head: Plunger | Variant: Push-in fitting
PXC-M121Item: Miniature limit switch | Body: Direct 3-port NC | Head: Roller lever | Variant: Push-in fitting
PXC-M521Item: Miniature limit switch | Body: Direct 3-port NC | Head: Roller lever | Variant: Standard
PXC-Z12Item: Attachment for PXC-M111 | Body: - | Head: One-way roller lever | Variant: -
PXC-Z11Item: Attachment for PXC-M111 | Body: - | Head: Roller lever | Variant: -
PXC-M601A110Item: Small limit switch | Body: Direct 3-port NC | Head: Plunger | Variant: Standard
PXC-M601A102Item: Small limit switch | Body: Direct 3-port NC | Head: Roller plunger | Variant: Standard
PXC-M601A103Item: Small limit switch | Body: Direct 3-port NC | Head: Roller plunger | Variant: Cross roller
XCM-Z24Item: Attachment for PXC-M601A110 | Body: - | Head: One-way roller lever | Variant: -
PXC-K211Item: Limit switch body | Body: Pilot 3-port NC | Head: - | Variant: -
PXC-K221Item: Limit switch body | Body: Pilot 3-port NO | Head: - | Variant: -
ZCK-D01Item: Limit switch head | Body: - | Head: Plunger | Variant: -
ZCK-D02Item: Limit switch head | Body: - | Head: Roller | Variant: -
ZCK-D21Item: Limit switch head | Body: - | Head: Roller lever | Variant: Resin
ZCK-D23Item: Limit switch head | Body: - | Head: Roller lever | Variant: Steel
ZCK-D06Item: Limit switch head | Body: - | Head: Wire | Variant: -
ZCK-D08Item: Limit switch head | Body: - | Head: Coil spring | Variant: Made to order
ZCK-D05Item: Limit switch head | Body: - | Head: Rotary | Variant: Without lever
ZCK-Y31Item: Rotary head lever | Body: - | Head: Roller lever | Variant: Resin roller
ZCK-Y33Item: Rotary head lever | Body: - | Head: Roller lever | Variant: Steel roller
ZCK-Y34Item: Rotary head lever | Body: - | Head: Roller lever | Variant: Bearing roller
ZCK-Y41Item: Rotary head lever | Body: - | Head: Adjustable roller lever | Variant: Resin roller
ZCK-Y55Item: Rotary head lever | Body: - | Head: Rod lever | Variant: Round rod
ZCK-Y54Item: Rotary head lever | Body: - | Head: Rod lever | Variant: Square rod
ZCK-Y81Item: Rotary head lever | Body: - | Head: Spring | Variant: -
ZCK-Y91Item: Rotary head lever | Body: - | Head: Spring rod | Variant: -
PXC-K21101Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Plunger | Variant: -
PXC-K21102Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Roller | Variant: -
PXC-K21121Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Roller lever | Variant: Resin
PXC-K21123Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Roller lever | Variant: Steel
PXC-K21106Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Wire | Variant: -
PXC-K21108Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Coil spring | Variant: Made to order
PXC-K21105Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary | Variant: Without lever
PXC-K2110531Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Roller lever | Variant: Resin roller
PXC-K2110533Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Roller lever | Variant: Steel roller
PXC-K2110534Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Roller lever | Variant: Bearing roller
PXC-K2110541Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Adjustable roller lever | Variant: Resin roller
PXC-K2110555Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Rod lever | Variant: Round rod
PXC-K2110554Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Rod lever | Variant: Square rod
PXC-K2110581Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Spring | Variant: -
PXC-K2110591Item: Limit switch assembly | Body: Pilot 3-port NC | Head: Rotary + Spring rod | Variant: -
PXC-K22101Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Plunger | Variant: -
PXC-K22102Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Roller | Variant: -
PXC-K22121Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Roller lever | Variant: Resin
PXC-K22123Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Roller lever | Variant: Steel
PXC-K22106Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Wire | Variant: -
PXC-K22108Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Coil spring | Variant: Made to order
PXC-K22105Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary | Variant: Without lever
PXC-K2210531Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Roller lever | Variant: Resin roller
PXC-K2210533Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Roller lever | Variant: Steel roller
PXC-K2210534Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Roller lever | Variant: Bearing roller
PXC-K2210541Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Adjustable roller lever | Variant: Resin roller
PXC-K2210555Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Rod lever | Variant: Round rod
PXC-K2210554Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Rod lever | Variant: Square rod
PXC-K2210581Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Spring | Variant: -
PXC-K2210591Item: Limit switch assembly | Body: Pilot 3-port NO | Head: Rotary + Spring rod | Variant: -
PXB-B3Legacy code | switch body base model, specify body / head code

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
