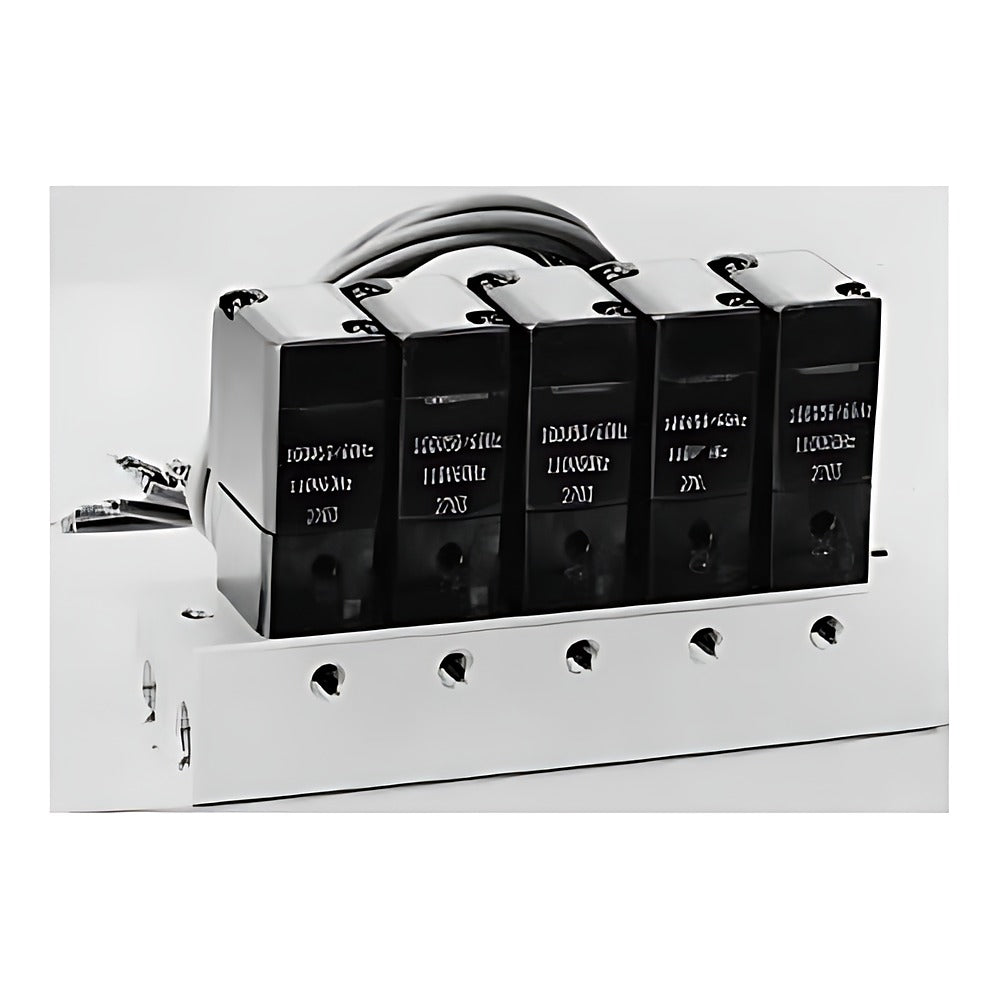

CKD GFAG JUST FIT 3-Port Solenoid Valve Manifold (Air, 2-10 Stn)

CKD GFAG JUST FIT 3-Port Solenoid Valve Manifold (Air, 2-10 Stn)

Manifold of JUST FIT FAG direct acting 3-port universal solenoid valves for compressed air, 2 to 10 stations.

Key features

  • Universal valves with central supply and central exhaust
  • PPS sub-plate body, NBR seals
  • 2 to 10 stations; five valve sizes 18-40 mm
  • Listed codes use the standard grommet lead coil; DIN box, conduit and T-type box coils, manual override N and masking plates (X) to order
  • Example GFAG21-Z-5-12CN-1 (with manual override N)

Specifications

Fluid Compressed air
Valve type Direct acting poppet, universal
Operating pressure differential 0-1.2 MPa (by model)
Proof pressure 1.8 MPa (GFAG1/2/3: 1.5)
Fluid temperature AC -10-60 C, DC -10-40 C
Body / seal PPS / NBR (code 1)
Coil Grommet lead wire (2C)
Source CKD Korea catalog CB-03-1SK-9, p. 138-143
GFAG11-Y-2-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG11-Y-2-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG11-Y-2-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 2 | Voltage: DC24V
GFAG11-Y-2-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 2 | Voltage: DC12V
GFAG11-Y-3-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG11-Y-3-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG11-Y-3-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 3 | Voltage: DC24V
GFAG11-Y-3-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 3 | Voltage: DC12V
GFAG11-Y-4-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG11-Y-4-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG11-Y-4-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 4 | Voltage: DC24V
GFAG11-Y-4-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 4 | Voltage: DC12V
GFAG11-Y-5-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG11-Y-5-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG11-Y-5-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 5 | Voltage: DC24V
GFAG11-Y-5-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 5 | Voltage: DC12V
GFAG11-Y-6-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG11-Y-6-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG11-Y-6-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 6 | Voltage: DC24V
GFAG11-Y-6-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 6 | Voltage: DC12V
GFAG11-Y-7-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG11-Y-7-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG11-Y-7-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 7 | Voltage: DC24V
GFAG11-Y-7-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 7 | Voltage: DC12V
GFAG11-Y-8-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG11-Y-8-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG11-Y-8-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 8 | Voltage: DC24V
GFAG11-Y-8-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 8 | Voltage: DC12V
GFAG11-Y-9-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG11-Y-9-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG11-Y-9-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 9 | Voltage: DC24V
GFAG11-Y-9-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 9 | Voltage: DC12V
GFAG11-Y-10-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG11-Y-10-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG11-Y-10-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 10 | Voltage: DC24V
GFAG11-Y-10-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 10 | Voltage: DC12V
GFAG11-0-2-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG11-0-2-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG11-0-2-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 2 | Voltage: DC24V
GFAG11-0-2-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 2 | Voltage: DC12V
GFAG11-0-3-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG11-0-3-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG11-0-3-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 3 | Voltage: DC24V
GFAG11-0-3-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 3 | Voltage: DC12V
GFAG11-0-4-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG11-0-4-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG11-0-4-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 4 | Voltage: DC24V
GFAG11-0-4-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 4 | Voltage: DC12V
GFAG11-0-5-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG11-0-5-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG11-0-5-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 5 | Voltage: DC24V
GFAG11-0-5-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 5 | Voltage: DC12V
GFAG11-0-6-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG11-0-6-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG11-0-6-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 6 | Voltage: DC24V
GFAG11-0-6-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 6 | Voltage: DC12V
GFAG11-0-7-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG11-0-7-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG11-0-7-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 7 | Voltage: DC24V
GFAG11-0-7-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 7 | Voltage: DC12V
GFAG11-0-8-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG11-0-8-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG11-0-8-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 8 | Voltage: DC24V
GFAG11-0-8-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 8 | Voltage: DC12V
GFAG11-0-9-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG11-0-9-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG11-0-9-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 9 | Voltage: DC24V
GFAG11-0-9-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 9 | Voltage: DC12V
GFAG11-0-10-12C-1 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG11-0-10-12C-2 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG11-0-10-12C-3 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 10 | Voltage: DC24V
GFAG11-0-10-12C-4 Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 10 | Voltage: DC12V
GFAG21-Z-2-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG21-Z-2-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG21-Z-2-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 2 | Voltage: DC24V
GFAG21-Z-2-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 2 | Voltage: DC12V
GFAG21-Z-3-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG21-Z-3-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG21-Z-3-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 3 | Voltage: DC24V
GFAG21-Z-3-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 3 | Voltage: DC12V
GFAG21-Z-4-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG21-Z-4-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG21-Z-4-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 4 | Voltage: DC24V
GFAG21-Z-4-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 4 | Voltage: DC12V
GFAG21-Z-5-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG21-Z-5-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG21-Z-5-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 5 | Voltage: DC24V
GFAG21-Z-5-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 5 | Voltage: DC12V
GFAG21-Z-6-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG21-Z-6-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG21-Z-6-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 6 | Voltage: DC24V
GFAG21-Z-6-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 6 | Voltage: DC12V
GFAG21-Z-7-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG21-Z-7-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG21-Z-7-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 7 | Voltage: DC24V
GFAG21-Z-7-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 7 | Voltage: DC12V
GFAG21-Z-8-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG21-Z-8-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG21-Z-8-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 8 | Voltage: DC24V
GFAG21-Z-8-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 8 | Voltage: DC12V
GFAG21-Z-9-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG21-Z-9-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG21-Z-9-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 9 | Voltage: DC24V
GFAG21-Z-9-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 9 | Voltage: DC12V
GFAG21-Z-10-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG21-Z-10-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG21-Z-10-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 10 | Voltage: DC24V
GFAG21-Z-10-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 10 | Voltage: DC12V
GFAG21-1-2-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG21-1-2-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG21-1-2-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 2 | Voltage: DC24V
GFAG21-1-2-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 2 | Voltage: DC12V
GFAG21-1-3-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG21-1-3-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG21-1-3-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 3 | Voltage: DC24V
GFAG21-1-3-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 3 | Voltage: DC12V
GFAG21-1-4-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG21-1-4-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG21-1-4-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 4 | Voltage: DC24V
GFAG21-1-4-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 4 | Voltage: DC12V
GFAG21-1-5-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG21-1-5-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG21-1-5-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 5 | Voltage: DC24V
GFAG21-1-5-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 5 | Voltage: DC12V
GFAG21-1-6-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG21-1-6-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG21-1-6-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 6 | Voltage: DC24V
GFAG21-1-6-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 6 | Voltage: DC12V
GFAG21-1-7-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG21-1-7-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG21-1-7-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 7 | Voltage: DC24V
GFAG21-1-7-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 7 | Voltage: DC12V
GFAG21-1-8-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG21-1-8-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG21-1-8-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 8 | Voltage: DC24V
GFAG21-1-8-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 8 | Voltage: DC12V
GFAG21-1-9-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG21-1-9-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG21-1-9-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 9 | Voltage: DC24V
GFAG21-1-9-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 9 | Voltage: DC12V
GFAG21-1-10-12C-1 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG21-1-10-12C-2 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG21-1-10-12C-3 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 10 | Voltage: DC24V
GFAG21-1-10-12C-4 Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 10 | Voltage: DC12V
GFAG31-0-2-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG31-0-2-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG31-0-2-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 2 | Voltage: DC24V
GFAG31-0-2-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 2 | Voltage: DC12V
GFAG31-0-3-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG31-0-3-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG31-0-3-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 3 | Voltage: DC24V
GFAG31-0-3-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 3 | Voltage: DC12V
GFAG31-0-4-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG31-0-4-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG31-0-4-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 4 | Voltage: DC24V
GFAG31-0-4-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 4 | Voltage: DC12V
GFAG31-0-5-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG31-0-5-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG31-0-5-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 5 | Voltage: DC24V
GFAG31-0-5-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 5 | Voltage: DC12V
GFAG31-0-6-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG31-0-6-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG31-0-6-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 6 | Voltage: DC24V
GFAG31-0-6-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 6 | Voltage: DC12V
GFAG31-0-7-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG31-0-7-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG31-0-7-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 7 | Voltage: DC24V
GFAG31-0-7-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 7 | Voltage: DC12V
GFAG31-0-8-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG31-0-8-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG31-0-8-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 8 | Voltage: DC24V
GFAG31-0-8-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 8 | Voltage: DC12V
GFAG31-0-9-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG31-0-9-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG31-0-9-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 9 | Voltage: DC24V
GFAG31-0-9-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 9 | Voltage: DC12V
GFAG31-0-10-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG31-0-10-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG31-0-10-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 10 | Voltage: DC24V
GFAG31-0-10-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 10 | Voltage: DC12V
GFAG31-1-2-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG31-1-2-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG31-1-2-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: DC24V
GFAG31-1-2-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: DC12V
GFAG31-1-3-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG31-1-3-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG31-1-3-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: DC24V
GFAG31-1-3-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: DC12V
GFAG31-1-4-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG31-1-4-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG31-1-4-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: DC24V
GFAG31-1-4-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: DC12V
GFAG31-1-5-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG31-1-5-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG31-1-5-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: DC24V
GFAG31-1-5-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: DC12V
GFAG31-1-6-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG31-1-6-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG31-1-6-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: DC24V
GFAG31-1-6-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: DC12V
GFAG31-1-7-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG31-1-7-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG31-1-7-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: DC24V
GFAG31-1-7-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: DC12V
GFAG31-1-8-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG31-1-8-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG31-1-8-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: DC24V
GFAG31-1-8-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: DC12V
GFAG31-1-9-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG31-1-9-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG31-1-9-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: DC24V
GFAG31-1-9-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: DC12V
GFAG31-1-10-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG31-1-10-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG31-1-10-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: DC24V
GFAG31-1-10-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: DC12V
GFAG31-4-2-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG31-4-2-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG31-4-2-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: DC24V
GFAG31-4-2-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: DC12V
GFAG31-4-3-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG31-4-3-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG31-4-3-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: DC24V
GFAG31-4-3-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: DC12V
GFAG31-4-4-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG31-4-4-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG31-4-4-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: DC24V
GFAG31-4-4-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: DC12V
GFAG31-4-5-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG31-4-5-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG31-4-5-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: DC24V
GFAG31-4-5-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: DC12V
GFAG31-4-6-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG31-4-6-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG31-4-6-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: DC24V
GFAG31-4-6-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: DC12V
GFAG31-4-7-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG31-4-7-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG31-4-7-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: DC24V
GFAG31-4-7-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: DC12V
GFAG31-4-8-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG31-4-8-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG31-4-8-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: DC24V
GFAG31-4-8-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: DC12V
GFAG31-4-9-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG31-4-9-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG31-4-9-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: DC24V
GFAG31-4-9-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: DC12V
GFAG31-4-10-12C-1 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG31-4-10-12C-2 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG31-4-10-12C-3 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: DC24V
GFAG31-4-10-12C-4 Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: DC12V
GFAG41-1-2-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG41-1-2-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG41-1-2-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: DC24V
GFAG41-1-2-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: DC12V
GFAG41-1-3-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG41-1-3-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG41-1-3-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: DC24V
GFAG41-1-3-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: DC12V
GFAG41-1-4-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG41-1-4-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG41-1-4-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: DC24V
GFAG41-1-4-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: DC12V
GFAG41-1-5-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG41-1-5-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG41-1-5-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: DC24V
GFAG41-1-5-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: DC12V
GFAG41-1-6-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG41-1-6-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG41-1-6-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: DC24V
GFAG41-1-6-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: DC12V
GFAG41-1-7-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG41-1-7-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG41-1-7-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: DC24V
GFAG41-1-7-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: DC12V
GFAG41-1-8-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG41-1-8-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG41-1-8-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: DC24V
GFAG41-1-8-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: DC12V
GFAG41-1-9-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG41-1-9-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG41-1-9-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: DC24V
GFAG41-1-9-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: DC12V
GFAG41-1-10-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG41-1-10-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG41-1-10-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: DC24V
GFAG41-1-10-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: DC12V
GFAG41-4-2-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG41-4-2-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG41-4-2-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: DC24V
GFAG41-4-2-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: DC12V
GFAG41-4-3-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG41-4-3-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG41-4-3-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: DC24V
GFAG41-4-3-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: DC12V
GFAG41-4-4-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG41-4-4-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG41-4-4-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: DC24V
GFAG41-4-4-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: DC12V
GFAG41-4-5-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG41-4-5-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG41-4-5-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: DC24V
GFAG41-4-5-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: DC12V
GFAG41-4-6-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG41-4-6-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG41-4-6-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: DC24V
GFAG41-4-6-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: DC12V
GFAG41-4-7-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG41-4-7-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG41-4-7-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: DC24V
GFAG41-4-7-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: DC12V
GFAG41-4-8-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG41-4-8-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG41-4-8-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: DC24V
GFAG41-4-8-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: DC12V
GFAG41-4-9-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG41-4-9-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG41-4-9-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: DC24V
GFAG41-4-9-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: DC12V
GFAG41-4-10-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG41-4-10-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG41-4-10-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: DC24V
GFAG41-4-10-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: DC12V
GFAG41-8-2-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG41-8-2-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG41-8-2-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: DC24V
GFAG41-8-2-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: DC12V
GFAG41-8-3-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG41-8-3-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG41-8-3-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: DC24V
GFAG41-8-3-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: DC12V
GFAG41-8-4-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG41-8-4-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG41-8-4-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: DC24V
GFAG41-8-4-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: DC12V
GFAG41-8-5-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG41-8-5-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG41-8-5-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: DC24V
GFAG41-8-5-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: DC12V
GFAG41-8-6-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG41-8-6-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG41-8-6-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: DC24V
GFAG41-8-6-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: DC12V
GFAG41-8-7-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG41-8-7-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG41-8-7-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: DC24V
GFAG41-8-7-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: DC12V
GFAG41-8-8-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG41-8-8-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG41-8-8-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: DC24V
GFAG41-8-8-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: DC12V
GFAG41-8-9-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG41-8-9-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG41-8-9-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: DC24V
GFAG41-8-9-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: DC12V
GFAG41-8-10-12C-1 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG41-8-10-12C-2 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG41-8-10-12C-3 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: DC24V
GFAG41-8-10-12C-4 Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: DC12V
GFAG51-1-2-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG51-1-2-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG51-1-2-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: DC24V
GFAG51-1-2-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: DC12V
GFAG51-1-3-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG51-1-3-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG51-1-3-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: DC24V
GFAG51-1-3-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: DC12V
GFAG51-1-4-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG51-1-4-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG51-1-4-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: DC24V
GFAG51-1-4-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: DC12V
GFAG51-1-5-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG51-1-5-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG51-1-5-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: DC24V
GFAG51-1-5-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: DC12V
GFAG51-1-6-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG51-1-6-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG51-1-6-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: DC24V
GFAG51-1-6-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: DC12V
GFAG51-1-7-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG51-1-7-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG51-1-7-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: DC24V
GFAG51-1-7-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: DC12V
GFAG51-1-8-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG51-1-8-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG51-1-8-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: DC24V
GFAG51-1-8-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: DC12V
GFAG51-1-9-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG51-1-9-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG51-1-9-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: DC24V
GFAG51-1-9-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: DC12V
GFAG51-1-10-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG51-1-10-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG51-1-10-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: DC24V
GFAG51-1-10-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: DC12V
GFAG51-4-2-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG51-4-2-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG51-4-2-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: DC24V
GFAG51-4-2-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: DC12V
GFAG51-4-3-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG51-4-3-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG51-4-3-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: DC24V
GFAG51-4-3-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: DC12V
GFAG51-4-4-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG51-4-4-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG51-4-4-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: DC24V
GFAG51-4-4-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: DC12V
GFAG51-4-5-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG51-4-5-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG51-4-5-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: DC24V
GFAG51-4-5-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: DC12V
GFAG51-4-6-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG51-4-6-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG51-4-6-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: DC24V
GFAG51-4-6-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: DC12V
GFAG51-4-7-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG51-4-7-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG51-4-7-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: DC24V
GFAG51-4-7-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: DC12V
GFAG51-4-8-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG51-4-8-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG51-4-8-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: DC24V
GFAG51-4-8-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: DC12V
GFAG51-4-9-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG51-4-9-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG51-4-9-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: DC24V
GFAG51-4-9-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: DC12V
GFAG51-4-10-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG51-4-10-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG51-4-10-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: DC24V
GFAG51-4-10-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: DC12V
GFAG51-8-2-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG51-8-2-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG51-8-2-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: DC24V
GFAG51-8-2-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: DC12V
GFAG51-8-3-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG51-8-3-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG51-8-3-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: DC24V
GFAG51-8-3-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: DC12V
GFAG51-8-4-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG51-8-4-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG51-8-4-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: DC24V
GFAG51-8-4-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: DC12V
GFAG51-8-5-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG51-8-5-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG51-8-5-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: DC24V
GFAG51-8-5-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: DC12V
GFAG51-8-6-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG51-8-6-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG51-8-6-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: DC24V
GFAG51-8-6-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: DC12V
GFAG51-8-7-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG51-8-7-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG51-8-7-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: DC24V
GFAG51-8-7-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: DC12V
GFAG51-8-8-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG51-8-8-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG51-8-8-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: DC24V
GFAG51-8-8-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: DC12V
GFAG51-8-9-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG51-8-9-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG51-8-9-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: DC24V
GFAG51-8-9-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: DC12V
GFAG51-8-10-12C-1 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG51-8-10-12C-2 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG51-8-10-12C-3 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: DC24V
GFAG51-8-10-12C-4 Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: DC12V
Solenoid ValvesCKD
468 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GFAG JUST FIT 3-Port Solenoid Valve Manifold (Air, 2-10 Stn)

Brand CKD·Solenoid Valves

Available part numbers (468)

GFAG11-Y-2-12C-1, GFAG11-Y-2-12C-2, GFAG11-Y-2-12C-3, GFAG11-Y-2-12C-4, GFAG11-Y-3-12C-1, GFAG11-Y-3-12C-2, GFAG11-Y-3-12C-3, GFAG11-Y-3-12C-4, GFAG11-Y-4-12C-1, GFAG11-Y-4-12C-2 + 458 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GFAG11-Y-2-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG11-Y-2-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG11-Y-2-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 2 | Voltage: DC24V
GFAG11-Y-2-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 2 | Voltage: DC12V
GFAG11-Y-3-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG11-Y-3-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG11-Y-3-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 3 | Voltage: DC24V
GFAG11-Y-3-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 3 | Voltage: DC12V
GFAG11-Y-4-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG11-Y-4-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG11-Y-4-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 4 | Voltage: DC24V
GFAG11-Y-4-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 4 | Voltage: DC12V
GFAG11-Y-5-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG11-Y-5-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG11-Y-5-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 5 | Voltage: DC24V
GFAG11-Y-5-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 5 | Voltage: DC12V
GFAG11-Y-6-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG11-Y-6-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG11-Y-6-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 6 | Voltage: DC24V
GFAG11-Y-6-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 6 | Voltage: DC12V
GFAG11-Y-7-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG11-Y-7-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG11-Y-7-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 7 | Voltage: DC24V
GFAG11-Y-7-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 7 | Voltage: DC12V
GFAG11-Y-8-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG11-Y-8-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG11-Y-8-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 8 | Voltage: DC24V
GFAG11-Y-8-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 8 | Voltage: DC12V
GFAG11-Y-9-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG11-Y-9-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG11-Y-9-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 9 | Voltage: DC24V
GFAG11-Y-9-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 9 | Voltage: DC12V
GFAG11-Y-10-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG11-Y-10-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG11-Y-10-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 10 | Voltage: DC24V
GFAG11-Y-10-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 0.8 mm | Stations: 10 | Voltage: DC12V
GFAG11-0-2-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG11-0-2-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG11-0-2-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 2 | Voltage: DC24V
GFAG11-0-2-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 2 | Voltage: DC12V
GFAG11-0-3-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG11-0-3-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG11-0-3-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 3 | Voltage: DC24V
GFAG11-0-3-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 3 | Voltage: DC12V
GFAG11-0-4-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG11-0-4-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG11-0-4-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 4 | Voltage: DC24V
GFAG11-0-4-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 4 | Voltage: DC12V
GFAG11-0-5-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG11-0-5-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG11-0-5-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 5 | Voltage: DC24V
GFAG11-0-5-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 5 | Voltage: DC12V
GFAG11-0-6-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG11-0-6-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG11-0-6-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 6 | Voltage: DC24V
GFAG11-0-6-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 6 | Voltage: DC12V
GFAG11-0-7-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG11-0-7-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG11-0-7-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 7 | Voltage: DC24V
GFAG11-0-7-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 7 | Voltage: DC12V
GFAG11-0-8-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG11-0-8-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG11-0-8-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 8 | Voltage: DC24V
GFAG11-0-8-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 8 | Voltage: DC12V
GFAG11-0-9-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG11-0-9-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG11-0-9-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 9 | Voltage: DC24V
GFAG11-0-9-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 9 | Voltage: DC12V
GFAG11-0-10-12C-1Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG11-0-10-12C-2Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG11-0-10-12C-3Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 10 | Voltage: DC24V
GFAG11-0-10-12C-4Model: GFAG11 (central supply/exhaust) | Ports: 2 M5 / 1,3 Rc1/8 | Orifice: 1.5 mm | Stations: 10 | Voltage: DC12V
GFAG21-Z-2-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG21-Z-2-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG21-Z-2-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 2 | Voltage: DC24V
GFAG21-Z-2-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 2 | Voltage: DC12V
GFAG21-Z-3-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG21-Z-3-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG21-Z-3-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 3 | Voltage: DC24V
GFAG21-Z-3-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 3 | Voltage: DC12V
GFAG21-Z-4-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG21-Z-4-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG21-Z-4-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 4 | Voltage: DC24V
GFAG21-Z-4-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 4 | Voltage: DC12V
GFAG21-Z-5-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG21-Z-5-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG21-Z-5-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 5 | Voltage: DC24V
GFAG21-Z-5-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 5 | Voltage: DC12V
GFAG21-Z-6-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG21-Z-6-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG21-Z-6-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 6 | Voltage: DC24V
GFAG21-Z-6-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 6 | Voltage: DC12V
GFAG21-Z-7-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG21-Z-7-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG21-Z-7-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 7 | Voltage: DC24V
GFAG21-Z-7-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 7 | Voltage: DC12V
GFAG21-Z-8-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG21-Z-8-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG21-Z-8-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 8 | Voltage: DC24V
GFAG21-Z-8-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 8 | Voltage: DC12V
GFAG21-Z-9-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG21-Z-9-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG21-Z-9-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 9 | Voltage: DC24V
GFAG21-Z-9-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 9 | Voltage: DC12V
GFAG21-Z-10-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG21-Z-10-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG21-Z-10-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 10 | Voltage: DC24V
GFAG21-Z-10-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 1 mm | Stations: 10 | Voltage: DC12V
GFAG21-1-2-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG21-1-2-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG21-1-2-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 2 | Voltage: DC24V
GFAG21-1-2-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 2 | Voltage: DC12V
GFAG21-1-3-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG21-1-3-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG21-1-3-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 3 | Voltage: DC24V
GFAG21-1-3-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 3 | Voltage: DC12V
GFAG21-1-4-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG21-1-4-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG21-1-4-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 4 | Voltage: DC24V
GFAG21-1-4-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 4 | Voltage: DC12V
GFAG21-1-5-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG21-1-5-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG21-1-5-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 5 | Voltage: DC24V
GFAG21-1-5-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 5 | Voltage: DC12V
GFAG21-1-6-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG21-1-6-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG21-1-6-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 6 | Voltage: DC24V
GFAG21-1-6-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 6 | Voltage: DC12V
GFAG21-1-7-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG21-1-7-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG21-1-7-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 7 | Voltage: DC24V
GFAG21-1-7-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 7 | Voltage: DC12V
GFAG21-1-8-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG21-1-8-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG21-1-8-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 8 | Voltage: DC24V
GFAG21-1-8-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 8 | Voltage: DC12V
GFAG21-1-9-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG21-1-9-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG21-1-9-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 9 | Voltage: DC24V
GFAG21-1-9-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 9 | Voltage: DC12V
GFAG21-1-10-12C-1Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG21-1-10-12C-2Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG21-1-10-12C-3Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 10 | Voltage: DC24V
GFAG21-1-10-12C-4Model: GFAG21 (central supply/exhaust) | Ports: 2 Rc1/8 / 1,3 Rc1/8 | Orifice: 2 mm | Stations: 10 | Voltage: DC12V
GFAG31-0-2-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG31-0-2-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG31-0-2-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 2 | Voltage: DC24V
GFAG31-0-2-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 2 | Voltage: DC12V
GFAG31-0-3-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG31-0-3-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG31-0-3-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 3 | Voltage: DC24V
GFAG31-0-3-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 3 | Voltage: DC12V
GFAG31-0-4-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG31-0-4-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG31-0-4-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 4 | Voltage: DC24V
GFAG31-0-4-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 4 | Voltage: DC12V
GFAG31-0-5-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG31-0-5-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG31-0-5-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 5 | Voltage: DC24V
GFAG31-0-5-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 5 | Voltage: DC12V
GFAG31-0-6-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG31-0-6-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG31-0-6-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 6 | Voltage: DC24V
GFAG31-0-6-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 6 | Voltage: DC12V
GFAG31-0-7-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG31-0-7-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG31-0-7-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 7 | Voltage: DC24V
GFAG31-0-7-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 7 | Voltage: DC12V
GFAG31-0-8-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG31-0-8-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG31-0-8-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 8 | Voltage: DC24V
GFAG31-0-8-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 8 | Voltage: DC12V
GFAG31-0-9-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG31-0-9-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG31-0-9-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 9 | Voltage: DC24V
GFAG31-0-9-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 9 | Voltage: DC12V
GFAG31-0-10-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG31-0-10-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG31-0-10-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 10 | Voltage: DC24V
GFAG31-0-10-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 1.5 mm | Stations: 10 | Voltage: DC12V
GFAG31-1-2-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG31-1-2-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG31-1-2-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: DC24V
GFAG31-1-2-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: DC12V
GFAG31-1-3-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG31-1-3-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG31-1-3-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: DC24V
GFAG31-1-3-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: DC12V
GFAG31-1-4-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG31-1-4-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG31-1-4-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: DC24V
GFAG31-1-4-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: DC12V
GFAG31-1-5-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG31-1-5-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG31-1-5-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: DC24V
GFAG31-1-5-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: DC12V
GFAG31-1-6-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG31-1-6-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG31-1-6-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: DC24V
GFAG31-1-6-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: DC12V
GFAG31-1-7-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG31-1-7-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG31-1-7-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: DC24V
GFAG31-1-7-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: DC12V
GFAG31-1-8-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG31-1-8-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG31-1-8-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: DC24V
GFAG31-1-8-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: DC12V
GFAG31-1-9-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG31-1-9-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG31-1-9-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: DC24V
GFAG31-1-9-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: DC12V
GFAG31-1-10-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG31-1-10-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG31-1-10-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: DC24V
GFAG31-1-10-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: DC12V
GFAG31-4-2-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG31-4-2-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG31-4-2-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: DC24V
GFAG31-4-2-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: DC12V
GFAG31-4-3-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG31-4-3-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG31-4-3-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: DC24V
GFAG31-4-3-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: DC12V
GFAG31-4-4-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG31-4-4-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG31-4-4-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: DC24V
GFAG31-4-4-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: DC12V
GFAG31-4-5-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG31-4-5-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG31-4-5-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: DC24V
GFAG31-4-5-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: DC12V
GFAG31-4-6-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG31-4-6-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG31-4-6-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: DC24V
GFAG31-4-6-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: DC12V
GFAG31-4-7-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG31-4-7-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG31-4-7-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: DC24V
GFAG31-4-7-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: DC12V
GFAG31-4-8-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG31-4-8-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG31-4-8-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: DC24V
GFAG31-4-8-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: DC12V
GFAG31-4-9-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG31-4-9-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG31-4-9-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: DC24V
GFAG31-4-9-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: DC12V
GFAG31-4-10-12C-1Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG31-4-10-12C-2Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG31-4-10-12C-3Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: DC24V
GFAG31-4-10-12C-4Model: GFAG31 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: DC12V
GFAG41-1-2-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG41-1-2-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG41-1-2-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: DC24V
GFAG41-1-2-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: DC12V
GFAG41-1-3-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG41-1-3-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG41-1-3-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: DC24V
GFAG41-1-3-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: DC12V
GFAG41-1-4-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG41-1-4-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG41-1-4-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: DC24V
GFAG41-1-4-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: DC12V
GFAG41-1-5-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG41-1-5-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG41-1-5-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: DC24V
GFAG41-1-5-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: DC12V
GFAG41-1-6-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG41-1-6-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG41-1-6-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: DC24V
GFAG41-1-6-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: DC12V
GFAG41-1-7-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG41-1-7-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG41-1-7-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: DC24V
GFAG41-1-7-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: DC12V
GFAG41-1-8-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG41-1-8-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG41-1-8-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: DC24V
GFAG41-1-8-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: DC12V
GFAG41-1-9-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG41-1-9-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG41-1-9-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: DC24V
GFAG41-1-9-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: DC12V
GFAG41-1-10-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG41-1-10-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG41-1-10-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: DC24V
GFAG41-1-10-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: DC12V
GFAG41-4-2-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG41-4-2-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG41-4-2-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: DC24V
GFAG41-4-2-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: DC12V
GFAG41-4-3-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG41-4-3-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG41-4-3-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: DC24V
GFAG41-4-3-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: DC12V
GFAG41-4-4-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG41-4-4-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG41-4-4-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: DC24V
GFAG41-4-4-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: DC12V
GFAG41-4-5-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG41-4-5-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG41-4-5-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: DC24V
GFAG41-4-5-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: DC12V
GFAG41-4-6-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG41-4-6-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG41-4-6-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: DC24V
GFAG41-4-6-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: DC12V
GFAG41-4-7-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG41-4-7-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG41-4-7-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: DC24V
GFAG41-4-7-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: DC12V
GFAG41-4-8-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG41-4-8-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG41-4-8-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: DC24V
GFAG41-4-8-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: DC12V
GFAG41-4-9-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG41-4-9-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG41-4-9-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: DC24V
GFAG41-4-9-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: DC12V
GFAG41-4-10-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG41-4-10-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG41-4-10-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: DC24V
GFAG41-4-10-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: DC12V
GFAG41-8-2-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG41-8-2-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG41-8-2-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: DC24V
GFAG41-8-2-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: DC12V
GFAG41-8-3-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG41-8-3-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG41-8-3-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: DC24V
GFAG41-8-3-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: DC12V
GFAG41-8-4-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG41-8-4-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG41-8-4-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: DC24V
GFAG41-8-4-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: DC12V
GFAG41-8-5-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG41-8-5-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG41-8-5-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: DC24V
GFAG41-8-5-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: DC12V
GFAG41-8-6-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG41-8-6-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG41-8-6-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: DC24V
GFAG41-8-6-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: DC12V
GFAG41-8-7-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG41-8-7-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG41-8-7-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: DC24V
GFAG41-8-7-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: DC12V
GFAG41-8-8-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG41-8-8-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG41-8-8-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: DC24V
GFAG41-8-8-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: DC12V
GFAG41-8-9-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG41-8-9-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG41-8-9-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: DC24V
GFAG41-8-9-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: DC12V
GFAG41-8-10-12C-1Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG41-8-10-12C-2Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG41-8-10-12C-3Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: DC24V
GFAG41-8-10-12C-4Model: GFAG41 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: DC12V
GFAG51-1-2-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG51-1-2-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG51-1-2-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: DC24V
GFAG51-1-2-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 2 | Voltage: DC12V
GFAG51-1-3-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG51-1-3-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG51-1-3-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: DC24V
GFAG51-1-3-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 3 | Voltage: DC12V
GFAG51-1-4-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG51-1-4-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG51-1-4-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: DC24V
GFAG51-1-4-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 4 | Voltage: DC12V
GFAG51-1-5-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG51-1-5-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG51-1-5-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: DC24V
GFAG51-1-5-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 5 | Voltage: DC12V
GFAG51-1-6-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG51-1-6-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG51-1-6-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: DC24V
GFAG51-1-6-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 6 | Voltage: DC12V
GFAG51-1-7-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG51-1-7-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG51-1-7-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: DC24V
GFAG51-1-7-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 7 | Voltage: DC12V
GFAG51-1-8-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG51-1-8-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG51-1-8-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: DC24V
GFAG51-1-8-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 8 | Voltage: DC12V
GFAG51-1-9-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG51-1-9-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG51-1-9-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: DC24V
GFAG51-1-9-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 9 | Voltage: DC12V
GFAG51-1-10-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG51-1-10-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG51-1-10-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: DC24V
GFAG51-1-10-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 2 mm | Stations: 10 | Voltage: DC12V
GFAG51-4-2-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG51-4-2-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG51-4-2-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: DC24V
GFAG51-4-2-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 2 | Voltage: DC12V
GFAG51-4-3-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG51-4-3-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG51-4-3-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: DC24V
GFAG51-4-3-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 3 | Voltage: DC12V
GFAG51-4-4-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG51-4-4-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG51-4-4-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: DC24V
GFAG51-4-4-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 4 | Voltage: DC12V
GFAG51-4-5-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG51-4-5-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG51-4-5-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: DC24V
GFAG51-4-5-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 5 | Voltage: DC12V
GFAG51-4-6-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG51-4-6-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG51-4-6-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: DC24V
GFAG51-4-6-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 6 | Voltage: DC12V
GFAG51-4-7-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG51-4-7-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG51-4-7-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: DC24V
GFAG51-4-7-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 7 | Voltage: DC12V
GFAG51-4-8-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG51-4-8-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG51-4-8-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: DC24V
GFAG51-4-8-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 8 | Voltage: DC12V
GFAG51-4-9-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG51-4-9-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG51-4-9-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: DC24V
GFAG51-4-9-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 9 | Voltage: DC12V
GFAG51-4-10-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG51-4-10-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG51-4-10-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: DC24V
GFAG51-4-10-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 3 mm | Stations: 10 | Voltage: DC12V
GFAG51-8-2-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: AC100V 50/60Hz
GFAG51-8-2-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: AC200V 50/60Hz
GFAG51-8-2-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: DC24V
GFAG51-8-2-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 2 | Voltage: DC12V
GFAG51-8-3-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: AC100V 50/60Hz
GFAG51-8-3-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: AC200V 50/60Hz
GFAG51-8-3-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: DC24V
GFAG51-8-3-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 3 | Voltage: DC12V
GFAG51-8-4-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: AC100V 50/60Hz
GFAG51-8-4-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: AC200V 50/60Hz
GFAG51-8-4-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: DC24V
GFAG51-8-4-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 4 | Voltage: DC12V
GFAG51-8-5-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: AC100V 50/60Hz
GFAG51-8-5-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: AC200V 50/60Hz
GFAG51-8-5-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: DC24V
GFAG51-8-5-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 5 | Voltage: DC12V
GFAG51-8-6-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: AC100V 50/60Hz
GFAG51-8-6-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: AC200V 50/60Hz
GFAG51-8-6-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: DC24V
GFAG51-8-6-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 6 | Voltage: DC12V
GFAG51-8-7-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: AC100V 50/60Hz
GFAG51-8-7-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: AC200V 50/60Hz
GFAG51-8-7-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: DC24V
GFAG51-8-7-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 7 | Voltage: DC12V
GFAG51-8-8-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: AC100V 50/60Hz
GFAG51-8-8-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: AC200V 50/60Hz
GFAG51-8-8-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: DC24V
GFAG51-8-8-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 8 | Voltage: DC12V
GFAG51-8-9-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: AC100V 50/60Hz
GFAG51-8-9-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: AC200V 50/60Hz
GFAG51-8-9-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: DC24V
GFAG51-8-9-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 9 | Voltage: DC12V
GFAG51-8-10-12C-1Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: AC100V 50/60Hz
GFAG51-8-10-12C-2Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: AC200V 50/60Hz
GFAG51-8-10-12C-3Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: DC24V
GFAG51-8-10-12C-4Model: GFAG51 (central supply/exhaust) | Ports: 2 Rc1/4 / 1,3 Rc1/4 | Orifice: 4 mm | Stations: 10 | Voltage: DC12V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
