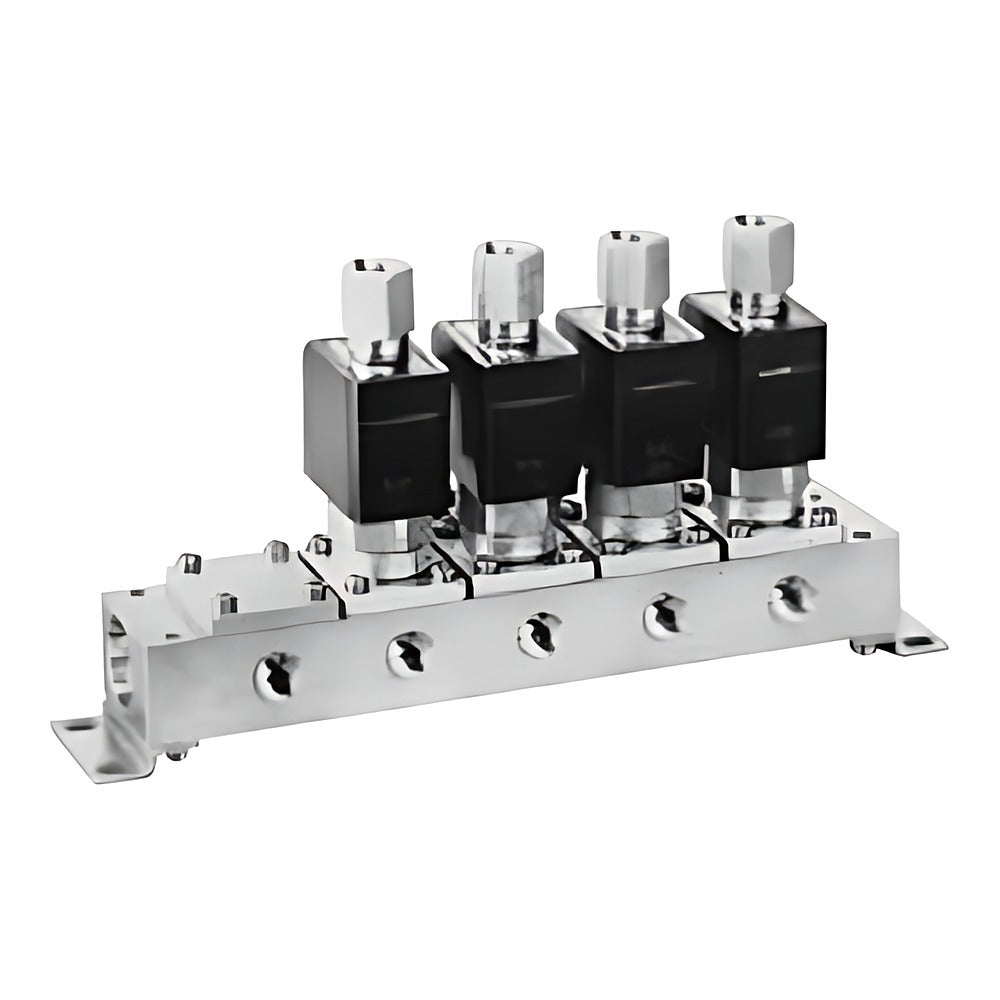

CKD GFWG JUST FIT 3-Port Solenoid Valve Manifold (Water, 2-10 Stn)

CKD GFWG JUST FIT 3-Port Solenoid Valve Manifold (Water, 2-10 Stn)

Manifold of JUST FIT FWG direct acting 3-port universal solenoid valves for water, central supply and individual drain.

Key features

  • Universal valves, central supply / individual drain
  • Brass or stainless steel body, NBR seals
  • 2 to 10 stations; four valve sizes 22-40 mm
  • Listed codes use the standard grommet lead coil; DIN box, conduit and T-type box coils, manual override N and masking plates (X) to order
  • Example GFWG21-Z-5-02C-1 reproduced

Specifications

Fluid Water (no sewage, fertilizer, chemicals)
Valve type Direct acting poppet, universal
Operating pressure differential 0-1.0 MPa
Max. working pressure 1.0 MPa
Proof pressure 2.0 MPa
Fluid temperature AC 1-60 C, DC 1-40 C
Coil Grommet lead wire (2C)
Source CKD Korea catalog CB-03-1SK-9, p. 190-195
GFWG21-Z-2-02C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-2-02C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-2-02C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Brass | Voltage: DC24V
GFWG21-Z-2-02C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Brass | Voltage: DC12V
GFWG21-Z-2-D2C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-2-D2C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-2-D2C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-2-D2C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-3-02C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-3-02C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-3-02C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Brass | Voltage: DC24V
GFWG21-Z-3-02C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Brass | Voltage: DC12V
GFWG21-Z-3-D2C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-3-D2C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-3-D2C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-3-D2C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-4-02C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-4-02C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-4-02C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Brass | Voltage: DC24V
GFWG21-Z-4-02C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Brass | Voltage: DC12V
GFWG21-Z-4-D2C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-4-D2C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-4-D2C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-4-D2C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-5-02C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-5-02C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-5-02C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Brass | Voltage: DC24V
GFWG21-Z-5-02C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Brass | Voltage: DC12V
GFWG21-Z-5-D2C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-5-D2C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-5-D2C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-5-D2C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-6-02C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-6-02C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-6-02C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Brass | Voltage: DC24V
GFWG21-Z-6-02C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Brass | Voltage: DC12V
GFWG21-Z-6-D2C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-6-D2C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-6-D2C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-6-D2C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-7-02C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-7-02C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-7-02C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Brass | Voltage: DC24V
GFWG21-Z-7-02C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Brass | Voltage: DC12V
GFWG21-Z-7-D2C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-7-D2C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-7-D2C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-7-D2C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-8-02C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-8-02C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-8-02C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Brass | Voltage: DC24V
GFWG21-Z-8-02C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Brass | Voltage: DC12V
GFWG21-Z-8-D2C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-8-D2C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-8-D2C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-8-D2C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-9-02C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-9-02C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-9-02C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Brass | Voltage: DC24V
GFWG21-Z-9-02C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Brass | Voltage: DC12V
GFWG21-Z-9-D2C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-9-D2C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-9-D2C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-9-D2C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-10-02C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-10-02C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-10-02C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Brass | Voltage: DC24V
GFWG21-Z-10-02C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Brass | Voltage: DC12V
GFWG21-Z-10-D2C-1 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-10-D2C-2 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-10-D2C-3 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-10-D2C-4 Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-2-02C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-2-02C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-2-02C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Brass | Voltage: DC24V
GFWG31-0-2-02C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Brass | Voltage: DC12V
GFWG31-0-2-D2C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-2-D2C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-2-D2C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-2-D2C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-3-02C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-3-02C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-3-02C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Brass | Voltage: DC24V
GFWG31-0-3-02C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Brass | Voltage: DC12V
GFWG31-0-3-D2C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-3-D2C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-3-D2C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-3-D2C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-4-02C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-4-02C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-4-02C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Brass | Voltage: DC24V
GFWG31-0-4-02C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Brass | Voltage: DC12V
GFWG31-0-4-D2C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-4-D2C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-4-D2C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-4-D2C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-5-02C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-5-02C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-5-02C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Brass | Voltage: DC24V
GFWG31-0-5-02C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Brass | Voltage: DC12V
GFWG31-0-5-D2C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-5-D2C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-5-D2C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-5-D2C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-6-02C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-6-02C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-6-02C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Brass | Voltage: DC24V
GFWG31-0-6-02C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Brass | Voltage: DC12V
GFWG31-0-6-D2C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-6-D2C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-6-D2C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-6-D2C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-7-02C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-7-02C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-7-02C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Brass | Voltage: DC24V
GFWG31-0-7-02C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Brass | Voltage: DC12V
GFWG31-0-7-D2C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-7-D2C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-7-D2C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-7-D2C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-8-02C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-8-02C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-8-02C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Brass | Voltage: DC24V
GFWG31-0-8-02C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Brass | Voltage: DC12V
GFWG31-0-8-D2C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-8-D2C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-8-D2C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-8-D2C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-9-02C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-9-02C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-9-02C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Brass | Voltage: DC24V
GFWG31-0-9-02C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Brass | Voltage: DC12V
GFWG31-0-9-D2C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-9-D2C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-9-D2C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-9-D2C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-10-02C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-10-02C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-10-02C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Brass | Voltage: DC24V
GFWG31-0-10-02C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Brass | Voltage: DC12V
GFWG31-0-10-D2C-1 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-10-D2C-2 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-10-D2C-3 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-10-D2C-4 Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-2-02C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-2-02C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-2-02C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Brass | Voltage: DC24V
GFWG41-1-2-02C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Brass | Voltage: DC12V
GFWG41-1-2-D2C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-2-D2C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-2-D2C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-2-D2C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-3-02C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-3-02C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-3-02C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Brass | Voltage: DC24V
GFWG41-1-3-02C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Brass | Voltage: DC12V
GFWG41-1-3-D2C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-3-D2C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-3-D2C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-3-D2C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-4-02C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-4-02C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-4-02C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Brass | Voltage: DC24V
GFWG41-1-4-02C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Brass | Voltage: DC12V
GFWG41-1-4-D2C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-4-D2C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-4-D2C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-4-D2C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-5-02C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-5-02C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-5-02C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Brass | Voltage: DC24V
GFWG41-1-5-02C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Brass | Voltage: DC12V
GFWG41-1-5-D2C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-5-D2C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-5-D2C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-5-D2C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-6-02C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-6-02C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-6-02C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Brass | Voltage: DC24V
GFWG41-1-6-02C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Brass | Voltage: DC12V
GFWG41-1-6-D2C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-6-D2C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-6-D2C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-6-D2C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-7-02C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-7-02C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-7-02C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Brass | Voltage: DC24V
GFWG41-1-7-02C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Brass | Voltage: DC12V
GFWG41-1-7-D2C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-7-D2C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-7-D2C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-7-D2C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-8-02C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-8-02C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-8-02C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Brass | Voltage: DC24V
GFWG41-1-8-02C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Brass | Voltage: DC12V
GFWG41-1-8-D2C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-8-D2C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-8-D2C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-8-D2C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-9-02C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-9-02C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-9-02C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Brass | Voltage: DC24V
GFWG41-1-9-02C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Brass | Voltage: DC12V
GFWG41-1-9-D2C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-9-D2C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-9-D2C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-9-D2C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-10-02C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-10-02C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-10-02C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Brass | Voltage: DC24V
GFWG41-1-10-02C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Brass | Voltage: DC12V
GFWG41-1-10-D2C-1 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-10-D2C-2 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-10-D2C-3 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-10-D2C-4 Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-2-02C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-2-02C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-2-02C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Brass | Voltage: DC24V
GFWG51-4-2-02C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Brass | Voltage: DC12V
GFWG51-4-2-D2C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-2-D2C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-2-D2C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-2-D2C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-3-02C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-3-02C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-3-02C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Brass | Voltage: DC24V
GFWG51-4-3-02C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Brass | Voltage: DC12V
GFWG51-4-3-D2C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-3-D2C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-3-D2C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-3-D2C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-4-02C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-4-02C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-4-02C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Brass | Voltage: DC24V
GFWG51-4-4-02C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Brass | Voltage: DC12V
GFWG51-4-4-D2C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-4-D2C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-4-D2C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-4-D2C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-5-02C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-5-02C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-5-02C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Brass | Voltage: DC24V
GFWG51-4-5-02C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Brass | Voltage: DC12V
GFWG51-4-5-D2C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-5-D2C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-5-D2C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-5-D2C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-6-02C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-6-02C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-6-02C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Brass | Voltage: DC24V
GFWG51-4-6-02C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Brass | Voltage: DC12V
GFWG51-4-6-D2C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-6-D2C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-6-D2C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-6-D2C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-7-02C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-7-02C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-7-02C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Brass | Voltage: DC24V
GFWG51-4-7-02C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Brass | Voltage: DC12V
GFWG51-4-7-D2C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-7-D2C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-7-D2C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-7-D2C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-8-02C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-8-02C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-8-02C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Brass | Voltage: DC24V
GFWG51-4-8-02C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Brass | Voltage: DC12V
GFWG51-4-8-D2C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-8-D2C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-8-D2C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-8-D2C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-9-02C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-9-02C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-9-02C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Brass | Voltage: DC24V
GFWG51-4-9-02C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Brass | Voltage: DC12V
GFWG51-4-9-D2C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-9-D2C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-9-D2C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-9-D2C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-10-02C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-10-02C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-10-02C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Brass | Voltage: DC24V
GFWG51-4-10-02C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Brass | Voltage: DC12V
GFWG51-4-10-D2C-1 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-10-D2C-2 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-10-D2C-3 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-10-D2C-4 Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Stainless steel | Voltage: DC12V
Solenoid ValvesCKD
288 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GFWG JUST FIT 3-Port Solenoid Valve Manifold (Water, 2-10 Stn)

Brand CKD·Solenoid Valves

Available part numbers (288)

GFWG21-Z-2-02C-1, GFWG21-Z-2-02C-2, GFWG21-Z-2-02C-3, GFWG21-Z-2-02C-4, GFWG21-Z-2-D2C-1, GFWG21-Z-2-D2C-2, GFWG21-Z-2-D2C-3, GFWG21-Z-2-D2C-4, GFWG21-Z-3-02C-1, GFWG21-Z-3-02C-2 + 278 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GFWG21-Z-2-02C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-2-02C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-2-02C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Brass | Voltage: DC24V
GFWG21-Z-2-02C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Brass | Voltage: DC12V
GFWG21-Z-2-D2C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-2-D2C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-2-D2C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-2-D2C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 2 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-3-02C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-3-02C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-3-02C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Brass | Voltage: DC24V
GFWG21-Z-3-02C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Brass | Voltage: DC12V
GFWG21-Z-3-D2C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-3-D2C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-3-D2C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-3-D2C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 3 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-4-02C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-4-02C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-4-02C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Brass | Voltage: DC24V
GFWG21-Z-4-02C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Brass | Voltage: DC12V
GFWG21-Z-4-D2C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-4-D2C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-4-D2C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-4-D2C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 4 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-5-02C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-5-02C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-5-02C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Brass | Voltage: DC24V
GFWG21-Z-5-02C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Brass | Voltage: DC12V
GFWG21-Z-5-D2C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-5-D2C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-5-D2C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-5-D2C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 5 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-6-02C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-6-02C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-6-02C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Brass | Voltage: DC24V
GFWG21-Z-6-02C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Brass | Voltage: DC12V
GFWG21-Z-6-D2C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-6-D2C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-6-D2C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-6-D2C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 6 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-7-02C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-7-02C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-7-02C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Brass | Voltage: DC24V
GFWG21-Z-7-02C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Brass | Voltage: DC12V
GFWG21-Z-7-D2C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-7-D2C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-7-D2C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-7-D2C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 7 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-8-02C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-8-02C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-8-02C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Brass | Voltage: DC24V
GFWG21-Z-8-02C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Brass | Voltage: DC12V
GFWG21-Z-8-D2C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-8-D2C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-8-D2C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-8-D2C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 8 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-9-02C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-9-02C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-9-02C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Brass | Voltage: DC24V
GFWG21-Z-9-02C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Brass | Voltage: DC12V
GFWG21-Z-9-D2C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-9-D2C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-9-D2C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-9-D2C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 9 | Body: Stainless steel | Voltage: DC12V
GFWG21-Z-10-02C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG21-Z-10-02C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG21-Z-10-02C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Brass | Voltage: DC24V
GFWG21-Z-10-02C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Brass | Voltage: DC12V
GFWG21-Z-10-D2C-1Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG21-Z-10-D2C-2Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG21-Z-10-D2C-3Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Stainless steel | Voltage: DC24V
GFWG21-Z-10-D2C-4Model: GFWG21 (central supply/indiv. drain) | Ports: A,NO Rc1/8 / C Rc1/4 | Orifice: 1 mm | Stations: 10 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-2-02C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-2-02C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-2-02C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Brass | Voltage: DC24V
GFWG31-0-2-02C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Brass | Voltage: DC12V
GFWG31-0-2-D2C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-2-D2C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-2-D2C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-2-D2C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 2 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-3-02C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-3-02C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-3-02C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Brass | Voltage: DC24V
GFWG31-0-3-02C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Brass | Voltage: DC12V
GFWG31-0-3-D2C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-3-D2C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-3-D2C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-3-D2C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 3 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-4-02C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-4-02C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-4-02C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Brass | Voltage: DC24V
GFWG31-0-4-02C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Brass | Voltage: DC12V
GFWG31-0-4-D2C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-4-D2C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-4-D2C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-4-D2C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 4 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-5-02C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-5-02C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-5-02C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Brass | Voltage: DC24V
GFWG31-0-5-02C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Brass | Voltage: DC12V
GFWG31-0-5-D2C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-5-D2C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-5-D2C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-5-D2C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 5 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-6-02C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-6-02C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-6-02C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Brass | Voltage: DC24V
GFWG31-0-6-02C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Brass | Voltage: DC12V
GFWG31-0-6-D2C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-6-D2C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-6-D2C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-6-D2C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 6 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-7-02C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-7-02C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-7-02C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Brass | Voltage: DC24V
GFWG31-0-7-02C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Brass | Voltage: DC12V
GFWG31-0-7-D2C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-7-D2C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-7-D2C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-7-D2C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 7 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-8-02C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-8-02C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-8-02C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Brass | Voltage: DC24V
GFWG31-0-8-02C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Brass | Voltage: DC12V
GFWG31-0-8-D2C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-8-D2C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-8-D2C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-8-D2C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 8 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-9-02C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-9-02C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-9-02C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Brass | Voltage: DC24V
GFWG31-0-9-02C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Brass | Voltage: DC12V
GFWG31-0-9-D2C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-9-D2C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-9-D2C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-9-D2C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 9 | Body: Stainless steel | Voltage: DC12V
GFWG31-0-10-02C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG31-0-10-02C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG31-0-10-02C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Brass | Voltage: DC24V
GFWG31-0-10-02C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Brass | Voltage: DC12V
GFWG31-0-10-D2C-1Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG31-0-10-D2C-2Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG31-0-10-D2C-3Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Stainless steel | Voltage: DC24V
GFWG31-0-10-D2C-4Model: GFWG31 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 1.5 mm | Stations: 10 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-2-02C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-2-02C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-2-02C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Brass | Voltage: DC24V
GFWG41-1-2-02C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Brass | Voltage: DC12V
GFWG41-1-2-D2C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-2-D2C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-2-D2C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-2-D2C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 2 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-3-02C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-3-02C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-3-02C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Brass | Voltage: DC24V
GFWG41-1-3-02C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Brass | Voltage: DC12V
GFWG41-1-3-D2C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-3-D2C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-3-D2C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-3-D2C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 3 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-4-02C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-4-02C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-4-02C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Brass | Voltage: DC24V
GFWG41-1-4-02C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Brass | Voltage: DC12V
GFWG41-1-4-D2C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-4-D2C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-4-D2C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-4-D2C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 4 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-5-02C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-5-02C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-5-02C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Brass | Voltage: DC24V
GFWG41-1-5-02C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Brass | Voltage: DC12V
GFWG41-1-5-D2C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-5-D2C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-5-D2C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-5-D2C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 5 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-6-02C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-6-02C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-6-02C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Brass | Voltage: DC24V
GFWG41-1-6-02C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Brass | Voltage: DC12V
GFWG41-1-6-D2C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-6-D2C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-6-D2C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-6-D2C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 6 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-7-02C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-7-02C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-7-02C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Brass | Voltage: DC24V
GFWG41-1-7-02C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Brass | Voltage: DC12V
GFWG41-1-7-D2C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-7-D2C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-7-D2C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-7-D2C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 7 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-8-02C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-8-02C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-8-02C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Brass | Voltage: DC24V
GFWG41-1-8-02C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Brass | Voltage: DC12V
GFWG41-1-8-D2C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-8-D2C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-8-D2C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-8-D2C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 8 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-9-02C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-9-02C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-9-02C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Brass | Voltage: DC24V
GFWG41-1-9-02C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Brass | Voltage: DC12V
GFWG41-1-9-D2C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-9-D2C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-9-D2C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-9-D2C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 9 | Body: Stainless steel | Voltage: DC12V
GFWG41-1-10-02C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG41-1-10-02C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG41-1-10-02C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Brass | Voltage: DC24V
GFWG41-1-10-02C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Brass | Voltage: DC12V
GFWG41-1-10-D2C-1Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG41-1-10-D2C-2Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG41-1-10-D2C-3Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Stainless steel | Voltage: DC24V
GFWG41-1-10-D2C-4Model: GFWG41 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 2 mm | Stations: 10 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-2-02C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-2-02C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-2-02C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Brass | Voltage: DC24V
GFWG51-4-2-02C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Brass | Voltage: DC12V
GFWG51-4-2-D2C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-2-D2C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-2-D2C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-2-D2C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 2 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-3-02C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-3-02C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-3-02C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Brass | Voltage: DC24V
GFWG51-4-3-02C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Brass | Voltage: DC12V
GFWG51-4-3-D2C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-3-D2C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-3-D2C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-3-D2C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 3 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-4-02C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-4-02C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-4-02C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Brass | Voltage: DC24V
GFWG51-4-4-02C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Brass | Voltage: DC12V
GFWG51-4-4-D2C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-4-D2C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-4-D2C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-4-D2C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 4 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-5-02C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-5-02C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-5-02C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Brass | Voltage: DC24V
GFWG51-4-5-02C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Brass | Voltage: DC12V
GFWG51-4-5-D2C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-5-D2C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-5-D2C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-5-D2C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 5 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-6-02C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-6-02C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-6-02C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Brass | Voltage: DC24V
GFWG51-4-6-02C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Brass | Voltage: DC12V
GFWG51-4-6-D2C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-6-D2C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-6-D2C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-6-D2C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 6 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-7-02C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-7-02C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-7-02C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Brass | Voltage: DC24V
GFWG51-4-7-02C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Brass | Voltage: DC12V
GFWG51-4-7-D2C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-7-D2C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-7-D2C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-7-D2C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 7 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-8-02C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-8-02C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-8-02C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Brass | Voltage: DC24V
GFWG51-4-8-02C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Brass | Voltage: DC12V
GFWG51-4-8-D2C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-8-D2C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-8-D2C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-8-D2C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 8 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-9-02C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-9-02C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-9-02C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Brass | Voltage: DC24V
GFWG51-4-9-02C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Brass | Voltage: DC12V
GFWG51-4-9-D2C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-9-D2C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-9-D2C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-9-D2C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 9 | Body: Stainless steel | Voltage: DC12V
GFWG51-4-10-02C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Brass | Voltage: AC100V 50/60Hz
GFWG51-4-10-02C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Brass | Voltage: AC200V 50/60Hz
GFWG51-4-10-02C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Brass | Voltage: DC24V
GFWG51-4-10-02C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Brass | Voltage: DC12V
GFWG51-4-10-D2C-1Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Stainless steel | Voltage: AC100V 50/60Hz
GFWG51-4-10-D2C-2Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Stainless steel | Voltage: AC200V 50/60Hz
GFWG51-4-10-D2C-3Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Stainless steel | Voltage: DC24V
GFWG51-4-10-D2C-4Model: GFWG51 (central supply/indiv. drain) | Ports: A,NO Rc1/4 / C Rc3/8 | Orifice: 3 mm | Stations: 10 | Body: Stainless steel | Voltage: DC12V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
