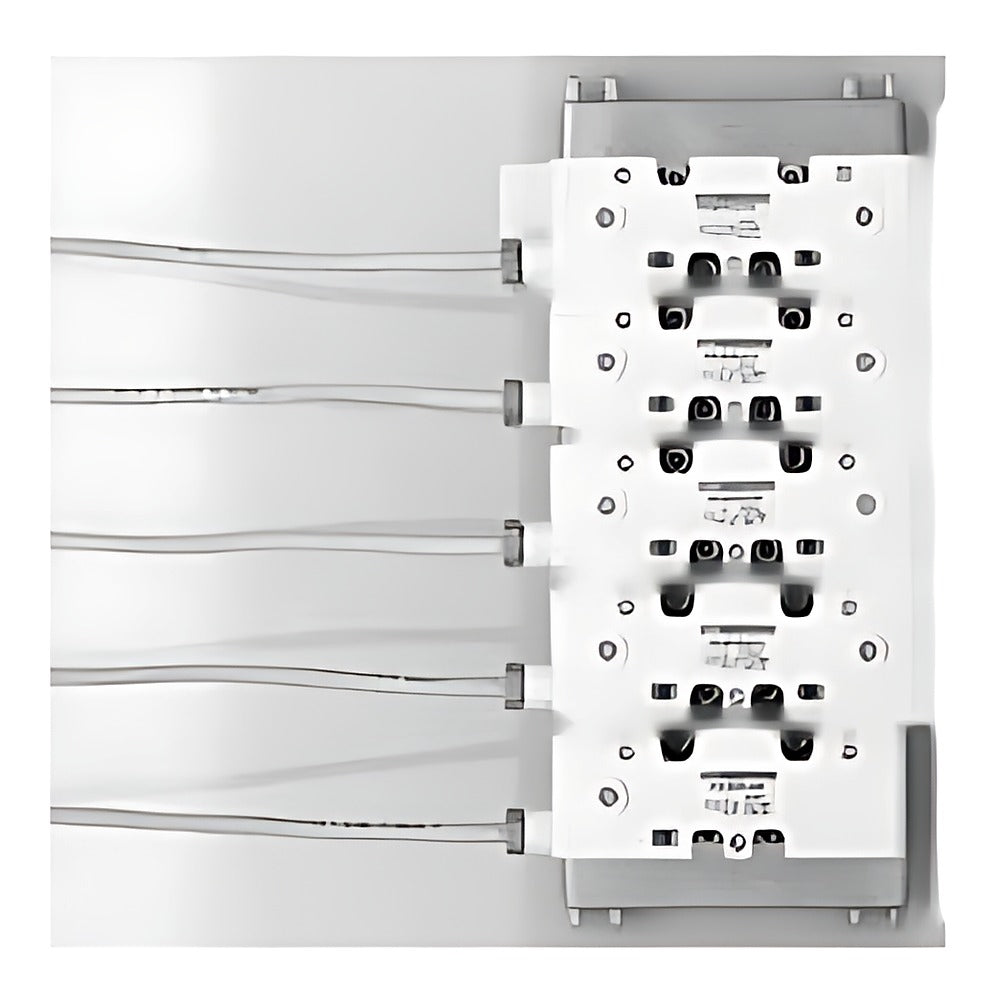

CKD GMF1 Individual Wiring Manifold (ISO Size 1, 1-10 Stations)

CKD GMF1 Individual Wiring Manifold (ISO Size 1, 1-10 Stations)

CKD GMF1 one-piece individual wiring manifold base for ISO size 1 valves (PV5G-6 DIN type and PV5-6R I/O connector type), 1 to 10 stations.

Key features

  • Accepts PV5G-6 (DIN terminal box) and PV5-6R (M12 I/O connector) valves; valves ordered separately, assembled by manifold spec sheet
  • A/B ports Rc1/4 or Rc3/8 at right, both sides, left, rear or free position; P/R ports Rc3/8, Rc1/2 or HY1 mix
  • Options ordered as suffix (not listed): -SB silencer box (D side), F P-A-B port filter; A/B HX1 mix by inquiry; P/R positions E/F/T
  • Manifold base mass 1.04 kg (1 station) to 5.10 kg (10 stations)
  • Flow C (P to A/B) 4.8 dm3/(s.bar) for 2-position valves

Specifications

Manifold type One-piece individual wiring manifold, ISO 15407-1 base
Supply/exhaust Common or individual supply and exhaust, dual pressure
Fluid Compressed air
Operating pressure 0.15-1.0 MPa (3-position min. 0.20)
Proof pressure 1.50 MPa
Ambient temperature -5 to 60 C (no freezing)
Valve PV5G-6 / PV5-6R (ISO size 1)
Source CKD Korea catalog CB-023SK-9, p. 1560-1589
GMF11-02-03B Stations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-02-03D Stations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF11-02-03U Stations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF11-02-04B Stations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-02-04D Stations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF11-02-04U Stations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF11-02-HY1BDU Stations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-02-HY1BUD Stations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-02-HY1DDU Stations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-02-HY1DUD Stations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-02-HY1UDU Stations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-02-HY1UUD Stations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-02L-03B Stations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-02L-03D Stations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF11-02L-03U Stations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF11-02L-04B Stations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-02L-04D Stations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF11-02L-04U Stations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF11-02L-HY1BDU Stations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-02L-HY1BUD Stations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-02L-HY1DDU Stations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-02L-HY1DUD Stations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-02L-HY1UDU Stations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-02L-HY1UUD Stations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-02H-03B Stations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-02H-03D Stations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF11-02H-03U Stations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF11-02H-04B Stations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-02H-04D Stations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF11-02H-04U Stations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF11-02H-HY1BDU Stations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-02H-HY1BUD Stations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-02H-HY1DDU Stations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-02H-HY1DUD Stations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-02H-HY1UDU Stations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-02H-HY1UUD Stations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-02Z-03B Stations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-02Z-03D Stations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF11-02Z-03U Stations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF11-02Z-04B Stations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-02Z-04D Stations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF11-02Z-04U Stations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF11-02Z-HY1BDU Stations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-02Z-HY1BUD Stations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-02Z-HY1DDU Stations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-02Z-HY1DUD Stations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-02Z-HY1UDU Stations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-02Z-HY1UUD Stations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-02T-03B Stations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-02T-03D Stations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF11-02T-03U Stations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF11-02T-04B Stations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-02T-04D Stations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF11-02T-04U Stations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF11-02T-HY1BDU Stations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-02T-HY1BUD Stations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-02T-HY1DDU Stations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-02T-HY1DUD Stations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-02T-HY1UDU Stations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-02T-HY1UUD Stations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-03-03B Stations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-03-03D Stations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF11-03-03U Stations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF11-03-04B Stations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-03-04D Stations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF11-03-04U Stations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF11-03-HY1BDU Stations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-03-HY1BUD Stations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-03-HY1DDU Stations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-03-HY1DUD Stations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-03-HY1UDU Stations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-03-HY1UUD Stations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-03L-03B Stations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-03L-03D Stations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF11-03L-03U Stations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF11-03L-04B Stations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-03L-04D Stations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF11-03L-04U Stations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF11-03L-HY1BDU Stations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-03L-HY1BUD Stations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-03L-HY1DDU Stations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-03L-HY1DUD Stations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-03L-HY1UDU Stations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-03L-HY1UUD Stations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-03H-03B Stations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-03H-03D Stations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF11-03H-03U Stations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF11-03H-04B Stations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-03H-04D Stations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF11-03H-04U Stations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF11-03H-HY1BDU Stations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-03H-HY1BUD Stations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-03H-HY1DDU Stations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-03H-HY1DUD Stations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-03H-HY1UDU Stations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-03H-HY1UUD Stations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-03Z-03B Stations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-03Z-03D Stations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF11-03Z-03U Stations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF11-03Z-04B Stations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-03Z-04D Stations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF11-03Z-04U Stations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF11-03Z-HY1BDU Stations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-03Z-HY1BUD Stations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-03Z-HY1DDU Stations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-03Z-HY1DUD Stations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-03Z-HY1UDU Stations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-03Z-HY1UUD Stations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-03T-03B Stations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-03T-03D Stations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF11-03T-03U Stations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF11-03T-04B Stations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-03T-04D Stations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF11-03T-04U Stations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF11-03T-HY1BDU Stations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-03T-HY1BUD Stations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-03T-HY1DDU Stations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-03T-HY1DUD Stations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-03T-HY1UDU Stations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-03T-HY1UUD Stations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-02-03B Stations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-02-03D Stations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF12-02-03U Stations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF12-02-04B Stations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-02-04D Stations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF12-02-04U Stations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF12-02-HY1BDU Stations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-02-HY1BUD Stations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-02-HY1DDU Stations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-02-HY1DUD Stations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-02-HY1UDU Stations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-02-HY1UUD Stations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-02L-03B Stations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-02L-03D Stations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF12-02L-03U Stations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF12-02L-04B Stations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-02L-04D Stations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF12-02L-04U Stations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF12-02L-HY1BDU Stations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-02L-HY1BUD Stations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-02L-HY1DDU Stations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-02L-HY1DUD Stations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-02L-HY1UDU Stations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-02L-HY1UUD Stations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-02H-03B Stations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-02H-03D Stations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF12-02H-03U Stations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF12-02H-04B Stations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-02H-04D Stations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF12-02H-04U Stations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF12-02H-HY1BDU Stations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-02H-HY1BUD Stations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-02H-HY1DDU Stations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-02H-HY1DUD Stations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-02H-HY1UDU Stations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-02H-HY1UUD Stations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-02Z-03B Stations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-02Z-03D Stations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF12-02Z-03U Stations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF12-02Z-04B Stations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-02Z-04D Stations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF12-02Z-04U Stations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF12-02Z-HY1BDU Stations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-02Z-HY1BUD Stations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-02Z-HY1DDU Stations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-02Z-HY1DUD Stations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-02Z-HY1UDU Stations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-02Z-HY1UUD Stations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-02T-03B Stations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-02T-03D Stations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF12-02T-03U Stations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF12-02T-04B Stations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-02T-04D Stations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF12-02T-04U Stations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF12-02T-HY1BDU Stations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-02T-HY1BUD Stations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-02T-HY1DDU Stations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-02T-HY1DUD Stations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-02T-HY1UDU Stations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-02T-HY1UUD Stations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-03-03B Stations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-03-03D Stations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF12-03-03U Stations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF12-03-04B Stations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-03-04D Stations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF12-03-04U Stations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF12-03-HY1BDU Stations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-03-HY1BUD Stations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-03-HY1DDU Stations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-03-HY1DUD Stations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-03-HY1UDU Stations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-03-HY1UUD Stations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-03L-03B Stations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-03L-03D Stations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF12-03L-03U Stations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF12-03L-04B Stations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-03L-04D Stations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF12-03L-04U Stations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF12-03L-HY1BDU Stations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-03L-HY1BUD Stations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-03L-HY1DDU Stations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-03L-HY1DUD Stations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-03L-HY1UDU Stations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-03L-HY1UUD Stations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-03H-03B Stations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-03H-03D Stations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF12-03H-03U Stations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF12-03H-04B Stations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-03H-04D Stations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF12-03H-04U Stations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF12-03H-HY1BDU Stations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-03H-HY1BUD Stations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-03H-HY1DDU Stations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-03H-HY1DUD Stations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-03H-HY1UDU Stations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-03H-HY1UUD Stations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-03Z-03B Stations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-03Z-03D Stations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF12-03Z-03U Stations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF12-03Z-04B Stations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-03Z-04D Stations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF12-03Z-04U Stations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF12-03Z-HY1BDU Stations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-03Z-HY1BUD Stations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-03Z-HY1DDU Stations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-03Z-HY1DUD Stations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-03Z-HY1UDU Stations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-03Z-HY1UUD Stations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-03T-03B Stations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-03T-03D Stations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF12-03T-03U Stations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF12-03T-04B Stations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-03T-04D Stations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF12-03T-04U Stations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF12-03T-HY1BDU Stations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-03T-HY1BUD Stations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-03T-HY1DDU Stations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-03T-HY1DUD Stations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-03T-HY1UDU Stations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-03T-HY1UUD Stations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-02-03B Stations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-02-03D Stations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF13-02-03U Stations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF13-02-04B Stations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-02-04D Stations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF13-02-04U Stations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF13-02-HY1BDU Stations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-02-HY1BUD Stations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-02-HY1DDU Stations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-02-HY1DUD Stations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-02-HY1UDU Stations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-02-HY1UUD Stations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-02L-03B Stations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-02L-03D Stations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF13-02L-03U Stations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF13-02L-04B Stations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-02L-04D Stations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF13-02L-04U Stations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF13-02L-HY1BDU Stations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-02L-HY1BUD Stations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-02L-HY1DDU Stations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-02L-HY1DUD Stations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-02L-HY1UDU Stations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-02L-HY1UUD Stations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-02H-03B Stations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-02H-03D Stations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF13-02H-03U Stations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF13-02H-04B Stations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-02H-04D Stations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF13-02H-04U Stations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF13-02H-HY1BDU Stations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-02H-HY1BUD Stations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-02H-HY1DDU Stations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-02H-HY1DUD Stations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-02H-HY1UDU Stations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-02H-HY1UUD Stations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-02Z-03B Stations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-02Z-03D Stations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF13-02Z-03U Stations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF13-02Z-04B Stations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-02Z-04D Stations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF13-02Z-04U Stations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF13-02Z-HY1BDU Stations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-02Z-HY1BUD Stations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-02Z-HY1DDU Stations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-02Z-HY1DUD Stations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-02Z-HY1UDU Stations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-02Z-HY1UUD Stations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-02T-03B Stations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-02T-03D Stations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF13-02T-03U Stations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF13-02T-04B Stations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-02T-04D Stations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF13-02T-04U Stations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF13-02T-HY1BDU Stations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-02T-HY1BUD Stations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-02T-HY1DDU Stations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-02T-HY1DUD Stations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-02T-HY1UDU Stations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-02T-HY1UUD Stations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-03-03B Stations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-03-03D Stations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF13-03-03U Stations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF13-03-04B Stations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-03-04D Stations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF13-03-04U Stations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF13-03-HY1BDU Stations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-03-HY1BUD Stations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-03-HY1DDU Stations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-03-HY1DUD Stations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-03-HY1UDU Stations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-03-HY1UUD Stations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-03L-03B Stations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-03L-03D Stations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF13-03L-03U Stations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF13-03L-04B Stations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-03L-04D Stations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF13-03L-04U Stations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF13-03L-HY1BDU Stations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-03L-HY1BUD Stations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-03L-HY1DDU Stations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-03L-HY1DUD Stations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-03L-HY1UDU Stations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-03L-HY1UUD Stations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-03H-03B Stations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-03H-03D Stations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF13-03H-03U Stations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF13-03H-04B Stations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-03H-04D Stations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF13-03H-04U Stations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF13-03H-HY1BDU Stations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-03H-HY1BUD Stations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-03H-HY1DDU Stations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-03H-HY1DUD Stations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-03H-HY1UDU Stations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-03H-HY1UUD Stations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-03Z-03B Stations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-03Z-03D Stations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF13-03Z-03U Stations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF13-03Z-04B Stations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-03Z-04D Stations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF13-03Z-04U Stations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF13-03Z-HY1BDU Stations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-03Z-HY1BUD Stations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-03Z-HY1DDU Stations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-03Z-HY1DUD Stations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-03Z-HY1UDU Stations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-03Z-HY1UUD Stations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-03T-03B Stations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-03T-03D Stations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF13-03T-03U Stations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF13-03T-04B Stations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-03T-04D Stations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF13-03T-04U Stations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF13-03T-HY1BDU Stations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-03T-HY1BUD Stations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-03T-HY1DDU Stations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-03T-HY1DUD Stations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-03T-HY1UDU Stations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-03T-HY1UUD Stations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-02-03B Stations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-02-03D Stations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF14-02-03U Stations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF14-02-04B Stations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-02-04D Stations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF14-02-04U Stations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF14-02-HY1BDU Stations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-02-HY1BUD Stations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-02-HY1DDU Stations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-02-HY1DUD Stations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-02-HY1UDU Stations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-02-HY1UUD Stations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-02L-03B Stations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-02L-03D Stations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF14-02L-03U Stations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF14-02L-04B Stations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-02L-04D Stations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF14-02L-04U Stations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF14-02L-HY1BDU Stations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-02L-HY1BUD Stations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-02L-HY1DDU Stations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-02L-HY1DUD Stations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-02L-HY1UDU Stations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-02L-HY1UUD Stations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-02H-03B Stations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-02H-03D Stations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF14-02H-03U Stations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF14-02H-04B Stations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-02H-04D Stations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF14-02H-04U Stations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF14-02H-HY1BDU Stations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-02H-HY1BUD Stations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-02H-HY1DDU Stations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-02H-HY1DUD Stations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-02H-HY1UDU Stations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-02H-HY1UUD Stations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-02Z-03B Stations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-02Z-03D Stations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF14-02Z-03U Stations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF14-02Z-04B Stations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-02Z-04D Stations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF14-02Z-04U Stations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF14-02Z-HY1BDU Stations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-02Z-HY1BUD Stations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-02Z-HY1DDU Stations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-02Z-HY1DUD Stations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-02Z-HY1UDU Stations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-02Z-HY1UUD Stations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-02T-03B Stations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-02T-03D Stations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF14-02T-03U Stations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF14-02T-04B Stations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-02T-04D Stations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF14-02T-04U Stations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF14-02T-HY1BDU Stations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-02T-HY1BUD Stations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-02T-HY1DDU Stations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-02T-HY1DUD Stations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-02T-HY1UDU Stations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-02T-HY1UUD Stations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-03-03B Stations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-03-03D Stations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF14-03-03U Stations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF14-03-04B Stations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-03-04D Stations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF14-03-04U Stations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF14-03-HY1BDU Stations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-03-HY1BUD Stations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-03-HY1DDU Stations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-03-HY1DUD Stations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-03-HY1UDU Stations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-03-HY1UUD Stations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-03L-03B Stations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-03L-03D Stations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF14-03L-03U Stations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF14-03L-04B Stations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-03L-04D Stations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF14-03L-04U Stations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF14-03L-HY1BDU Stations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-03L-HY1BUD Stations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-03L-HY1DDU Stations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-03L-HY1DUD Stations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-03L-HY1UDU Stations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-03L-HY1UUD Stations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-03H-03B Stations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-03H-03D Stations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF14-03H-03U Stations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF14-03H-04B Stations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-03H-04D Stations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF14-03H-04U Stations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF14-03H-HY1BDU Stations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-03H-HY1BUD Stations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-03H-HY1DDU Stations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-03H-HY1DUD Stations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-03H-HY1UDU Stations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-03H-HY1UUD Stations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-03Z-03B Stations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-03Z-03D Stations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF14-03Z-03U Stations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF14-03Z-04B Stations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-03Z-04D Stations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF14-03Z-04U Stations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF14-03Z-HY1BDU Stations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-03Z-HY1BUD Stations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-03Z-HY1DDU Stations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-03Z-HY1DUD Stations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-03Z-HY1UDU Stations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-03Z-HY1UUD Stations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-03T-03B Stations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-03T-03D Stations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF14-03T-03U Stations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF14-03T-04B Stations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-03T-04D Stations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF14-03T-04U Stations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF14-03T-HY1BDU Stations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-03T-HY1BUD Stations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-03T-HY1DDU Stations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-03T-HY1DUD Stations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-03T-HY1UDU Stations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-03T-HY1UUD Stations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-02-03B Stations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-02-03D Stations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF15-02-03U Stations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF15-02-04B Stations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-02-04D Stations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF15-02-04U Stations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF15-02-HY1BDU Stations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-02-HY1BUD Stations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-02-HY1DDU Stations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-02-HY1DUD Stations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-02-HY1UDU Stations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-02-HY1UUD Stations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-02L-03B Stations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-02L-03D Stations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF15-02L-03U Stations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF15-02L-04B Stations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-02L-04D Stations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF15-02L-04U Stations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF15-02L-HY1BDU Stations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-02L-HY1BUD Stations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-02L-HY1DDU Stations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-02L-HY1DUD Stations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-02L-HY1UDU Stations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-02L-HY1UUD Stations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-02H-03B Stations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-02H-03D Stations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF15-02H-03U Stations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF15-02H-04B Stations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-02H-04D Stations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF15-02H-04U Stations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF15-02H-HY1BDU Stations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-02H-HY1BUD Stations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-02H-HY1DDU Stations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-02H-HY1DUD Stations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-02H-HY1UDU Stations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-02H-HY1UUD Stations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-02Z-03B Stations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-02Z-03D Stations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF15-02Z-03U Stations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF15-02Z-04B Stations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-02Z-04D Stations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF15-02Z-04U Stations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF15-02Z-HY1BDU Stations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-02Z-HY1BUD Stations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-02Z-HY1DDU Stations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-02Z-HY1DUD Stations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-02Z-HY1UDU Stations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-02Z-HY1UUD Stations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-02T-03B Stations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-02T-03D Stations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF15-02T-03U Stations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF15-02T-04B Stations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-02T-04D Stations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF15-02T-04U Stations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF15-02T-HY1BDU Stations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-02T-HY1BUD Stations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-02T-HY1DDU Stations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-02T-HY1DUD Stations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-02T-HY1UDU Stations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-02T-HY1UUD Stations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-03-03B Stations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-03-03D Stations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF15-03-03U Stations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF15-03-04B Stations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-03-04D Stations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF15-03-04U Stations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF15-03-HY1BDU Stations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-03-HY1BUD Stations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-03-HY1DDU Stations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-03-HY1DUD Stations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-03-HY1UDU Stations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-03-HY1UUD Stations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-03L-03B Stations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-03L-03D Stations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF15-03L-03U Stations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF15-03L-04B Stations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-03L-04D Stations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF15-03L-04U Stations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF15-03L-HY1BDU Stations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-03L-HY1BUD Stations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-03L-HY1DDU Stations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-03L-HY1DUD Stations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-03L-HY1UDU Stations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-03L-HY1UUD Stations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-03H-03B Stations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-03H-03D Stations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF15-03H-03U Stations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF15-03H-04B Stations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-03H-04D Stations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF15-03H-04U Stations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF15-03H-HY1BDU Stations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-03H-HY1BUD Stations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-03H-HY1DDU Stations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-03H-HY1DUD Stations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-03H-HY1UDU Stations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-03H-HY1UUD Stations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-03Z-03B Stations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-03Z-03D Stations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF15-03Z-03U Stations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF15-03Z-04B Stations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-03Z-04D Stations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF15-03Z-04U Stations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF15-03Z-HY1BDU Stations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-03Z-HY1BUD Stations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-03Z-HY1DDU Stations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-03Z-HY1DUD Stations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-03Z-HY1UDU Stations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-03Z-HY1UUD Stations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-03T-03B Stations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-03T-03D Stations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF15-03T-03U Stations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF15-03T-04B Stations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-03T-04D Stations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF15-03T-04U Stations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF15-03T-HY1BDU Stations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-03T-HY1BUD Stations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-03T-HY1DDU Stations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-03T-HY1DUD Stations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-03T-HY1UDU Stations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-03T-HY1UUD Stations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-02-03B Stations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-02-03D Stations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF16-02-03U Stations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF16-02-04B Stations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-02-04D Stations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF16-02-04U Stations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF16-02-HY1BDU Stations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-02-HY1BUD Stations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-02-HY1DDU Stations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-02-HY1DUD Stations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-02-HY1UDU Stations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-02-HY1UUD Stations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-02L-03B Stations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-02L-03D Stations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF16-02L-03U Stations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF16-02L-04B Stations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-02L-04D Stations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF16-02L-04U Stations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF16-02L-HY1BDU Stations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-02L-HY1BUD Stations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-02L-HY1DDU Stations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-02L-HY1DUD Stations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-02L-HY1UDU Stations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-02L-HY1UUD Stations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-02H-03B Stations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-02H-03D Stations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF16-02H-03U Stations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF16-02H-04B Stations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-02H-04D Stations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF16-02H-04U Stations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF16-02H-HY1BDU Stations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-02H-HY1BUD Stations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-02H-HY1DDU Stations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-02H-HY1DUD Stations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-02H-HY1UDU Stations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-02H-HY1UUD Stations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-02Z-03B Stations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-02Z-03D Stations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF16-02Z-03U Stations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF16-02Z-04B Stations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-02Z-04D Stations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF16-02Z-04U Stations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF16-02Z-HY1BDU Stations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-02Z-HY1BUD Stations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-02Z-HY1DDU Stations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-02Z-HY1DUD Stations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-02Z-HY1UDU Stations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-02Z-HY1UUD Stations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-02T-03B Stations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-02T-03D Stations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF16-02T-03U Stations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF16-02T-04B Stations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-02T-04D Stations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF16-02T-04U Stations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF16-02T-HY1BDU Stations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-02T-HY1BUD Stations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-02T-HY1DDU Stations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-02T-HY1DUD Stations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-02T-HY1UDU Stations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-02T-HY1UUD Stations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-03-03B Stations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-03-03D Stations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF16-03-03U Stations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF16-03-04B Stations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-03-04D Stations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF16-03-04U Stations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF16-03-HY1BDU Stations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-03-HY1BUD Stations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-03-HY1DDU Stations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-03-HY1DUD Stations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-03-HY1UDU Stations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-03-HY1UUD Stations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-03L-03B Stations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-03L-03D Stations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF16-03L-03U Stations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF16-03L-04B Stations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-03L-04D Stations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF16-03L-04U Stations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF16-03L-HY1BDU Stations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-03L-HY1BUD Stations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-03L-HY1DDU Stations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-03L-HY1DUD Stations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-03L-HY1UDU Stations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-03L-HY1UUD Stations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-03H-03B Stations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-03H-03D Stations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF16-03H-03U Stations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF16-03H-04B Stations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-03H-04D Stations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF16-03H-04U Stations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF16-03H-HY1BDU Stations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-03H-HY1BUD Stations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-03H-HY1DDU Stations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-03H-HY1DUD Stations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-03H-HY1UDU Stations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-03H-HY1UUD Stations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-03Z-03B Stations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-03Z-03D Stations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF16-03Z-03U Stations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF16-03Z-04B Stations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-03Z-04D Stations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF16-03Z-04U Stations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF16-03Z-HY1BDU Stations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-03Z-HY1BUD Stations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-03Z-HY1DDU Stations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-03Z-HY1DUD Stations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-03Z-HY1UDU Stations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-03Z-HY1UUD Stations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-03T-03B Stations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-03T-03D Stations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF16-03T-03U Stations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF16-03T-04B Stations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-03T-04D Stations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF16-03T-04U Stations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF16-03T-HY1BDU Stations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-03T-HY1BUD Stations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-03T-HY1DDU Stations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-03T-HY1DUD Stations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-03T-HY1UDU Stations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-03T-HY1UUD Stations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-02-03B Stations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-02-03D Stations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF17-02-03U Stations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF17-02-04B Stations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-02-04D Stations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF17-02-04U Stations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF17-02-HY1BDU Stations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-02-HY1BUD Stations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-02-HY1DDU Stations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-02-HY1DUD Stations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-02-HY1UDU Stations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-02-HY1UUD Stations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-02L-03B Stations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-02L-03D Stations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF17-02L-03U Stations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF17-02L-04B Stations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-02L-04D Stations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF17-02L-04U Stations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF17-02L-HY1BDU Stations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-02L-HY1BUD Stations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-02L-HY1DDU Stations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-02L-HY1DUD Stations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-02L-HY1UDU Stations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-02L-HY1UUD Stations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-02H-03B Stations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-02H-03D Stations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF17-02H-03U Stations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF17-02H-04B Stations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-02H-04D Stations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF17-02H-04U Stations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF17-02H-HY1BDU Stations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-02H-HY1BUD Stations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-02H-HY1DDU Stations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-02H-HY1DUD Stations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-02H-HY1UDU Stations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-02H-HY1UUD Stations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-02Z-03B Stations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-02Z-03D Stations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF17-02Z-03U Stations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF17-02Z-04B Stations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-02Z-04D Stations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF17-02Z-04U Stations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF17-02Z-HY1BDU Stations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-02Z-HY1BUD Stations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-02Z-HY1DDU Stations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-02Z-HY1DUD Stations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-02Z-HY1UDU Stations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-02Z-HY1UUD Stations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-02T-03B Stations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-02T-03D Stations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF17-02T-03U Stations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF17-02T-04B Stations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-02T-04D Stations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF17-02T-04U Stations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF17-02T-HY1BDU Stations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-02T-HY1BUD Stations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-02T-HY1DDU Stations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-02T-HY1DUD Stations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-02T-HY1UDU Stations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-02T-HY1UUD Stations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-03-03B Stations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-03-03D Stations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF17-03-03U Stations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF17-03-04B Stations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-03-04D Stations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF17-03-04U Stations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF17-03-HY1BDU Stations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-03-HY1BUD Stations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-03-HY1DDU Stations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-03-HY1DUD Stations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-03-HY1UDU Stations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-03-HY1UUD Stations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-03L-03B Stations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-03L-03D Stations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF17-03L-03U Stations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF17-03L-04B Stations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-03L-04D Stations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF17-03L-04U Stations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF17-03L-HY1BDU Stations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-03L-HY1BUD Stations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-03L-HY1DDU Stations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-03L-HY1DUD Stations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-03L-HY1UDU Stations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-03L-HY1UUD Stations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-03H-03B Stations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-03H-03D Stations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF17-03H-03U Stations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF17-03H-04B Stations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-03H-04D Stations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF17-03H-04U Stations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF17-03H-HY1BDU Stations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-03H-HY1BUD Stations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-03H-HY1DDU Stations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-03H-HY1DUD Stations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-03H-HY1UDU Stations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-03H-HY1UUD Stations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-03Z-03B Stations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-03Z-03D Stations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF17-03Z-03U Stations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF17-03Z-04B Stations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-03Z-04D Stations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF17-03Z-04U Stations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF17-03Z-HY1BDU Stations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-03Z-HY1BUD Stations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-03Z-HY1DDU Stations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-03Z-HY1DUD Stations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-03Z-HY1UDU Stations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-03Z-HY1UUD Stations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-03T-03B Stations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-03T-03D Stations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF17-03T-03U Stations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF17-03T-04B Stations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-03T-04D Stations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF17-03T-04U Stations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF17-03T-HY1BDU Stations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-03T-HY1BUD Stations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-03T-HY1DDU Stations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-03T-HY1DUD Stations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-03T-HY1UDU Stations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-03T-HY1UUD Stations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-02-03B Stations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-02-03D Stations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF18-02-03U Stations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF18-02-04B Stations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-02-04D Stations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF18-02-04U Stations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF18-02-HY1BDU Stations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-02-HY1BUD Stations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-02-HY1DDU Stations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-02-HY1DUD Stations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-02-HY1UDU Stations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-02-HY1UUD Stations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-02L-03B Stations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-02L-03D Stations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF18-02L-03U Stations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF18-02L-04B Stations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-02L-04D Stations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF18-02L-04U Stations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF18-02L-HY1BDU Stations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-02L-HY1BUD Stations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-02L-HY1DDU Stations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-02L-HY1DUD Stations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-02L-HY1UDU Stations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-02L-HY1UUD Stations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-02H-03B Stations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-02H-03D Stations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF18-02H-03U Stations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF18-02H-04B Stations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-02H-04D Stations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF18-02H-04U Stations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF18-02H-HY1BDU Stations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-02H-HY1BUD Stations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-02H-HY1DDU Stations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-02H-HY1DUD Stations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-02H-HY1UDU Stations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-02H-HY1UUD Stations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-02Z-03B Stations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-02Z-03D Stations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF18-02Z-03U Stations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF18-02Z-04B Stations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-02Z-04D Stations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF18-02Z-04U Stations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF18-02Z-HY1BDU Stations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-02Z-HY1BUD Stations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-02Z-HY1DDU Stations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-02Z-HY1DUD Stations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-02Z-HY1UDU Stations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-02Z-HY1UUD Stations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-02T-03B Stations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-02T-03D Stations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF18-02T-03U Stations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF18-02T-04B Stations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-02T-04D Stations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF18-02T-04U Stations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF18-02T-HY1BDU Stations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-02T-HY1BUD Stations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-02T-HY1DDU Stations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-02T-HY1DUD Stations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-02T-HY1UDU Stations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-02T-HY1UUD Stations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-03-03B Stations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-03-03D Stations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF18-03-03U Stations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF18-03-04B Stations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-03-04D Stations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF18-03-04U Stations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF18-03-HY1BDU Stations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-03-HY1BUD Stations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-03-HY1DDU Stations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-03-HY1DUD Stations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-03-HY1UDU Stations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-03-HY1UUD Stations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-03L-03B Stations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-03L-03D Stations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF18-03L-03U Stations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF18-03L-04B Stations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-03L-04D Stations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF18-03L-04U Stations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF18-03L-HY1BDU Stations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-03L-HY1BUD Stations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-03L-HY1DDU Stations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-03L-HY1DUD Stations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-03L-HY1UDU Stations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-03L-HY1UUD Stations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-03H-03B Stations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-03H-03D Stations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF18-03H-03U Stations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF18-03H-04B Stations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-03H-04D Stations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF18-03H-04U Stations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF18-03H-HY1BDU Stations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-03H-HY1BUD Stations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-03H-HY1DDU Stations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-03H-HY1DUD Stations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-03H-HY1UDU Stations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-03H-HY1UUD Stations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-03Z-03B Stations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-03Z-03D Stations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF18-03Z-03U Stations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF18-03Z-04B Stations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-03Z-04D Stations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF18-03Z-04U Stations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF18-03Z-HY1BDU Stations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-03Z-HY1BUD Stations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-03Z-HY1DDU Stations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-03Z-HY1DUD Stations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-03Z-HY1UDU Stations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-03Z-HY1UUD Stations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-03T-03B Stations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-03T-03D Stations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF18-03T-03U Stations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF18-03T-04B Stations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-03T-04D Stations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF18-03T-04U Stations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF18-03T-HY1BDU Stations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-03T-HY1BUD Stations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-03T-HY1DDU Stations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-03T-HY1DUD Stations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-03T-HY1UDU Stations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-03T-HY1UUD Stations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-02-03B Stations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-02-03D Stations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF19-02-03U Stations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF19-02-04B Stations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-02-04D Stations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF19-02-04U Stations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF19-02-HY1BDU Stations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-02-HY1BUD Stations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-02-HY1DDU Stations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-02-HY1DUD Stations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-02-HY1UDU Stations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-02-HY1UUD Stations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-02L-03B Stations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-02L-03D Stations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF19-02L-03U Stations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF19-02L-04B Stations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-02L-04D Stations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF19-02L-04U Stations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF19-02L-HY1BDU Stations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-02L-HY1BUD Stations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-02L-HY1DDU Stations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-02L-HY1DUD Stations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-02L-HY1UDU Stations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-02L-HY1UUD Stations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-02H-03B Stations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-02H-03D Stations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF19-02H-03U Stations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF19-02H-04B Stations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-02H-04D Stations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF19-02H-04U Stations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF19-02H-HY1BDU Stations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-02H-HY1BUD Stations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-02H-HY1DDU Stations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-02H-HY1DUD Stations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-02H-HY1UDU Stations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-02H-HY1UUD Stations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-02Z-03B Stations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-02Z-03D Stations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF19-02Z-03U Stations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF19-02Z-04B Stations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-02Z-04D Stations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF19-02Z-04U Stations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF19-02Z-HY1BDU Stations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-02Z-HY1BUD Stations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-02Z-HY1DDU Stations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-02Z-HY1DUD Stations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-02Z-HY1UDU Stations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-02Z-HY1UUD Stations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-02T-03B Stations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-02T-03D Stations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF19-02T-03U Stations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF19-02T-04B Stations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-02T-04D Stations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF19-02T-04U Stations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF19-02T-HY1BDU Stations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-02T-HY1BUD Stations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-02T-HY1DDU Stations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-02T-HY1DUD Stations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-02T-HY1UDU Stations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-02T-HY1UUD Stations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-03-03B Stations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-03-03D Stations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF19-03-03U Stations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF19-03-04B Stations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-03-04D Stations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF19-03-04U Stations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF19-03-HY1BDU Stations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-03-HY1BUD Stations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-03-HY1DDU Stations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-03-HY1DUD Stations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-03-HY1UDU Stations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-03-HY1UUD Stations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-03L-03B Stations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-03L-03D Stations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF19-03L-03U Stations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF19-03L-04B Stations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-03L-04D Stations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF19-03L-04U Stations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF19-03L-HY1BDU Stations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-03L-HY1BUD Stations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-03L-HY1DDU Stations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-03L-HY1DUD Stations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-03L-HY1UDU Stations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-03L-HY1UUD Stations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-03H-03B Stations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-03H-03D Stations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF19-03H-03U Stations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF19-03H-04B Stations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-03H-04D Stations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF19-03H-04U Stations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF19-03H-HY1BDU Stations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-03H-HY1BUD Stations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-03H-HY1DDU Stations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-03H-HY1DUD Stations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-03H-HY1UDU Stations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-03H-HY1UUD Stations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-03Z-03B Stations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-03Z-03D Stations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF19-03Z-03U Stations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF19-03Z-04B Stations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-03Z-04D Stations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF19-03Z-04U Stations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF19-03Z-HY1BDU Stations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-03Z-HY1BUD Stations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-03Z-HY1DDU Stations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-03Z-HY1DUD Stations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-03Z-HY1UDU Stations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-03Z-HY1UUD Stations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-03T-03B Stations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-03T-03D Stations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF19-03T-03U Stations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF19-03T-04B Stations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-03T-04D Stations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF19-03T-04U Stations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF19-03T-HY1BDU Stations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-03T-HY1BUD Stations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-03T-HY1DDU Stations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-03T-HY1DUD Stations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-03T-HY1UDU Stations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-03T-HY1UUD Stations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-02-03B Stations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-02-03D Stations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF110-02-03U Stations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF110-02-04B Stations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-02-04D Stations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF110-02-04U Stations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF110-02-HY1BDU Stations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-02-HY1BUD Stations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-02-HY1DDU Stations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-02-HY1DUD Stations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-02-HY1UDU Stations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-02-HY1UUD Stations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-02L-03B Stations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-02L-03D Stations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF110-02L-03U Stations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF110-02L-04B Stations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-02L-04D Stations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF110-02L-04U Stations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF110-02L-HY1BDU Stations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-02L-HY1BUD Stations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-02L-HY1DDU Stations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-02L-HY1DUD Stations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-02L-HY1UDU Stations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-02L-HY1UUD Stations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-02H-03B Stations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-02H-03D Stations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF110-02H-03U Stations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF110-02H-04B Stations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-02H-04D Stations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF110-02H-04U Stations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF110-02H-HY1BDU Stations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-02H-HY1BUD Stations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-02H-HY1DDU Stations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-02H-HY1DUD Stations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-02H-HY1UDU Stations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-02H-HY1UUD Stations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-02Z-03B Stations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-02Z-03D Stations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF110-02Z-03U Stations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF110-02Z-04B Stations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-02Z-04D Stations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF110-02Z-04U Stations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF110-02Z-HY1BDU Stations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-02Z-HY1BUD Stations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-02Z-HY1DDU Stations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-02Z-HY1DUD Stations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-02Z-HY1UDU Stations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-02Z-HY1UUD Stations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-02T-03B Stations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-02T-03D Stations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF110-02T-03U Stations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF110-02T-04B Stations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-02T-04D Stations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF110-02T-04U Stations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF110-02T-HY1BDU Stations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-02T-HY1BUD Stations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-02T-HY1DDU Stations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-02T-HY1DUD Stations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-02T-HY1UDU Stations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-02T-HY1UUD Stations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-03-03B Stations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-03-03D Stations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF110-03-03U Stations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF110-03-04B Stations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-03-04D Stations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF110-03-04U Stations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF110-03-HY1BDU Stations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-03-HY1BUD Stations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-03-HY1DDU Stations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-03-HY1DUD Stations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-03-HY1UDU Stations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-03-HY1UUD Stations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-03L-03B Stations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-03L-03D Stations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF110-03L-03U Stations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF110-03L-04B Stations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-03L-04D Stations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF110-03L-04U Stations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF110-03L-HY1BDU Stations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-03L-HY1BUD Stations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-03L-HY1DDU Stations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-03L-HY1DUD Stations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-03L-HY1UDU Stations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-03L-HY1UUD Stations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-03H-03B Stations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-03H-03D Stations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF110-03H-03U Stations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF110-03H-04B Stations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-03H-04D Stations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF110-03H-04U Stations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF110-03H-HY1BDU Stations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-03H-HY1BUD Stations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-03H-HY1DDU Stations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-03H-HY1DUD Stations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-03H-HY1UDU Stations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-03H-HY1UUD Stations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-03Z-03B Stations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-03Z-03D Stations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF110-03Z-03U Stations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF110-03Z-04B Stations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-03Z-04D Stations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF110-03Z-04U Stations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF110-03Z-HY1BDU Stations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-03Z-HY1BUD Stations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-03Z-HY1DDU Stations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-03Z-HY1DUD Stations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-03Z-HY1UDU Stations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-03Z-HY1UUD Stations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-03T-03B Stations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-03T-03D Stations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF110-03T-03U Stations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF110-03T-04B Stations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-03T-04D Stations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF110-03T-04U Stations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF110-03T-HY1BDU Stations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-03T-HY1BUD Stations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-03T-HY1DDU Stations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-03T-HY1DUD Stations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-03T-HY1UDU Stations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-03T-HY1UUD Stations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
Valve ManifoldsCKD
1200 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GMF1 Individual Wiring Manifold (ISO Size 1, 1-10 Stations)

Brand CKD·Valve Manifolds

Available part numbers (1200)

GMF11-02-03B, GMF11-02-03D, GMF11-02-03U, GMF11-02-04B, GMF11-02-04D, GMF11-02-04U, GMF11-02-HY1BDU, GMF11-02-HY1BUD, GMF11-02-HY1DDU, GMF11-02-HY1DUD + 1190 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GMF11-02-03BStations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-02-03DStations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF11-02-03UStations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF11-02-04BStations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-02-04DStations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF11-02-04UStations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF11-02-HY1BDUStations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-02-HY1BUDStations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-02-HY1DDUStations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-02-HY1DUDStations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-02-HY1UDUStations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-02-HY1UUDStations: 1 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-02L-03BStations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-02L-03DStations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF11-02L-03UStations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF11-02L-04BStations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-02L-04DStations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF11-02L-04UStations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF11-02L-HY1BDUStations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-02L-HY1BUDStations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-02L-HY1DDUStations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-02L-HY1DUDStations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-02L-HY1UDUStations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-02L-HY1UUDStations: 1 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-02H-03BStations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-02H-03DStations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF11-02H-03UStations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF11-02H-04BStations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-02H-04DStations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF11-02H-04UStations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF11-02H-HY1BDUStations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-02H-HY1BUDStations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-02H-HY1DDUStations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-02H-HY1DUDStations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-02H-HY1UDUStations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-02H-HY1UUDStations: 1 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-02Z-03BStations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-02Z-03DStations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF11-02Z-03UStations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF11-02Z-04BStations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-02Z-04DStations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF11-02Z-04UStations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF11-02Z-HY1BDUStations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-02Z-HY1BUDStations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-02Z-HY1DDUStations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-02Z-HY1DUDStations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-02Z-HY1UDUStations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-02Z-HY1UUDStations: 1 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-02T-03BStations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-02T-03DStations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF11-02T-03UStations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF11-02T-04BStations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-02T-04DStations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF11-02T-04UStations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF11-02T-HY1BDUStations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-02T-HY1BUDStations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-02T-HY1DDUStations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-02T-HY1DUDStations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-02T-HY1UDUStations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-02T-HY1UUDStations: 1 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-03-03BStations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-03-03DStations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF11-03-03UStations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF11-03-04BStations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-03-04DStations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF11-03-04UStations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF11-03-HY1BDUStations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-03-HY1BUDStations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-03-HY1DDUStations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-03-HY1DUDStations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-03-HY1UDUStations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-03-HY1UUDStations: 1 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-03L-03BStations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-03L-03DStations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF11-03L-03UStations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF11-03L-04BStations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-03L-04DStations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF11-03L-04UStations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF11-03L-HY1BDUStations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-03L-HY1BUDStations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-03L-HY1DDUStations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-03L-HY1DUDStations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-03L-HY1UDUStations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-03L-HY1UUDStations: 1 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-03H-03BStations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-03H-03DStations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF11-03H-03UStations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF11-03H-04BStations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-03H-04DStations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF11-03H-04UStations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF11-03H-HY1BDUStations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-03H-HY1BUDStations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-03H-HY1DDUStations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-03H-HY1DUDStations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-03H-HY1UDUStations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-03H-HY1UUDStations: 1 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-03Z-03BStations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-03Z-03DStations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF11-03Z-03UStations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF11-03Z-04BStations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-03Z-04DStations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF11-03Z-04UStations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF11-03Z-HY1BDUStations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-03Z-HY1BUDStations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-03Z-HY1DDUStations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-03Z-HY1DUDStations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-03Z-HY1UDUStations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-03Z-HY1UUDStations: 1 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF11-03T-03BStations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF11-03T-03DStations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF11-03T-03UStations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF11-03T-04BStations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF11-03T-04DStations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF11-03T-04UStations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF11-03T-HY1BDUStations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF11-03T-HY1BUDStations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF11-03T-HY1DDUStations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF11-03T-HY1DUDStations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF11-03T-HY1UDUStations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF11-03T-HY1UUDStations: 1 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-02-03BStations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-02-03DStations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF12-02-03UStations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF12-02-04BStations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-02-04DStations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF12-02-04UStations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF12-02-HY1BDUStations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-02-HY1BUDStations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-02-HY1DDUStations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-02-HY1DUDStations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-02-HY1UDUStations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-02-HY1UUDStations: 2 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-02L-03BStations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-02L-03DStations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF12-02L-03UStations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF12-02L-04BStations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-02L-04DStations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF12-02L-04UStations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF12-02L-HY1BDUStations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-02L-HY1BUDStations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-02L-HY1DDUStations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-02L-HY1DUDStations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-02L-HY1UDUStations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-02L-HY1UUDStations: 2 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-02H-03BStations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-02H-03DStations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF12-02H-03UStations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF12-02H-04BStations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-02H-04DStations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF12-02H-04UStations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF12-02H-HY1BDUStations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-02H-HY1BUDStations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-02H-HY1DDUStations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-02H-HY1DUDStations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-02H-HY1UDUStations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-02H-HY1UUDStations: 2 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-02Z-03BStations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-02Z-03DStations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF12-02Z-03UStations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF12-02Z-04BStations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-02Z-04DStations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF12-02Z-04UStations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF12-02Z-HY1BDUStations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-02Z-HY1BUDStations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-02Z-HY1DDUStations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-02Z-HY1DUDStations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-02Z-HY1UDUStations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-02Z-HY1UUDStations: 2 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-02T-03BStations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-02T-03DStations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF12-02T-03UStations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF12-02T-04BStations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-02T-04DStations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF12-02T-04UStations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF12-02T-HY1BDUStations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-02T-HY1BUDStations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-02T-HY1DDUStations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-02T-HY1DUDStations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-02T-HY1UDUStations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-02T-HY1UUDStations: 2 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-03-03BStations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-03-03DStations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF12-03-03UStations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF12-03-04BStations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-03-04DStations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF12-03-04UStations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF12-03-HY1BDUStations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-03-HY1BUDStations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-03-HY1DDUStations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-03-HY1DUDStations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-03-HY1UDUStations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-03-HY1UUDStations: 2 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-03L-03BStations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-03L-03DStations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF12-03L-03UStations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF12-03L-04BStations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-03L-04DStations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF12-03L-04UStations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF12-03L-HY1BDUStations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-03L-HY1BUDStations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-03L-HY1DDUStations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-03L-HY1DUDStations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-03L-HY1UDUStations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-03L-HY1UUDStations: 2 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-03H-03BStations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-03H-03DStations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF12-03H-03UStations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF12-03H-04BStations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-03H-04DStations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF12-03H-04UStations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF12-03H-HY1BDUStations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-03H-HY1BUDStations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-03H-HY1DDUStations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-03H-HY1DUDStations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-03H-HY1UDUStations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-03H-HY1UUDStations: 2 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-03Z-03BStations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-03Z-03DStations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF12-03Z-03UStations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF12-03Z-04BStations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-03Z-04DStations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF12-03Z-04UStations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF12-03Z-HY1BDUStations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-03Z-HY1BUDStations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-03Z-HY1DDUStations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-03Z-HY1DUDStations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-03Z-HY1UDUStations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-03Z-HY1UUDStations: 2 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF12-03T-03BStations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF12-03T-03DStations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF12-03T-03UStations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF12-03T-04BStations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF12-03T-04DStations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF12-03T-04UStations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF12-03T-HY1BDUStations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF12-03T-HY1BUDStations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF12-03T-HY1DDUStations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF12-03T-HY1DUDStations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF12-03T-HY1UDUStations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF12-03T-HY1UUDStations: 2 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-02-03BStations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-02-03DStations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF13-02-03UStations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF13-02-04BStations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-02-04DStations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF13-02-04UStations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF13-02-HY1BDUStations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-02-HY1BUDStations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-02-HY1DDUStations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-02-HY1DUDStations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-02-HY1UDUStations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-02-HY1UUDStations: 3 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-02L-03BStations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-02L-03DStations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF13-02L-03UStations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF13-02L-04BStations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-02L-04DStations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF13-02L-04UStations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF13-02L-HY1BDUStations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-02L-HY1BUDStations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-02L-HY1DDUStations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-02L-HY1DUDStations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-02L-HY1UDUStations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-02L-HY1UUDStations: 3 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-02H-03BStations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-02H-03DStations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF13-02H-03UStations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF13-02H-04BStations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-02H-04DStations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF13-02H-04UStations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF13-02H-HY1BDUStations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-02H-HY1BUDStations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-02H-HY1DDUStations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-02H-HY1DUDStations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-02H-HY1UDUStations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-02H-HY1UUDStations: 3 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-02Z-03BStations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-02Z-03DStations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF13-02Z-03UStations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF13-02Z-04BStations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-02Z-04DStations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF13-02Z-04UStations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF13-02Z-HY1BDUStations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-02Z-HY1BUDStations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-02Z-HY1DDUStations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-02Z-HY1DUDStations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-02Z-HY1UDUStations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-02Z-HY1UUDStations: 3 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-02T-03BStations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-02T-03DStations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF13-02T-03UStations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF13-02T-04BStations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-02T-04DStations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF13-02T-04UStations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF13-02T-HY1BDUStations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-02T-HY1BUDStations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-02T-HY1DDUStations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-02T-HY1DUDStations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-02T-HY1UDUStations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-02T-HY1UUDStations: 3 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-03-03BStations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-03-03DStations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF13-03-03UStations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF13-03-04BStations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-03-04DStations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF13-03-04UStations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF13-03-HY1BDUStations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-03-HY1BUDStations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-03-HY1DDUStations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-03-HY1DUDStations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-03-HY1UDUStations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-03-HY1UUDStations: 3 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-03L-03BStations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-03L-03DStations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF13-03L-03UStations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF13-03L-04BStations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-03L-04DStations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF13-03L-04UStations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF13-03L-HY1BDUStations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-03L-HY1BUDStations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-03L-HY1DDUStations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-03L-HY1DUDStations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-03L-HY1UDUStations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-03L-HY1UUDStations: 3 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-03H-03BStations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-03H-03DStations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF13-03H-03UStations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF13-03H-04BStations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-03H-04DStations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF13-03H-04UStations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF13-03H-HY1BDUStations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-03H-HY1BUDStations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-03H-HY1DDUStations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-03H-HY1DUDStations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-03H-HY1UDUStations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-03H-HY1UUDStations: 3 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-03Z-03BStations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-03Z-03DStations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF13-03Z-03UStations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF13-03Z-04BStations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-03Z-04DStations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF13-03Z-04UStations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF13-03Z-HY1BDUStations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-03Z-HY1BUDStations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-03Z-HY1DDUStations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-03Z-HY1DUDStations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-03Z-HY1UDUStations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-03Z-HY1UUDStations: 3 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF13-03T-03BStations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF13-03T-03DStations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF13-03T-03UStations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF13-03T-04BStations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF13-03T-04DStations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF13-03T-04UStations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF13-03T-HY1BDUStations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF13-03T-HY1BUDStations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF13-03T-HY1DDUStations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF13-03T-HY1DUDStations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF13-03T-HY1UDUStations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF13-03T-HY1UUDStations: 3 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-02-03BStations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-02-03DStations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF14-02-03UStations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF14-02-04BStations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-02-04DStations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF14-02-04UStations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF14-02-HY1BDUStations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-02-HY1BUDStations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-02-HY1DDUStations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-02-HY1DUDStations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-02-HY1UDUStations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-02-HY1UUDStations: 4 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-02L-03BStations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-02L-03DStations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF14-02L-03UStations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF14-02L-04BStations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-02L-04DStations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF14-02L-04UStations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF14-02L-HY1BDUStations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-02L-HY1BUDStations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-02L-HY1DDUStations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-02L-HY1DUDStations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-02L-HY1UDUStations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-02L-HY1UUDStations: 4 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-02H-03BStations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-02H-03DStations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF14-02H-03UStations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF14-02H-04BStations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-02H-04DStations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF14-02H-04UStations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF14-02H-HY1BDUStations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-02H-HY1BUDStations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-02H-HY1DDUStations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-02H-HY1DUDStations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-02H-HY1UDUStations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-02H-HY1UUDStations: 4 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-02Z-03BStations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-02Z-03DStations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF14-02Z-03UStations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF14-02Z-04BStations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-02Z-04DStations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF14-02Z-04UStations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF14-02Z-HY1BDUStations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-02Z-HY1BUDStations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-02Z-HY1DDUStations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-02Z-HY1DUDStations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-02Z-HY1UDUStations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-02Z-HY1UUDStations: 4 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-02T-03BStations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-02T-03DStations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF14-02T-03UStations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF14-02T-04BStations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-02T-04DStations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF14-02T-04UStations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF14-02T-HY1BDUStations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-02T-HY1BUDStations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-02T-HY1DDUStations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-02T-HY1DUDStations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-02T-HY1UDUStations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-02T-HY1UUDStations: 4 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-03-03BStations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-03-03DStations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF14-03-03UStations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF14-03-04BStations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-03-04DStations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF14-03-04UStations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF14-03-HY1BDUStations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-03-HY1BUDStations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-03-HY1DDUStations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-03-HY1DUDStations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-03-HY1UDUStations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-03-HY1UUDStations: 4 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-03L-03BStations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-03L-03DStations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF14-03L-03UStations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF14-03L-04BStations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-03L-04DStations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF14-03L-04UStations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF14-03L-HY1BDUStations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-03L-HY1BUDStations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-03L-HY1DDUStations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-03L-HY1DUDStations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-03L-HY1UDUStations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-03L-HY1UUDStations: 4 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-03H-03BStations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-03H-03DStations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF14-03H-03UStations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF14-03H-04BStations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-03H-04DStations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF14-03H-04UStations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF14-03H-HY1BDUStations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-03H-HY1BUDStations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-03H-HY1DDUStations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-03H-HY1DUDStations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-03H-HY1UDUStations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-03H-HY1UUDStations: 4 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-03Z-03BStations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-03Z-03DStations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF14-03Z-03UStations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF14-03Z-04BStations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-03Z-04DStations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF14-03Z-04UStations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF14-03Z-HY1BDUStations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-03Z-HY1BUDStations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-03Z-HY1DDUStations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-03Z-HY1DUDStations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-03Z-HY1UDUStations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-03Z-HY1UUDStations: 4 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF14-03T-03BStations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF14-03T-03DStations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF14-03T-03UStations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF14-03T-04BStations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF14-03T-04DStations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF14-03T-04UStations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF14-03T-HY1BDUStations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF14-03T-HY1BUDStations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF14-03T-HY1DDUStations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF14-03T-HY1DUDStations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF14-03T-HY1UDUStations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF14-03T-HY1UUDStations: 4 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-02-03BStations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-02-03DStations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF15-02-03UStations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF15-02-04BStations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-02-04DStations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF15-02-04UStations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF15-02-HY1BDUStations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-02-HY1BUDStations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-02-HY1DDUStations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-02-HY1DUDStations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-02-HY1UDUStations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-02-HY1UUDStations: 5 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-02L-03BStations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-02L-03DStations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF15-02L-03UStations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF15-02L-04BStations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-02L-04DStations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF15-02L-04UStations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF15-02L-HY1BDUStations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-02L-HY1BUDStations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-02L-HY1DDUStations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-02L-HY1DUDStations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-02L-HY1UDUStations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-02L-HY1UUDStations: 5 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-02H-03BStations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-02H-03DStations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF15-02H-03UStations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF15-02H-04BStations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-02H-04DStations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF15-02H-04UStations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF15-02H-HY1BDUStations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-02H-HY1BUDStations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-02H-HY1DDUStations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-02H-HY1DUDStations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-02H-HY1UDUStations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-02H-HY1UUDStations: 5 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-02Z-03BStations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-02Z-03DStations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF15-02Z-03UStations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF15-02Z-04BStations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-02Z-04DStations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF15-02Z-04UStations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF15-02Z-HY1BDUStations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-02Z-HY1BUDStations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-02Z-HY1DDUStations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-02Z-HY1DUDStations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-02Z-HY1UDUStations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-02Z-HY1UUDStations: 5 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-02T-03BStations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-02T-03DStations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF15-02T-03UStations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF15-02T-04BStations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-02T-04DStations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF15-02T-04UStations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF15-02T-HY1BDUStations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-02T-HY1BUDStations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-02T-HY1DDUStations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-02T-HY1DUDStations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-02T-HY1UDUStations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-02T-HY1UUDStations: 5 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-03-03BStations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-03-03DStations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF15-03-03UStations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF15-03-04BStations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-03-04DStations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF15-03-04UStations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF15-03-HY1BDUStations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-03-HY1BUDStations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-03-HY1DDUStations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-03-HY1DUDStations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-03-HY1UDUStations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-03-HY1UUDStations: 5 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-03L-03BStations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-03L-03DStations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF15-03L-03UStations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF15-03L-04BStations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-03L-04DStations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF15-03L-04UStations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF15-03L-HY1BDUStations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-03L-HY1BUDStations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-03L-HY1DDUStations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-03L-HY1DUDStations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-03L-HY1UDUStations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-03L-HY1UUDStations: 5 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-03H-03BStations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-03H-03DStations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF15-03H-03UStations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF15-03H-04BStations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-03H-04DStations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF15-03H-04UStations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF15-03H-HY1BDUStations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-03H-HY1BUDStations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-03H-HY1DDUStations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-03H-HY1DUDStations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-03H-HY1UDUStations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-03H-HY1UUDStations: 5 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-03Z-03BStations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-03Z-03DStations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF15-03Z-03UStations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF15-03Z-04BStations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-03Z-04DStations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF15-03Z-04UStations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF15-03Z-HY1BDUStations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-03Z-HY1BUDStations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-03Z-HY1DDUStations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-03Z-HY1DUDStations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-03Z-HY1UDUStations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-03Z-HY1UUDStations: 5 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF15-03T-03BStations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF15-03T-03DStations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF15-03T-03UStations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF15-03T-04BStations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF15-03T-04DStations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF15-03T-04UStations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF15-03T-HY1BDUStations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF15-03T-HY1BUDStations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF15-03T-HY1DDUStations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF15-03T-HY1DUDStations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF15-03T-HY1UDUStations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF15-03T-HY1UUDStations: 5 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-02-03BStations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-02-03DStations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF16-02-03UStations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF16-02-04BStations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-02-04DStations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF16-02-04UStations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF16-02-HY1BDUStations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-02-HY1BUDStations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-02-HY1DDUStations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-02-HY1DUDStations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-02-HY1UDUStations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-02-HY1UUDStations: 6 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-02L-03BStations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-02L-03DStations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF16-02L-03UStations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF16-02L-04BStations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-02L-04DStations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF16-02L-04UStations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF16-02L-HY1BDUStations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-02L-HY1BUDStations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-02L-HY1DDUStations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-02L-HY1DUDStations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-02L-HY1UDUStations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-02L-HY1UUDStations: 6 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-02H-03BStations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-02H-03DStations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF16-02H-03UStations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF16-02H-04BStations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-02H-04DStations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF16-02H-04UStations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF16-02H-HY1BDUStations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-02H-HY1BUDStations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-02H-HY1DDUStations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-02H-HY1DUDStations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-02H-HY1UDUStations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-02H-HY1UUDStations: 6 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-02Z-03BStations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-02Z-03DStations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF16-02Z-03UStations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF16-02Z-04BStations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-02Z-04DStations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF16-02Z-04UStations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF16-02Z-HY1BDUStations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-02Z-HY1BUDStations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-02Z-HY1DDUStations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-02Z-HY1DUDStations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-02Z-HY1UDUStations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-02Z-HY1UUDStations: 6 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-02T-03BStations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-02T-03DStations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF16-02T-03UStations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF16-02T-04BStations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-02T-04DStations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF16-02T-04UStations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF16-02T-HY1BDUStations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-02T-HY1BUDStations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-02T-HY1DDUStations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-02T-HY1DUDStations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-02T-HY1UDUStations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-02T-HY1UUDStations: 6 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-03-03BStations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-03-03DStations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF16-03-03UStations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF16-03-04BStations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-03-04DStations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF16-03-04UStations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF16-03-HY1BDUStations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-03-HY1BUDStations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-03-HY1DDUStations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-03-HY1DUDStations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-03-HY1UDUStations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-03-HY1UUDStations: 6 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-03L-03BStations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-03L-03DStations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF16-03L-03UStations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF16-03L-04BStations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-03L-04DStations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF16-03L-04UStations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF16-03L-HY1BDUStations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-03L-HY1BUDStations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-03L-HY1DDUStations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-03L-HY1DUDStations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-03L-HY1UDUStations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-03L-HY1UUDStations: 6 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-03H-03BStations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-03H-03DStations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF16-03H-03UStations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF16-03H-04BStations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-03H-04DStations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF16-03H-04UStations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF16-03H-HY1BDUStations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-03H-HY1BUDStations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-03H-HY1DDUStations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-03H-HY1DUDStations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-03H-HY1UDUStations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-03H-HY1UUDStations: 6 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-03Z-03BStations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-03Z-03DStations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF16-03Z-03UStations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF16-03Z-04BStations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-03Z-04DStations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF16-03Z-04UStations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF16-03Z-HY1BDUStations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-03Z-HY1BUDStations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-03Z-HY1DDUStations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-03Z-HY1DUDStations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-03Z-HY1UDUStations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-03Z-HY1UUDStations: 6 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF16-03T-03BStations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF16-03T-03DStations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF16-03T-03UStations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF16-03T-04BStations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF16-03T-04DStations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF16-03T-04UStations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF16-03T-HY1BDUStations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF16-03T-HY1BUDStations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF16-03T-HY1DDUStations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF16-03T-HY1DUDStations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF16-03T-HY1UDUStations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF16-03T-HY1UUDStations: 6 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-02-03BStations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-02-03DStations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF17-02-03UStations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF17-02-04BStations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-02-04DStations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF17-02-04UStations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF17-02-HY1BDUStations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-02-HY1BUDStations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-02-HY1DDUStations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-02-HY1DUDStations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-02-HY1UDUStations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-02-HY1UUDStations: 7 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-02L-03BStations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-02L-03DStations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF17-02L-03UStations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF17-02L-04BStations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-02L-04DStations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF17-02L-04UStations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF17-02L-HY1BDUStations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-02L-HY1BUDStations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-02L-HY1DDUStations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-02L-HY1DUDStations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-02L-HY1UDUStations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-02L-HY1UUDStations: 7 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-02H-03BStations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-02H-03DStations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF17-02H-03UStations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF17-02H-04BStations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-02H-04DStations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF17-02H-04UStations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF17-02H-HY1BDUStations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-02H-HY1BUDStations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-02H-HY1DDUStations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-02H-HY1DUDStations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-02H-HY1UDUStations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-02H-HY1UUDStations: 7 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-02Z-03BStations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-02Z-03DStations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF17-02Z-03UStations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF17-02Z-04BStations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-02Z-04DStations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF17-02Z-04UStations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF17-02Z-HY1BDUStations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-02Z-HY1BUDStations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-02Z-HY1DDUStations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-02Z-HY1DUDStations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-02Z-HY1UDUStations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-02Z-HY1UUDStations: 7 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-02T-03BStations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-02T-03DStations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF17-02T-03UStations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF17-02T-04BStations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-02T-04DStations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF17-02T-04UStations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF17-02T-HY1BDUStations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-02T-HY1BUDStations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-02T-HY1DDUStations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-02T-HY1DUDStations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-02T-HY1UDUStations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-02T-HY1UUDStations: 7 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-03-03BStations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-03-03DStations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF17-03-03UStations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF17-03-04BStations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-03-04DStations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF17-03-04UStations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF17-03-HY1BDUStations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-03-HY1BUDStations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-03-HY1DDUStations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-03-HY1DUDStations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-03-HY1UDUStations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-03-HY1UUDStations: 7 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-03L-03BStations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-03L-03DStations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF17-03L-03UStations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF17-03L-04BStations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-03L-04DStations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF17-03L-04UStations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF17-03L-HY1BDUStations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-03L-HY1BUDStations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-03L-HY1DDUStations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-03L-HY1DUDStations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-03L-HY1UDUStations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-03L-HY1UUDStations: 7 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-03H-03BStations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-03H-03DStations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF17-03H-03UStations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF17-03H-04BStations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-03H-04DStations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF17-03H-04UStations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF17-03H-HY1BDUStations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-03H-HY1BUDStations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-03H-HY1DDUStations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-03H-HY1DUDStations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-03H-HY1UDUStations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-03H-HY1UUDStations: 7 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-03Z-03BStations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-03Z-03DStations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF17-03Z-03UStations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF17-03Z-04BStations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-03Z-04DStations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF17-03Z-04UStations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF17-03Z-HY1BDUStations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-03Z-HY1BUDStations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-03Z-HY1DDUStations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-03Z-HY1DUDStations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-03Z-HY1UDUStations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-03Z-HY1UUDStations: 7 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF17-03T-03BStations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF17-03T-03DStations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF17-03T-03UStations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF17-03T-04BStations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF17-03T-04DStations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF17-03T-04UStations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF17-03T-HY1BDUStations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF17-03T-HY1BUDStations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF17-03T-HY1DDUStations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF17-03T-HY1DUDStations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF17-03T-HY1UDUStations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF17-03T-HY1UUDStations: 7 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-02-03BStations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-02-03DStations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF18-02-03UStations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF18-02-04BStations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-02-04DStations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF18-02-04UStations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF18-02-HY1BDUStations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-02-HY1BUDStations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-02-HY1DDUStations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-02-HY1DUDStations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-02-HY1UDUStations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-02-HY1UUDStations: 8 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-02L-03BStations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-02L-03DStations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF18-02L-03UStations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF18-02L-04BStations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-02L-04DStations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF18-02L-04UStations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF18-02L-HY1BDUStations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-02L-HY1BUDStations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-02L-HY1DDUStations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-02L-HY1DUDStations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-02L-HY1UDUStations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-02L-HY1UUDStations: 8 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-02H-03BStations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-02H-03DStations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF18-02H-03UStations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF18-02H-04BStations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-02H-04DStations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF18-02H-04UStations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF18-02H-HY1BDUStations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-02H-HY1BUDStations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-02H-HY1DDUStations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-02H-HY1DUDStations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-02H-HY1UDUStations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-02H-HY1UUDStations: 8 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-02Z-03BStations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-02Z-03DStations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF18-02Z-03UStations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF18-02Z-04BStations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-02Z-04DStations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF18-02Z-04UStations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF18-02Z-HY1BDUStations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-02Z-HY1BUDStations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-02Z-HY1DDUStations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-02Z-HY1DUDStations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-02Z-HY1UDUStations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-02Z-HY1UUDStations: 8 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-02T-03BStations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-02T-03DStations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF18-02T-03UStations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF18-02T-04BStations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-02T-04DStations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF18-02T-04UStations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF18-02T-HY1BDUStations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-02T-HY1BUDStations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-02T-HY1DDUStations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-02T-HY1DUDStations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-02T-HY1UDUStations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-02T-HY1UUDStations: 8 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-03-03BStations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-03-03DStations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF18-03-03UStations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF18-03-04BStations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-03-04DStations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF18-03-04UStations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF18-03-HY1BDUStations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-03-HY1BUDStations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-03-HY1DDUStations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-03-HY1DUDStations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-03-HY1UDUStations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-03-HY1UUDStations: 8 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-03L-03BStations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-03L-03DStations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF18-03L-03UStations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF18-03L-04BStations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-03L-04DStations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF18-03L-04UStations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF18-03L-HY1BDUStations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-03L-HY1BUDStations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-03L-HY1DDUStations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-03L-HY1DUDStations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-03L-HY1UDUStations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-03L-HY1UUDStations: 8 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-03H-03BStations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-03H-03DStations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF18-03H-03UStations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF18-03H-04BStations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-03H-04DStations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF18-03H-04UStations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF18-03H-HY1BDUStations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-03H-HY1BUDStations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-03H-HY1DDUStations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-03H-HY1DUDStations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-03H-HY1UDUStations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-03H-HY1UUDStations: 8 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-03Z-03BStations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-03Z-03DStations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF18-03Z-03UStations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF18-03Z-04BStations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-03Z-04DStations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF18-03Z-04UStations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF18-03Z-HY1BDUStations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-03Z-HY1BUDStations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-03Z-HY1DDUStations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-03Z-HY1DUDStations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-03Z-HY1UDUStations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-03Z-HY1UUDStations: 8 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF18-03T-03BStations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF18-03T-03DStations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF18-03T-03UStations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF18-03T-04BStations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF18-03T-04DStations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF18-03T-04UStations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF18-03T-HY1BDUStations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF18-03T-HY1BUDStations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF18-03T-HY1DDUStations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF18-03T-HY1DUDStations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF18-03T-HY1UDUStations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF18-03T-HY1UUDStations: 8 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-02-03BStations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-02-03DStations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF19-02-03UStations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF19-02-04BStations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-02-04DStations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF19-02-04UStations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF19-02-HY1BDUStations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-02-HY1BUDStations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-02-HY1DDUStations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-02-HY1DUDStations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-02-HY1UDUStations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-02-HY1UUDStations: 9 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-02L-03BStations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-02L-03DStations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF19-02L-03UStations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF19-02L-04BStations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-02L-04DStations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF19-02L-04UStations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF19-02L-HY1BDUStations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-02L-HY1BUDStations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-02L-HY1DDUStations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-02L-HY1DUDStations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-02L-HY1UDUStations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-02L-HY1UUDStations: 9 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-02H-03BStations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-02H-03DStations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF19-02H-03UStations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF19-02H-04BStations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-02H-04DStations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF19-02H-04UStations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF19-02H-HY1BDUStations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-02H-HY1BUDStations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-02H-HY1DDUStations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-02H-HY1DUDStations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-02H-HY1UDUStations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-02H-HY1UUDStations: 9 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-02Z-03BStations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-02Z-03DStations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF19-02Z-03UStations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF19-02Z-04BStations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-02Z-04DStations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF19-02Z-04UStations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF19-02Z-HY1BDUStations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-02Z-HY1BUDStations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-02Z-HY1DDUStations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-02Z-HY1DUDStations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-02Z-HY1UDUStations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-02Z-HY1UUDStations: 9 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-02T-03BStations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-02T-03DStations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF19-02T-03UStations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF19-02T-04BStations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-02T-04DStations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF19-02T-04UStations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF19-02T-HY1BDUStations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-02T-HY1BUDStations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-02T-HY1DDUStations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-02T-HY1DUDStations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-02T-HY1UDUStations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-02T-HY1UUDStations: 9 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-03-03BStations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-03-03DStations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF19-03-03UStations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF19-03-04BStations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-03-04DStations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF19-03-04UStations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF19-03-HY1BDUStations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-03-HY1BUDStations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-03-HY1DDUStations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-03-HY1DUDStations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-03-HY1UDUStations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-03-HY1UUDStations: 9 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-03L-03BStations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-03L-03DStations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF19-03L-03UStations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF19-03L-04BStations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-03L-04DStations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF19-03L-04UStations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF19-03L-HY1BDUStations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-03L-HY1BUDStations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-03L-HY1DDUStations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-03L-HY1DUDStations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-03L-HY1UDUStations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-03L-HY1UUDStations: 9 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-03H-03BStations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-03H-03DStations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF19-03H-03UStations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF19-03H-04BStations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-03H-04DStations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF19-03H-04UStations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF19-03H-HY1BDUStations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-03H-HY1BUDStations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-03H-HY1DDUStations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-03H-HY1DUDStations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-03H-HY1UDUStations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-03H-HY1UUDStations: 9 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-03Z-03BStations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-03Z-03DStations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF19-03Z-03UStations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF19-03Z-04BStations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-03Z-04DStations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF19-03Z-04UStations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF19-03Z-HY1BDUStations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-03Z-HY1BUDStations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-03Z-HY1DDUStations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-03Z-HY1DUDStations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-03Z-HY1UDUStations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-03Z-HY1UUDStations: 9 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF19-03T-03BStations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF19-03T-03DStations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF19-03T-03UStations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF19-03T-04BStations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF19-03T-04DStations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF19-03T-04UStations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF19-03T-HY1BDUStations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF19-03T-HY1BUDStations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF19-03T-HY1DDUStations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF19-03T-HY1DUDStations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF19-03T-HY1UDUStations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF19-03T-HY1UUDStations: 9 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-02-03BStations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-02-03DStations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF110-02-03UStations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF110-02-04BStations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-02-04DStations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF110-02-04UStations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF110-02-HY1BDUStations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-02-HY1BUDStations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-02-HY1DDUStations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-02-HY1DUDStations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-02-HY1UDUStations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-02-HY1UUDStations: 10 | A/B port: Rc1/4 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-02L-03BStations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-02L-03DStations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF110-02L-03UStations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF110-02L-04BStations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-02L-04DStations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF110-02L-04UStations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF110-02L-HY1BDUStations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-02L-HY1BUDStations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-02L-HY1DDUStations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-02L-HY1DUDStations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-02L-HY1UDUStations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-02L-HY1UUDStations: 10 | A/B port: Rc1/4 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-02H-03BStations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-02H-03DStations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF110-02H-03UStations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF110-02H-04BStations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-02H-04DStations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF110-02H-04UStations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF110-02H-HY1BDUStations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-02H-HY1BUDStations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-02H-HY1DDUStations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-02H-HY1DUDStations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-02H-HY1UDUStations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-02H-HY1UUDStations: 10 | A/B port: Rc1/4 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-02Z-03BStations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-02Z-03DStations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF110-02Z-03UStations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF110-02Z-04BStations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-02Z-04DStations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF110-02Z-04UStations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF110-02Z-HY1BDUStations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-02Z-HY1BUDStations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-02Z-HY1DDUStations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-02Z-HY1DUDStations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-02Z-HY1UDUStations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-02Z-HY1UUDStations: 10 | A/B port: Rc1/4 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-02T-03BStations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-02T-03DStations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF110-02T-03UStations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF110-02T-04BStations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-02T-04DStations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF110-02T-04UStations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF110-02T-HY1BDUStations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-02T-HY1BUDStations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-02T-HY1DDUStations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-02T-HY1DUDStations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-02T-HY1UDUStations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-02T-HY1UUDStations: 10 | A/B port: Rc1/4 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-03-03BStations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-03-03DStations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Bottom
GMF110-03-03UStations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 | P/R position: Top
GMF110-03-04BStations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-03-04DStations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Bottom
GMF110-03-04UStations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc1/2 | P/R position: Top
GMF110-03-HY1BDUStations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-03-HY1BUDStations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-03-HY1DDUStations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-03-HY1DUDStations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-03-HY1UDUStations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-03-HY1UUDStations: 10 | A/B port: Rc3/8 | A/B position: Right side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-03L-03BStations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-03L-03DStations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Bottom
GMF110-03L-03UStations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 | P/R position: Top
GMF110-03L-04BStations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-03L-04DStations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Bottom
GMF110-03L-04UStations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc1/2 | P/R position: Top
GMF110-03L-HY1BDUStations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-03L-HY1BUDStations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-03L-HY1DDUStations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-03L-HY1DUDStations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-03L-HY1UDUStations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-03L-HY1UUDStations: 10 | A/B port: Rc3/8 | A/B position: Both sides (by spec sheet) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-03H-03BStations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-03H-03DStations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Bottom
GMF110-03H-03UStations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 | P/R position: Top
GMF110-03H-04BStations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-03H-04DStations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Bottom
GMF110-03H-04UStations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc1/2 | P/R position: Top
GMF110-03H-HY1BDUStations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-03H-HY1BUDStations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-03H-HY1DDUStations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-03H-HY1DUDStations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-03H-HY1UDUStations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-03H-HY1UUDStations: 10 | A/B port: Rc3/8 | A/B position: Left side | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-03Z-03BStations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-03Z-03DStations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Bottom
GMF110-03Z-03UStations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 | P/R position: Top
GMF110-03Z-04BStations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-03Z-04DStations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Bottom
GMF110-03Z-04UStations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc1/2 | P/R position: Top
GMF110-03Z-HY1BDUStations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-03Z-HY1BUDStations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-03Z-HY1DDUStations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-03Z-HY1DUDStations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-03Z-HY1UDUStations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-03Z-HY1UUDStations: 10 | A/B port: Rc3/8 | A/B position: Rear | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top
GMF110-03T-03BStations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top and bottom
GMF110-03T-03DStations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Bottom
GMF110-03T-03UStations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 | P/R position: Top
GMF110-03T-04BStations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top and bottom
GMF110-03T-04DStations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Bottom
GMF110-03T-04UStations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc1/2 | P/R position: Top
GMF110-03T-HY1BDUStations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top and bottom
GMF110-03T-HY1BUDStations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top and bottom
GMF110-03T-HY1DDUStations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Bottom
GMF110-03T-HY1DUDStations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Bottom
GMF110-03T-HY1UDUStations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 bottom, Rc1/2 top | P/R position: Top
GMF110-03T-HY1UUDStations: 10 | A/B port: Rc3/8 | A/B position: Free (plugs supplied) | P/R port: Rc3/8 top, Rc1/2 bottom | P/R position: Top

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
