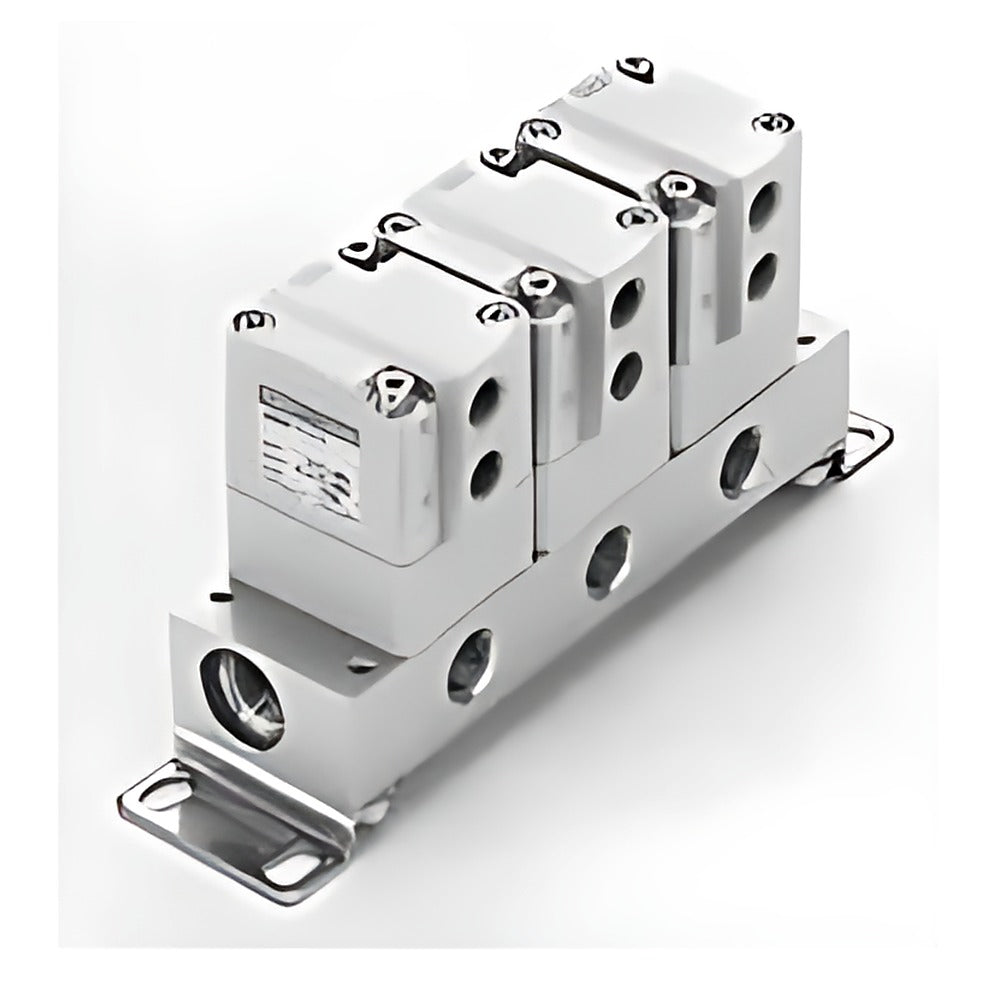

CKD GNAD Diaphragm Type Cylinder Valve Manifold (GNAD / GNADV)

CKD GNAD Diaphragm Type Cylinder Valve Manifold (GNAD / GNADV)

CKD GNAD/GNADV manifold-type diaphragm cylinder valves, 2 to 10 stations, for air, inert gas, water and low vacuum.

Key features

  • NC, NO and double-acting; GNADV for low vacuum
  • Common supply (C port) or individual supply (A port) sub-plate; 0 = actuator only
  • Stainless or aluminium sub-plate, stainless or polypropylene body, EPDM seal
  • Built from 2-, 3- and 5-station blocks; 11 stations or more on request

Specifications

Port size Rc1/4 (C), Rc3/8 (A)
Operating pressure GNAD 0-0.5 MPa; GNADV 1.3x10^2 to 5x10^5 Pa(abs)
Proof pressure 1.0 MPa (water)
Fluid temperature -10 to 50 C (no freezing)
Pilot pressure 0.4-0.5 MPa (Rc1/8)
Orifice 7 mm (Cv 0.7)
Source CKD Korea catalog CB-03-1SK-9, p. 632-635
GNAD1-1-2-R Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-2-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-2-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-3-R Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-3-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-3-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-4-R Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-4-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-4-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-5-R Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-5-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-5-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-6-R Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-6-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-6-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-7-R Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-7-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-7-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-8-R Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-8-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-8-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-9-R Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-9-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-9-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-10-R Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-10-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-10-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-0-R Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-0-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-0-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-2-R Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-2-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-2-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-3-R Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-3-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-3-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-4-R Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-4-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-4-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-5-R Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-5-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-5-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-6-R Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-6-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-6-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-7-R Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-7-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-7-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-8-R Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-8-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-8-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-9-R Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-9-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-9-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-10-R Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-10-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-10-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-0-R Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-0-8 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-0-3 Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-2-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-2-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-2-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-3-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-3-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-3-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-4-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-4-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-4-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-5-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-5-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-5-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-6-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-6-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-6-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-7-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-7-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-7-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-8-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-8-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-8-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-9-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-9-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-9-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-10-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-10-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-10-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-0-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-0-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-0-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-2-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-2-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-2-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-3-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-3-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-3-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-4-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-4-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-4-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-5-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-5-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-5-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-6-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-6-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-6-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-7-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-7-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-7-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-8-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-8-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-8-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-9-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-9-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-9-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-10-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-10-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-10-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-0-R Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-0-8 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-0-3 Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-2-R Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-2-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-2-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-3-R Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-3-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-3-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-4-R Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-4-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-4-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-5-R Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-5-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-5-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-6-R Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-6-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-6-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-7-R Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-7-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-7-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-8-R Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-8-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-8-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-9-R Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-9-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-9-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-10-R Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-10-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-10-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-0-R Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-0-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-0-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-2-R Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-2-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-2-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-3-R Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-3-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-3-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-4-R Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-4-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-4-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-5-R Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-5-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-5-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-6-R Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-6-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-6-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-7-R Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-7-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-7-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-8-R Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-8-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-8-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-9-R Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-9-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-9-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-10-R Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-10-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-10-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-0-R Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-0-8 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-0-3 Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-2-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-2-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-2-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-3-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-3-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-3-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-4-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-4-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-4-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-5-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-5-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-5-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-6-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-6-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-6-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-7-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-7-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-7-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-8-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-8-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-8-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-9-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-9-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-9-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-10-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-10-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-10-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-0-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-0-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-0-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-2-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-2-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-2-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-3-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-3-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-3-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-4-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-4-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-4-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-5-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-5-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-5-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-6-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-6-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-6-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-7-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-7-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-7-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-8-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-8-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-8-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-9-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-9-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-9-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-10-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-10-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-10-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-0-R Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-0-8 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-0-3 Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-2-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-2-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-2-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-3-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-3-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-3-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-4-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-4-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-4-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-5-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-5-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-5-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-6-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-6-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-6-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-7-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-7-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-7-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-8-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-8-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-8-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-9-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-9-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-9-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-10-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-10-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-10-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-0-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-0-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-0-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-2-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-2-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-2-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-3-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-3-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-3-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-4-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-4-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-4-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-5-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-5-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-5-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-6-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-6-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-6-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-7-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-7-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-7-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-8-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-8-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-8-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-9-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-9-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-9-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-10-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-10-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-10-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-0-R Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-0-8 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-0-3 Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-2-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-2-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-2-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-3-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-3-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-3-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-4-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-4-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-4-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-5-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-5-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-5-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-6-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-6-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-6-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-7-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-7-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-7-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-8-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-8-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-8-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-9-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-9-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-9-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-10-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-10-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-10-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-0-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-0-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-0-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-2-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-2-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-2-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-3-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-3-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-3-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-4-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-4-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-4-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-5-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-5-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-5-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-6-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-6-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-6-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-7-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-7-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-7-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-8-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-8-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-8-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-9-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-9-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-9-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-10-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-10-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-10-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-0-R Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-0-8 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-0-3 Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
Air Operated ValvesCKD
360 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GNAD Diaphragm Type Cylinder Valve Manifold (GNAD / GNADV)

Brand CKD·Air Operated Valves

Available part numbers (360)

GNAD1-1-2-R, GNAD1-1-2-8, GNAD1-1-2-3, GNAD1-1-3-R, GNAD1-1-3-8, GNAD1-1-3-3, GNAD1-1-4-R, GNAD1-1-4-8, GNAD1-1-4-3, GNAD1-1-5-R + 350 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GNAD1-1-2-ROperation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-2-8Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-2-3Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-3-ROperation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-3-8Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-3-3Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-4-ROperation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-4-8Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-4-3Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-5-ROperation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-5-8Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-5-3Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-6-ROperation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-6-8Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-6-3Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-7-ROperation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-7-8Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-7-3Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-8-ROperation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-8-8Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-8-3Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-9-ROperation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-9-8Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-9-3Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-10-ROperation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-10-8Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-10-3Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-1-0-ROperation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-1-0-8Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-1-0-3Operation: NC | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-2-ROperation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-2-8Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-2-3Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-3-ROperation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-3-8Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-3-3Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-4-ROperation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-4-8Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-4-3Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-5-ROperation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-5-8Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-5-3Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-6-ROperation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-6-8Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-6-3Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-7-ROperation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-7-8Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-7-3Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-8-ROperation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-8-8Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-8-3Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-9-ROperation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-9-8Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-9-3Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-10-ROperation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-10-8Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-10-3Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1-5-0-ROperation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1-5-0-8Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1-5-0-3Operation: NC | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-2-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-2-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-2-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-3-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-3-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-3-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-4-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-4-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-4-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-5-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-5-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-5-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-6-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-6-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-6-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-7-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-7-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-7-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-8-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-8-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-8-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-9-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-9-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-9-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-10-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-10-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-10-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-1-0-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-1-0-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-1-0-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-2-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-2-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-2-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-3-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-3-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-3-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-4-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-4-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-4-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-5-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-5-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-5-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-6-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-6-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-6-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-7-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-7-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-7-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-8-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-8-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-8-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-9-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-9-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-9-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-10-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-10-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-10-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD1V-5-0-ROperation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD1V-5-0-8Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD1V-5-0-3Operation: NC | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-2-ROperation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-2-8Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-2-3Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-3-ROperation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-3-8Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-3-3Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-4-ROperation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-4-8Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-4-3Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-5-ROperation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-5-8Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-5-3Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-6-ROperation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-6-8Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-6-3Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-7-ROperation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-7-8Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-7-3Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-8-ROperation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-8-8Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-8-3Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-9-ROperation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-9-8Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-9-3Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-10-ROperation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-10-8Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-10-3Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-1-0-ROperation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-1-0-8Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-1-0-3Operation: NO | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-2-ROperation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-2-8Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-2-3Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-3-ROperation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-3-8Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-3-3Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-4-ROperation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-4-8Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-4-3Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-5-ROperation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-5-8Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-5-3Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-6-ROperation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-6-8Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-6-3Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-7-ROperation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-7-8Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-7-3Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-8-ROperation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-8-8Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-8-3Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-9-ROperation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-9-8Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-9-3Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-10-ROperation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-10-8Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-10-3Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2-5-0-ROperation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2-5-0-8Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2-5-0-3Operation: NO | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-2-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-2-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-2-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-3-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-3-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-3-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-4-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-4-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-4-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-5-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-5-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-5-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-6-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-6-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-6-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-7-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-7-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-7-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-8-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-8-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-8-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-9-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-9-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-9-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-10-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-10-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-10-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-1-0-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-1-0-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-1-0-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-2-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-2-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-2-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-3-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-3-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-3-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-4-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-4-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-4-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-5-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-5-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-5-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-6-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-6-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-6-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-7-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-7-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-7-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-8-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-8-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-8-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-9-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-9-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-9-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-10-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-10-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-10-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD2V-5-0-ROperation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD2V-5-0-8Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD2V-5-0-3Operation: NO | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-2-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-2-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-2-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-3-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-3-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-3-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-4-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-4-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-4-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-5-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-5-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-5-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-6-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-6-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-6-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-7-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-7-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-7-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-8-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-8-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-8-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-9-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-9-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-9-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-10-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-10-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-10-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-1-0-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-1-0-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-1-0-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-2-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-2-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-2-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-3-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-3-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-3-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-4-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-4-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-4-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-5-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-5-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-5-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-6-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-6-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-6-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-7-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-7-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-7-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-8-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-8-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-8-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-9-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-9-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-9-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-10-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-10-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-10-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3-5-0-ROperation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3-5-0-8Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3-5-0-3Operation: Double acting | Fluid: Air, inert gas, water | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-2-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-2-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-2-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-3-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-3-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-3-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-4-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-4-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-4-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-5-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-5-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-5-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-6-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-6-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-6-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-7-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-7-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-7-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-8-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-8-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-8-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-9-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-9-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-9-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-10-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-10-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-10-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-1-0-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-1-0-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-1-0-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Common supply (C port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-2-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-2-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-2-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 2 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-3-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-3-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-3-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 3 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-4-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-4-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-4-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 4 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-5-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-5-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-5-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 5 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-6-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-6-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-6-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 6 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-7-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-7-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-7-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 7 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-8-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-8-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-8-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 8 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-9-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-9-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-9-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 9 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-10-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-10-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-10-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: 10 | Sub-plate / body / seal: Aluminium / PP body / EPDM
GNAD3V-5-0-ROperation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / stainless / EPDM
GNAD3V-5-0-8Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Stainless / PP body / EPDM
GNAD3V-5-0-3Operation: Double acting | Fluid: Low vacuum (air, water) | Supply: Individual supply (A port) | Stations: Actuator only | Sub-plate / body / seal: Aluminium / PP body / EPDM

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
