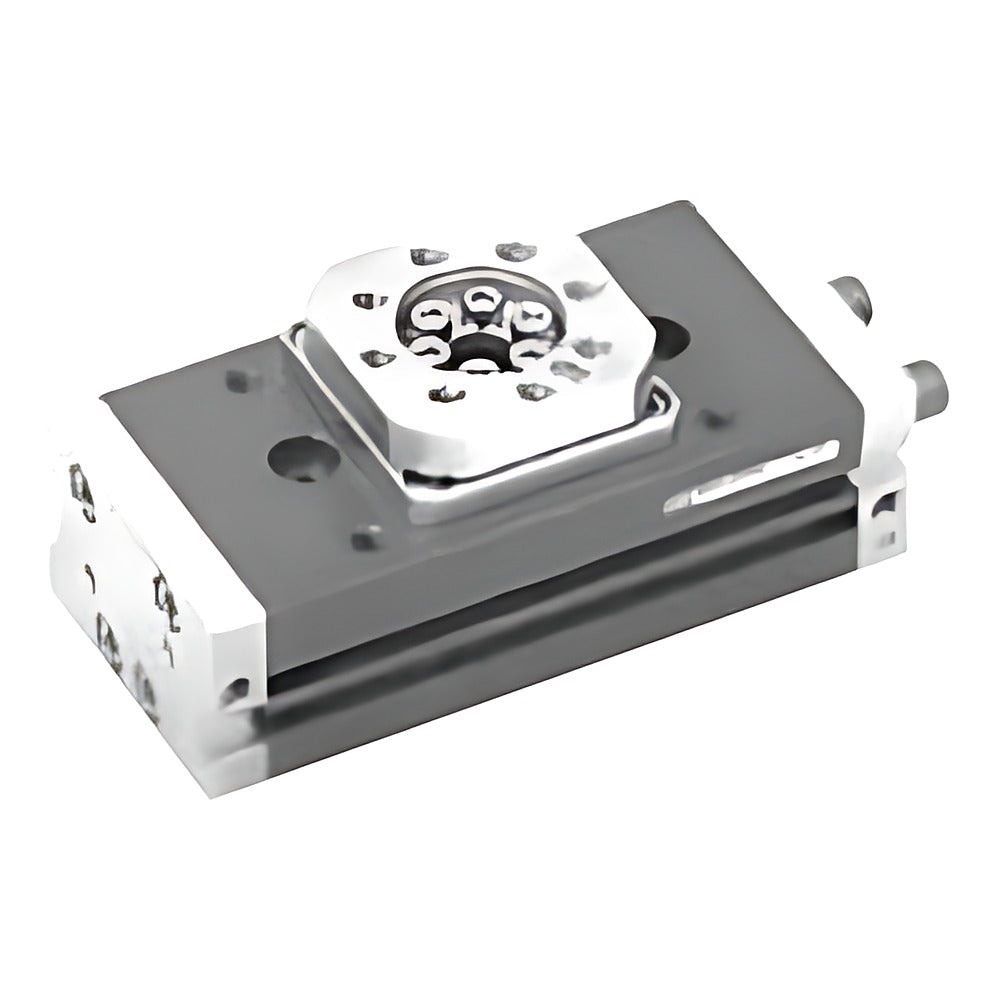

CKD GRC-F/GRC-KF Low-Speed Table Rotary Actuator (Clean P73)

CKD GRC-F/GRC-KF Low-Speed Table Rotary Actuator (Clean P73)

CKD GRC-F and high-precision GRC-KF low-speed table rotary actuators in P73 vacuum-sweep clean version, sizes 5-80.

Key features

  • Stable low-speed rotation: rotation time adjustable 0.2-25 s/90 deg
  • Same dimensions as GRC/GRC-K; 90 or 180 deg rotation with stopper-bolt angle adjustment
  • Switch magnet built in; T-series switches ordered in the code, e.g. GRC-F-10-180-T2V-D-P73
  • Vacuum sweep relief port (M5) for particle exhaust; P53 version not available

Specifications

Operation Rack and pinion, double acting
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature 5 to 60 C
Port size M5 (5-30), Rc1/8 (50, 80)
Clean spec P73 vacuum sweep
Lubrication Not allowed
Source CKD Korea catalog CB-033S-4, p. 309-310
GRC-F-5-90-P73 Type: Low speed | Size: 5 | Torque at 0.5 MPa: 0.5 N.m | Rotation: 90 deg
GRC-F-5-180-P73 Type: Low speed | Size: 5 | Torque at 0.5 MPa: 0.5 N.m | Rotation: 180 deg
GRC-F-10-90-P73 Type: Low speed | Size: 10 | Torque at 0.5 MPa: 1.0 N.m | Rotation: 90 deg
GRC-F-10-180-P73 Type: Low speed | Size: 10 | Torque at 0.5 MPa: 1.0 N.m | Rotation: 180 deg
GRC-F-20-90-P73 Type: Low speed | Size: 20 | Torque at 0.5 MPa: 2.0 N.m | Rotation: 90 deg
GRC-F-20-180-P73 Type: Low speed | Size: 20 | Torque at 0.5 MPa: 2.0 N.m | Rotation: 180 deg
GRC-F-30-90-P73 Type: Low speed | Size: 30 | Torque at 0.5 MPa: 3.0 N.m | Rotation: 90 deg
GRC-F-30-180-P73 Type: Low speed | Size: 30 | Torque at 0.5 MPa: 3.0 N.m | Rotation: 180 deg
GRC-F-50-90-P73 Type: Low speed | Size: 50 | Torque at 0.5 MPa: 5.2 N.m | Rotation: 90 deg
GRC-F-50-180-P73 Type: Low speed | Size: 50 | Torque at 0.5 MPa: 5.2 N.m | Rotation: 180 deg
GRC-F-80-90-P73 Type: Low speed | Size: 80 | Torque at 0.5 MPa: 8.1 N.m | Rotation: 90 deg
GRC-F-80-180-P73 Type: Low speed | Size: 80 | Torque at 0.5 MPa: 8.1 N.m | Rotation: 180 deg
GRC-KF-10-90-P73 Type: High precision low speed | Size: 10 | Torque at 0.5 MPa: 1.0 N.m | Rotation: 90 deg
GRC-KF-10-180-P73 Type: High precision low speed | Size: 10 | Torque at 0.5 MPa: 1.0 N.m | Rotation: 180 deg
GRC-KF-20-90-P73 Type: High precision low speed | Size: 20 | Torque at 0.5 MPa: 2.0 N.m | Rotation: 90 deg
GRC-KF-20-180-P73 Type: High precision low speed | Size: 20 | Torque at 0.5 MPa: 2.0 N.m | Rotation: 180 deg
GRC-KF-30-90-P73 Type: High precision low speed | Size: 30 | Torque at 0.5 MPa: 3.0 N.m | Rotation: 90 deg
GRC-KF-30-180-P73 Type: High precision low speed | Size: 30 | Torque at 0.5 MPa: 3.0 N.m | Rotation: 180 deg
GRC-KF-50-90-P73 Type: High precision low speed | Size: 50 | Torque at 0.5 MPa: 5.2 N.m | Rotation: 90 deg
GRC-KF-50-180-P73 Type: High precision low speed | Size: 50 | Torque at 0.5 MPa: 5.2 N.m | Rotation: 180 deg
GRC-KF-80-90-P73 Type: High precision low speed | Size: 80 | Torque at 0.5 MPa: 8.1 N.m | Rotation: 90 deg
GRC-KF-80-180-P73 Type: High precision low speed | Size: 80 | Torque at 0.5 MPa: 8.1 N.m | Rotation: 180 deg
