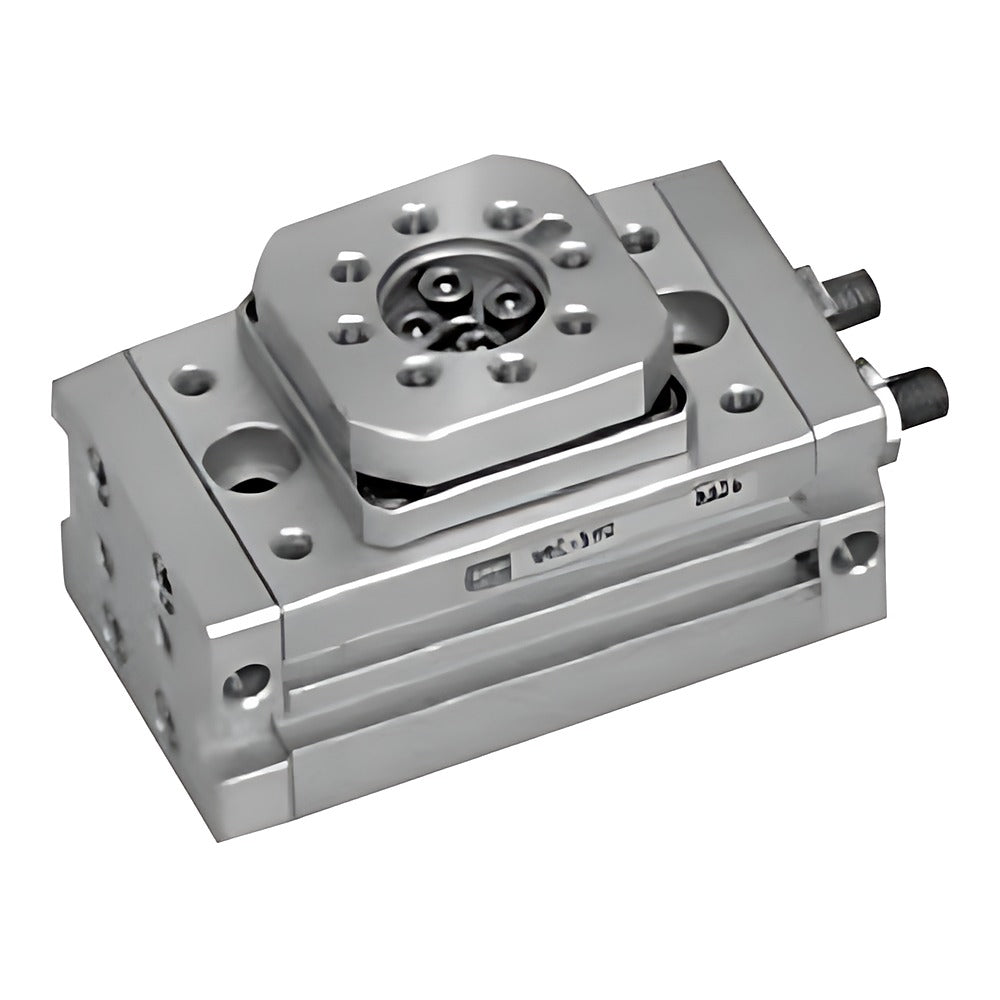

CKD GRC/GRC-K Table Rotary Actuator (Clean Room P73/P53)

CKD GRC/GRC-K Table Rotary Actuator (Clean Room P73/P53)

CKD GRC (basic) and GRC-K (high-precision) rack-and-pinion table rotary actuators in vacuum-sweep clean versions P73 and P53, sizes 5-80.

Key features

  • Bearing-guided table takes heavy loads directly; GRC-K table run-out +/-0.026 deg
  • Rotation 90 deg (adjustable 0-100 deg) or 180 deg (adjustable 90-190 deg) with stopper bolts
  • Switch magnet built in; T-series switches and quantity R/L/D ordered in the code, e.g. GRC-10-180-T2V-D-P73
  • Vacuum sweep relief port (M5) draws out particles; P53 (made-to-order) excludes copper, silicone and halogen materials
  • NPT/G port threads for sizes 50, 80 are made-to-order

Specifications

Operation Rack and pinion, double acting
Fluid Compressed air
Max. operating pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature 0 to 60 C
Port size M5 (5-30), Rc1/8 (50, 80)
Relief port M5
Cushion Rubber
Lubrication Not allowed
Rotation time range 0.2-1.5 s/90 deg
Source CKD Korea catalog CB-033S-4, p. 296-323
GRC-5-90-P73 Type: Basic | Size: 5 | Torque at 0.5 MPa: 0.5 N.m | Rotation: 90 deg | Clean spec: P73 vacuum sweep
GRC-5-90-P53 Type: Basic | Size: 5 | Torque at 0.5 MPa: 0.5 N.m | Rotation: 90 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-5-180-P73 Type: Basic | Size: 5 | Torque at 0.5 MPa: 0.5 N.m | Rotation: 180 deg | Clean spec: P73 vacuum sweep
GRC-5-180-P53 Type: Basic | Size: 5 | Torque at 0.5 MPa: 0.5 N.m | Rotation: 180 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-10-90-P73 Type: Basic | Size: 10 | Torque at 0.5 MPa: 1.0 N.m | Rotation: 90 deg | Clean spec: P73 vacuum sweep
GRC-10-90-P53 Type: Basic | Size: 10 | Torque at 0.5 MPa: 1.0 N.m | Rotation: 90 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-10-180-P73 Type: Basic | Size: 10 | Torque at 0.5 MPa: 1.0 N.m | Rotation: 180 deg | Clean spec: P73 vacuum sweep
GRC-10-180-P53 Type: Basic | Size: 10 | Torque at 0.5 MPa: 1.0 N.m | Rotation: 180 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-20-90-P73 Type: Basic | Size: 20 | Torque at 0.5 MPa: 2.0 N.m | Rotation: 90 deg | Clean spec: P73 vacuum sweep
GRC-20-90-P53 Type: Basic | Size: 20 | Torque at 0.5 MPa: 2.0 N.m | Rotation: 90 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-20-180-P73 Type: Basic | Size: 20 | Torque at 0.5 MPa: 2.0 N.m | Rotation: 180 deg | Clean spec: P73 vacuum sweep
GRC-20-180-P53 Type: Basic | Size: 20 | Torque at 0.5 MPa: 2.0 N.m | Rotation: 180 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-30-90-P73 Type: Basic | Size: 30 | Torque at 0.5 MPa: 3.0 N.m | Rotation: 90 deg | Clean spec: P73 vacuum sweep
GRC-30-90-P53 Type: Basic | Size: 30 | Torque at 0.5 MPa: 3.0 N.m | Rotation: 90 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-30-180-P73 Type: Basic | Size: 30 | Torque at 0.5 MPa: 3.0 N.m | Rotation: 180 deg | Clean spec: P73 vacuum sweep
GRC-30-180-P53 Type: Basic | Size: 30 | Torque at 0.5 MPa: 3.0 N.m | Rotation: 180 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-50-90-P73 Type: Basic | Size: 50 | Torque at 0.5 MPa: 5.2 N.m | Rotation: 90 deg | Clean spec: P73 vacuum sweep
GRC-50-90-P53 Type: Basic | Size: 50 | Torque at 0.5 MPa: 5.2 N.m | Rotation: 90 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-50-180-P73 Type: Basic | Size: 50 | Torque at 0.5 MPa: 5.2 N.m | Rotation: 180 deg | Clean spec: P73 vacuum sweep
GRC-50-180-P53 Type: Basic | Size: 50 | Torque at 0.5 MPa: 5.2 N.m | Rotation: 180 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-80-90-P73 Type: Basic | Size: 80 | Torque at 0.5 MPa: 8.1 N.m | Rotation: 90 deg | Clean spec: P73 vacuum sweep
GRC-80-90-P53 Type: Basic | Size: 80 | Torque at 0.5 MPa: 8.1 N.m | Rotation: 90 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-80-180-P73 Type: Basic | Size: 80 | Torque at 0.5 MPa: 8.1 N.m | Rotation: 180 deg | Clean spec: P73 vacuum sweep
GRC-80-180-P53 Type: Basic | Size: 80 | Torque at 0.5 MPa: 8.1 N.m | Rotation: 180 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-K-10-90-P73 Type: High precision | Size: 10 | Torque at 0.5 MPa: 1.0 N.m | Rotation: 90 deg | Clean spec: P73 vacuum sweep
GRC-K-10-90-P53 Type: High precision | Size: 10 | Torque at 0.5 MPa: 1.0 N.m | Rotation: 90 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-K-10-180-P73 Type: High precision | Size: 10 | Torque at 0.5 MPa: 1.0 N.m | Rotation: 180 deg | Clean spec: P73 vacuum sweep
GRC-K-10-180-P53 Type: High precision | Size: 10 | Torque at 0.5 MPa: 1.0 N.m | Rotation: 180 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-K-20-90-P73 Type: High precision | Size: 20 | Torque at 0.5 MPa: 2.0 N.m | Rotation: 90 deg | Clean spec: P73 vacuum sweep
GRC-K-20-90-P53 Type: High precision | Size: 20 | Torque at 0.5 MPa: 2.0 N.m | Rotation: 90 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-K-20-180-P73 Type: High precision | Size: 20 | Torque at 0.5 MPa: 2.0 N.m | Rotation: 180 deg | Clean spec: P73 vacuum sweep
GRC-K-20-180-P53 Type: High precision | Size: 20 | Torque at 0.5 MPa: 2.0 N.m | Rotation: 180 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-K-30-90-P73 Type: High precision | Size: 30 | Torque at 0.5 MPa: 3.0 N.m | Rotation: 90 deg | Clean spec: P73 vacuum sweep
GRC-K-30-90-P53 Type: High precision | Size: 30 | Torque at 0.5 MPa: 3.0 N.m | Rotation: 90 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-K-30-180-P73 Type: High precision | Size: 30 | Torque at 0.5 MPa: 3.0 N.m | Rotation: 180 deg | Clean spec: P73 vacuum sweep
GRC-K-30-180-P53 Type: High precision | Size: 30 | Torque at 0.5 MPa: 3.0 N.m | Rotation: 180 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-K-50-90-P73 Type: High precision | Size: 50 | Torque at 0.5 MPa: 5.2 N.m | Rotation: 90 deg | Clean spec: P73 vacuum sweep
GRC-K-50-90-P53 Type: High precision | Size: 50 | Torque at 0.5 MPa: 5.2 N.m | Rotation: 90 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-K-50-180-P73 Type: High precision | Size: 50 | Torque at 0.5 MPa: 5.2 N.m | Rotation: 180 deg | Clean spec: P73 vacuum sweep
GRC-K-50-180-P53 Type: High precision | Size: 50 | Torque at 0.5 MPa: 5.2 N.m | Rotation: 180 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-K-80-90-P73 Type: High precision | Size: 80 | Torque at 0.5 MPa: 8.1 N.m | Rotation: 90 deg | Clean spec: P73 vacuum sweep
GRC-K-80-90-P53 Type: High precision | Size: 80 | Torque at 0.5 MPa: 8.1 N.m | Rotation: 90 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
GRC-K-80-180-P73 Type: High precision | Size: 80 | Torque at 0.5 MPa: 8.1 N.m | Rotation: 180 deg | Clean spec: P73 vacuum sweep
GRC-K-80-180-P53 Type: High precision | Size: 80 | Torque at 0.5 MPa: 8.1 N.m | Rotation: 180 deg | Clean spec: P53 vacuum sweep, Cu/Si/halogen-free
Rotary ActuatorsCKD
44 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GRC/GRC-K Table Rotary Actuator (Clean Room P73/P53)

Brand CKD·Rotary Actuators

Available part numbers (44)

GRC-5-90-P73, GRC-5-90-P53, GRC-5-180-P73, GRC-5-180-P53, GRC-10-90-P73, GRC-10-90-P53, GRC-10-180-P73, GRC-10-180-P53, GRC-20-90-P73, GRC-20-90-P53 + 34 more — see full table ↓
