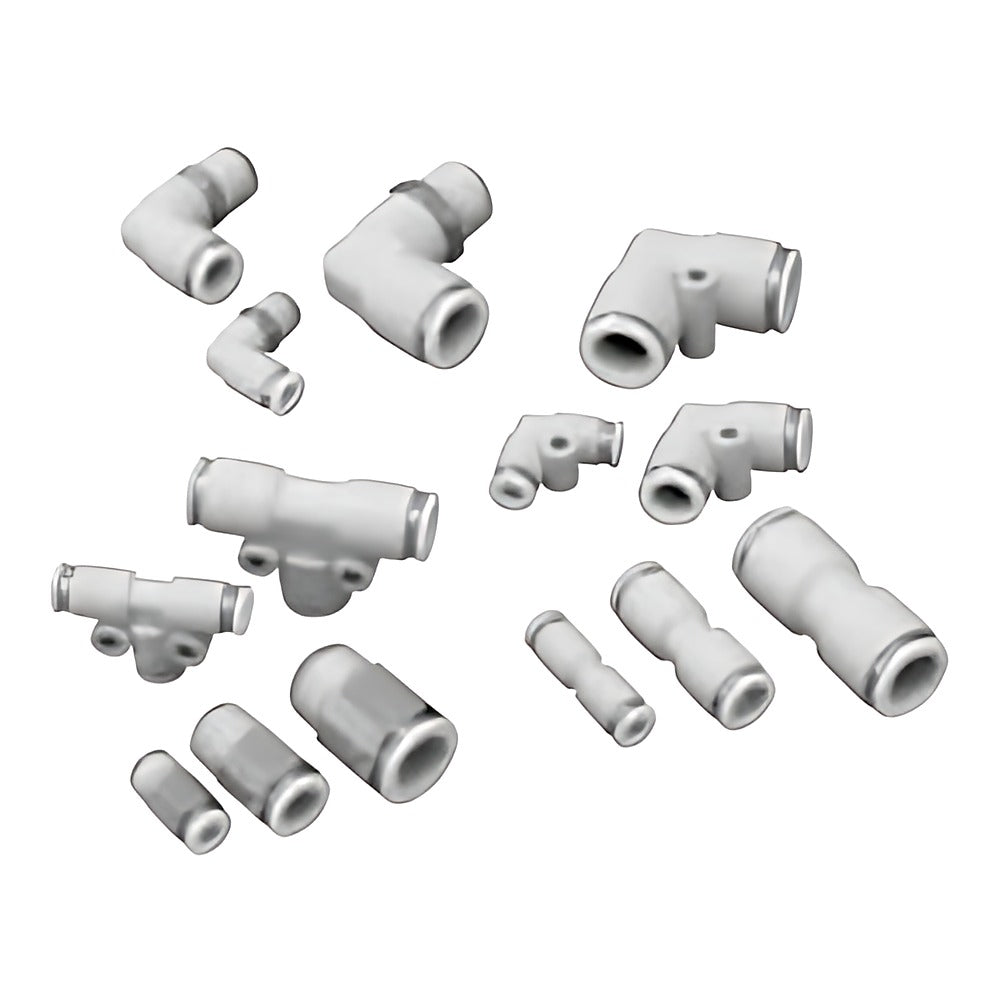

CKD GW-FP1 New Joint Push-in Fittings (Food Grade, Tube 4-16 mm)

CKD GW-FP1 New Joint Push-in Fittings (Food Grade, Tube 4-16 mm)

CKD GW-FP1 new joint push-in fittings for food-processing lines, with brass electroless-nickel or flame-retardant PBT bodies.

Key features

  • FP1 food-processing series using NSF H1 registered grease
  • Straight, elbow, tee, tetra, Y, FY, double Y, cross, cap, conversion and manifold shapes
  • Male threads M5 and R1/8 to R1/2, plug-in and threadless types; long, turn, D, bulkhead, round, female, 45 deg variants
  • Stainless chuck, nitrile packing, brass (electroless Ni) or flame-retardant PBT (UL94 V-0 equiv.) body
  • For soft nylon F-15 and urethane U-95/NU tubes

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa
Vacuum -100 kPa
Ambient temperature -10 to 60 C (no freezing)
Sales unit 10 pcs / 1 set
Source CKD Korea catalog CC-1271K-5, p. 290-291
GWS4-M5-FP1 Shape: Straight | Tube OD: 4 mm | Connection: M5 | Variant: -
GWS4-6-FP1 Shape: Straight | Tube OD: 4 mm | Connection: R1/8 | Variant: -
GWS4-8-FP1 Shape: Straight | Tube OD: 4 mm | Connection: R1/4 | Variant: -
GWS6-M5-FP1 Shape: Straight | Tube OD: 6 mm | Connection: M5 | Variant: -
GWS6-6-FP1 Shape: Straight | Tube OD: 6 mm | Connection: R1/8 | Variant: -
GWS6-8-FP1 Shape: Straight | Tube OD: 6 mm | Connection: R1/4 | Variant: -
GWS6-10-FP1 Shape: Straight | Tube OD: 6 mm | Connection: R3/8 | Variant: -
GWS8-6-FP1 Shape: Straight | Tube OD: 8 mm | Connection: R1/8 | Variant: -
GWS8-8-FP1 Shape: Straight | Tube OD: 8 mm | Connection: R1/4 | Variant: -
GWS8-10-FP1 Shape: Straight | Tube OD: 8 mm | Connection: R3/8 | Variant: -
GWS10-6-FP1 Shape: Straight | Tube OD: 10 mm | Connection: R1/8 | Variant: -
GWS10-8-FP1 Shape: Straight | Tube OD: 10 mm | Connection: R1/4 | Variant: -
GWS10-10-FP1 Shape: Straight | Tube OD: 10 mm | Connection: R3/8 | Variant: -
GWS10-15-FP1 Shape: Straight | Tube OD: 10 mm | Connection: R1/2 | Variant: -
GWS12-8-FP1 Shape: Straight | Tube OD: 12 mm | Connection: R1/4 | Variant: -
GWS12-10-FP1 Shape: Straight | Tube OD: 12 mm | Connection: R3/8 | Variant: -
GWS12-15-FP1 Shape: Straight | Tube OD: 12 mm | Connection: R1/2 | Variant: -
GWS16-10-FP1 Shape: Straight | Tube OD: 16 mm | Connection: R3/8 | Variant: -
GWS16-15-FP1 Shape: Straight | Tube OD: 16 mm | Connection: R1/2 | Variant: -
GWS4-M5-S-FP1 Shape: Straight | Tube OD: 4 mm | Connection: M5 | Variant: Round
GWS4-6-S-FP1 Shape: Straight | Tube OD: 4 mm | Connection: R1/8 | Variant: Round
GWS6-M5-S-FP1 Shape: Straight | Tube OD: 6 mm | Connection: M5 | Variant: Round
GWS6-6-S-FP1 Shape: Straight | Tube OD: 6 mm | Connection: R1/8 | Variant: Round
GWS6-8-S-FP1 Shape: Straight | Tube OD: 6 mm | Connection: R1/4 | Variant: Round
GWS8-6-S-FP1 Shape: Straight | Tube OD: 8 mm | Connection: R1/8 | Variant: Round
GWS8-8-S-FP1 Shape: Straight | Tube OD: 8 mm | Connection: R1/4 | Variant: Round
GWS8-10-S-FP1 Shape: Straight | Tube OD: 8 mm | Connection: R3/8 | Variant: Round
GWS10-6-S-FP1 Shape: Straight | Tube OD: 10 mm | Connection: R1/8 | Variant: Round
GWS10-8-S-FP1 Shape: Straight | Tube OD: 10 mm | Connection: R1/4 | Variant: Round
GWS10-10-S-FP1 Shape: Straight | Tube OD: 10 mm | Connection: R3/8 | Variant: Round
GWS10-15-S-FP1 Shape: Straight | Tube OD: 10 mm | Connection: R1/2 | Variant: Round
GWS12-8-S-FP1 Shape: Straight | Tube OD: 12 mm | Connection: R1/4 | Variant: Round
GWS12-10-S-FP1 Shape: Straight | Tube OD: 12 mm | Connection: R3/8 | Variant: Round
GWS12-15-S-FP1 Shape: Straight | Tube OD: 12 mm | Connection: R1/2 | Variant: Round
GWS4-6-M-FP1 Shape: Straight | Tube OD: 4 mm | Connection: R1/8 | Variant: Female
GWS4-8-M-FP1 Shape: Straight | Tube OD: 4 mm | Connection: R1/4 | Variant: Female
GWS6-6-M-FP1 Shape: Straight | Tube OD: 6 mm | Connection: R1/8 | Variant: Female
GWS6-8-M-FP1 Shape: Straight | Tube OD: 6 mm | Connection: R1/4 | Variant: Female
GWS6-10-M-FP1 Shape: Straight | Tube OD: 6 mm | Connection: R3/8 | Variant: Female
GWS8-6-M-FP1 Shape: Straight | Tube OD: 8 mm | Connection: R1/8 | Variant: Female
GWS8-8-M-FP1 Shape: Straight | Tube OD: 8 mm | Connection: R1/4 | Variant: Female
GWS8-10-M-FP1 Shape: Straight | Tube OD: 8 mm | Connection: R3/8 | Variant: Female
GWS10-8-M-FP1 Shape: Straight | Tube OD: 10 mm | Connection: R1/4 | Variant: Female
GWS10-10-M-FP1 Shape: Straight | Tube OD: 10 mm | Connection: R3/8 | Variant: Female
GWS12-8-M-FP1 Shape: Straight | Tube OD: 12 mm | Connection: R1/4 | Variant: Female
GWS12-10-M-FP1 Shape: Straight | Tube OD: 12 mm | Connection: R3/8 | Variant: Female
GWS12-15-M-FP1 Shape: Straight | Tube OD: 12 mm | Connection: R1/2 | Variant: Female
GWS4-6-E-FP1 Shape: Straight | Tube OD: 4 mm | Connection: R1/8 | Variant: Panel (female)
GWS4-8-E-FP1 Shape: Straight | Tube OD: 4 mm | Connection: R1/4 | Variant: Panel (female)
GWS6-6-E-FP1 Shape: Straight | Tube OD: 6 mm | Connection: R1/8 | Variant: Panel (female)
GWS6-8-E-FP1 Shape: Straight | Tube OD: 6 mm | Connection: R1/4 | Variant: Panel (female)
GWS6-10-E-FP1 Shape: Straight | Tube OD: 6 mm | Connection: R3/8 | Variant: Panel (female)
GWS8-6-E-FP1 Shape: Straight | Tube OD: 8 mm | Connection: R1/8 | Variant: Panel (female)
GWS8-8-E-FP1 Shape: Straight | Tube OD: 8 mm | Connection: R1/4 | Variant: Panel (female)
GWS8-10-E-FP1 Shape: Straight | Tube OD: 8 mm | Connection: R3/8 | Variant: Panel (female)
GWS10-8-E-FP1 Shape: Straight | Tube OD: 10 mm | Connection: R1/4 | Variant: Panel (female)
GWS10-10-E-FP1 Shape: Straight | Tube OD: 10 mm | Connection: R3/8 | Variant: Panel (female)
GWS12-10-E-FP1 Shape: Straight | Tube OD: 12 mm | Connection: R3/8 | Variant: Panel (female)
GWS12-15-E-FP1 Shape: Straight | Tube OD: 12 mm | Connection: R1/2 | Variant: Panel (female)
GWS4-0-X-FP1 Shape: Straight | Tube OD: 4 mm | Connection: No thread | Variant: Bulkhead
GWS6-0-X-FP1 Shape: Straight | Tube OD: 6 mm | Connection: No thread | Variant: Bulkhead
GWS8-0-X-FP1 Shape: Straight | Tube OD: 8 mm | Connection: No thread | Variant: Bulkhead
GWS10-0-X-FP1 Shape: Straight | Tube OD: 10 mm | Connection: No thread | Variant: Bulkhead
GWS12-0-X-FP1 Shape: Straight | Tube OD: 12 mm | Connection: No thread | Variant: Bulkhead
GWM4-0-X-FP1 Shape: Conversion joint | Tube OD: 4 mm | Connection: No thread | Variant: Bulkhead
GWM6-0-X-FP1 Shape: Conversion joint | Tube OD: 6 mm | Connection: No thread | Variant: Bulkhead
GWM8-0-X-FP1 Shape: Conversion joint | Tube OD: 8 mm | Connection: No thread | Variant: Bulkhead
GWM10-0-X-FP1 Shape: Conversion joint | Tube OD: 10 mm | Connection: No thread | Variant: Bulkhead
GWM12-0-X-FP1 Shape: Conversion joint | Tube OD: 12 mm | Connection: No thread | Variant: Bulkhead
GWS4-0-FP1 Shape: Straight | Tube OD: 4 mm | Connection: No thread | Variant: -
GWS6-0-FP1 Shape: Straight | Tube OD: 6 mm | Connection: No thread | Variant: -
GWS8-0-FP1 Shape: Straight | Tube OD: 8 mm | Connection: No thread | Variant: -
GWS10-0-FP1 Shape: Straight | Tube OD: 10 mm | Connection: No thread | Variant: -
GWS12-0-FP1 Shape: Straight | Tube OD: 12 mm | Connection: No thread | Variant: -
GWS16-0-FP1 Shape: Straight | Tube OD: 16 mm | Connection: No thread | Variant: -
GWS46-0-FP1 Shape: Straight | Tube OD: 4/6 mm | Connection: No thread | Variant: -
GWS68-0-FP1 Shape: Straight | Tube OD: 6/8 mm | Connection: No thread | Variant: -
GWS810-0-FP1 Shape: Straight | Tube OD: 8/10 mm | Connection: No thread | Variant: -
GWS1012-0-FP1 Shape: Straight | Tube OD: 10/12 mm | Connection: No thread | Variant: -
GWS4-6P-FP1 Shape: Straight | Tube OD: 4 mm | Connection: Plug for 6 | Variant: -
GWS6-4P-FP1 Shape: Straight | Tube OD: 6 mm | Connection: Plug for 4 | Variant: -
GWS6-8P-FP1 Shape: Straight | Tube OD: 6 mm | Connection: Plug for 8 | Variant: -
GWS6-10P-FP1 Shape: Straight | Tube OD: 6 mm | Connection: Plug for 10 | Variant: -
GWS8-10P-FP1 Shape: Straight | Tube OD: 8 mm | Connection: Plug for 10 | Variant: -
GWS8-12P-FP1 Shape: Straight | Tube OD: 8 mm | Connection: Plug for 12 | Variant: -
GWS10-12P-FP1 Shape: Straight | Tube OD: 10 mm | Connection: Plug for 12 | Variant: -
GWC4-FP1 Shape: Cap | Tube OD: 4 mm | Connection: - | Variant: -
GWC6-FP1 Shape: Cap | Tube OD: 6 mm | Connection: - | Variant: -
GWC8-FP1 Shape: Cap | Tube OD: 8 mm | Connection: - | Variant: -
GWC10-FP1 Shape: Cap | Tube OD: 10 mm | Connection: - | Variant: -
GWC12-FP1 Shape: Cap | Tube OD: 12 mm | Connection: - | Variant: -
GWL4-M5-FP1 Shape: Elbow | Tube OD: 4 mm | Connection: M5 | Variant: -
GWL4-6-FP1 Shape: Elbow | Tube OD: 4 mm | Connection: R1/8 | Variant: -
GWL4-8-FP1 Shape: Elbow | Tube OD: 4 mm | Connection: R1/4 | Variant: -
GWL6-M5-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: M5 | Variant: -
GWL6-6-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: R1/8 | Variant: -
GWL6-8-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: R1/4 | Variant: -
GWL6-10-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: R3/8 | Variant: -
GWL8-6-FP1 Shape: Elbow | Tube OD: 8 mm | Connection: R1/8 | Variant: -
GWL8-8-FP1 Shape: Elbow | Tube OD: 8 mm | Connection: R1/4 | Variant: -
GWL8-10-FP1 Shape: Elbow | Tube OD: 8 mm | Connection: R3/8 | Variant: -
GWL10-6-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: R1/8 | Variant: -
GWL10-8-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: R1/4 | Variant: -
GWL10-10-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: R3/8 | Variant: -
GWL10-15-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: R1/2 | Variant: -
GWL12-8-FP1 Shape: Elbow | Tube OD: 12 mm | Connection: R1/4 | Variant: -
GWL12-10-FP1 Shape: Elbow | Tube OD: 12 mm | Connection: R3/8 | Variant: -
GWL12-15-FP1 Shape: Elbow | Tube OD: 12 mm | Connection: R1/2 | Variant: -
GWL16-10-FP1 Shape: Elbow | Tube OD: 16 mm | Connection: R3/8 | Variant: -
GWL16-15-FP1 Shape: Elbow | Tube OD: 16 mm | Connection: R1/2 | Variant: -
GWL4-6-L-FP1 Shape: Elbow | Tube OD: 4 mm | Connection: R1/8 | Variant: Long
GWL4-8-L-FP1 Shape: Elbow | Tube OD: 4 mm | Connection: R1/4 | Variant: Long
GWL6-6-L-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: R1/8 | Variant: Long
GWL6-8-L-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: R1/4 | Variant: Long
GWL8-6-L-FP1 Shape: Elbow | Tube OD: 8 mm | Connection: R1/8 | Variant: Long
GWL8-8-L-FP1 Shape: Elbow | Tube OD: 8 mm | Connection: R1/4 | Variant: Long
GWL8-10-L-FP1 Shape: Elbow | Tube OD: 8 mm | Connection: R3/8 | Variant: Long
GWL10-8-L-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: R1/4 | Variant: Long
GWL10-10-L-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: R3/8 | Variant: Long
GWL10-15-L-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: R1/2 | Variant: Long
GWL12-8-L-FP1 Shape: Elbow | Tube OD: 12 mm | Connection: R1/4 | Variant: Long
GWL12-10-L-FP1 Shape: Elbow | Tube OD: 12 mm | Connection: R3/8 | Variant: Long
GWL12-15-L-FP1 Shape: Elbow | Tube OD: 12 mm | Connection: R1/2 | Variant: Long
GWL4-M5-45-FP1 Shape: Elbow | Tube OD: 4 mm | Connection: M5 | Variant: 45 deg
GWL4-6-45-FP1 Shape: Elbow | Tube OD: 4 mm | Connection: R1/8 | Variant: 45 deg
GWL4-8-45-FP1 Shape: Elbow | Tube OD: 4 mm | Connection: R1/4 | Variant: 45 deg
GWL6-M5-45-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: M5 | Variant: 45 deg
GWL6-6-45-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: R1/8 | Variant: 45 deg
GWL6-8-45-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: R1/4 | Variant: 45 deg
GWL6-10-45-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: R3/8 | Variant: 45 deg
GWL8-6-45-FP1 Shape: Elbow | Tube OD: 8 mm | Connection: R1/8 | Variant: 45 deg
GWL8-8-45-FP1 Shape: Elbow | Tube OD: 8 mm | Connection: R1/4 | Variant: 45 deg
GWL8-10-45-FP1 Shape: Elbow | Tube OD: 8 mm | Connection: R3/8 | Variant: 45 deg
GWL10-6-45-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: R1/8 | Variant: 45 deg
GWL10-8-45-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: R1/4 | Variant: 45 deg
GWL10-10-45-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: R3/8 | Variant: 45 deg
GWL10-15-45-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: R1/2 | Variant: 45 deg
GWL12-8-45-FP1 Shape: Elbow | Tube OD: 12 mm | Connection: R1/4 | Variant: 45 deg
GWL12-10-45-FP1 Shape: Elbow | Tube OD: 12 mm | Connection: R3/8 | Variant: 45 deg
GWL12-15-45-FP1 Shape: Elbow | Tube OD: 12 mm | Connection: R1/2 | Variant: 45 deg
GWL4-M5-T-FP1 Shape: Elbow | Tube OD: 4 mm | Connection: M5 | Variant: Turn
GWL4-6-T-FP1 Shape: Elbow | Tube OD: 4 mm | Connection: R1/8 | Variant: Turn
GWL4-8-T-FP1 Shape: Elbow | Tube OD: 4 mm | Connection: R1/4 | Variant: Turn
GWL6-M5-T-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: M5 | Variant: Turn
GWL6-6-T-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: R1/8 | Variant: Turn
GWL6-8-T-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: R1/4 | Variant: Turn
GWL6-10-T-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: R3/8 | Variant: Turn
GWL8-6-T-FP1 Shape: Elbow | Tube OD: 8 mm | Connection: R1/8 | Variant: Turn
GWL8-8-T-FP1 Shape: Elbow | Tube OD: 8 mm | Connection: R1/4 | Variant: Turn
GWL8-10-T-FP1 Shape: Elbow | Tube OD: 8 mm | Connection: R3/8 | Variant: Turn
GWL10-8-T-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: R1/4 | Variant: Turn
GWL10-10-T-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: R3/8 | Variant: Turn
GWL10-15-T-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: R1/2 | Variant: Turn
GWL12-8-T-FP1 Shape: Elbow | Tube OD: 12 mm | Connection: R1/4 | Variant: Turn
GWL12-10-T-FP1 Shape: Elbow | Tube OD: 12 mm | Connection: R3/8 | Variant: Turn
GWL12-15-T-FP1 Shape: Elbow | Tube OD: 12 mm | Connection: R1/2 | Variant: Turn
GWL4-0-FP1 Shape: Elbow | Tube OD: 4 mm | Connection: No thread | Variant: -
GWL6-0-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: No thread | Variant: -
GWL8-0-FP1 Shape: Elbow | Tube OD: 8 mm | Connection: No thread | Variant: -
GWL10-0-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: No thread | Variant: -
GWL12-0-FP1 Shape: Elbow | Tube OD: 12 mm | Connection: No thread | Variant: -
GWL16-0-FP1 Shape: Elbow | Tube OD: 16 mm | Connection: No thread | Variant: -
GWT4-M5-FP1 Shape: Tee | Tube OD: 4 mm | Connection: M5 | Variant: -
GWT4-6-FP1 Shape: Tee | Tube OD: 4 mm | Connection: R1/8 | Variant: -
GWT4-8-FP1 Shape: Tee | Tube OD: 4 mm | Connection: R1/4 | Variant: -
GWT6-M5-FP1 Shape: Tee | Tube OD: 6 mm | Connection: M5 | Variant: -
GWT6-6-FP1 Shape: Tee | Tube OD: 6 mm | Connection: R1/8 | Variant: -
GWT6-8-FP1 Shape: Tee | Tube OD: 6 mm | Connection: R1/4 | Variant: -
GWT6-10-FP1 Shape: Tee | Tube OD: 6 mm | Connection: R3/8 | Variant: -
GWT8-6-FP1 Shape: Tee | Tube OD: 8 mm | Connection: R1/8 | Variant: -
GWT8-8-FP1 Shape: Tee | Tube OD: 8 mm | Connection: R1/4 | Variant: -
GWT8-10-FP1 Shape: Tee | Tube OD: 8 mm | Connection: R3/8 | Variant: -
GWT10-8-FP1 Shape: Tee | Tube OD: 10 mm | Connection: R1/4 | Variant: -
GWT10-10-FP1 Shape: Tee | Tube OD: 10 mm | Connection: R3/8 | Variant: -
GWT10-15-FP1 Shape: Tee | Tube OD: 10 mm | Connection: R1/2 | Variant: -
GWT12-8-FP1 Shape: Tee | Tube OD: 12 mm | Connection: R1/4 | Variant: -
GWT12-10-FP1 Shape: Tee | Tube OD: 12 mm | Connection: R3/8 | Variant: -
GWT12-15-FP1 Shape: Tee | Tube OD: 12 mm | Connection: R1/2 | Variant: -
GWT4-M5-D-FP1 Shape: Tee | Tube OD: 4 mm | Connection: M5 | Variant: D type
GWT4-6-D-FP1 Shape: Tee | Tube OD: 4 mm | Connection: R1/8 | Variant: D type
GWT4-8-D-FP1 Shape: Tee | Tube OD: 4 mm | Connection: R1/4 | Variant: D type
GWT6-M5-D-FP1 Shape: Tee | Tube OD: 6 mm | Connection: M5 | Variant: D type
GWT6-6-D-FP1 Shape: Tee | Tube OD: 6 mm | Connection: R1/8 | Variant: D type
GWT6-8-D-FP1 Shape: Tee | Tube OD: 6 mm | Connection: R1/4 | Variant: D type
GWT6-10-D-FP1 Shape: Tee | Tube OD: 6 mm | Connection: R3/8 | Variant: D type
GWT8-6-D-FP1 Shape: Tee | Tube OD: 8 mm | Connection: R1/8 | Variant: D type
GWT8-8-D-FP1 Shape: Tee | Tube OD: 8 mm | Connection: R1/4 | Variant: D type
GWT8-10-D-FP1 Shape: Tee | Tube OD: 8 mm | Connection: R3/8 | Variant: D type
GWT10-8-D-FP1 Shape: Tee | Tube OD: 10 mm | Connection: R1/4 | Variant: D type
GWT10-10-D-FP1 Shape: Tee | Tube OD: 10 mm | Connection: R3/8 | Variant: D type
GWT10-15-D-FP1 Shape: Tee | Tube OD: 10 mm | Connection: R1/2 | Variant: D type
GWT12-8-D-FP1 Shape: Tee | Tube OD: 12 mm | Connection: R1/4 | Variant: D type
GWT12-10-D-FP1 Shape: Tee | Tube OD: 12 mm | Connection: R3/8 | Variant: D type
GWT12-15-D-FP1 Shape: Tee | Tube OD: 12 mm | Connection: R1/2 | Variant: D type
GWT4-0-FP1 Shape: Tee | Tube OD: 4 mm | Connection: No thread | Variant: -
GWT6-0-FP1 Shape: Tee | Tube OD: 6 mm | Connection: No thread | Variant: -
GWT8-0-FP1 Shape: Tee | Tube OD: 8 mm | Connection: No thread | Variant: -
GWT10-0-FP1 Shape: Tee | Tube OD: 10 mm | Connection: No thread | Variant: -
GWT12-0-FP1 Shape: Tee | Tube OD: 12 mm | Connection: No thread | Variant: -
GWY44-0-FP1 Shape: Y tee | Tube OD: 4/4 mm | Connection: No thread | Variant: -
GWY66-0-FP1 Shape: Y tee | Tube OD: 6/6 mm | Connection: No thread | Variant: -
GWY88-0-FP1 Shape: Y tee | Tube OD: 8/8 mm | Connection: No thread | Variant: -
GWY1010-0-FP1 Shape: Y tee | Tube OD: 10/10 mm | Connection: No thread | Variant: -
GWY1212-0-FP1 Shape: Y tee | Tube OD: 12/12 mm | Connection: No thread | Variant: -
GWY64-0-FP1 Shape: Y tee | Tube OD: 6/4 mm | Connection: No thread | Variant: -
GWY86-0-FP1 Shape: Y tee | Tube OD: 8/6 mm | Connection: No thread | Variant: -
GWY108-0-FP1 Shape: Y tee | Tube OD: 10/8 mm | Connection: No thread | Variant: -
GWY1210-0-FP1 Shape: Y tee | Tube OD: 12/10 mm | Connection: No thread | Variant: -
GWY4-M5-FP1 Shape: Y tee | Tube OD: 4 mm | Connection: M5 | Variant: -
GWY4-6-FP1 Shape: Y tee | Tube OD: 4 mm | Connection: R1/8 | Variant: -
GWY4-8-FP1 Shape: Y tee | Tube OD: 4 mm | Connection: R1/4 | Variant: -
GWY6-M5-FP1 Shape: Y tee | Tube OD: 6 mm | Connection: M5 | Variant: -
GWY6-6-FP1 Shape: Y tee | Tube OD: 6 mm | Connection: R1/8 | Variant: -
GWY6-8-FP1 Shape: Y tee | Tube OD: 6 mm | Connection: R1/4 | Variant: -
GWY6-10-FP1 Shape: Y tee | Tube OD: 6 mm | Connection: R3/8 | Variant: -
GWY8-6-FP1 Shape: Y tee | Tube OD: 8 mm | Connection: R1/8 | Variant: -
GWY8-8-FP1 Shape: Y tee | Tube OD: 8 mm | Connection: R1/4 | Variant: -
GWY8-10-FP1 Shape: Y tee | Tube OD: 8 mm | Connection: R3/8 | Variant: -
GWY10-8-FP1 Shape: Y tee | Tube OD: 10 mm | Connection: R1/4 | Variant: -
GWY10-10-FP1 Shape: Y tee | Tube OD: 10 mm | Connection: R3/8 | Variant: -
GWY10-15-FP1 Shape: Y tee | Tube OD: 10 mm | Connection: R1/2 | Variant: -
GWY12-8-FP1 Shape: Y tee | Tube OD: 12 mm | Connection: R1/4 | Variant: -
GWY12-10-FP1 Shape: Y tee | Tube OD: 12 mm | Connection: R3/8 | Variant: -
GWY12-15-FP1 Shape: Y tee | Tube OD: 12 mm | Connection: R1/2 | Variant: -
GWCR8-0-FP1 Shape: Cross | Tube OD: 8 mm | Connection: No thread | Variant: -
GWCR10-0-FP1 Shape: Cross | Tube OD: 10 mm | Connection: No thread | Variant: -
GWCR12-0-FP1 Shape: Cross | Tube OD: 12 mm | Connection: No thread | Variant: -
GWL4-M5-2T-FP1 Shape: Elbow | Tube OD: 4 mm | Connection: M5 | Variant: 2-way turn
GWL6-6-2T-FP1 Shape: Elbow | Tube OD: 6 mm | Connection: R1/8 | Variant: 2-way turn
GWL8-8-2T-FP1 Shape: Elbow | Tube OD: 8 mm | Connection: R1/4 | Variant: 2-way turn
GWL10-10-2T-FP1 Shape: Elbow | Tube OD: 10 mm | Connection: R3/8 | Variant: 2-way turn
GWL12-15-2T-FP1 Shape: Elbow | Tube OD: 12 mm | Connection: R1/2 | Variant: 2-way turn
GWTR4-M5-FP1 Shape: Tetra (4-way) | Tube OD: 4 mm | Connection: M5 | Variant: -
GWTR4-6-FP1 Shape: Tetra (4-way) | Tube OD: 4 mm | Connection: R1/8 | Variant: -
GWTR4-8-FP1 Shape: Tetra (4-way) | Tube OD: 4 mm | Connection: R1/4 | Variant: -
GWTR6-M5-FP1 Shape: Tetra (4-way) | Tube OD: 6 mm | Connection: M5 | Variant: -
GWTR6-6-FP1 Shape: Tetra (4-way) | Tube OD: 6 mm | Connection: R1/8 | Variant: -
GWTR6-8-FP1 Shape: Tetra (4-way) | Tube OD: 6 mm | Connection: R1/4 | Variant: -
GWTR6-10-FP1 Shape: Tetra (4-way) | Tube OD: 6 mm | Connection: R3/8 | Variant: -
GWTR8-6-FP1 Shape: Tetra (4-way) | Tube OD: 8 mm | Connection: R1/8 | Variant: -
GWTR8-8-FP1 Shape: Tetra (4-way) | Tube OD: 8 mm | Connection: R1/4 | Variant: -
GWTR8-10-FP1 Shape: Tetra (4-way) | Tube OD: 8 mm | Connection: R3/8 | Variant: -
GWTR10-8-FP1 Shape: Tetra (4-way) | Tube OD: 10 mm | Connection: R1/4 | Variant: -
GWTR10-10-FP1 Shape: Tetra (4-way) | Tube OD: 10 mm | Connection: R3/8 | Variant: -
GWTR10-15-FP1 Shape: Tetra (4-way) | Tube OD: 10 mm | Connection: R1/2 | Variant: -
GWTR12-8-FP1 Shape: Tetra (4-way) | Tube OD: 12 mm | Connection: R1/4 | Variant: -
GWTR12-10-FP1 Shape: Tetra (4-way) | Tube OD: 12 mm | Connection: R3/8 | Variant: -
GWTR12-15-FP1 Shape: Tetra (4-way) | Tube OD: 12 mm | Connection: R1/2 | Variant: -
GWFY4-M5-FP1 Shape: FY type | Tube OD: 4 mm | Connection: M5 | Variant: -
GWFY4-6-FP1 Shape: FY type | Tube OD: 4 mm | Connection: R1/8 | Variant: -
GWFY4-8-FP1 Shape: FY type | Tube OD: 4 mm | Connection: R1/4 | Variant: -
GWFY6-M5-FP1 Shape: FY type | Tube OD: 6 mm | Connection: M5 | Variant: -
GWFY6-6-FP1 Shape: FY type | Tube OD: 6 mm | Connection: R1/8 | Variant: -
GWFY6-8-FP1 Shape: FY type | Tube OD: 6 mm | Connection: R1/4 | Variant: -
GWFY6-10-FP1 Shape: FY type | Tube OD: 6 mm | Connection: R3/8 | Variant: -
GWFY8-6-FP1 Shape: FY type | Tube OD: 8 mm | Connection: R1/8 | Variant: -
GWFY8-8-FP1 Shape: FY type | Tube OD: 8 mm | Connection: R1/4 | Variant: -
GWFY8-10-FP1 Shape: FY type | Tube OD: 8 mm | Connection: R3/8 | Variant: -
GWFY10-8-FP1 Shape: FY type | Tube OD: 10 mm | Connection: R1/4 | Variant: -
GWFY10-10-FP1 Shape: FY type | Tube OD: 10 mm | Connection: R3/8 | Variant: -
GWFY10-15-FP1 Shape: FY type | Tube OD: 10 mm | Connection: R1/2 | Variant: -
GWFY12-8-FP1 Shape: FY type | Tube OD: 12 mm | Connection: R1/4 | Variant: -
GWFY12-10-FP1 Shape: FY type | Tube OD: 12 mm | Connection: R3/8 | Variant: -
GWFY12-15-FP1 Shape: FY type | Tube OD: 12 mm | Connection: R1/2 | Variant: -
GWWY4-M5-FP1 Shape: Double Y | Tube OD: 4 mm | Connection: M5 | Variant: -
GWWY4-6-FP1 Shape: Double Y | Tube OD: 4 mm | Connection: R1/8 | Variant: -
GWWY4-8-FP1 Shape: Double Y | Tube OD: 4 mm | Connection: R1/4 | Variant: -
GWWY6-M5-FP1 Shape: Double Y | Tube OD: 6 mm | Connection: M5 | Variant: -
GWWY6-6-FP1 Shape: Double Y | Tube OD: 6 mm | Connection: R1/8 | Variant: -
GWWY6-8-FP1 Shape: Double Y | Tube OD: 6 mm | Connection: R1/4 | Variant: -
GWWY6-10-FP1 Shape: Double Y | Tube OD: 6 mm | Connection: R3/8 | Variant: -
GWTR4-0-FP1 Shape: Tetra (4-way) | Tube OD: 4 mm | Connection: No thread | Variant: -
GWTR6-0-FP1 Shape: Tetra (4-way) | Tube OD: 6 mm | Connection: No thread | Variant: -
GWTR8-0-FP1 Shape: Tetra (4-way) | Tube OD: 8 mm | Connection: No thread | Variant: -
GWTR10-0-FP1 Shape: Tetra (4-way) | Tube OD: 10 mm | Connection: No thread | Variant: -
GWTR12-0-FP1 Shape: Tetra (4-way) | Tube OD: 12 mm | Connection: No thread | Variant: -
GWFY4-0-FP1 Shape: FY type | Tube OD: 4 mm | Connection: No thread | Variant: -
GWFY6-0-FP1 Shape: FY type | Tube OD: 6 mm | Connection: No thread | Variant: -
GWFY8-0-FP1 Shape: FY type | Tube OD: 8 mm | Connection: No thread | Variant: -
GWFY10-0-FP1 Shape: FY type | Tube OD: 10 mm | Connection: No thread | Variant: -
GWFY12-0-FP1 Shape: FY type | Tube OD: 12 mm | Connection: No thread | Variant: -
GWWY64-0-FP1 Shape: Double Y | Tube OD: 6/4 mm | Connection: No thread | Variant: -
GWWY86-0-FP1 Shape: Double Y | Tube OD: 8/6 mm | Connection: No thread | Variant: -
GWMF46-6-FP1 Shape: Manifold | Tube OD: 4/6 mm | Connection: R1/8 | Variant: -
GWMF48-8-FP1 Shape: Manifold | Tube OD: 4/8 mm | Connection: R1/4 | Variant: -
GWMF68-8-FP1 Shape: Manifold | Tube OD: 6/8 mm | Connection: R1/4 | Variant: -
GWMF610-10-FP1 Shape: Manifold | Tube OD: 6/10 mm | Connection: R3/8 | Variant: -
GWMF810-10-FP1 Shape: Manifold | Tube OD: 8/10 mm | Connection: R3/8 | Variant: -
GWMF46-0-FP1 Shape: Manifold | Tube OD: 4/6 mm | Connection: No thread | Variant: -
GWMF48-0-FP1 Shape: Manifold | Tube OD: 4/8 mm | Connection: No thread | Variant: -
GWMF68-0-FP1 Shape: Manifold | Tube OD: 6/8 mm | Connection: No thread | Variant: -
GWMF610-0-FP1 Shape: Manifold | Tube OD: 6/10 mm | Connection: No thread | Variant: -
GWMF810-0-FP1 Shape: Manifold | Tube OD: 8/10 mm | Connection: No thread | Variant: -
GWMF48-8-W-FP1 Shape: Manifold | Tube OD: 4/8 mm | Connection: R1/4 | Variant: Double
GWMF48-10-W-FP1 Shape: Manifold | Tube OD: 4/8 mm | Connection: R3/8 | Variant: Double
GWMF610-10-W-FP1 Shape: Manifold | Tube OD: 6/10 mm | Connection: R3/8 | Variant: Double
GWMF610-15-W-FP1 Shape: Manifold | Tube OD: 6/10 mm | Connection: R1/2 | Variant: Double
GWMF812-10-W-FP1 Shape: Manifold | Tube OD: 8/12 mm | Connection: R3/8 | Variant: Double
GWMF812-15-W-FP1 Shape: Manifold | Tube OD: 8/12 mm | Connection: R1/2 | Variant: Double
GWMF48-0-W-FP1 Shape: Manifold | Tube OD: 4/8 mm | Connection: No thread | Variant: Double
GWMF610-0-W-FP1 Shape: Manifold | Tube OD: 6/10 mm | Connection: No thread | Variant: Double
GWMF812-0-W-FP1 Shape: Manifold | Tube OD: 8/12 mm | Connection: No thread | Variant: Double
Push-to-Connect FittingsCKD
302 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD GW-FP1 New Joint Push-in Fittings (Food Grade, Tube 4-16 mm)

Brand CKD·Push-to-Connect Fittings

Available part numbers (302)

GWS4-M5-FP1, GWS4-6-FP1, GWS4-8-FP1, GWS6-M5-FP1, GWS6-6-FP1, GWS6-8-FP1, GWS6-10-FP1, GWS8-6-FP1, GWS8-8-FP1, GWS8-10-FP1 + 292 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GWS4-M5-FP1Shape: Straight | Tube OD: 4 mm | Connection: M5 | Variant: -
GWS4-6-FP1Shape: Straight | Tube OD: 4 mm | Connection: R1/8 | Variant: -
GWS4-8-FP1Shape: Straight | Tube OD: 4 mm | Connection: R1/4 | Variant: -
GWS6-M5-FP1Shape: Straight | Tube OD: 6 mm | Connection: M5 | Variant: -
GWS6-6-FP1Shape: Straight | Tube OD: 6 mm | Connection: R1/8 | Variant: -
GWS6-8-FP1Shape: Straight | Tube OD: 6 mm | Connection: R1/4 | Variant: -
GWS6-10-FP1Shape: Straight | Tube OD: 6 mm | Connection: R3/8 | Variant: -
GWS8-6-FP1Shape: Straight | Tube OD: 8 mm | Connection: R1/8 | Variant: -
GWS8-8-FP1Shape: Straight | Tube OD: 8 mm | Connection: R1/4 | Variant: -
GWS8-10-FP1Shape: Straight | Tube OD: 8 mm | Connection: R3/8 | Variant: -
GWS10-6-FP1Shape: Straight | Tube OD: 10 mm | Connection: R1/8 | Variant: -
GWS10-8-FP1Shape: Straight | Tube OD: 10 mm | Connection: R1/4 | Variant: -
GWS10-10-FP1Shape: Straight | Tube OD: 10 mm | Connection: R3/8 | Variant: -
GWS10-15-FP1Shape: Straight | Tube OD: 10 mm | Connection: R1/2 | Variant: -
GWS12-8-FP1Shape: Straight | Tube OD: 12 mm | Connection: R1/4 | Variant: -
GWS12-10-FP1Shape: Straight | Tube OD: 12 mm | Connection: R3/8 | Variant: -
GWS12-15-FP1Shape: Straight | Tube OD: 12 mm | Connection: R1/2 | Variant: -
GWS16-10-FP1Shape: Straight | Tube OD: 16 mm | Connection: R3/8 | Variant: -
GWS16-15-FP1Shape: Straight | Tube OD: 16 mm | Connection: R1/2 | Variant: -
GWS4-M5-S-FP1Shape: Straight | Tube OD: 4 mm | Connection: M5 | Variant: Round
GWS4-6-S-FP1Shape: Straight | Tube OD: 4 mm | Connection: R1/8 | Variant: Round
GWS6-M5-S-FP1Shape: Straight | Tube OD: 6 mm | Connection: M5 | Variant: Round
GWS6-6-S-FP1Shape: Straight | Tube OD: 6 mm | Connection: R1/8 | Variant: Round
GWS6-8-S-FP1Shape: Straight | Tube OD: 6 mm | Connection: R1/4 | Variant: Round
GWS8-6-S-FP1Shape: Straight | Tube OD: 8 mm | Connection: R1/8 | Variant: Round
GWS8-8-S-FP1Shape: Straight | Tube OD: 8 mm | Connection: R1/4 | Variant: Round
GWS8-10-S-FP1Shape: Straight | Tube OD: 8 mm | Connection: R3/8 | Variant: Round
GWS10-6-S-FP1Shape: Straight | Tube OD: 10 mm | Connection: R1/8 | Variant: Round
GWS10-8-S-FP1Shape: Straight | Tube OD: 10 mm | Connection: R1/4 | Variant: Round
GWS10-10-S-FP1Shape: Straight | Tube OD: 10 mm | Connection: R3/8 | Variant: Round
GWS10-15-S-FP1Shape: Straight | Tube OD: 10 mm | Connection: R1/2 | Variant: Round
GWS12-8-S-FP1Shape: Straight | Tube OD: 12 mm | Connection: R1/4 | Variant: Round
GWS12-10-S-FP1Shape: Straight | Tube OD: 12 mm | Connection: R3/8 | Variant: Round
GWS12-15-S-FP1Shape: Straight | Tube OD: 12 mm | Connection: R1/2 | Variant: Round
GWS4-6-M-FP1Shape: Straight | Tube OD: 4 mm | Connection: R1/8 | Variant: Female
GWS4-8-M-FP1Shape: Straight | Tube OD: 4 mm | Connection: R1/4 | Variant: Female
GWS6-6-M-FP1Shape: Straight | Tube OD: 6 mm | Connection: R1/8 | Variant: Female
GWS6-8-M-FP1Shape: Straight | Tube OD: 6 mm | Connection: R1/4 | Variant: Female
GWS6-10-M-FP1Shape: Straight | Tube OD: 6 mm | Connection: R3/8 | Variant: Female
GWS8-6-M-FP1Shape: Straight | Tube OD: 8 mm | Connection: R1/8 | Variant: Female
GWS8-8-M-FP1Shape: Straight | Tube OD: 8 mm | Connection: R1/4 | Variant: Female
GWS8-10-M-FP1Shape: Straight | Tube OD: 8 mm | Connection: R3/8 | Variant: Female
GWS10-8-M-FP1Shape: Straight | Tube OD: 10 mm | Connection: R1/4 | Variant: Female
GWS10-10-M-FP1Shape: Straight | Tube OD: 10 mm | Connection: R3/8 | Variant: Female
GWS12-8-M-FP1Shape: Straight | Tube OD: 12 mm | Connection: R1/4 | Variant: Female
GWS12-10-M-FP1Shape: Straight | Tube OD: 12 mm | Connection: R3/8 | Variant: Female
GWS12-15-M-FP1Shape: Straight | Tube OD: 12 mm | Connection: R1/2 | Variant: Female
GWS4-6-E-FP1Shape: Straight | Tube OD: 4 mm | Connection: R1/8 | Variant: Panel (female)
GWS4-8-E-FP1Shape: Straight | Tube OD: 4 mm | Connection: R1/4 | Variant: Panel (female)
GWS6-6-E-FP1Shape: Straight | Tube OD: 6 mm | Connection: R1/8 | Variant: Panel (female)
GWS6-8-E-FP1Shape: Straight | Tube OD: 6 mm | Connection: R1/4 | Variant: Panel (female)
GWS6-10-E-FP1Shape: Straight | Tube OD: 6 mm | Connection: R3/8 | Variant: Panel (female)
GWS8-6-E-FP1Shape: Straight | Tube OD: 8 mm | Connection: R1/8 | Variant: Panel (female)
GWS8-8-E-FP1Shape: Straight | Tube OD: 8 mm | Connection: R1/4 | Variant: Panel (female)
GWS8-10-E-FP1Shape: Straight | Tube OD: 8 mm | Connection: R3/8 | Variant: Panel (female)
GWS10-8-E-FP1Shape: Straight | Tube OD: 10 mm | Connection: R1/4 | Variant: Panel (female)
GWS10-10-E-FP1Shape: Straight | Tube OD: 10 mm | Connection: R3/8 | Variant: Panel (female)
GWS12-10-E-FP1Shape: Straight | Tube OD: 12 mm | Connection: R3/8 | Variant: Panel (female)
GWS12-15-E-FP1Shape: Straight | Tube OD: 12 mm | Connection: R1/2 | Variant: Panel (female)
GWS4-0-X-FP1Shape: Straight | Tube OD: 4 mm | Connection: No thread | Variant: Bulkhead
GWS6-0-X-FP1Shape: Straight | Tube OD: 6 mm | Connection: No thread | Variant: Bulkhead
GWS8-0-X-FP1Shape: Straight | Tube OD: 8 mm | Connection: No thread | Variant: Bulkhead
GWS10-0-X-FP1Shape: Straight | Tube OD: 10 mm | Connection: No thread | Variant: Bulkhead
GWS12-0-X-FP1Shape: Straight | Tube OD: 12 mm | Connection: No thread | Variant: Bulkhead
GWM4-0-X-FP1Shape: Conversion joint | Tube OD: 4 mm | Connection: No thread | Variant: Bulkhead
GWM6-0-X-FP1Shape: Conversion joint | Tube OD: 6 mm | Connection: No thread | Variant: Bulkhead
GWM8-0-X-FP1Shape: Conversion joint | Tube OD: 8 mm | Connection: No thread | Variant: Bulkhead
GWM10-0-X-FP1Shape: Conversion joint | Tube OD: 10 mm | Connection: No thread | Variant: Bulkhead
GWM12-0-X-FP1Shape: Conversion joint | Tube OD: 12 mm | Connection: No thread | Variant: Bulkhead
GWS4-0-FP1Shape: Straight | Tube OD: 4 mm | Connection: No thread | Variant: -
GWS6-0-FP1Shape: Straight | Tube OD: 6 mm | Connection: No thread | Variant: -
GWS8-0-FP1Shape: Straight | Tube OD: 8 mm | Connection: No thread | Variant: -
GWS10-0-FP1Shape: Straight | Tube OD: 10 mm | Connection: No thread | Variant: -
GWS12-0-FP1Shape: Straight | Tube OD: 12 mm | Connection: No thread | Variant: -
GWS16-0-FP1Shape: Straight | Tube OD: 16 mm | Connection: No thread | Variant: -
GWS46-0-FP1Shape: Straight | Tube OD: 4/6 mm | Connection: No thread | Variant: -
GWS68-0-FP1Shape: Straight | Tube OD: 6/8 mm | Connection: No thread | Variant: -
GWS810-0-FP1Shape: Straight | Tube OD: 8/10 mm | Connection: No thread | Variant: -
GWS1012-0-FP1Shape: Straight | Tube OD: 10/12 mm | Connection: No thread | Variant: -
GWS4-6P-FP1Shape: Straight | Tube OD: 4 mm | Connection: Plug for 6 | Variant: -
GWS6-4P-FP1Shape: Straight | Tube OD: 6 mm | Connection: Plug for 4 | Variant: -
GWS6-8P-FP1Shape: Straight | Tube OD: 6 mm | Connection: Plug for 8 | Variant: -
GWS6-10P-FP1Shape: Straight | Tube OD: 6 mm | Connection: Plug for 10 | Variant: -
GWS8-10P-FP1Shape: Straight | Tube OD: 8 mm | Connection: Plug for 10 | Variant: -
GWS8-12P-FP1Shape: Straight | Tube OD: 8 mm | Connection: Plug for 12 | Variant: -
GWS10-12P-FP1Shape: Straight | Tube OD: 10 mm | Connection: Plug for 12 | Variant: -
GWC4-FP1Shape: Cap | Tube OD: 4 mm | Connection: - | Variant: -
GWC6-FP1Shape: Cap | Tube OD: 6 mm | Connection: - | Variant: -
GWC8-FP1Shape: Cap | Tube OD: 8 mm | Connection: - | Variant: -
GWC10-FP1Shape: Cap | Tube OD: 10 mm | Connection: - | Variant: -
GWC12-FP1Shape: Cap | Tube OD: 12 mm | Connection: - | Variant: -
GWL4-M5-FP1Shape: Elbow | Tube OD: 4 mm | Connection: M5 | Variant: -
GWL4-6-FP1Shape: Elbow | Tube OD: 4 mm | Connection: R1/8 | Variant: -
GWL4-8-FP1Shape: Elbow | Tube OD: 4 mm | Connection: R1/4 | Variant: -
GWL6-M5-FP1Shape: Elbow | Tube OD: 6 mm | Connection: M5 | Variant: -
GWL6-6-FP1Shape: Elbow | Tube OD: 6 mm | Connection: R1/8 | Variant: -
GWL6-8-FP1Shape: Elbow | Tube OD: 6 mm | Connection: R1/4 | Variant: -
GWL6-10-FP1Shape: Elbow | Tube OD: 6 mm | Connection: R3/8 | Variant: -
GWL8-6-FP1Shape: Elbow | Tube OD: 8 mm | Connection: R1/8 | Variant: -
GWL8-8-FP1Shape: Elbow | Tube OD: 8 mm | Connection: R1/4 | Variant: -
GWL8-10-FP1Shape: Elbow | Tube OD: 8 mm | Connection: R3/8 | Variant: -
GWL10-6-FP1Shape: Elbow | Tube OD: 10 mm | Connection: R1/8 | Variant: -
GWL10-8-FP1Shape: Elbow | Tube OD: 10 mm | Connection: R1/4 | Variant: -
GWL10-10-FP1Shape: Elbow | Tube OD: 10 mm | Connection: R3/8 | Variant: -
GWL10-15-FP1Shape: Elbow | Tube OD: 10 mm | Connection: R1/2 | Variant: -
GWL12-8-FP1Shape: Elbow | Tube OD: 12 mm | Connection: R1/4 | Variant: -
GWL12-10-FP1Shape: Elbow | Tube OD: 12 mm | Connection: R3/8 | Variant: -
GWL12-15-FP1Shape: Elbow | Tube OD: 12 mm | Connection: R1/2 | Variant: -
GWL16-10-FP1Shape: Elbow | Tube OD: 16 mm | Connection: R3/8 | Variant: -
GWL16-15-FP1Shape: Elbow | Tube OD: 16 mm | Connection: R1/2 | Variant: -
GWL4-6-L-FP1Shape: Elbow | Tube OD: 4 mm | Connection: R1/8 | Variant: Long
GWL4-8-L-FP1Shape: Elbow | Tube OD: 4 mm | Connection: R1/4 | Variant: Long
GWL6-6-L-FP1Shape: Elbow | Tube OD: 6 mm | Connection: R1/8 | Variant: Long
GWL6-8-L-FP1Shape: Elbow | Tube OD: 6 mm | Connection: R1/4 | Variant: Long
GWL8-6-L-FP1Shape: Elbow | Tube OD: 8 mm | Connection: R1/8 | Variant: Long
GWL8-8-L-FP1Shape: Elbow | Tube OD: 8 mm | Connection: R1/4 | Variant: Long
GWL8-10-L-FP1Shape: Elbow | Tube OD: 8 mm | Connection: R3/8 | Variant: Long
GWL10-8-L-FP1Shape: Elbow | Tube OD: 10 mm | Connection: R1/4 | Variant: Long
GWL10-10-L-FP1Shape: Elbow | Tube OD: 10 mm | Connection: R3/8 | Variant: Long
GWL10-15-L-FP1Shape: Elbow | Tube OD: 10 mm | Connection: R1/2 | Variant: Long
GWL12-8-L-FP1Shape: Elbow | Tube OD: 12 mm | Connection: R1/4 | Variant: Long
GWL12-10-L-FP1Shape: Elbow | Tube OD: 12 mm | Connection: R3/8 | Variant: Long
GWL12-15-L-FP1Shape: Elbow | Tube OD: 12 mm | Connection: R1/2 | Variant: Long
GWL4-M5-45-FP1Shape: Elbow | Tube OD: 4 mm | Connection: M5 | Variant: 45 deg
GWL4-6-45-FP1Shape: Elbow | Tube OD: 4 mm | Connection: R1/8 | Variant: 45 deg
GWL4-8-45-FP1Shape: Elbow | Tube OD: 4 mm | Connection: R1/4 | Variant: 45 deg
GWL6-M5-45-FP1Shape: Elbow | Tube OD: 6 mm | Connection: M5 | Variant: 45 deg
GWL6-6-45-FP1Shape: Elbow | Tube OD: 6 mm | Connection: R1/8 | Variant: 45 deg
GWL6-8-45-FP1Shape: Elbow | Tube OD: 6 mm | Connection: R1/4 | Variant: 45 deg
GWL6-10-45-FP1Shape: Elbow | Tube OD: 6 mm | Connection: R3/8 | Variant: 45 deg
GWL8-6-45-FP1Shape: Elbow | Tube OD: 8 mm | Connection: R1/8 | Variant: 45 deg
GWL8-8-45-FP1Shape: Elbow | Tube OD: 8 mm | Connection: R1/4 | Variant: 45 deg
GWL8-10-45-FP1Shape: Elbow | Tube OD: 8 mm | Connection: R3/8 | Variant: 45 deg
GWL10-6-45-FP1Shape: Elbow | Tube OD: 10 mm | Connection: R1/8 | Variant: 45 deg
GWL10-8-45-FP1Shape: Elbow | Tube OD: 10 mm | Connection: R1/4 | Variant: 45 deg
GWL10-10-45-FP1Shape: Elbow | Tube OD: 10 mm | Connection: R3/8 | Variant: 45 deg
GWL10-15-45-FP1Shape: Elbow | Tube OD: 10 mm | Connection: R1/2 | Variant: 45 deg
GWL12-8-45-FP1Shape: Elbow | Tube OD: 12 mm | Connection: R1/4 | Variant: 45 deg
GWL12-10-45-FP1Shape: Elbow | Tube OD: 12 mm | Connection: R3/8 | Variant: 45 deg
GWL12-15-45-FP1Shape: Elbow | Tube OD: 12 mm | Connection: R1/2 | Variant: 45 deg
GWL4-M5-T-FP1Shape: Elbow | Tube OD: 4 mm | Connection: M5 | Variant: Turn
GWL4-6-T-FP1Shape: Elbow | Tube OD: 4 mm | Connection: R1/8 | Variant: Turn
GWL4-8-T-FP1Shape: Elbow | Tube OD: 4 mm | Connection: R1/4 | Variant: Turn
GWL6-M5-T-FP1Shape: Elbow | Tube OD: 6 mm | Connection: M5 | Variant: Turn
GWL6-6-T-FP1Shape: Elbow | Tube OD: 6 mm | Connection: R1/8 | Variant: Turn
GWL6-8-T-FP1Shape: Elbow | Tube OD: 6 mm | Connection: R1/4 | Variant: Turn
GWL6-10-T-FP1Shape: Elbow | Tube OD: 6 mm | Connection: R3/8 | Variant: Turn
GWL8-6-T-FP1Shape: Elbow | Tube OD: 8 mm | Connection: R1/8 | Variant: Turn
GWL8-8-T-FP1Shape: Elbow | Tube OD: 8 mm | Connection: R1/4 | Variant: Turn
GWL8-10-T-FP1Shape: Elbow | Tube OD: 8 mm | Connection: R3/8 | Variant: Turn
GWL10-8-T-FP1Shape: Elbow | Tube OD: 10 mm | Connection: R1/4 | Variant: Turn
GWL10-10-T-FP1Shape: Elbow | Tube OD: 10 mm | Connection: R3/8 | Variant: Turn
GWL10-15-T-FP1Shape: Elbow | Tube OD: 10 mm | Connection: R1/2 | Variant: Turn
GWL12-8-T-FP1Shape: Elbow | Tube OD: 12 mm | Connection: R1/4 | Variant: Turn
GWL12-10-T-FP1Shape: Elbow | Tube OD: 12 mm | Connection: R3/8 | Variant: Turn
GWL12-15-T-FP1Shape: Elbow | Tube OD: 12 mm | Connection: R1/2 | Variant: Turn
GWL4-0-FP1Shape: Elbow | Tube OD: 4 mm | Connection: No thread | Variant: -
GWL6-0-FP1Shape: Elbow | Tube OD: 6 mm | Connection: No thread | Variant: -
GWL8-0-FP1Shape: Elbow | Tube OD: 8 mm | Connection: No thread | Variant: -
GWL10-0-FP1Shape: Elbow | Tube OD: 10 mm | Connection: No thread | Variant: -
GWL12-0-FP1Shape: Elbow | Tube OD: 12 mm | Connection: No thread | Variant: -
GWL16-0-FP1Shape: Elbow | Tube OD: 16 mm | Connection: No thread | Variant: -
GWT4-M5-FP1Shape: Tee | Tube OD: 4 mm | Connection: M5 | Variant: -
GWT4-6-FP1Shape: Tee | Tube OD: 4 mm | Connection: R1/8 | Variant: -
GWT4-8-FP1Shape: Tee | Tube OD: 4 mm | Connection: R1/4 | Variant: -
GWT6-M5-FP1Shape: Tee | Tube OD: 6 mm | Connection: M5 | Variant: -
GWT6-6-FP1Shape: Tee | Tube OD: 6 mm | Connection: R1/8 | Variant: -
GWT6-8-FP1Shape: Tee | Tube OD: 6 mm | Connection: R1/4 | Variant: -
GWT6-10-FP1Shape: Tee | Tube OD: 6 mm | Connection: R3/8 | Variant: -
GWT8-6-FP1Shape: Tee | Tube OD: 8 mm | Connection: R1/8 | Variant: -
GWT8-8-FP1Shape: Tee | Tube OD: 8 mm | Connection: R1/4 | Variant: -
GWT8-10-FP1Shape: Tee | Tube OD: 8 mm | Connection: R3/8 | Variant: -
GWT10-8-FP1Shape: Tee | Tube OD: 10 mm | Connection: R1/4 | Variant: -
GWT10-10-FP1Shape: Tee | Tube OD: 10 mm | Connection: R3/8 | Variant: -
GWT10-15-FP1Shape: Tee | Tube OD: 10 mm | Connection: R1/2 | Variant: -
GWT12-8-FP1Shape: Tee | Tube OD: 12 mm | Connection: R1/4 | Variant: -
GWT12-10-FP1Shape: Tee | Tube OD: 12 mm | Connection: R3/8 | Variant: -
GWT12-15-FP1Shape: Tee | Tube OD: 12 mm | Connection: R1/2 | Variant: -
GWT4-M5-D-FP1Shape: Tee | Tube OD: 4 mm | Connection: M5 | Variant: D type
GWT4-6-D-FP1Shape: Tee | Tube OD: 4 mm | Connection: R1/8 | Variant: D type
GWT4-8-D-FP1Shape: Tee | Tube OD: 4 mm | Connection: R1/4 | Variant: D type
GWT6-M5-D-FP1Shape: Tee | Tube OD: 6 mm | Connection: M5 | Variant: D type
GWT6-6-D-FP1Shape: Tee | Tube OD: 6 mm | Connection: R1/8 | Variant: D type
GWT6-8-D-FP1Shape: Tee | Tube OD: 6 mm | Connection: R1/4 | Variant: D type
GWT6-10-D-FP1Shape: Tee | Tube OD: 6 mm | Connection: R3/8 | Variant: D type
GWT8-6-D-FP1Shape: Tee | Tube OD: 8 mm | Connection: R1/8 | Variant: D type
GWT8-8-D-FP1Shape: Tee | Tube OD: 8 mm | Connection: R1/4 | Variant: D type
GWT8-10-D-FP1Shape: Tee | Tube OD: 8 mm | Connection: R3/8 | Variant: D type
GWT10-8-D-FP1Shape: Tee | Tube OD: 10 mm | Connection: R1/4 | Variant: D type
GWT10-10-D-FP1Shape: Tee | Tube OD: 10 mm | Connection: R3/8 | Variant: D type
GWT10-15-D-FP1Shape: Tee | Tube OD: 10 mm | Connection: R1/2 | Variant: D type
GWT12-8-D-FP1Shape: Tee | Tube OD: 12 mm | Connection: R1/4 | Variant: D type
GWT12-10-D-FP1Shape: Tee | Tube OD: 12 mm | Connection: R3/8 | Variant: D type
GWT12-15-D-FP1Shape: Tee | Tube OD: 12 mm | Connection: R1/2 | Variant: D type
GWT4-0-FP1Shape: Tee | Tube OD: 4 mm | Connection: No thread | Variant: -
GWT6-0-FP1Shape: Tee | Tube OD: 6 mm | Connection: No thread | Variant: -
GWT8-0-FP1Shape: Tee | Tube OD: 8 mm | Connection: No thread | Variant: -
GWT10-0-FP1Shape: Tee | Tube OD: 10 mm | Connection: No thread | Variant: -
GWT12-0-FP1Shape: Tee | Tube OD: 12 mm | Connection: No thread | Variant: -
GWY44-0-FP1Shape: Y tee | Tube OD: 4/4 mm | Connection: No thread | Variant: -
GWY66-0-FP1Shape: Y tee | Tube OD: 6/6 mm | Connection: No thread | Variant: -
GWY88-0-FP1Shape: Y tee | Tube OD: 8/8 mm | Connection: No thread | Variant: -
GWY1010-0-FP1Shape: Y tee | Tube OD: 10/10 mm | Connection: No thread | Variant: -
GWY1212-0-FP1Shape: Y tee | Tube OD: 12/12 mm | Connection: No thread | Variant: -
GWY64-0-FP1Shape: Y tee | Tube OD: 6/4 mm | Connection: No thread | Variant: -
GWY86-0-FP1Shape: Y tee | Tube OD: 8/6 mm | Connection: No thread | Variant: -
GWY108-0-FP1Shape: Y tee | Tube OD: 10/8 mm | Connection: No thread | Variant: -
GWY1210-0-FP1Shape: Y tee | Tube OD: 12/10 mm | Connection: No thread | Variant: -
GWY4-M5-FP1Shape: Y tee | Tube OD: 4 mm | Connection: M5 | Variant: -
GWY4-6-FP1Shape: Y tee | Tube OD: 4 mm | Connection: R1/8 | Variant: -
GWY4-8-FP1Shape: Y tee | Tube OD: 4 mm | Connection: R1/4 | Variant: -
GWY6-M5-FP1Shape: Y tee | Tube OD: 6 mm | Connection: M5 | Variant: -
GWY6-6-FP1Shape: Y tee | Tube OD: 6 mm | Connection: R1/8 | Variant: -
GWY6-8-FP1Shape: Y tee | Tube OD: 6 mm | Connection: R1/4 | Variant: -
GWY6-10-FP1Shape: Y tee | Tube OD: 6 mm | Connection: R3/8 | Variant: -
GWY8-6-FP1Shape: Y tee | Tube OD: 8 mm | Connection: R1/8 | Variant: -
GWY8-8-FP1Shape: Y tee | Tube OD: 8 mm | Connection: R1/4 | Variant: -
GWY8-10-FP1Shape: Y tee | Tube OD: 8 mm | Connection: R3/8 | Variant: -
GWY10-8-FP1Shape: Y tee | Tube OD: 10 mm | Connection: R1/4 | Variant: -
GWY10-10-FP1Shape: Y tee | Tube OD: 10 mm | Connection: R3/8 | Variant: -
GWY10-15-FP1Shape: Y tee | Tube OD: 10 mm | Connection: R1/2 | Variant: -
GWY12-8-FP1Shape: Y tee | Tube OD: 12 mm | Connection: R1/4 | Variant: -
GWY12-10-FP1Shape: Y tee | Tube OD: 12 mm | Connection: R3/8 | Variant: -
GWY12-15-FP1Shape: Y tee | Tube OD: 12 mm | Connection: R1/2 | Variant: -
GWCR8-0-FP1Shape: Cross | Tube OD: 8 mm | Connection: No thread | Variant: -
GWCR10-0-FP1Shape: Cross | Tube OD: 10 mm | Connection: No thread | Variant: -
GWCR12-0-FP1Shape: Cross | Tube OD: 12 mm | Connection: No thread | Variant: -
GWL4-M5-2T-FP1Shape: Elbow | Tube OD: 4 mm | Connection: M5 | Variant: 2-way turn
GWL6-6-2T-FP1Shape: Elbow | Tube OD: 6 mm | Connection: R1/8 | Variant: 2-way turn
GWL8-8-2T-FP1Shape: Elbow | Tube OD: 8 mm | Connection: R1/4 | Variant: 2-way turn
GWL10-10-2T-FP1Shape: Elbow | Tube OD: 10 mm | Connection: R3/8 | Variant: 2-way turn
GWL12-15-2T-FP1Shape: Elbow | Tube OD: 12 mm | Connection: R1/2 | Variant: 2-way turn
GWTR4-M5-FP1Shape: Tetra (4-way) | Tube OD: 4 mm | Connection: M5 | Variant: -
GWTR4-6-FP1Shape: Tetra (4-way) | Tube OD: 4 mm | Connection: R1/8 | Variant: -
GWTR4-8-FP1Shape: Tetra (4-way) | Tube OD: 4 mm | Connection: R1/4 | Variant: -
GWTR6-M5-FP1Shape: Tetra (4-way) | Tube OD: 6 mm | Connection: M5 | Variant: -
GWTR6-6-FP1Shape: Tetra (4-way) | Tube OD: 6 mm | Connection: R1/8 | Variant: -
GWTR6-8-FP1Shape: Tetra (4-way) | Tube OD: 6 mm | Connection: R1/4 | Variant: -
GWTR6-10-FP1Shape: Tetra (4-way) | Tube OD: 6 mm | Connection: R3/8 | Variant: -
GWTR8-6-FP1Shape: Tetra (4-way) | Tube OD: 8 mm | Connection: R1/8 | Variant: -
GWTR8-8-FP1Shape: Tetra (4-way) | Tube OD: 8 mm | Connection: R1/4 | Variant: -
GWTR8-10-FP1Shape: Tetra (4-way) | Tube OD: 8 mm | Connection: R3/8 | Variant: -
GWTR10-8-FP1Shape: Tetra (4-way) | Tube OD: 10 mm | Connection: R1/4 | Variant: -
GWTR10-10-FP1Shape: Tetra (4-way) | Tube OD: 10 mm | Connection: R3/8 | Variant: -
GWTR10-15-FP1Shape: Tetra (4-way) | Tube OD: 10 mm | Connection: R1/2 | Variant: -
GWTR12-8-FP1Shape: Tetra (4-way) | Tube OD: 12 mm | Connection: R1/4 | Variant: -
GWTR12-10-FP1Shape: Tetra (4-way) | Tube OD: 12 mm | Connection: R3/8 | Variant: -
GWTR12-15-FP1Shape: Tetra (4-way) | Tube OD: 12 mm | Connection: R1/2 | Variant: -
GWFY4-M5-FP1Shape: FY type | Tube OD: 4 mm | Connection: M5 | Variant: -
GWFY4-6-FP1Shape: FY type | Tube OD: 4 mm | Connection: R1/8 | Variant: -
GWFY4-8-FP1Shape: FY type | Tube OD: 4 mm | Connection: R1/4 | Variant: -
GWFY6-M5-FP1Shape: FY type | Tube OD: 6 mm | Connection: M5 | Variant: -
GWFY6-6-FP1Shape: FY type | Tube OD: 6 mm | Connection: R1/8 | Variant: -
GWFY6-8-FP1Shape: FY type | Tube OD: 6 mm | Connection: R1/4 | Variant: -
GWFY6-10-FP1Shape: FY type | Tube OD: 6 mm | Connection: R3/8 | Variant: -
GWFY8-6-FP1Shape: FY type | Tube OD: 8 mm | Connection: R1/8 | Variant: -
GWFY8-8-FP1Shape: FY type | Tube OD: 8 mm | Connection: R1/4 | Variant: -
GWFY8-10-FP1Shape: FY type | Tube OD: 8 mm | Connection: R3/8 | Variant: -
GWFY10-8-FP1Shape: FY type | Tube OD: 10 mm | Connection: R1/4 | Variant: -
GWFY10-10-FP1Shape: FY type | Tube OD: 10 mm | Connection: R3/8 | Variant: -
GWFY10-15-FP1Shape: FY type | Tube OD: 10 mm | Connection: R1/2 | Variant: -
GWFY12-8-FP1Shape: FY type | Tube OD: 12 mm | Connection: R1/4 | Variant: -
GWFY12-10-FP1Shape: FY type | Tube OD: 12 mm | Connection: R3/8 | Variant: -
GWFY12-15-FP1Shape: FY type | Tube OD: 12 mm | Connection: R1/2 | Variant: -
GWWY4-M5-FP1Shape: Double Y | Tube OD: 4 mm | Connection: M5 | Variant: -
GWWY4-6-FP1Shape: Double Y | Tube OD: 4 mm | Connection: R1/8 | Variant: -
GWWY4-8-FP1Shape: Double Y | Tube OD: 4 mm | Connection: R1/4 | Variant: -
GWWY6-M5-FP1Shape: Double Y | Tube OD: 6 mm | Connection: M5 | Variant: -
GWWY6-6-FP1Shape: Double Y | Tube OD: 6 mm | Connection: R1/8 | Variant: -
GWWY6-8-FP1Shape: Double Y | Tube OD: 6 mm | Connection: R1/4 | Variant: -
GWWY6-10-FP1Shape: Double Y | Tube OD: 6 mm | Connection: R3/8 | Variant: -
GWTR4-0-FP1Shape: Tetra (4-way) | Tube OD: 4 mm | Connection: No thread | Variant: -
GWTR6-0-FP1Shape: Tetra (4-way) | Tube OD: 6 mm | Connection: No thread | Variant: -
GWTR8-0-FP1Shape: Tetra (4-way) | Tube OD: 8 mm | Connection: No thread | Variant: -
GWTR10-0-FP1Shape: Tetra (4-way) | Tube OD: 10 mm | Connection: No thread | Variant: -
GWTR12-0-FP1Shape: Tetra (4-way) | Tube OD: 12 mm | Connection: No thread | Variant: -
GWFY4-0-FP1Shape: FY type | Tube OD: 4 mm | Connection: No thread | Variant: -
GWFY6-0-FP1Shape: FY type | Tube OD: 6 mm | Connection: No thread | Variant: -
GWFY8-0-FP1Shape: FY type | Tube OD: 8 mm | Connection: No thread | Variant: -
GWFY10-0-FP1Shape: FY type | Tube OD: 10 mm | Connection: No thread | Variant: -
GWFY12-0-FP1Shape: FY type | Tube OD: 12 mm | Connection: No thread | Variant: -
GWWY64-0-FP1Shape: Double Y | Tube OD: 6/4 mm | Connection: No thread | Variant: -
GWWY86-0-FP1Shape: Double Y | Tube OD: 8/6 mm | Connection: No thread | Variant: -
GWMF46-6-FP1Shape: Manifold | Tube OD: 4/6 mm | Connection: R1/8 | Variant: -
GWMF48-8-FP1Shape: Manifold | Tube OD: 4/8 mm | Connection: R1/4 | Variant: -
GWMF68-8-FP1Shape: Manifold | Tube OD: 6/8 mm | Connection: R1/4 | Variant: -
GWMF610-10-FP1Shape: Manifold | Tube OD: 6/10 mm | Connection: R3/8 | Variant: -
GWMF810-10-FP1Shape: Manifold | Tube OD: 8/10 mm | Connection: R3/8 | Variant: -
GWMF46-0-FP1Shape: Manifold | Tube OD: 4/6 mm | Connection: No thread | Variant: -
GWMF48-0-FP1Shape: Manifold | Tube OD: 4/8 mm | Connection: No thread | Variant: -
GWMF68-0-FP1Shape: Manifold | Tube OD: 6/8 mm | Connection: No thread | Variant: -
GWMF610-0-FP1Shape: Manifold | Tube OD: 6/10 mm | Connection: No thread | Variant: -
GWMF810-0-FP1Shape: Manifold | Tube OD: 8/10 mm | Connection: No thread | Variant: -
GWMF48-8-W-FP1Shape: Manifold | Tube OD: 4/8 mm | Connection: R1/4 | Variant: Double
GWMF48-10-W-FP1Shape: Manifold | Tube OD: 4/8 mm | Connection: R3/8 | Variant: Double
GWMF610-10-W-FP1Shape: Manifold | Tube OD: 6/10 mm | Connection: R3/8 | Variant: Double
GWMF610-15-W-FP1Shape: Manifold | Tube OD: 6/10 mm | Connection: R1/2 | Variant: Double
GWMF812-10-W-FP1Shape: Manifold | Tube OD: 8/12 mm | Connection: R3/8 | Variant: Double
GWMF812-15-W-FP1Shape: Manifold | Tube OD: 8/12 mm | Connection: R1/2 | Variant: Double
GWMF48-0-W-FP1Shape: Manifold | Tube OD: 4/8 mm | Connection: No thread | Variant: Double
GWMF610-0-W-FP1Shape: Manifold | Tube OD: 6/10 mm | Connection: No thread | Variant: Double
GWMF812-0-W-FP1Shape: Manifold | Tube OD: 8/12 mm | Connection: No thread | Variant: Double

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
