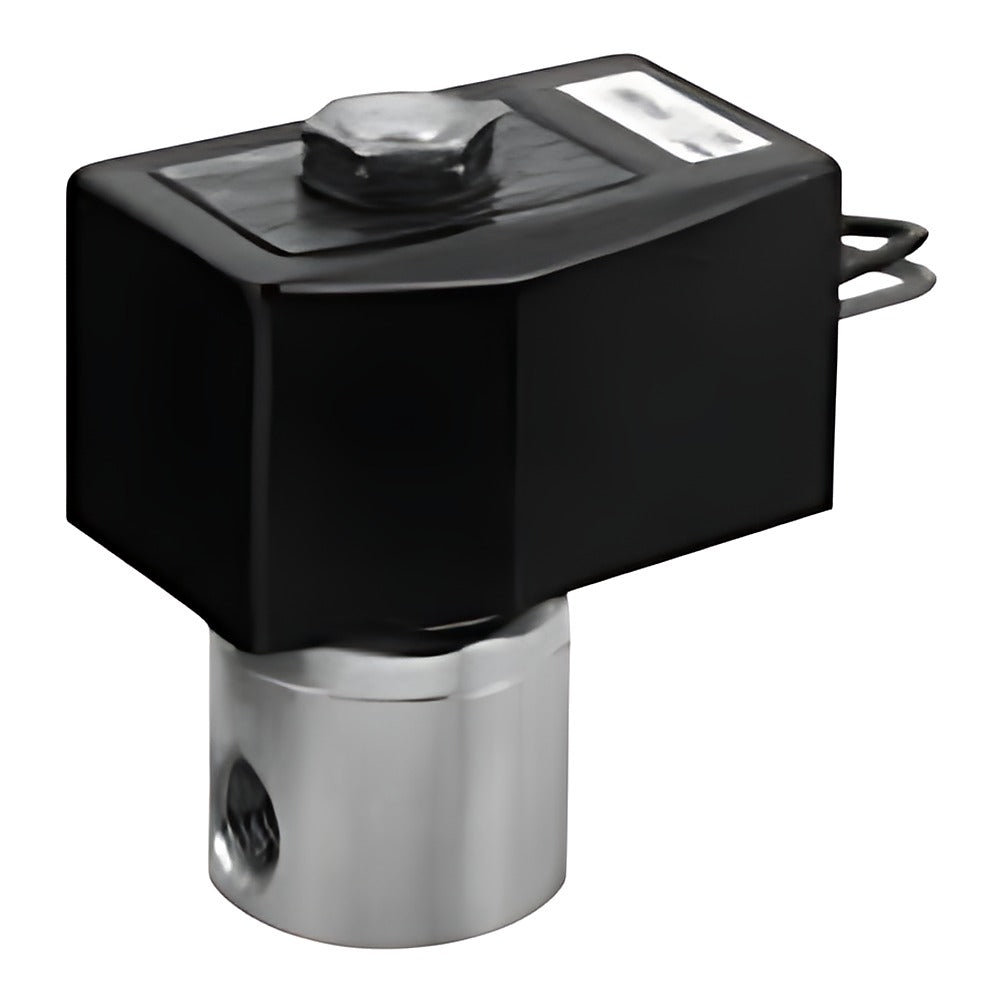

CKD HB-FP2 High Corrosion Resistant Direct Acting 2-Port Valve (NC)

CKD HB31/HB41-FP2 highly corrosion-resistant direct-acting normally closed 2-port solenoid valve for water, pure water and chemicals.

Key features

HB31 Rc1/8, Rc1/4 (orifice 3 mm); HB41 Rc1/4, Rc3/8 (orifice 4 mm)
Stainless steel body, FKM seal (M)
AC versions use diode built-in coil (5A); DC24V uses 3A coil
IP65 equivalent
FP2 food-processing spec: wetted materials comply with the Japanese Food Sanitation Act

Specifications

Fluid	Water, pure water, chemicals
Operating pressure	0 to 0.4 MPa
Proof pressure	2 MPa (hydraulic)
Fluid temperature	-10 to 60 C
Seat leakage	0 cm3/min (water)
Power consumption	11 W
Source	CKD Korea catalog CC-1271K-5, p. 411-411

HB31-6-3-M-5AFP2-AC100V		Model: HB31 \| Port: Rc1/8 \| Orifice: 3 mm \| Coil housing: Diode built-in, lead wire \| Voltage: AC100V
HB31-6-3-M-5AFP2-AC200V		Model: HB31 \| Port: Rc1/8 \| Orifice: 3 mm \| Coil housing: Diode built-in, lead wire \| Voltage: AC200V
HB31-6-3-M-3AFP2-DC24V		Model: HB31 \| Port: Rc1/8 \| Orifice: 3 mm \| Coil housing: Open frame, lead wire \| Voltage: DC24V
HB31-8-3-M-5AFP2-AC100V		Model: HB31 \| Port: Rc1/4 \| Orifice: 3 mm \| Coil housing: Diode built-in, lead wire \| Voltage: AC100V
HB31-8-3-M-5AFP2-AC200V		Model: HB31 \| Port: Rc1/4 \| Orifice: 3 mm \| Coil housing: Diode built-in, lead wire \| Voltage: AC200V
HB31-8-3-M-3AFP2-DC24V		Model: HB31 \| Port: Rc1/4 \| Orifice: 3 mm \| Coil housing: Open frame, lead wire \| Voltage: DC24V
HB41-8-5-M-5AFP2-AC100V		Model: HB41 \| Port: Rc1/4 \| Orifice: 4 mm \| Coil housing: Diode built-in, lead wire \| Voltage: AC100V
HB41-8-5-M-5AFP2-AC200V		Model: HB41 \| Port: Rc1/4 \| Orifice: 4 mm \| Coil housing: Diode built-in, lead wire \| Voltage: AC200V
HB41-8-5-M-3AFP2-DC24V		Model: HB41 \| Port: Rc1/4 \| Orifice: 4 mm \| Coil housing: Open frame, lead wire \| Voltage: DC24V
HB41-10-5-M-5AFP2-AC100V		Model: HB41 \| Port: Rc3/8 \| Orifice: 4 mm \| Coil housing: Diode built-in, lead wire \| Voltage: AC100V
HB41-10-5-M-5AFP2-AC200V		Model: HB41 \| Port: Rc3/8 \| Orifice: 4 mm \| Coil housing: Diode built-in, lead wire \| Voltage: AC200V
HB41-10-5-M-3AFP2-DC24V		Model: HB41 \| Port: Rc3/8 \| Orifice: 4 mm \| Coil housing: Open frame, lead wire \| Voltage: DC24V

2-Port Solenoid ValvesCKD

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD HB-FP2 High Corrosion Resistant Direct Acting 2-Port Valve (NC)

Brand CKD·2-Port Solenoid Valves

Available part numbers (12)

HB31-6-3-M-5AFP2-AC100V, HB31-6-3-M-5AFP2-AC200V, HB31-6-3-M-3AFP2-DC24V, HB31-8-3-M-5AFP2-AC100V, HB31-8-3-M-5AFP2-AC200V, HB31-8-3-M-3AFP2-DC24V, HB41-8-5-M-5AFP2-AC100V, HB41-8-5-M-5AFP2-AC200V, HB41-8-5-M-3AFP2-DC24V, HB41-10-5-M-5AFP2-AC100V + 2 more — see full table ↓
