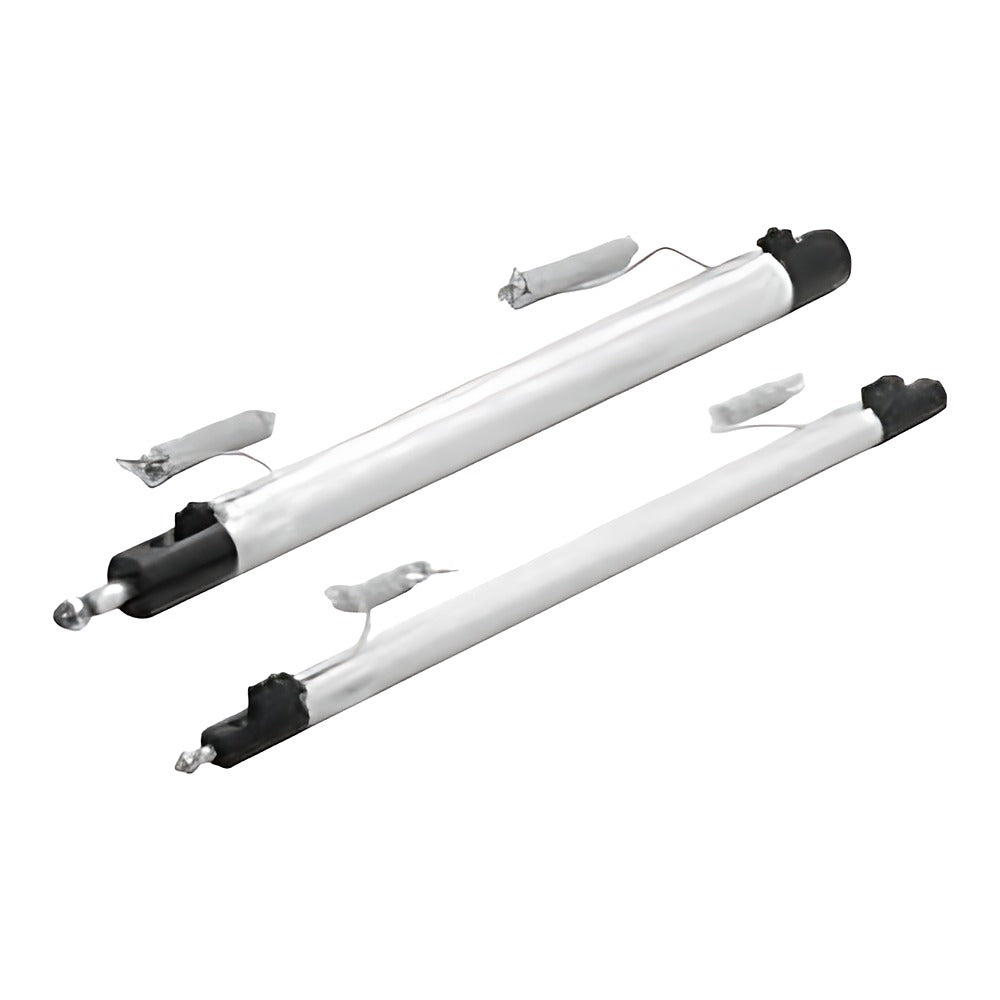

CKD HCM High Energy Absorption Cylinder (Bore 20-63)

CKD HCM double-acting single-rod cylinder for speeds up to 2000 mm/s with a floating air-cushion mechanism that absorbs high kinetic energy at stroke end.

Key features

Cushion absorption about 5 times that of conventional cylinders; floating cushion packing prevents start-up jump
Adjustable cushion via relief valve; smooth stop at stroke end, strong in heavy-load mid-speed range
Switch magnet built in; switches fully housed in the rail (T-type switches, 1 to 5 per cylinder)
Mounting: basic (00), axial foot (LB), rod/head flange (FA/FB); knuckle I/Y, rail Q and stainless rod M are options
Strokes of 150 mm or less give little high-speed benefit; 300 mm or more recommended
Intermediate strokes in 1 mm steps and NPT/G ports (N/G) are made to order

Specifications

Action	Double acting, single rod
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.15 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Port size	Rc1/8 (20-25), Rc1/4 (32-40), Rc3/8 (50-63)
Piston speed	50 to 2000 mm/s
Magnet	Built in (switch ready)
Allowable absorbed energy	3 J (20) to 30 J (63)
Source	CKD Korea catalog CB-030SK-9, p. 1042-1062

HCM-00-20B-200		Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-00-20B-250		Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-00-20B-300		Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-00-20B-350		Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-00-20B-400		Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-00-20B-450		Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-00-20B-500		Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-00-20B-550		Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-00-20B-600		Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-00-20B-650		Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-00-20B-700		Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-00-20R-200		Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-00-20R-250		Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-00-20R-300		Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-00-20R-350		Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-00-20R-400		Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-00-20R-450		Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-00-20R-500		Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-00-20R-550		Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-00-20R-600		Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-00-20R-650		Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-00-20R-700		Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-00-20H-200		Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-00-20H-250		Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-00-20H-300		Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-00-20H-350		Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-00-20H-400		Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-00-20H-450		Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-00-20H-500		Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-00-20H-550		Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-00-20H-600		Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-00-20H-650		Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-00-20H-700		Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-00-20N-200		Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-00-20N-250		Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-00-20N-300		Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-00-20N-350		Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-00-20N-400		Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-00-20N-450		Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-00-20N-500		Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-00-20N-550		Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-00-20N-600		Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-00-20N-650		Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-00-20N-700		Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-00-25B-200		Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-00-25B-250		Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-00-25B-300		Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-00-25B-350		Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-00-25B-400		Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-00-25B-450		Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-00-25B-500		Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-00-25B-550		Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-00-25B-600		Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-00-25B-650		Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-00-25B-700		Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-00-25R-200		Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-00-25R-250		Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-00-25R-300		Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-00-25R-350		Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-00-25R-400		Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-00-25R-450		Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-00-25R-500		Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-00-25R-550		Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-00-25R-600		Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-00-25R-650		Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-00-25R-700		Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-00-25H-200		Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-00-25H-250		Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-00-25H-300		Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-00-25H-350		Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-00-25H-400		Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-00-25H-450		Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-00-25H-500		Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-00-25H-550		Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-00-25H-600		Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-00-25H-650		Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-00-25H-700		Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-00-25N-200		Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-00-25N-250		Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-00-25N-300		Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-00-25N-350		Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-00-25N-400		Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-00-25N-450		Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-00-25N-500		Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-00-25N-550		Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-00-25N-600		Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-00-25N-650		Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-00-25N-700		Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-00-32B-200		Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-00-32B-250		Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-00-32B-300		Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-00-32B-350		Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-00-32B-400		Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-00-32B-450		Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-00-32B-500		Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-00-32B-550		Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-00-32B-600		Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-00-32B-650		Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-00-32B-700		Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-00-32R-200		Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-00-32R-250		Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-00-32R-300		Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-00-32R-350		Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-00-32R-400		Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-00-32R-450		Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-00-32R-500		Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-00-32R-550		Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-00-32R-600		Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-00-32R-650		Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-00-32R-700		Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-00-32H-200		Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-00-32H-250		Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-00-32H-300		Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-00-32H-350		Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-00-32H-400		Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-00-32H-450		Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-00-32H-500		Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-00-32H-550		Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-00-32H-600		Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-00-32H-650		Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-00-32H-700		Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-00-32N-200		Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-00-32N-250		Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-00-32N-300		Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-00-32N-350		Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-00-32N-400		Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-00-32N-450		Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-00-32N-500		Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-00-32N-550		Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-00-32N-600		Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-00-32N-650		Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-00-32N-700		Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-00-40B-200		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-00-40B-250		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-00-40B-300		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-00-40B-350		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-00-40B-400		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-00-40B-450		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-00-40B-500		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-00-40B-550		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-00-40B-600		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-00-40B-650		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-00-40B-700		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-00-40B-750		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 750 mm
HCM-00-40B-800		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 800 mm
HCM-00-40B-850		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 850 mm
HCM-00-40B-900		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 900 mm
HCM-00-40B-950		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 950 mm
HCM-00-40B-1000		Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
HCM-00-40R-200		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-00-40R-250		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-00-40R-300		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-00-40R-350		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-00-40R-400		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-00-40R-450		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-00-40R-500		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-00-40R-550		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-00-40R-600		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-00-40R-650		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-00-40R-700		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-00-40R-750		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 750 mm
HCM-00-40R-800		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 800 mm
HCM-00-40R-850		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 850 mm
HCM-00-40R-900		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 900 mm
HCM-00-40R-950		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 950 mm
HCM-00-40R-1000		Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
HCM-00-40H-200		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-00-40H-250		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-00-40H-300		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-00-40H-350		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-00-40H-400		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-00-40H-450		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-00-40H-500		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-00-40H-550		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-00-40H-600		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-00-40H-650		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-00-40H-700		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-00-40H-750		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 750 mm
HCM-00-40H-800		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 800 mm
HCM-00-40H-850		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 850 mm
HCM-00-40H-900		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 900 mm
HCM-00-40H-950		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 950 mm
HCM-00-40H-1000		Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 1000 mm
HCM-00-40N-200		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-00-40N-250		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-00-40N-300		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-00-40N-350		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-00-40N-400		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-00-40N-450		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-00-40N-500		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-00-40N-550		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-00-40N-600		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-00-40N-650		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-00-40N-700		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-00-40N-750		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 750 mm
HCM-00-40N-800		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 800 mm
HCM-00-40N-850		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 850 mm
HCM-00-40N-900		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 900 mm
HCM-00-40N-950		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 950 mm
HCM-00-40N-1000		Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 1000 mm
HCM-00-50B-200		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-00-50B-250		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-00-50B-300		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-00-50B-350		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-00-50B-400		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-00-50B-450		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-00-50B-500		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-00-50B-550		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-00-50B-600		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-00-50B-650		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-00-50B-700		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-00-50B-750		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 750 mm
HCM-00-50B-800		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 800 mm
HCM-00-50B-850		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 850 mm
HCM-00-50B-900		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 900 mm
HCM-00-50B-950		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 950 mm
HCM-00-50B-1000		Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
HCM-00-50R-200		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-00-50R-250		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-00-50R-300		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-00-50R-350		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-00-50R-400		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-00-50R-450		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-00-50R-500		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-00-50R-550		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-00-50R-600		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-00-50R-650		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-00-50R-700		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-00-50R-750		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 750 mm
HCM-00-50R-800		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 800 mm
HCM-00-50R-850		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 850 mm
HCM-00-50R-900		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 900 mm
HCM-00-50R-950		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 950 mm
HCM-00-50R-1000		Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
HCM-00-50H-200		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-00-50H-250		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-00-50H-300		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-00-50H-350		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-00-50H-400		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-00-50H-450		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-00-50H-500		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-00-50H-550		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-00-50H-600		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-00-50H-650		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-00-50H-700		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-00-50H-750		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 750 mm
HCM-00-50H-800		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 800 mm
HCM-00-50H-850		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 850 mm
HCM-00-50H-900		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 900 mm
HCM-00-50H-950		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 950 mm
HCM-00-50H-1000		Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 1000 mm
HCM-00-50N-200		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-00-50N-250		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-00-50N-300		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-00-50N-350		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-00-50N-400		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-00-50N-450		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-00-50N-500		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-00-50N-550		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-00-50N-600		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-00-50N-650		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-00-50N-700		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-00-50N-750		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 750 mm
HCM-00-50N-800		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 800 mm
HCM-00-50N-850		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 850 mm
HCM-00-50N-900		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 900 mm
HCM-00-50N-950		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 950 mm
HCM-00-50N-1000		Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 1000 mm
HCM-00-63B-200		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-00-63B-250		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-00-63B-300		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-00-63B-350		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-00-63B-400		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-00-63B-450		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-00-63B-500		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-00-63B-550		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-00-63B-600		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-00-63B-650		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-00-63B-700		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-00-63B-750		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 750 mm
HCM-00-63B-800		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 800 mm
HCM-00-63B-850		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 850 mm
HCM-00-63B-900		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 900 mm
HCM-00-63B-950		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 950 mm
HCM-00-63B-1000		Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
HCM-00-63R-200		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-00-63R-250		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-00-63R-300		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-00-63R-350		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-00-63R-400		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-00-63R-450		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-00-63R-500		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-00-63R-550		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-00-63R-600		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-00-63R-650		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-00-63R-700		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-00-63R-750		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 750 mm
HCM-00-63R-800		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 800 mm
HCM-00-63R-850		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 850 mm
HCM-00-63R-900		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 900 mm
HCM-00-63R-950		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 950 mm
HCM-00-63R-1000		Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
HCM-00-63H-200		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-00-63H-250		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-00-63H-300		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-00-63H-350		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-00-63H-400		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-00-63H-450		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-00-63H-500		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-00-63H-550		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-00-63H-600		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-00-63H-650		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-00-63H-700		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-00-63H-750		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 750 mm
HCM-00-63H-800		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 800 mm
HCM-00-63H-850		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 850 mm
HCM-00-63H-900		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 900 mm
HCM-00-63H-950		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 950 mm
HCM-00-63H-1000		Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 1000 mm
HCM-00-63N-200		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-00-63N-250		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-00-63N-300		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-00-63N-350		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-00-63N-400		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-00-63N-450		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-00-63N-500		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-00-63N-550		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-00-63N-600		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-00-63N-650		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-00-63N-700		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-00-63N-750		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 750 mm
HCM-00-63N-800		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 800 mm
HCM-00-63N-850		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 850 mm
HCM-00-63N-900		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 900 mm
HCM-00-63N-950		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 950 mm
HCM-00-63N-1000		Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 1000 mm
HCM-LB-20B-200		Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-LB-20B-250		Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-LB-20B-300		Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-LB-20B-350		Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-LB-20B-400		Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-LB-20B-450		Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-LB-20B-500		Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-LB-20B-550		Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-LB-20B-600		Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-LB-20B-650		Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-LB-20B-700		Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-LB-20R-200		Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-LB-20R-250		Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-LB-20R-300		Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-LB-20R-350		Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-LB-20R-400		Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-LB-20R-450		Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-LB-20R-500		Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-LB-20R-550		Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-LB-20R-600		Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-LB-20R-650		Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-LB-20R-700		Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-LB-20H-200		Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-LB-20H-250		Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-LB-20H-300		Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-LB-20H-350		Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-LB-20H-400		Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-LB-20H-450		Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-LB-20H-500		Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-LB-20H-550		Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-LB-20H-600		Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-LB-20H-650		Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-LB-20H-700		Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-LB-20N-200		Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-LB-20N-250		Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-LB-20N-300		Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-LB-20N-350		Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-LB-20N-400		Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-LB-20N-450		Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-LB-20N-500		Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-LB-20N-550		Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-LB-20N-600		Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-LB-20N-650		Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-LB-20N-700		Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-LB-25B-200		Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-LB-25B-250		Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-LB-25B-300		Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-LB-25B-350		Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-LB-25B-400		Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-LB-25B-450		Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-LB-25B-500		Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-LB-25B-550		Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-LB-25B-600		Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-LB-25B-650		Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-LB-25B-700		Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-LB-25R-200		Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-LB-25R-250		Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-LB-25R-300		Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-LB-25R-350		Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-LB-25R-400		Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-LB-25R-450		Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-LB-25R-500		Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-LB-25R-550		Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-LB-25R-600		Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-LB-25R-650		Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-LB-25R-700		Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-LB-25H-200		Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-LB-25H-250		Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-LB-25H-300		Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-LB-25H-350		Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-LB-25H-400		Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-LB-25H-450		Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-LB-25H-500		Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-LB-25H-550		Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-LB-25H-600		Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-LB-25H-650		Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-LB-25H-700		Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-LB-25N-200		Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-LB-25N-250		Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-LB-25N-300		Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-LB-25N-350		Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-LB-25N-400		Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-LB-25N-450		Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-LB-25N-500		Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-LB-25N-550		Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-LB-25N-600		Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-LB-25N-650		Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-LB-25N-700		Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-LB-32B-200		Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-LB-32B-250		Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-LB-32B-300		Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-LB-32B-350		Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-LB-32B-400		Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-LB-32B-450		Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-LB-32B-500		Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-LB-32B-550		Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-LB-32B-600		Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-LB-32B-650		Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-LB-32B-700		Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-LB-32R-200		Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-LB-32R-250		Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-LB-32R-300		Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-LB-32R-350		Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-LB-32R-400		Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-LB-32R-450		Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-LB-32R-500		Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-LB-32R-550		Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-LB-32R-600		Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-LB-32R-650		Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-LB-32R-700		Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-LB-32H-200		Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-LB-32H-250		Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-LB-32H-300		Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-LB-32H-350		Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-LB-32H-400		Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-LB-32H-450		Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-LB-32H-500		Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-LB-32H-550		Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-LB-32H-600		Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-LB-32H-650		Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-LB-32H-700		Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-LB-32N-200		Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-LB-32N-250		Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-LB-32N-300		Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-LB-32N-350		Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-LB-32N-400		Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-LB-32N-450		Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-LB-32N-500		Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-LB-32N-550		Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-LB-32N-600		Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-LB-32N-650		Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-LB-32N-700		Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-LB-40B-200		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-LB-40B-250		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-LB-40B-300		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-LB-40B-350		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-LB-40B-400		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-LB-40B-450		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-LB-40B-500		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-LB-40B-550		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-LB-40B-600		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-LB-40B-650		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-LB-40B-700		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-LB-40B-750		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 750 mm
HCM-LB-40B-800		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 800 mm
HCM-LB-40B-850		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 850 mm
HCM-LB-40B-900		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 900 mm
HCM-LB-40B-950		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 950 mm
HCM-LB-40B-1000		Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
HCM-LB-40R-200		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-LB-40R-250		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-LB-40R-300		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-LB-40R-350		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-LB-40R-400		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-LB-40R-450		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-LB-40R-500		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-LB-40R-550		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-LB-40R-600		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-LB-40R-650		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-LB-40R-700		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-LB-40R-750		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 750 mm
HCM-LB-40R-800		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 800 mm
HCM-LB-40R-850		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 850 mm
HCM-LB-40R-900		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 900 mm
HCM-LB-40R-950		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 950 mm
HCM-LB-40R-1000		Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
HCM-LB-40H-200		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-LB-40H-250		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-LB-40H-300		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-LB-40H-350		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-LB-40H-400		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-LB-40H-450		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-LB-40H-500		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-LB-40H-550		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-LB-40H-600		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-LB-40H-650		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-LB-40H-700		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-LB-40H-750		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 750 mm
HCM-LB-40H-800		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 800 mm
HCM-LB-40H-850		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 850 mm
HCM-LB-40H-900		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 900 mm
HCM-LB-40H-950		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 950 mm
HCM-LB-40H-1000		Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 1000 mm
HCM-LB-40N-200		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-LB-40N-250		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-LB-40N-300		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-LB-40N-350		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-LB-40N-400		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-LB-40N-450		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-LB-40N-500		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-LB-40N-550		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-LB-40N-600		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-LB-40N-650		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-LB-40N-700		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-LB-40N-750		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 750 mm
HCM-LB-40N-800		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 800 mm
HCM-LB-40N-850		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 850 mm
HCM-LB-40N-900		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 900 mm
HCM-LB-40N-950		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 950 mm
HCM-LB-40N-1000		Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 1000 mm
HCM-LB-50B-200		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-LB-50B-250		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-LB-50B-300		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-LB-50B-350		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-LB-50B-400		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-LB-50B-450		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-LB-50B-500		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-LB-50B-550		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-LB-50B-600		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-LB-50B-650		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-LB-50B-700		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-LB-50B-750		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 750 mm
HCM-LB-50B-800		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 800 mm
HCM-LB-50B-850		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 850 mm
HCM-LB-50B-900		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 900 mm
HCM-LB-50B-950		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 950 mm
HCM-LB-50B-1000		Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
HCM-LB-50R-200		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-LB-50R-250		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-LB-50R-300		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-LB-50R-350		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-LB-50R-400		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-LB-50R-450		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-LB-50R-500		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-LB-50R-550		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-LB-50R-600		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-LB-50R-650		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-LB-50R-700		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-LB-50R-750		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 750 mm
HCM-LB-50R-800		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 800 mm
HCM-LB-50R-850		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 850 mm
HCM-LB-50R-900		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 900 mm
HCM-LB-50R-950		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 950 mm
HCM-LB-50R-1000		Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
HCM-LB-50H-200		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-LB-50H-250		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-LB-50H-300		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-LB-50H-350		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-LB-50H-400		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-LB-50H-450		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-LB-50H-500		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-LB-50H-550		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-LB-50H-600		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-LB-50H-650		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-LB-50H-700		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-LB-50H-750		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 750 mm
HCM-LB-50H-800		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 800 mm
HCM-LB-50H-850		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 850 mm
HCM-LB-50H-900		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 900 mm
HCM-LB-50H-950		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 950 mm
HCM-LB-50H-1000		Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 1000 mm
HCM-LB-50N-200		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-LB-50N-250		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-LB-50N-300		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-LB-50N-350		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-LB-50N-400		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-LB-50N-450		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-LB-50N-500		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-LB-50N-550		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-LB-50N-600		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-LB-50N-650		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-LB-50N-700		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-LB-50N-750		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 750 mm
HCM-LB-50N-800		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 800 mm
HCM-LB-50N-850		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 850 mm
HCM-LB-50N-900		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 900 mm
HCM-LB-50N-950		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 950 mm
HCM-LB-50N-1000		Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 1000 mm
HCM-LB-63B-200		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-LB-63B-250		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-LB-63B-300		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-LB-63B-350		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-LB-63B-400		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-LB-63B-450		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-LB-63B-500		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-LB-63B-550		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-LB-63B-600		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-LB-63B-650		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-LB-63B-700		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-LB-63B-750		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 750 mm
HCM-LB-63B-800		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 800 mm
HCM-LB-63B-850		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 850 mm
HCM-LB-63B-900		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 900 mm
HCM-LB-63B-950		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 950 mm
HCM-LB-63B-1000		Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
HCM-LB-63R-200		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-LB-63R-250		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-LB-63R-300		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-LB-63R-350		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-LB-63R-400		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-LB-63R-450		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-LB-63R-500		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-LB-63R-550		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-LB-63R-600		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-LB-63R-650		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-LB-63R-700		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-LB-63R-750		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 750 mm
HCM-LB-63R-800		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 800 mm
HCM-LB-63R-850		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 850 mm
HCM-LB-63R-900		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 900 mm
HCM-LB-63R-950		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 950 mm
HCM-LB-63R-1000		Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
HCM-LB-63H-200		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-LB-63H-250		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-LB-63H-300		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-LB-63H-350		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-LB-63H-400		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-LB-63H-450		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-LB-63H-500		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-LB-63H-550		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-LB-63H-600		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-LB-63H-650		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-LB-63H-700		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-LB-63H-750		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 750 mm
HCM-LB-63H-800		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 800 mm
HCM-LB-63H-850		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 850 mm
HCM-LB-63H-900		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 900 mm
HCM-LB-63H-950		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 950 mm
HCM-LB-63H-1000		Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 1000 mm
HCM-LB-63N-200		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-LB-63N-250		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-LB-63N-300		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-LB-63N-350		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-LB-63N-400		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-LB-63N-450		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-LB-63N-500		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-LB-63N-550		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-LB-63N-600		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-LB-63N-650		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-LB-63N-700		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-LB-63N-750		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 750 mm
HCM-LB-63N-800		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 800 mm
HCM-LB-63N-850		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 850 mm
HCM-LB-63N-900		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 900 mm
HCM-LB-63N-950		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 950 mm
HCM-LB-63N-1000		Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 1000 mm
HCM-FA-20B-200		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-FA-20B-250		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-FA-20B-300		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-FA-20B-350		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-FA-20B-400		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-FA-20B-450		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-FA-20B-500		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-FA-20B-550		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-FA-20B-600		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-FA-20B-650		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-FA-20B-700		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-FA-20R-200		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-FA-20R-250		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-FA-20R-300		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-FA-20R-350		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-FA-20R-400		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-FA-20R-450		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-FA-20R-500		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-FA-20R-550		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-FA-20R-600		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-FA-20R-650		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-FA-20R-700		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-FA-20H-200		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-FA-20H-250		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-FA-20H-300		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-FA-20H-350		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-FA-20H-400		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-FA-20H-450		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-FA-20H-500		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-FA-20H-550		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-FA-20H-600		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-FA-20H-650		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-FA-20H-700		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-FA-20N-200		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-FA-20N-250		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-FA-20N-300		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-FA-20N-350		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-FA-20N-400		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-FA-20N-450		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-FA-20N-500		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-FA-20N-550		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-FA-20N-600		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-FA-20N-650		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-FA-20N-700		Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-FA-25B-200		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-FA-25B-250		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-FA-25B-300		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-FA-25B-350		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-FA-25B-400		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-FA-25B-450		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-FA-25B-500		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-FA-25B-550		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-FA-25B-600		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-FA-25B-650		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-FA-25B-700		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-FA-25R-200		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-FA-25R-250		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-FA-25R-300		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-FA-25R-350		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-FA-25R-400		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-FA-25R-450		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-FA-25R-500		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-FA-25R-550		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-FA-25R-600		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-FA-25R-650		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-FA-25R-700		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-FA-25H-200		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-FA-25H-250		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-FA-25H-300		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-FA-25H-350		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-FA-25H-400		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-FA-25H-450		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-FA-25H-500		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-FA-25H-550		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-FA-25H-600		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-FA-25H-650		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-FA-25H-700		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-FA-25N-200		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-FA-25N-250		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-FA-25N-300		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-FA-25N-350		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-FA-25N-400		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-FA-25N-450		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-FA-25N-500		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-FA-25N-550		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-FA-25N-600		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-FA-25N-650		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-FA-25N-700		Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-FA-32B-200		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-FA-32B-250		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-FA-32B-300		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-FA-32B-350		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-FA-32B-400		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-FA-32B-450		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-FA-32B-500		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-FA-32B-550		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-FA-32B-600		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-FA-32B-650		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-FA-32B-700		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-FA-32R-200		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-FA-32R-250		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-FA-32R-300		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-FA-32R-350		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-FA-32R-400		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-FA-32R-450		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-FA-32R-500		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-FA-32R-550		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-FA-32R-600		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-FA-32R-650		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-FA-32R-700		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-FA-32H-200		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-FA-32H-250		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-FA-32H-300		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-FA-32H-350		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-FA-32H-400		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-FA-32H-450		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-FA-32H-500		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-FA-32H-550		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-FA-32H-600		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-FA-32H-650		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-FA-32H-700		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-FA-32N-200		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-FA-32N-250		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-FA-32N-300		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-FA-32N-350		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-FA-32N-400		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-FA-32N-450		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-FA-32N-500		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-FA-32N-550		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-FA-32N-600		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-FA-32N-650		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-FA-32N-700		Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-FA-40B-200		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-FA-40B-250		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-FA-40B-300		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-FA-40B-350		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-FA-40B-400		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-FA-40B-450		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-FA-40B-500		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-FA-40B-550		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-FA-40B-600		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-FA-40B-650		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-FA-40B-700		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-FA-40B-750		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 750 mm
HCM-FA-40B-800		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 800 mm
HCM-FA-40B-850		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 850 mm
HCM-FA-40B-900		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 900 mm
HCM-FA-40B-950		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 950 mm
HCM-FA-40B-1000		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
HCM-FA-40R-200		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-FA-40R-250		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-FA-40R-300		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-FA-40R-350		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-FA-40R-400		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-FA-40R-450		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-FA-40R-500		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-FA-40R-550		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-FA-40R-600		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-FA-40R-650		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-FA-40R-700		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-FA-40R-750		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 750 mm
HCM-FA-40R-800		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 800 mm
HCM-FA-40R-850		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 850 mm
HCM-FA-40R-900		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 900 mm
HCM-FA-40R-950		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 950 mm
HCM-FA-40R-1000		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
HCM-FA-40H-200		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-FA-40H-250		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-FA-40H-300		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-FA-40H-350		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-FA-40H-400		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-FA-40H-450		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-FA-40H-500		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-FA-40H-550		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-FA-40H-600		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-FA-40H-650		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-FA-40H-700		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-FA-40H-750		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 750 mm
HCM-FA-40H-800		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 800 mm
HCM-FA-40H-850		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 850 mm
HCM-FA-40H-900		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 900 mm
HCM-FA-40H-950		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 950 mm
HCM-FA-40H-1000		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 1000 mm
HCM-FA-40N-200		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-FA-40N-250		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-FA-40N-300		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-FA-40N-350		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-FA-40N-400		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-FA-40N-450		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-FA-40N-500		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-FA-40N-550		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-FA-40N-600		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-FA-40N-650		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-FA-40N-700		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-FA-40N-750		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 750 mm
HCM-FA-40N-800		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 800 mm
HCM-FA-40N-850		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 850 mm
HCM-FA-40N-900		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 900 mm
HCM-FA-40N-950		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 950 mm
HCM-FA-40N-1000		Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 1000 mm
HCM-FA-50B-200		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-FA-50B-250		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-FA-50B-300		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-FA-50B-350		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-FA-50B-400		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-FA-50B-450		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-FA-50B-500		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-FA-50B-550		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-FA-50B-600		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-FA-50B-650		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-FA-50B-700		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-FA-50B-750		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 750 mm
HCM-FA-50B-800		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 800 mm
HCM-FA-50B-850		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 850 mm
HCM-FA-50B-900		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 900 mm
HCM-FA-50B-950		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 950 mm
HCM-FA-50B-1000		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
HCM-FA-50R-200		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-FA-50R-250		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-FA-50R-300		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-FA-50R-350		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-FA-50R-400		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-FA-50R-450		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-FA-50R-500		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-FA-50R-550		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-FA-50R-600		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-FA-50R-650		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-FA-50R-700		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-FA-50R-750		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 750 mm
HCM-FA-50R-800		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 800 mm
HCM-FA-50R-850		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 850 mm
HCM-FA-50R-900		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 900 mm
HCM-FA-50R-950		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 950 mm
HCM-FA-50R-1000		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
HCM-FA-50H-200		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-FA-50H-250		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-FA-50H-300		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-FA-50H-350		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-FA-50H-400		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-FA-50H-450		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-FA-50H-500		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-FA-50H-550		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-FA-50H-600		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-FA-50H-650		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-FA-50H-700		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-FA-50H-750		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 750 mm
HCM-FA-50H-800		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 800 mm
HCM-FA-50H-850		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 850 mm
HCM-FA-50H-900		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 900 mm
HCM-FA-50H-950		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 950 mm
HCM-FA-50H-1000		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 1000 mm
HCM-FA-50N-200		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-FA-50N-250		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-FA-50N-300		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-FA-50N-350		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-FA-50N-400		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-FA-50N-450		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-FA-50N-500		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-FA-50N-550		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-FA-50N-600		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-FA-50N-650		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-FA-50N-700		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-FA-50N-750		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 750 mm
HCM-FA-50N-800		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 800 mm
HCM-FA-50N-850		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 850 mm
HCM-FA-50N-900		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 900 mm
HCM-FA-50N-950		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 950 mm
HCM-FA-50N-1000		Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 1000 mm
HCM-FA-63B-200		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-FA-63B-250		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-FA-63B-300		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-FA-63B-350		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-FA-63B-400		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-FA-63B-450		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-FA-63B-500		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-FA-63B-550		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-FA-63B-600		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-FA-63B-650		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-FA-63B-700		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-FA-63B-750		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 750 mm
HCM-FA-63B-800		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 800 mm
HCM-FA-63B-850		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 850 mm
HCM-FA-63B-900		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 900 mm
HCM-FA-63B-950		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 950 mm
HCM-FA-63B-1000		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
HCM-FA-63R-200		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-FA-63R-250		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-FA-63R-300		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-FA-63R-350		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-FA-63R-400		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-FA-63R-450		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-FA-63R-500		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-FA-63R-550		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-FA-63R-600		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-FA-63R-650		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-FA-63R-700		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-FA-63R-750		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 750 mm
HCM-FA-63R-800		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 800 mm
HCM-FA-63R-850		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 850 mm
HCM-FA-63R-900		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 900 mm
HCM-FA-63R-950		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 950 mm
HCM-FA-63R-1000		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
HCM-FA-63H-200		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-FA-63H-250		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-FA-63H-300		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-FA-63H-350		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-FA-63H-400		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-FA-63H-450		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-FA-63H-500		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-FA-63H-550		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-FA-63H-600		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-FA-63H-650		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-FA-63H-700		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-FA-63H-750		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 750 mm
HCM-FA-63H-800		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 800 mm
HCM-FA-63H-850		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 850 mm
HCM-FA-63H-900		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 900 mm
HCM-FA-63H-950		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 950 mm
HCM-FA-63H-1000		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 1000 mm
HCM-FA-63N-200		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-FA-63N-250		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-FA-63N-300		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-FA-63N-350		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-FA-63N-400		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-FA-63N-450		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-FA-63N-500		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-FA-63N-550		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-FA-63N-600		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-FA-63N-650		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-FA-63N-700		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-FA-63N-750		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 750 mm
HCM-FA-63N-800		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 800 mm
HCM-FA-63N-850		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 850 mm
HCM-FA-63N-900		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 900 mm
HCM-FA-63N-950		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 950 mm
HCM-FA-63N-1000		Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 1000 mm
HCM-FB-20B-200		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-FB-20B-250		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-FB-20B-300		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-FB-20B-350		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-FB-20B-400		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-FB-20B-450		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-FB-20B-500		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-FB-20B-550		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-FB-20B-600		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-FB-20B-650		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-FB-20B-700		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-FB-20R-200		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-FB-20R-250		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-FB-20R-300		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-FB-20R-350		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-FB-20R-400		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-FB-20R-450		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-FB-20R-500		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-FB-20R-550		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-FB-20R-600		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-FB-20R-650		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-FB-20R-700		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-FB-20H-200		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-FB-20H-250		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-FB-20H-300		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-FB-20H-350		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-FB-20H-400		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-FB-20H-450		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-FB-20H-500		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-FB-20H-550		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-FB-20H-600		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-FB-20H-650		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-FB-20H-700		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-FB-20N-200		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-FB-20N-250		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-FB-20N-300		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-FB-20N-350		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-FB-20N-400		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-FB-20N-450		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-FB-20N-500		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-FB-20N-550		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-FB-20N-600		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-FB-20N-650		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-FB-20N-700		Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-FB-25B-200		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-FB-25B-250		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-FB-25B-300		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-FB-25B-350		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-FB-25B-400		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-FB-25B-450		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-FB-25B-500		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-FB-25B-550		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-FB-25B-600		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-FB-25B-650		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-FB-25B-700		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-FB-25R-200		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-FB-25R-250		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-FB-25R-300		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-FB-25R-350		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-FB-25R-400		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-FB-25R-450		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-FB-25R-500		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-FB-25R-550		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-FB-25R-600		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-FB-25R-650		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-FB-25R-700		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-FB-25H-200		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-FB-25H-250		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-FB-25H-300		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-FB-25H-350		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-FB-25H-400		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-FB-25H-450		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-FB-25H-500		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-FB-25H-550		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-FB-25H-600		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-FB-25H-650		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-FB-25H-700		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-FB-25N-200		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-FB-25N-250		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-FB-25N-300		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-FB-25N-350		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-FB-25N-400		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-FB-25N-450		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-FB-25N-500		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-FB-25N-550		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-FB-25N-600		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-FB-25N-650		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-FB-25N-700		Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-FB-32B-200		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-FB-32B-250		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-FB-32B-300		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-FB-32B-350		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-FB-32B-400		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-FB-32B-450		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-FB-32B-500		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-FB-32B-550		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-FB-32B-600		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-FB-32B-650		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-FB-32B-700		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-FB-32R-200		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-FB-32R-250		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-FB-32R-300		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-FB-32R-350		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-FB-32R-400		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-FB-32R-450		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-FB-32R-500		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-FB-32R-550		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-FB-32R-600		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-FB-32R-650		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-FB-32R-700		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-FB-32H-200		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-FB-32H-250		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-FB-32H-300		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-FB-32H-350		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-FB-32H-400		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-FB-32H-450		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-FB-32H-500		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-FB-32H-550		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-FB-32H-600		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-FB-32H-650		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-FB-32H-700		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-FB-32N-200		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-FB-32N-250		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-FB-32N-300		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-FB-32N-350		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-FB-32N-400		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-FB-32N-450		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-FB-32N-500		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-FB-32N-550		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-FB-32N-600		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-FB-32N-650		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-FB-32N-700		Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-FB-40B-200		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-FB-40B-250		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-FB-40B-300		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-FB-40B-350		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-FB-40B-400		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-FB-40B-450		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-FB-40B-500		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-FB-40B-550		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-FB-40B-600		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-FB-40B-650		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-FB-40B-700		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-FB-40B-750		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 750 mm
HCM-FB-40B-800		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 800 mm
HCM-FB-40B-850		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 850 mm
HCM-FB-40B-900		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 900 mm
HCM-FB-40B-950		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 950 mm
HCM-FB-40B-1000		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
HCM-FB-40R-200		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-FB-40R-250		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-FB-40R-300		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-FB-40R-350		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-FB-40R-400		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-FB-40R-450		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-FB-40R-500		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-FB-40R-550		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-FB-40R-600		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-FB-40R-650		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-FB-40R-700		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-FB-40R-750		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 750 mm
HCM-FB-40R-800		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 800 mm
HCM-FB-40R-850		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 850 mm
HCM-FB-40R-900		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 900 mm
HCM-FB-40R-950		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 950 mm
HCM-FB-40R-1000		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
HCM-FB-40H-200		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-FB-40H-250		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-FB-40H-300		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-FB-40H-350		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-FB-40H-400		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-FB-40H-450		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-FB-40H-500		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-FB-40H-550		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-FB-40H-600		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-FB-40H-650		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-FB-40H-700		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-FB-40H-750		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 750 mm
HCM-FB-40H-800		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 800 mm
HCM-FB-40H-850		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 850 mm
HCM-FB-40H-900		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 900 mm
HCM-FB-40H-950		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 950 mm
HCM-FB-40H-1000		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 1000 mm
HCM-FB-40N-200		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-FB-40N-250		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-FB-40N-300		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-FB-40N-350		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-FB-40N-400		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-FB-40N-450		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-FB-40N-500		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-FB-40N-550		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-FB-40N-600		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-FB-40N-650		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-FB-40N-700		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-FB-40N-750		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 750 mm
HCM-FB-40N-800		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 800 mm
HCM-FB-40N-850		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 850 mm
HCM-FB-40N-900		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 900 mm
HCM-FB-40N-950		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 950 mm
HCM-FB-40N-1000		Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 1000 mm
HCM-FB-50B-200		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-FB-50B-250		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-FB-50B-300		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-FB-50B-350		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-FB-50B-400		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-FB-50B-450		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-FB-50B-500		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-FB-50B-550		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-FB-50B-600		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-FB-50B-650		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-FB-50B-700		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-FB-50B-750		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 750 mm
HCM-FB-50B-800		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 800 mm
HCM-FB-50B-850		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 850 mm
HCM-FB-50B-900		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 900 mm
HCM-FB-50B-950		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 950 mm
HCM-FB-50B-1000		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
HCM-FB-50R-200		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-FB-50R-250		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-FB-50R-300		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-FB-50R-350		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-FB-50R-400		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-FB-50R-450		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-FB-50R-500		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-FB-50R-550		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-FB-50R-600		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-FB-50R-650		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-FB-50R-700		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-FB-50R-750		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 750 mm
HCM-FB-50R-800		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 800 mm
HCM-FB-50R-850		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 850 mm
HCM-FB-50R-900		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 900 mm
HCM-FB-50R-950		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 950 mm
HCM-FB-50R-1000		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
HCM-FB-50H-200		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-FB-50H-250		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-FB-50H-300		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-FB-50H-350		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-FB-50H-400		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-FB-50H-450		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-FB-50H-500		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-FB-50H-550		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-FB-50H-600		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-FB-50H-650		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-FB-50H-700		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-FB-50H-750		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 750 mm
HCM-FB-50H-800		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 800 mm
HCM-FB-50H-850		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 850 mm
HCM-FB-50H-900		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 900 mm
HCM-FB-50H-950		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 950 mm
HCM-FB-50H-1000		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 1000 mm
HCM-FB-50N-200		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-FB-50N-250		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-FB-50N-300		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-FB-50N-350		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-FB-50N-400		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-FB-50N-450		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-FB-50N-500		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-FB-50N-550		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-FB-50N-600		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-FB-50N-650		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-FB-50N-700		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-FB-50N-750		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 750 mm
HCM-FB-50N-800		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 800 mm
HCM-FB-50N-850		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 850 mm
HCM-FB-50N-900		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 900 mm
HCM-FB-50N-950		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 950 mm
HCM-FB-50N-1000		Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 1000 mm
HCM-FB-63B-200		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 200 mm
HCM-FB-63B-250		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 250 mm
HCM-FB-63B-300		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 300 mm
HCM-FB-63B-350		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 350 mm
HCM-FB-63B-400		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 400 mm
HCM-FB-63B-450		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 450 mm
HCM-FB-63B-500		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 500 mm
HCM-FB-63B-550		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 550 mm
HCM-FB-63B-600		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 600 mm
HCM-FB-63B-650		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 650 mm
HCM-FB-63B-700		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 700 mm
HCM-FB-63B-750		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 750 mm
HCM-FB-63B-800		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 800 mm
HCM-FB-63B-850		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 850 mm
HCM-FB-63B-900		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 900 mm
HCM-FB-63B-950		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 950 mm
HCM-FB-63B-1000		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
HCM-FB-63R-200		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 200 mm
HCM-FB-63R-250		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 250 mm
HCM-FB-63R-300		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 300 mm
HCM-FB-63R-350		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 350 mm
HCM-FB-63R-400		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 400 mm
HCM-FB-63R-450		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 450 mm
HCM-FB-63R-500		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 500 mm
HCM-FB-63R-550		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 550 mm
HCM-FB-63R-600		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 600 mm
HCM-FB-63R-650		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 650 mm
HCM-FB-63R-700		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 700 mm
HCM-FB-63R-750		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 750 mm
HCM-FB-63R-800		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 800 mm
HCM-FB-63R-850		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 850 mm
HCM-FB-63R-900		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 900 mm
HCM-FB-63R-950		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 950 mm
HCM-FB-63R-1000		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
HCM-FB-63H-200		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 200 mm
HCM-FB-63H-250		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 250 mm
HCM-FB-63H-300		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 300 mm
HCM-FB-63H-350		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 350 mm
HCM-FB-63H-400		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 400 mm
HCM-FB-63H-450		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 450 mm
HCM-FB-63H-500		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 500 mm
HCM-FB-63H-550		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 550 mm
HCM-FB-63H-600		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 600 mm
HCM-FB-63H-650		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 650 mm
HCM-FB-63H-700		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 700 mm
HCM-FB-63H-750		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 750 mm
HCM-FB-63H-800		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 800 mm
HCM-FB-63H-850		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 850 mm
HCM-FB-63H-900		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 900 mm
HCM-FB-63H-950		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 950 mm
HCM-FB-63H-1000		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 1000 mm
HCM-FB-63N-200		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 200 mm
HCM-FB-63N-250		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 250 mm
HCM-FB-63N-300		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 300 mm
HCM-FB-63N-350		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 350 mm
HCM-FB-63N-400		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 400 mm
HCM-FB-63N-450		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 450 mm
HCM-FB-63N-500		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 500 mm
HCM-FB-63N-550		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 550 mm
HCM-FB-63N-600		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 600 mm
HCM-FB-63N-650		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 650 mm
HCM-FB-63N-700		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 700 mm
HCM-FB-63N-750		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 750 mm
HCM-FB-63N-800		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 800 mm
HCM-FB-63N-850		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 850 mm
HCM-FB-63N-900		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 900 mm
HCM-FB-63N-950		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 950 mm
HCM-FB-63N-1000		Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 1000 mm

Pneumatic CylindersCKD

1344 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD HCM High Energy Absorption Cylinder (Bore 20-63)

Brand CKD·Pneumatic Cylinders

Available part numbers (1344)

HCM-00-20B-200, HCM-00-20B-250, HCM-00-20B-300, HCM-00-20B-350, HCM-00-20B-400, HCM-00-20B-450, HCM-00-20B-500, HCM-00-20B-550, HCM-00-20B-600, HCM-00-20B-650 + 1334 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	HCM-00-20B-200	Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-00-20B-250	Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-00-20B-300	Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-00-20B-350	Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-00-20B-400	Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-00-20B-450	Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-00-20B-500	Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-00-20B-550	Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-00-20B-600	Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-00-20B-650	Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-00-20B-700	Mounting: Basic \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-00-20R-200	Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-00-20R-250	Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-00-20R-300	Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-00-20R-350	Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-00-20R-400	Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-00-20R-450	Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-00-20R-500	Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-00-20R-550	Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-00-20R-600	Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-00-20R-650	Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-00-20R-700	Mounting: Basic \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-00-20H-200	Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-00-20H-250	Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-00-20H-300	Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-00-20H-350	Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-00-20H-400	Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-00-20H-450	Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-00-20H-500	Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-00-20H-550	Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-00-20H-600	Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-00-20H-650	Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-00-20H-700	Mounting: Basic \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-00-20N-200	Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-00-20N-250	Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-00-20N-300	Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-00-20N-350	Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-00-20N-400	Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-00-20N-450	Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-00-20N-500	Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-00-20N-550	Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-00-20N-600	Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-00-20N-650	Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-00-20N-700	Mounting: Basic \| Bore: 20 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-00-25B-200	Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-00-25B-250	Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-00-25B-300	Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-00-25B-350	Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-00-25B-400	Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-00-25B-450	Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-00-25B-500	Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-00-25B-550	Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-00-25B-600	Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-00-25B-650	Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-00-25B-700	Mounting: Basic \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-00-25R-200	Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-00-25R-250	Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-00-25R-300	Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-00-25R-350	Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-00-25R-400	Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-00-25R-450	Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-00-25R-500	Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-00-25R-550	Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-00-25R-600	Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-00-25R-650	Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-00-25R-700	Mounting: Basic \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-00-25H-200	Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-00-25H-250	Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-00-25H-300	Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-00-25H-350	Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-00-25H-400	Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-00-25H-450	Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-00-25H-500	Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-00-25H-550	Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-00-25H-600	Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-00-25H-650	Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-00-25H-700	Mounting: Basic \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-00-25N-200	Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-00-25N-250	Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-00-25N-300	Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-00-25N-350	Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-00-25N-400	Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-00-25N-450	Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-00-25N-500	Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-00-25N-550	Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-00-25N-600	Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-00-25N-650	Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-00-25N-700	Mounting: Basic \| Bore: 25 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-00-32B-200	Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-00-32B-250	Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-00-32B-300	Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-00-32B-350	Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-00-32B-400	Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-00-32B-450	Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-00-32B-500	Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-00-32B-550	Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-00-32B-600	Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-00-32B-650	Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-00-32B-700	Mounting: Basic \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-00-32R-200	Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-00-32R-250	Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-00-32R-300	Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-00-32R-350	Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-00-32R-400	Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-00-32R-450	Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-00-32R-500	Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-00-32R-550	Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-00-32R-600	Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-00-32R-650	Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-00-32R-700	Mounting: Basic \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-00-32H-200	Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-00-32H-250	Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-00-32H-300	Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-00-32H-350	Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-00-32H-400	Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-00-32H-450	Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-00-32H-500	Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-00-32H-550	Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-00-32H-600	Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-00-32H-650	Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-00-32H-700	Mounting: Basic \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-00-32N-200	Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-00-32N-250	Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-00-32N-300	Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-00-32N-350	Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-00-32N-400	Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-00-32N-450	Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-00-32N-500	Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-00-32N-550	Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-00-32N-600	Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-00-32N-650	Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-00-32N-700	Mounting: Basic \| Bore: 32 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-00-40B-200	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-00-40B-250	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-00-40B-300	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-00-40B-350	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-00-40B-400	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-00-40B-450	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-00-40B-500	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-00-40B-550	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-00-40B-600	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-00-40B-650	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-00-40B-700	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-00-40B-750	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 750 mm
	HCM-00-40B-800	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 800 mm
	HCM-00-40B-850	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 850 mm
	HCM-00-40B-900	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 900 mm
	HCM-00-40B-950	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 950 mm
	HCM-00-40B-1000	Mounting: Basic \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
	HCM-00-40R-200	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-00-40R-250	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-00-40R-300	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-00-40R-350	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-00-40R-400	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-00-40R-450	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-00-40R-500	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-00-40R-550	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-00-40R-600	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-00-40R-650	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-00-40R-700	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-00-40R-750	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 750 mm
	HCM-00-40R-800	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 800 mm
	HCM-00-40R-850	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 850 mm
	HCM-00-40R-900	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 900 mm
	HCM-00-40R-950	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 950 mm
	HCM-00-40R-1000	Mounting: Basic \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
	HCM-00-40H-200	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-00-40H-250	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-00-40H-300	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-00-40H-350	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-00-40H-400	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-00-40H-450	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-00-40H-500	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-00-40H-550	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-00-40H-600	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-00-40H-650	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-00-40H-700	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-00-40H-750	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 750 mm
	HCM-00-40H-800	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 800 mm
	HCM-00-40H-850	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 850 mm
	HCM-00-40H-900	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 900 mm
	HCM-00-40H-950	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 950 mm
	HCM-00-40H-1000	Mounting: Basic \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 1000 mm
	HCM-00-40N-200	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-00-40N-250	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-00-40N-300	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-00-40N-350	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-00-40N-400	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-00-40N-450	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-00-40N-500	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-00-40N-550	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-00-40N-600	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-00-40N-650	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-00-40N-700	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-00-40N-750	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 750 mm
	HCM-00-40N-800	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 800 mm
	HCM-00-40N-850	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 850 mm
	HCM-00-40N-900	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 900 mm
	HCM-00-40N-950	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 950 mm
	HCM-00-40N-1000	Mounting: Basic \| Bore: 40 mm \| Cushion: N - None \| Stroke: 1000 mm
	HCM-00-50B-200	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-00-50B-250	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-00-50B-300	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-00-50B-350	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-00-50B-400	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-00-50B-450	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-00-50B-500	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-00-50B-550	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-00-50B-600	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-00-50B-650	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-00-50B-700	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-00-50B-750	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 750 mm
	HCM-00-50B-800	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 800 mm
	HCM-00-50B-850	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 850 mm
	HCM-00-50B-900	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 900 mm
	HCM-00-50B-950	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 950 mm
	HCM-00-50B-1000	Mounting: Basic \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
	HCM-00-50R-200	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-00-50R-250	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-00-50R-300	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-00-50R-350	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-00-50R-400	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-00-50R-450	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-00-50R-500	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-00-50R-550	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-00-50R-600	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-00-50R-650	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-00-50R-700	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-00-50R-750	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 750 mm
	HCM-00-50R-800	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 800 mm
	HCM-00-50R-850	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 850 mm
	HCM-00-50R-900	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 900 mm
	HCM-00-50R-950	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 950 mm
	HCM-00-50R-1000	Mounting: Basic \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
	HCM-00-50H-200	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-00-50H-250	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-00-50H-300	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-00-50H-350	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-00-50H-400	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-00-50H-450	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-00-50H-500	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-00-50H-550	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-00-50H-600	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-00-50H-650	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-00-50H-700	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-00-50H-750	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 750 mm
	HCM-00-50H-800	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 800 mm
	HCM-00-50H-850	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 850 mm
	HCM-00-50H-900	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 900 mm
	HCM-00-50H-950	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 950 mm
	HCM-00-50H-1000	Mounting: Basic \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 1000 mm
	HCM-00-50N-200	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-00-50N-250	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-00-50N-300	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-00-50N-350	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-00-50N-400	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-00-50N-450	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-00-50N-500	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-00-50N-550	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-00-50N-600	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-00-50N-650	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-00-50N-700	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-00-50N-750	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 750 mm
	HCM-00-50N-800	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 800 mm
	HCM-00-50N-850	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 850 mm
	HCM-00-50N-900	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 900 mm
	HCM-00-50N-950	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 950 mm
	HCM-00-50N-1000	Mounting: Basic \| Bore: 50 mm \| Cushion: N - None \| Stroke: 1000 mm
	HCM-00-63B-200	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-00-63B-250	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-00-63B-300	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-00-63B-350	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-00-63B-400	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-00-63B-450	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-00-63B-500	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-00-63B-550	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-00-63B-600	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-00-63B-650	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-00-63B-700	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-00-63B-750	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 750 mm
	HCM-00-63B-800	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 800 mm
	HCM-00-63B-850	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 850 mm
	HCM-00-63B-900	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 900 mm
	HCM-00-63B-950	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 950 mm
	HCM-00-63B-1000	Mounting: Basic \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
	HCM-00-63R-200	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-00-63R-250	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-00-63R-300	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-00-63R-350	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-00-63R-400	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-00-63R-450	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-00-63R-500	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-00-63R-550	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-00-63R-600	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-00-63R-650	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-00-63R-700	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-00-63R-750	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 750 mm
	HCM-00-63R-800	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 800 mm
	HCM-00-63R-850	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 850 mm
	HCM-00-63R-900	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 900 mm
	HCM-00-63R-950	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 950 mm
	HCM-00-63R-1000	Mounting: Basic \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
	HCM-00-63H-200	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-00-63H-250	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-00-63H-300	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-00-63H-350	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-00-63H-400	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-00-63H-450	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-00-63H-500	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-00-63H-550	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-00-63H-600	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-00-63H-650	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-00-63H-700	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-00-63H-750	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 750 mm
	HCM-00-63H-800	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 800 mm
	HCM-00-63H-850	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 850 mm
	HCM-00-63H-900	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 900 mm
	HCM-00-63H-950	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 950 mm
	HCM-00-63H-1000	Mounting: Basic \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 1000 mm
	HCM-00-63N-200	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-00-63N-250	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-00-63N-300	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-00-63N-350	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-00-63N-400	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-00-63N-450	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-00-63N-500	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-00-63N-550	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-00-63N-600	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-00-63N-650	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-00-63N-700	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-00-63N-750	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 750 mm
	HCM-00-63N-800	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 800 mm
	HCM-00-63N-850	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 850 mm
	HCM-00-63N-900	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 900 mm
	HCM-00-63N-950	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 950 mm
	HCM-00-63N-1000	Mounting: Basic \| Bore: 63 mm \| Cushion: N - None \| Stroke: 1000 mm
	HCM-LB-20B-200	Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-LB-20B-250	Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-LB-20B-300	Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-LB-20B-350	Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-LB-20B-400	Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-LB-20B-450	Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-LB-20B-500	Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-LB-20B-550	Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-LB-20B-600	Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-LB-20B-650	Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-LB-20B-700	Mounting: Axial foot \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-LB-20R-200	Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-LB-20R-250	Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-LB-20R-300	Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-LB-20R-350	Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-LB-20R-400	Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-LB-20R-450	Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-LB-20R-500	Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-LB-20R-550	Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-LB-20R-600	Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-LB-20R-650	Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-LB-20R-700	Mounting: Axial foot \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-LB-20H-200	Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-LB-20H-250	Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-LB-20H-300	Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-LB-20H-350	Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-LB-20H-400	Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-LB-20H-450	Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-LB-20H-500	Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-LB-20H-550	Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-LB-20H-600	Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-LB-20H-650	Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-LB-20H-700	Mounting: Axial foot \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-LB-20N-200	Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-LB-20N-250	Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-LB-20N-300	Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-LB-20N-350	Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-LB-20N-400	Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-LB-20N-450	Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-LB-20N-500	Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-LB-20N-550	Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-LB-20N-600	Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-LB-20N-650	Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-LB-20N-700	Mounting: Axial foot \| Bore: 20 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-LB-25B-200	Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-LB-25B-250	Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-LB-25B-300	Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-LB-25B-350	Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-LB-25B-400	Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-LB-25B-450	Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-LB-25B-500	Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-LB-25B-550	Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-LB-25B-600	Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-LB-25B-650	Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-LB-25B-700	Mounting: Axial foot \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-LB-25R-200	Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-LB-25R-250	Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-LB-25R-300	Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-LB-25R-350	Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-LB-25R-400	Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-LB-25R-450	Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-LB-25R-500	Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-LB-25R-550	Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-LB-25R-600	Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-LB-25R-650	Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-LB-25R-700	Mounting: Axial foot \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-LB-25H-200	Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-LB-25H-250	Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-LB-25H-300	Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-LB-25H-350	Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-LB-25H-400	Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-LB-25H-450	Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-LB-25H-500	Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-LB-25H-550	Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-LB-25H-600	Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-LB-25H-650	Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-LB-25H-700	Mounting: Axial foot \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-LB-25N-200	Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-LB-25N-250	Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-LB-25N-300	Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-LB-25N-350	Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-LB-25N-400	Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-LB-25N-450	Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-LB-25N-500	Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-LB-25N-550	Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-LB-25N-600	Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-LB-25N-650	Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-LB-25N-700	Mounting: Axial foot \| Bore: 25 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-LB-32B-200	Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-LB-32B-250	Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-LB-32B-300	Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-LB-32B-350	Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-LB-32B-400	Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-LB-32B-450	Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-LB-32B-500	Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-LB-32B-550	Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-LB-32B-600	Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-LB-32B-650	Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-LB-32B-700	Mounting: Axial foot \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-LB-32R-200	Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-LB-32R-250	Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-LB-32R-300	Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-LB-32R-350	Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-LB-32R-400	Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-LB-32R-450	Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-LB-32R-500	Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-LB-32R-550	Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-LB-32R-600	Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-LB-32R-650	Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-LB-32R-700	Mounting: Axial foot \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-LB-32H-200	Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-LB-32H-250	Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-LB-32H-300	Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-LB-32H-350	Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-LB-32H-400	Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-LB-32H-450	Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-LB-32H-500	Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-LB-32H-550	Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-LB-32H-600	Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-LB-32H-650	Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-LB-32H-700	Mounting: Axial foot \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-LB-32N-200	Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-LB-32N-250	Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-LB-32N-300	Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-LB-32N-350	Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-LB-32N-400	Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-LB-32N-450	Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-LB-32N-500	Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-LB-32N-550	Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-LB-32N-600	Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-LB-32N-650	Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-LB-32N-700	Mounting: Axial foot \| Bore: 32 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-LB-40B-200	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-LB-40B-250	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-LB-40B-300	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-LB-40B-350	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-LB-40B-400	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-LB-40B-450	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-LB-40B-500	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-LB-40B-550	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-LB-40B-600	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-LB-40B-650	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-LB-40B-700	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-LB-40B-750	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 750 mm
	HCM-LB-40B-800	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 800 mm
	HCM-LB-40B-850	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 850 mm
	HCM-LB-40B-900	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 900 mm
	HCM-LB-40B-950	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 950 mm
	HCM-LB-40B-1000	Mounting: Axial foot \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
	HCM-LB-40R-200	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-LB-40R-250	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-LB-40R-300	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-LB-40R-350	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-LB-40R-400	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-LB-40R-450	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-LB-40R-500	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-LB-40R-550	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-LB-40R-600	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-LB-40R-650	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-LB-40R-700	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-LB-40R-750	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 750 mm
	HCM-LB-40R-800	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 800 mm
	HCM-LB-40R-850	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 850 mm
	HCM-LB-40R-900	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 900 mm
	HCM-LB-40R-950	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 950 mm
	HCM-LB-40R-1000	Mounting: Axial foot \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
	HCM-LB-40H-200	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-LB-40H-250	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-LB-40H-300	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-LB-40H-350	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-LB-40H-400	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-LB-40H-450	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-LB-40H-500	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-LB-40H-550	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-LB-40H-600	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-LB-40H-650	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-LB-40H-700	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-LB-40H-750	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 750 mm
	HCM-LB-40H-800	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 800 mm
	HCM-LB-40H-850	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 850 mm
	HCM-LB-40H-900	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 900 mm
	HCM-LB-40H-950	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 950 mm
	HCM-LB-40H-1000	Mounting: Axial foot \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 1000 mm
	HCM-LB-40N-200	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-LB-40N-250	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-LB-40N-300	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-LB-40N-350	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-LB-40N-400	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-LB-40N-450	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-LB-40N-500	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-LB-40N-550	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-LB-40N-600	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-LB-40N-650	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-LB-40N-700	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-LB-40N-750	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 750 mm
	HCM-LB-40N-800	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 800 mm
	HCM-LB-40N-850	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 850 mm
	HCM-LB-40N-900	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 900 mm
	HCM-LB-40N-950	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 950 mm
	HCM-LB-40N-1000	Mounting: Axial foot \| Bore: 40 mm \| Cushion: N - None \| Stroke: 1000 mm
	HCM-LB-50B-200	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-LB-50B-250	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-LB-50B-300	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-LB-50B-350	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-LB-50B-400	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-LB-50B-450	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-LB-50B-500	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-LB-50B-550	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-LB-50B-600	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-LB-50B-650	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-LB-50B-700	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-LB-50B-750	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 750 mm
	HCM-LB-50B-800	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 800 mm
	HCM-LB-50B-850	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 850 mm
	HCM-LB-50B-900	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 900 mm
	HCM-LB-50B-950	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 950 mm
	HCM-LB-50B-1000	Mounting: Axial foot \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
	HCM-LB-50R-200	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-LB-50R-250	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-LB-50R-300	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-LB-50R-350	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-LB-50R-400	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-LB-50R-450	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-LB-50R-500	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-LB-50R-550	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-LB-50R-600	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-LB-50R-650	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-LB-50R-700	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-LB-50R-750	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 750 mm
	HCM-LB-50R-800	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 800 mm
	HCM-LB-50R-850	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 850 mm
	HCM-LB-50R-900	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 900 mm
	HCM-LB-50R-950	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 950 mm
	HCM-LB-50R-1000	Mounting: Axial foot \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
	HCM-LB-50H-200	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-LB-50H-250	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-LB-50H-300	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-LB-50H-350	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-LB-50H-400	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-LB-50H-450	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-LB-50H-500	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-LB-50H-550	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-LB-50H-600	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-LB-50H-650	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-LB-50H-700	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-LB-50H-750	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 750 mm
	HCM-LB-50H-800	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 800 mm
	HCM-LB-50H-850	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 850 mm
	HCM-LB-50H-900	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 900 mm
	HCM-LB-50H-950	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 950 mm
	HCM-LB-50H-1000	Mounting: Axial foot \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 1000 mm
	HCM-LB-50N-200	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-LB-50N-250	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-LB-50N-300	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-LB-50N-350	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-LB-50N-400	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-LB-50N-450	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-LB-50N-500	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-LB-50N-550	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-LB-50N-600	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-LB-50N-650	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-LB-50N-700	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-LB-50N-750	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 750 mm
	HCM-LB-50N-800	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 800 mm
	HCM-LB-50N-850	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 850 mm
	HCM-LB-50N-900	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 900 mm
	HCM-LB-50N-950	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 950 mm
	HCM-LB-50N-1000	Mounting: Axial foot \| Bore: 50 mm \| Cushion: N - None \| Stroke: 1000 mm
	HCM-LB-63B-200	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-LB-63B-250	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-LB-63B-300	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-LB-63B-350	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-LB-63B-400	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-LB-63B-450	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-LB-63B-500	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-LB-63B-550	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-LB-63B-600	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-LB-63B-650	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-LB-63B-700	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-LB-63B-750	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 750 mm
	HCM-LB-63B-800	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 800 mm
	HCM-LB-63B-850	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 850 mm
	HCM-LB-63B-900	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 900 mm
	HCM-LB-63B-950	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 950 mm
	HCM-LB-63B-1000	Mounting: Axial foot \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
	HCM-LB-63R-200	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-LB-63R-250	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-LB-63R-300	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-LB-63R-350	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-LB-63R-400	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-LB-63R-450	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-LB-63R-500	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-LB-63R-550	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-LB-63R-600	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-LB-63R-650	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-LB-63R-700	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-LB-63R-750	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 750 mm
	HCM-LB-63R-800	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 800 mm
	HCM-LB-63R-850	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 850 mm
	HCM-LB-63R-900	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 900 mm
	HCM-LB-63R-950	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 950 mm
	HCM-LB-63R-1000	Mounting: Axial foot \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
	HCM-LB-63H-200	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-LB-63H-250	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-LB-63H-300	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-LB-63H-350	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-LB-63H-400	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-LB-63H-450	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-LB-63H-500	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-LB-63H-550	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-LB-63H-600	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-LB-63H-650	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-LB-63H-700	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-LB-63H-750	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 750 mm
	HCM-LB-63H-800	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 800 mm
	HCM-LB-63H-850	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 850 mm
	HCM-LB-63H-900	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 900 mm
	HCM-LB-63H-950	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 950 mm
	HCM-LB-63H-1000	Mounting: Axial foot \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 1000 mm
	HCM-LB-63N-200	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-LB-63N-250	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-LB-63N-300	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-LB-63N-350	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-LB-63N-400	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-LB-63N-450	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-LB-63N-500	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-LB-63N-550	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-LB-63N-600	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-LB-63N-650	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-LB-63N-700	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-LB-63N-750	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 750 mm
	HCM-LB-63N-800	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 800 mm
	HCM-LB-63N-850	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 850 mm
	HCM-LB-63N-900	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 900 mm
	HCM-LB-63N-950	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 950 mm
	HCM-LB-63N-1000	Mounting: Axial foot \| Bore: 63 mm \| Cushion: N - None \| Stroke: 1000 mm
	HCM-FA-20B-200	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-FA-20B-250	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-FA-20B-300	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-FA-20B-350	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-FA-20B-400	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-FA-20B-450	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-FA-20B-500	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-FA-20B-550	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-FA-20B-600	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-FA-20B-650	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-FA-20B-700	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-FA-20R-200	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-FA-20R-250	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-FA-20R-300	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-FA-20R-350	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-FA-20R-400	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-FA-20R-450	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-FA-20R-500	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-FA-20R-550	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-FA-20R-600	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-FA-20R-650	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-FA-20R-700	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-FA-20H-200	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-FA-20H-250	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-FA-20H-300	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-FA-20H-350	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-FA-20H-400	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-FA-20H-450	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-FA-20H-500	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-FA-20H-550	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-FA-20H-600	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-FA-20H-650	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-FA-20H-700	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-FA-20N-200	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-FA-20N-250	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-FA-20N-300	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-FA-20N-350	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-FA-20N-400	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-FA-20N-450	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-FA-20N-500	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-FA-20N-550	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-FA-20N-600	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-FA-20N-650	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-FA-20N-700	Mounting: Rod-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-FA-25B-200	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-FA-25B-250	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-FA-25B-300	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-FA-25B-350	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-FA-25B-400	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-FA-25B-450	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-FA-25B-500	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-FA-25B-550	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-FA-25B-600	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-FA-25B-650	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-FA-25B-700	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-FA-25R-200	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-FA-25R-250	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-FA-25R-300	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-FA-25R-350	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-FA-25R-400	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-FA-25R-450	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-FA-25R-500	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-FA-25R-550	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-FA-25R-600	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-FA-25R-650	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-FA-25R-700	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-FA-25H-200	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-FA-25H-250	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-FA-25H-300	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-FA-25H-350	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-FA-25H-400	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-FA-25H-450	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-FA-25H-500	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-FA-25H-550	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-FA-25H-600	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-FA-25H-650	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-FA-25H-700	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-FA-25N-200	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-FA-25N-250	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-FA-25N-300	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-FA-25N-350	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-FA-25N-400	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-FA-25N-450	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-FA-25N-500	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-FA-25N-550	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-FA-25N-600	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-FA-25N-650	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-FA-25N-700	Mounting: Rod-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-FA-32B-200	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-FA-32B-250	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-FA-32B-300	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-FA-32B-350	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-FA-32B-400	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-FA-32B-450	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-FA-32B-500	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-FA-32B-550	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-FA-32B-600	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-FA-32B-650	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-FA-32B-700	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-FA-32R-200	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-FA-32R-250	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-FA-32R-300	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-FA-32R-350	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-FA-32R-400	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-FA-32R-450	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-FA-32R-500	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-FA-32R-550	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-FA-32R-600	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-FA-32R-650	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-FA-32R-700	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-FA-32H-200	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-FA-32H-250	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-FA-32H-300	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-FA-32H-350	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-FA-32H-400	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-FA-32H-450	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-FA-32H-500	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-FA-32H-550	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-FA-32H-600	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-FA-32H-650	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-FA-32H-700	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-FA-32N-200	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-FA-32N-250	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-FA-32N-300	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-FA-32N-350	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-FA-32N-400	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-FA-32N-450	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-FA-32N-500	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-FA-32N-550	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-FA-32N-600	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-FA-32N-650	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-FA-32N-700	Mounting: Rod-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-FA-40B-200	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-FA-40B-250	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-FA-40B-300	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-FA-40B-350	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-FA-40B-400	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-FA-40B-450	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-FA-40B-500	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-FA-40B-550	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-FA-40B-600	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-FA-40B-650	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-FA-40B-700	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-FA-40B-750	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 750 mm
	HCM-FA-40B-800	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 800 mm
	HCM-FA-40B-850	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 850 mm
	HCM-FA-40B-900	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 900 mm
	HCM-FA-40B-950	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 950 mm
	HCM-FA-40B-1000	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
	HCM-FA-40R-200	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-FA-40R-250	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-FA-40R-300	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-FA-40R-350	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-FA-40R-400	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-FA-40R-450	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-FA-40R-500	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-FA-40R-550	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-FA-40R-600	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-FA-40R-650	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-FA-40R-700	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-FA-40R-750	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 750 mm
	HCM-FA-40R-800	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 800 mm
	HCM-FA-40R-850	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 850 mm
	HCM-FA-40R-900	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 900 mm
	HCM-FA-40R-950	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 950 mm
	HCM-FA-40R-1000	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
	HCM-FA-40H-200	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-FA-40H-250	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-FA-40H-300	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-FA-40H-350	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-FA-40H-400	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-FA-40H-450	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-FA-40H-500	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-FA-40H-550	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-FA-40H-600	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-FA-40H-650	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-FA-40H-700	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-FA-40H-750	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 750 mm
	HCM-FA-40H-800	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 800 mm
	HCM-FA-40H-850	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 850 mm
	HCM-FA-40H-900	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 900 mm
	HCM-FA-40H-950	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 950 mm
	HCM-FA-40H-1000	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 1000 mm
	HCM-FA-40N-200	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-FA-40N-250	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-FA-40N-300	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-FA-40N-350	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-FA-40N-400	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-FA-40N-450	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-FA-40N-500	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-FA-40N-550	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-FA-40N-600	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-FA-40N-650	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-FA-40N-700	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-FA-40N-750	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 750 mm
	HCM-FA-40N-800	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 800 mm
	HCM-FA-40N-850	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 850 mm
	HCM-FA-40N-900	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 900 mm
	HCM-FA-40N-950	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 950 mm
	HCM-FA-40N-1000	Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 1000 mm
	HCM-FA-50B-200	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-FA-50B-250	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-FA-50B-300	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-FA-50B-350	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-FA-50B-400	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-FA-50B-450	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-FA-50B-500	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-FA-50B-550	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-FA-50B-600	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-FA-50B-650	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-FA-50B-700	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-FA-50B-750	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 750 mm
	HCM-FA-50B-800	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 800 mm
	HCM-FA-50B-850	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 850 mm
	HCM-FA-50B-900	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 900 mm
	HCM-FA-50B-950	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 950 mm
	HCM-FA-50B-1000	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
	HCM-FA-50R-200	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-FA-50R-250	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-FA-50R-300	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-FA-50R-350	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-FA-50R-400	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-FA-50R-450	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-FA-50R-500	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-FA-50R-550	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-FA-50R-600	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-FA-50R-650	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-FA-50R-700	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-FA-50R-750	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 750 mm
	HCM-FA-50R-800	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 800 mm
	HCM-FA-50R-850	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 850 mm
	HCM-FA-50R-900	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 900 mm
	HCM-FA-50R-950	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 950 mm
	HCM-FA-50R-1000	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
	HCM-FA-50H-200	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-FA-50H-250	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-FA-50H-300	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-FA-50H-350	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-FA-50H-400	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-FA-50H-450	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-FA-50H-500	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-FA-50H-550	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-FA-50H-600	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-FA-50H-650	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-FA-50H-700	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-FA-50H-750	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 750 mm
	HCM-FA-50H-800	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 800 mm
	HCM-FA-50H-850	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 850 mm
	HCM-FA-50H-900	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 900 mm
	HCM-FA-50H-950	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 950 mm
	HCM-FA-50H-1000	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 1000 mm
	HCM-FA-50N-200	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-FA-50N-250	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-FA-50N-300	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-FA-50N-350	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-FA-50N-400	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-FA-50N-450	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-FA-50N-500	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-FA-50N-550	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-FA-50N-600	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-FA-50N-650	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-FA-50N-700	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-FA-50N-750	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 750 mm
	HCM-FA-50N-800	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 800 mm
	HCM-FA-50N-850	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 850 mm
	HCM-FA-50N-900	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 900 mm
	HCM-FA-50N-950	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 950 mm
	HCM-FA-50N-1000	Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 1000 mm
	HCM-FA-63B-200	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-FA-63B-250	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-FA-63B-300	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-FA-63B-350	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-FA-63B-400	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-FA-63B-450	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-FA-63B-500	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-FA-63B-550	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-FA-63B-600	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-FA-63B-650	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-FA-63B-700	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-FA-63B-750	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 750 mm
	HCM-FA-63B-800	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 800 mm
	HCM-FA-63B-850	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 850 mm
	HCM-FA-63B-900	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 900 mm
	HCM-FA-63B-950	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 950 mm
	HCM-FA-63B-1000	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
	HCM-FA-63R-200	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-FA-63R-250	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-FA-63R-300	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-FA-63R-350	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-FA-63R-400	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-FA-63R-450	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-FA-63R-500	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-FA-63R-550	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-FA-63R-600	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-FA-63R-650	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-FA-63R-700	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-FA-63R-750	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 750 mm
	HCM-FA-63R-800	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 800 mm
	HCM-FA-63R-850	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 850 mm
	HCM-FA-63R-900	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 900 mm
	HCM-FA-63R-950	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 950 mm
	HCM-FA-63R-1000	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
	HCM-FA-63H-200	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-FA-63H-250	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-FA-63H-300	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-FA-63H-350	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-FA-63H-400	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-FA-63H-450	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-FA-63H-500	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-FA-63H-550	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-FA-63H-600	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-FA-63H-650	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-FA-63H-700	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-FA-63H-750	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 750 mm
	HCM-FA-63H-800	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 800 mm
	HCM-FA-63H-850	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 850 mm
	HCM-FA-63H-900	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 900 mm
	HCM-FA-63H-950	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 950 mm
	HCM-FA-63H-1000	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 1000 mm
	HCM-FA-63N-200	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-FA-63N-250	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-FA-63N-300	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-FA-63N-350	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-FA-63N-400	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-FA-63N-450	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-FA-63N-500	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-FA-63N-550	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-FA-63N-600	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-FA-63N-650	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-FA-63N-700	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-FA-63N-750	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 750 mm
	HCM-FA-63N-800	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 800 mm
	HCM-FA-63N-850	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 850 mm
	HCM-FA-63N-900	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 900 mm
	HCM-FA-63N-950	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 950 mm
	HCM-FA-63N-1000	Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 1000 mm
	HCM-FB-20B-200	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-FB-20B-250	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-FB-20B-300	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-FB-20B-350	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-FB-20B-400	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-FB-20B-450	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-FB-20B-500	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-FB-20B-550	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-FB-20B-600	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-FB-20B-650	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-FB-20B-700	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-FB-20R-200	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-FB-20R-250	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-FB-20R-300	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-FB-20R-350	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-FB-20R-400	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-FB-20R-450	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-FB-20R-500	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-FB-20R-550	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-FB-20R-600	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-FB-20R-650	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-FB-20R-700	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-FB-20H-200	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-FB-20H-250	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-FB-20H-300	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-FB-20H-350	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-FB-20H-400	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-FB-20H-450	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-FB-20H-500	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-FB-20H-550	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-FB-20H-600	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-FB-20H-650	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-FB-20H-700	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-FB-20N-200	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-FB-20N-250	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-FB-20N-300	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-FB-20N-350	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-FB-20N-400	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-FB-20N-450	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-FB-20N-500	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-FB-20N-550	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-FB-20N-600	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-FB-20N-650	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-FB-20N-700	Mounting: Head-end flange \| Bore: 20 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-FB-25B-200	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-FB-25B-250	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-FB-25B-300	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-FB-25B-350	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-FB-25B-400	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-FB-25B-450	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-FB-25B-500	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-FB-25B-550	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-FB-25B-600	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-FB-25B-650	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-FB-25B-700	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-FB-25R-200	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-FB-25R-250	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-FB-25R-300	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-FB-25R-350	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-FB-25R-400	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-FB-25R-450	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-FB-25R-500	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-FB-25R-550	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-FB-25R-600	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-FB-25R-650	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-FB-25R-700	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-FB-25H-200	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-FB-25H-250	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-FB-25H-300	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-FB-25H-350	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-FB-25H-400	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-FB-25H-450	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-FB-25H-500	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-FB-25H-550	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-FB-25H-600	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-FB-25H-650	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-FB-25H-700	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-FB-25N-200	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-FB-25N-250	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-FB-25N-300	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-FB-25N-350	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-FB-25N-400	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-FB-25N-450	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-FB-25N-500	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-FB-25N-550	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-FB-25N-600	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-FB-25N-650	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-FB-25N-700	Mounting: Head-end flange \| Bore: 25 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-FB-32B-200	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-FB-32B-250	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-FB-32B-300	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-FB-32B-350	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-FB-32B-400	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-FB-32B-450	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-FB-32B-500	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-FB-32B-550	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-FB-32B-600	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-FB-32B-650	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-FB-32B-700	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-FB-32R-200	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-FB-32R-250	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-FB-32R-300	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-FB-32R-350	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-FB-32R-400	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-FB-32R-450	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-FB-32R-500	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-FB-32R-550	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-FB-32R-600	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-FB-32R-650	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-FB-32R-700	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-FB-32H-200	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-FB-32H-250	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-FB-32H-300	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-FB-32H-350	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-FB-32H-400	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-FB-32H-450	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-FB-32H-500	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-FB-32H-550	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-FB-32H-600	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-FB-32H-650	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-FB-32H-700	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-FB-32N-200	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-FB-32N-250	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-FB-32N-300	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-FB-32N-350	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-FB-32N-400	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-FB-32N-450	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-FB-32N-500	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-FB-32N-550	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-FB-32N-600	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-FB-32N-650	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-FB-32N-700	Mounting: Head-end flange \| Bore: 32 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-FB-40B-200	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-FB-40B-250	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-FB-40B-300	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-FB-40B-350	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-FB-40B-400	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-FB-40B-450	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-FB-40B-500	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-FB-40B-550	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-FB-40B-600	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-FB-40B-650	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-FB-40B-700	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-FB-40B-750	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 750 mm
	HCM-FB-40B-800	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 800 mm
	HCM-FB-40B-850	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 850 mm
	HCM-FB-40B-900	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 900 mm
	HCM-FB-40B-950	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 950 mm
	HCM-FB-40B-1000	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
	HCM-FB-40R-200	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-FB-40R-250	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-FB-40R-300	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-FB-40R-350	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-FB-40R-400	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-FB-40R-450	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-FB-40R-500	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-FB-40R-550	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-FB-40R-600	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-FB-40R-650	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-FB-40R-700	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-FB-40R-750	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 750 mm
	HCM-FB-40R-800	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 800 mm
	HCM-FB-40R-850	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 850 mm
	HCM-FB-40R-900	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 900 mm
	HCM-FB-40R-950	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 950 mm
	HCM-FB-40R-1000	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
	HCM-FB-40H-200	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-FB-40H-250	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-FB-40H-300	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-FB-40H-350	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-FB-40H-400	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-FB-40H-450	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-FB-40H-500	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-FB-40H-550	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-FB-40H-600	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-FB-40H-650	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-FB-40H-700	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-FB-40H-750	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 750 mm
	HCM-FB-40H-800	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 800 mm
	HCM-FB-40H-850	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 850 mm
	HCM-FB-40H-900	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 900 mm
	HCM-FB-40H-950	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 950 mm
	HCM-FB-40H-1000	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: H - Head end \| Stroke: 1000 mm
	HCM-FB-40N-200	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-FB-40N-250	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-FB-40N-300	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-FB-40N-350	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-FB-40N-400	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-FB-40N-450	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-FB-40N-500	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-FB-40N-550	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-FB-40N-600	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-FB-40N-650	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-FB-40N-700	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-FB-40N-750	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 750 mm
	HCM-FB-40N-800	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 800 mm
	HCM-FB-40N-850	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 850 mm
	HCM-FB-40N-900	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 900 mm
	HCM-FB-40N-950	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 950 mm
	HCM-FB-40N-1000	Mounting: Head-end flange \| Bore: 40 mm \| Cushion: N - None \| Stroke: 1000 mm
	HCM-FB-50B-200	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-FB-50B-250	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-FB-50B-300	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-FB-50B-350	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-FB-50B-400	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-FB-50B-450	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-FB-50B-500	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-FB-50B-550	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-FB-50B-600	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-FB-50B-650	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-FB-50B-700	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-FB-50B-750	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 750 mm
	HCM-FB-50B-800	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 800 mm
	HCM-FB-50B-850	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 850 mm
	HCM-FB-50B-900	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 900 mm
	HCM-FB-50B-950	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 950 mm
	HCM-FB-50B-1000	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
	HCM-FB-50R-200	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-FB-50R-250	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-FB-50R-300	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-FB-50R-350	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-FB-50R-400	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-FB-50R-450	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-FB-50R-500	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-FB-50R-550	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-FB-50R-600	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-FB-50R-650	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-FB-50R-700	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-FB-50R-750	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 750 mm
	HCM-FB-50R-800	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 800 mm
	HCM-FB-50R-850	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 850 mm
	HCM-FB-50R-900	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 900 mm
	HCM-FB-50R-950	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 950 mm
	HCM-FB-50R-1000	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
	HCM-FB-50H-200	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-FB-50H-250	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-FB-50H-300	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-FB-50H-350	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-FB-50H-400	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-FB-50H-450	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-FB-50H-500	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-FB-50H-550	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-FB-50H-600	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-FB-50H-650	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-FB-50H-700	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-FB-50H-750	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 750 mm
	HCM-FB-50H-800	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 800 mm
	HCM-FB-50H-850	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 850 mm
	HCM-FB-50H-900	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 900 mm
	HCM-FB-50H-950	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 950 mm
	HCM-FB-50H-1000	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: H - Head end \| Stroke: 1000 mm
	HCM-FB-50N-200	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-FB-50N-250	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-FB-50N-300	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-FB-50N-350	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-FB-50N-400	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-FB-50N-450	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-FB-50N-500	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-FB-50N-550	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-FB-50N-600	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-FB-50N-650	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-FB-50N-700	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-FB-50N-750	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 750 mm
	HCM-FB-50N-800	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 800 mm
	HCM-FB-50N-850	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 850 mm
	HCM-FB-50N-900	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 900 mm
	HCM-FB-50N-950	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 950 mm
	HCM-FB-50N-1000	Mounting: Head-end flange \| Bore: 50 mm \| Cushion: N - None \| Stroke: 1000 mm
	HCM-FB-63B-200	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 200 mm
	HCM-FB-63B-250	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 250 mm
	HCM-FB-63B-300	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 300 mm
	HCM-FB-63B-350	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 350 mm
	HCM-FB-63B-400	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 400 mm
	HCM-FB-63B-450	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 450 mm
	HCM-FB-63B-500	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 500 mm
	HCM-FB-63B-550	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 550 mm
	HCM-FB-63B-600	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 600 mm
	HCM-FB-63B-650	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 650 mm
	HCM-FB-63B-700	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 700 mm
	HCM-FB-63B-750	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 750 mm
	HCM-FB-63B-800	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 800 mm
	HCM-FB-63B-850	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 850 mm
	HCM-FB-63B-900	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 900 mm
	HCM-FB-63B-950	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 950 mm
	HCM-FB-63B-1000	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: B - Both ends \| Stroke: 1000 mm
	HCM-FB-63R-200	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 200 mm
	HCM-FB-63R-250	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 250 mm
	HCM-FB-63R-300	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 300 mm
	HCM-FB-63R-350	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 350 mm
	HCM-FB-63R-400	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 400 mm
	HCM-FB-63R-450	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 450 mm
	HCM-FB-63R-500	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 500 mm
	HCM-FB-63R-550	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 550 mm
	HCM-FB-63R-600	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 600 mm
	HCM-FB-63R-650	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 650 mm
	HCM-FB-63R-700	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 700 mm
	HCM-FB-63R-750	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 750 mm
	HCM-FB-63R-800	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 800 mm
	HCM-FB-63R-850	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 850 mm
	HCM-FB-63R-900	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 900 mm
	HCM-FB-63R-950	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 950 mm
	HCM-FB-63R-1000	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: R - Rod end \| Stroke: 1000 mm
	HCM-FB-63H-200	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 200 mm
	HCM-FB-63H-250	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 250 mm
	HCM-FB-63H-300	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 300 mm
	HCM-FB-63H-350	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 350 mm
	HCM-FB-63H-400	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 400 mm
	HCM-FB-63H-450	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 450 mm
	HCM-FB-63H-500	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 500 mm
	HCM-FB-63H-550	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 550 mm
	HCM-FB-63H-600	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 600 mm
	HCM-FB-63H-650	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 650 mm
	HCM-FB-63H-700	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 700 mm
	HCM-FB-63H-750	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 750 mm
	HCM-FB-63H-800	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 800 mm
	HCM-FB-63H-850	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 850 mm
	HCM-FB-63H-900	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 900 mm
	HCM-FB-63H-950	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 950 mm
	HCM-FB-63H-1000	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: H - Head end \| Stroke: 1000 mm
	HCM-FB-63N-200	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 200 mm
	HCM-FB-63N-250	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 250 mm
	HCM-FB-63N-300	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 300 mm
	HCM-FB-63N-350	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 350 mm
	HCM-FB-63N-400	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 400 mm
	HCM-FB-63N-450	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 450 mm
	HCM-FB-63N-500	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 500 mm
	HCM-FB-63N-550	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 550 mm
	HCM-FB-63N-600	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 600 mm
	HCM-FB-63N-650	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 650 mm
	HCM-FB-63N-700	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 700 mm
	HCM-FB-63N-750	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 750 mm
	HCM-FB-63N-800	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 800 mm
	HCM-FB-63N-850	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 850 mm
	HCM-FB-63N-900	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 900 mm
	HCM-FB-63N-950	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 950 mm
	HCM-FB-63N-1000	Mounting: Head-end flange \| Bore: 63 mm \| Cushion: N - None \| Stroke: 1000 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD HCM High Energy Absorption Cylinder (Bore 20-63)
