CKD HLD Ultra-slim Parallel Hand (Double Acting)

CKD HLD Ultra-slim Parallel Hand (Double Acting)

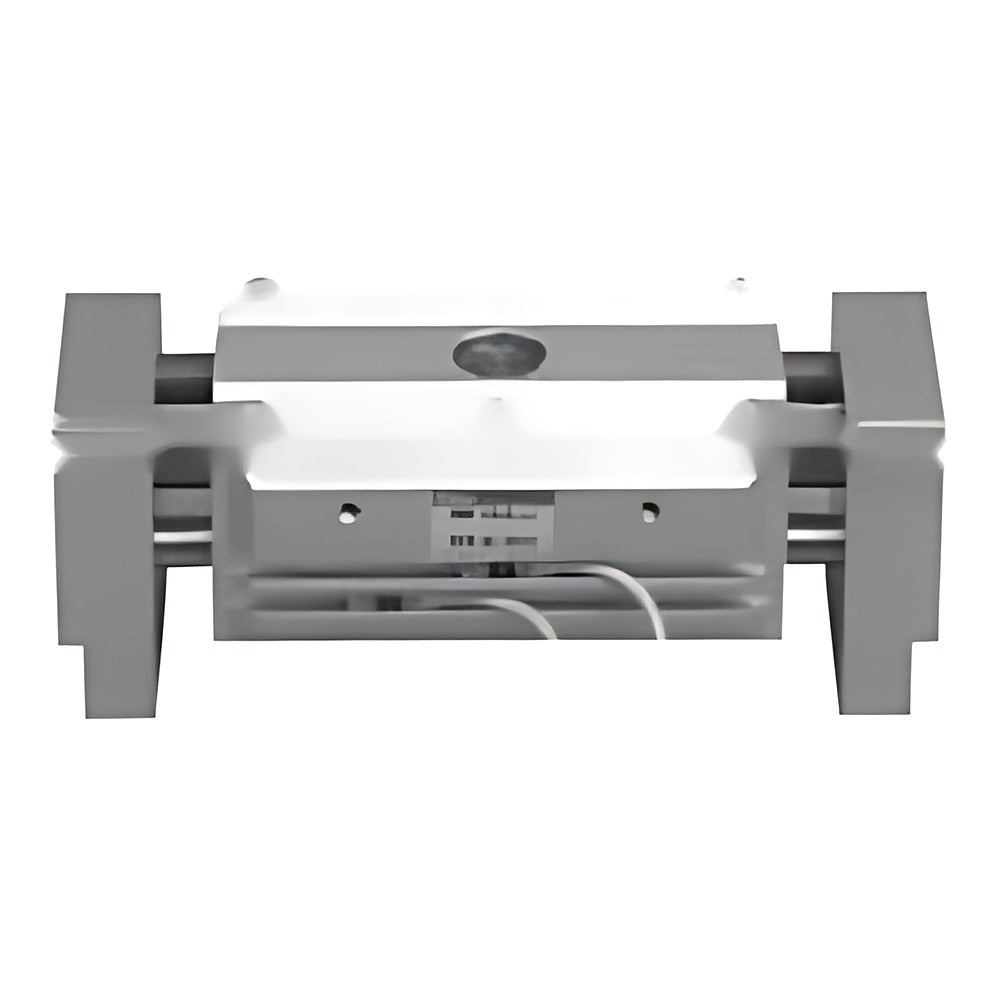

CKD HLD ultra-slim parallel hand, a four-piston pneumatic parallel gripper with a very narrow body.

Key features

  • Ultra-slim parallel hand with four pistons for high force in a narrow body
  • Four sizes, stroke 12 / 16 / 20 / 30 mm
  • Repeatability ±0.01 mm
  • 1-colour and 2-colour indicator solid-state switches
  • Switch magnet built in; auto switches (lead 1/3/5 m, R/H/D quantity) are added to the code and not expanded

Specifications

Fluid Compressed air
Max. operating pressure 0.7 MPa
Ambient temperature 5 to 60 C
Lubrication Not required (ISO VG32 if lubricated)
Operation Double acting (4 pistons)
Min. operating pressure 0.2 MPa
Repeatability ±0.01 mm
Auto switches T2H/T2V, T3H/T3V, T2WH/T2WV, T3WH/T3WV (2-colour)
Source CKD Korea catalog CB-030SK-9, p. 1774-1777
HLD-08CS Size: 08CS | Bore: ø8x4 | Stroke: 12 mm | Port: M3 | Mass: 0.23 kg
HLD-12CS Size: 12CS | Bore: ø12x4 | Stroke: 16 mm | Port: M3 | Mass: 0.29 kg
HLD-16CS Size: 16CS | Bore: ø16x4 | Stroke: 20 mm | Port: M5 | Mass: 0.62 kg
HLD-20CS Size: 20CS | Bore: ø20x4 | Stroke: 30 mm | Port: M5 | Mass: 1.05 kg
Pneumatic GrippersCKD
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD HLD Ultra-slim Parallel Hand (Double Acting)

Brand CKD·Pneumatic Grippers

Available part numbers (4)

HLD-08CS, HLD-12CS, HLD-16CS, HLD-20CS
