CKD HMFB Large Wide-opening Parallel Hand (Linear Guide, L1/L2)

CKD HMFB Large Wide-opening Parallel Hand (Linear Guide, L1/L2)

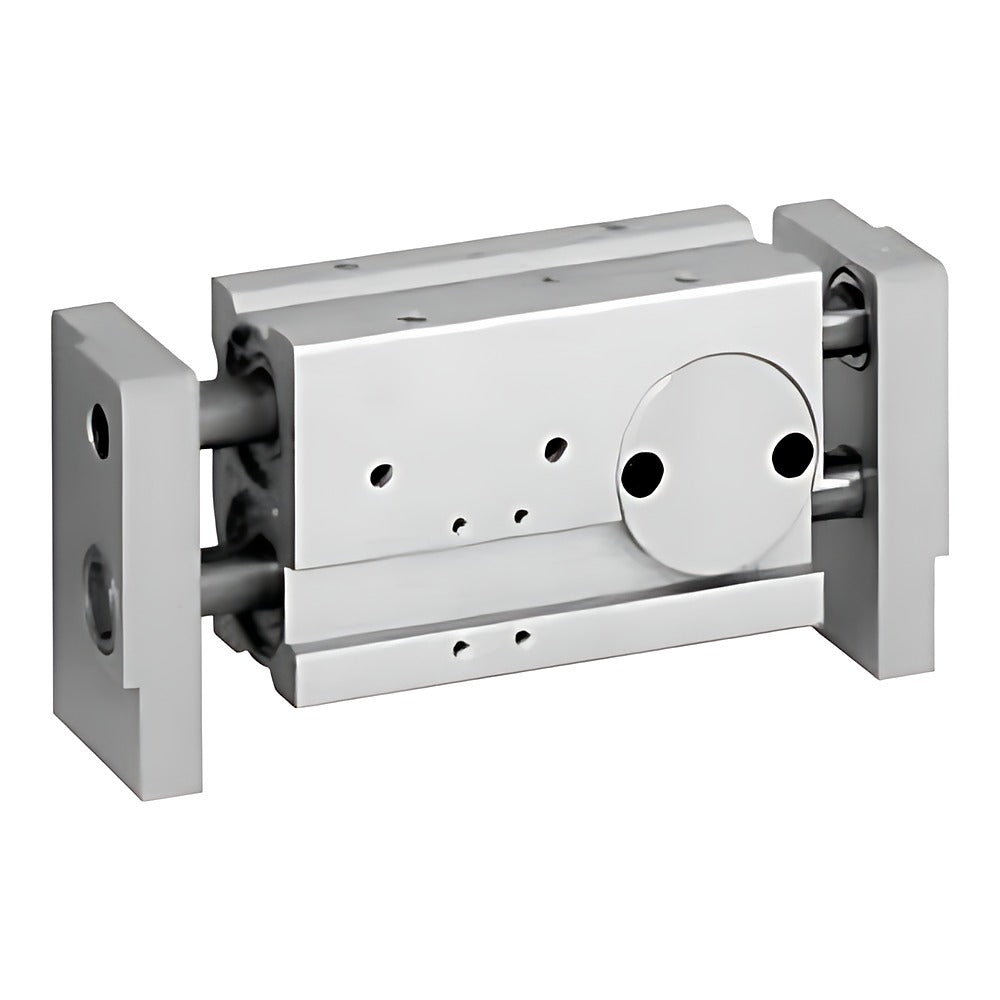

CKD HMFB large wide-opening parallel hand, a linear-guided double-acting pneumatic gripper with long stroke.

Key features

  • Large wide-opening parallel hand with linear guide for finger support
  • Three sizes, bore ø25x2 / ø32x2 / ø40x2
  • Long stroke 1 (100-160 mm) and long stroke 2 (120-200 mm) only
  • Switch magnet built in; auto switches (lead 1/3/5 m, R/H/D quantity) are added to the code and not expanded

Specifications

Fluid Compressed air
Max. operating pressure 0.7 MPa
Ambient temperature 5 to 60 C
Lubrication Not required (ISO VG32 if lubricated)
Operation Double acting
Min. operating pressure 0.3 MPa
Repeatability ±0.1 mm
Auto switches T2H/T2V, T3H/T3V
Source CKD Korea catalog CB-030SK-9, p. 1796-1801
HMFB-25CS-L1 Size: 25CS | Stroke type: Long stroke 1 | Bore: ø25x2 | Stroke: 100 mm | Port: M5 | Mass: 4.06 kg
HMFB-25CS-L2 Size: 25CS | Stroke type: Long stroke 2 | Bore: ø25x2 | Stroke: 120 mm | Port: M5 | Mass: 4.13 kg
HMFB-32CS-L1 Size: 32CS | Stroke type: Long stroke 1 | Bore: ø32x2 | Stroke: 120 mm | Port: Rc1/8 | Mass: 5.97 kg
HMFB-32CS-L2 Size: 32CS | Stroke type: Long stroke 2 | Bore: ø32x2 | Stroke: 160 mm | Port: Rc1/8 | Mass: 7.2 kg
HMFB-40CS-L1 Size: 40CS | Stroke type: Long stroke 1 | Bore: ø40x2 | Stroke: 160 mm | Port: Rc1/8 | Mass: 10.05 kg
HMFB-40CS-L2 Size: 40CS | Stroke type: Long stroke 2 | Bore: ø40x2 | Stroke: 200 mm | Port: Rc1/8 | Mass: 11.8 kg
