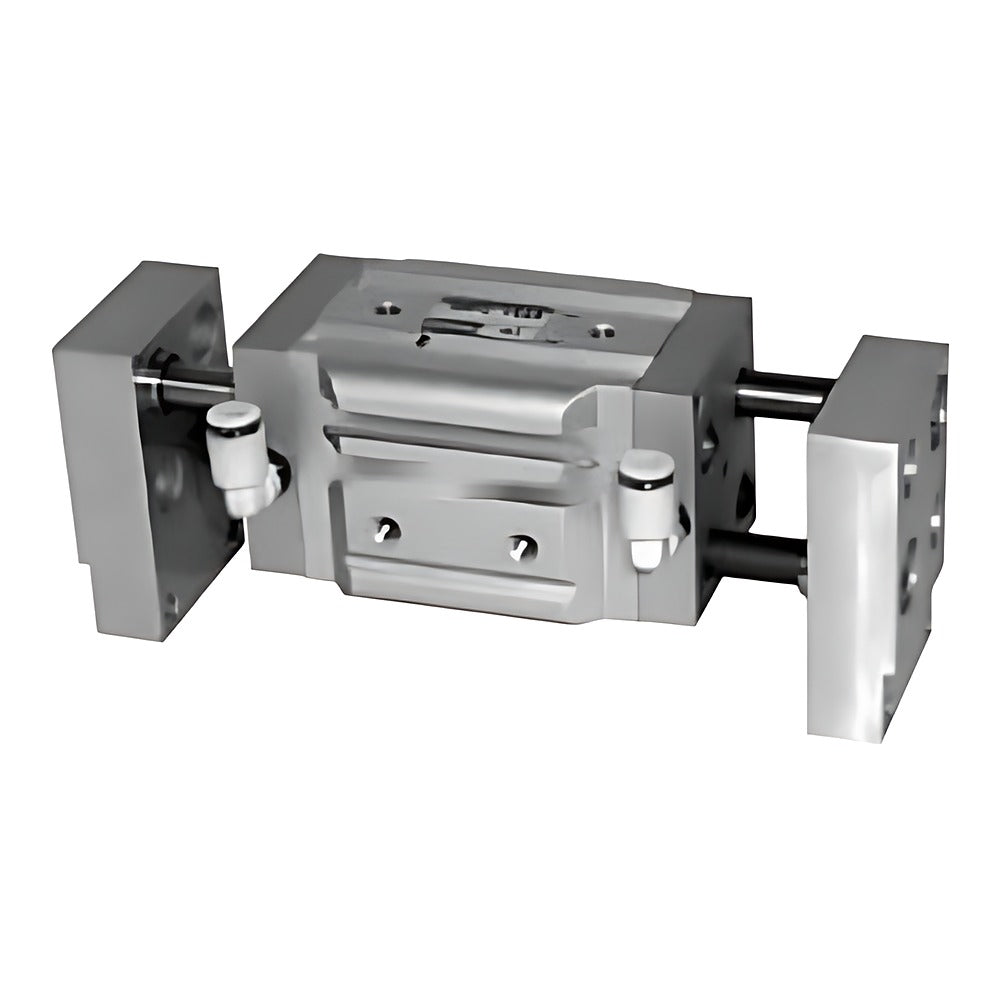

CKD HMFC Small Wide-Opening Parallel Hand, Clean Series (KONSEI)

CKD HMFC Small Wide-Opening Parallel Hand, Clean Series (KONSEI)

HMFC clean-series small wide-opening parallel hand made by KONSEI Co., Ltd. and offered in the CKD clean equipment catalog.

Key features

  • Low overall height and wide range of workpiece sizes
  • Small, light and compact body for confined spaces
  • Double-piston mechanism gives strong gripping force
  • Long finger stroke handles large and small workpieces without changeover
  • Optional sensors (not expanded): ET3, ET3L, ET2, ET2L (solid state), E24/E24L/E25/E25L, S1/S2 count

Specifications

Manufacturer KONSEI Co., Ltd. (sold via CKD)
Operating medium Air 0.3 to 0.7 MPa
Lubrication Not required (turbine oil ISO VG32 if used)
Ambient temperature 5 to 60 C
Repeatability +/-0.1 mm
Materials Aluminium body, SUS303 guide rod, fluorine grease
Code format HMFC-<size>[-<sensor>]
Source CKD Korea catalog CB-033S-4, p. 1171-1172
HMFC-16AS Size: 16AS | Stroke: 30 mm | Cylinder bore: dia 16 x 2 mm | Mass: 0.54 kg
HMFC-20AS Size: 20AS | Stroke: 40 mm | Cylinder bore: dia 20 x 2 mm | Mass: 0.9 kg
Air GrippersCKD
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD HMFC Small Wide-Opening Parallel Hand, Clean Series (KONSEI)

Brand CKD·Air Grippers

Available part numbers (2)

HMFC-16AS, HMFC-20AS

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HMFC-16ASSize: 16AS | Stroke: 30 mm | Cylinder bore: dia 16 x 2 mm | Mass: 0.54 kg
HMFC-20ASSize: 20AS | Stroke: 40 mm | Cylinder bore: dia 20 x 2 mm | Mass: 0.9 kg
