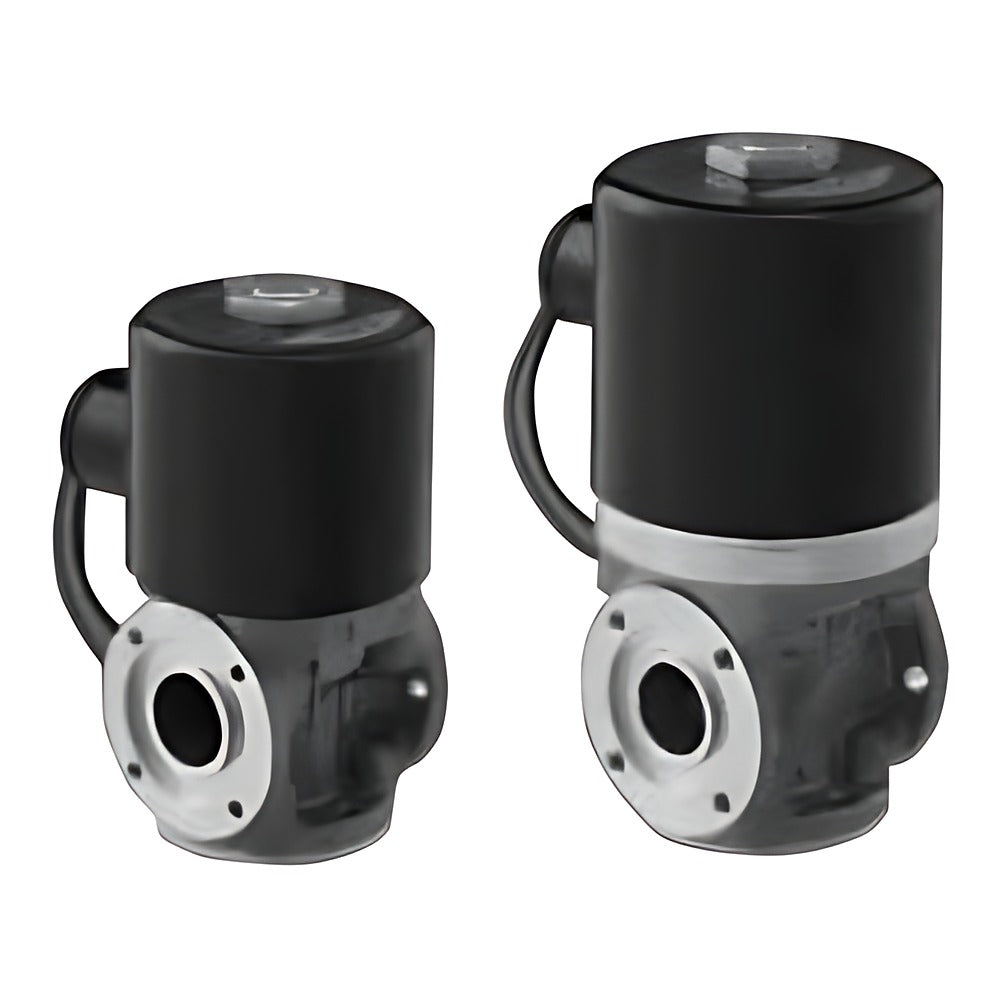

CKD HVB112 High Vacuum Solenoid Valve (NC, NPT1/8 / JXR)

CKD HVB112 High Vacuum Solenoid Valve (NC, NPT1/8 / JXR)

CKD HVB112 compact high-vacuum 2-port solenoid valve (NC) with 1.6 mm orifice and NPT1/8 or 1/4" JXR female connection.

Key features

  • NC, orifice 1.6 mm (symbol 5), Cv 0.09
  • Seat and external leakage 1.0x10^-9 Pa*m3/s (He) or less
  • NPT1/8 (6N) or 1/4" JXR female fitting (8R)
  • Mount vertically with coil on top
  • Max. 60 cycles/min

Specifications

Fluid Vacuum, inert gas
Working pressure 1.3x10^-6 to 3x10^5 Pa(abs)
Max. operating pressure differential 0.3 MPa
Proof pressure 0.5 MPa
Fluid temperature 5 to 55 C
Ambient temperature 0 to 55 C
Power consumption 4.0 W
Coil insulation Class B
Mass 0.15 kg (6N), 0.24 kg (8R)
Source CKD Korea catalog CB-03-1SK-9, p. 560-561
HVB112-6N-5-AC100V Connection: NPT1/8 | Voltage: AC100V
HVB112-6N-5-AC200V Connection: NPT1/8 | Voltage: AC200V
HVB112-6N-5-DC24V Connection: NPT1/8 | Voltage: DC24V
HVB112-8R-5-AC100V Connection: 1/4" JXR female fitting | Voltage: AC100V
HVB112-8R-5-AC200V Connection: 1/4" JXR female fitting | Voltage: AC200V
HVB112-8R-5-DC24V Connection: 1/4" JXR female fitting | Voltage: DC24V
Vacuum ValvesCKD
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD HVB112 High Vacuum Solenoid Valve (NC, NPT1/8 / JXR)

Brand CKD·Vacuum Valves

Available part numbers (6)

HVB112-6N-5-AC100V, HVB112-6N-5-AC200V, HVB112-6N-5-DC24V, HVB112-8R-5-AC100V, HVB112-8R-5-AC200V, HVB112-8R-5-DC24V

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HVB112-6N-5-AC100VConnection: NPT1/8 | Voltage: AC100V
HVB112-6N-5-AC200VConnection: NPT1/8 | Voltage: AC200V
HVB112-6N-5-DC24VConnection: NPT1/8 | Voltage: DC24V
HVB112-8R-5-AC100VConnection: 1/4" JXR female fitting | Voltage: AC100V
HVB112-8R-5-AC200VConnection: 1/4" JXR female fitting | Voltage: AC200V
HVB112-8R-5-DC24VConnection: 1/4" JXR female fitting | Voltage: DC24V
