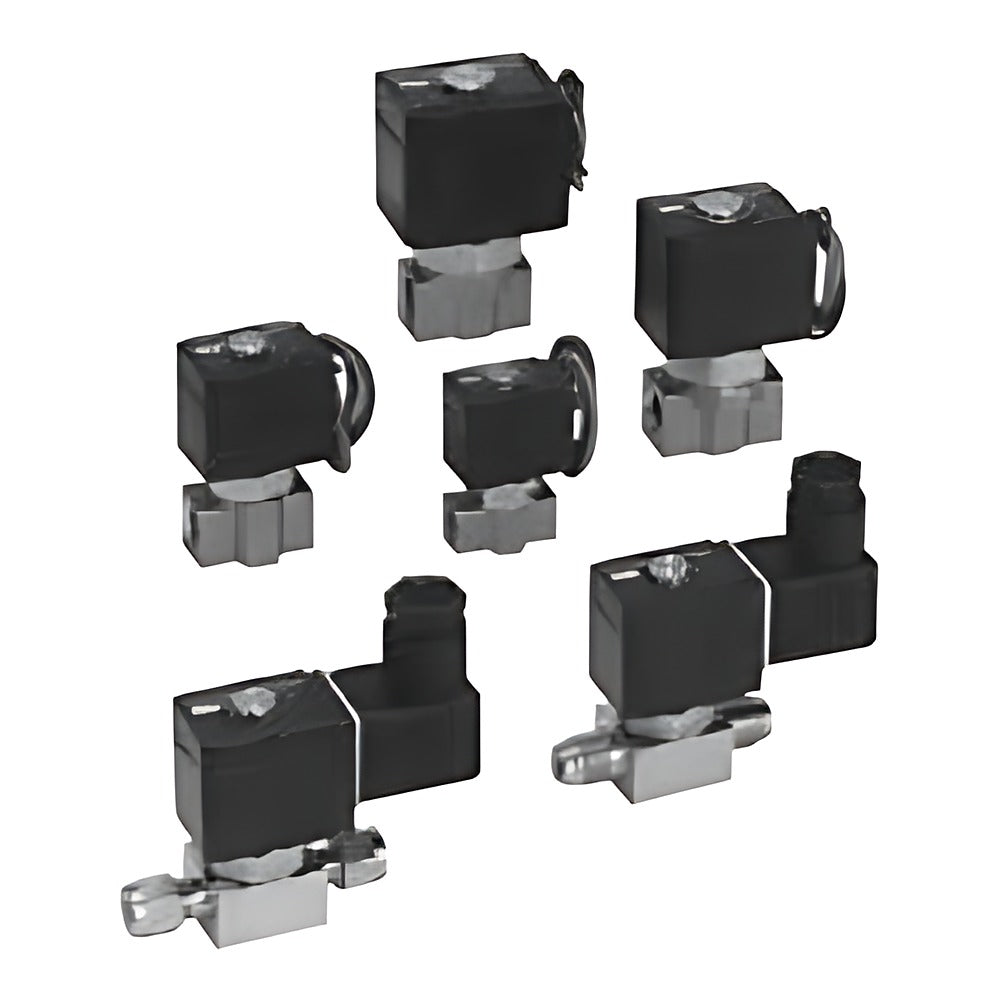

CKD HVB212/312/412/512 High Vacuum Solenoid Valve (NC)

CKD HVB212/312/412/512 direct-acting high-vacuum 2-port solenoid valves (NC) with 1x10^-9 Pa*m3/s leakage, orifice 1 to 6 mm, coil widths 22 to 40 mm.

Key features

Direct-acting poppet, NC; seat and external leakage 1.0x10^-9 Pa*m3/s (He) or less
Four sizes by coil width: 22 mm (HVB212), 28 mm (312), 34 mm (412), 40 mm (512)
Connections: JXR (VCR compatible) male, bite fitting, NPT or Rc threads
Durability 2 million cycles (CKD conditions); free mounting orientation
Mounting plate option B available (not multiplied); AC coils have built-in surge killer

Specifications

Fluid	Air, vacuum, inert gas
Working pressure	1.0x10^-6 Pa(abs) up to 1.0x10^6 Pa (by model)
Proof pressure	5.0 MPa
Fluid temperature	5 to 55 C
Ambient temperature	0 to 55 C (no freezing)
Coil insulation	Class B
Voltage tolerance	+/-10%
Seal material	FKM (consider outgassing)
Durability	2 million cycles
Source	CKD Korea catalog CB-03-1SK-9, p. 554-559

HVB212-4RM-Z-2CR-AC100V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB212-4RM-Z-2CR-AC200V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB212-4RM-Z-2C-DC24V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB212-4RM-Z-2C-DC12V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB212-4RM-Z-2CS-DC24V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB212-4RM-Z-2CS-DC12V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB212-4RM-Z-2G-DC24V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB212-4RM-Z-2G-DC12V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB212-4RM-Z-2HS-DC24V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB212-4RM-Z-2HS-DC12V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB212-4RM-2-2CR-AC100V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB212-4RM-2-2CR-AC200V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB212-4RM-2-2C-DC24V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB212-4RM-2-2C-DC12V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB212-4RM-2-2CS-DC24V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB212-4RM-2-2CS-DC12V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB212-4RM-2-2G-DC24V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB212-4RM-2-2G-DC12V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB212-4RM-2-2HS-DC24V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB212-4RM-2-2HS-DC12V		Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB212-4S-Z-2CR-AC100V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB212-4S-Z-2CR-AC200V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB212-4S-Z-2C-DC24V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB212-4S-Z-2C-DC12V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB212-4S-Z-2CS-DC24V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB212-4S-Z-2CS-DC12V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB212-4S-Z-2G-DC24V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB212-4S-Z-2G-DC12V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB212-4S-Z-2HS-DC24V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB212-4S-Z-2HS-DC12V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB212-4S-2-2CR-AC100V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB212-4S-2-2CR-AC200V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB212-4S-2-2C-DC24V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB212-4S-2-2C-DC12V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB212-4S-2-2CS-DC24V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB212-4S-2-2CS-DC12V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB212-4S-2-2G-DC24V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB212-4S-2-2G-DC12V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB212-4S-2-2HS-DC24V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB212-4S-2-2HS-DC12V		Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB212-6N-Z-2CR-AC100V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB212-6N-Z-2CR-AC200V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB212-6N-Z-2C-DC24V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB212-6N-Z-2C-DC12V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB212-6N-Z-2CS-DC24V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB212-6N-Z-2CS-DC12V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB212-6N-Z-2G-DC24V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB212-6N-Z-2G-DC12V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB212-6N-Z-2HS-DC24V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB212-6N-Z-2HS-DC12V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB212-6N-2-2CR-AC100V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB212-6N-2-2CR-AC200V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB212-6N-2-2C-DC24V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB212-6N-2-2C-DC12V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB212-6N-2-2CS-DC24V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB212-6N-2-2CS-DC12V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB212-6N-2-2G-DC24V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB212-6N-2-2G-DC12V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB212-6N-2-2HS-DC24V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB212-6N-2-2HS-DC12V		Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB212-6-Z-2CR-AC100V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB212-6-Z-2CR-AC200V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB212-6-Z-2C-DC24V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB212-6-Z-2C-DC12V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB212-6-Z-2CS-DC24V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB212-6-Z-2CS-DC12V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB212-6-Z-2G-DC24V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB212-6-Z-2G-DC12V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB212-6-Z-2HS-DC24V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB212-6-Z-2HS-DC12V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB212-6-2-2CR-AC100V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB212-6-2-2CR-AC200V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB212-6-2-2C-DC24V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB212-6-2-2C-DC12V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB212-6-2-2CS-DC24V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB212-6-2-2CS-DC12V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB212-6-2-2G-DC24V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB212-6-2-2G-DC12V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB212-6-2-2HS-DC24V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB212-6-2-2HS-DC12V		Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB312-4RM-2-2CR-AC100V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB312-4RM-2-2CR-AC200V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB312-4RM-2-2C-DC24V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB312-4RM-2-2C-DC12V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB312-4RM-2-2CS-DC24V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB312-4RM-2-2CS-DC12V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB312-4RM-2-2G-DC24V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB312-4RM-2-2G-DC12V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB312-4RM-2-2HS-DC24V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB312-4RM-2-2HS-DC12V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB312-4RM-3-2CR-AC100V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB312-4RM-3-2CR-AC200V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB312-4RM-3-2C-DC24V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB312-4RM-3-2C-DC12V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB312-4RM-3-2CS-DC24V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB312-4RM-3-2CS-DC12V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB312-4RM-3-2G-DC24V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB312-4RM-3-2G-DC12V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB312-4RM-3-2HS-DC24V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB312-4RM-3-2HS-DC12V		Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB312-4S-2-2CR-AC100V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB312-4S-2-2CR-AC200V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB312-4S-2-2C-DC24V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB312-4S-2-2C-DC12V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB312-4S-2-2CS-DC24V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB312-4S-2-2CS-DC12V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB312-4S-2-2G-DC24V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB312-4S-2-2G-DC12V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB312-4S-2-2HS-DC24V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB312-4S-2-2HS-DC12V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB312-4S-3-2CR-AC100V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB312-4S-3-2CR-AC200V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB312-4S-3-2C-DC24V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB312-4S-3-2C-DC12V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB312-4S-3-2CS-DC24V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB312-4S-3-2CS-DC12V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB312-4S-3-2G-DC24V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB312-4S-3-2G-DC12V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB312-4S-3-2HS-DC24V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB312-4S-3-2HS-DC12V		Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB312-6N-2-2CR-AC100V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB312-6N-2-2CR-AC200V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB312-6N-2-2C-DC24V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB312-6N-2-2C-DC12V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB312-6N-2-2CS-DC24V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB312-6N-2-2CS-DC12V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB312-6N-2-2G-DC24V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB312-6N-2-2G-DC12V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB312-6N-2-2HS-DC24V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB312-6N-2-2HS-DC12V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB312-6N-3-2CR-AC100V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB312-6N-3-2CR-AC200V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB312-6N-3-2C-DC24V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB312-6N-3-2C-DC12V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB312-6N-3-2CS-DC24V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB312-6N-3-2CS-DC12V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB312-6N-3-2G-DC24V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB312-6N-3-2G-DC12V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB312-6N-3-2HS-DC24V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB312-6N-3-2HS-DC12V		Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB312-8N-2-2CR-AC100V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB312-8N-2-2CR-AC200V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB312-8N-2-2C-DC24V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB312-8N-2-2C-DC12V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB312-8N-2-2CS-DC24V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB312-8N-2-2CS-DC12V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB312-8N-2-2G-DC24V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB312-8N-2-2G-DC12V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB312-8N-2-2HS-DC24V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB312-8N-2-2HS-DC12V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB312-8N-3-2CR-AC100V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB312-8N-3-2CR-AC200V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB312-8N-3-2C-DC24V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB312-8N-3-2C-DC12V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB312-8N-3-2CS-DC24V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB312-8N-3-2CS-DC12V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB312-8N-3-2G-DC24V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB312-8N-3-2G-DC12V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB312-8N-3-2HS-DC24V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB312-8N-3-2HS-DC12V		Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB312-6-2-2CR-AC100V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB312-6-2-2CR-AC200V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB312-6-2-2C-DC24V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB312-6-2-2C-DC12V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB312-6-2-2CS-DC24V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB312-6-2-2CS-DC12V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB312-6-2-2G-DC24V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB312-6-2-2G-DC12V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB312-6-2-2HS-DC24V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB312-6-2-2HS-DC12V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB312-6-3-2CR-AC100V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB312-6-3-2CR-AC200V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB312-6-3-2C-DC24V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB312-6-3-2C-DC12V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB312-6-3-2CS-DC24V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB312-6-3-2CS-DC12V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB312-6-3-2G-DC24V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB312-6-3-2G-DC12V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB312-6-3-2HS-DC24V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB312-6-3-2HS-DC12V		Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB312-8-2-2CR-AC100V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB312-8-2-2CR-AC200V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB312-8-2-2C-DC24V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB312-8-2-2C-DC12V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB312-8-2-2CS-DC24V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB312-8-2-2CS-DC12V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB312-8-2-2G-DC24V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB312-8-2-2G-DC12V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB312-8-2-2HS-DC24V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB312-8-2-2HS-DC12V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB312-8-3-2CR-AC100V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB312-8-3-2CR-AC200V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB312-8-3-2C-DC24V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB312-8-3-2C-DC12V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB312-8-3-2CS-DC24V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB312-8-3-2CS-DC12V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB312-8-3-2G-DC24V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB312-8-3-2G-DC12V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB312-8-3-2HS-DC24V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB312-8-3-2HS-DC12V		Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB412-4RM-3-2CR-AC100V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB412-4RM-3-2CR-AC200V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB412-4RM-3-2C-DC24V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB412-4RM-3-2C-DC12V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB412-4RM-3-2CS-DC24V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB412-4RM-3-2CS-DC12V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB412-4RM-3-2G-DC24V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB412-4RM-3-2G-DC12V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB412-4RM-3-2HS-DC24V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB412-4RM-3-2HS-DC12V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB412-4RM-5-2CR-AC100V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB412-4RM-5-2CR-AC200V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB412-4RM-5-2C-DC24V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB412-4RM-5-2C-DC12V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB412-4RM-5-2CS-DC24V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB412-4RM-5-2CS-DC12V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB412-4RM-5-2G-DC24V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB412-4RM-5-2G-DC12V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB412-4RM-5-2HS-DC24V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB412-4RM-5-2HS-DC12V		Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB412-6RM-6-2CR-AC100V		Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB412-6RM-6-2CR-AC200V		Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB412-6RM-6-2C-DC24V		Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB412-6RM-6-2C-DC12V		Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB412-6RM-6-2CS-DC24V		Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB412-6RM-6-2CS-DC12V		Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB412-6RM-6-2G-DC24V		Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB412-6RM-6-2G-DC12V		Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB412-6RM-6-2HS-DC24V		Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB412-6RM-6-2HS-DC12V		Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB412-4S-3-2CR-AC100V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB412-4S-3-2CR-AC200V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB412-4S-3-2C-DC24V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB412-4S-3-2C-DC12V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB412-4S-3-2CS-DC24V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB412-4S-3-2CS-DC12V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB412-4S-3-2G-DC24V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB412-4S-3-2G-DC12V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB412-4S-3-2HS-DC24V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB412-4S-3-2HS-DC12V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB412-4S-5-2CR-AC100V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB412-4S-5-2CR-AC200V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB412-4S-5-2C-DC24V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB412-4S-5-2C-DC12V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB412-4S-5-2CS-DC24V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB412-4S-5-2CS-DC12V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB412-4S-5-2G-DC24V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB412-4S-5-2G-DC12V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB412-4S-5-2HS-DC24V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB412-4S-5-2HS-DC12V		Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB412-6S-6-2CR-AC100V		Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB412-6S-6-2CR-AC200V		Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB412-6S-6-2C-DC24V		Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB412-6S-6-2C-DC12V		Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB412-6S-6-2CS-DC24V		Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB412-6S-6-2CS-DC12V		Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB412-6S-6-2G-DC24V		Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB412-6S-6-2G-DC12V		Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB412-6S-6-2HS-DC24V		Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB412-6S-6-2HS-DC12V		Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB412-8N-3-2CR-AC100V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB412-8N-3-2CR-AC200V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB412-8N-3-2C-DC24V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB412-8N-3-2C-DC12V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB412-8N-3-2CS-DC24V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB412-8N-3-2CS-DC12V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB412-8N-3-2G-DC24V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB412-8N-3-2G-DC12V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB412-8N-3-2HS-DC24V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB412-8N-3-2HS-DC12V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB412-8N-5-2CR-AC100V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB412-8N-5-2CR-AC200V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB412-8N-5-2C-DC24V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB412-8N-5-2C-DC12V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB412-8N-5-2CS-DC24V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB412-8N-5-2CS-DC12V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB412-8N-5-2G-DC24V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB412-8N-5-2G-DC12V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB412-8N-5-2HS-DC24V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB412-8N-5-2HS-DC12V		Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB412-10N-6-2CR-AC100V		Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB412-10N-6-2CR-AC200V		Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB412-10N-6-2C-DC24V		Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB412-10N-6-2C-DC12V		Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB412-10N-6-2CS-DC24V		Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB412-10N-6-2CS-DC12V		Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB412-10N-6-2G-DC24V		Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB412-10N-6-2G-DC12V		Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB412-10N-6-2HS-DC24V		Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB412-10N-6-2HS-DC12V		Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB412-8-3-2CR-AC100V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB412-8-3-2CR-AC200V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB412-8-3-2C-DC24V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB412-8-3-2C-DC12V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB412-8-3-2CS-DC24V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB412-8-3-2CS-DC12V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB412-8-3-2G-DC24V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB412-8-3-2G-DC12V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB412-8-3-2HS-DC24V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB412-8-3-2HS-DC12V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB412-8-5-2CR-AC100V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB412-8-5-2CR-AC200V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB412-8-5-2C-DC24V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB412-8-5-2C-DC12V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB412-8-5-2CS-DC24V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB412-8-5-2CS-DC12V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB412-8-5-2G-DC24V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB412-8-5-2G-DC12V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB412-8-5-2HS-DC24V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB412-8-5-2HS-DC12V		Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB412-10-6-2CR-AC100V		Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB412-10-6-2CR-AC200V		Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB412-10-6-2C-DC24V		Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB412-10-6-2C-DC12V		Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB412-10-6-2CS-DC24V		Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB412-10-6-2CS-DC12V		Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB412-10-6-2G-DC24V		Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB412-10-6-2G-DC12V		Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB412-10-6-2HS-DC24V		Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB412-10-6-2HS-DC12V		Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB512-4RM-5-2CR-AC100V		Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB512-4RM-5-2CR-AC200V		Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB512-4RM-5-2C-DC24V		Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB512-4RM-5-2C-DC12V		Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB512-4RM-5-2CS-DC24V		Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB512-4RM-5-2CS-DC12V		Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB512-4RM-5-2G-DC24V		Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB512-4RM-5-2G-DC12V		Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB512-4RM-5-2HS-DC24V		Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB512-4RM-5-2HS-DC12V		Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB512-6RM-6-2CR-AC100V		Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB512-6RM-6-2CR-AC200V		Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB512-6RM-6-2C-DC24V		Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB512-6RM-6-2C-DC12V		Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB512-6RM-6-2CS-DC24V		Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB512-6RM-6-2CS-DC12V		Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB512-6RM-6-2G-DC24V		Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB512-6RM-6-2G-DC12V		Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB512-6RM-6-2HS-DC24V		Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB512-6RM-6-2HS-DC12V		Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB512-4S-5-2CR-AC100V		Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB512-4S-5-2CR-AC200V		Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB512-4S-5-2C-DC24V		Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB512-4S-5-2C-DC12V		Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB512-4S-5-2CS-DC24V		Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB512-4S-5-2CS-DC12V		Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB512-4S-5-2G-DC24V		Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB512-4S-5-2G-DC12V		Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB512-4S-5-2HS-DC24V		Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB512-4S-5-2HS-DC12V		Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB512-6S-6-2CR-AC100V		Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB512-6S-6-2CR-AC200V		Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB512-6S-6-2C-DC24V		Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB512-6S-6-2C-DC12V		Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB512-6S-6-2CS-DC24V		Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB512-6S-6-2CS-DC12V		Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB512-6S-6-2G-DC24V		Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB512-6S-6-2G-DC12V		Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB512-6S-6-2HS-DC24V		Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB512-6S-6-2HS-DC12V		Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB512-8N-5-2CR-AC100V		Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB512-8N-5-2CR-AC200V		Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB512-8N-5-2C-DC24V		Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB512-8N-5-2C-DC12V		Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB512-8N-5-2CS-DC24V		Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB512-8N-5-2CS-DC12V		Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB512-8N-5-2G-DC24V		Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB512-8N-5-2G-DC12V		Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB512-8N-5-2HS-DC24V		Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB512-8N-5-2HS-DC12V		Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB512-10N-6-2CR-AC100V		Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB512-10N-6-2CR-AC200V		Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB512-10N-6-2C-DC24V		Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB512-10N-6-2C-DC12V		Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB512-10N-6-2CS-DC24V		Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB512-10N-6-2CS-DC12V		Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB512-10N-6-2G-DC24V		Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB512-10N-6-2G-DC12V		Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB512-10N-6-2HS-DC24V		Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB512-10N-6-2HS-DC12V		Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB512-8-5-2CR-AC100V		Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB512-8-5-2CR-AC200V		Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB512-8-5-2C-DC24V		Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB512-8-5-2C-DC12V		Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB512-8-5-2CS-DC24V		Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB512-8-5-2CS-DC12V		Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB512-8-5-2G-DC24V		Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB512-8-5-2G-DC12V		Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB512-8-5-2HS-DC24V		Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB512-8-5-2HS-DC12V		Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
HVB512-10-6-2CR-AC100V		Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
HVB512-10-6-2CR-AC200V		Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
HVB512-10-6-2C-DC24V		Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
HVB512-10-6-2C-DC12V		Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
HVB512-10-6-2CS-DC24V		Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
HVB512-10-6-2CS-DC12V		Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
HVB512-10-6-2G-DC24V		Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
HVB512-10-6-2G-DC12V		Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
HVB512-10-6-2HS-DC24V		Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
HVB512-10-6-2HS-DC12V		Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V

Vacuum ValvesCKD

400 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD HVB212/312/412/512 High Vacuum Solenoid Valve (NC)

Brand CKD·Vacuum Valves

Available part numbers (400)

HVB212-4RM-Z-2CR-AC100V, HVB212-4RM-Z-2CR-AC200V, HVB212-4RM-Z-2C-DC24V, HVB212-4RM-Z-2C-DC12V, HVB212-4RM-Z-2CS-DC24V, HVB212-4RM-Z-2CS-DC12V, HVB212-4RM-Z-2G-DC24V, HVB212-4RM-Z-2G-DC12V, HVB212-4RM-Z-2HS-DC24V, HVB212-4RM-Z-2HS-DC12V + 390 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	HVB212-4RM-Z-2CR-AC100V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB212-4RM-Z-2CR-AC200V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB212-4RM-Z-2C-DC24V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB212-4RM-Z-2C-DC12V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB212-4RM-Z-2CS-DC24V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB212-4RM-Z-2CS-DC12V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB212-4RM-Z-2G-DC24V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB212-4RM-Z-2G-DC12V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB212-4RM-Z-2HS-DC24V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB212-4RM-Z-2HS-DC12V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB212-4RM-2-2CR-AC100V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB212-4RM-2-2CR-AC200V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB212-4RM-2-2C-DC24V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB212-4RM-2-2C-DC12V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB212-4RM-2-2CS-DC24V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB212-4RM-2-2CS-DC12V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB212-4RM-2-2G-DC24V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB212-4RM-2-2G-DC12V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB212-4RM-2-2HS-DC24V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB212-4RM-2-2HS-DC12V	Model: HVB212 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB212-4S-Z-2CR-AC100V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB212-4S-Z-2CR-AC200V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB212-4S-Z-2C-DC24V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB212-4S-Z-2C-DC12V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB212-4S-Z-2CS-DC24V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB212-4S-Z-2CS-DC12V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB212-4S-Z-2G-DC24V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB212-4S-Z-2G-DC12V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB212-4S-Z-2HS-DC24V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB212-4S-Z-2HS-DC12V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB212-4S-2-2CR-AC100V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB212-4S-2-2CR-AC200V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB212-4S-2-2C-DC24V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB212-4S-2-2C-DC12V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB212-4S-2-2CS-DC24V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB212-4S-2-2CS-DC12V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB212-4S-2-2G-DC24V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB212-4S-2-2G-DC12V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB212-4S-2-2HS-DC24V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB212-4S-2-2HS-DC12V	Model: HVB212 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB212-6N-Z-2CR-AC100V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB212-6N-Z-2CR-AC200V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB212-6N-Z-2C-DC24V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB212-6N-Z-2C-DC12V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB212-6N-Z-2CS-DC24V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB212-6N-Z-2CS-DC12V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB212-6N-Z-2G-DC24V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB212-6N-Z-2G-DC12V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB212-6N-Z-2HS-DC24V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB212-6N-Z-2HS-DC12V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB212-6N-2-2CR-AC100V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB212-6N-2-2CR-AC200V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB212-6N-2-2C-DC24V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB212-6N-2-2C-DC12V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB212-6N-2-2CS-DC24V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB212-6N-2-2CS-DC12V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB212-6N-2-2G-DC24V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB212-6N-2-2G-DC12V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB212-6N-2-2HS-DC24V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB212-6N-2-2HS-DC12V	Model: HVB212 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB212-6-Z-2CR-AC100V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB212-6-Z-2CR-AC200V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB212-6-Z-2C-DC24V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB212-6-Z-2C-DC12V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB212-6-Z-2CS-DC24V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB212-6-Z-2CS-DC12V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB212-6-Z-2G-DC24V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB212-6-Z-2G-DC12V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB212-6-Z-2HS-DC24V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB212-6-Z-2HS-DC12V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 1 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB212-6-2-2CR-AC100V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB212-6-2-2CR-AC200V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB212-6-2-2C-DC24V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB212-6-2-2C-DC12V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB212-6-2-2CS-DC24V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB212-6-2-2CS-DC12V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB212-6-2-2G-DC24V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB212-6-2-2G-DC12V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB212-6-2-2HS-DC24V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB212-6-2-2HS-DC12V	Model: HVB212 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB312-4RM-2-2CR-AC100V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB312-4RM-2-2CR-AC200V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB312-4RM-2-2C-DC24V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB312-4RM-2-2C-DC12V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB312-4RM-2-2CS-DC24V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB312-4RM-2-2CS-DC12V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB312-4RM-2-2G-DC24V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB312-4RM-2-2G-DC12V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB312-4RM-2-2HS-DC24V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB312-4RM-2-2HS-DC12V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB312-4RM-3-2CR-AC100V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB312-4RM-3-2CR-AC200V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB312-4RM-3-2C-DC24V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB312-4RM-3-2C-DC12V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB312-4RM-3-2CS-DC24V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB312-4RM-3-2CS-DC12V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB312-4RM-3-2G-DC24V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB312-4RM-3-2G-DC12V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB312-4RM-3-2HS-DC24V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB312-4RM-3-2HS-DC12V	Model: HVB312 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB312-4S-2-2CR-AC100V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB312-4S-2-2CR-AC200V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB312-4S-2-2C-DC24V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB312-4S-2-2C-DC12V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB312-4S-2-2CS-DC24V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB312-4S-2-2CS-DC12V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB312-4S-2-2G-DC24V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB312-4S-2-2G-DC12V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB312-4S-2-2HS-DC24V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB312-4S-2-2HS-DC12V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB312-4S-3-2CR-AC100V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB312-4S-3-2CR-AC200V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB312-4S-3-2C-DC24V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB312-4S-3-2C-DC12V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB312-4S-3-2CS-DC24V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB312-4S-3-2CS-DC12V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB312-4S-3-2G-DC24V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB312-4S-3-2G-DC12V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB312-4S-3-2HS-DC24V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB312-4S-3-2HS-DC12V	Model: HVB312 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB312-6N-2-2CR-AC100V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB312-6N-2-2CR-AC200V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB312-6N-2-2C-DC24V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB312-6N-2-2C-DC12V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB312-6N-2-2CS-DC24V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB312-6N-2-2CS-DC12V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB312-6N-2-2G-DC24V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB312-6N-2-2G-DC12V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB312-6N-2-2HS-DC24V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB312-6N-2-2HS-DC12V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB312-6N-3-2CR-AC100V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB312-6N-3-2CR-AC200V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB312-6N-3-2C-DC24V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB312-6N-3-2C-DC12V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB312-6N-3-2CS-DC24V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB312-6N-3-2CS-DC12V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB312-6N-3-2G-DC24V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB312-6N-3-2G-DC12V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB312-6N-3-2HS-DC24V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB312-6N-3-2HS-DC12V	Model: HVB312 \| Connection: NPT1/8 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB312-8N-2-2CR-AC100V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB312-8N-2-2CR-AC200V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB312-8N-2-2C-DC24V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB312-8N-2-2C-DC12V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB312-8N-2-2CS-DC24V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB312-8N-2-2CS-DC12V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB312-8N-2-2G-DC24V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB312-8N-2-2G-DC12V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB312-8N-2-2HS-DC24V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB312-8N-2-2HS-DC12V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB312-8N-3-2CR-AC100V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB312-8N-3-2CR-AC200V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB312-8N-3-2C-DC24V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB312-8N-3-2C-DC12V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB312-8N-3-2CS-DC24V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB312-8N-3-2CS-DC12V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB312-8N-3-2G-DC24V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB312-8N-3-2G-DC12V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB312-8N-3-2HS-DC24V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB312-8N-3-2HS-DC12V	Model: HVB312 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB312-6-2-2CR-AC100V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB312-6-2-2CR-AC200V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB312-6-2-2C-DC24V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB312-6-2-2C-DC12V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB312-6-2-2CS-DC24V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB312-6-2-2CS-DC12V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB312-6-2-2G-DC24V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB312-6-2-2G-DC12V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB312-6-2-2HS-DC24V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB312-6-2-2HS-DC12V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB312-6-3-2CR-AC100V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB312-6-3-2CR-AC200V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB312-6-3-2C-DC24V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB312-6-3-2C-DC12V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB312-6-3-2CS-DC24V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB312-6-3-2CS-DC12V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB312-6-3-2G-DC24V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB312-6-3-2G-DC12V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB312-6-3-2HS-DC24V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB312-6-3-2HS-DC12V	Model: HVB312 \| Connection: Rc1/8 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB312-8-2-2CR-AC100V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB312-8-2-2CR-AC200V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB312-8-2-2C-DC24V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB312-8-2-2C-DC12V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB312-8-2-2CS-DC24V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB312-8-2-2CS-DC12V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB312-8-2-2G-DC24V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB312-8-2-2G-DC12V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB312-8-2-2HS-DC24V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB312-8-2-2HS-DC12V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 2 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB312-8-3-2CR-AC100V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB312-8-3-2CR-AC200V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB312-8-3-2C-DC24V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB312-8-3-2C-DC12V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB312-8-3-2CS-DC24V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB312-8-3-2CS-DC12V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB312-8-3-2G-DC24V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB312-8-3-2G-DC12V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB312-8-3-2HS-DC24V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB312-8-3-2HS-DC12V	Model: HVB312 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB412-4RM-3-2CR-AC100V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB412-4RM-3-2CR-AC200V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB412-4RM-3-2C-DC24V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB412-4RM-3-2C-DC12V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB412-4RM-3-2CS-DC24V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB412-4RM-3-2CS-DC12V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB412-4RM-3-2G-DC24V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB412-4RM-3-2G-DC12V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB412-4RM-3-2HS-DC24V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB412-4RM-3-2HS-DC12V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB412-4RM-5-2CR-AC100V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB412-4RM-5-2CR-AC200V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB412-4RM-5-2C-DC24V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB412-4RM-5-2C-DC12V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB412-4RM-5-2CS-DC24V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB412-4RM-5-2CS-DC12V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB412-4RM-5-2G-DC24V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB412-4RM-5-2G-DC12V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB412-4RM-5-2HS-DC24V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB412-4RM-5-2HS-DC12V	Model: HVB412 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB412-6RM-6-2CR-AC100V	Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB412-6RM-6-2CR-AC200V	Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB412-6RM-6-2C-DC24V	Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB412-6RM-6-2C-DC12V	Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB412-6RM-6-2CS-DC24V	Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB412-6RM-6-2CS-DC12V	Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB412-6RM-6-2G-DC24V	Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB412-6RM-6-2G-DC12V	Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB412-6RM-6-2HS-DC24V	Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB412-6RM-6-2HS-DC12V	Model: HVB412 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB412-4S-3-2CR-AC100V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB412-4S-3-2CR-AC200V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB412-4S-3-2C-DC24V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB412-4S-3-2C-DC12V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB412-4S-3-2CS-DC24V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB412-4S-3-2CS-DC12V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB412-4S-3-2G-DC24V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB412-4S-3-2G-DC12V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB412-4S-3-2HS-DC24V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB412-4S-3-2HS-DC12V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB412-4S-5-2CR-AC100V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB412-4S-5-2CR-AC200V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB412-4S-5-2C-DC24V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB412-4S-5-2C-DC12V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB412-4S-5-2CS-DC24V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB412-4S-5-2CS-DC12V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB412-4S-5-2G-DC24V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB412-4S-5-2G-DC12V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB412-4S-5-2HS-DC24V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB412-4S-5-2HS-DC12V	Model: HVB412 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB412-6S-6-2CR-AC100V	Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB412-6S-6-2CR-AC200V	Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB412-6S-6-2C-DC24V	Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB412-6S-6-2C-DC12V	Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB412-6S-6-2CS-DC24V	Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB412-6S-6-2CS-DC12V	Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB412-6S-6-2G-DC24V	Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB412-6S-6-2G-DC12V	Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB412-6S-6-2HS-DC24V	Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB412-6S-6-2HS-DC12V	Model: HVB412 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB412-8N-3-2CR-AC100V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB412-8N-3-2CR-AC200V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB412-8N-3-2C-DC24V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB412-8N-3-2C-DC12V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB412-8N-3-2CS-DC24V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB412-8N-3-2CS-DC12V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB412-8N-3-2G-DC24V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB412-8N-3-2G-DC12V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB412-8N-3-2HS-DC24V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB412-8N-3-2HS-DC12V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB412-8N-5-2CR-AC100V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB412-8N-5-2CR-AC200V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB412-8N-5-2C-DC24V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB412-8N-5-2C-DC12V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB412-8N-5-2CS-DC24V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB412-8N-5-2CS-DC12V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB412-8N-5-2G-DC24V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB412-8N-5-2G-DC12V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB412-8N-5-2HS-DC24V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB412-8N-5-2HS-DC12V	Model: HVB412 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB412-10N-6-2CR-AC100V	Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB412-10N-6-2CR-AC200V	Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB412-10N-6-2C-DC24V	Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB412-10N-6-2C-DC12V	Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB412-10N-6-2CS-DC24V	Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB412-10N-6-2CS-DC12V	Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB412-10N-6-2G-DC24V	Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB412-10N-6-2G-DC12V	Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB412-10N-6-2HS-DC24V	Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB412-10N-6-2HS-DC12V	Model: HVB412 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB412-8-3-2CR-AC100V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB412-8-3-2CR-AC200V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB412-8-3-2C-DC24V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB412-8-3-2C-DC12V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB412-8-3-2CS-DC24V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB412-8-3-2CS-DC12V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB412-8-3-2G-DC24V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB412-8-3-2G-DC12V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB412-8-3-2HS-DC24V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB412-8-3-2HS-DC12V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 3 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB412-8-5-2CR-AC100V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB412-8-5-2CR-AC200V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB412-8-5-2C-DC24V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB412-8-5-2C-DC12V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB412-8-5-2CS-DC24V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB412-8-5-2CS-DC12V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB412-8-5-2G-DC24V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB412-8-5-2G-DC12V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB412-8-5-2HS-DC24V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB412-8-5-2HS-DC12V	Model: HVB412 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB412-10-6-2CR-AC100V	Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB412-10-6-2CR-AC200V	Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB412-10-6-2C-DC24V	Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB412-10-6-2C-DC12V	Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB412-10-6-2CS-DC24V	Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB412-10-6-2CS-DC12V	Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB412-10-6-2G-DC24V	Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB412-10-6-2G-DC12V	Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB412-10-6-2HS-DC24V	Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB412-10-6-2HS-DC12V	Model: HVB412 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB512-4RM-5-2CR-AC100V	Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB512-4RM-5-2CR-AC200V	Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB512-4RM-5-2C-DC24V	Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB512-4RM-5-2C-DC12V	Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB512-4RM-5-2CS-DC24V	Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB512-4RM-5-2CS-DC12V	Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB512-4RM-5-2G-DC24V	Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB512-4RM-5-2G-DC12V	Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB512-4RM-5-2HS-DC24V	Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB512-4RM-5-2HS-DC12V	Model: HVB512 \| Connection: 1/4" JXR male fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB512-6RM-6-2CR-AC100V	Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB512-6RM-6-2CR-AC200V	Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB512-6RM-6-2C-DC24V	Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB512-6RM-6-2C-DC12V	Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB512-6RM-6-2CS-DC24V	Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB512-6RM-6-2CS-DC12V	Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB512-6RM-6-2G-DC24V	Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB512-6RM-6-2G-DC12V	Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB512-6RM-6-2HS-DC24V	Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB512-6RM-6-2HS-DC12V	Model: HVB512 \| Connection: 3/8" JXR male fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB512-4S-5-2CR-AC100V	Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB512-4S-5-2CR-AC200V	Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB512-4S-5-2C-DC24V	Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB512-4S-5-2C-DC12V	Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB512-4S-5-2CS-DC24V	Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB512-4S-5-2CS-DC12V	Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB512-4S-5-2G-DC24V	Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB512-4S-5-2G-DC12V	Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB512-4S-5-2HS-DC24V	Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB512-4S-5-2HS-DC12V	Model: HVB512 \| Connection: 1/4" bite fitting \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB512-6S-6-2CR-AC100V	Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB512-6S-6-2CR-AC200V	Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB512-6S-6-2C-DC24V	Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB512-6S-6-2C-DC12V	Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB512-6S-6-2CS-DC24V	Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB512-6S-6-2CS-DC12V	Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB512-6S-6-2G-DC24V	Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB512-6S-6-2G-DC12V	Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB512-6S-6-2HS-DC24V	Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB512-6S-6-2HS-DC12V	Model: HVB512 \| Connection: 3/8" bite fitting \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB512-8N-5-2CR-AC100V	Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB512-8N-5-2CR-AC200V	Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB512-8N-5-2C-DC24V	Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB512-8N-5-2C-DC12V	Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB512-8N-5-2CS-DC24V	Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB512-8N-5-2CS-DC12V	Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB512-8N-5-2G-DC24V	Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB512-8N-5-2G-DC12V	Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB512-8N-5-2HS-DC24V	Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB512-8N-5-2HS-DC12V	Model: HVB512 \| Connection: NPT1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB512-10N-6-2CR-AC100V	Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB512-10N-6-2CR-AC200V	Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB512-10N-6-2C-DC24V	Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB512-10N-6-2C-DC12V	Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB512-10N-6-2CS-DC24V	Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB512-10N-6-2CS-DC12V	Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB512-10N-6-2G-DC24V	Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB512-10N-6-2G-DC12V	Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB512-10N-6-2HS-DC24V	Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB512-10N-6-2HS-DC12V	Model: HVB512 \| Connection: NPT3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB512-8-5-2CR-AC100V	Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB512-8-5-2CR-AC200V	Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB512-8-5-2C-DC24V	Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB512-8-5-2C-DC12V	Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB512-8-5-2CS-DC24V	Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB512-8-5-2CS-DC12V	Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB512-8-5-2G-DC24V	Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB512-8-5-2G-DC12V	Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB512-8-5-2HS-DC24V	Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB512-8-5-2HS-DC12V	Model: HVB512 \| Connection: Rc1/4 \| Orifice: 4.5 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V
	HVB512-10-6-2CR-AC100V	Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC100V
	HVB512-10-6-2CR-AC200V	Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, full-wave rectifier \| Voltage: AC200V
	HVB512-10-6-2C-DC24V	Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC24V
	HVB512-10-6-2C-DC12V	Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet lead wire \| Voltage: DC12V
	HVB512-10-6-2CS-DC24V	Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC24V
	HVB512-10-6-2CS-DC12V	Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: Grommet, surge suppressor \| Voltage: DC12V
	HVB512-10-6-2G-DC24V	Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC24V
	HVB512-10-6-2G-DC12V	Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN terminal box (Pg11) \| Voltage: DC12V
	HVB512-10-6-2HS-DC24V	Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC24V
	HVB512-10-6-2HS-DC12V	Model: HVB512 \| Connection: Rc3/8 \| Orifice: 6 mm \| Coil option: DIN box, lamp, surge suppr. \| Voltage: DC12V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD HVB212/312/412/512 High Vacuum Solenoid Valve (NC)
