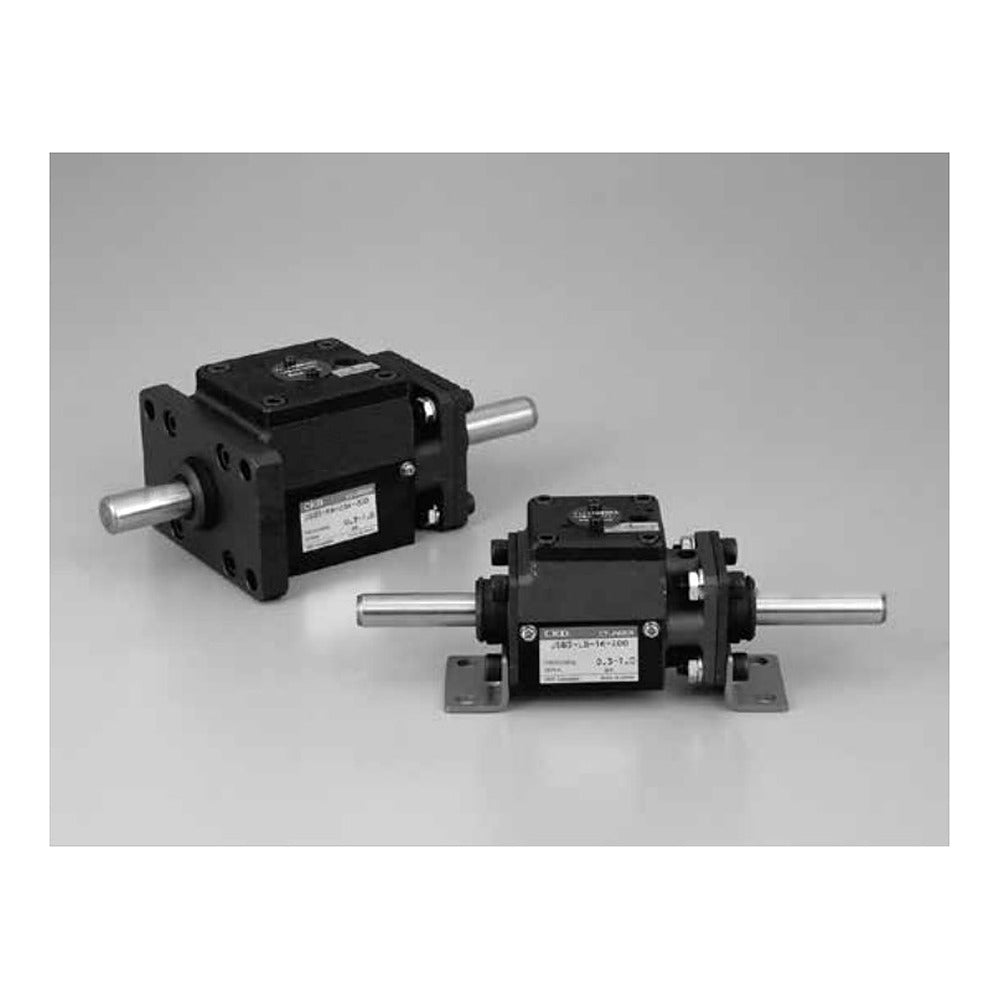

CKD JSB3 Brake Unit (Rod 16-45 mm)

CKD JSB3 Brake Unit (Rod 16-45 mm)

The CKD JSB3 is a pneumatic brake unit that brakes and holds a 16 to 45 mm rod for intermediate stopping and drop prevention.

Key features

  • Spring-driven eccentric rings brake the rod when port A is exhausted
  • Holding force 980 to 20000 N; stop accuracy +/-1.0 mm at 300 mm/s
  • Axial foot (LB) or flange (FA) mounting
  • Rod supplied in 200 to 1000 mm lengths or omitted; up to 3000 mm in 1 mm steps on order
  • Manual release by tightening a bolt

Specifications

Working fluid Compressed air
Max. working pressure 1.0 MPa
Min. working pressure 0.3 MPa
Proof pressure 1.6 MPa
Ambient temperature -10 to 60 C
Rod speed 10 to 1000 mm/s
Port Rc1/8 to Rc1/2 by size
Source CKD Korea catalog CB-030SK-9, p. 1021-1026
JSB3-LB-16 Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: No rod supplied
JSB3-LB-16-200 Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 200 mm
JSB3-LB-16-300 Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 300 mm
JSB3-LB-16-400 Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 400 mm
JSB3-LB-16-500 Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 500 mm
JSB3-LB-16-600 Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 600 mm
JSB3-LB-16-700 Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 700 mm
JSB3-LB-16-800 Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 800 mm
JSB3-LB-16-900 Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 900 mm
JSB3-LB-16-1000 Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 1000 mm
JSB3-LB-20 Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: No rod supplied
JSB3-LB-20-200 Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 200 mm
JSB3-LB-20-300 Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 300 mm
JSB3-LB-20-400 Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 400 mm
JSB3-LB-20-500 Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 500 mm
JSB3-LB-20-600 Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 600 mm
JSB3-LB-20-700 Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 700 mm
JSB3-LB-20-800 Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 800 mm
JSB3-LB-20-900 Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 900 mm
JSB3-LB-20-1000 Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 1000 mm
JSB3-LB-20A Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: No rod supplied
JSB3-LB-20A-200 Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 200 mm
JSB3-LB-20A-300 Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 300 mm
JSB3-LB-20A-400 Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 400 mm
JSB3-LB-20A-500 Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 500 mm
JSB3-LB-20A-600 Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 600 mm
JSB3-LB-20A-700 Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 700 mm
JSB3-LB-20A-800 Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 800 mm
JSB3-LB-20A-900 Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 900 mm
JSB3-LB-20A-1000 Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 1000 mm
JSB3-LB-25 Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: No rod supplied
JSB3-LB-25-200 Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 200 mm
JSB3-LB-25-300 Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 300 mm
JSB3-LB-25-400 Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 400 mm
JSB3-LB-25-500 Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 500 mm
JSB3-LB-25-600 Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 600 mm
JSB3-LB-25-700 Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 700 mm
JSB3-LB-25-800 Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 800 mm
JSB3-LB-25-900 Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 900 mm
JSB3-LB-25-1000 Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 1000 mm
JSB3-LB-30 Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: No rod supplied
JSB3-LB-30-300 Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 300 mm
JSB3-LB-30-400 Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 400 mm
JSB3-LB-30-500 Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 500 mm
JSB3-LB-30-600 Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 600 mm
JSB3-LB-30-700 Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 700 mm
JSB3-LB-30-800 Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 800 mm
JSB3-LB-30-900 Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 900 mm
JSB3-LB-30-1000 Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 1000 mm
JSB3-LB-35 Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: No rod supplied
JSB3-LB-35-300 Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 300 mm
JSB3-LB-35-400 Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 400 mm
JSB3-LB-35-500 Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 500 mm
JSB3-LB-35-600 Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 600 mm
JSB3-LB-35-700 Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 700 mm
JSB3-LB-35-800 Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 800 mm
JSB3-LB-35-900 Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 900 mm
JSB3-LB-35-1000 Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 1000 mm
JSB3-LB-35A Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: No rod supplied
JSB3-LB-35A-300 Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 300 mm
JSB3-LB-35A-400 Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 400 mm
JSB3-LB-35A-500 Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 500 mm
JSB3-LB-35A-600 Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 600 mm
JSB3-LB-35A-700 Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 700 mm
JSB3-LB-35A-800 Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 800 mm
JSB3-LB-35A-900 Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 900 mm
JSB3-LB-35A-1000 Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 1000 mm
JSB3-LB-40 Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: No rod supplied
JSB3-LB-40-400 Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: 400 mm
JSB3-LB-40-500 Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: 500 mm
JSB3-LB-40-600 Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: 600 mm
JSB3-LB-40-700 Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: 700 mm
JSB3-LB-40-800 Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: 800 mm
JSB3-LB-40-900 Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: 900 mm
JSB3-LB-40-1000 Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: 1000 mm
JSB3-LB-45 Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: No rod supplied
JSB3-LB-45-400 Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: 400 mm
JSB3-LB-45-500 Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: 500 mm
JSB3-LB-45-600 Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: 600 mm
JSB3-LB-45-700 Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: 700 mm
JSB3-LB-45-800 Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: 800 mm
JSB3-LB-45-900 Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: 900 mm
JSB3-LB-45-1000 Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: 1000 mm
JSB3-FA-16 Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: No rod supplied
JSB3-FA-16-200 Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 200 mm
JSB3-FA-16-300 Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 300 mm
JSB3-FA-16-400 Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 400 mm
JSB3-FA-16-500 Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 500 mm
JSB3-FA-16-600 Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 600 mm
JSB3-FA-16-700 Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 700 mm
JSB3-FA-16-800 Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 800 mm
JSB3-FA-16-900 Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 900 mm
JSB3-FA-16-1000 Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 1000 mm
JSB3-FA-20 Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: No rod supplied
JSB3-FA-20-200 Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 200 mm
JSB3-FA-20-300 Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 300 mm
JSB3-FA-20-400 Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 400 mm
JSB3-FA-20-500 Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 500 mm
JSB3-FA-20-600 Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 600 mm
JSB3-FA-20-700 Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 700 mm
JSB3-FA-20-800 Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 800 mm
JSB3-FA-20-900 Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 900 mm
JSB3-FA-20-1000 Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 1000 mm
JSB3-FA-20A Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: No rod supplied
JSB3-FA-20A-200 Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 200 mm
JSB3-FA-20A-300 Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 300 mm
JSB3-FA-20A-400 Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 400 mm
JSB3-FA-20A-500 Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 500 mm
JSB3-FA-20A-600 Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 600 mm
JSB3-FA-20A-700 Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 700 mm
JSB3-FA-20A-800 Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 800 mm
JSB3-FA-20A-900 Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 900 mm
JSB3-FA-20A-1000 Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 1000 mm
JSB3-FA-25 Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: No rod supplied
JSB3-FA-25-200 Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 200 mm
JSB3-FA-25-300 Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 300 mm
JSB3-FA-25-400 Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 400 mm
JSB3-FA-25-500 Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 500 mm
JSB3-FA-25-600 Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 600 mm
JSB3-FA-25-700 Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 700 mm
JSB3-FA-25-800 Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 800 mm
JSB3-FA-25-900 Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 900 mm
JSB3-FA-25-1000 Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 1000 mm
JSB3-FA-30 Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: No rod supplied
JSB3-FA-30-300 Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 300 mm
JSB3-FA-30-400 Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 400 mm
JSB3-FA-30-500 Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 500 mm
JSB3-FA-30-600 Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 600 mm
JSB3-FA-30-700 Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 700 mm
JSB3-FA-30-800 Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 800 mm
JSB3-FA-30-900 Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 900 mm
JSB3-FA-30-1000 Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 1000 mm
JSB3-FA-35 Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: No rod supplied
JSB3-FA-35-300 Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 300 mm
JSB3-FA-35-400 Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 400 mm
JSB3-FA-35-500 Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 500 mm
JSB3-FA-35-600 Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 600 mm
JSB3-FA-35-700 Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 700 mm
JSB3-FA-35-800 Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 800 mm
JSB3-FA-35-900 Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 900 mm
JSB3-FA-35-1000 Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 1000 mm
JSB3-FA-35A Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: No rod supplied
JSB3-FA-35A-300 Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 300 mm
JSB3-FA-35A-400 Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 400 mm
JSB3-FA-35A-500 Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 500 mm
JSB3-FA-35A-600 Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 600 mm
JSB3-FA-35A-700 Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 700 mm
JSB3-FA-35A-800 Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 800 mm
JSB3-FA-35A-900 Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 900 mm
JSB3-FA-35A-1000 Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 1000 mm
JSB3-FA-40 Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: No rod supplied
JSB3-FA-40-400 Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: 400 mm
JSB3-FA-40-500 Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: 500 mm
JSB3-FA-40-600 Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: 600 mm
JSB3-FA-40-700 Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: 700 mm
JSB3-FA-40-800 Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: 800 mm
JSB3-FA-40-900 Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: 900 mm
JSB3-FA-40-1000 Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: 1000 mm
JSB3-FA-45 Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: No rod supplied
JSB3-FA-45-400 Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: 400 mm
JSB3-FA-45-500 Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: 500 mm
JSB3-FA-45-600 Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: 600 mm
JSB3-FA-45-700 Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: 700 mm
JSB3-FA-45-800 Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: 800 mm
JSB3-FA-45-900 Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: 900 mm
JSB3-FA-45-1000 Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: 1000 mm
Brake & Lock UnitsCKD
166 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD JSB3 Brake Unit (Rod 16-45 mm)

Brand CKD·Brake & Lock Units

Available part numbers (166)

JSB3-LB-16, JSB3-LB-16-200, JSB3-LB-16-300, JSB3-LB-16-400, JSB3-LB-16-500, JSB3-LB-16-600, JSB3-LB-16-700, JSB3-LB-16-800, JSB3-LB-16-900, JSB3-LB-16-1000 + 156 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JSB3-LB-16Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: No rod supplied
JSB3-LB-16-200Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 200 mm
JSB3-LB-16-300Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 300 mm
JSB3-LB-16-400Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 400 mm
JSB3-LB-16-500Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 500 mm
JSB3-LB-16-600Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 600 mm
JSB3-LB-16-700Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 700 mm
JSB3-LB-16-800Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 800 mm
JSB3-LB-16-900Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 900 mm
JSB3-LB-16-1000Mounting: Axial foot | Rod code: 16 | Rod diameter: 16 mm | Rod length: 1000 mm
JSB3-LB-20Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: No rod supplied
JSB3-LB-20-200Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 200 mm
JSB3-LB-20-300Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 300 mm
JSB3-LB-20-400Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 400 mm
JSB3-LB-20-500Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 500 mm
JSB3-LB-20-600Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 600 mm
JSB3-LB-20-700Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 700 mm
JSB3-LB-20-800Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 800 mm
JSB3-LB-20-900Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 900 mm
JSB3-LB-20-1000Mounting: Axial foot | Rod code: 20 | Rod diameter: 20 mm | Rod length: 1000 mm
JSB3-LB-20AMounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: No rod supplied
JSB3-LB-20A-200Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 200 mm
JSB3-LB-20A-300Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 300 mm
JSB3-LB-20A-400Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 400 mm
JSB3-LB-20A-500Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 500 mm
JSB3-LB-20A-600Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 600 mm
JSB3-LB-20A-700Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 700 mm
JSB3-LB-20A-800Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 800 mm
JSB3-LB-20A-900Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 900 mm
JSB3-LB-20A-1000Mounting: Axial foot | Rod code: 20A | Rod diameter: 20 mm | Rod length: 1000 mm
JSB3-LB-25Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: No rod supplied
JSB3-LB-25-200Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 200 mm
JSB3-LB-25-300Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 300 mm
JSB3-LB-25-400Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 400 mm
JSB3-LB-25-500Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 500 mm
JSB3-LB-25-600Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 600 mm
JSB3-LB-25-700Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 700 mm
JSB3-LB-25-800Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 800 mm
JSB3-LB-25-900Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 900 mm
JSB3-LB-25-1000Mounting: Axial foot | Rod code: 25 | Rod diameter: 25 mm | Rod length: 1000 mm
JSB3-LB-30Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: No rod supplied
JSB3-LB-30-300Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 300 mm
JSB3-LB-30-400Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 400 mm
JSB3-LB-30-500Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 500 mm
JSB3-LB-30-600Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 600 mm
JSB3-LB-30-700Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 700 mm
JSB3-LB-30-800Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 800 mm
JSB3-LB-30-900Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 900 mm
JSB3-LB-30-1000Mounting: Axial foot | Rod code: 30 | Rod diameter: 30 mm | Rod length: 1000 mm
JSB3-LB-35Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: No rod supplied
JSB3-LB-35-300Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 300 mm
JSB3-LB-35-400Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 400 mm
JSB3-LB-35-500Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 500 mm
JSB3-LB-35-600Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 600 mm
JSB3-LB-35-700Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 700 mm
JSB3-LB-35-800Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 800 mm
JSB3-LB-35-900Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 900 mm
JSB3-LB-35-1000Mounting: Axial foot | Rod code: 35 | Rod diameter: 35 mm | Rod length: 1000 mm
JSB3-LB-35AMounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: No rod supplied
JSB3-LB-35A-300Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 300 mm
JSB3-LB-35A-400Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 400 mm
JSB3-LB-35A-500Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 500 mm
JSB3-LB-35A-600Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 600 mm
JSB3-LB-35A-700Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 700 mm
JSB3-LB-35A-800Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 800 mm
JSB3-LB-35A-900Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 900 mm
JSB3-LB-35A-1000Mounting: Axial foot | Rod code: 35A | Rod diameter: 35 mm | Rod length: 1000 mm
JSB3-LB-40Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: No rod supplied
JSB3-LB-40-400Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: 400 mm
JSB3-LB-40-500Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: 500 mm
JSB3-LB-40-600Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: 600 mm
JSB3-LB-40-700Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: 700 mm
JSB3-LB-40-800Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: 800 mm
JSB3-LB-40-900Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: 900 mm
JSB3-LB-40-1000Mounting: Axial foot | Rod code: 40 | Rod diameter: 40 mm | Rod length: 1000 mm
JSB3-LB-45Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: No rod supplied
JSB3-LB-45-400Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: 400 mm
JSB3-LB-45-500Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: 500 mm
JSB3-LB-45-600Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: 600 mm
JSB3-LB-45-700Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: 700 mm
JSB3-LB-45-800Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: 800 mm
JSB3-LB-45-900Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: 900 mm
JSB3-LB-45-1000Mounting: Axial foot | Rod code: 45 | Rod diameter: 45 mm | Rod length: 1000 mm
JSB3-FA-16Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: No rod supplied
JSB3-FA-16-200Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 200 mm
JSB3-FA-16-300Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 300 mm
JSB3-FA-16-400Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 400 mm
JSB3-FA-16-500Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 500 mm
JSB3-FA-16-600Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 600 mm
JSB3-FA-16-700Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 700 mm
JSB3-FA-16-800Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 800 mm
JSB3-FA-16-900Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 900 mm
JSB3-FA-16-1000Mounting: Flange | Rod code: 16 | Rod diameter: 16 mm | Rod length: 1000 mm
JSB3-FA-20Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: No rod supplied
JSB3-FA-20-200Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 200 mm
JSB3-FA-20-300Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 300 mm
JSB3-FA-20-400Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 400 mm
JSB3-FA-20-500Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 500 mm
JSB3-FA-20-600Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 600 mm
JSB3-FA-20-700Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 700 mm
JSB3-FA-20-800Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 800 mm
JSB3-FA-20-900Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 900 mm
JSB3-FA-20-1000Mounting: Flange | Rod code: 20 | Rod diameter: 20 mm | Rod length: 1000 mm
JSB3-FA-20AMounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: No rod supplied
JSB3-FA-20A-200Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 200 mm
JSB3-FA-20A-300Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 300 mm
JSB3-FA-20A-400Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 400 mm
JSB3-FA-20A-500Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 500 mm
JSB3-FA-20A-600Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 600 mm
JSB3-FA-20A-700Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 700 mm
JSB3-FA-20A-800Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 800 mm
JSB3-FA-20A-900Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 900 mm
JSB3-FA-20A-1000Mounting: Flange | Rod code: 20A | Rod diameter: 20 mm | Rod length: 1000 mm
JSB3-FA-25Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: No rod supplied
JSB3-FA-25-200Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 200 mm
JSB3-FA-25-300Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 300 mm
JSB3-FA-25-400Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 400 mm
JSB3-FA-25-500Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 500 mm
JSB3-FA-25-600Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 600 mm
JSB3-FA-25-700Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 700 mm
JSB3-FA-25-800Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 800 mm
JSB3-FA-25-900Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 900 mm
JSB3-FA-25-1000Mounting: Flange | Rod code: 25 | Rod diameter: 25 mm | Rod length: 1000 mm
JSB3-FA-30Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: No rod supplied
JSB3-FA-30-300Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 300 mm
JSB3-FA-30-400Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 400 mm
JSB3-FA-30-500Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 500 mm
JSB3-FA-30-600Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 600 mm
JSB3-FA-30-700Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 700 mm
JSB3-FA-30-800Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 800 mm
JSB3-FA-30-900Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 900 mm
JSB3-FA-30-1000Mounting: Flange | Rod code: 30 | Rod diameter: 30 mm | Rod length: 1000 mm
JSB3-FA-35Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: No rod supplied
JSB3-FA-35-300Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 300 mm
JSB3-FA-35-400Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 400 mm
JSB3-FA-35-500Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 500 mm
JSB3-FA-35-600Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 600 mm
JSB3-FA-35-700Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 700 mm
JSB3-FA-35-800Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 800 mm
JSB3-FA-35-900Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 900 mm
JSB3-FA-35-1000Mounting: Flange | Rod code: 35 | Rod diameter: 35 mm | Rod length: 1000 mm
JSB3-FA-35AMounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: No rod supplied
JSB3-FA-35A-300Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 300 mm
JSB3-FA-35A-400Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 400 mm
JSB3-FA-35A-500Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 500 mm
JSB3-FA-35A-600Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 600 mm
JSB3-FA-35A-700Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 700 mm
JSB3-FA-35A-800Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 800 mm
JSB3-FA-35A-900Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 900 mm
JSB3-FA-35A-1000Mounting: Flange | Rod code: 35A | Rod diameter: 35 mm | Rod length: 1000 mm
JSB3-FA-40Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: No rod supplied
JSB3-FA-40-400Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: 400 mm
JSB3-FA-40-500Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: 500 mm
JSB3-FA-40-600Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: 600 mm
JSB3-FA-40-700Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: 700 mm
JSB3-FA-40-800Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: 800 mm
JSB3-FA-40-900Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: 900 mm
JSB3-FA-40-1000Mounting: Flange | Rod code: 40 | Rod diameter: 40 mm | Rod length: 1000 mm
JSB3-FA-45Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: No rod supplied
JSB3-FA-45-400Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: 400 mm
JSB3-FA-45-500Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: 500 mm
JSB3-FA-45-600Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: 600 mm
JSB3-FA-45-700Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: 700 mm
JSB3-FA-45-800Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: 800 mm
JSB3-FA-45-900Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: 900 mm
JSB3-FA-45-1000Mounting: Flange | Rod code: 45 | Rod diameter: 45 mm | Rod length: 1000 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
